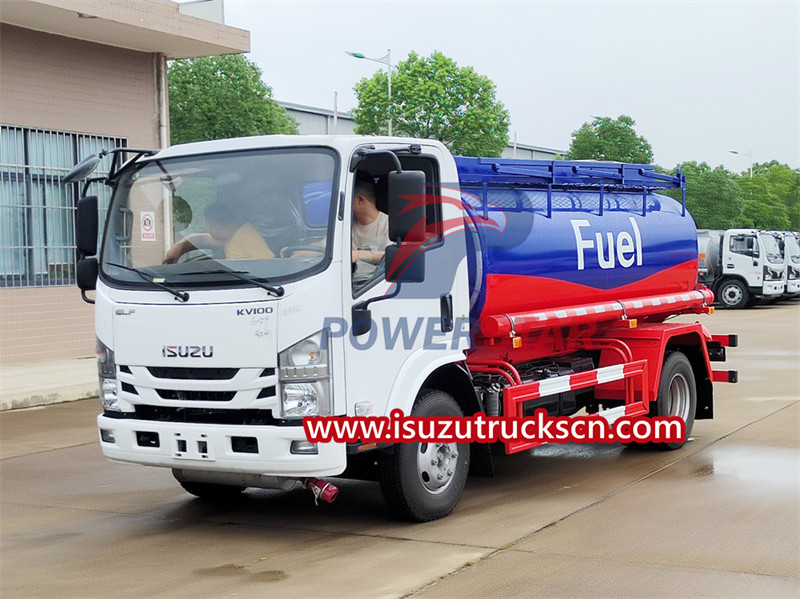

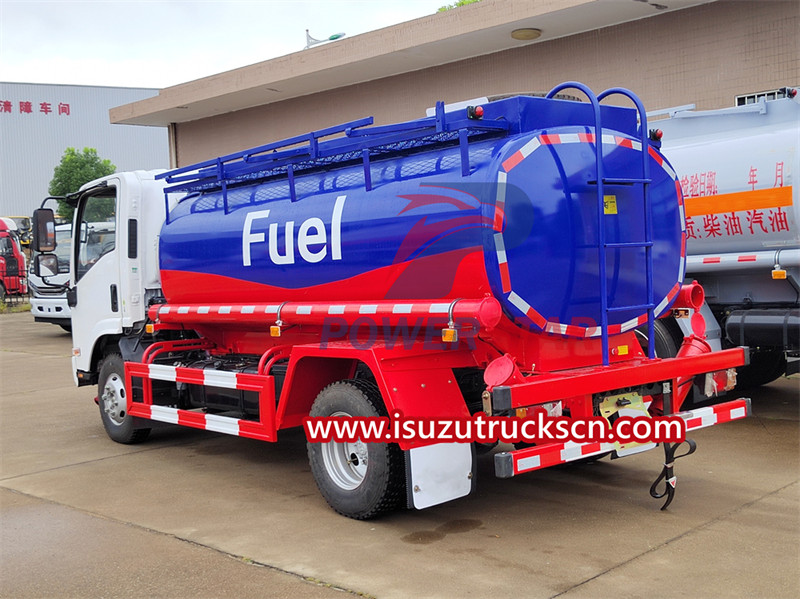

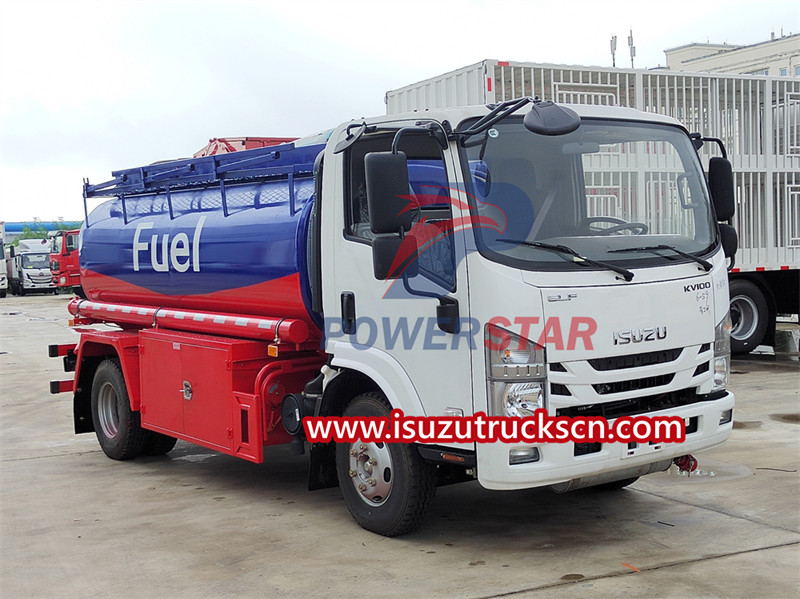

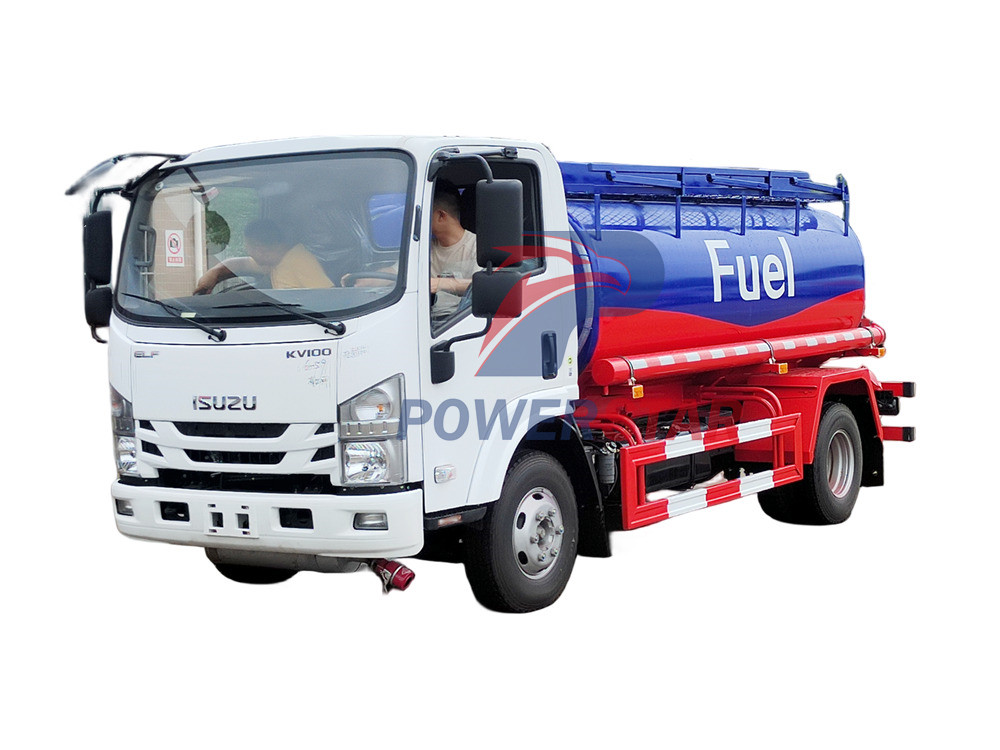

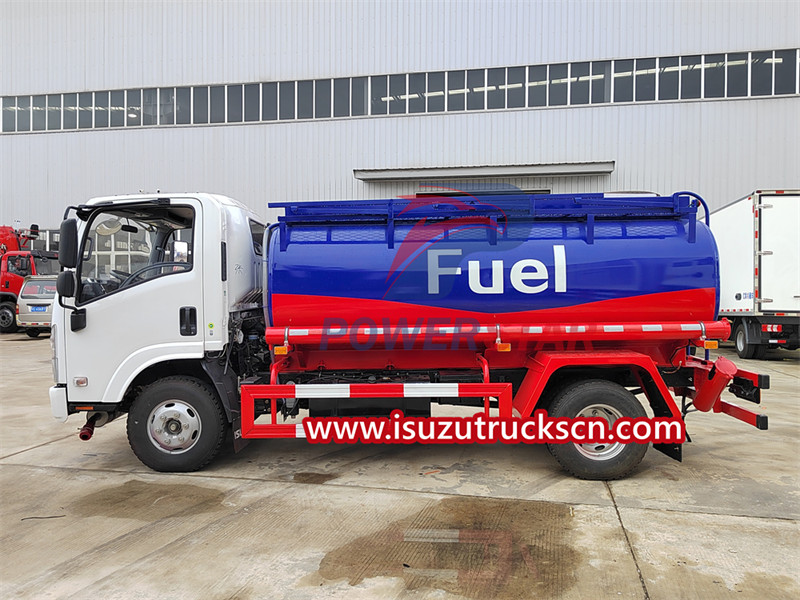

The ISUZU oil tank lorry is a special vehicle produced by POWRESTAR for the transportation of oil, gasoline and their derivatives. The vehicle adopts advanced technology and design, has high transportation efficiency and oil storage capacity, and can meet various large-scale and high-efficiency oil transportation needs.
Work capacity:
5000 LitersTruck model:
PT5050GJYEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:

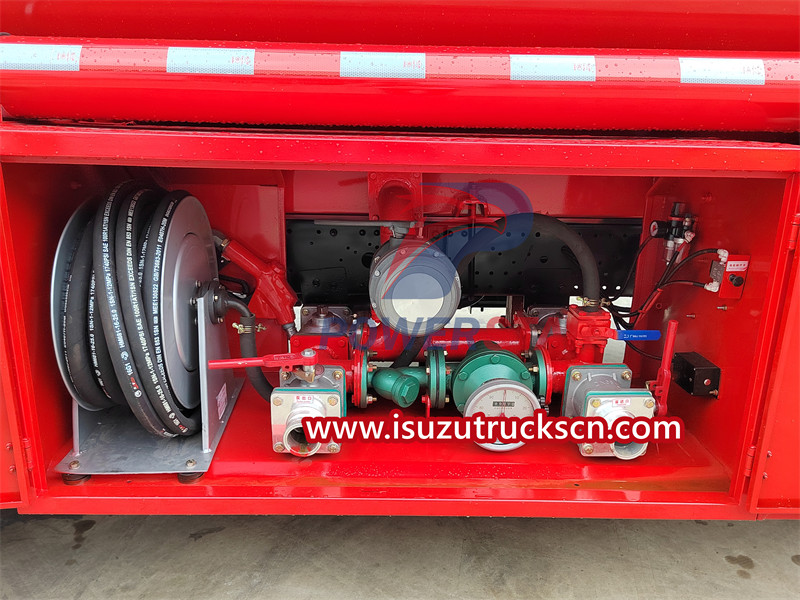

Large capacity diesel bowser tanker with fuel dispenser
ISUZU fuel bowser trucks interpret efficiency, reliability and safety with their excellent quality and powerful performance. The vehicle is equipped with Isuzu's high-quality engine, which provides continuous power and can handle any complex transportation environment with ease. The tank body is made of high-strength carbon steel, which can carry more oil products and meet the transportation needs of customers.
Safety is the top priority for our ISUZU tank trucks. In the process of designing and manufacturing ISUZU steel fuel transfer tank, we pay attention to safety performance and are equipped with a variety of safety devices and protective measures, such as emergency shut-off valves, anti-overflow devices, fire extinguishers, etc., which can effectively ensure the safety of oil and vehicles during transportation. Safety. Comfort is also a highlight of Isuzu tank trucks. Its cab design is spacious and comfortable, where the driver can enjoy a superior driving experience. In addition, low fuel consumption, low maintenance costs and long service life make Isuzu tank trucks a cost-effective choice.
Comfort is also a highlight of ISUZU fuel bowser trucks. Its cab design is spacious and comfortable, where the driver can enjoy a superior driving experience. In addition, low fuel consumption, low maintenance costs and long service life make Isuzu tank trucks a cost-effective choice.
Product Specifications
Parameters of Vehicle |
|
Vehicle Name |
ISUZU |

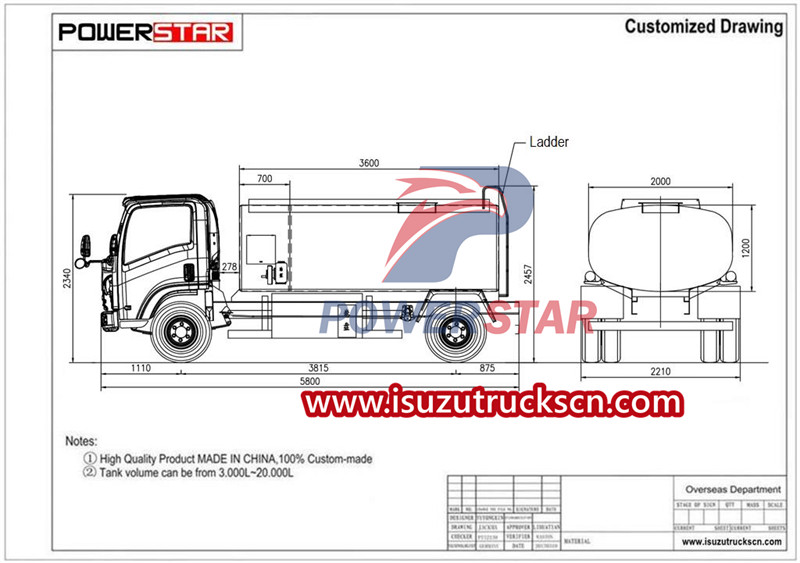

Dimension(LxWxH) |
5950x2050x2550 |
Total Mass |
7300kg |
Rated Payload |
4000kg |
Curb Weight |
3800kg |
Passengers |
3 |
Approach/Departure Angle |
16/12 |
The Parameters of Chassis |
|
Model |
QL1073B |
Driving Type |
4×2 left hand drive |
Wheelbase |
3360mm |
Gearbox |
5 speed forward and 1 reverse, manual |
Tire |
7.00R |
The Number of Tires |
6+1(spare tire) |
Front/Rear Suspension |
1430/2335 |
Brake system |
Service brake: dual-circuit pneumatic brake |
The Parameters of Engine |
|
Brand |
ISUZU |
Model |
4KH1CN6LB |
Rated Power |
120hp |
Fuel Type |
Diesel |
Displacement |
2999 ml |
Max torque |
290 N.m |
Emission Standard |
Euro 5 |
Engine type |
Turbocharged |
The Parameters of Fuel Tanker |
|
Tanker Capacity |
5000 liters |
Tanker Material |
Carbon steel |
Standard Configuration |

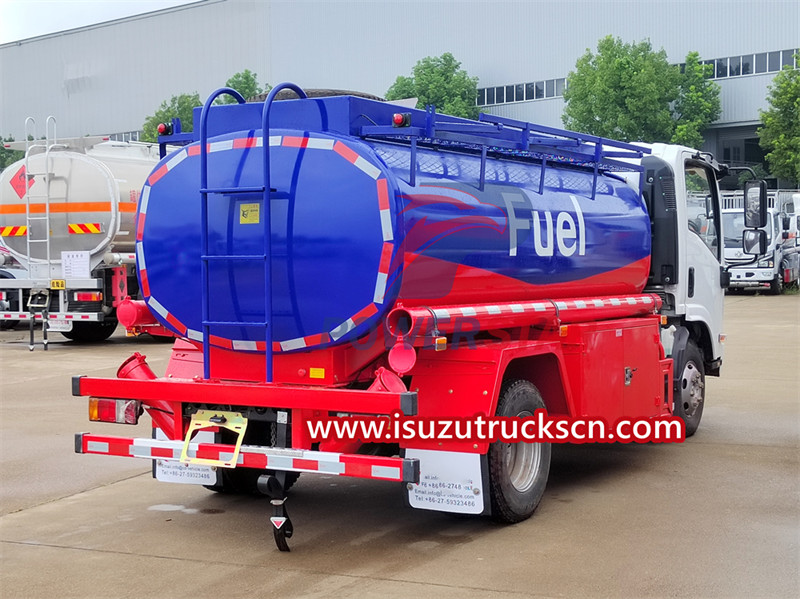

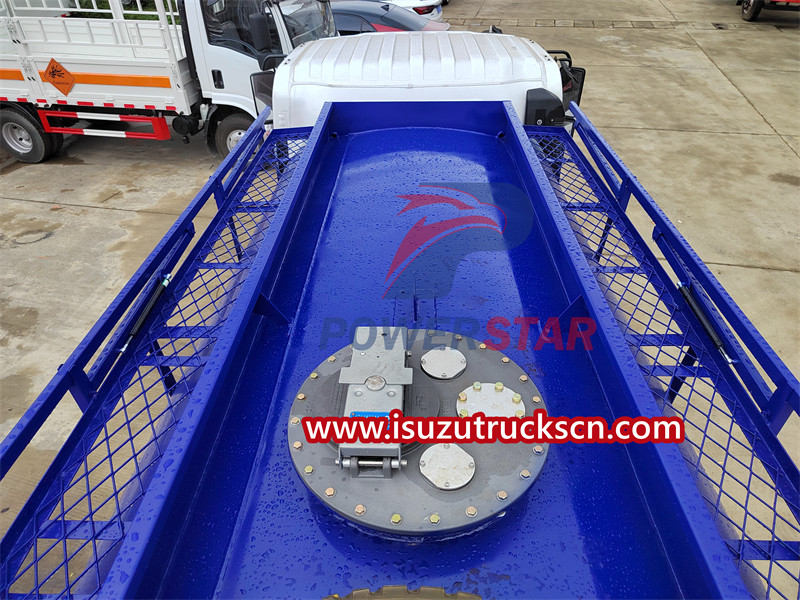

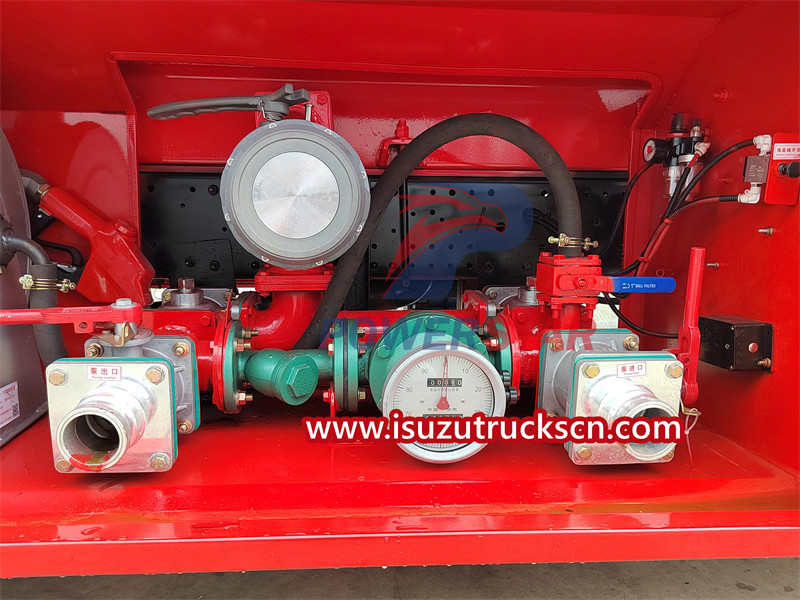

1. 1 set manhole 2. Equipped with double discharge valve and valve box. 3. Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox. 4. Electrostatic conducting tape and double fire extinguishers |
Optional |
1· Tanker material: aluminum alloy; stainless steel |
What is the breather valve of Isuzu tanker truck:
Breather valve is also called safety valve. The valve can automatically adjust the pressure in the ISUZU fuel tanker to keep the pressure within a certain range. This can not only protect the liquid tank, but also reduce the evaporation loss of volatile oil.
The breather valve consists of a suction valve and an exhaust valve. The suction valve and exhaust valve are two one-way valves installed in opposite directions. The suction valve has a small area affected by gas, and the stiffness of its spring 7 is also small, and the opening pressure is low, generally 4.9 kPa ~ 9.8 kPa; the exhaust valve has a large area affected by gas, and the stiffness of its spring is also large, the opening pressure is relatively high, generally 14.7 kPa ~ 24.5 kPa. When the gas pressure in the ISUZU oil tanker is lower than 4.9 kPa to 9.8 kPa, the suction valve overcomes the elastic force of spring 7 and opens due to the pressure difference between the inside and outside of the container, sucking in part of the air and raising the pressure in the container to the normal value, the suction valve is closed; when the gas pressure in the container exceeds 14.7 kPa to 24.5 kPa due to increased volatilization or rising temperature, the exhaust valve opens against the elastic force of the spring under the action of the pressure difference between the inside and outside of the tanker, discharge part of the gas in the container and reduce the pressure in the container to normal value.
The valve body of the breather valve is made of nickel-cadmium stainless steel, and the other parts are also made of stainless acid-resistant steel to prevent rust. Small and medium-sized ISUZU oil bowser tanks are generally equipped with a breather valve in one compartment, while large ISUZU oil tank trucks are equipped with a breather valve in each single chamber.
