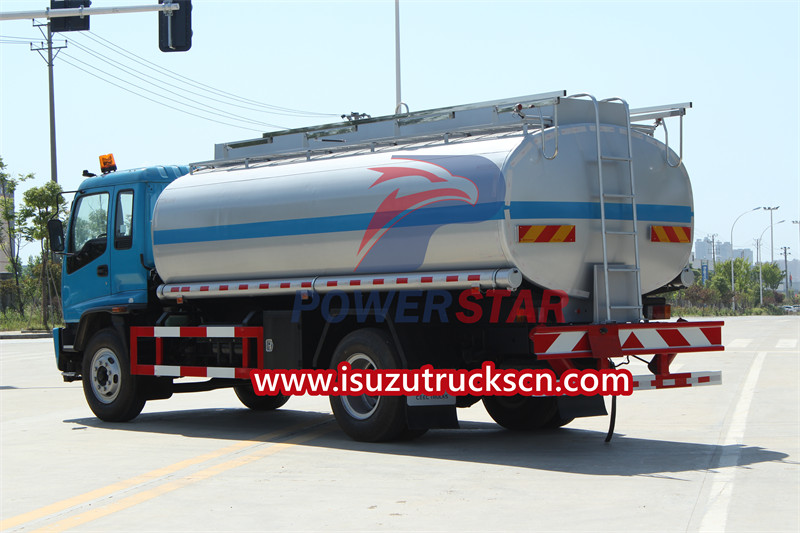

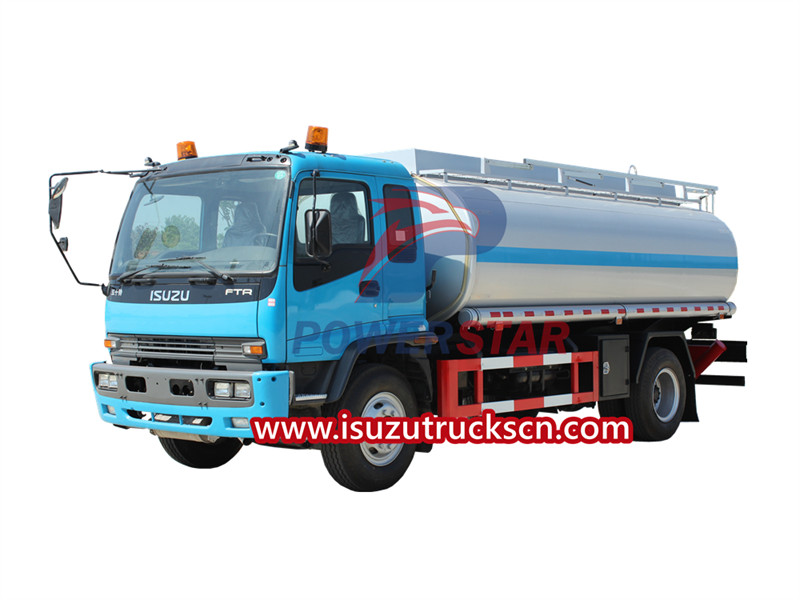

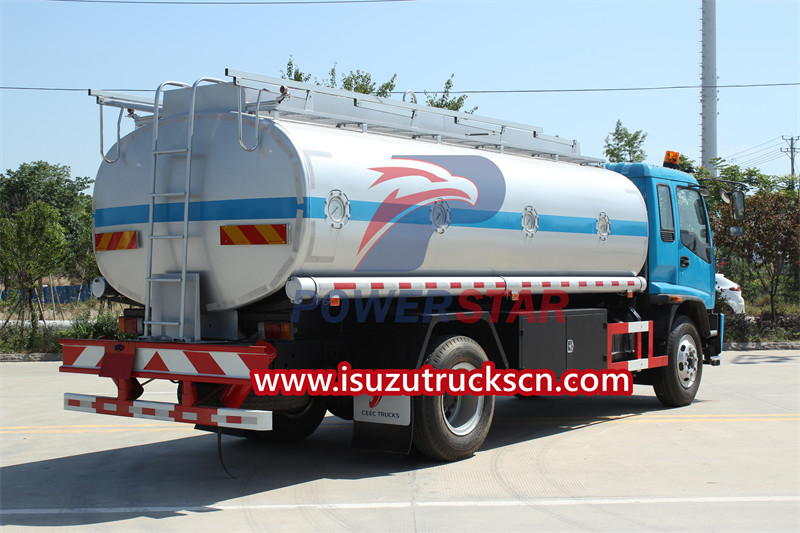

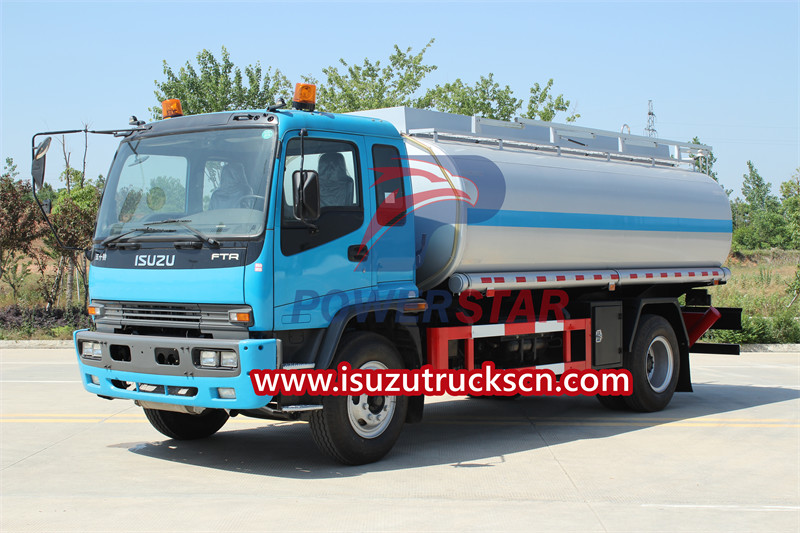

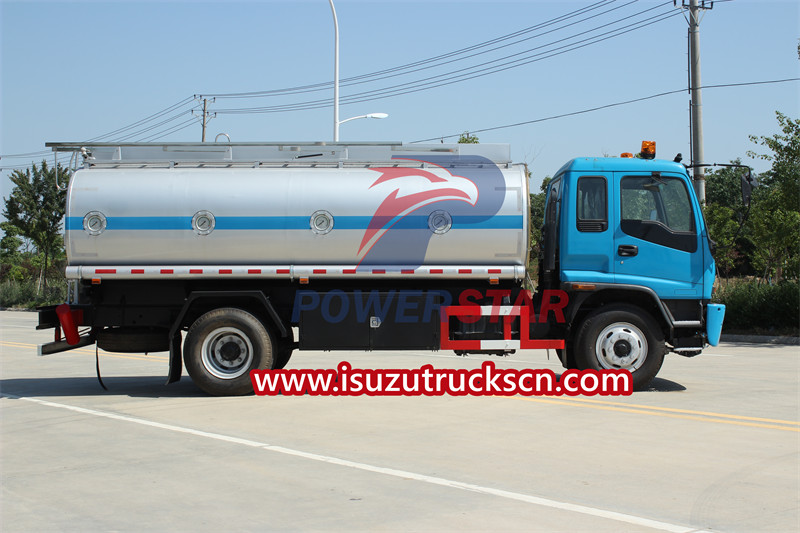

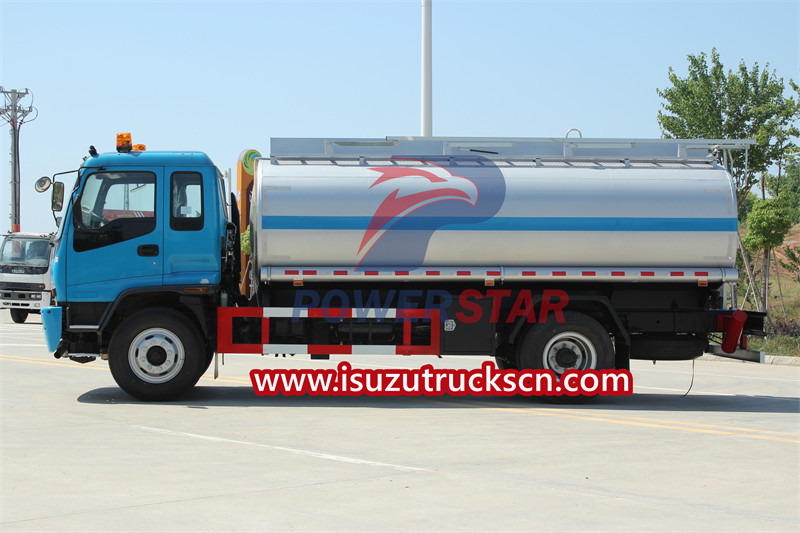

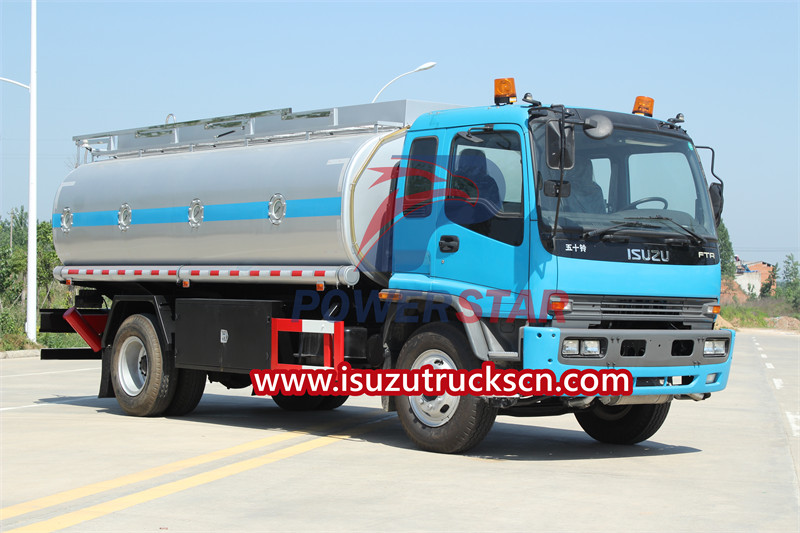

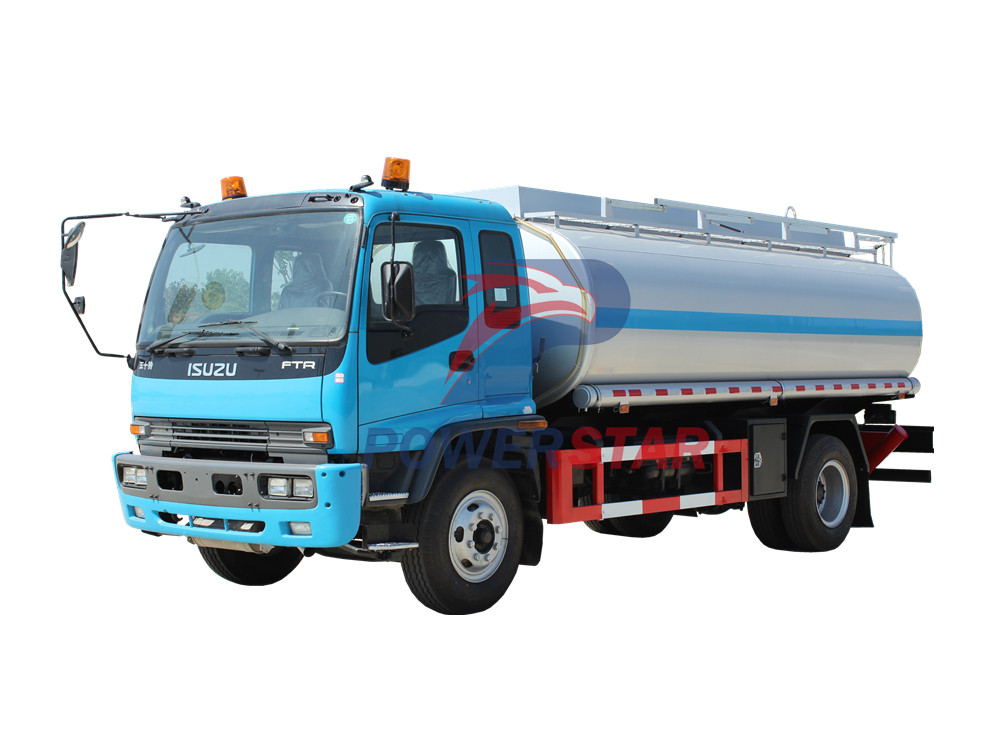

The ISUZU oil delivery truck is a special vehicle specially used to transport oil products. It is designed and manufactured by POWERSTAR on the basis of the Isuzu chassis. The vehicle is equipped with a large-capacity oil tank and oil pump, and is mainly used for transporting large quantities of oil products. It has the characteristics of efficiency, safety and reliability.
Work capacity:
16000 litersTruck model:
PT5160GYYEngine power:
4HK1-TC50Engine type:
205 HPAxle drive:
4×2Gear box:
MLD 6-speed manualRemarks:
16000 liters fuel tanker with 4 compartments
The ISUZU FTR oil truck is a vehicle specially used to transport oil, diesel, petrol, gasoline, etc. Its structure mainly includes three parts: chassis, tank body and additional devices.
The chassis is the supporting part of the ISUZU oil tanker truck. It includes parts such as the engine, transmission system, frame and tires, which provide power and support for the vehicle. The ISUZU fuel tanker truck is based on the ISUZU FTR special truck chassis, which has good load-bearing capacity and stability.
The tank body is the main part of the ISUZU fuel bowser. It is usually made of high-quality steel plates and is in the shape of an elliptical or a trapezoidal cylinder. The tank body of the ISUZU FTR diesel fuel tanker is divided into 4 compartments. There is a through hole at the lower end of the middle partition board, and a wave-proof plate is welded in the middle of each compartment to reduce the impact of the oil in the tank when the truck is driving and improve the rigidity of the tank body.
Additional devices refer to some devices installed to meet the special needs of oil transportation, such as PTO, transmission shaft, gear pump, fuel pump, pipe network systems, etc. These devices, together with the tank and chassis, realize the functions of storage, transportation and control of oil.
Product Parameters
|
Vehicle Specifications |
||
|
Model |
PST5160GYY |
|
|
Cab |
ISUZU FTR single cab, with A/C, ABS, center lock, power window. |
|
|
Driving Type |
4x2, left hand driving |
|
|
Max Speed (km/h) |
80 |
|
|

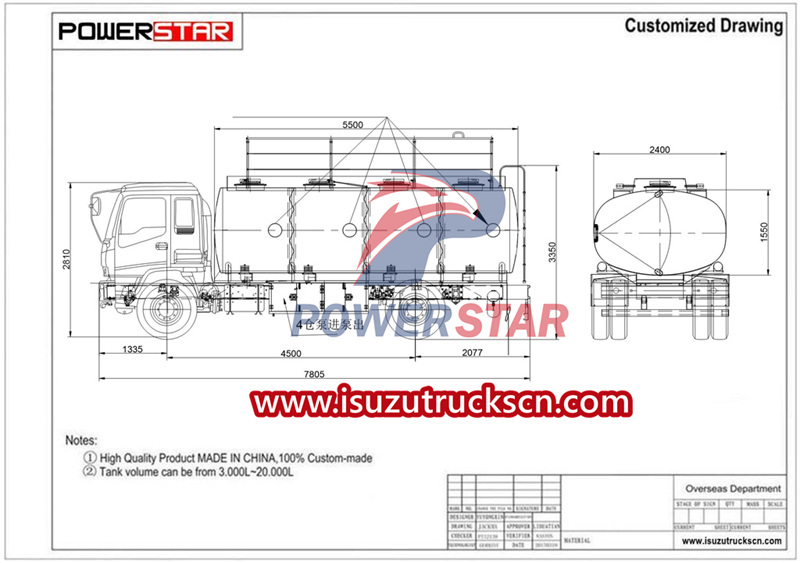

Overall dimension (mm) |
7800x2500x3350mm |
|
|
Gross vehicle weight ( kg) |
18000 kg |
|
|
Curb weight (kg) |
8600 kg |
|
|
Wheelbase(mm) |
5000 |
|
|
Tire |
11.00R20, 6+1 pieces |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
MLD manual transmission, 6 speed |
|
|
Axle |
Front axle |
6300 kg |
|
Rear axle |
13000 kg |
|
|
Engine |
Brand |
lSUZU |
|
Model |
4HK1-TC50 |
|
|
Emission Standard |
EURO V |
|
|
Fuel Type |
Diesel fuel |
|
|
Type |
In line, 4-cylinder, turbocharged intercooling, Water-cooled four-stroke |
|
|
Output Power (kw) |
151 |
|
|
Exhaust(ml) |
5193 |
|
|
Max output power (hp) |
205 |
|
|
Rated speed (rpm) |
2600 |
|
|
Max torque (N.m) |
650 |
|
|
Max torque speed (rpm) |
1600 |
|
|
Braking system |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Electric system |
24v |
|
|
Upper-Body specifications |
||
|
Volume of tank |
16000 liters |
|
|
Tank shape |
Elliptical |
|
|
Material of tanker |
4mm carbon steel |
|
|
Color of the tanker |
As required |
|
|
Transport medium |
Diesel, gasoline, petrol |
|
|
Fuel pump |
China famous brand |
|
|
Fittings |
gear pump |
|
|
Hose reel |
||
|
Dispenser |
||
|

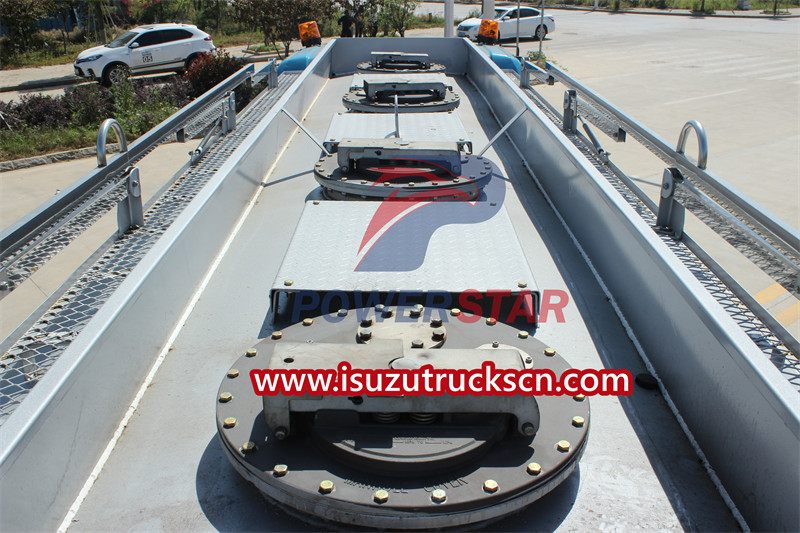

An aluminum alloy European standard manhole |
||
|
Fuel hose box fitted on both side of tank |
||
|

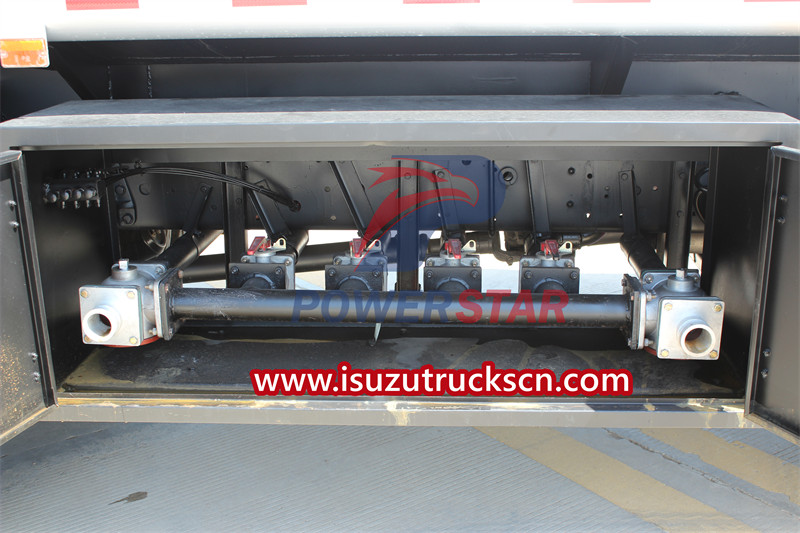

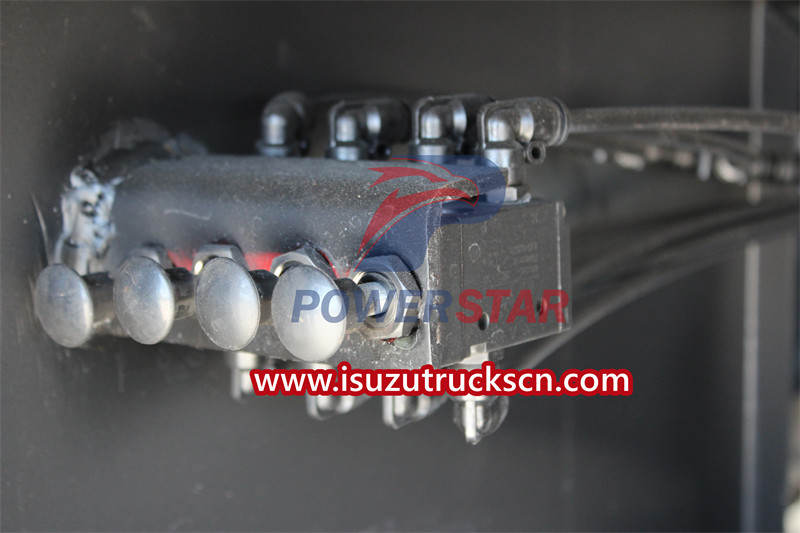

Aluminum alloy emergency shut-off valves |
||
|
Two Fire extinguisher |
||
|
One spare tire |
||
|
Ladder: for access to top of tank complete with cat walk on top of tank |
||
|
Heavy-duty rear bumper |
||
Features of ISUZU oil transport truck:
1. Strong load capacity: Based on the ISUZU FTR chassis, it has good load-carrying capacity and stability.
2. Large capacity: The ISUZU tanker truck has a capacity of 16000 liters, which can meet the transportation needs of large quantities of oil products.
3. High safety: The vehicle is reasonably designed and equipped with a variety of safety facilities, such as emergency shut-off valves, explosion-proof valves, fire extinguishers, etc., which can effectively ensure safety during transportation.
4. Good reliability: The vehicle comes with high-quality parts and materials, undergoes strict production and inspection processes, and has high reliability and stability.
5. Easy to operate and maintain: The ISUZU diesel bowser is simple and convenient to operate and has low maintenance costs, which can greatly reduce the use cost.
