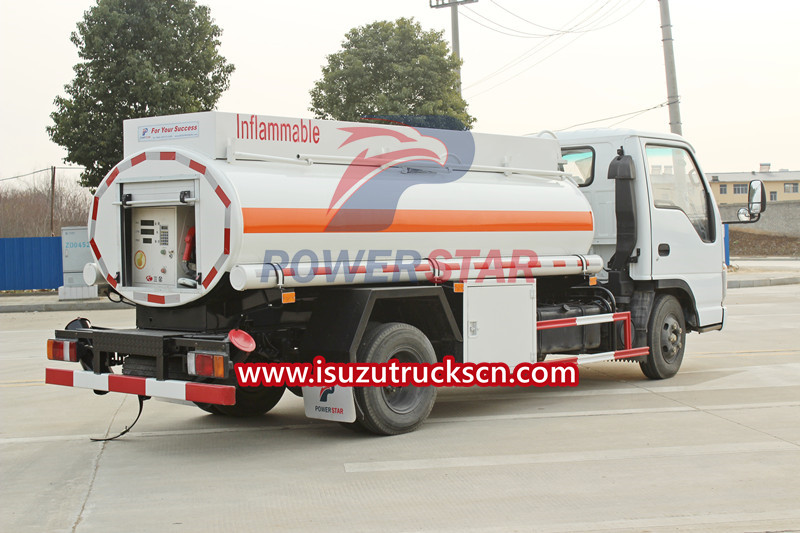

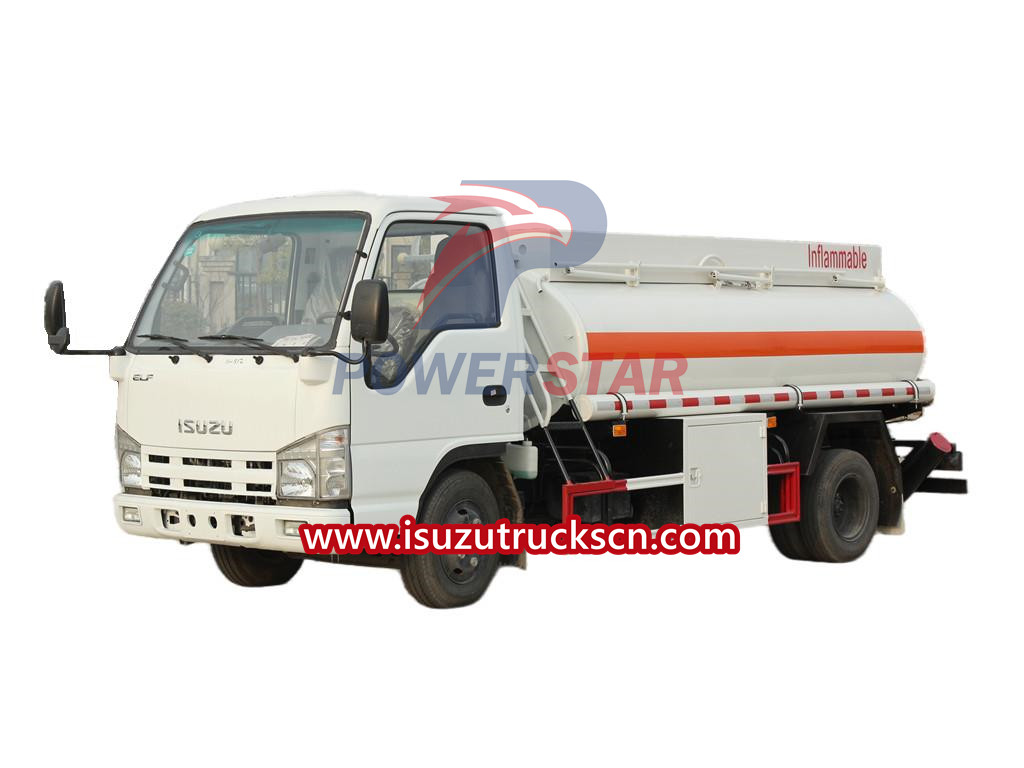

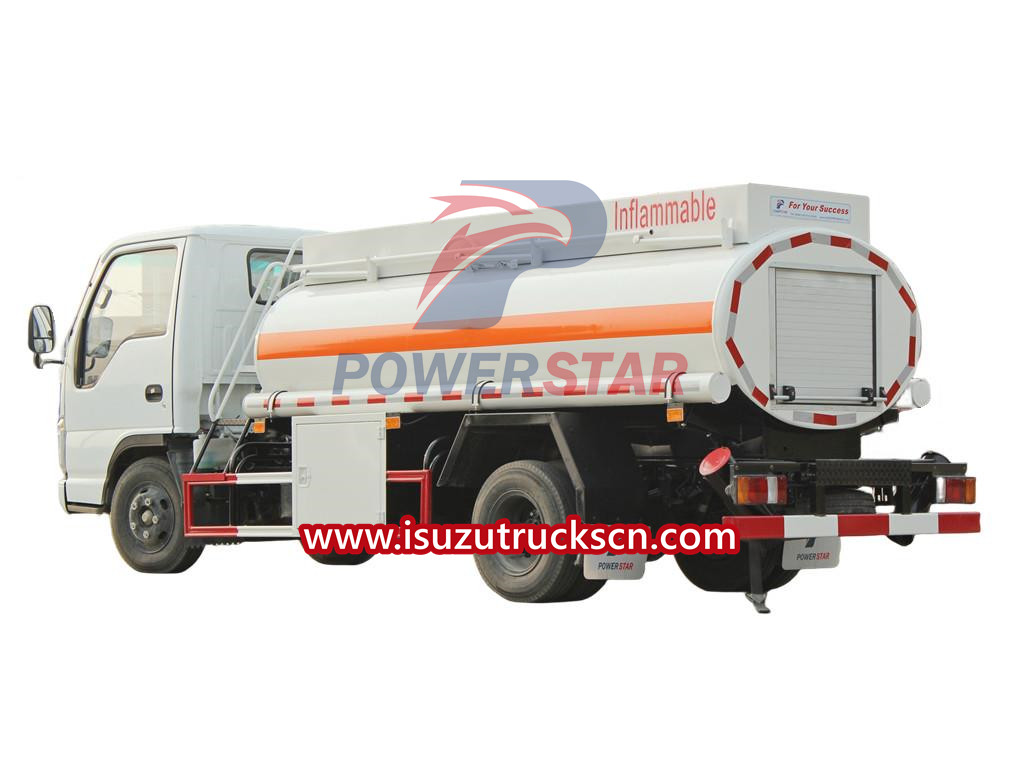

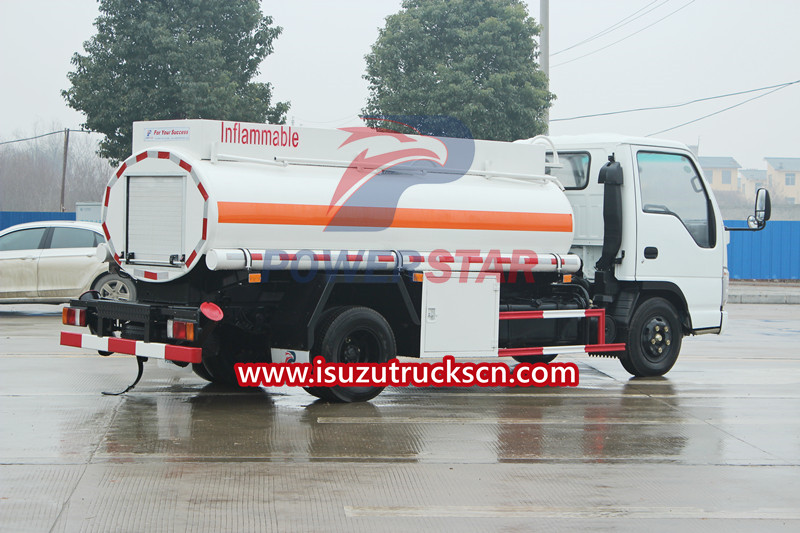

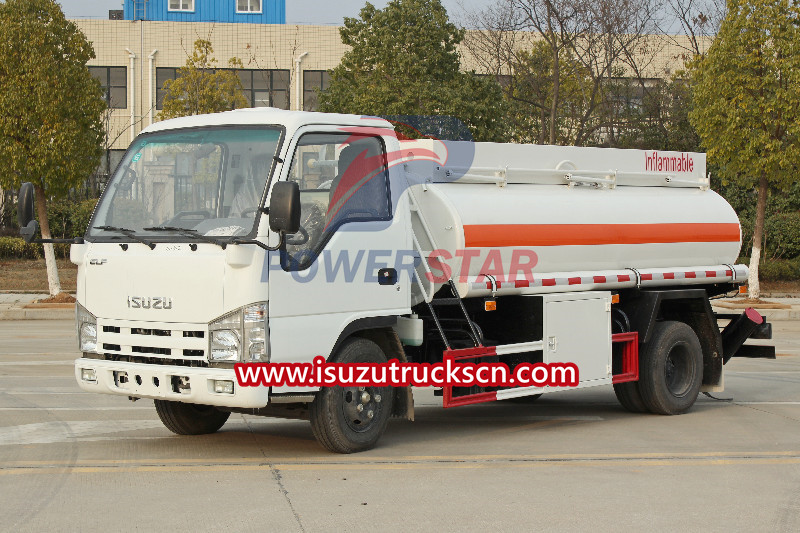

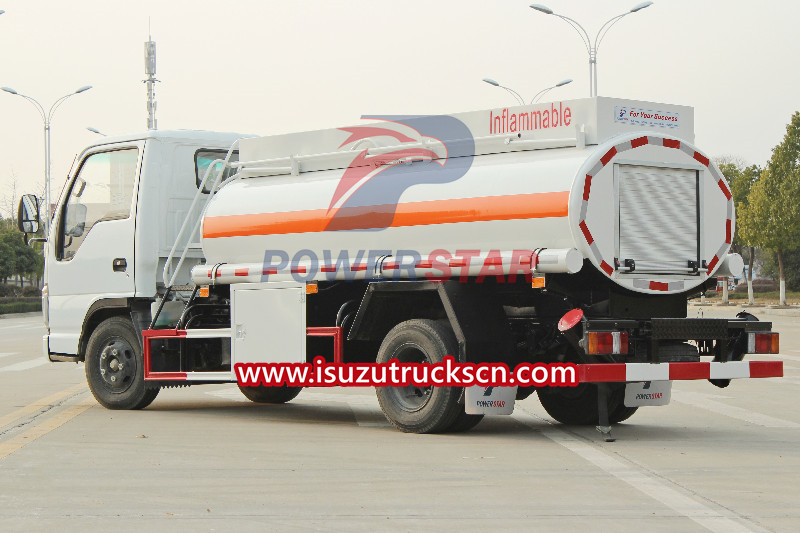

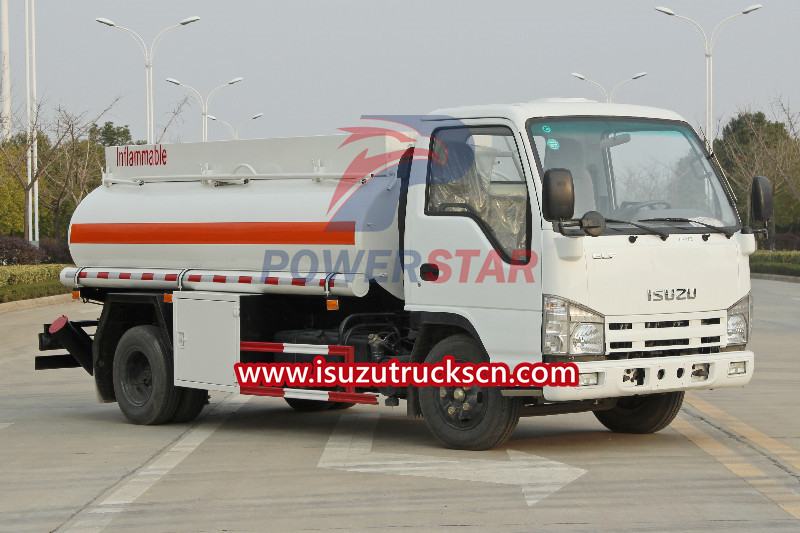

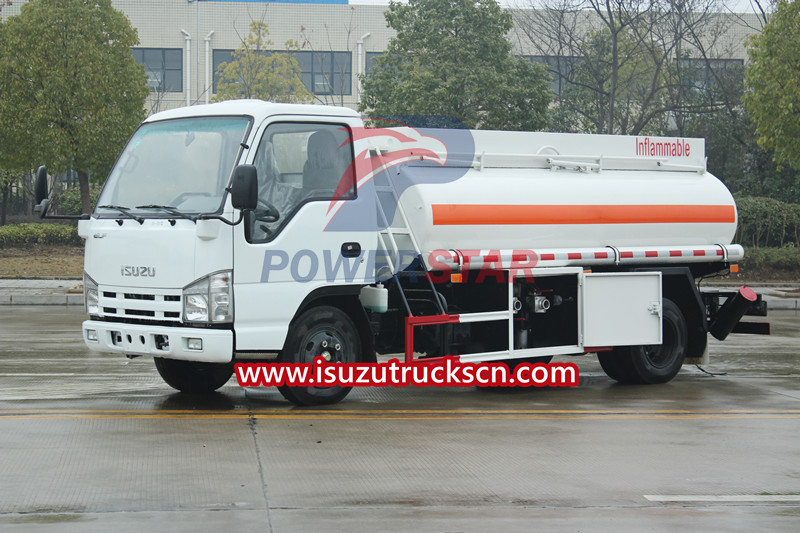

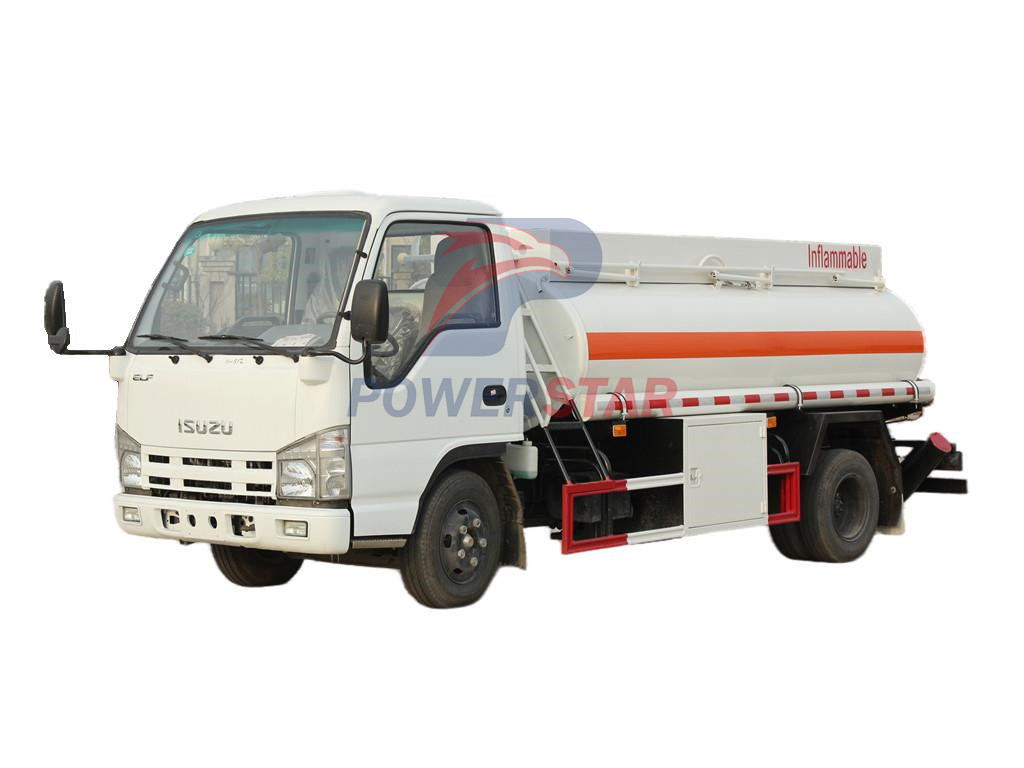

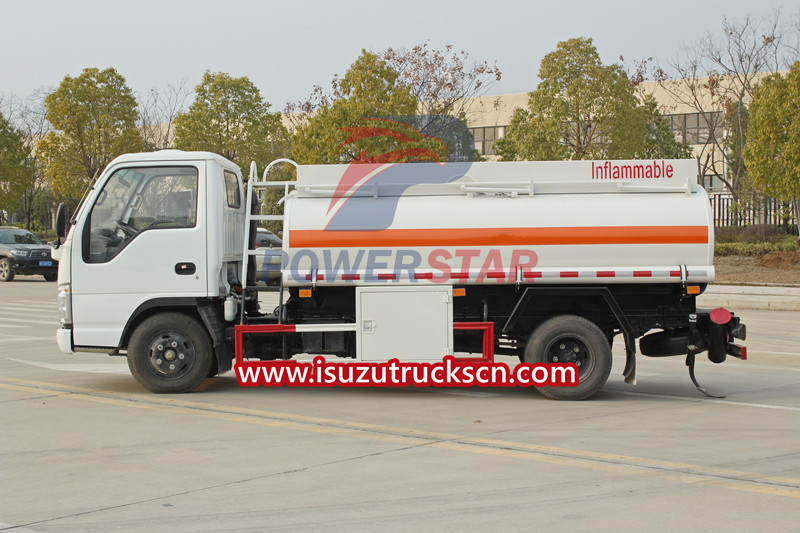

ISUZU mini 3000liters fuel tanker truck mounted oil bowser for sale, Isuzu Fuel tanker can equipped with oil pump equipped, could pump in/out the medium. also can with computer fuel dispenser. It could be used as the mobile filling station. According to different needs, oil delivery truck is used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places which is without filling station.Actually it can be called as the mobile filling station.
Work capacity:
3000 LitersTruck model:
PT5040GJY03MEngine power:
98 HPEngine type:
4KH1CNAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
Antistatic coating inside to guarantee safety during delivery
Isuzu mini NKR fuel tank truck also called oil tank truck, fuel bowser, Isuzu oil bowser, Isuzu mobile diesel bowser, ISUZU diesel bowser, which could be equipped with fuel pump to realize pumping in and out, with fuel dispenser to filling different kinds of oil to the other equipment at anywhere.The tanker could be divided into many compartments for transporting different types of fuel, which could be loading and discharging totally separate.

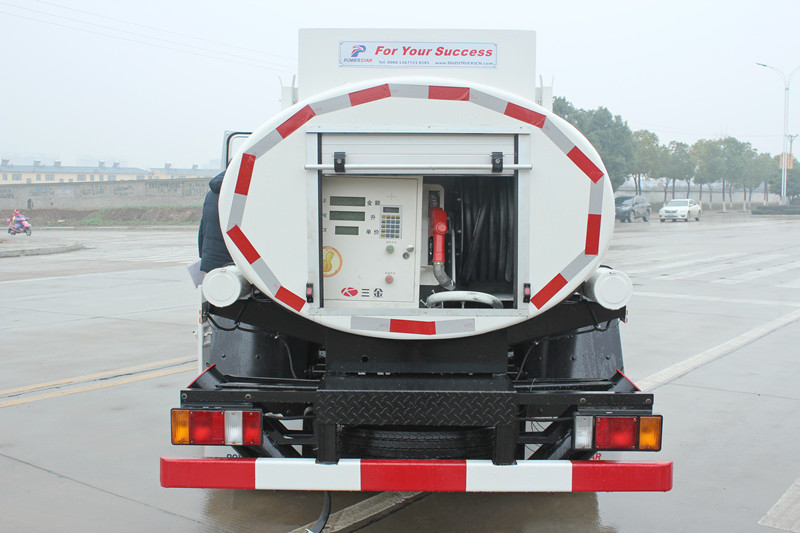

1. Reel refueling: After filtering and metering, the fuel in the tank of the vehicle is injected into the aircraft fuel tank or other fuel receiving equipment through the gravity refueling gun of the reel hose in the control room.
2. Pump oil filtration: Filter the fuel in the oil tank of the vehicle or in the external pipeline, and then return it to the oil tank of the vehicle or other oil receiving equipment through the pump outlet connector to realize the ball circulation filtration function.
3 .For oil tank loading, the external pipeline of the joint valve is used to load oil at the bottom of the oil tank, or the oil pumping function can be realized through this oil pump.
Product Parameters:
| Tanker Description | ||
| Tank capacity | 3-6cbm | |
| Tanker material | Carbon steel | |
| Thickness | Tanker body | 5mm |
| End cover | 5mm | |
| Tanker shape | Square | |
| Tanker compartment | 2 compartment (optional: several compartment) | |
| Standard configuration |

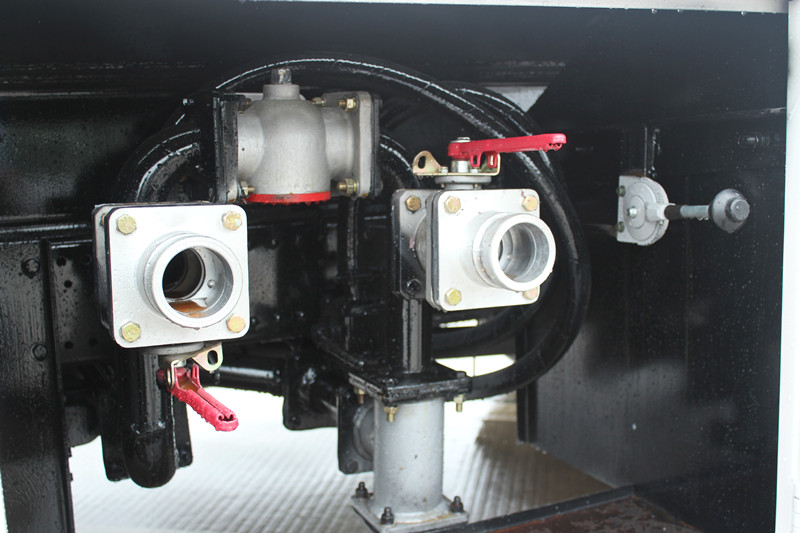

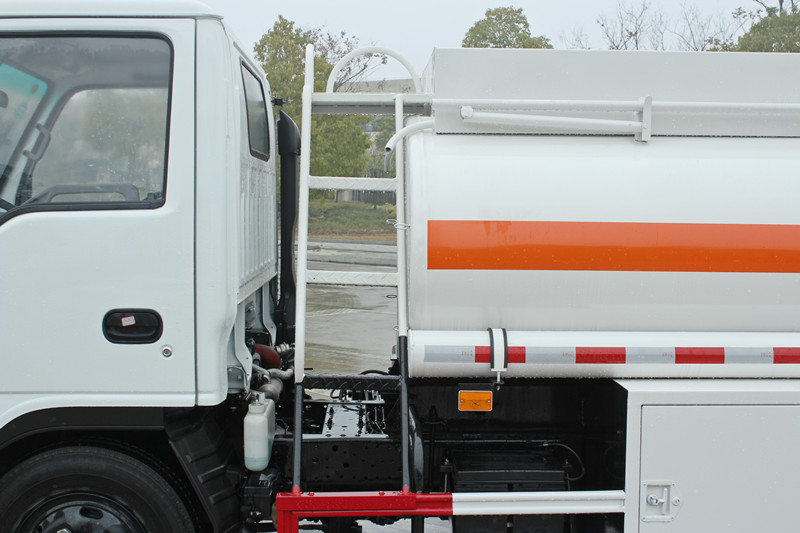

2 set manhole Equipped with double discharge valve and valve box. Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox. Electrostatic conducting tape and double fire extinguishers. |
|
| Optional |
Tanker material: aluminum alloy; stainless steel Chinese standard configuration is available, or other world famous fuel configuration. The whole set of European configurations for each compartment: European type manhole,over flow probe system, vapor recovery system, bottom valve, API adaptors. Emergency bottom valve and foldable aluminum handrail. Others: fuel pump, refueling dispenser, flow meter, dipstick, etc. |
|
| Chassis Description | ||
| Chassis model | QL10703 | |

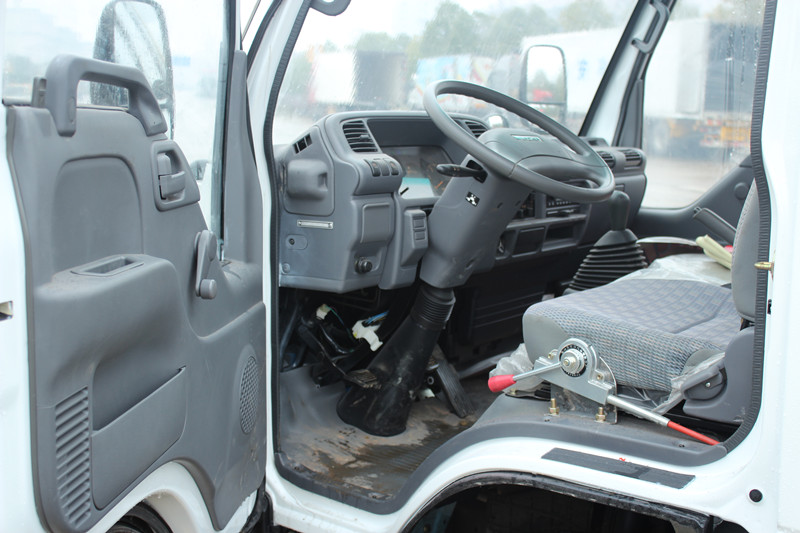

| Cab | 100P Single row, with A/C | |
| Wheelbase | 3360mm | |
| Tire specification | 7.00R16 | |
| Tire quantity | 6+1 units | |
| Engine | Engine model | 4KH1CN |
| Emission level | Euro 5 | |
| Displacement/output | 2999ml/72kw | |
| Horse power | 98hp | |
| Gear box | Model | ISUZU MSB |
| Number of gears | 5 forward gears& 1 reverse | |
| Brake system | Full air brake | |
| Axle | Front | 2.5T |
| Rear | 4.8T | |
| Fuel tanker | Type | Stainless steel tanker |
| Capacity | 70L | |
| Vehicle Description | |

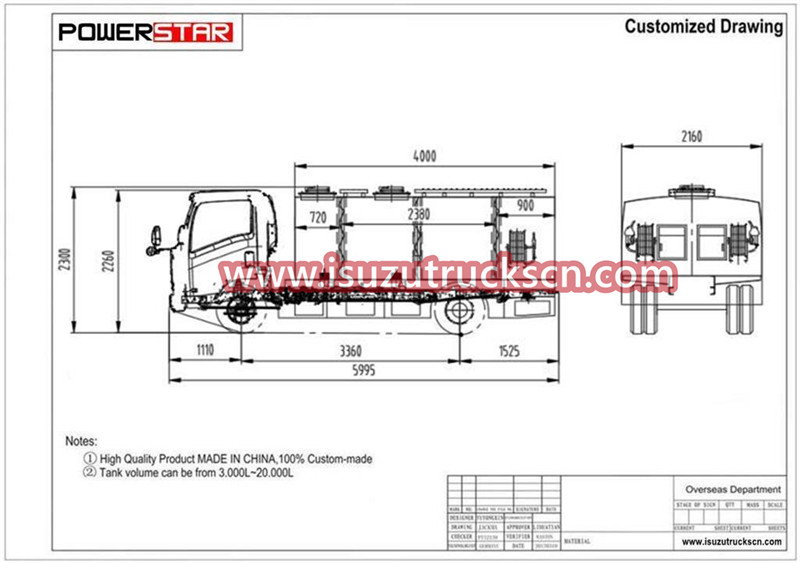

| Overall dimensions | 5995*1960*2650 |
| GVW | 7300kg |
| Curb weight | 3450kg |
| Chassis brand | ISUZU 100P |
Advanced features for other brand ISUZU mobile diesel bowser fuel bowser truck:
---- Japanese ISUZU chassis ensures perfect driving performance.
---- Japanese Top engine,super powerful; reliable performance.
---- Tank material has options of carbon steel, stainless steel, aluminum alloy…
---- Main fuel components available of international brands (ADR standard) - Civacon of OPW (America), EMCO Wheaton (America), DIXON (Europe)
---- Original American brand Tuthill Fill-rite electrical refueling pump and flow meter(mechanical or digital) available.
---- Bottom loading system including vapor recovery and overfill detection system can be equipped.
