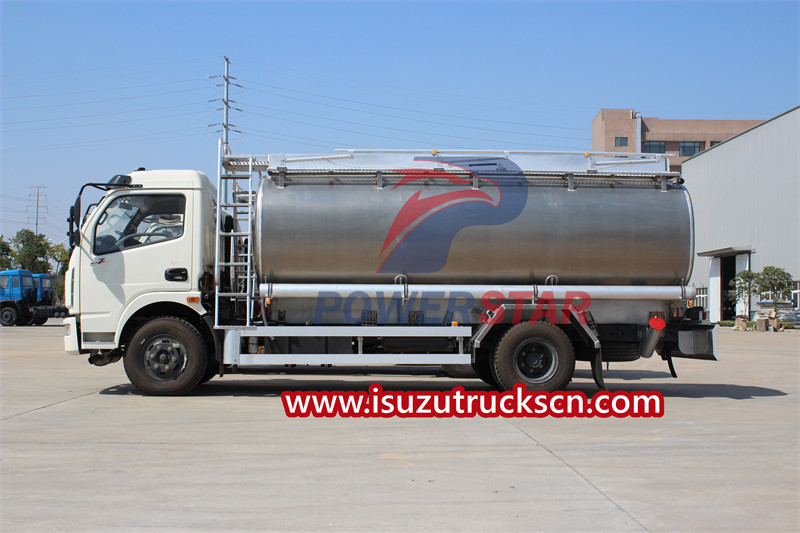

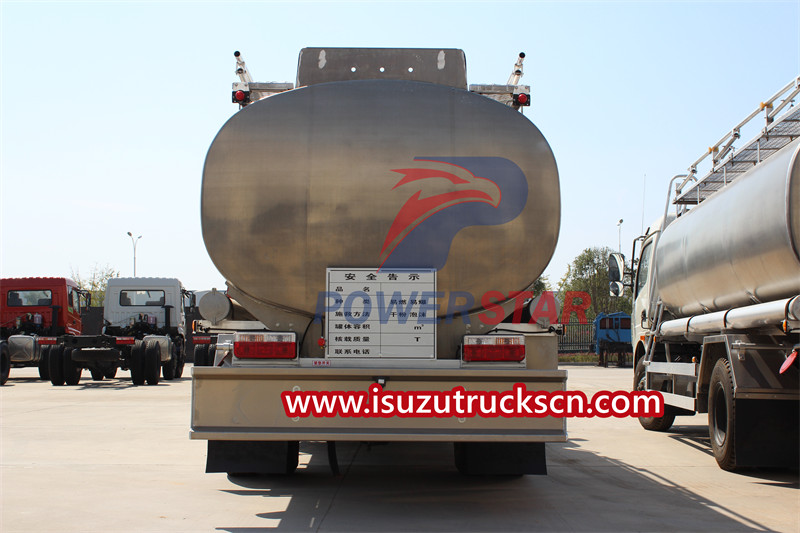

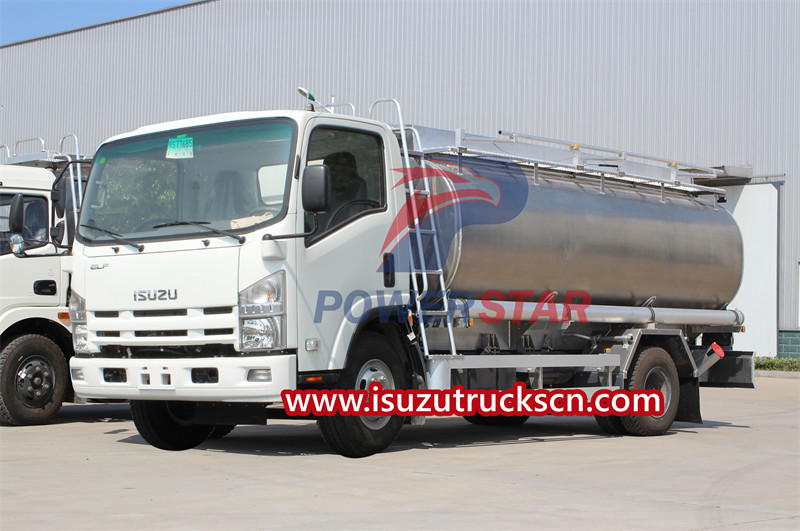

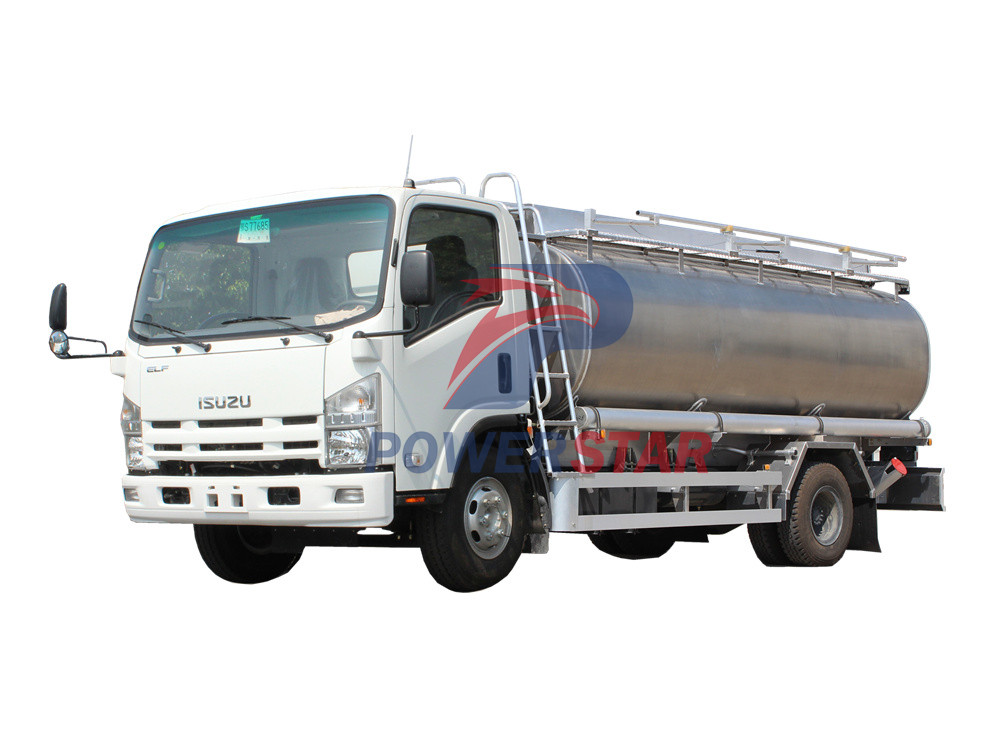

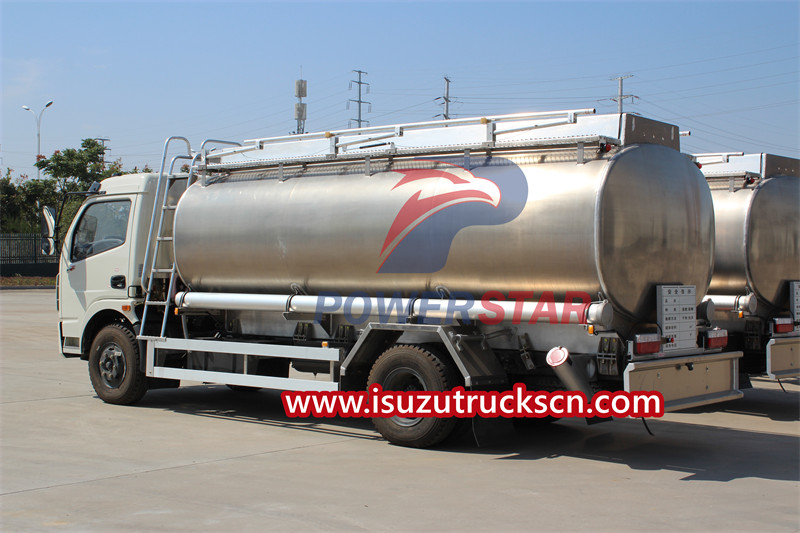

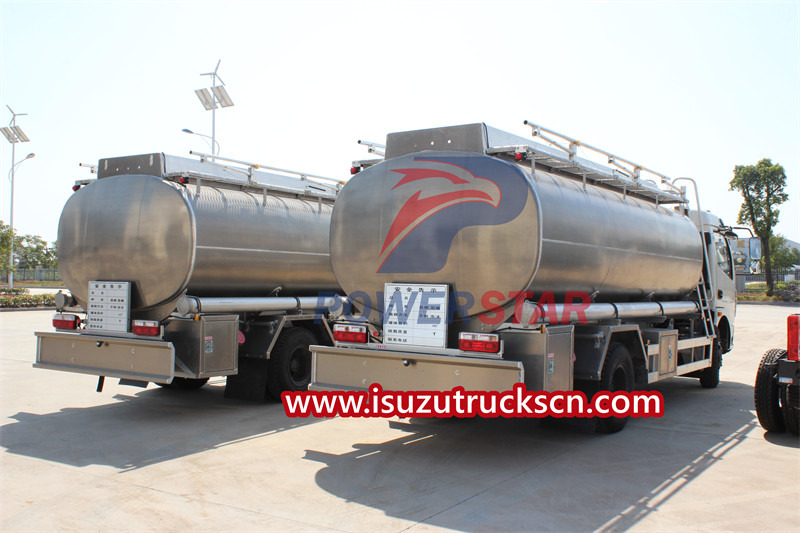

The Isuzu stainless steel tank truck is a vehicle modified on the Isuzu NQR chassis for transporting diesel, gasoline, kerosene, etc. The tank body is made of high-quality stainless steel, which has excellent corrosion resistance and durability, ensuring a long and stable service life. The tank has reasonable design, compact structure, large capacity and large loading capacity, which can meet the needs of different customers. The vehicle is equipped with advanced safety valves and anti-overflow valves, which can effectively prevent oil leakage and spillage and ensure transportation safety.
Work capacity:
8000 litersTruck model:
PT5080GYYEngine power:
190 HPEngine type:
4HK1-TC51Axle drive:
4×2Gear box:
MLD 6-speed manualRemarks:
Stainless steel fuel tanker with large volume
ISUZU stainless steel fuel tank truck is a vehicle specially designed for transporting oil products and has excellent corrosion and rust resistance. Made of high-quality stainless steel, it can effectively resist the erosion of various chemicals and ensure the quality and safety of oil products. As a corrosion-resistant and high-strength material, stainless steel is an ideal choice for tank trucks, which can extend the service life of tank trucks and reduce the frequency of repairs and replacements.

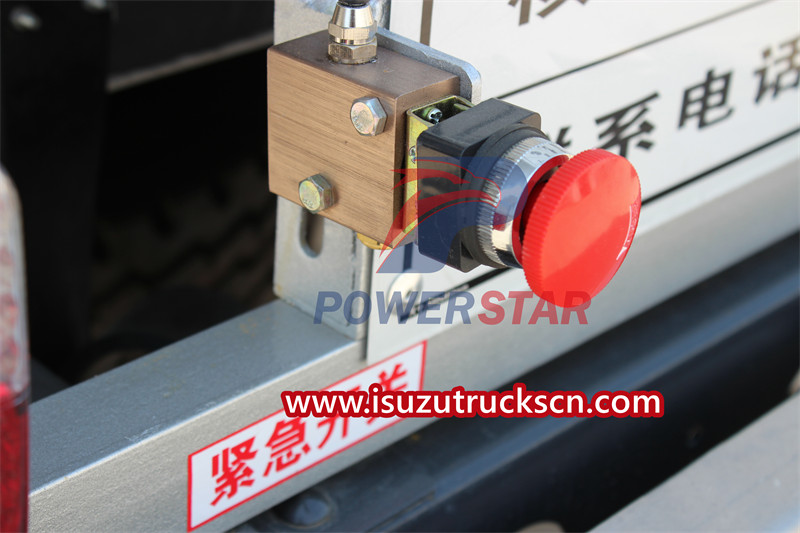

The ISUZU stainless steel mobile fuel truck is equipped with an advanced pumping system that can easily pump oil out of the tank and transport it to its destination. At the same time, the vehicle is also equipped with safety devices such as safety valves and overflow valves to prevent oil leakage and accidents.
ISUZU stainless steel fuel bowser have the advantages of high efficiency, low maintenance costs and long service life. It is an indispensable means of transportation in petrochemical, aerospace, transportation and other fields.
Product Specifications
|
Vehicle Parameters |
|||
|

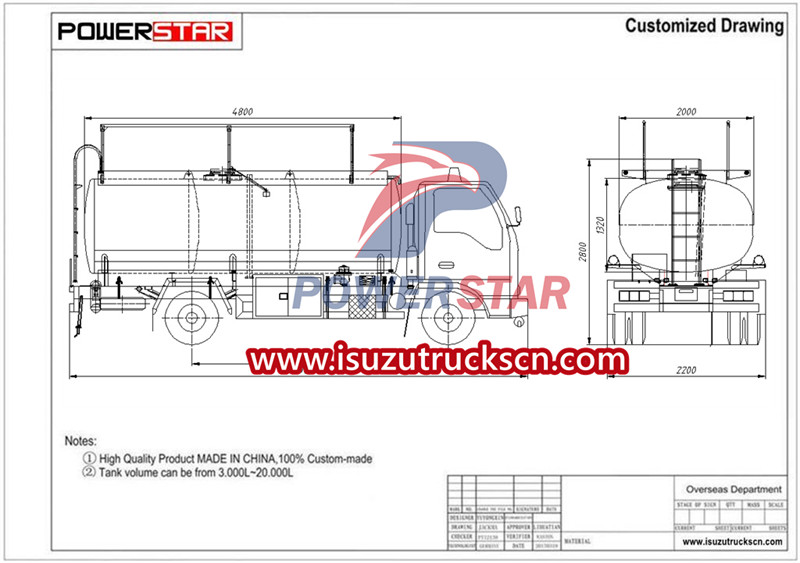

Overall dimensions |
6900*2300*2600mm |
||
|
GVW |
11000kg |
||
|
Curb weight |
5400kg |
||
|
Chassis brand |
ISUZU |
||
|
Driving type |
4*2, left hand drive |
||
|
Chassis Parameters |
|||
|
Chassis model |
QL1100A8 |
||
|
Cab |
Single row, flat roof, with A/C |
||
|
Wheelbase |
3815 |
||
|
Tire specification |
235/75R17.5 |
||
|
Tire quantity |
6+1 units |
||
|
Engine |
Engine model |
4HK1-TC51 |
|
|
Emission level |
Euro 5 |
||
|
Displacement |
5193 ml |
||
|
Horse power |
190 hp |
||
|
Type |
Turbocharged |
||
|
Gear box |
Model |
ISUZU MLD |
|
|
Type |
Manual |
||
|
Number of gears |
6 forward gears& 1 reverse |
||
|
Brake system |
Full air brake system |
||
|
Axle |
Front |
4000 kg |
|
|
Rear |
7000 kg |
||
|
Suspension |
Front |
Leaf spring |
|
|
Rear |
Leaf spring |
||
|
Fuel tanker |
Type |
Steel fuel tank |
|
|
Capacity |
100L |
||
|

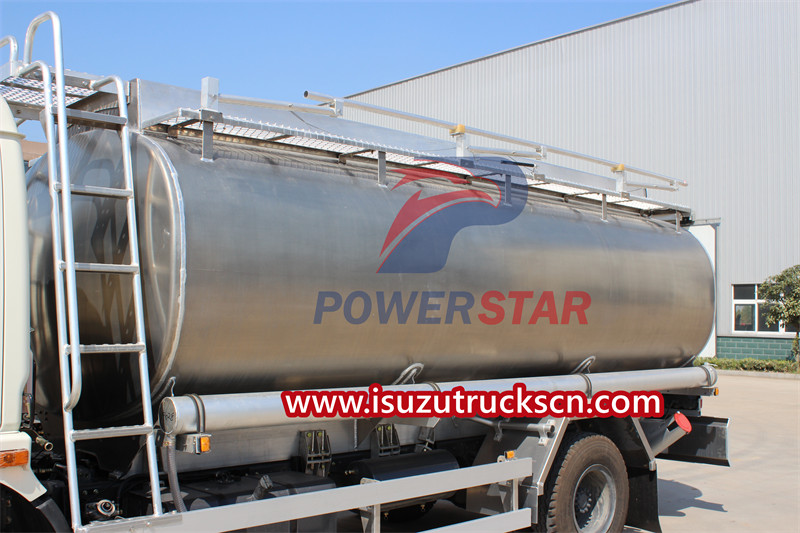

Tanker Parameters |
|||
|
Tanker capacity |
8000 liters |
||
|
Material |
Stainless steel |
||
|
Thickness |
Tanker body |
3mm |
|
|
End cover |
4mm |
||
|
Tanker compartment |
1 |
||
|
Fuel pump |
80YHCB-60 |
||
|
Pump flow |
60 m3/h |
||
|
Standard configuration |

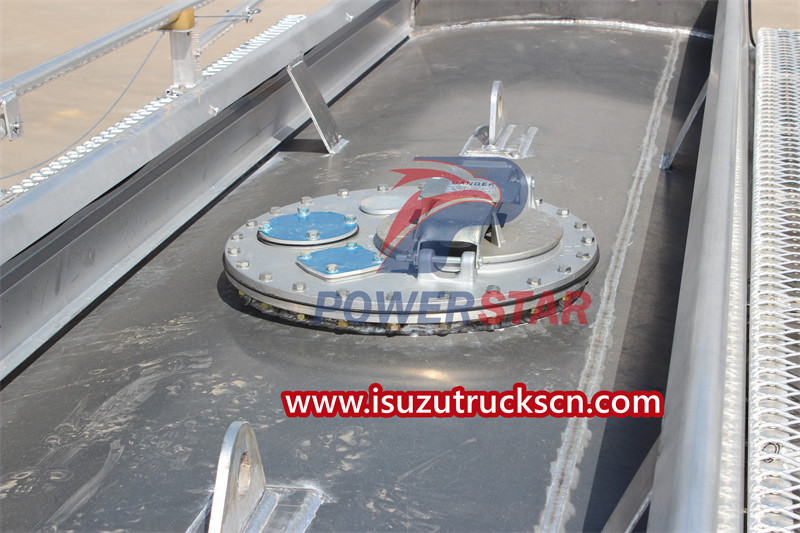

Equipped with 1 set European standard manhole; |
||
|
Optional configuration |
Carbon steel or Aluminum alloy tanker More compartments; Fuel dispenser; Float level gauge; Stainless steel pump; Double pump. |
||
Advantages of Isuzu stainless steel oil tanker truck:
1. Corrosion resistance: Stainless steel is a highly corrosion-resistant metal, so the ISUZU tanker truck can better resist corrosion from oil and other chemicals, thereby extending their service life.
2. Safe and reliable: This Isuzu diesel tanker truck is made of high-quality stainless steel and has good strength and stability, and can safely and reliably transport oil products in various environments.
3. Easy to clean: The surface of the ISUZU stainless steel fuel tanker is smooth and does not easily adhere to oil stains and other impurities. It is easy to clean and maintain, and can keep the car body clean and beautiful.
4. Environmental protection and energy saving: ISUZU stainless steel tank truck adopts advanced sealing technology, which can effectively reduce the volatilization and leakage of oil products, thereby reducing the impact on the environment.
5. Affordable: ISUZU stainless steel petrol tank truck has relatively low maintenance costs and long service life.
