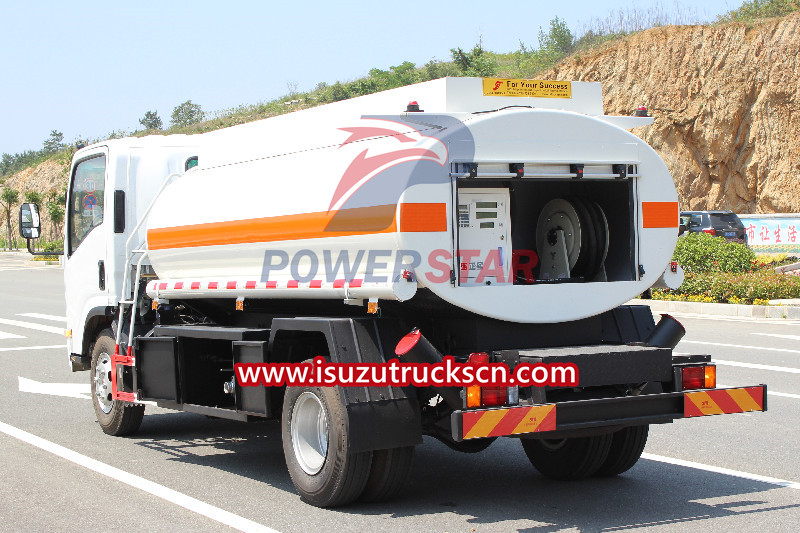

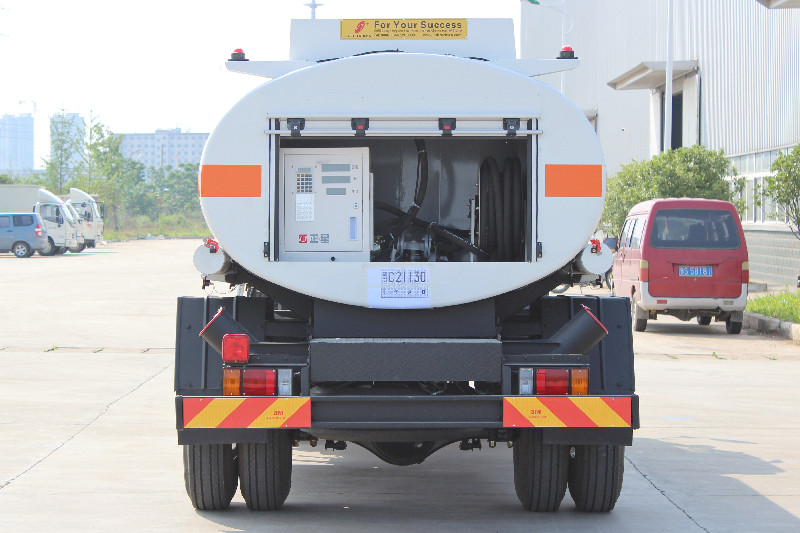

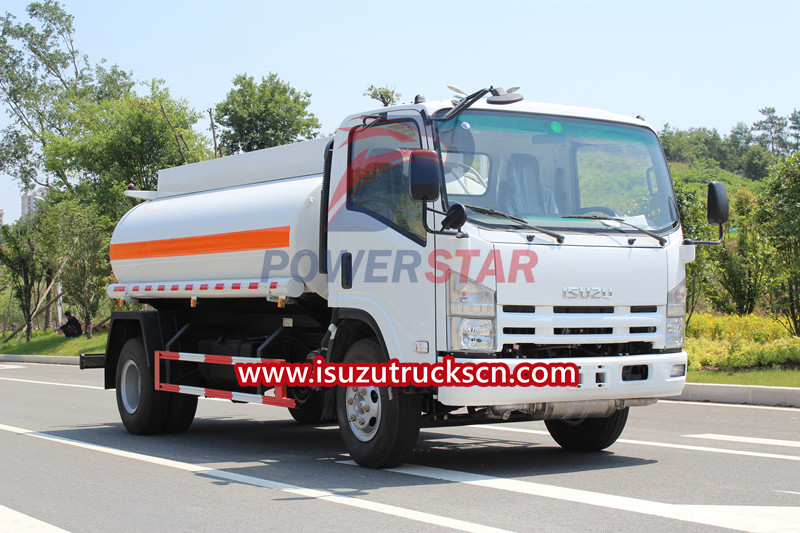

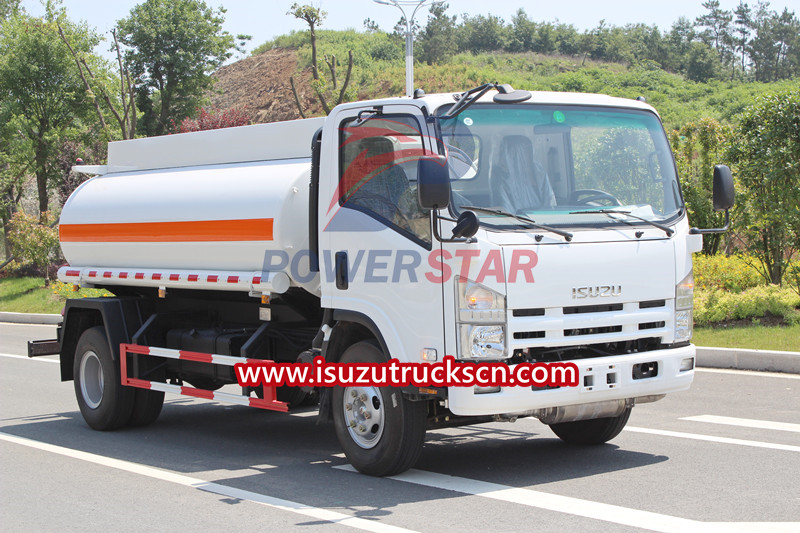

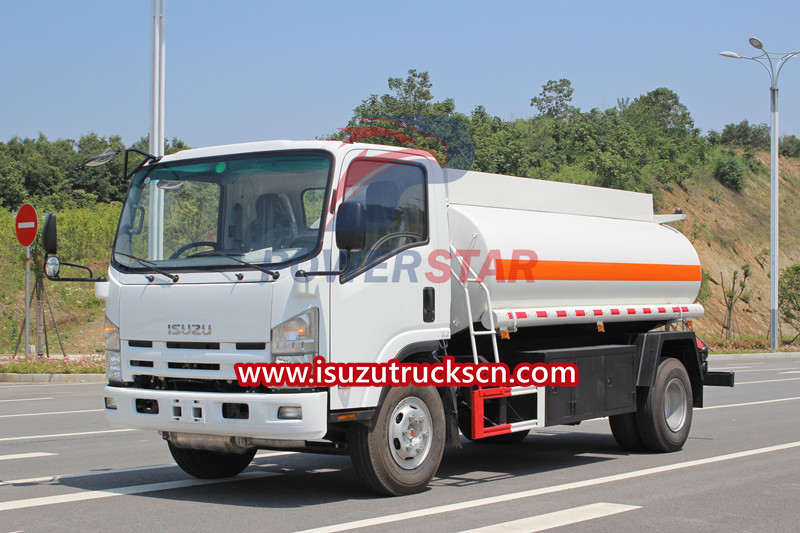

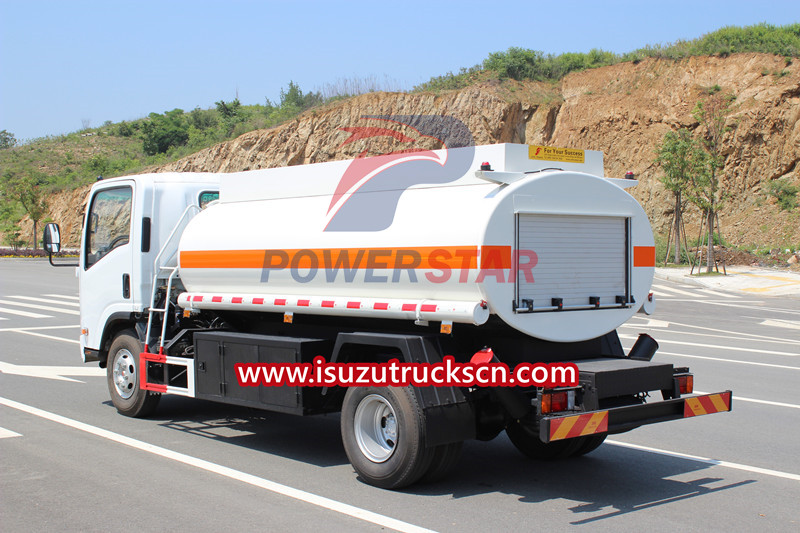

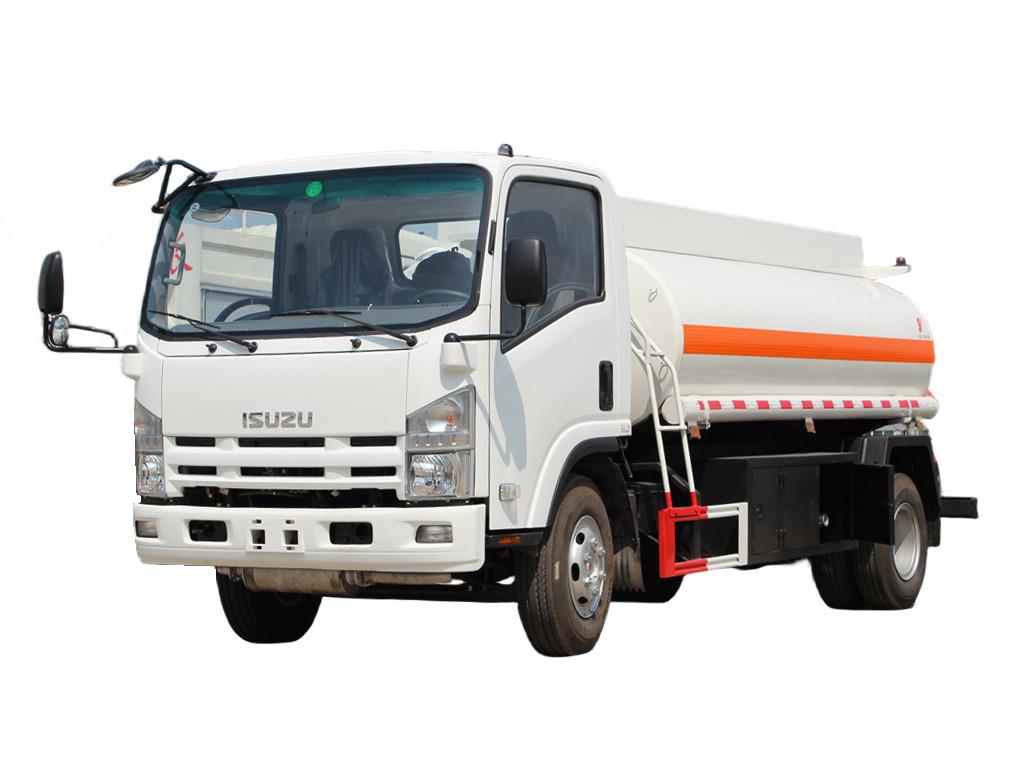

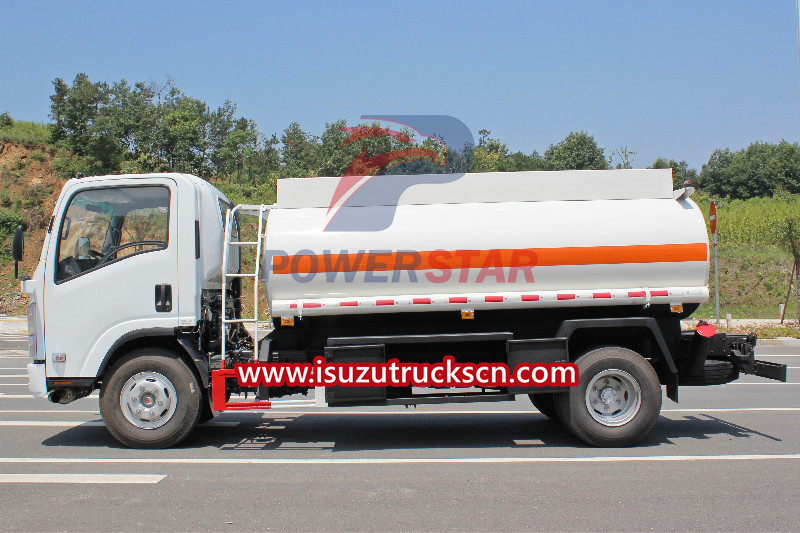

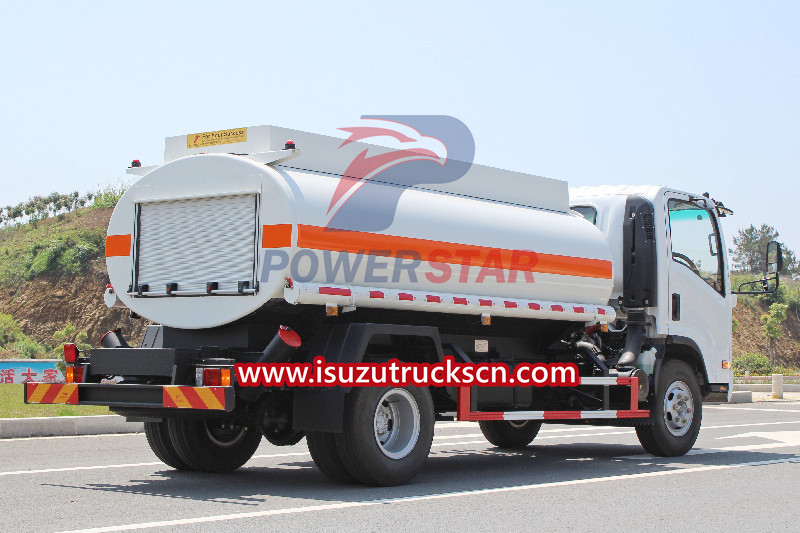

Brand New ISUZU NPR truck mounted fuel bowser for sale, Isuzu 4HK1-TC diesel engine with 190HP, MLD 6 shift manual gearbox with 6 forward and 1 reverse back, 235/75R17.5 tubeless tires with 6+1 pcs, durable quality and performance, 5000liters cabon steel material fuel tanker with thickness 5mm, internal with antistatic coating for safety transportation. The refuelling equipment fuel dispenser equipped at back of the fuel bowser, matched with 18m refueling hose reel, painting and logos as customized. Call me today to get more information.
Work capacity:
5000 LitersTruck model:
PT5100GJY05NEngine power:
190 HPEngine type:
4HK1-TCAxle drive:
4×2Gear box:
MLD 6-speed, manualRemarks:

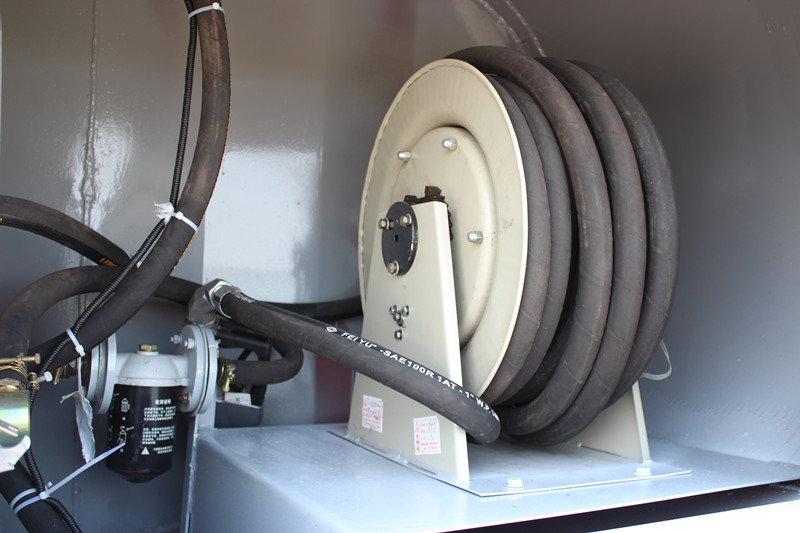

Fuel dispenser with automatic hose reel 18-36m
Brand new Isuzu fuel bowser is also named as Isuzu Jet Fuel Truck, which mainly for storage and transport oil, diesel, gasoline, kerosene, Stainless steel fuel bowser etc. Isuzu oil bowser can be devided into seperate compartments to meet customer requirement, to transport different types of fuels, lubricant oil, crude oil, alcohol, etc. The Fuel tanker ISUZU NPR ELF can equipped with oil pump equipped, could pump in/out the medium. also can with computer fuel dispenser. It could be used as the mobile filling station. According to different needs, Isuzu fuel transfer truck is used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places which is without filling station.Actually it can be called as the mobile filling station.
Product Parameters:
|
Truck Specification for Isuzu Jet Fuel Truck |
|||
|
Truck model |
PST5100GJY |
||
|
Cab |
ISUZU 700P ELF NPR NQR CABIN |
||
|
Driving Type |
4*2 Left hand driving |
||
|
Max Speed (km/h) |
110 |
||
|
Overall dimension(mm) |
5995*2200*2580 |
||
|
GVW(kg) |
10000 |
||
|
Mass in working order(kg) |
4500 |
||
|
Tank Capacity (L) |
5000 |
||
|
Wheelbase(mm) |
3815 |
||
|
F/R track base(mm) |
1680/1650 |
||
|
F/R Axle(kg) |
4000/7000 |
||
|
Spring |
8/10+6 |
||
|
Tire |
235/75R17.5 |
||
|
Clutch |
Single-plate dry diaphragm spring clutch |
||
|
Steering |
Hydraulic steering with power assistance |
||
|
Gear box |
MLD 6-speed |
||
|
Bridge |
Front axle |
4 T |
|
|
Rear axle |
7 T |
||
|
Enging |
Model |
4HK1-TC |
|
|
Fuel Type |
Diesel fuel |
||
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
||
|
Exhaust(ml) |
5193 |
||
|
Max output power/rotate speed (hp /rpm ) |
190 |
||
|
Max torque/rotate speed(N.m/rpm) |
510 |
||
|
Braking system |
Service Brake |
Compressed air brake |
|
|
Park Brake |
Spring energy |
||
|
Auxiliary brake |
engine exhaust brake |
||
|
Eletric system |
24v |
||
|
Upper-Body specification |
|||
|
Volume of tank |
5m3 |
||
|
Tank shape |
Quadrate |
||
|
Material of tanker |
5mm carbon steel |
||
|
Color of the tanker |
According your demands |
||
|
Transport medium |
Diesel oil, gasoil or others |
||
|
Fittings |
PTO oil pump |
||
|

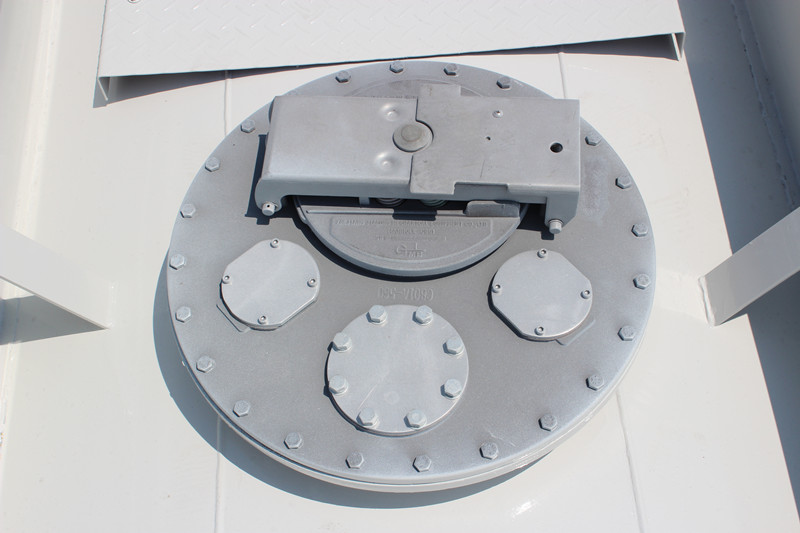

An aluminum alloy European standard manhole |
|||
|
Fuel hose box fitted on both side of tank |
|||
|

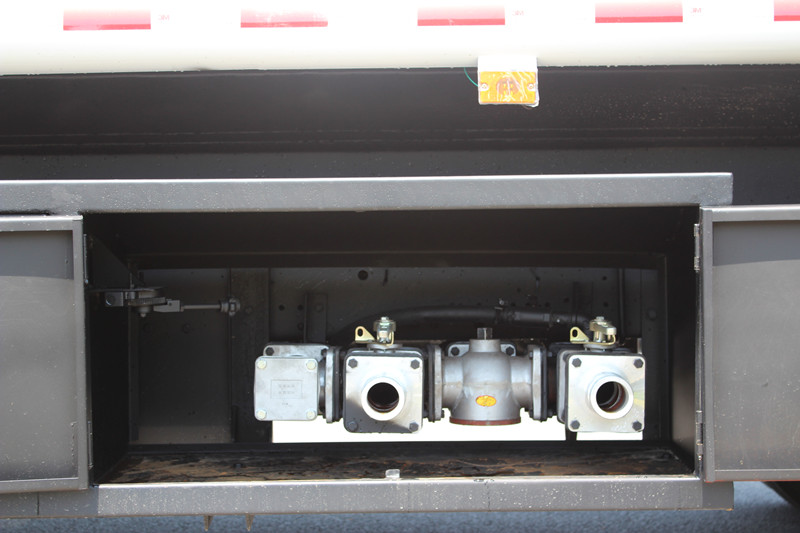

An aluminum alloy sea valves |
|||
|
Two Fire extinguisher |
|||
|
One spare tyre |
|||
|
Ladder: For access to top of tank complete with cat walk on top of tank |
|||
|
Heavy-duty rear bumper |
|||
Advanced features for other brand ISUZU brnad fuel bowser truck:
1.Tank materials: Isuzu fuel bowser Optional for Carbon steel Q235, Aluminius Alloy 5083; stainless steel 304
2.Tank shape: Isuzu oil truck Optional for round square, oval, and round;
3.Functions: The tank can be made to be made to be separated chambers to load different oil or chemical varieties .and can be designed as as pump-in and pump-out through measurement;
4.Oil pump: Isuzu jet fuel truck Optional single counting, double counting, and tax control tanker;
5.Pump: According to the use of tankers, can choose centrifugal pumps, gear pump, copper gear pump, stainless steel pump, it has big flow,fast speed of suction and some other characteristics;
6.Competitive Price: We offer the competitive price for the howo 20, 000 liters capacity diesel oil tanker fuel tank truck, directly from the factory.
How to choose most suitable Isuzu fuel jet truck from POWERSTAR TRUCKS INDUSTRY CO., LIMITED?
Choosing the right Isuzu jet fuel truck requires consideration of factors such as load capacity, driving comfort, fuel efficiency, repair and maintenance, safety features, versatility, engine performance, vehicle size, brand reputation and cost-effectiveness. By taking these factors into consideration, you can choose the Isuzu jet fuel tanker truck that best suits your jet fuel transportation needs. The details are as follows:
Load Capacity: Determine your Isuzu fuel truck's maximum load capacity based on your transportation needs. Make sure the Isuzu fuel tanker you choose can handle your jet fuel hauling volume.
Driving comfort: Consider the driving comfort factors of the truck, including seat adjustment, air conditioning system, noise isolation, etc. This ensures driver comfort and safety during long drives.
Fuel efficiency: Choose an Isuzu oil bowser with good fuel efficiency to reduce fuel costs and reduce environmental impact.
Repairs and Maintenance: Understand the repair and maintenance needs of your Isuzu refueling tanker truck and confirm that the selected model is easy to maintain and obtain spare parts.
Safety features: Make sure the Isuzu oil bowser truck you choose has strong brakes, a stable suspension and advanced safety features to increase the safety of jet fuel transportation.
Versatility: Consider the fuel truck's versatility, such as unloading gear, storage space, auxiliary equipment, etc., to adapt to different transportation needs.
Engine Performance: Choose Isuzu diesel tank truck with an efficient and reliable engine to ensure reliability and stability for high-load hauling and long hours of work.
Vehicle Size: Make sure the selected Isuzu oil bowser truck size is suitable for operation and parking needs based on the haul route and parking location.
Brand Reputation: Consider choosing a brand that has credibility and a good reputation. As one of the well-known car manufacturers, Isuzu has high-quality and reliable products.
Cost-Effectiveness: Compare different Isuzu fuel truck models and configurations and find the option that offers the best value for money within your budget.
