Isuzu Rear Loader Refuse Compactor Truck, Commercial & Residential Garbage Compactor Truck from China, Body Capacity 6 m3, 7 m3, 8 m3, 10 m3, 12 m3, 16 m3, 20 m3 ,22m3,etc. With Sewage Tank, Best Prices. Efficient Collection of Any Types of Wastes, Quick Pack Cycle, Perfect to Run Long Routes. Optional Bin Lifting Mechanisms.
Work capacity:
10cbmTruck model:
PT5100ZYSGEngine power:
190HPEngine type:
4KH1-TC51Axle drive:
4x2Gear box:
MLD-6 speeds ,6 forwards,1 reverse gear,manual operationRemarks:
Isuzu ELF/NPR/700P split body rear loader truck for sale,can be customized| Products Description |
Isuzu split body rear loader truck also called Isuzu garbage compactor truck, Isuzu rear loader compactor, Isuzu compactor garbage truck, Isuzu recycling rear loader，Isuzu waste compactor truck, Isuzu trash compactor, Isuzu trash crusher truck,Isuzu refuse compactor truck, Isuzu rubbish truck, Isuzu truck mouted garbage compactor，Isuzu waste collection vehicle. The Isuzu split body rear loader truck is suitable for garbage collection and disposal in urban, rural and other areas. It can quickly and efficiently handle various types of household waste, contributing to the improvement of urban environment.
I.Description of Isuzu Split Body Rear Loader Truck
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU 700P engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 30 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
| Technical Parameter |
II. Specification of Isuzu Split Body Rear Loader Truck
|
Isuzu ELF 700P 4x2 rear loader compactor truck |
|
|
Mian Technology Parameter |
|
|
Product Name |
Isuzu 700p garbage compactor truck |
|
Vehicle Model |
PT5100ZYSG |
|
Driving Type |
4×2,left hand drive |
|
Color |
White,yellow,blue,or your choice |
|
Weights |
|
|
Maximum allowable total weight |
10055 |
|
Curb weight(kg) |
7000 |
|
Dimensions |
|
|
Wheelbase(mm) |
4475 |
|
Overall Dimension(mm) |
7500×2400×2650 |
|
Box dimension |
10 m3 |
|
Max speed(km/h) |
95 |
|
Engine |
|
|
Engine model |
4KH1-TC51(190HP) |
|
Engine type |
4 stroke water-cooled,inter-cooling |
|
No. of cylinders |
straight-4 cylinders |
|
Displacement(L) |
5.193L |
|
Max. output (kw) |
140kw |
|
Type of fuel |
Diesel |
|
Emissions standard |
Euro 6 |
|
Drive Line |
|
|
Transmission |
MLD-6 speeds ,6 forwards,1 reverse gear,manual operation |
|
Steering |
Power steering |
|
Brake |
Air brake with vacuum pump |
|
Cab |
|
|
Passengers in cab |
3 |
|
Air container |
Have |
|
Standard configuration |
Sound,,parking sensors |
|
Axle |
|
|
Front axle |
4 tons |
|
Rear axle |
7 tons |
|
Tire specification |
|
|
Tire specification |
235/75R17.5 standard tire,6 tires+1 spare tire |
|
6m3 garbage compactor truck |
|
|
Box valume |
10m3 |
|
Box material |
Side 4mm,bottom 5mm |
|
Sewage tanker |
200L |
|
Compresstion ration |
≥1:3.4 |
|
Loading time |
8-10S |
|
The cycle time of the loading |
50-60S/per turn |
|
Unloading model |
Dump |
|
Unloading time |
30-40S |
|
Hydraulic system pressure |
16Mpa |
1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.
2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4 ,8x6
3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
4. we can do the designs according to the your requirement .
5. we can offer you the high quality & reasionalble price.
6. We accept 100% inspection, welcome to our factory at any time.
7. promptly delivery. any order is welcome.
III. Details of Isuzu Split Body Rear Loader Truck

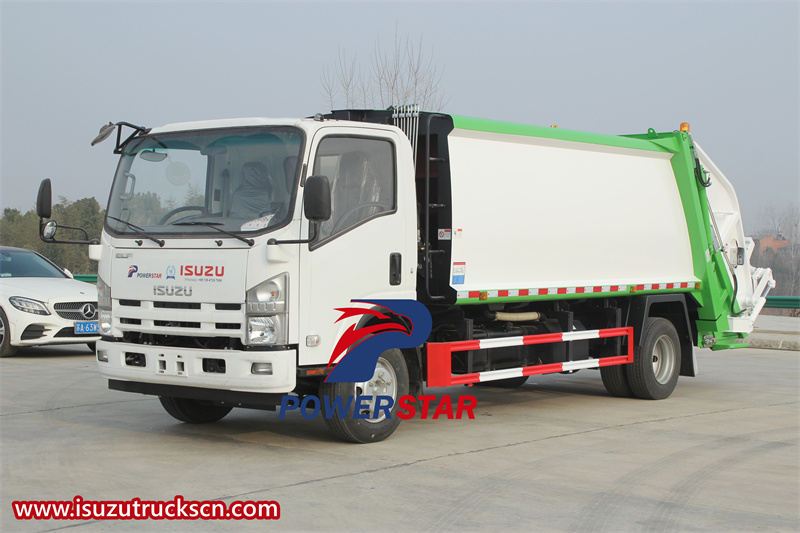

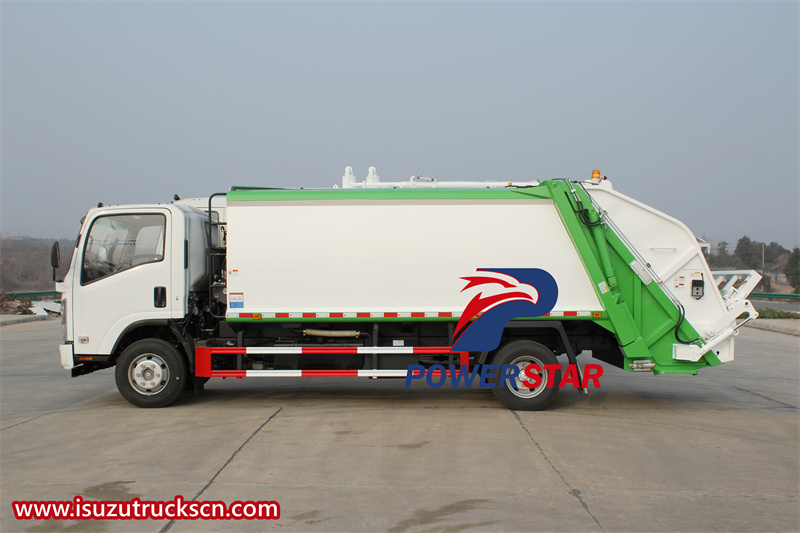

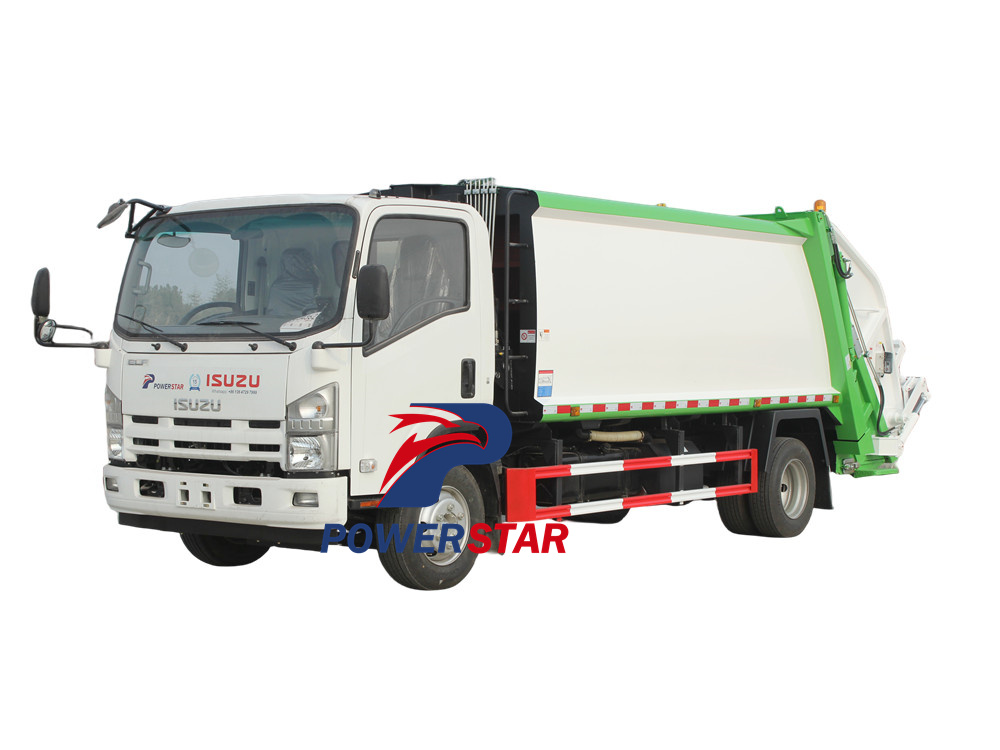

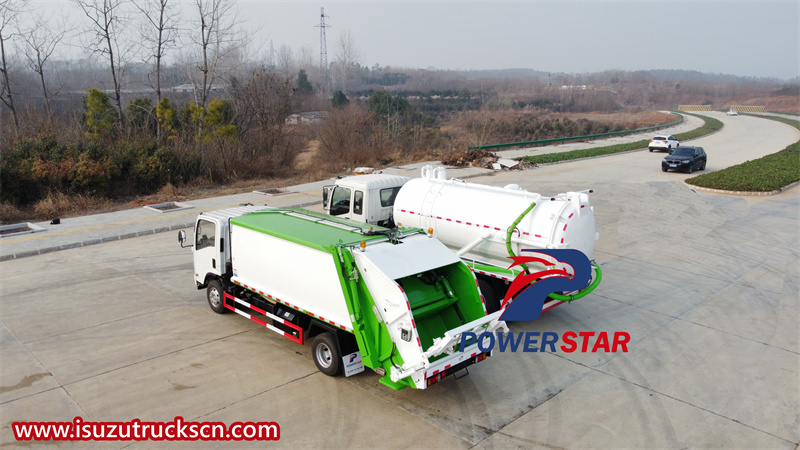

● Isuzu split body rear loader truck photos for reference
The Isuzu split body rear loader truck is used to collect, transport and clearing up wastes, advoiding the secondary pollution. The Isuzu garbage compactor truck is widely used in sanitation organization, municipal administration, mining area, property area, residential area, and many other places where garbage is centralized.

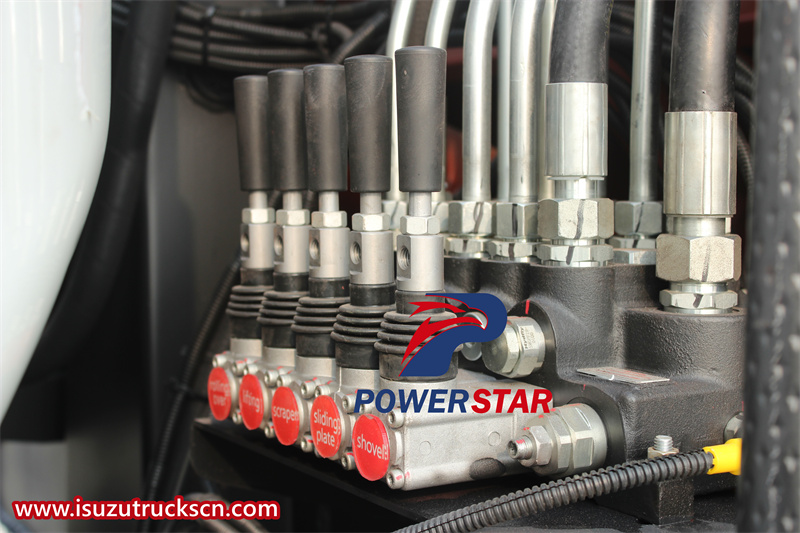

The Isuzu split body rear loader truck produced by Powerstar Company loads garbage, compresses garbage and unloads garbage using hydraulic drive and is completed by a special mechanism. The power of the automobile engine is transmitted to the oil pump through the power take-off and the transmission shaft, and the oil pump rotates to produce high-pressure oil. By operating the relevant control switches on the multi-way reversing valve, the hydraulic oil causes the relevant cylinders to work, and the cylinders work to drive the relevant mechanisms to complete the work of loading garbage, compressing garbage, or unloading garbage.

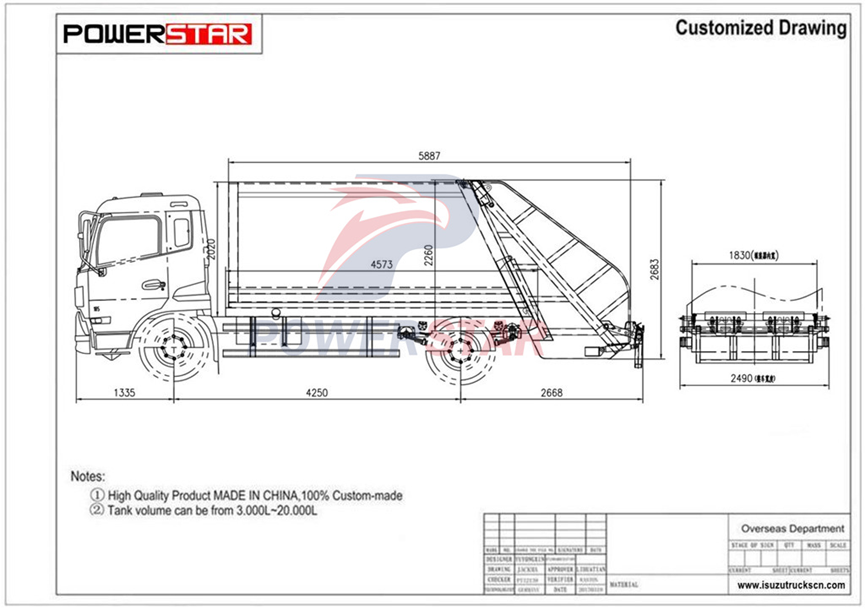

Isuzu compactor garbage truck technical drawing

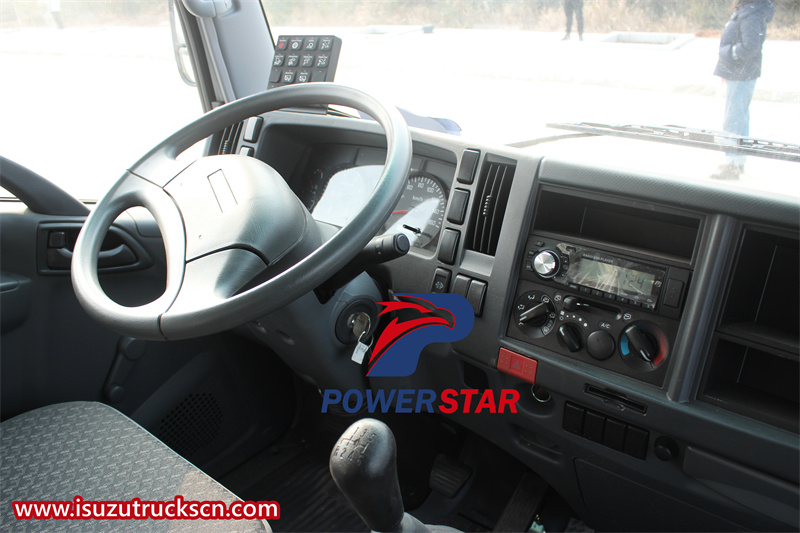

Isuzu split body rear loader truck adopts the original Isuzu 700P chassis, Isuzu 700P 3X wide-body single-row reversible cab, 190HP National VI Isuzu 4HK1-TCG61 engine, Isuzu MLD 6-speed gearbox, 4475mm wheelbase, 235/75R17.5 steel wire tires, front axle 4 tons, rear axle 7 tons, original air conditioning, steering assist, clutch assist, ABS anti-lock braking system, shock-absorbing seats, air brakes, vacuum booster pump, and USB interface radio.

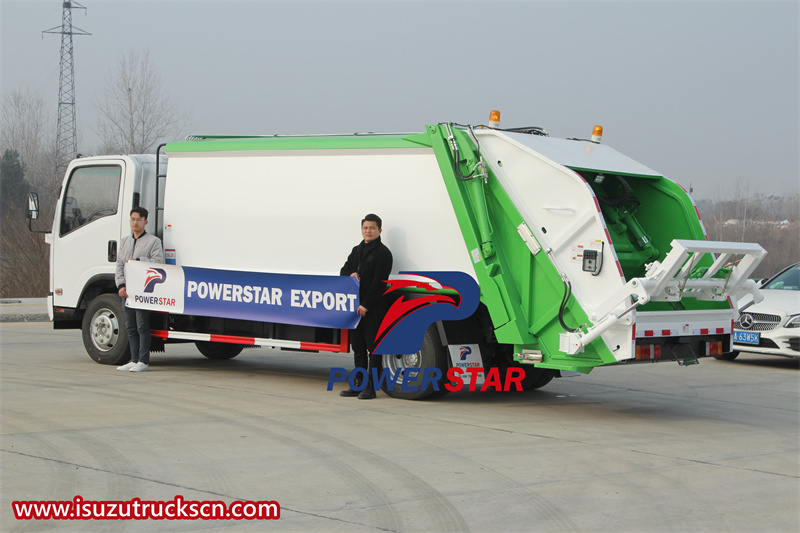

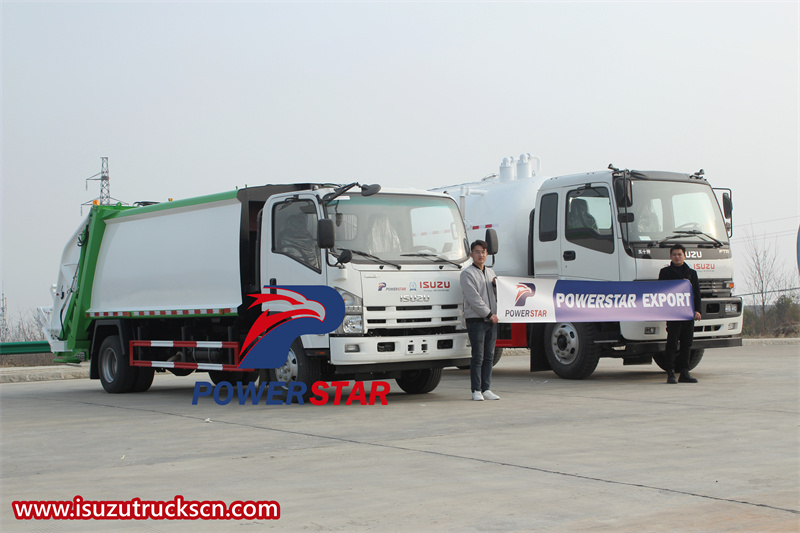

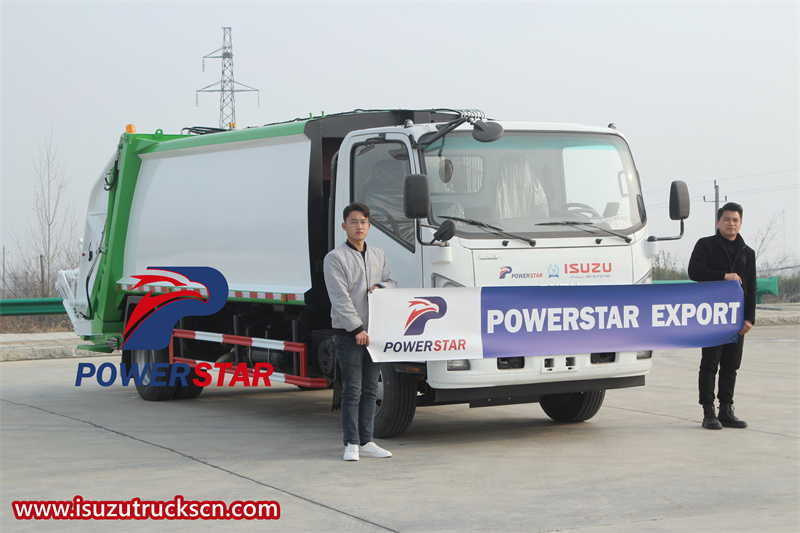

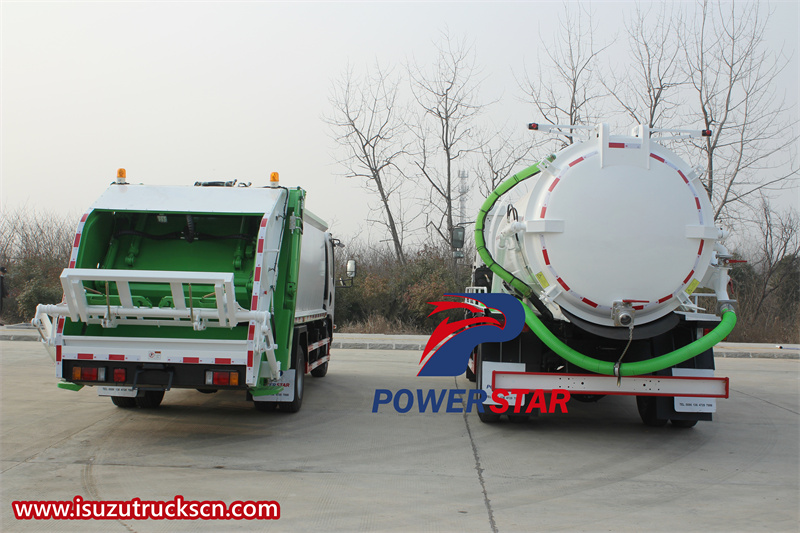

Isuzu rear loader truck exported to Ethiopia
Features:

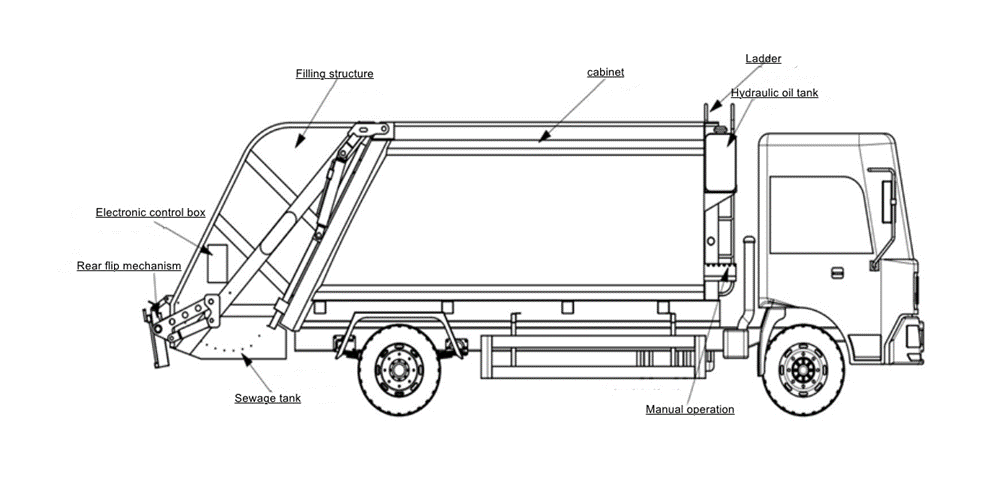

Isuzu rear loader compactor structure diagram
Various types of garbage lifting devices can be equipped depending on user needs.
| Our Advantage |

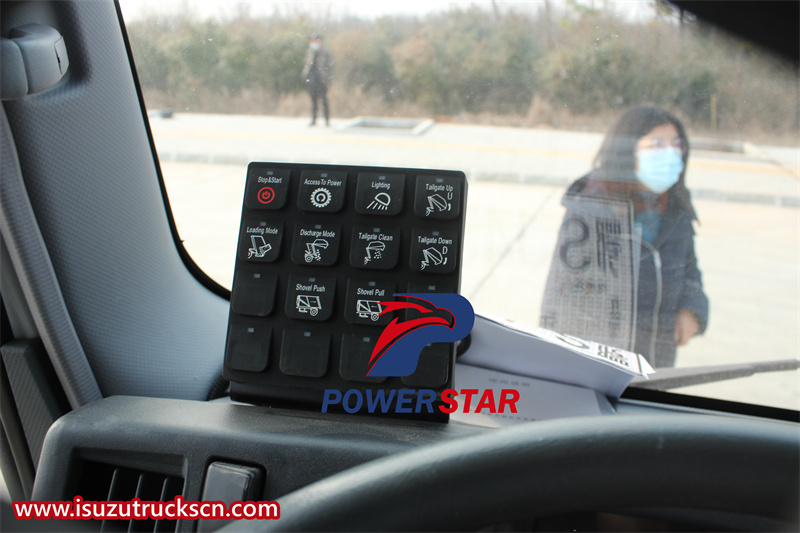

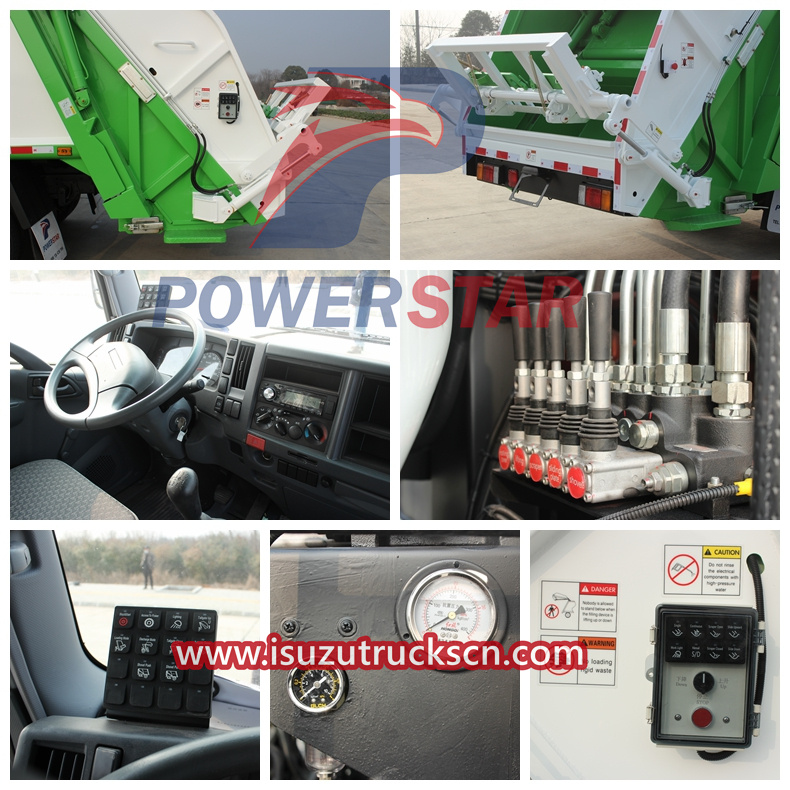

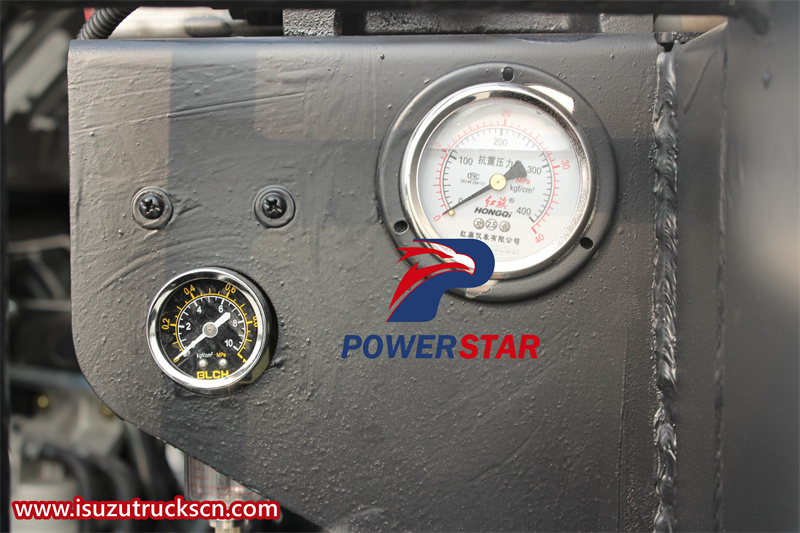

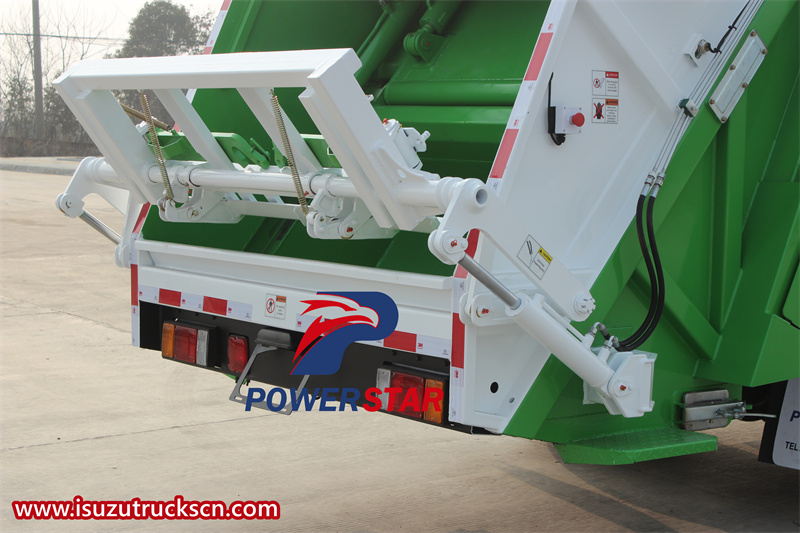

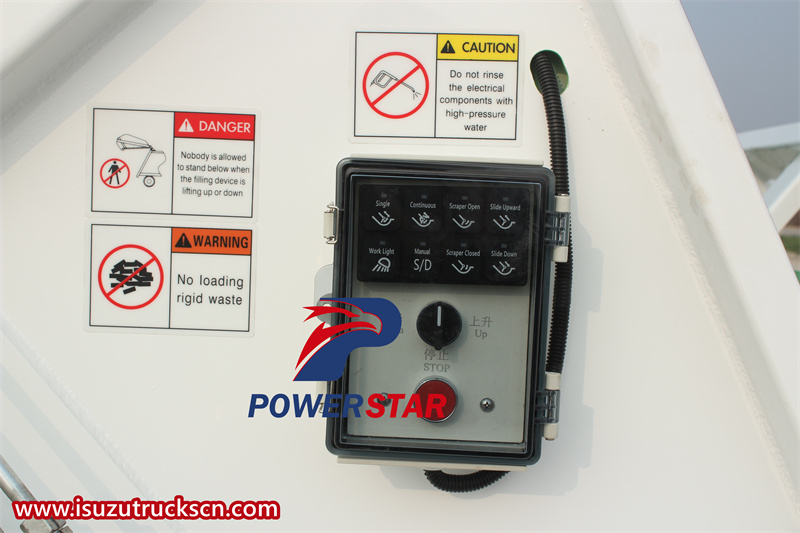

● Isuzu split body rear loader truck details

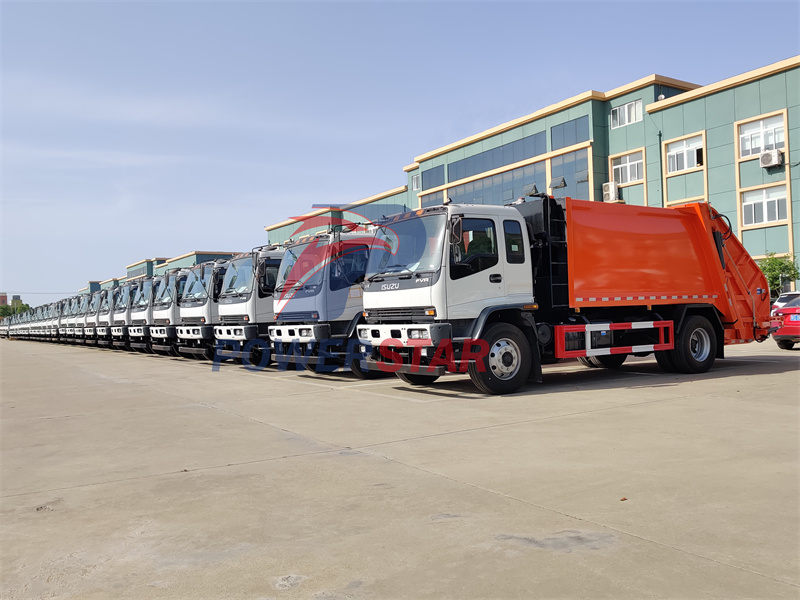

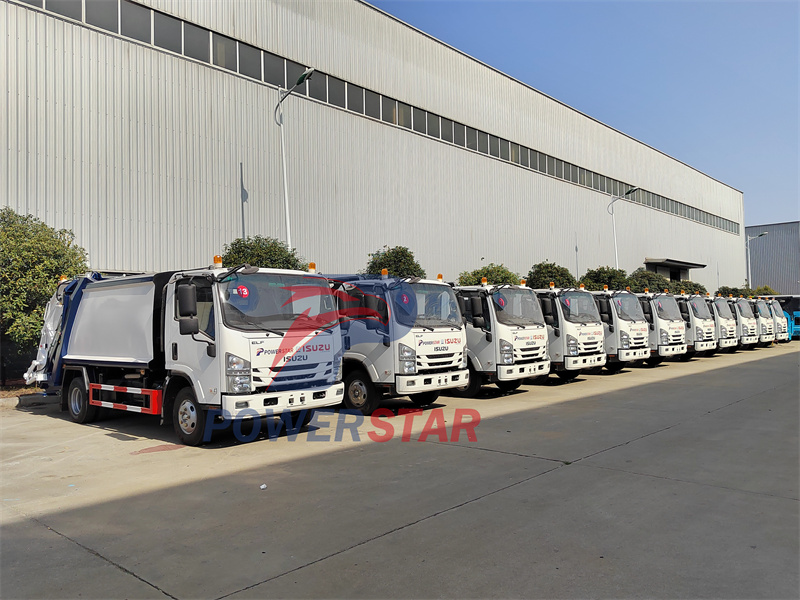

● Isuzu split body rear loader truck bulk delivery
