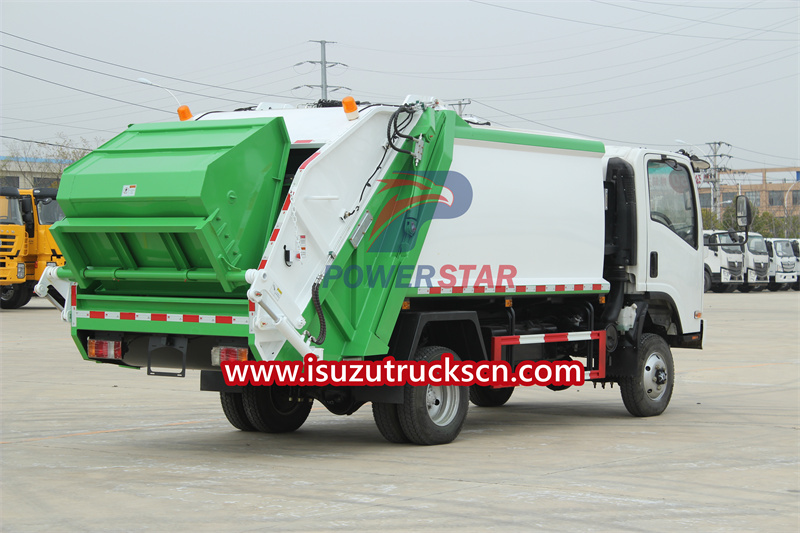

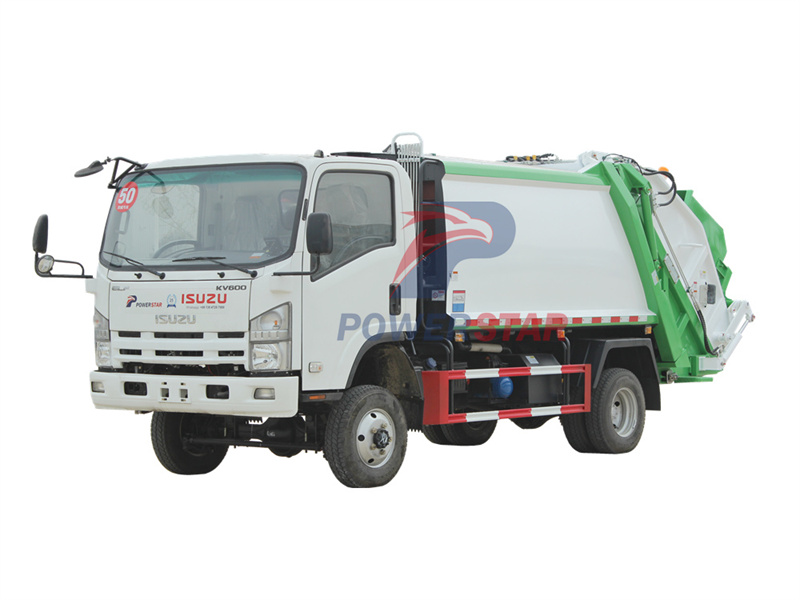

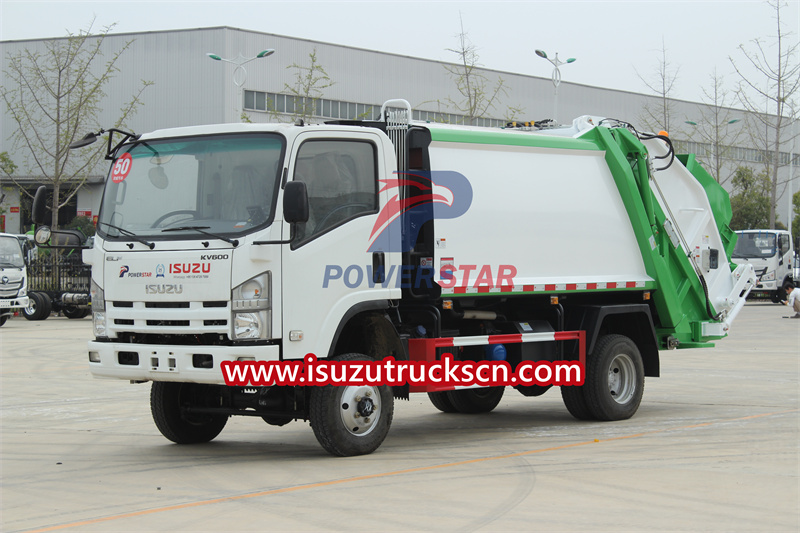

the Isuzu rubbish compactor truck is known for its powerful engine and high load capacity. It is equipped with a robust engine that provides sufficient power to handle heavy loads of waste. This ensures that the truck can easily collect and compress large amounts of trash without any issues. Additionally, the truck has a spacious storage compartment that can accommodate a significant volume of waste, reducing the number of trips required for disposal.
Work capacity:
5 cbmTruck model:
PT5050YSEngine power:
120 hpEngine type:
4KH1-TCG60Axle drive:
4x2Gear box:
MLD 6 shiftRemarks:
4x4 drive avaiable
Isuzu rubbish compactor truck is known for its robust design and durability. It is built with high-quality materials that can withstand the rigors of daily waste collection and compaction. The strong chassis and thick steel body ensure the truck can handle heavy loads without any structural damage.
Another key feature of the Isuzu rubbish compactor truck is its powerful compaction system. The truck is equipped with a hydraulic mechanism that compresses and compacts the waste, effectively reducing its volume. This compaction system allows the truck to carry and transport larger quantities of waste, ultimately maximizing the efficiency of waste disposal operations.
Isuzu rubbish compactor truck is a highly efficient and versatile vehicle specifically designed for waste management purposes. It incorporates a range of features that make it a top choice for waste disposal organizations.
the Isuzu rubbish compactor truck is known for its durability and reliability. It is built using high-quality materials and components, ensuring that it can withstand the demanding conditions of waste collection and compaction. This robust construction allows the truck to operate effectively in various terrains and weather conditions, minimizing downtime and maximizing productivity.

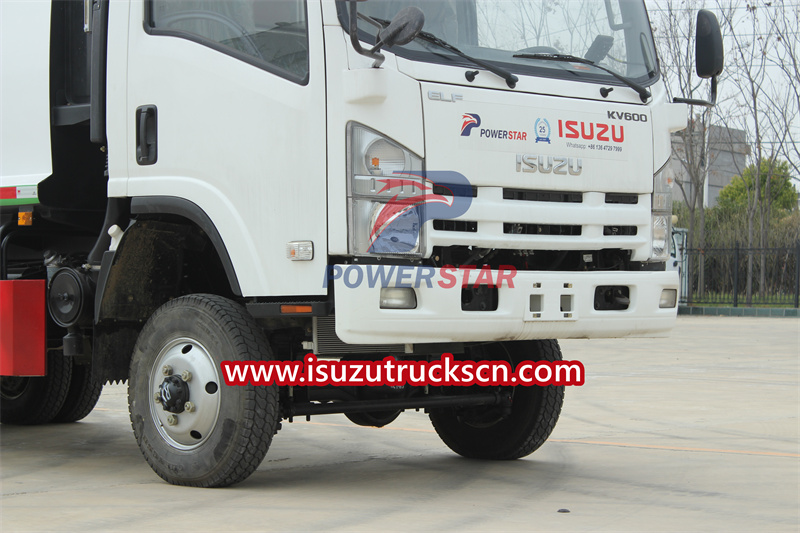

----►ISUZU NKR cabin, suitable for narrow.
----►ISUZU 120hp diesel engine, 500,000 km working performance
----►Germany Siemens operation system.
----►Large hopper system
----►12 months after sale service, long guarantee assurance.
----►Upper structure customized available.
Vehicle Description

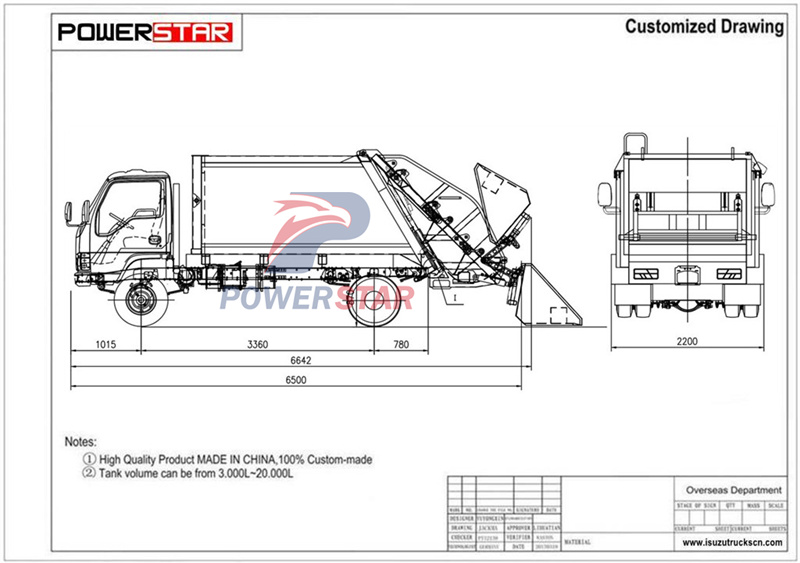

Overall dimensions
5950*1880*2280mm
GVW
7300kg
Curb weight
4700kg
Loading weight
/
Chassis brand
ISUZU
Traction type
4*2; Left hand drive
|
Up-parts Specification |
||
|
Dustbin volume |
5 cbm |
|
|
Material & thickness |
Side |
4mm Q345 |
|
Bottom |
5mm Q235A |
|
|
Type of
Rear garbage filler |
1.Hanging trash bin |
|
|
2.Swing arm |
||
|
3.Dustpan |
||
|
Control system |
Electrically Controlled Hydraulic + Manual Hydraulic |
|
|
Type of compactor |
Fill, push and compression |
|
|
Garbage compact density |
0.9±0.05 T/m³ |
|
|
Sewage water tank |
Rear |
About 500L, on the bottom of rear filler |
|
Front |
About 230L, on the front of garbage van |
|
|
Max compact |
≥141 KN |
|
|
Max push |
≥189 KN |
|
|
Tailgate ascending Angle |
~95° |
|
|
Cycle of loading |
≤40s |
|
|
Cycle of discharge |
≤45s |
|
|
Hydraulic pressure system working pressure |
16 Mpa |
|
|
PLC |
Importation PLC (Programmable controller) |
|
|
Gear pump |
Made in China |
|
|
Multi-way valve |
Air controlled, Made in China |
|
|
Hydraulic oil cylinder |
Made in China |
|
|
Hydraulic rubber hose |
Made in China |
|
|
Chassis Description |
||
|
Chassis model |
QL1060A1HAY |
|
|
Cab |
600P,single row, with A/C |
|
|
Wheelbase |
3360mm |
|
|
Tire specification |
7.00-16 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Engine model |
4KH1-TCG40 |
|
Emission level |
Euro 4 |
|
|
Displacement/output |
2999ml/88kw |
|
|
Horse power |
120hp |
|
|
Gear box |
Model |
ISUZU MSB |
|
Number of gears |
5 forward gears& 1 reverse |
|
|
Brake system |
Full air brake |
|
|
Axle |
Front |
2.5T |
|
Rear |
4.8T |
|
|
Suspension |
Front |
Leaf springs |
|
Rear |
Leaf springs |
|
|
Fuel tanker |
Type |
Carbon steel tanker, with lockable cap |
|
Capacity |
140L |
|
Isuzu Rubbish Compactor Truck, also known as the garbage compactor truck, plays a crucial role in waste management in the Philippines. This vehicle is designed specifically to collect and compact various types of waste efficiently. Here are the four main functions of the Isuzu Rubbish Compactor Truck in the Philippines:
1. Waste Collection: The Isuzu Rubbish Compactor Truck is primarily responsible for collecting waste from residential, commercial, and industrial areas. Equipped with a large storage compartment, it can accommodate vast amounts of garbage, reducing the number of trips required for disposal. By efficiently collecting waste, this truck helps maintain cleanliness and hygiene in towns, cities, and urban areas.
2. Waste Compaction: One of the key features of the Isuzu Rubbish Compactor Truck is its ability to compact waste. The truck's mechanism compresses and crushes the waste, significantly reducing its volume. By compacting the garbage, it maximizes the available space inside the truck, enabling it to collect and transport greater amounts of waste in a single trip. This compaction process helps optimize efficiency, reduce transportation costs, and minimize the environmental impact associated with waste disposal.
3. Waste Transportation: Once the waste is compacted, the Isuzu Rubbish Compactor Truck becomes responsible for transporting it to the designated landfill or recycling facility. The truck is equipped with a powerful engine and sturdy chassis to withstand heavy loads and challenging terrains, ensuring reliable and efficient transportation of waste. This aspect ensures timely removal of waste from populated areas, preventing potential health hazards and maintaining a clean environment.
4. Waste Disposal: Upon reaching the landfill or recycling facility, the Isuzu Rubbish Compactor Truck unloads the compacted waste for final disposal or recycling. Proper waste disposal is crucial for maintaining the ecological balance in the Philippines. By effectively managing waste disposal, this truck helps prevent the accumulation of unprocessed garbage, reduces pollution, and supports sustainable waste management practices.
Isuzu rubbish compactor truck, commonly known as a garbage truck, is a specialized vehicle designed to collect and transport waste materials efficiently. It plays a crucial role in maintaining cleanliness and hygiene in urban areas.
The Isuzu rubbish compactor truck operates in a systematic manner to handle waste disposal effectively. Here is a brief description of how it works:
1. Collection: The truck drives through designated routes, collecting garbage from waste bins placed on the streets. It can also pick up trash bags left by residents.
2. Loading: On reaching the collection point, the truck's compactor is activated. The compactor's hydraulically operated arms lift the waste bin or trash bag and tip the contents into the truck's hopper.
3. Compression: Once the waste is loaded into the hopper, the compactor's mechanism begins to compress it. The compaction process helps maximize the truck's capacity by reducing the overall volume of the waste.
4. Ejection: When the hopper is filled to a certain level, the compactor's hydraulic mechanism pushes the tightly compressed waste towards the rear of the truck. This process creates extra space for more garbage to be collected.
5. Repeating the process: The truck continues its collection route, repeating the loading, compression, and ejection cycle until it completes its task. This process allows the truck to transport a significant amount of waste in one trip, optimizing its efficiency.
6. Disposal: Once the truck reaches the designated waste disposal site, the compressed waste is unloaded. It can either be directly dumped into landfill areas or transferred to recycling facilities, depending on the waste management practices in the area.
7. Cleaning: After completing the waste disposal, the truck undergoes a cleaning process to ensure hygiene and eliminate any unpleasant odor or residue.
The Isuzu rubbish compactor truck efficiently manages waste removal by minimizing the number of trips required for collection, reducing transportation costs, and improving cleanliness in urban environments. It is also equipped with safety features, such as backup cameras and alarms, to prevent accidents during operations.
