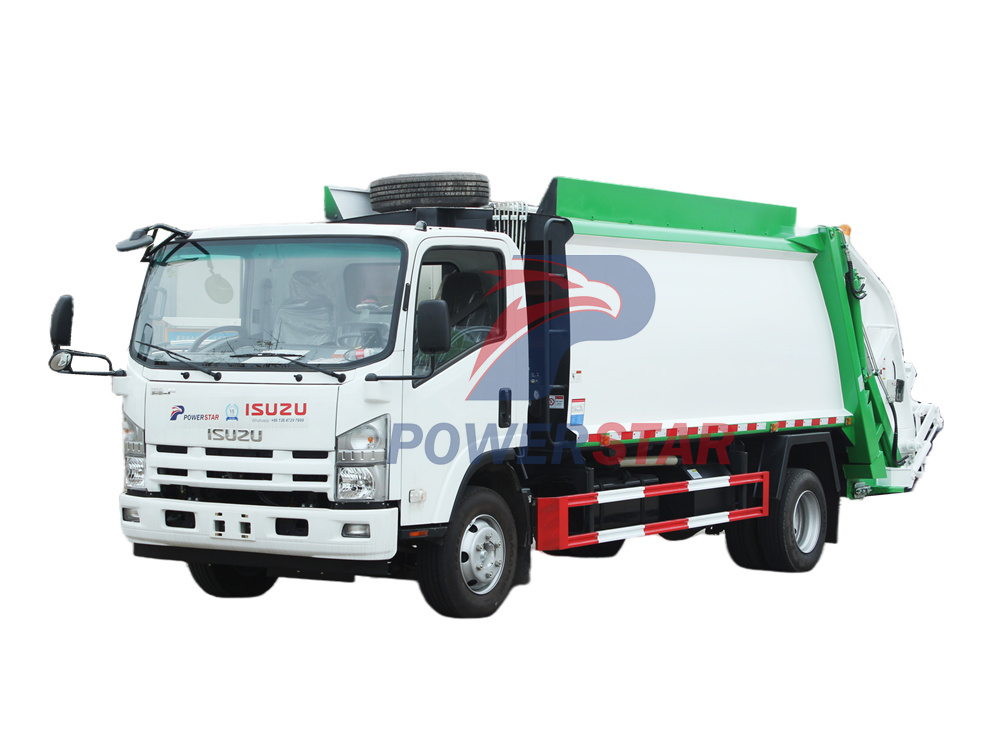

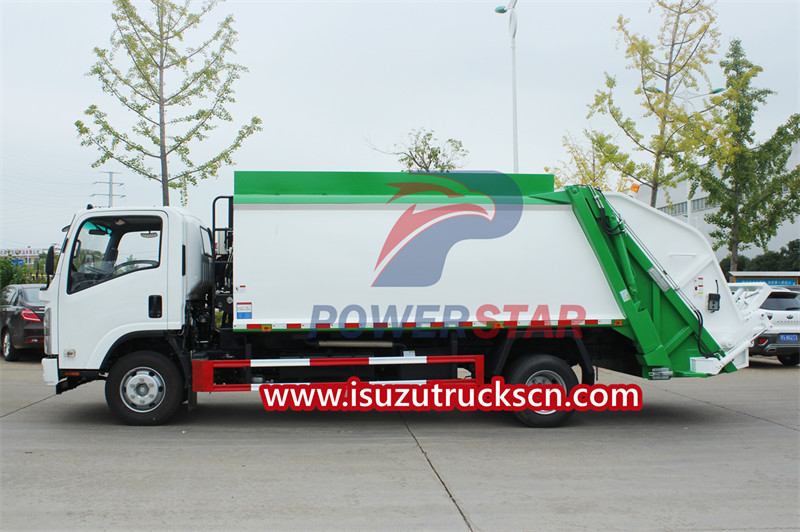

Work capacity:
8 CBMTruck model:
PT5080ZYSEngine power:
190 HPEngine type:
4HK1-TC51Axle drive:
4×2Gear box:
ISUZU MLD 6-speed, manualRemarks:

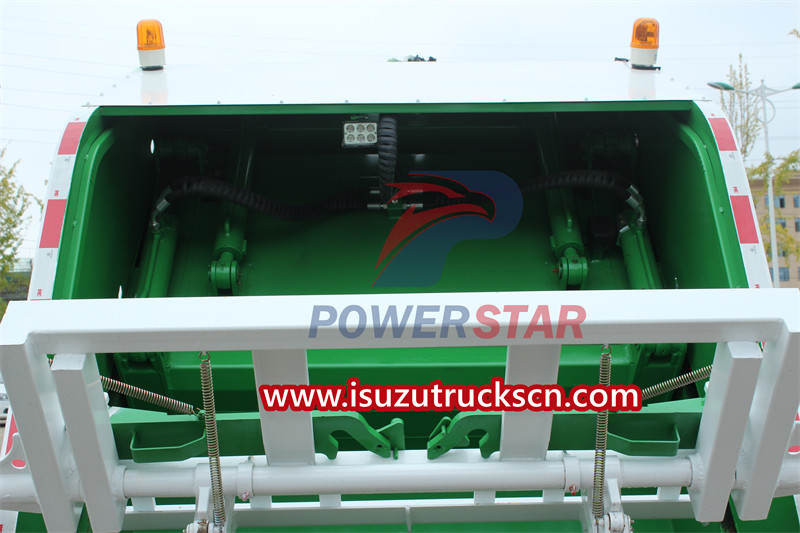

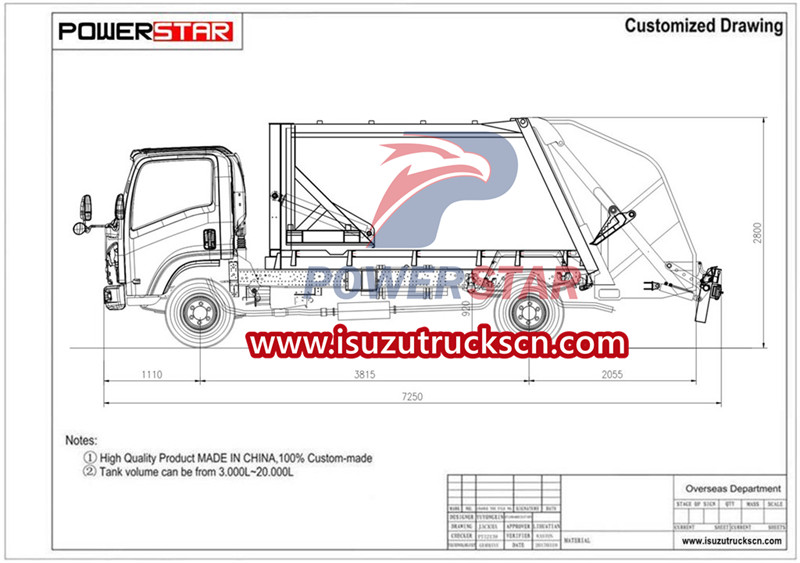

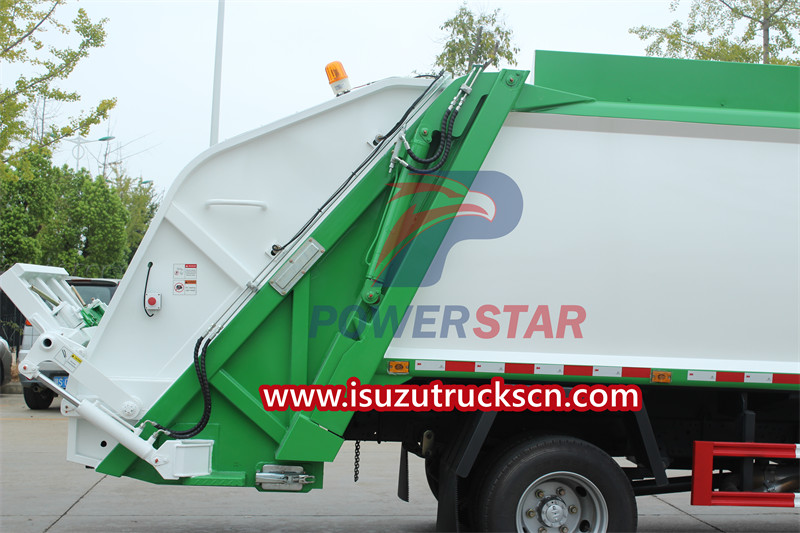

Customized dimension, 4x4 drive model is optionalIsuzu trash compactor trucks realize the loading, unloading and compression of garbage through its unique compression mechanism and control system. Specifically, when the filling hopper is filled with garbage, the scraper is opened, and the slide plate drives the scraper to move downward together, and is inserted into the garbage for crushing and first compression. The scraper rotates forward to further compact the garbage. After the scraper is in place, the slide plate moves up to compact and fill the trash bin, then return to the starting position. The entire working process is automatically controlled. When the garbage is continuously pressed and filled, the push shovel overcomes the back pressure and gradually retreats under the action of the squeezing force, achieving two-way compression of the garbage and evenly filling the entire garbage bin.

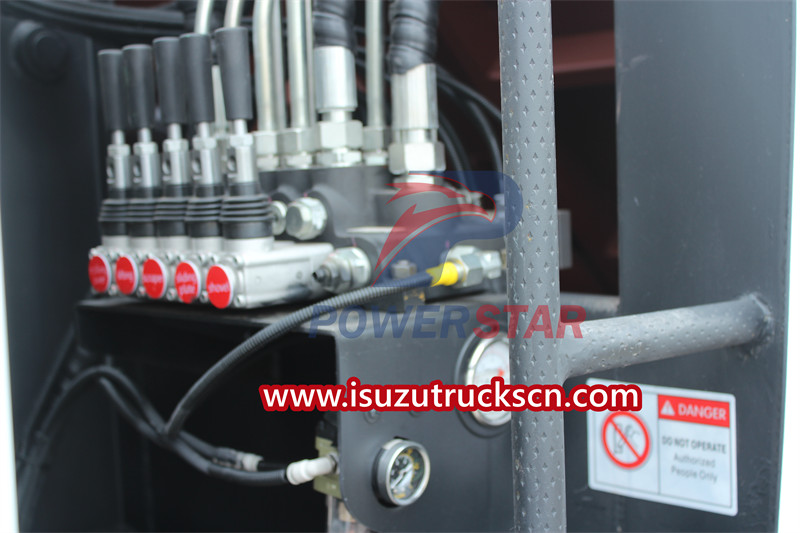

In addition, Isuzu rear loader garbage trucks are equipped with advanced hydraulic systems that enable precise control and operation of garbage. During the compression process, the hydraulic system provides power so that the compression mechanism can work better. At the same time, the hydraulic system can also control the loading and unloading of garbage, making the entire operation process more convenient and efficient.
Product parameters
General Parameters
Product name
ISUZU Rear Load Trash Truck
Dimension
7600×2260×2650mm
Gross vehicle weight
11000kg
Driving type
4X2
Transmission
Manual
Steering wheel
Left Hand Drive (LHD)
Wheel base
4175mm
Front/rear axle
4000/7000 kg
Brake
Air brake
Tire
235/75R17.5 16PR
Fuel type
Diesel
Fuel tank
100 L
Cab Parameters
Cab
Single raw cab, A/C, Power steering wheel, ABS, Radio
Seats
3
Engine Parameters
Engine brand
ISUZU
Engine model
4HK1-TC51
Engine type
4 stroke, 4-cylinders, in-line, Inter-cooling, turbocharged
Output power
140 kw/190 hp
Displacement
5193 ml
Emission standard
Euro 5
Upper body Parameters
Compactor volume
8 CBM
Material
T420 high strength manganese steel plate
Sewage tank volume
≥0.85 CBM
Loading and recycle time
15 second
Compressing time
25 second
Discharging time
35 second
Compression ratio
≥2.5
Control method
CAN-bus electric control + manual control
Environmental performance of Isuzu rear loader trash trucks
1. Reduce environmental pollution: This model uses advanced compression technology to reduce the volume of garbage to a minimum, thereby reducing pollution generated during transportation and landfill. At the same time, the vehicle is also equipped with an exhaust gas purification device to effectively reduce exhaust emissions and protect the environment.
2. Energy saving and emission reduction: Isuzu waste compactor truck uses a high-efficiency hydraulic system to control garbage compression. After multiple processes, the garbage is compressed to the minimum volume in the car body, and then transported to the treatment site in one go, reducing the number of vehicle trips and improving efficiency. Transportation efficiency, thereby reducing energy consumption and carbon emissions.
3. Prevent secondary pollution: The compactor body has a sealed structure and is equipped with two sewage tanks to ensure that the garbage will not leak during transportation and avoid secondary pollution to the environment.
4. Realize resource utilization: The design concept of Isuzu rear loading garbage trucks is to utilize garbage as a resource. Through compression and recycling, the garbage is converted into usable resources, thereby reducing the consumption of natural resources and conducive to sustainability develop.
Factory direct sale ISUZU ELF 700P rear loader garbage truck, high quality ISUZU 190HP 8CBM garbage compression trucks, ISUZU rubbish compactor manufacturer.
Learn More
Custom-made ISUZU ELF 700P hook lift garbage compactor truck, high quality ISUZU 190HP medium duty hook lift waste compactor truck, ISUZU rear loader manufacturer.
Learn More
This ISUZU trash truck rear loader is equipped with an advanced compression device that uses high-pressure air to compress the garbage into small pieces, thereby reducing the volume of the garbage and improving the removal efficiency. At the same time, the vehicle is also equipped with environmental protection equipment, which can effectively reduce exhaust gas and noise pollution, making a positive contribution to urban environmental protection.
Learn More
The Isuzu 700P rear loader compactor produced by POWERSTAR is a municipal vehicle used for garbage collection,which is modified on the Isuzu 700P chassis,with 4175mm wheelbase,Isuzu 4HK1 190HP powerful diesel engine,Isuzu MLD 6 shift gearbox,with A/C,USB, direction assistance,the vehicle has a 10cbm large garbage capacity for waste collection.
Learn More

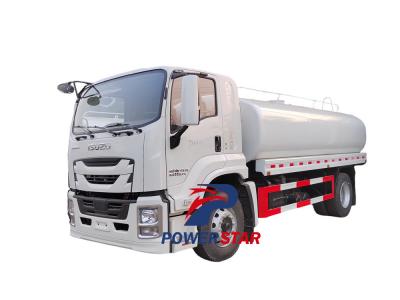

The Isuzu FTR GIGA 4x2 12000L drinking water truck is a versatile and reliable solution for a wide range of applications that require the efficient transportation and distribution of potable water. Designed with a focus on durability, performance, and safety, this truck is an ideal choice for rental companies, disaster relief organizations, construction sites, events management, and other sectors where a large capacity water delivery system is crucial.
Learn More
The Isuzu 4x4 all-wheel drive pickup truck mobile service vehicle produced by POWERSTAR is modified based on the Isuzu all-wheel drive pickup truck. The vehicle is equipped with a 4KH1CT6H1 143HP engine, provides a 3406mm wheelbase, and has a maximum torque of 320N·m. It is matched with an Isuzu MSB 5-speed transmission, which has strong power and smooth shifting. The tool box at the rear of the vehicle can be equipped with the required service tools according to needs.
Learn More

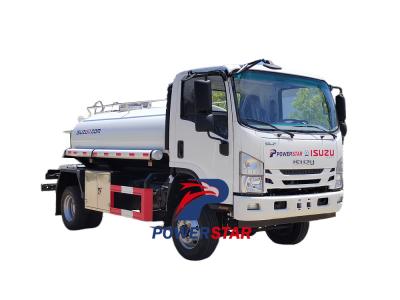

Isuzu 4x4 drinking water truck is a vehicle designed to respond to emergency disasters and water supply needs in remote areas. It has full drive capabilities and can cope with complex and harsh road conditions to ensure that water can reach its destination in a timely manner. The vehicle is equipped with an efficient water tank and pump system that can quickly load, transport and spray drinking water. It has a stable chassis structure and strong carrying capacity, ensuring the safety and reliability of the water tank transportation process.
