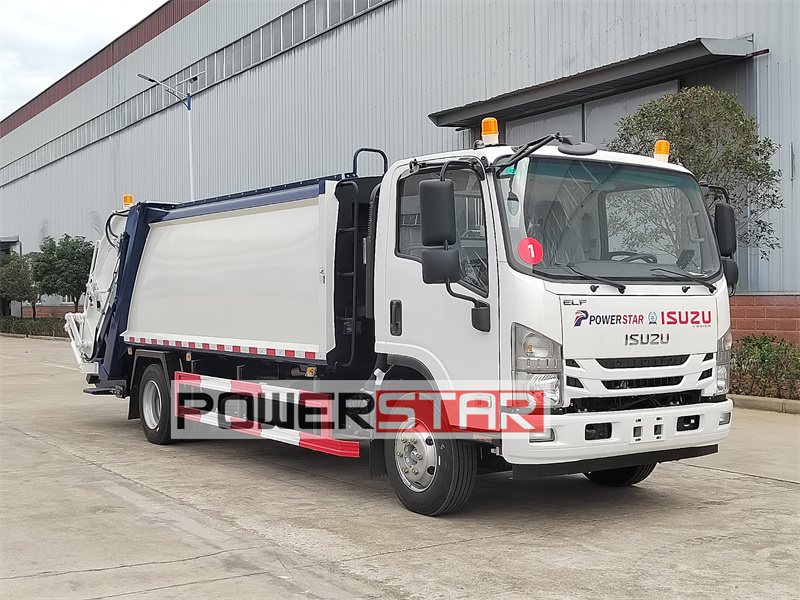

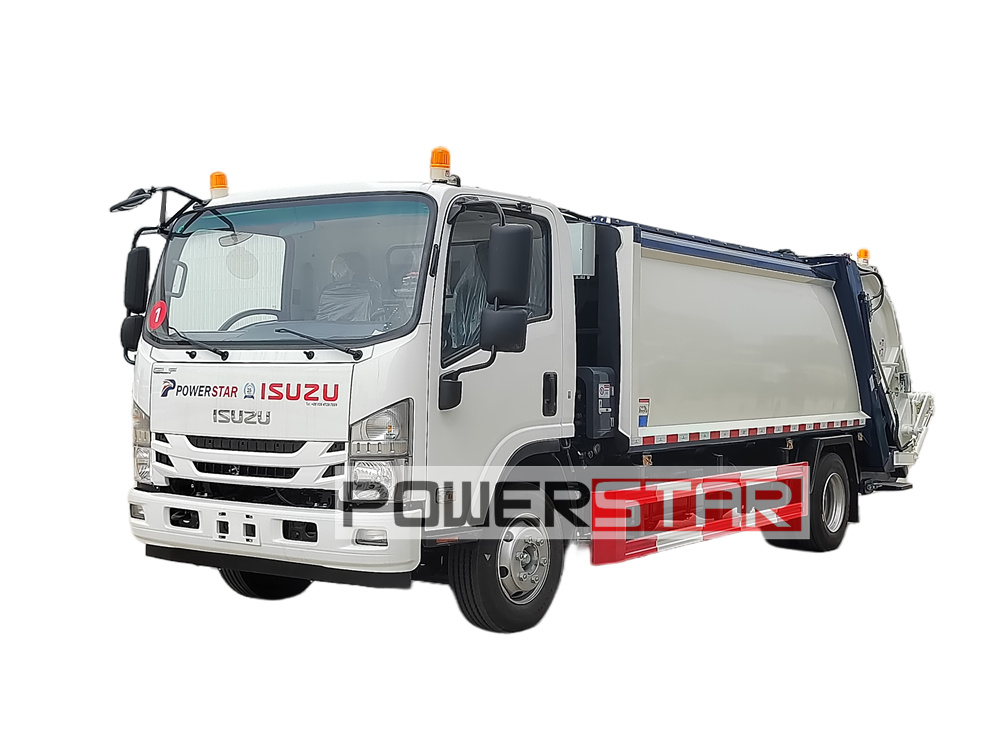

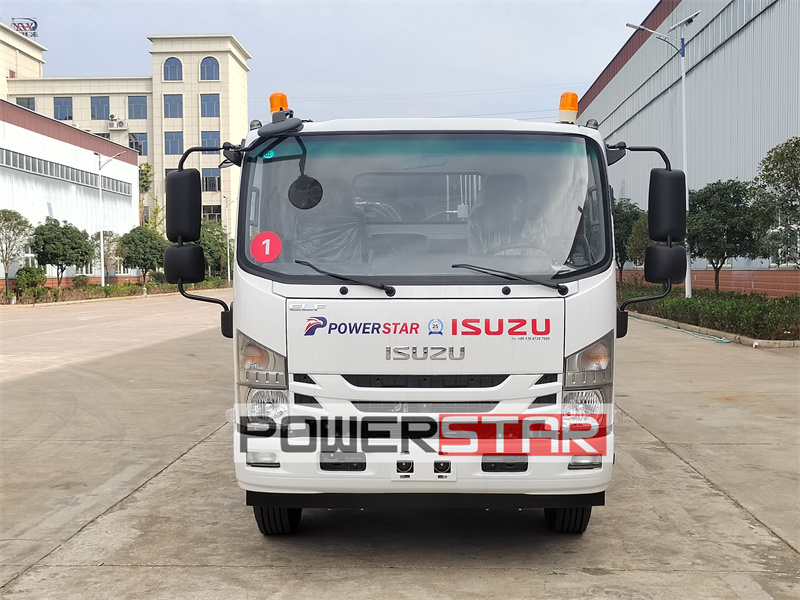

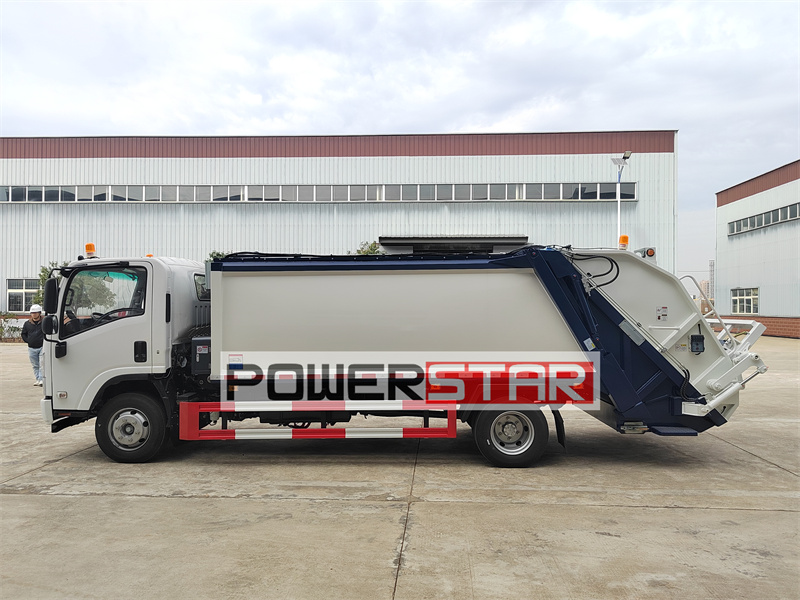

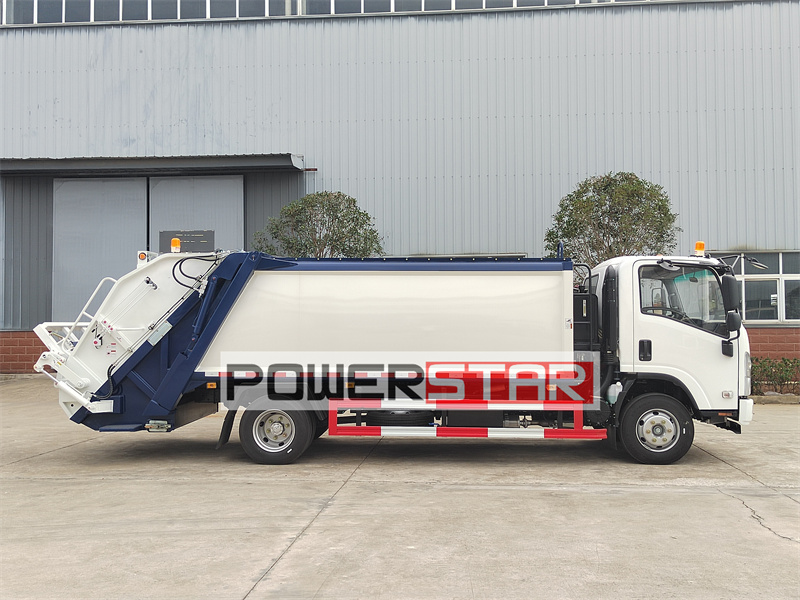

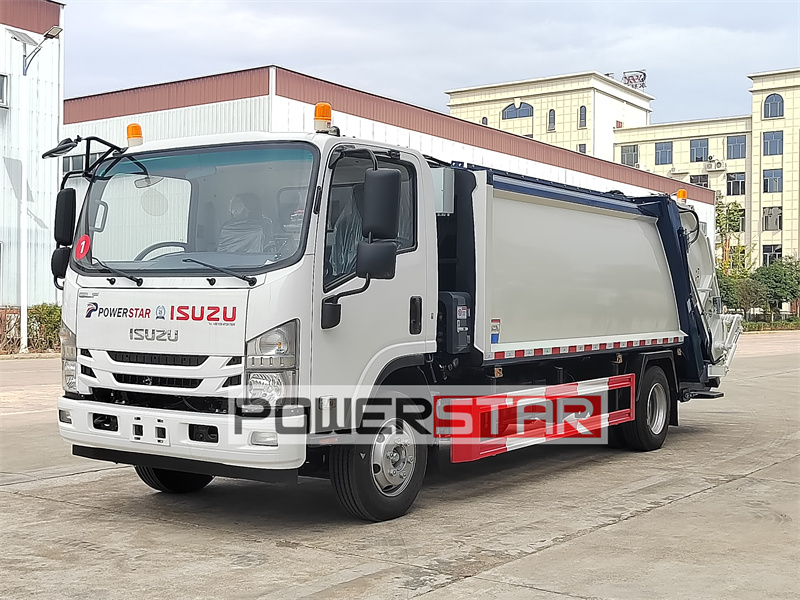

The Isuzu 700P rear loader compactor produced by POWERSTAR is a municipal vehicle used for garbage collection,which is modified on the Isuzu 700P chassis,with 4175mm wheelbase,Isuzu 4HK1 190HP powerful diesel engine,Isuzu MLD 6 shift gearbox,with A/C,USB, direction assistance,the vehicle has a 10cbm large garbage capacity for waste collection.
Work capacity:
10cbmTruck model:
PT5110GXHEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4x2,LHDGear box:
Isuzu MLD 6 forwards & 1 reverse,manualRemarks:
10cbm large garbage capacity,4 sets control deviceThe Isuzu ELF commercial rear loader garbage truck represents a garbage compression vehicle characterized by its impressive compression rate, substantial loading capacity, swift operational efficiency, and muted noise levels. Garbage thrown into the hopper is first crushed by the press plate and then compressed and compacted by the ejection plate inside the body. Collected garbage can be easily discharged from the body by the operation of the ejection plate.
Key Features:
★ Various size body from 3cbm to 20cbm,
★ ISUZU engine,super powerful;reliable performance. no overhaul,within 1000000km
★ TAIWAN Yonghong PLC integrated control high-efficient working
★ Diffient rear lifting systerm are optional.
★ Can be put into 20",40"container and ship to worldwide
|
Isuzu ELF 700P rear loader compactor truck |
|
|
General |
|
|
Manufacturer |
PowerStar Trucks Industry Co.,Limited |
|
Driving type |
4x2,LHD |
|
Overall Dimension |
7850x2170x2500mm |
|
Gross Vehicle Weight |
11000kg |
|
Curb weight |
6500kg |
|
Wheelbase |
4175mm |
|
Box capacity |
10cbm |
|
Max speed |
95km/h |
|
Tire |
235/75R17.5, 6pcs with 1 spare |
|
Engine |
|
|
Engine model |
Isuzu 4HK1-TCG61 |
|
Engine type |
Inline 4 cylinders, 4 strokes, water cooling, turbo inter cooling,diesel engine |
|
Horse power |
190HP |
|
Displacement |
5,193ml |
|
Emission standard |
Euro 6 |
|
Max torque |
510N.m |
|
Gearbox |
Isuzu MLD 6 forwards & 1 reverse,manual |
|
Body |
|
|
Garbage Tank Volume |
10cbm |
|
Material |
Carbon steel |
|
Sewage tanker |
200L |
|
Side thickness |
4mm |
|
Bottom thickness |
5mm |
|
Compression ration |
≥1:3.4 |
|
Hydraulic system |
|
|
Dozer cylinder |
1 |
|
Scraper cylinder |
2 |
|
Skateboard cylinder |
2 |
|
Rear flip cylinder |
2 |
|
Lifting cylinder |
2 |
|
Hydraulic tank |
150L |
|
Hydraulic oil pump |
Hefei Wanye Oil Pump |
|
Multi-way valve |
Yangzhou Zhongmei multi-way valve |
|
Electric control system |
|
|
Operating system |
Taiwan Yonghong PLC electric control system and manual operation device |
|
Electronic control operation button |
1 set in the cabin, 1 set at the left tailgate, and 1 set at the right tailgate (3 sets total) |
|
Manual operation device |
1 set behind cab |
|
Pressing system |
|
|
Rated pressure |
18Mpa |
|
Recycling time |
≤25s |
|
Dumping time |
≤35s |
The Isuzu ELF 10cbm Commercial Rear Loader Garbage Truck is a specialized vehicle designed for efficient and hygienic waste collection in urban and suburban areas. Here's a detailed overview of its features and capabilities:
Engine:
The heart of the Isuzu ELF 10cbm is powered by a reliable 4HK1-TCG61 diesel engine that delivers a powerful 190 hp. This engine features advanced fuel injection technology to ensure optimal fuel consumption, reducing operating costs. It is built to last even in tough conditions.
Meets modern emission standards, helping to clean the air and reduce environmental impact.
The MLD 6-speed manual transmission provides seamless shifting, improving performance and driver comfort. Precisely engineered gears allow for smooth and efficient acceleration.
10m3 loading capacity
The Isuzu ELF’s 10m3 bin is able to hold large amounts of waste, reducing the frequency of trips to the waste disposal site.

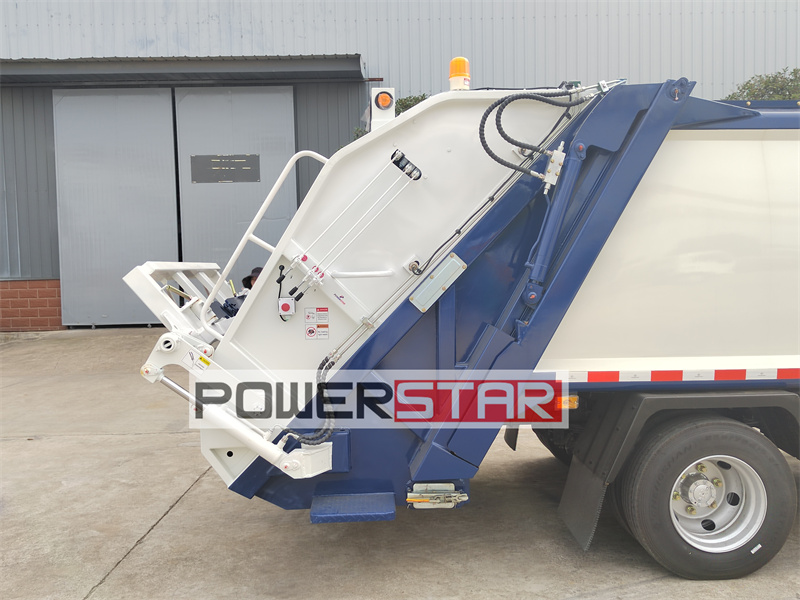

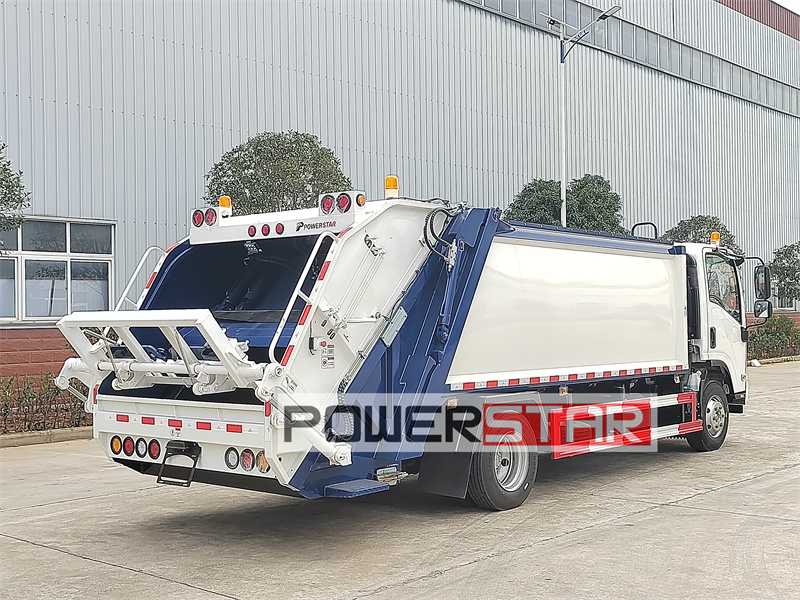

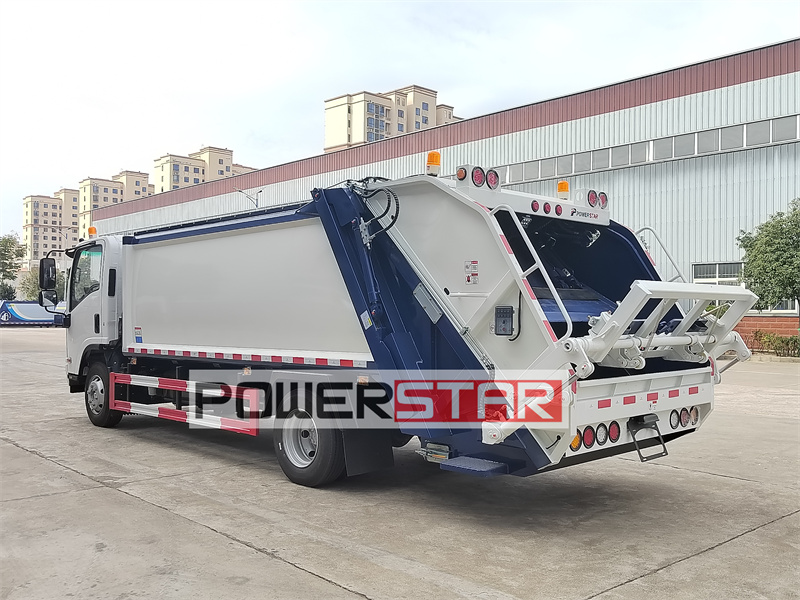

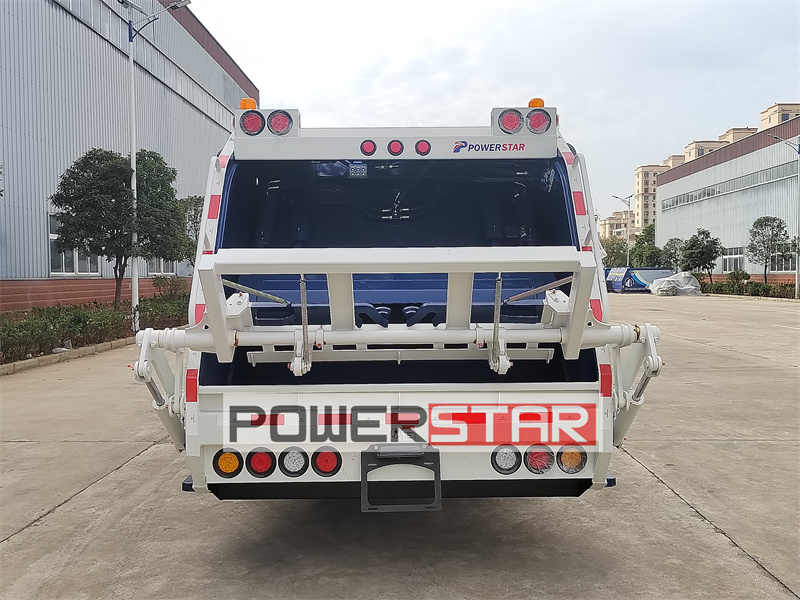

Rear loader design
The Isuzu ELF’s rear loader arm is a standout feature, capable of lifting and emptying a wide range of waste containers, from standard bins to larger dumpsters. The design is intuitive and ergonomic, reducing operator fatigue. Ideal for picking up waste from containers or bins placed on streets and public areas.
Compactor Mechanism
Inside the truck body, a powerful compactor system ensures that waste is tightly compressed, maximizing loading capacity and reducing the number of trips required.
Hydraulic System
The hydraulic system of the Isuzu ELF is powered by the following components:
Hefei Weiye Hydraulic Pump: Known for its reliability and efficiency, provides smooth and powerful hydraulic action.
Yangzhou Zhongmei Multi-way Valve: Precisely controls the flow of hydraulic oil, ensuring smooth and coordinated movement of the loader arm and compactor mechanism.

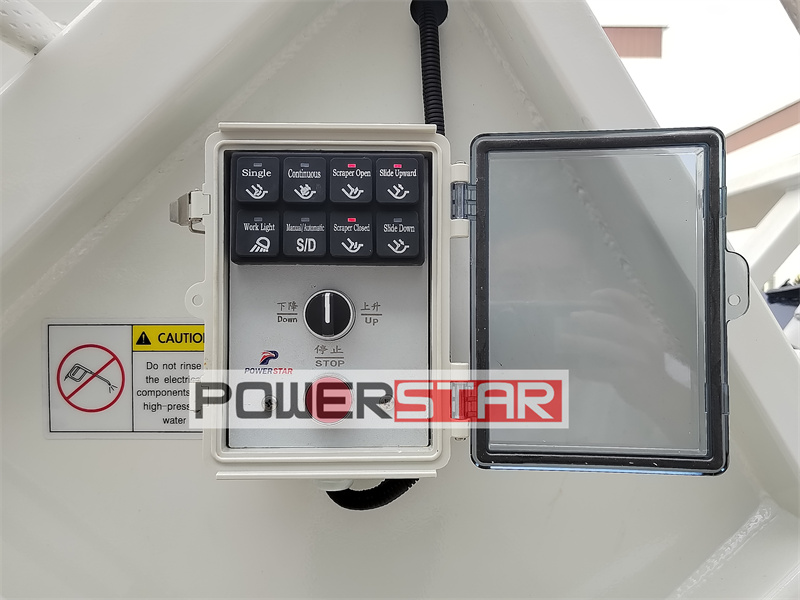

Electrical Control System
The Taiwan-made Yonghong PLC (Programmable Logic Controller) electrical control system ensures precise and reliable operation:
Automatic Cycle: Pre-programmed cycles for efficient and seamless waste handling.
Manual Override: Allows manual control when required, ensuring precision and flexibility.

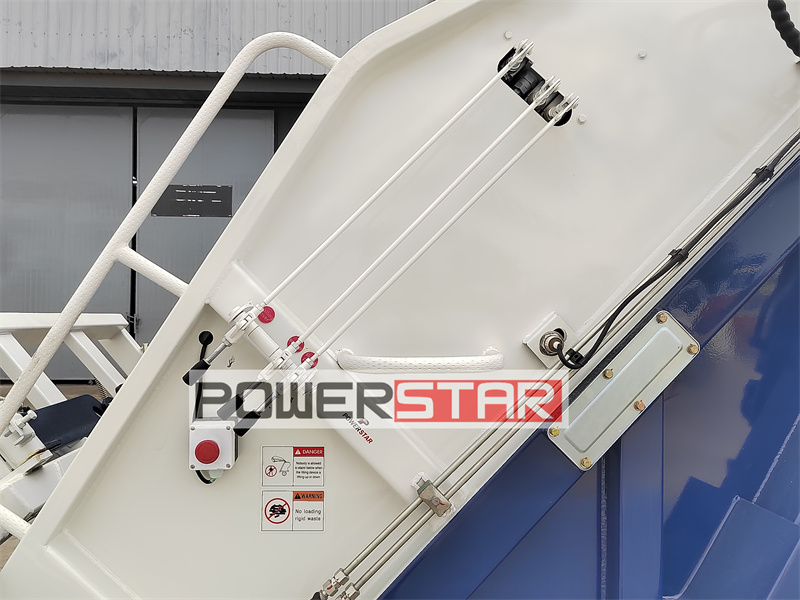

Manual Override Device
In addition to the automatic system, the Isuzu ELF also features a manual override device:

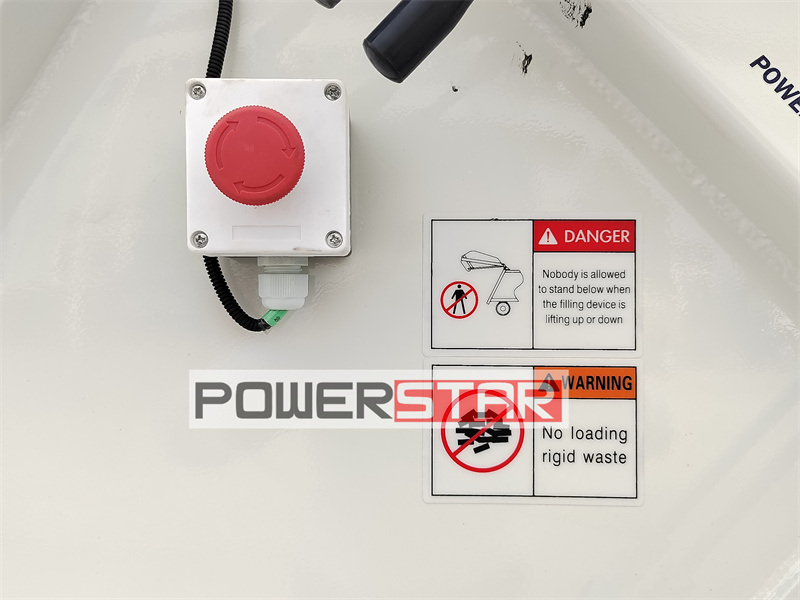

Emergency Stop: Provides a quick and easy way to stop operation in an emergency.
Manual Override: Allows the operator to manually control key functions such as loader arm movement and compactor pressure for added precision and control.

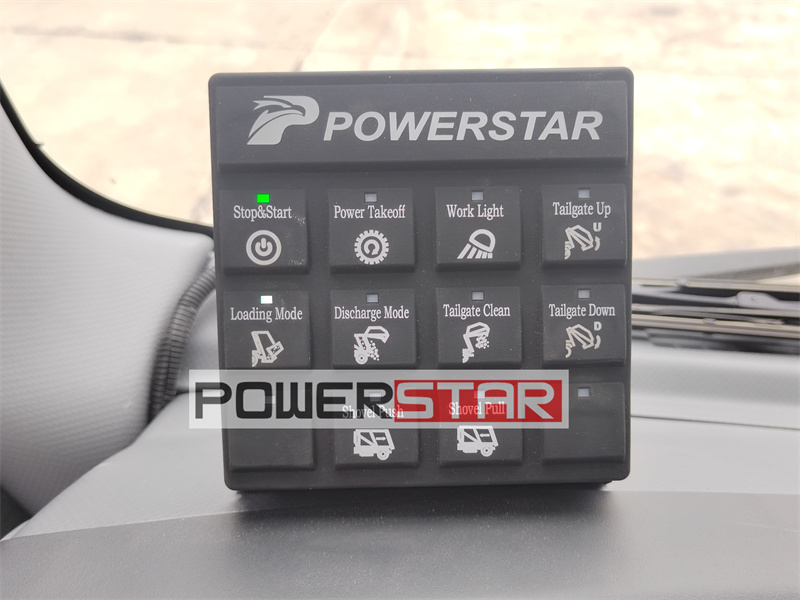

Cab operation box

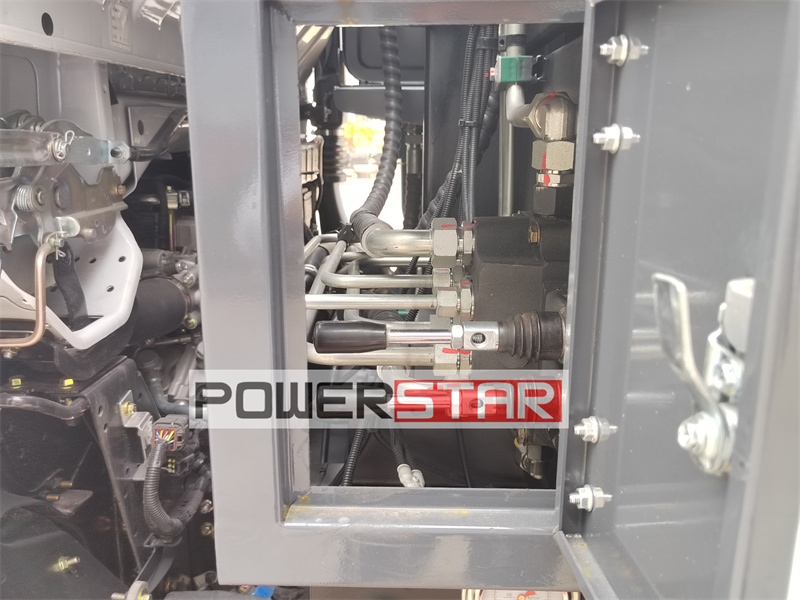

Drive side Yangzhou Zhongmei multi-way valve
Factory direct sale ISUZU ELF 700P rear loader garbage truck, high quality ISUZU 190HP 8CBM garbage compression trucks, ISUZU rubbish compactor manufacturer.
Learn More
Custom-made ISUZU ELF 700P hook lift garbage compactor truck, high quality ISUZU 190HP medium duty hook lift waste compactor truck, ISUZU rear loader manufacturer.
Learn More
This ISUZU trash truck rear loader is equipped with an advanced compression device that uses high-pressure air to compress the garbage into small pieces, thereby reducing the volume of the garbage and improving the removal efficiency. At the same time, the vehicle is also equipped with environmental protection equipment, which can effectively reduce exhaust gas and noise pollution, making a positive contribution to urban environmental protection.
Learn More
The ISUZU rear load trash truck is a modern environmentally friendly garbage cleaning equipment produced by POWERSTAR. It integrates mechanical, electrical, hydraulic, control and other technologies into one, and can efficiently and quickly collect, compress and remove garbage. It is an important tool for urban cleaning work.
Learn More
Best quality 4x2 5000L Water Foam Japanese Isuzu FVR Fire fighting Vehicle for sale manufacturer, Isuzu Fire-Fighting Vehicle, Foam Fire trucks Isuzu, Isuzu chassis Water foam type fire tender, Emergency Rescue Vehicle, Dry powder fire truck
Learn More
Gambia customized ISUZU FVZ 20CBM back loading garbage truck, brand new ISUZU FVZ refuse compactor trucks, ISUZU compressed garbage truck manufacturer.
Learn More

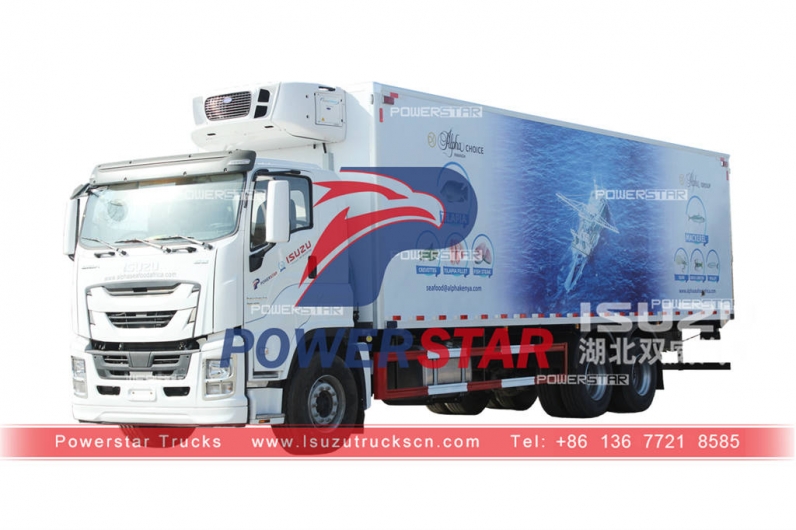

ISUZU GIGA 6x4 freezer truck, ISUZU 350HP diesel engine, FAST 12-shift manual gearbox, 11900x2600x3900mm freezer van body, equipped with CARRIER 850 refrigeration unit, painting and logos as required. Good price ISUZU GIGA reefer truck, ISUZU chiller lorry, Japanese brand ISUZU refrigerated truck for sale
