Isuzu 4x4 drinking water truck is a vehicle designed to respond to emergency disasters and water supply needs in remote areas. It has full drive capabilities and can cope with complex and harsh road conditions to ensure that water can reach its destination in a timely manner. The vehicle is equipped with an efficient water tank and pump system that can quickly load, transport and spray drinking water. It has a stable chassis structure and strong carrying capacity, ensuring the safety and reliability of the water tank transportation process.
Work capacity:
4cbmTruck model:
PT5110GWTEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4X4,LHDGear box:
Isuzu MLD 6 forward/ 1 reverse,manualRemarks:
S304 stainless steel food grade water tank
Isuzu 4x4 off road potable water tanker also called Isuzu all-wheel drive drinking water truck,Isuzu 4WD 4cbm potable water tank truck, Isuzu 700P 4WD potable water delivery truck,Isuzu 4x4 water bowser truck,Isuzu 700P potable water wagon, is a professional transport tool that combines high efficiency, stability and environmental protection. It adopts an all-wheel drive design to adapt to various complex road conditions and ensure stable driving even on rugged roads. The Isuzu 4x4 off road potable water tanker is equipped with an Isuzu brand engine, which is powerful and fuel-efficient, providing reliable guarantee for drinking water transportation. The car body is made of food-grade stainless steel to ensure safe and pollution-free water quality. At the same time, the vehicle is equipped with an advanced automatic control system, which is easy to operate and improves transportation efficiency. Isuzu all-wheel drive drinking water truck is an ideal choice for urban water supply, emergency rescue and other fields.
This model plays an important role in emergency disaster relief and water supply demand scenarios, providing users with reliable water supply solutions and meeting emergency water needs in remote areas and disaster sites.
|
Isuzu 4x4 off road potable water tanker |
||
|
General Specification |
||
|
Chassis Model |
PT5110GWT |
|
|
Series |
Isuzu 700P |
|
|
Wheel Traction / Drive Style |
4X2,LHD |
|
|
GVW |
kg |
10550 |
|
Curb Mass/ Self Weight |
kg |
3240 |
|
Chassis Dimension |
mm |
5995*2170*2330 |
|
Max Speed |
110Km/h |
|
|
Wheelbase |
3360mm |
|
|
Engine |
||
|
Model |
4HK1-TCG61 |
|
|
Brand |
Isuzu |
|
|
Net Power/Speed |
138Kw/2600rpm |
|
|
Maximum Torque |
507N·m |
|
|
Weight |
456kg |
|
|
Displacement |
5193ml |
|
|
Type |
In-line, Four-cylinder, Four-stroke, Water-cooled, Direct Injection, Intercooled Turbocharged Diesel Engine |
|
|
Engine Classification / Standard |
EURO VI |
|
|
Clutch & Gear Box Systems |
||
|
Clutch Model |
FengZheng FZ31/77 QC |
|
|
Gear Box |
Isuzu MLD 6 |
|
|
Gear Speed/Lever |
6 forward/ 1 reverse |
|
|
Axle & Steering |
||
|
Front Axle |
4T |
|
|
Rear Axle |
7T , Drum Brake |
|
|
Brake System & Suspension |
||
|
Service Brake |
dual circuit compressed air brake |
|
|
Auxiliary Brake |
engine exhaust valve brake |
|
|
Parking Brake (Emergency Brake) |
front |
spring energy |
|
rear |
compressed air |
|
|
Suspension Type |
front |
8pcs leaf spring |
|
rear |
10+6pcs leaf spring |
|
|
Wheels & Tires |
||
|
Wheel Type |
Radial Tires |
|
|
Number of Tires |
6+1 (spare tire) |
|
|
Tire Type/Size |
235/75R17.5 16PR |
|
|
Approach departure angle |
15/15 |
|
|
Track |
front |
1680mm |
|
rear |
1650mm |
|
|
Suspension |
front |
1110mm |
|
rear |
1525mm |
|
|
Tank |
||
|
Volume |
4cbm |
|
|
Thickness |
Side 4 Bottom 5 |
|
|
Material |
Stainless steel |
|
|
Compartment |
one, with internal waves baffles |
|
|
Water pump |
||
|
Model |
65SQB-40/50L |
|
|
Style |
Self-priming centrifugal |
|
|
Material |
S304 stainless steel |
|
|
Lift |
45m |
|
|
Input speed |
1150-1450 r/min |
|
|
Self-priming performance |
1min/5m |
|
|
Shaft power |
9.3KW |
|
Isuzu all-wheel drive drinking water tanker adopts Isuzu 700P chassis, which is solid and firm. The white reversible cab is spacious and bright, with good vision and comfortable driving. Isuzu 190 HP 4HK1-TCG61 engine, with a displacement of 5193ml, low fuel consumption, energy saving and environmental protection, and EURO 6 emission standard. MLD6-speed gearbox, easy to shift gears, suitable for all kinds of road sections. Wheelbase 3360mm, 4X4 drive mode. 235/75R17.5 original steel wire tire has better wear resistance and longer service life. Original abs, with direction assist, clutch booster and air brake. The tank body adopts the one-time forming technology of machine pressing plate, adopts the advanced edging machine, and the technology of tank body wrapping machine ensures the accuracy and beauty of tank body manufacturing. Equipped with a rear-mounted working platform (with a step ladder and a safety fence around it), equipped with high-quality special water pumps, power take-offs, etc.

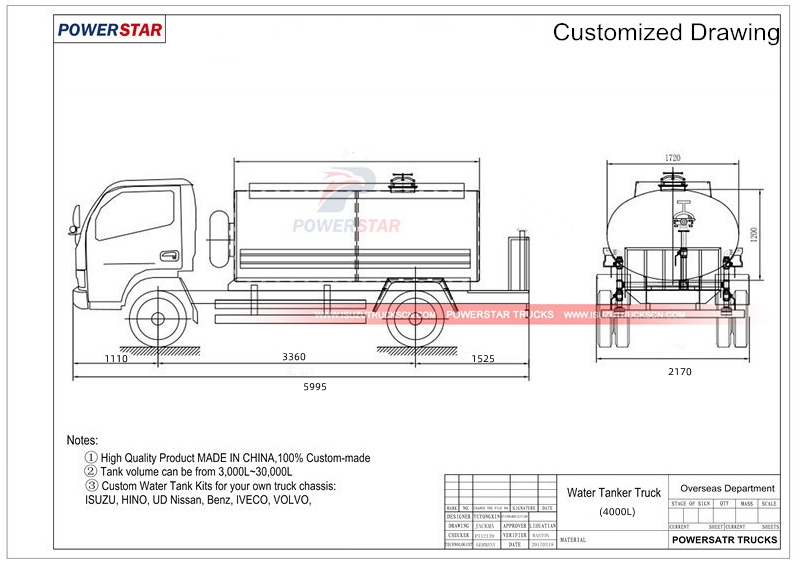

Technical drawing of Isuzu 4x4 4000L off road potable water tanker
The Isuzu 4x4 4cbm off-road potable water tanker represents a specialized vehicle tailored for transporting clean drinking water in challenging off-road environments. With the ruggedness and reliability synonymous with the Isuzu brand, this truck is designed to navigate rough terrains while ensuring the safe and efficient delivery of potable water to remote locations where access is limited.
At the core of this water truck is a robust 4x4 drivetrain, offering superior traction and control on uneven and harsh terrain. This capability allows the Isuzu truck to tackle rugged landscapes, muddy paths, and steep inclines with confidence, ensuring it can reach areas where conventional vehicles might struggle to deliver essential water supplies.

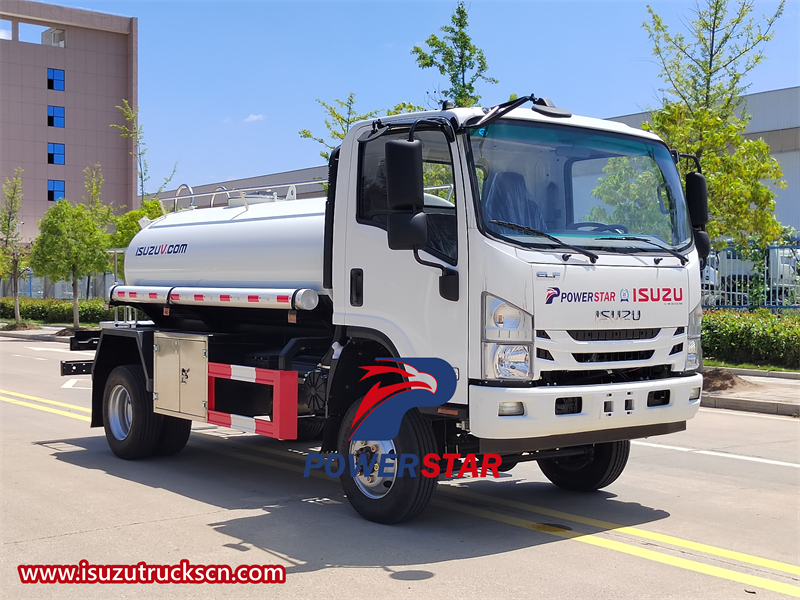

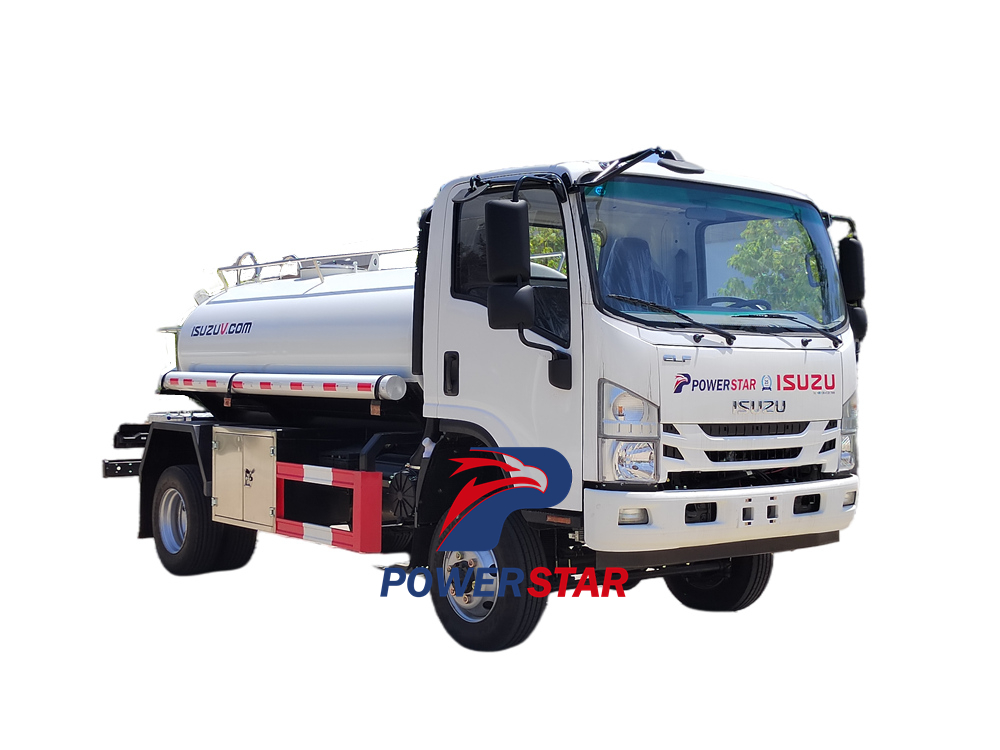

Isuzu 4x4 4cbm drinking water truck
The 4 cubic meter (4cbm) potable water tank mounted on the Isuzu chassis is engineered to store and transport clean water securely. Constructed from high-quality materials that meet strict hygiene standards, the tank maintains the purity of the water during transit, safeguarding its integrity for various applications including emergency response, construction projects, and community water supply needs.
Equipped with advanced pumping and dispensing systems, the Isuzu water truck streamlines the loading and unloading processes, facilitating efficient water distribution. The integrated pump system enables quick and precise filling of the tank from diverse water sources, ensuring a seamless workflow and enabling prompt water delivery in remote or emergency situations.

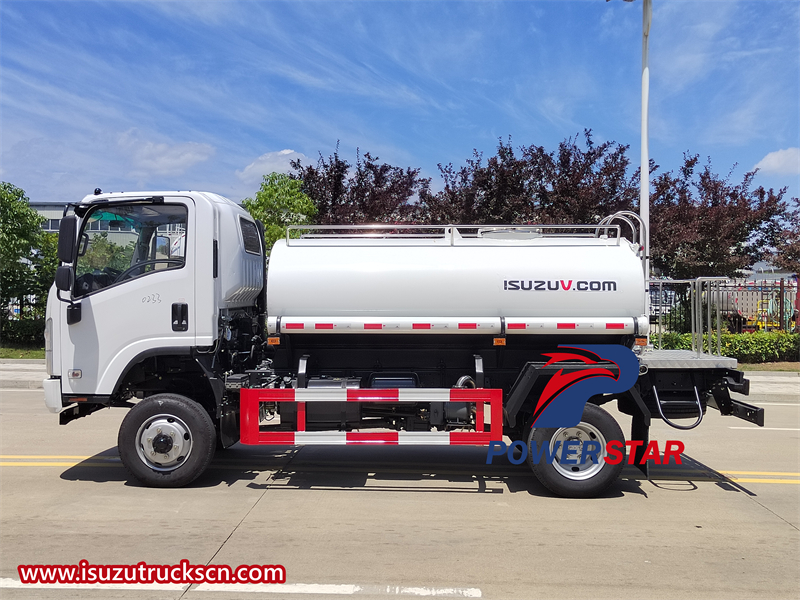

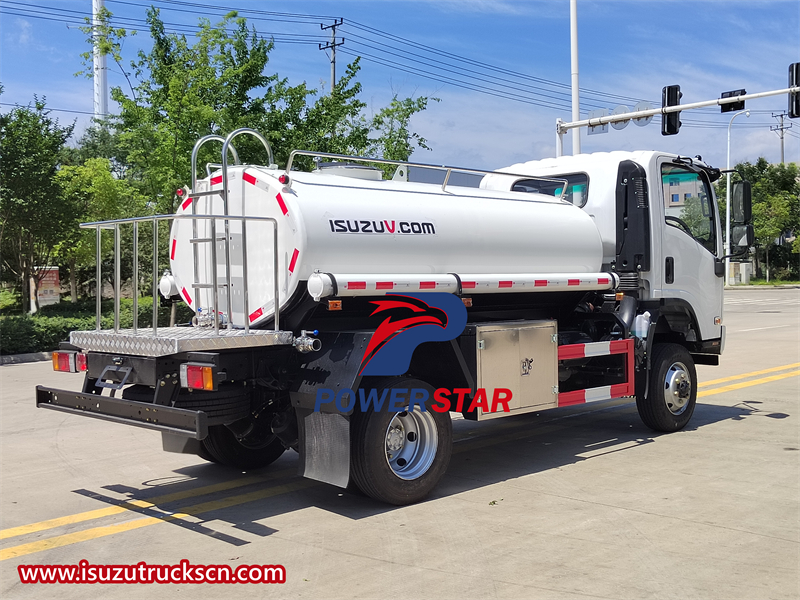

Isuzu 4WD potable water tank truck
Enhancing its off-road performance, the truck incorporates heavy-duty suspension systems, durable tires, and a sturdy chassis to withstand the rigors of challenging terrains. These features work in tandem to provide stability, durability, and maneuverability, allowing the truck to navigate rough paths with ease while maintaining control and handling in demanding conditions.
The 4cbm capacity of the drinking water tank on the Isuzu truck strikes a balance between portability and sufficient water supply. This capacity can be customized to meet specific requirements, catering to a range of applications from small-scale community support to larger industrial or disaster relief operations. The flexibility in tank size ensures adaptability to varied scenarios and water transport needs.

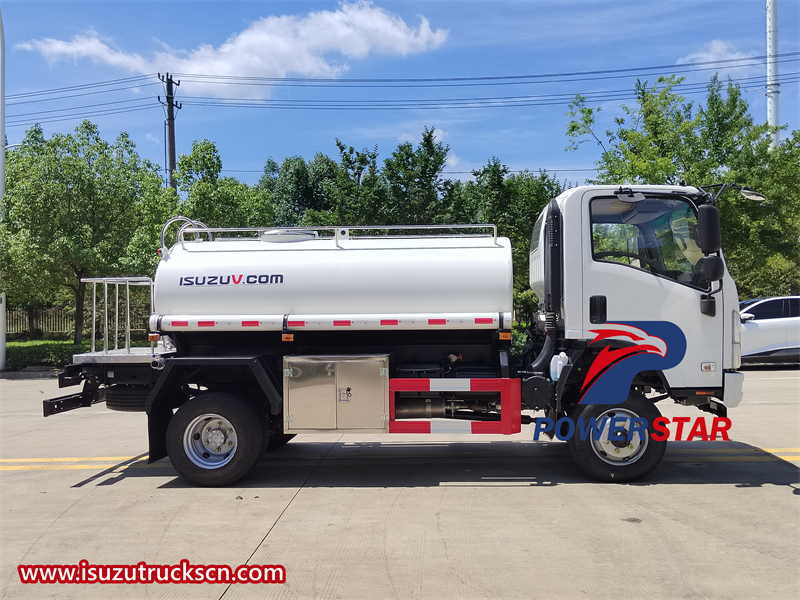

Isuzu all wheel drive potable water tank truck
The Isuzu 4x4 drinking water truck prioritizes user-friendliness and functionality, featuring strategically positioned access points for convenient filling, cleaning, and maintenance operations. This design consideration enhances operational efficiency, making it easier for operators to carry out essential tasks and ensuring that the truck can be effectively maintained even in remote environments.
Safety and compliance with water quality standards are paramount in the design of the Isuzu water truck. The vehicles are made of food-grade stainless steel and contain specialized features such as filtration systems, disinfection equipment and monitoring equipment to maintain the purity of the water during transportation and meet regulatory requirements.These systems play a crucial role in ensuring the cleanliness and safety of the water supply.

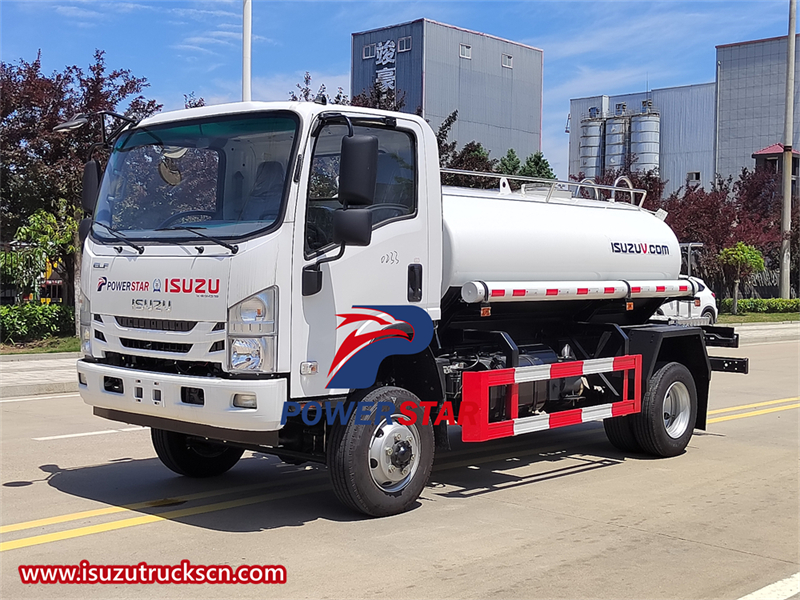

Isuzu 4x4 off road drinking water truck
In terms of performance, the Isuzu 4x4 4cbm water truck delivers reliable and efficient water transport capabilities in challenging environments. Its robust engine, capable drivetrain, and durable construction enable it to navigate off-road conditions while preserving the quality of the water being transported. This performance ensures timely and dependable water distribution to remote areas and communities in need.
The versatility and reliability of the Isuzu 4x4 4cbm off-road potable water truck make it an essential asset for various applications. From disaster response operations and humanitarian aid efforts to rural development projects and industrial water supply needs, the truck plays a crucial role in providing access to clean water in remote or inaccessible locations. Its rugged design, off-road capabilities, and efficient water transport features make it a dependable solution for addressing water supply challenges effectively.

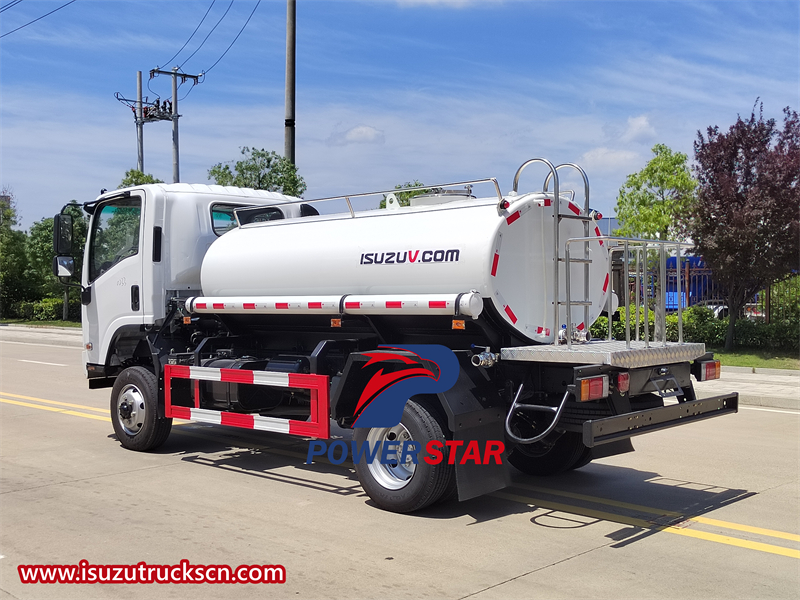

Isuzu 4WD 4CBM off-road drinking water truck
The Isuzu 4WD off-road potable water tanker is a purpose-built vehicle designed to combine off-road prowess with efficient water transport capabilities. With its durable construction, advanced features, and focus on safety and reliability, this truck is well-suited to overcome the challenges of transporting potable water in demanding environments. Whether deployed for emergency response, community support, or industrial applications, the Isuzu water truck stands as a reliable and effective solution for delivering clean drinking water precisely where it is needed most.

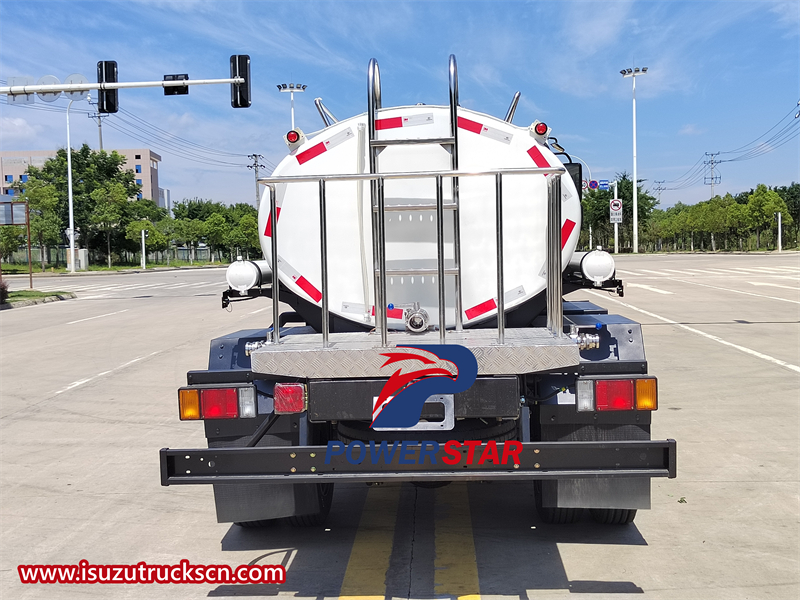

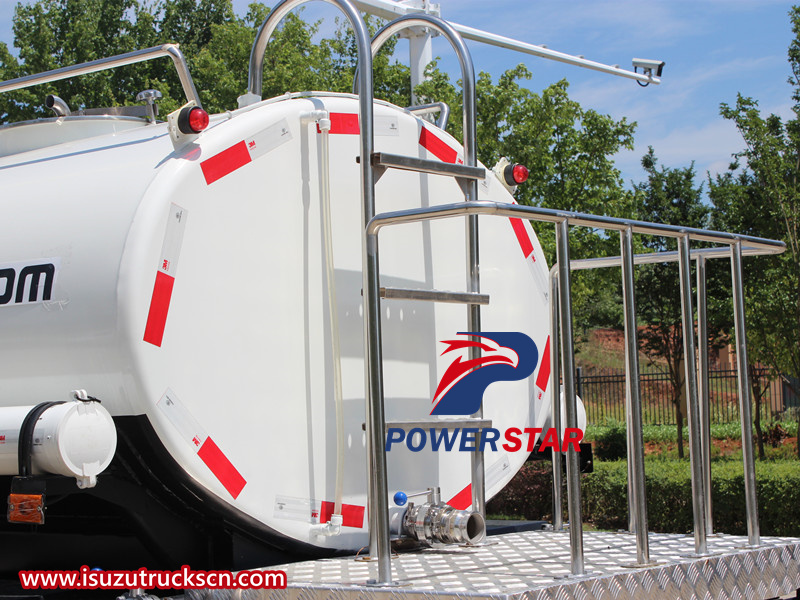

ISUZU 4X4 potable water tanker rear-mounted working platform

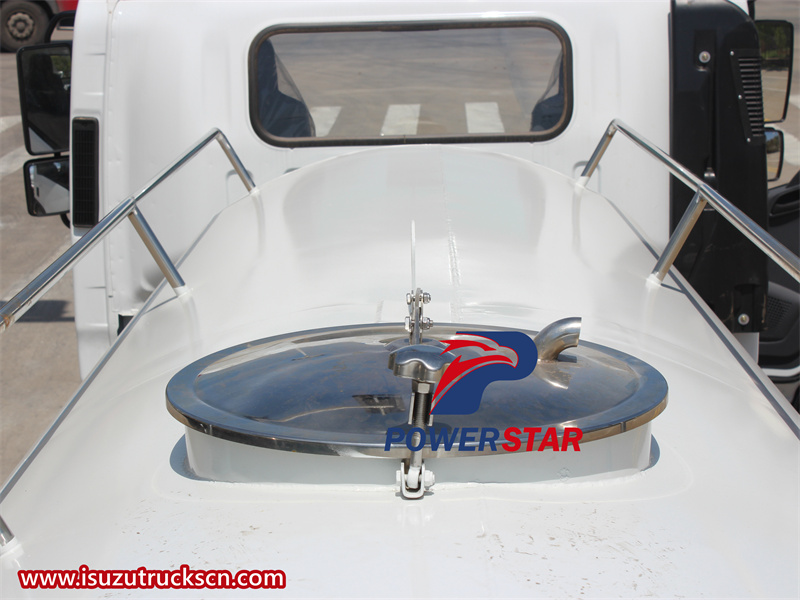

ISUZU 4X4 potable water tanker stainless steel manhole and cover

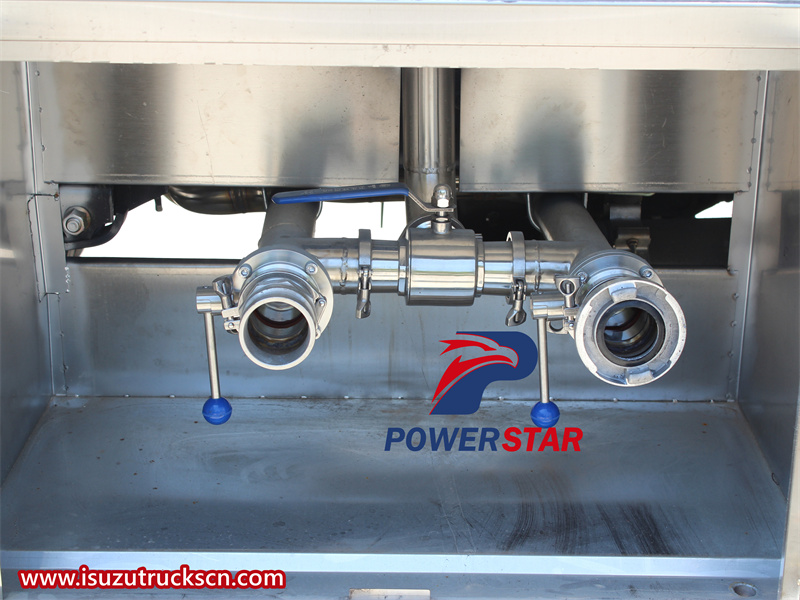

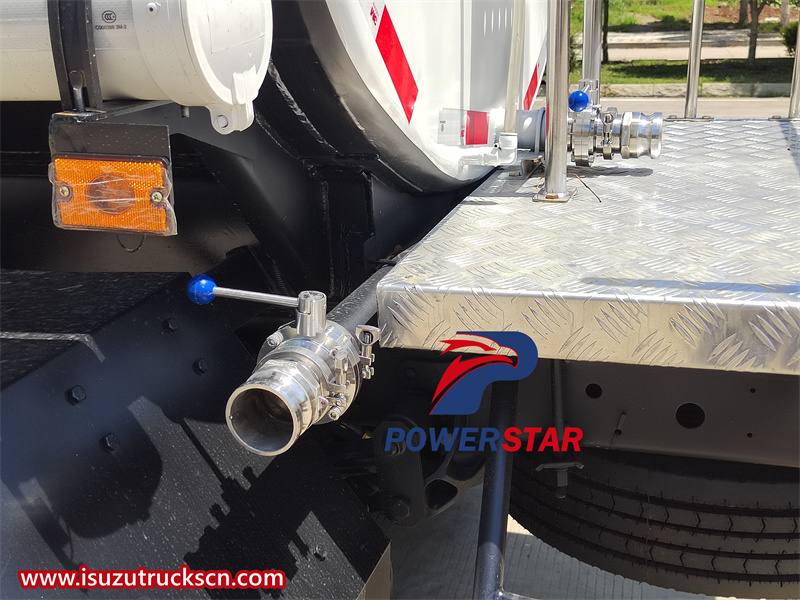

Isuzu all-wheel drive drinking water tanker stainless steel pump in/out valve

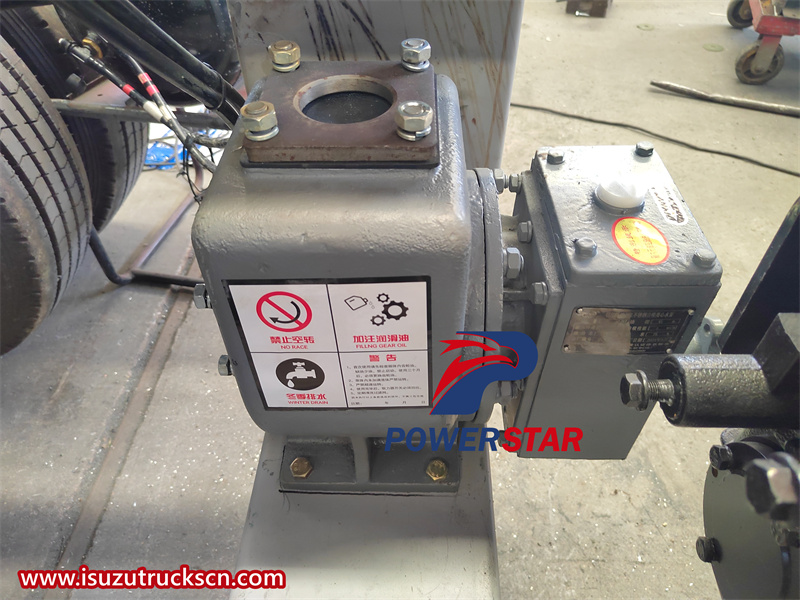

Isuzu 4WD drinking water truck stainless steel self-priming centrifugal water pump
