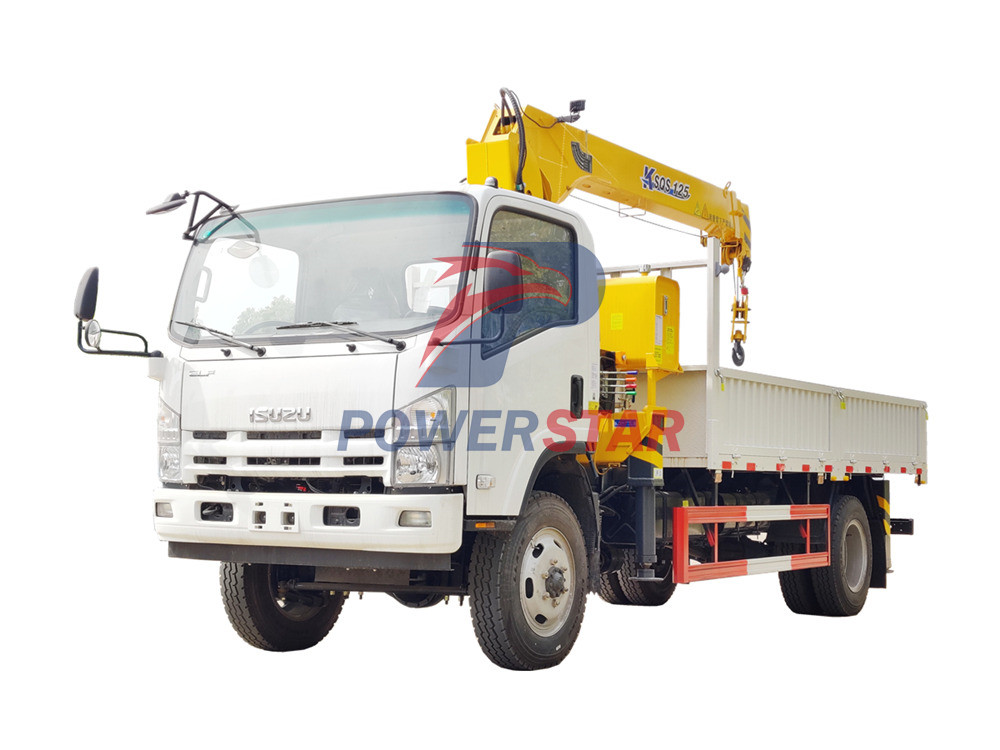

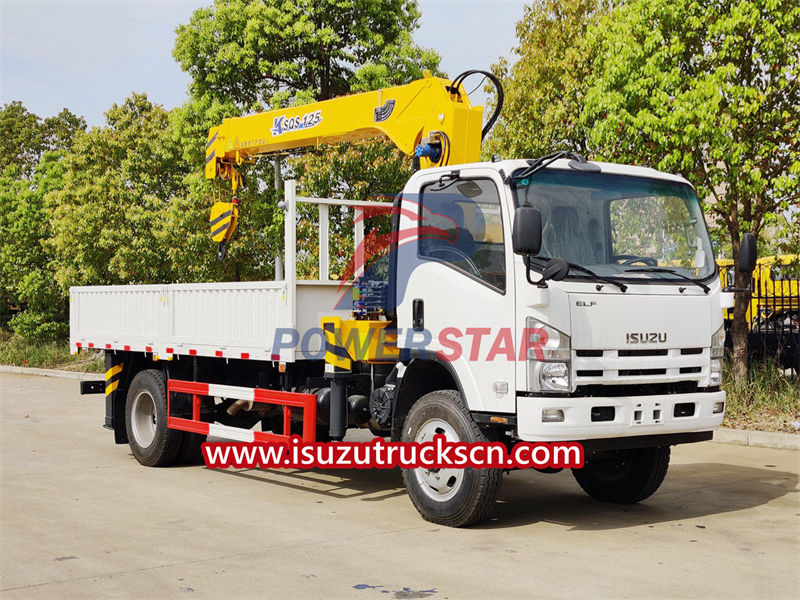

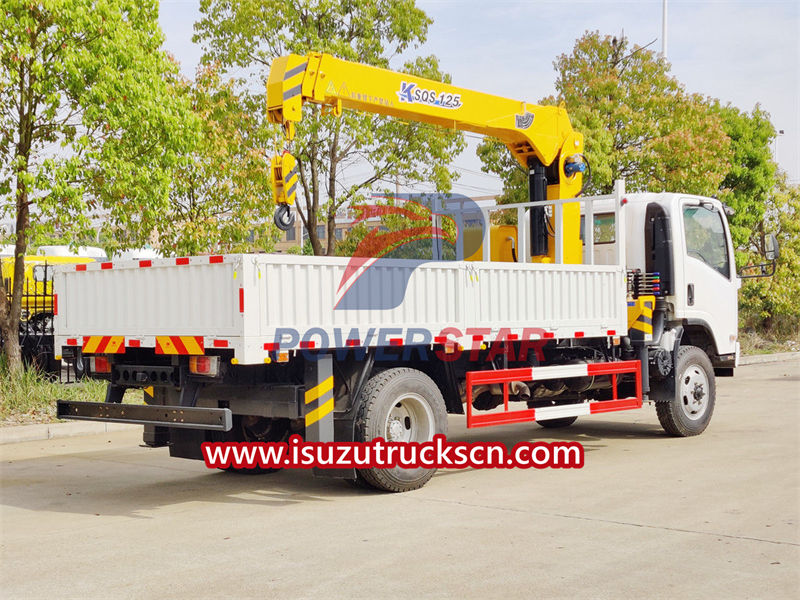

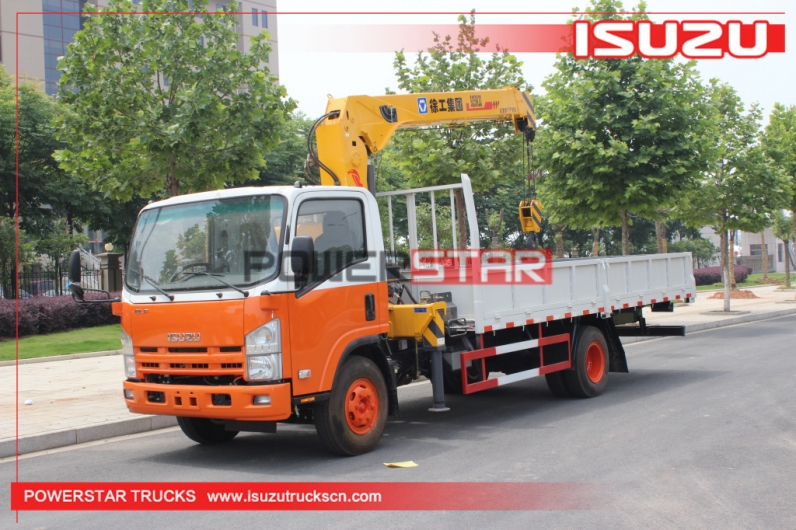

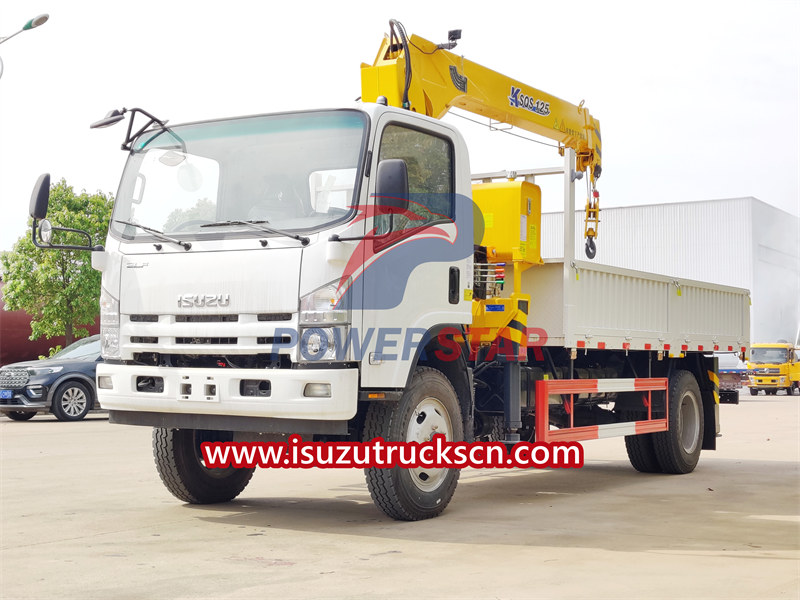

The ISUZU NQR truck-mounted crane is an efficient and reliable lifting equipment that is widely used in various loading, unloading, and installation lifting operations. Especially in outdoor lifting, rescue operations and in narrow places such as stations, ports, warehouses, construction sites, etc., the ISUZU crane truck can better demonstrate its flexibility and advantages. The vehicle is equipped with a well-known brand crane and hydraulic system, and the length of the cargo box reaches 4.5 meters. This ISUZU truck with crane has the advantages of high power, high speed, strong climbing ability, high lifting height, and wide operating range.
Work capacity:
5 tonTruck model:
PT5050JSQEngine power:
190 HPEngine type:
4HK1-TC51Axle drive:
4×4Gear box:
MLD 6-speed manualRemarks:
Customized 4×4 chassis, RHD is available
ISUZU truck-mounted crane refers to a multi-functional lifting machine installed on the truck chassis that can vertically lift and horizontally transport heavy objects within a certain range. It is also called ISUZU crane truck, ISUZU truck with crane, ISUZU boom truck.

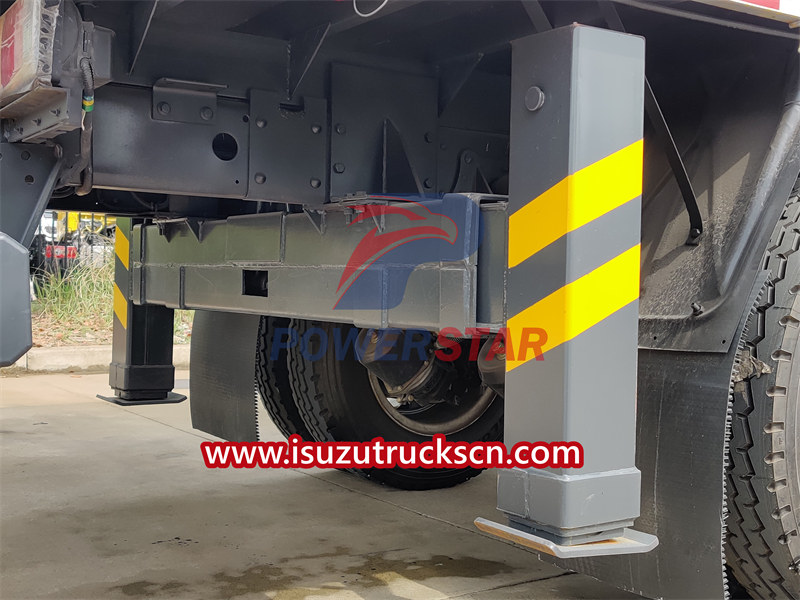

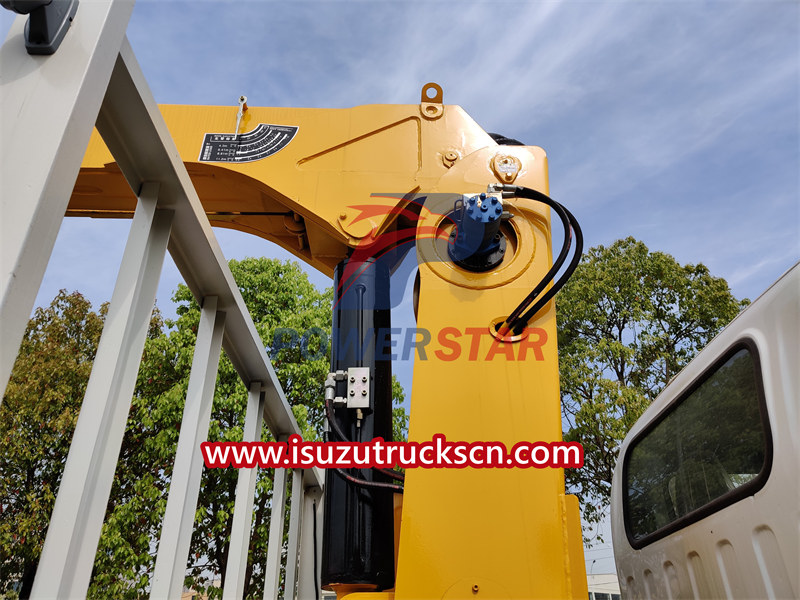

ISUZU NQR utility truck with crane is a lifting equipment installed on the ISUZU NQR all-wheel drive chassis. It mainly consists of stable outriggers, slewing base, boom assembly, hook, etc. The crane and truck control systems are completely separate, so the ISUZU boom crane truck can perform lifting operations without affecting the cargo transportation of the chassis.
ISUZU truck-mounted cranes are widely used. Due to their maneuverability and flexibility, they can replace small and medium-sized mobile cranes in lifting operations under many working conditions, and are very popular among users.
Product Parameters
|
Product Technical Specifications |
|
|
Product name |
ISUZU NQR Off-road Truck With Crane |
|
Vehicle brand |
POWERSTAR |
|
Driving type |
4×4，left hand drive |
|
Cab |
Single row, with A/C, ABS |
|
Overall dimensions |
6900*2250*2800 mm |
|
Cargo dimensions |
4500*2300*550 mm |
|
G.V.W |
11000 kg |
|
Curb weight |
5800 kg |
|
Loading capacity |
5000 kg |
|
Max speed |
80 Km/h |
|
Chassis model |
QL110A8 |
|
Wheel base |
4475 mm |
|
Gear box |
6 forwards &1 reverse, manual |
|
Brake system |
Air brake |
|
Operation control system |
Power Steering |
|
Electric system |
24V |
|
Tires & Quantity |
235/75R17.5 & 16+1 |
|
Engine |
|
|
Engine brand |
ISUZU |
|
Engine model |
4HK1-TC50 |
|
Maximum power |
140 kw / 190 hp |
|
Displacement |
5193 ml |
|
Emission standard |
Euro 5 |
|
Type of fuel |
Diesel |
|
Type |
4 cylinders, in line, water cooling, turbocharged |
|

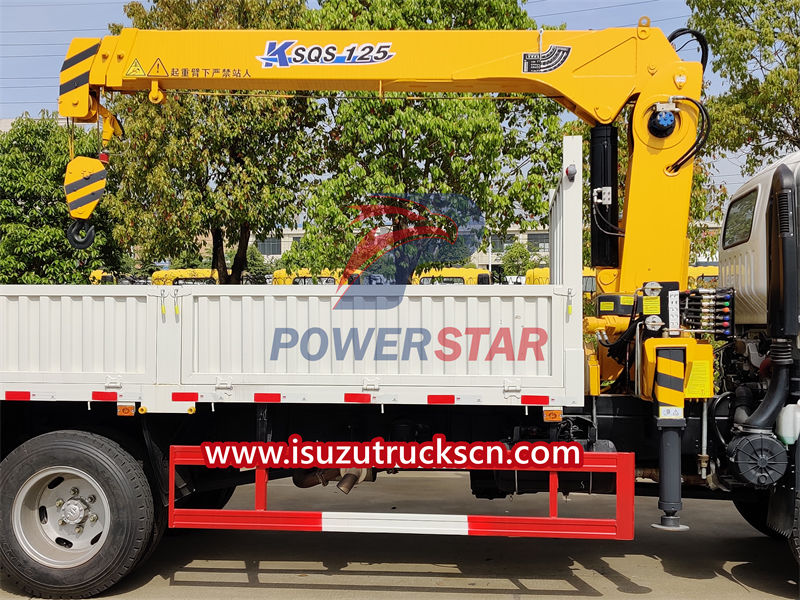

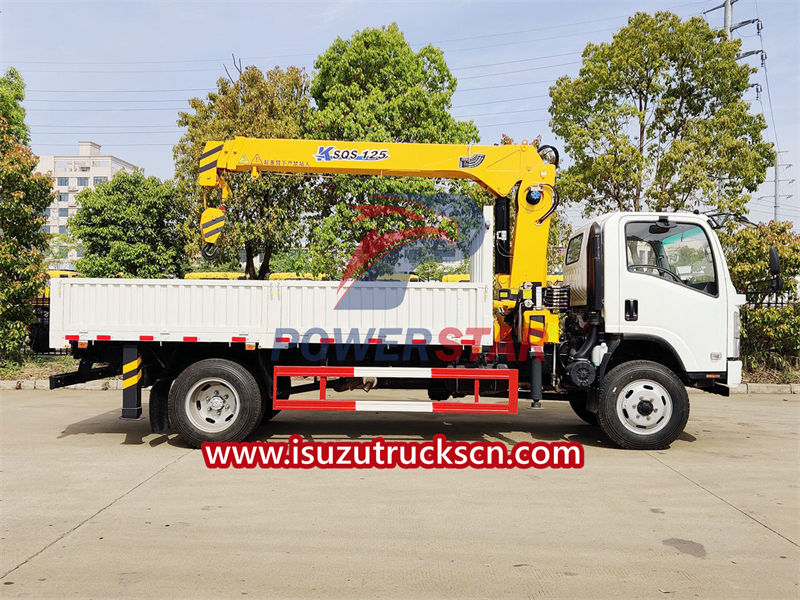

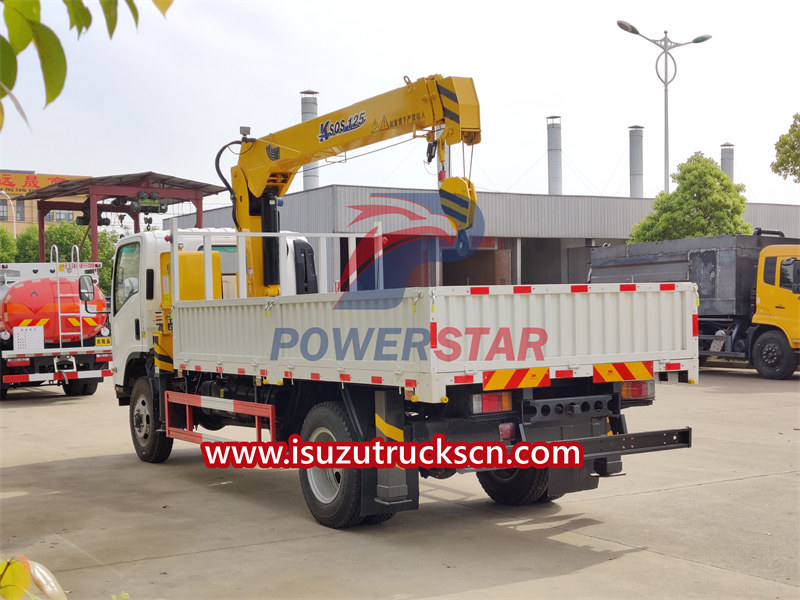

Crane descriptions |
|
|
Model |
KSQS125 |
|
Max Lifting Capacity |
5000 kg |
|
Max Lifting Moment |
12.5 T.M |
|
Crane Weight |
2200 KG |
|
Installation Space |
900 mm |
|
Max. Working Radius |
11 m |
|
Max. Lifting Height |
13 m |
|
Max Pressure of Hydraulic System |
22 Mpa |
|
Oil Tank Capacity |
90 L |
|
Rotation Angle |
All Rotation 360° |
|
Boom Section |
4 |
Routine inspection items for Isuzu truck crane
(1) Check whether the pipe connections and fixed seals of the ISUZU truck-mounted crane are loose or leaking oil.
(2) Check whether the fasteners of the ISUZU crane truck are loose, focusing on whether the fasteners between the cross beam and the chassis girder, the slewing bearing, the cross beam and the column are secure.

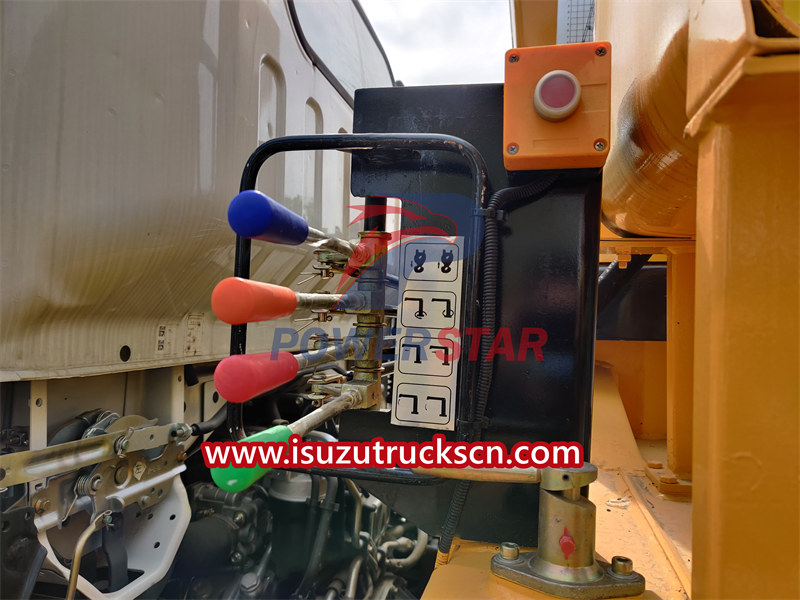

(3) Check whether the power take-off control switch and pressure gauge of the truck are normal.
(4) Check whether the hydraulic oil and lubricating oil are sufficient.
(5) Check the use of the wire rope and accessories, whether the rope clamp is firm, and whether the wire rope is in the wheel groove. The wire rope should be replaced when it is kinked, creased, worn, severely corroded, more than 10% of the wires are broken or the diameter is reduced by more than 7%, or when it is discolored due to overheating.
(6) Check whether there is damage or deformation on the surface of each component of ISUZU boom truck.
(7) Check the wire rope that drives the boom to expand and contract. If the wire rope is found to be loose, adjust the nut in time to tighten it.
(8) Put the ISUZU truck-mounted crane in working condition and check whether the sound and temperature of the hydraulic system are normal.
 |
 |
 |
 |
Precautions during ISUZU truck-mounted crane lifting operations
1. Carry out lifting operations within the rated lifting range.
2. When operating an ISUZU truck-mounted crane, you must concentrate and observe the surrounding situation to avoid accidents.
3. Pay attention to the temperature of the hydraulic oil. When the temperature exceeds 80°C, the lifting operation should be stopped.
4. When the wind speed exceeds 138m/s (level 6 wind), no lifting operations are allowed.
5. When using an ISUZU crane truck to lift heavy objects, it is strictly prohibited to adjust the outriggers. When adjustments are needed, the heavy objects should be put down and the boom should be retracted.
6. When hoisting, it is strictly forbidden for the two mechanisms to operate at the same time.
7. ISUZU truck with cranes must not be used to lift heavy objects buried underground or frozen on the ground, and they are not allowed to pull heavy objects diagonally.
8. Use the hand brake to stop the ISUZU boom crane truck before working.
9. It is strictly forbidden to stand under the boom before operation.
10. The tire pressure meets the regulations, 441kPa for the front wheel and 617kPa for the rear wheel.
High quality Isuzu UNIC,HYVA 25 Ton Knuckle Boom Truck Mounted Crane Driven By Hydraulic High quality Isuzu Hydraulic Arm Knuckle Boom Truck Mounted Crane With CE Certification High quality Isuzu Commercial Knuckle Boom Truck Mounted Crane , 6300kg Lifting Weight High quality Hydraulic Knuckle Boom Truck Mounted Crane , 16 Ton Truck Loader Crane High quality Isuzu 8T Knuckle Boom Truck Mounted Crane , 40 L/min Truck With Crane High quality Isuzu UNIC,HYVA 10 ton Knuckle Boom Truck Mounted Crane For Lifting Heavy Things High quality Isuzu Mobile 12T Knuckle Boom Truck Mounted Crane For Landscrape Jobs High quality Isuzu Hydraulic Knuckle Boom Truck Mounted Crane With 13m Max Reach High quality Isuzu Lifting Knuckle Boom Truck Mounted Crane With 7.5m Max Lifting Height High quality Isuzu 5T Safety Knuckle Boom Truck Mounted Crane For Mining Industry High quality 4 Ton Mobile Knuckle Boom Truck Isuzu Mounted Crane For Construction High quality 5 Ton Light Truck Loader Crane, Isuzu Knuckle Cargo Crane Truck
Learn More
High quality Isuzu 11meters Truck Mounted Crane 6300kg For Lifting Construction Materials High quality Isuzu Fast Hydraulic Truck Mounted Crane For Transporting Materials , 11meters Lifting Height, High quality Isuzu Wire Rope Telescoping Truck Mounted Crane 1105kg With 30L Oil Tank High quality Isuzu UNIC,HYVA Knuckle Truck Mounted Crane 6300kg Safety For Mining Industry High quality Isuzu Telescoping 3.2 Ton Truck Mounted Crane With 7m Lifting Height , 30 L Oil Tank High quality Electricity UNIC,HYVA Truck Isuzu Mounted Crane Telescopic Boom 1105kg , 7meters Lifting Height,High quality Construction Knuckle Boom Truck Isuzu Mounted Crane , 5 Ton Truck Loader Crane
Learn More
High quality Isuzu Cargo Telescopic Truck Mounted Crane, UNIC,HYVA Truck With Crane High quality Isuzu Heavy Things Truck Mounted Crane, 4T Lorry-Mounted Crane High quality Light Raise And Down Truck loader crane With 2.1 Ton, 20 L/min High quality Isuzu 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow High quality Isuzu 5 Ton Hydraulic Lifting Truck Mounted Crane, 2120kg Crane High quality 5 Ton Isuzu Hydraulic Lifting Truck Mounted Crane , UNIC,HYVA 2035kg Crane High quality 2120kg Isuzu Truck Mounted Crane , 5 Ton Truck Mounted Telescopic Boom Crane High quality Isuzu Hydraulic 6300kg Truck Mounted Crane , UNIC,HYVA Truck Mounted Knuckle Boom Crane
Learn More
700P ELF 5 Ton Hydraulic Lifting Truck Mounted Crane,truck mounted crane /isuzu mobile truck crane,Truck Mounted Crane Truck Isuzu
Learn More
Hot sale ISUZU 4*2 5T dump truck with crane/truck mounted crane, Quality Isuzu brand 5 TonS Hydraulic Lifting Truck Mounted Crane,5TON Mobile Telescopic Boom Truck Mounted Crane Manufacturers
Learn More
Isuzu 5 Ton Truck Mounted Telescopic Boom Crane,Isuzu 5Tons truck mounted crane/mini crane price/mini truck mounted crane, 6X4 truck mounted crane 10tons 10 wheels
Learn More

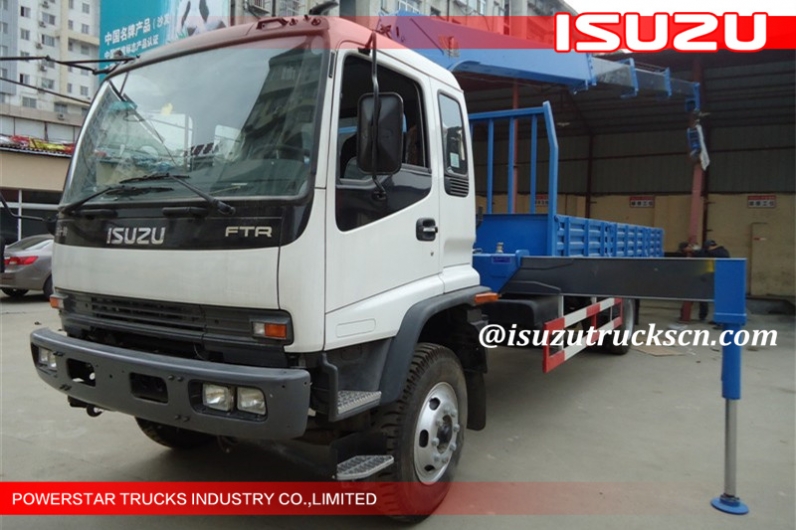

Isuzu FTR FVR 6300kg Truck Mounted Crane ,6x4 Truck Mounted Crane, Truck crane,Isuzu 6.3tons hydraulic telescopic boom truck mounted crane
