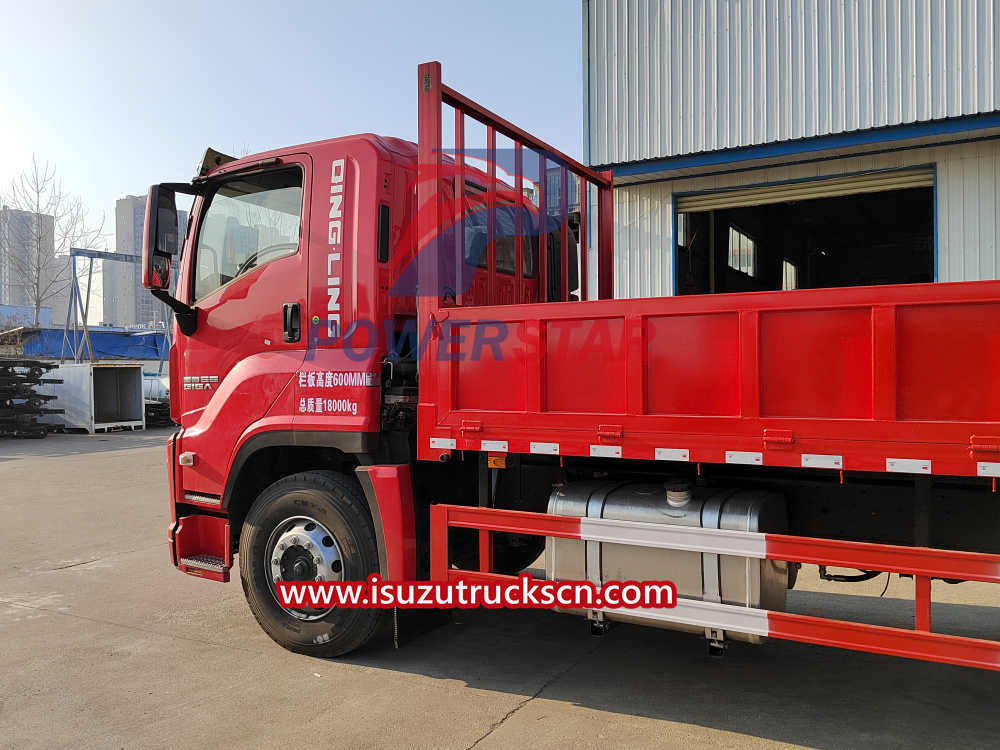

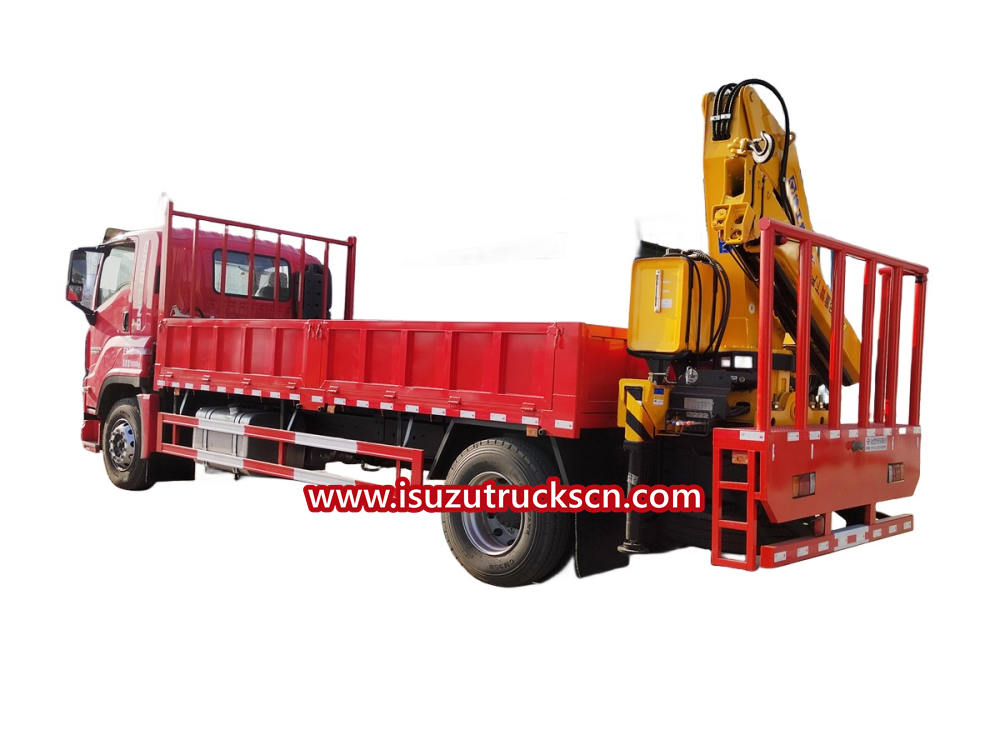

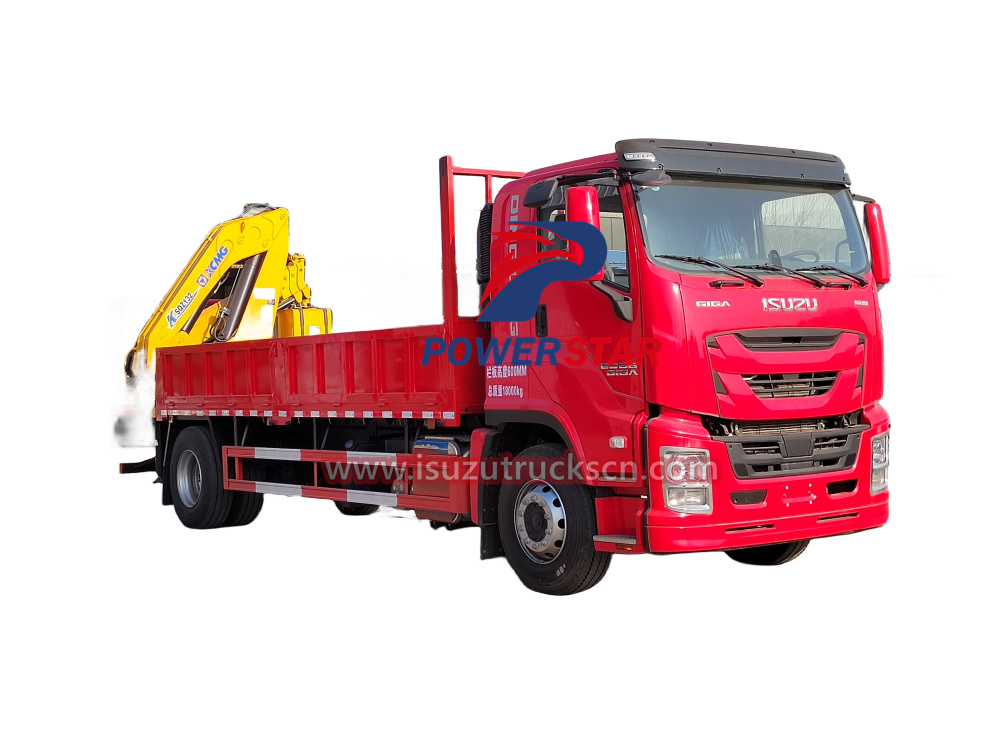

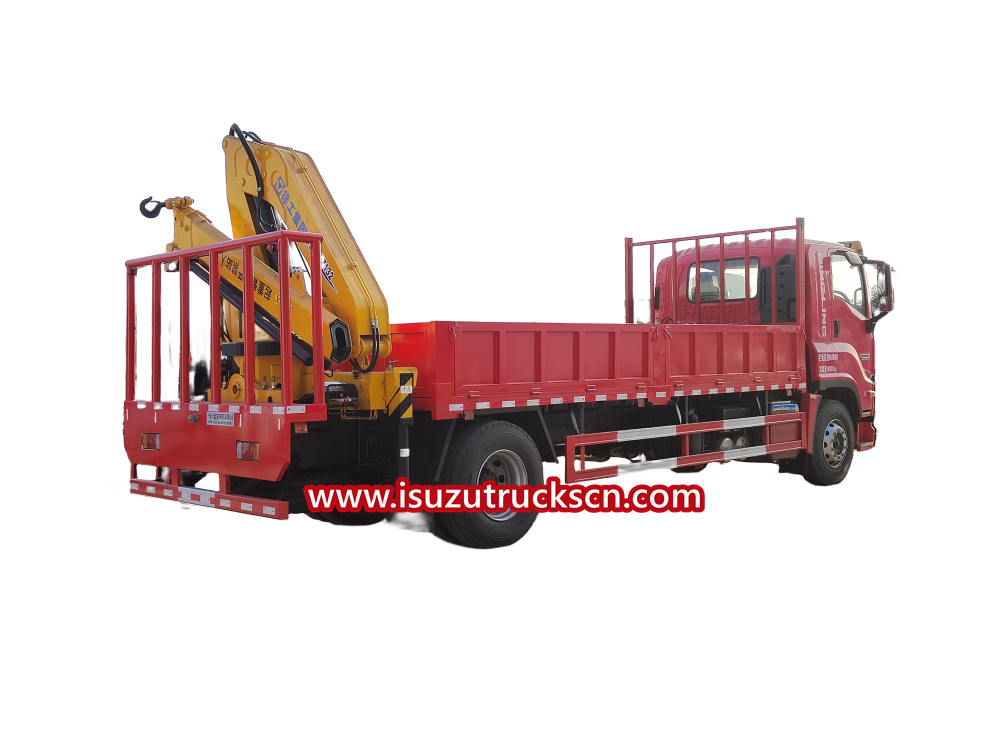

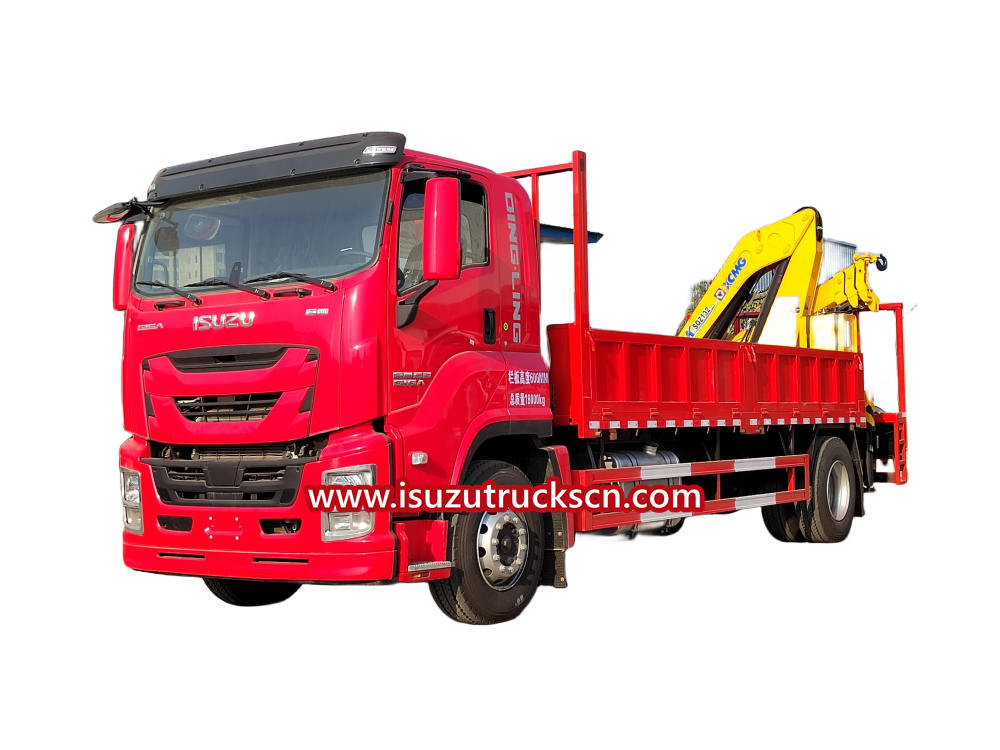

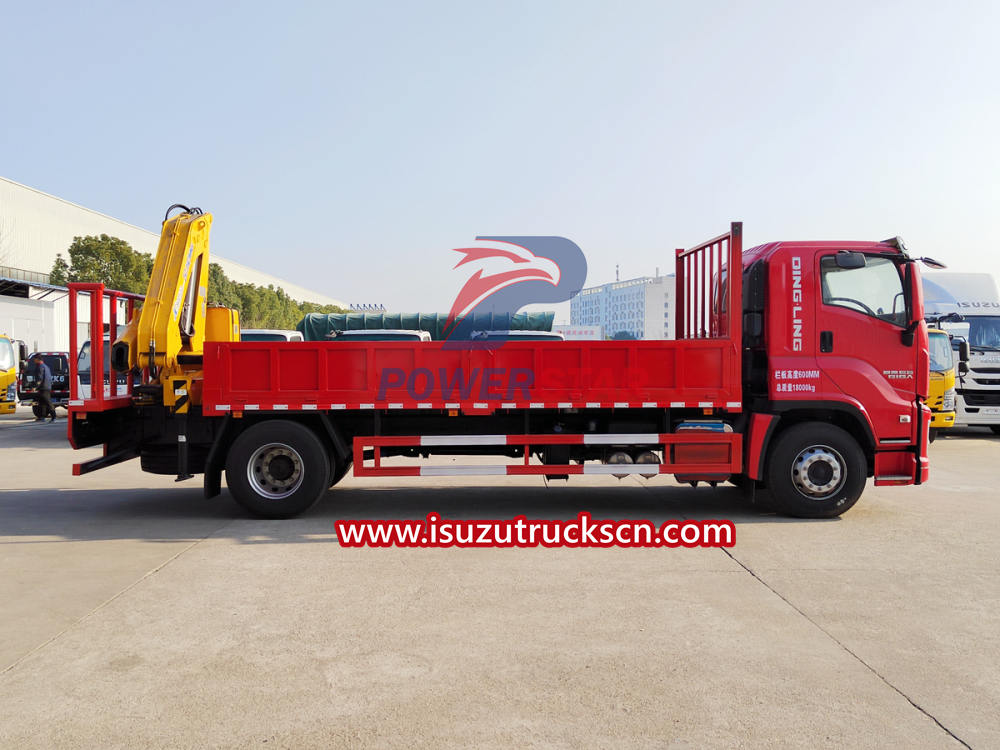

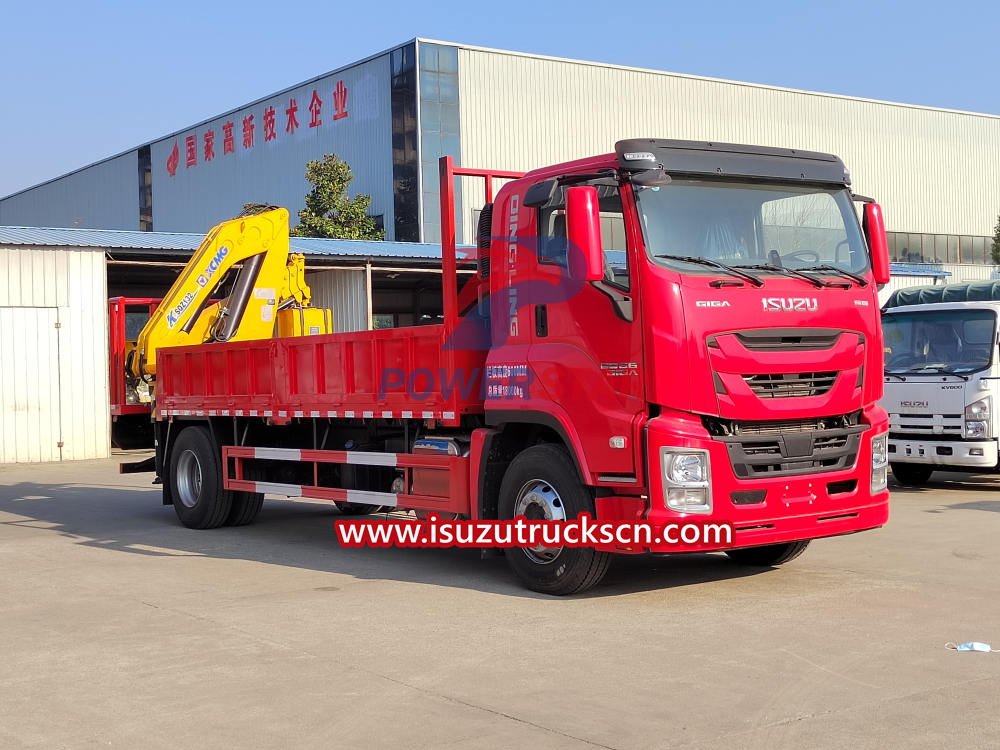

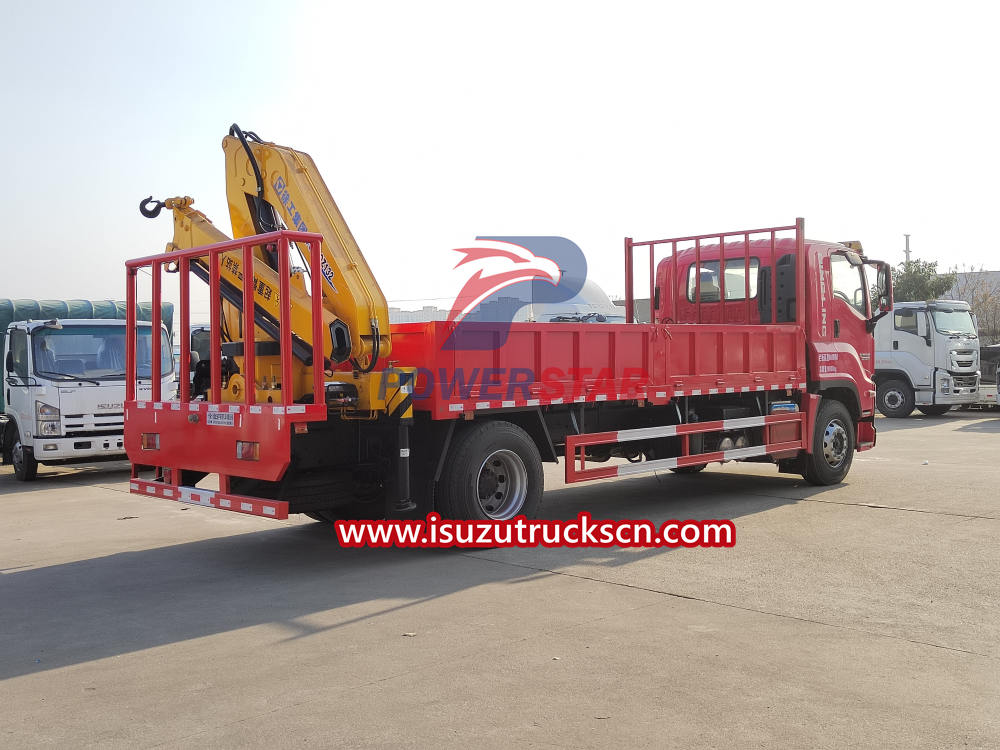

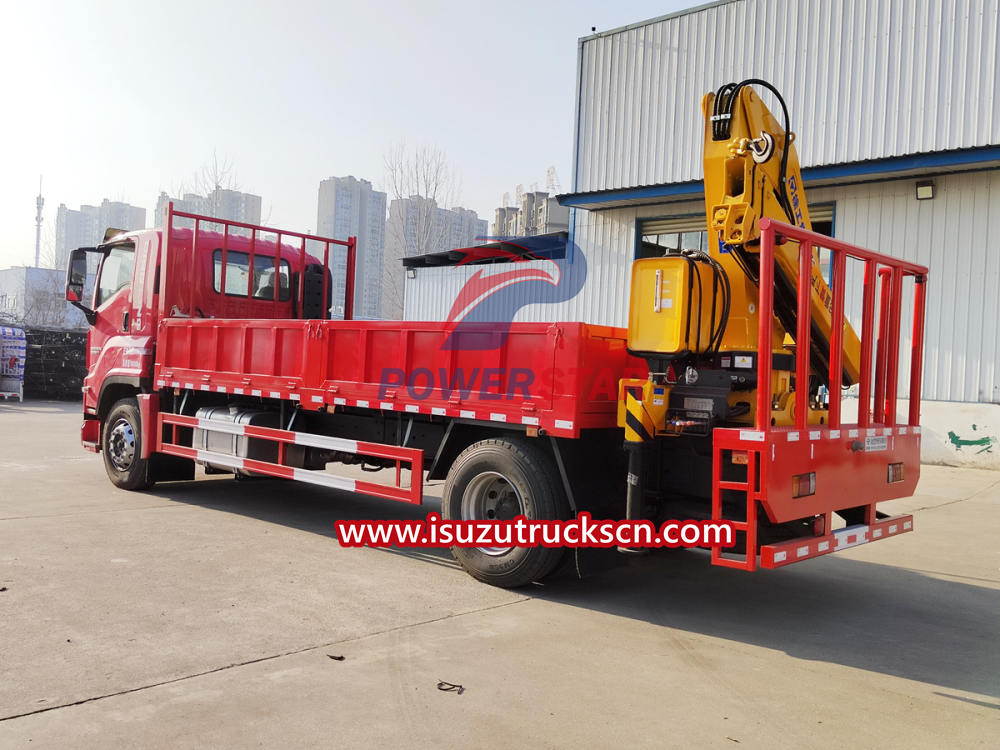

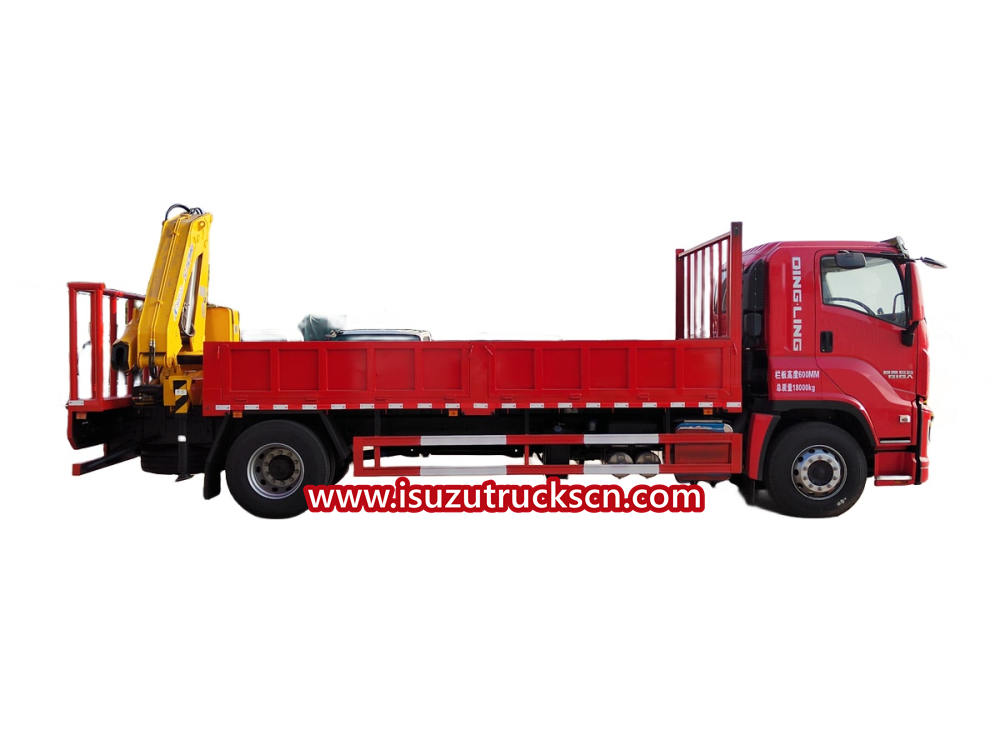

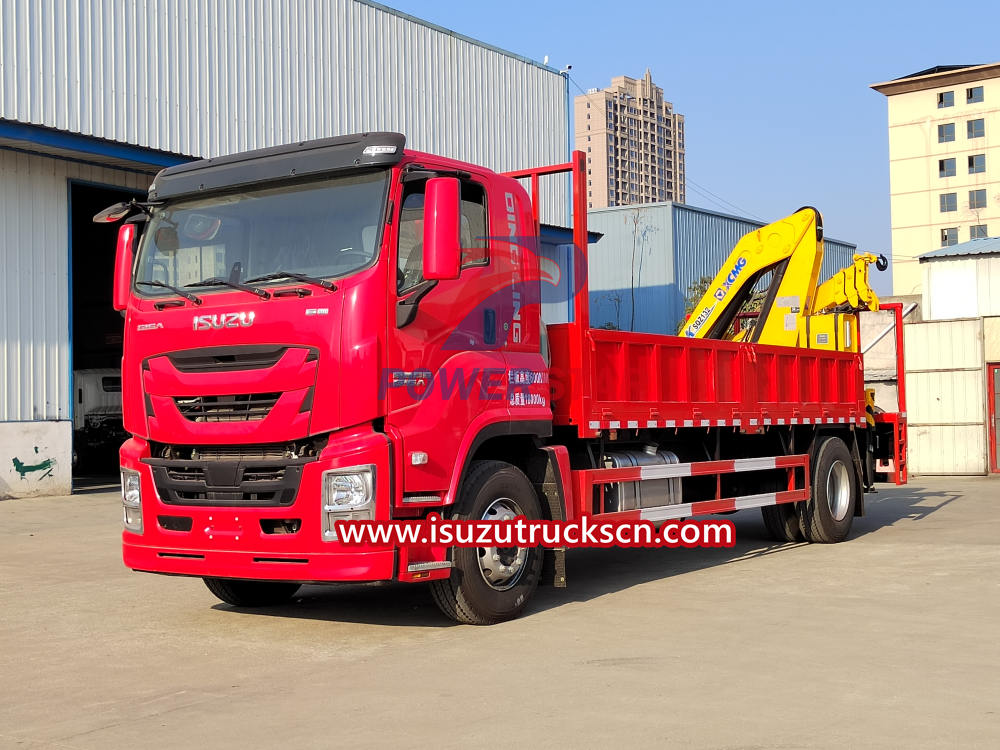

New & used 6.3ton Isuzu Giga Knuckle folding boom/Stiff Bomm Crane/Telescopic boom crane trucks manufacturer, Factory direct sales, high quality &low price, truck customized.The Qatar Isuzu Giga Flatbed Truck with boom crane finds extensive application in industries such as construction, engineering, logistics, and manufacturing. Its ability to transport and lift heavy loads makes it indispensable for various tasks, including equipment transportation, container handling, and construction material delivery.
Work capacity:
6.3 TonTruck model:
PT5180JSQEngine power:
205 HPEngine type:
ISUZU 4HK1-TC60Axle drive:
4x2Gear box:
ISUZU MLD 6SRemarks:
Wireless remote control for craneThe Qatar 6.3ton Isuzu Giga Flatbed Truck with boom crane is a versatile and powerful vehicle designed for various industrial and construction applications. This heavy-duty truck combines the reliability and durability of the Isuzu Giga truck chassis with a specialized upper body flatbed and a boom crane, making it an ideal choice for transporting and lifting heavy loads.
2. Features:
- Robust Boom Crane: The Isuzu Giga flatbed crane truck is equipped with a strong and efficient boom crane that allows for easy lifting and loading of heavy cargo. The crane is designed to handle demanding tasks and provides precise control for safe and efficient operations.
- Powerful Engine: The Isuzu Giga crane truck chassis comes with a powerful engine that delivers excellent performance and fuel efficiency. The engine's reliability ensures smooth and efficient transportation, even in challenging terrains.
- Advanced Safety Features: The Qatar Isuzu Giga Flatbed Truck with boom crane is equipped with advanced safety features to ensure maximum protection during operations. These features include anti-lock braking systems, stability control, and airbags, ensuring the safety of both the operator and the cargo.
 |
 |
 |
 |
3. Advantages:
- Excellent Load Capacity: The Giga Isuzu flatbed crane truck's robust chassis and powerful boom crane enable it to handle heavy loads with ease. This high load capacity makes it suitable for various industries, including construction, logistics, and manufacturing.
- Versatile Application: The Isuzu boom crane truck's flexibility allows it to be used in multiple applications, such as construction sites, warehouses, and ports. Its ability to transport and lift heavy loads makes it an essential asset for industries requiring efficient and reliable transportation solutions.
- Enhanced Efficiency: The Qatar Isuzu Giga Flatbed Truck with boom crane improves operational efficiency, as it eliminates the need for separate transportation and lifting equipment. This reduces logistics costs, saves valuable time, and improves overall productivity.
- Comprehensive After-sales Service: Customers can rely on the comprehensive after-sales service provided for the Qatar Isuzu Giga Flatbed Truck with boom crane. This includes regular maintenance, repairs, and technical support, ensuring the truck's optimal performance throughout its lifespan.
Cns 5 Tons Knuckle Boom Crane Appropriate for All Wheel Drive Cargo Truck with 4 Sections Folding Arm Crane Truck Mounted Crane
| tem | Unit | SQS1355ZA2 |
| Max Lifting Capacity | ton | 5 |
| Max Lifting Moment | ton.m | 10.5 |
| Recommend Power | kw | 22 |
| Hydraulic System Flow | L/min | 35 |
| Hydraulic System Pressure | Mpa | 28 |
| Oil Tank Capacity | L | 100 |
| Installation Space | mm | 1050 |
| Self Weight | kg | 1850 |
| Rotation Angle | . | 400 |

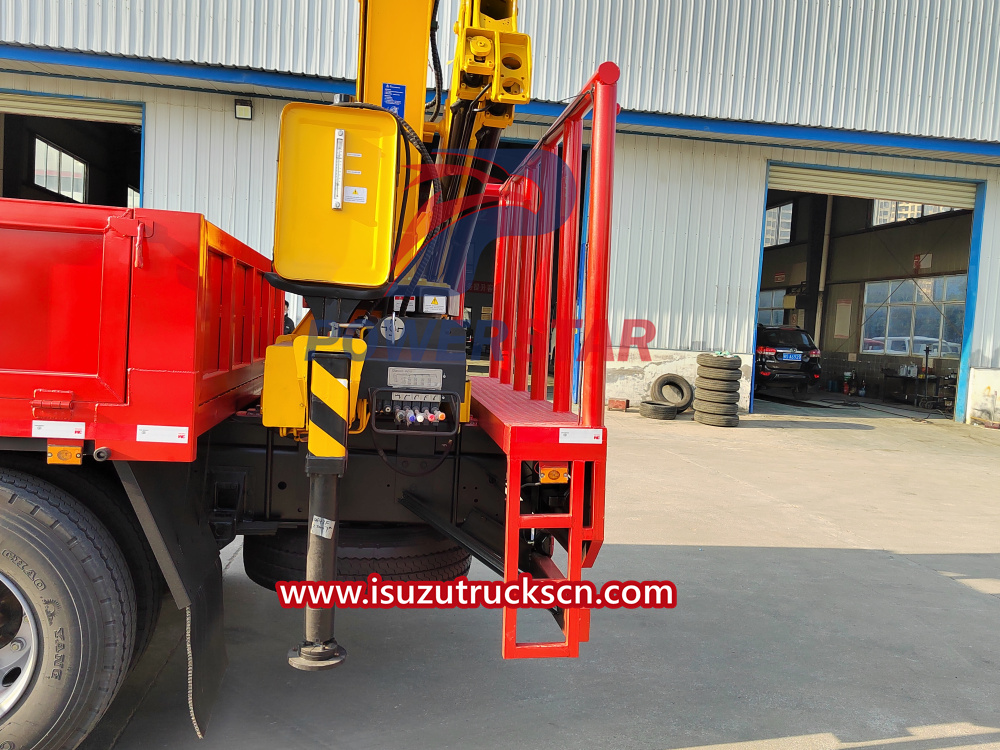

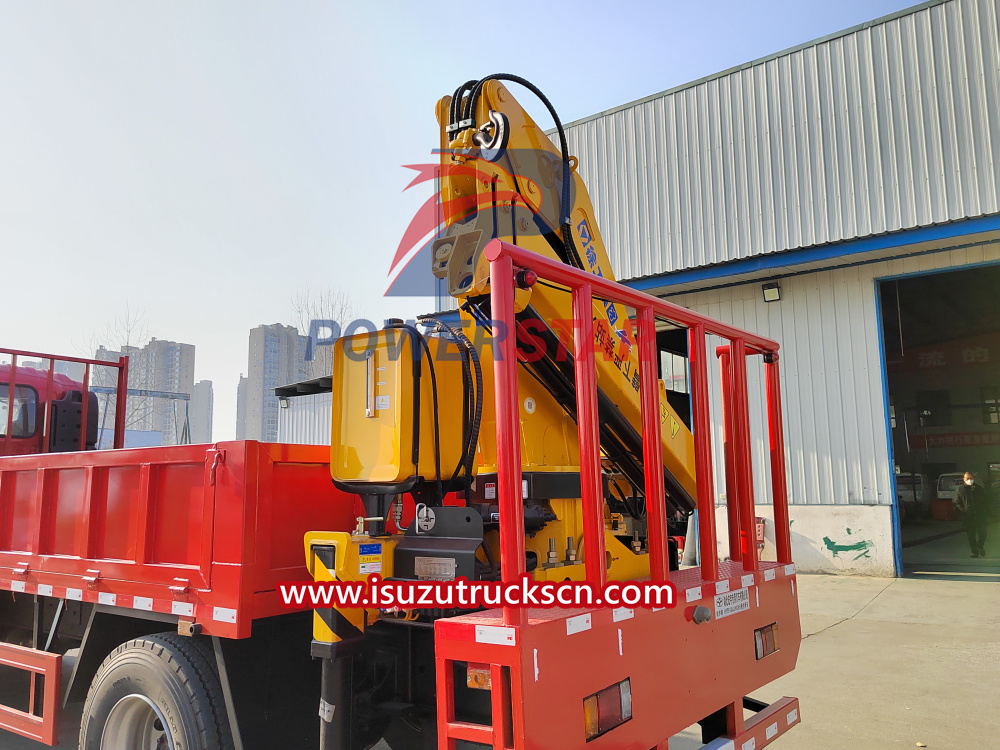

The compact arm head and arm tail design, so that the boom lap length reaches the longest, prolong the service life of the crane.
Using the built-in telescopic arm pulley design, the advantage is that the diameter of the pulley is designed as large as possible, improve the telescopic capacity with load, effectively protect the telescopic wire rope, prolong the service life.
Boom head adopting integral structure, greater intensity(Split head design reduces the boom head carrying capacity).
Rotary organizations adopts a low speed high torque rotary motor, by disc springs and friction plate to brake, it will be more stable, reliable, and outputting larger torque. At the same time, absorbing the stronger inertance of crane effectively during the braking process. When rapid braking, the friction plate can absorb large amounts of energy to protect the whole crane steel Structure.
mechanism hydraulic winch relies on disc spring and friction brake, stable and reliable, efficient, low noise, small calorific value; Rely on hydraulic balanced valves balancing weights when falling, greatly improve product reliability.
The crane boom adopts the larger slider design to reduce the lazy arm specific pressure, at the same time to reduce the wearing capacity.
4. Application:
The Qatar Isuzu Giga Flatbed Truck with boom crane finds extensive application in industries such as construction, engineering, logistics, and manufacturing. Its ability to transport and lift heavy loads makes it indispensable for various tasks, including equipment transportation, container handling, and construction material delivery.
| Chassis parameters | ||||
| Chassis model | ISUZU FTR | Chassis brand | ISUZU | |
| Overall dimensions | 9290x2370x2760mm | Wheel base | 5500mm | |
| Front/rear wheel track | 1880/1800mm | Front/rear suspension | 1430/2760mm | |
| Approach/departure angle | 20/13° | Maximum speed | 90km/h | |
| Chassis Manufacturer | ISUZU MOTORS | |||
| Cab | Configuration | GIGA one and a half row cab ,forward control type, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat, air conditioner, manual window, manual lock | ||
| Color | white,other color is optional | |||
| Engine | Model | 4HK1-TCG60 | ||
| Emission | Euro 5 | |||
| Type | 4 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | |||
| Rated power | 205hp,rated power speed 2500rpm | |||
| Displacement | 5900ml | |||
| Max.torque | 560N·m | |||
| Bore x stroke | 102x120mm | |||
| Manufacturer | ISUZU | |||
| Tire | Size | 9.00-20 nylon tire | ||
| Number | 6+1 nos | |||
| Clutch | push type diaphragm spring clutch,Φ395mm | |||
| Fuel tank | 160L, Steel fuel tank | |||
| Front axle | 4.5T | |||
| Rear axle | 9.0T main reduction ratio 5.286 | |||
| Drive form | 4X2 | |||
| Rated voltage | 24V,DC | |||
| Transmissions | Gearbox ISUZU MLD 6S, 6 speed forward 1 reverse. | |||
| Steering device | Power assisted steering | |||
| Steering wheel | Left hand drive | |||
| ISUZU FTR Truck mounted crane structure parameters | ||||
| Van dimensions | 5550X2294X600mm | Maximum loading of crane | 5 tons | |
| XCMG crane | ||||
| Crane model | SQZ105 | Maximum lifting height | 11m | |
| Maximum working radius | 8m | Maximum loading | 5 tons | |
| Crane type | Knuckle boom | Telescopic arms number | 3 | |
| Hydraulic, turning angle 360° | Color and Logo | Optional | ||
| Standard configuration | Chassis,sub frame,van body,XCMG Knuckle boom truck crane equipped between the cabin and van body,mechanical leg. | |||
| Selective configuration | 2-20 tons XCMG straight arm truck crane,1-30 tons XCMG Knuckle boom truck crane,other brand truck crane,crane equipped at the rear of van body,lifting hydraulic cylinder for unloading,hydraulic legs,aerial working seat. | |||
5. After-sales Service:
Customers can expect comprehensive after-sales service for the Qatar Isuzu Giga Flatbed Truck with boom crane. This includes regular maintenance, servicing, and technical support to ensure optimal performance and longevity of the vehicle. Prompt assistance and spare parts availability are guaranteed to minimize downtime and maximize productivity.
6. FAQ:

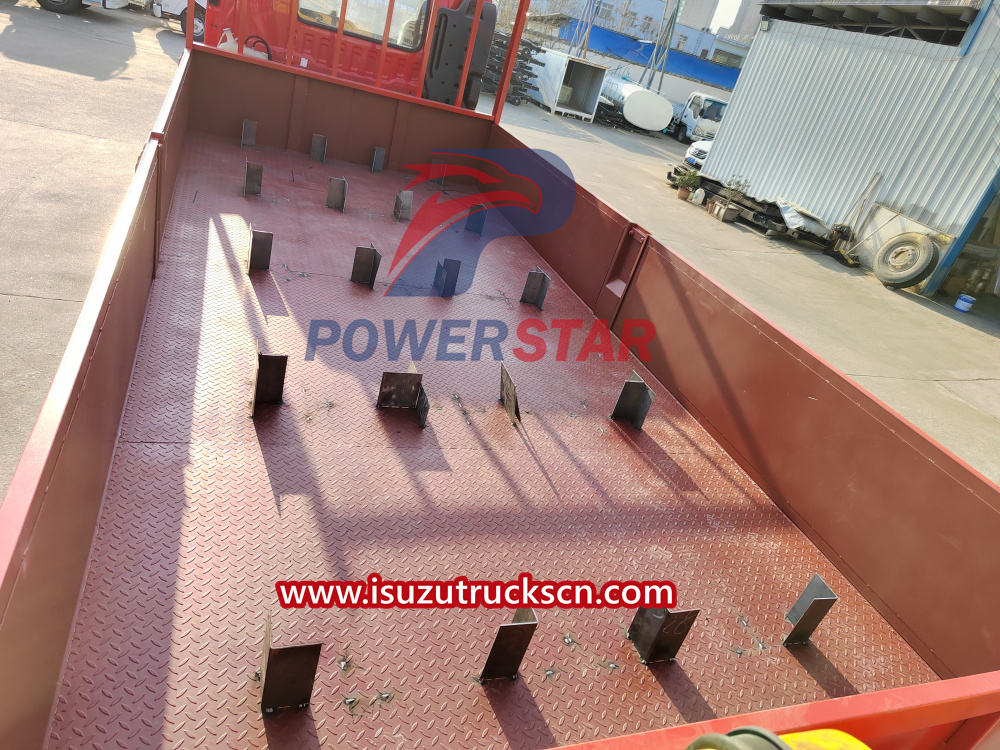

- Can the truck's flatbed be customized for specific cargo sizes?
Yes, the flatbed can be customized according to specific cargo requirements. Additional features, such as foldable sides or secure fastening systems, can be incorporated to cater to different cargo sizes and shapes.
- What is the maximum lifting capacity of the boom crane?
The maximum lifting capacity of the boom crane typically ranges from X tons to Y tons, depending on the specific model of the Qatar Isuzu Giga Flatbed Truck.
- Can the boom crane rotate 360 degrees?
Yes, the boom crane is designed to rotate 360 degrees, allowing for convenient loading and unloading in various directions.
- Is operator training provided for operating the boom crane?
Yes, operator training is available to ensure safe and efficient operation of the boom crane. It covers proper handling, safety protocols, and maintenance guidelines.
7. Upper Body Customization:
Customers have the option to customize the upper body of the Qatar Isuzu Giga Flatbed Truck with boom crane according to their specific requirements. This customization may include additional storage compartments, hydraulic systems, or safety features to enhance functionality and suit individual needs.
 |
 |
 |
 |
 |
 |
8. Truck Chassis Choice:
The Qatar Isuzu Giga Flatbed Truck with boom crane offers a range of truck chassis choices to meet different customer preferences. These choices include various engine power options and payload capacities, allowing customers to select the most suitable chassis base for their specific applications and operational requirements.
