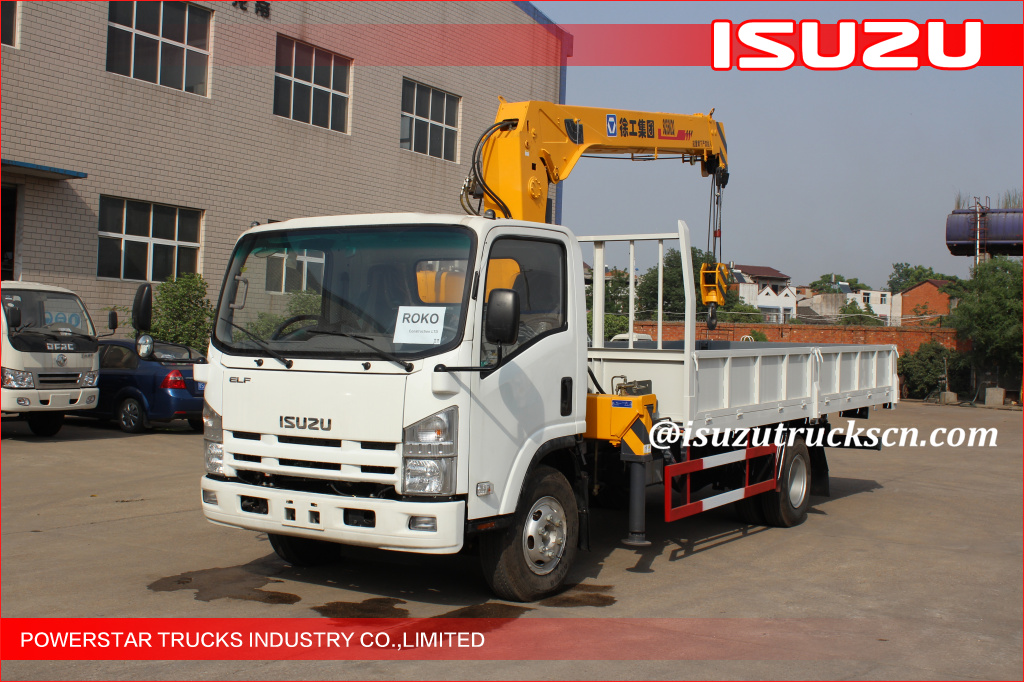

Quality Isuzu brand 5 TonS Hydraulic Lifting Truck Mounted Crane
Order(MOQ):
1Quality Isuzu brand 5 TonS Hydraulic Lifting Truck Mounted Crane
Durable 5 Ton Hydraulic Lifting Truck Mounted Crane , XCMG 2035kg Crane
Name: Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane
Max Lifting Capacity: 5 ton
Max Lifting Moment: 10.5T.M
Max Oil Flow of Hydraulic System: 25 L/min
Max.Lifting height: 10meters
Brand: XCMG
Crane Weight: 2035 kg
Oil Tank Capacity: 90 L
Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions, lifting kinds of goods
Description:
The Knuckle Boom crane is built as a normal crane, with the exception of the boom, which is hinged at the middle, creating a knuckle. Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Telescopic boom crane SQ5SK2 is lifting capacity is 5tons, moment is 10.5T.M.
Applications:
It could be applied on most common Commercial Truck-mounted Cranes.
Range covers light to medium crane. With small mounting size and weight to save your payload, saving loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model |
SQ5SK2 |
Unit |
Max Lifting Capacity |
5000 |
kg |
Max Lifting Moment |
10.5 |
T.M |
Recommend Powe |
18 |
kw |
Max Oil Flow of Hydraulic System |
25 |
L/min |
Max Pressure of Hydraulic System |
28 |
MPa |
Oil Tank Capacit |
90 |
L |
Rotation Angle |
All Rotation |
|
Crane Weight |
2035 |
kg |
Installation Space |
1100 |
mm |
Choice of Chassis |
ISUZU |
|
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg |
Spread |
Fixed |
2179mm |
Single extension |
2256-3556mm |
Double extension |
2212-4752mm |
