Isuzu 700P police fire truck chassis, as a chassis system designed for emergency rescue and fire fighting tasks, has demonstrated excellent performance and stability, and has become an indispensable equipment for fire departments. It plays an important role in protecting people's lives and property and maintaining social stability.
Work capacity:
5～8 tonsTruck model:
PT5100GWYEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x2,LHDGear box:
MLD-6QRemarks:
Customizable Isuzu ELF NPR 700P chassis
The Isuzu NPR ELF 700P police fire truck chassis also called Isuzu 700P police fire tender chassis,Isuzu 700P fire fighting truck chassis,Isuzu NPR police fire engine chassis, Isuzu ELF 700P police rescue fire truck,is a versatile and reliable commercial vehicle platform that serves as the foundation for the construction of police and fire trucks. The Isuzu NPR ELF 700P police fire truck chassis provides a sturdy and durable base on which specialized bodies for law enforcement and fire-fighting functions can be mounted.
The chassis is an important component of a fire truck and is also the most expensive part of a fire truck. The Isuzu fire trucks produced by POWERSTAR are basically modified based on the second-class universal chassis.
|
Isuzu NPR ELF 700P Police Fire Truck Chassis |
||
|
Vehicle Dimensions and Parameters |
Overall Dimension(L x W x H) |
6980×2170×2350mmmm |
|
Wheelbase: |
3815mm |
|
|
Front Wheel Distance: |
1680 mm |
|
|
Rear Wheel Distance |
1650 mm |
|
|
Front/Rear Suspension |
1110/2055mm |
|
|
Weights and Capacities |
Curb Weight: |
3400Kg |
|
GVW: |
10550Kg |
|
|
Axle Loads: |
3100/6600kg (Two-axis group) |
|
|
Engine |
Engine Model: |
4HK1-TCG61 |
|
Type |
4 Cylinders in line, high pressure, electrical common-rail diesel fuel injection system,water cooling , turbo charging, inter cooling. |
|
|
Max output: |
139Kw |
|
|
Displacement: |
5193ml |
|
|
Horsepower: |
190HP |
|
|
Max. Torque (N.m) |
510/1600 |
|
|
Exhaust Gas Treatment Technology: |
DPF |
|
|
Cabin |
Number of Seats: |
Single row,1+2 |
|
Chassis |
Drive Type: |
4x2 |
|
Tires No.: |
7(Including Spare Tire) |
|
|
Tire: |
825R16 14PR |
|
|
Transmission |
MLD-6Q |
|
|
Configurations |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Free Maintenance Battery |
|
|
5 |
Retro-Reflective Marking |
|
The Isuzu 700P police fire truck chassis provides strong support and protection for police fire trucks due to its durability, strong load-bearing capacity, and reliable braking and suspension systems. It ensures the efficient operation and safety of fire trucks in various emergency rescue and fire-fighting tasks. It is one of the indispensable equipment for fire departments.
1. Chassis structure
The Isuzu NPR ELF 700P chassis is known for its robust construction, high-quality materials, and excellent performance, making it a popular choice for emergency service vehicle manufacturers. The chassis is designed to withstand the rigorous demands of police and fire departments, providing a stable and secure platform for emergency operations.

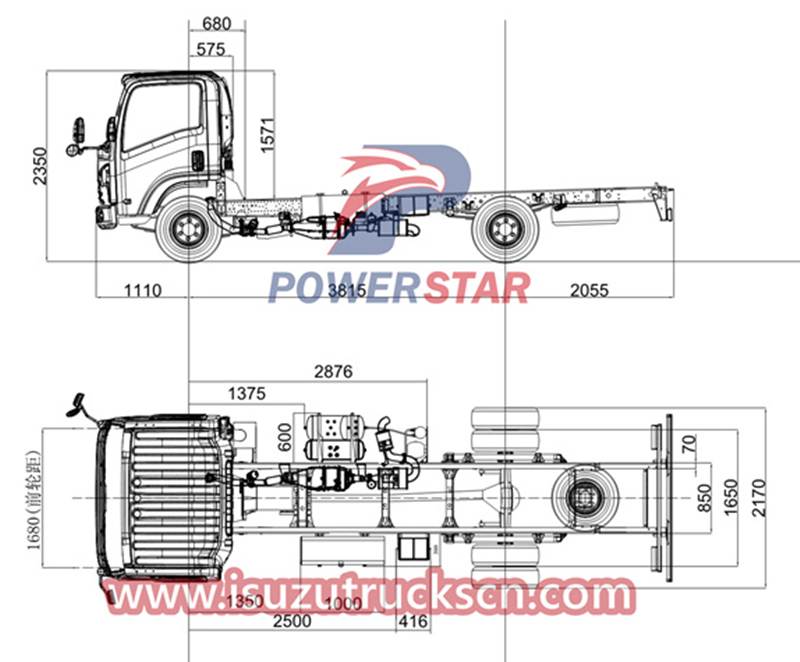

Technical drawing of Isuzu NPR ELF 700P 3815mm wheelbase police fire truck chassis
Technical drawing of Isuzu NPR ELF 700P 4175mm wheelbase police fire truck chassis

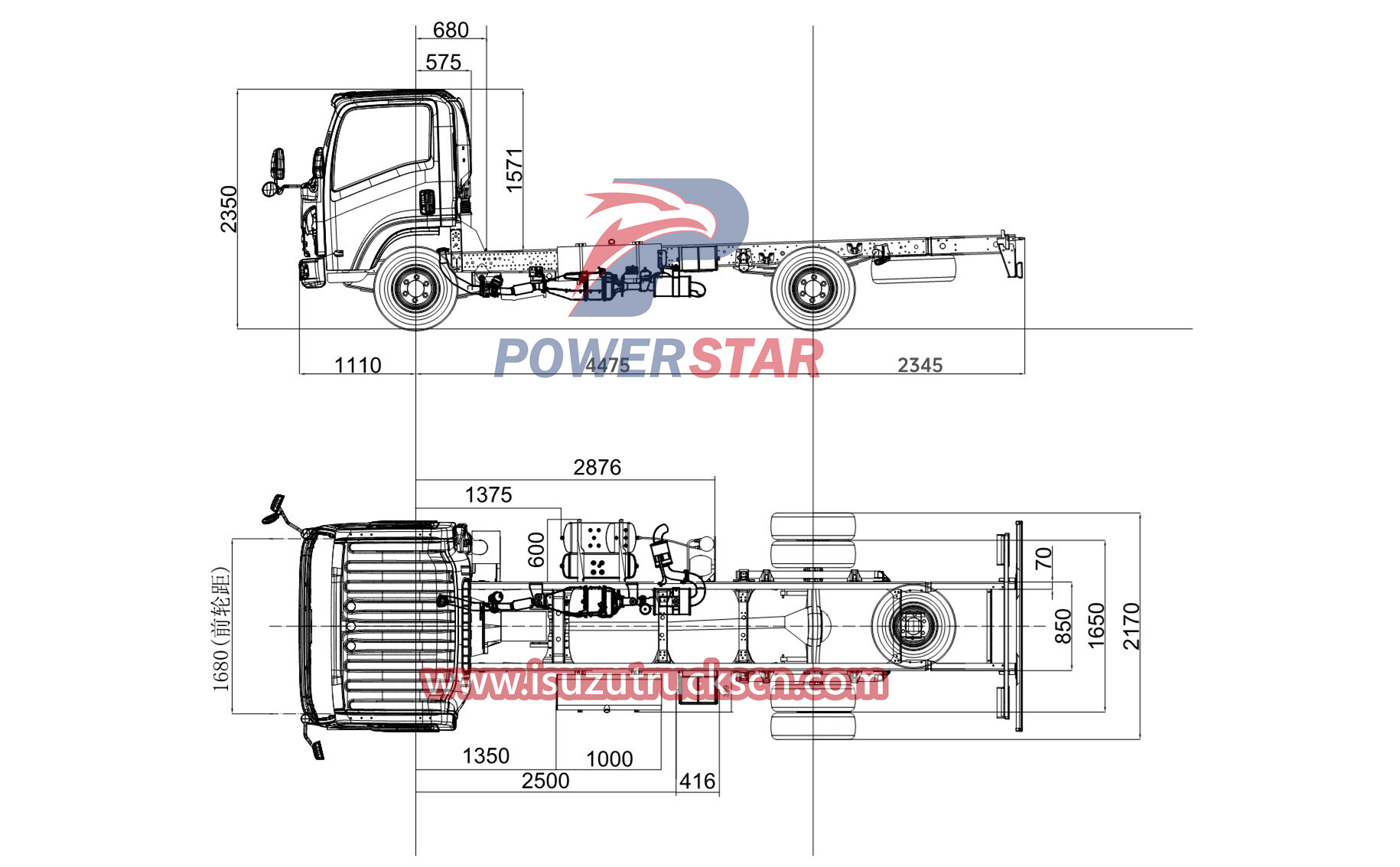

Technical drawing of Isuzu NPR ELF 700P 4475mm wheelbase police fire truck chassis

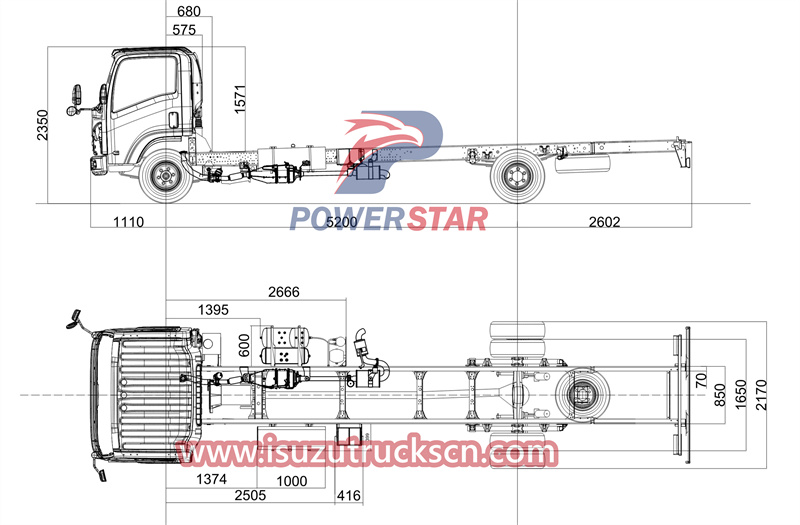

Technical drawing of Isuzu NPR ELF 700P 5200mm wheelbase police fire truck chassis
2. Power System
The chassis features a powerful engine, typically a diesel engine, that delivers the necessary power and torque required for police and fire truck applications. The engine is designed for reliable performance and fuel efficiency, ensuring that the emergency vehicles can respond quickly in critical situations and cover long distances without compromising performance.

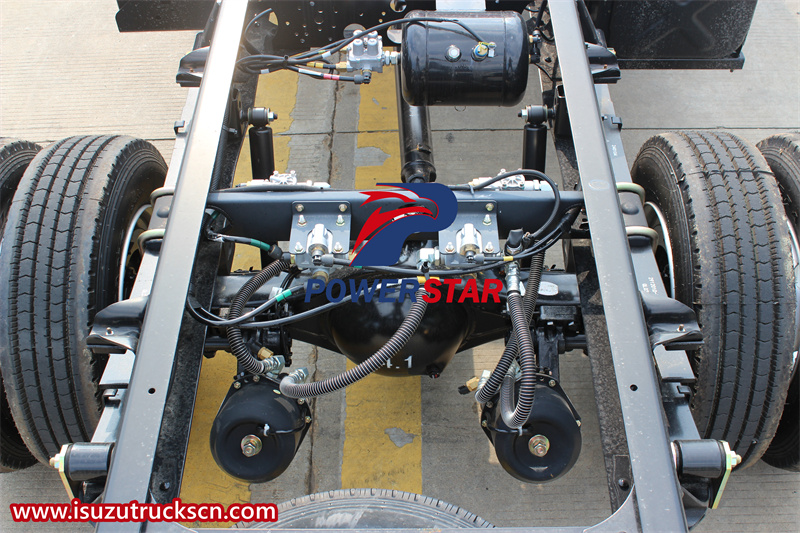

3. Suspension and braking system
The chassis of the Isuzu 700P fire fighting truck adopts an advanced suspension system to effectively absorb and disperse the impact and vibration during driving, improving the stability and riding comfort of the vehicle. At the same time, it is equipped with a high-performance braking system, including ABS anti-lock braking system, EBD electronic brake force distribution system, etc., to ensure that the vehicle can quickly and effectively slow down and stop in emergency braking, ensuring driving safety.
4. Safety performance
The Isuzu NPR ELF 700P police fire tender chassis is equipped with a range of safety features and specifications to support emergency operations. These may include reinforced chassis design, heavy-duty suspension systems, advanced braking technologies, and other safety enhancements to enhance vehicle stability, control, and protection for occupants.
5. Customizable
The chassis design of the Isuzu NPR ELF 700P allows for customization and adaptation to meet the specific requirements of police and fire truck applications. Various body configurations, equipment mounting options, and storage solutions can be integrated onto the chassis to enable efficient and effective emergency response capabilities.

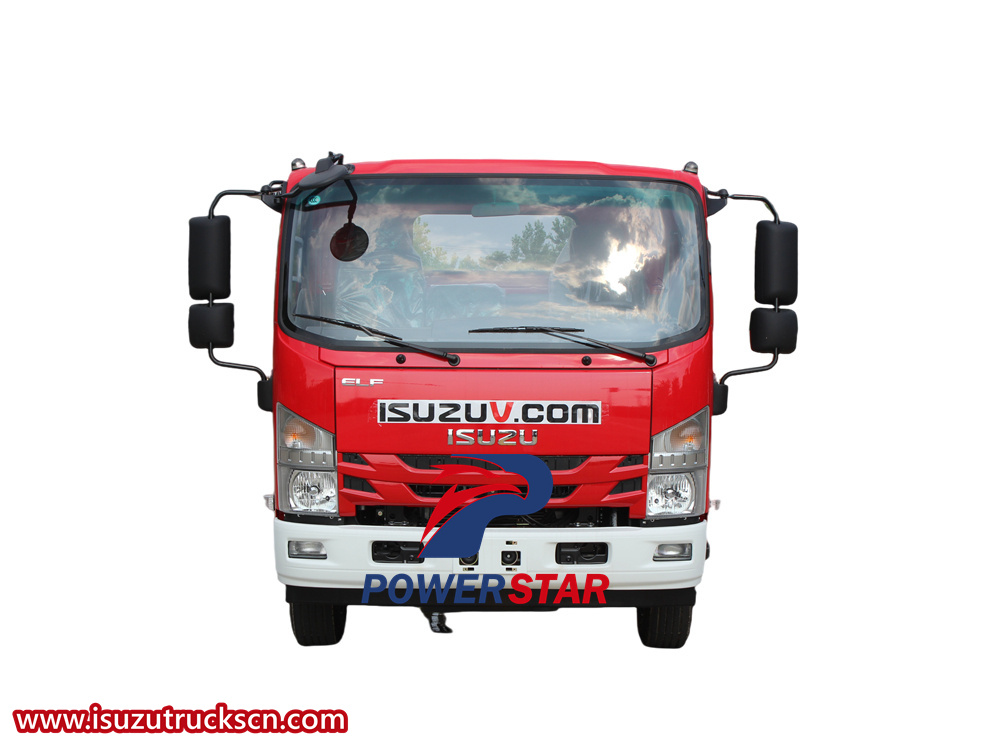

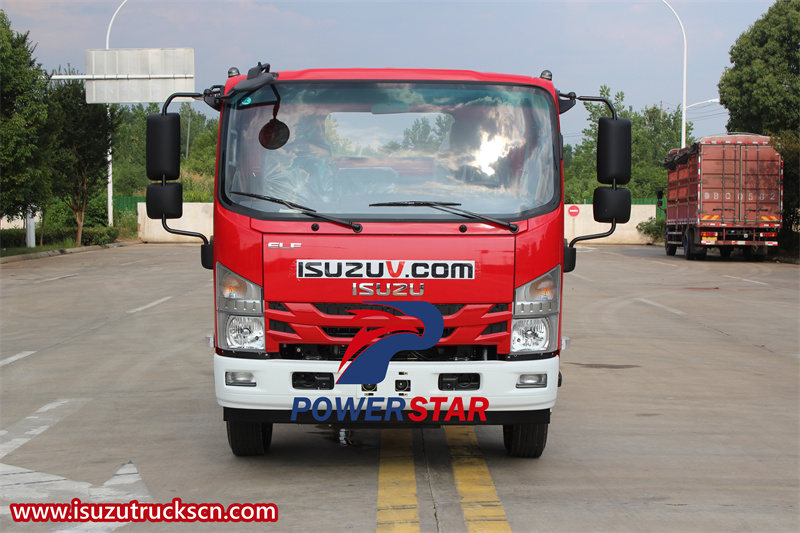

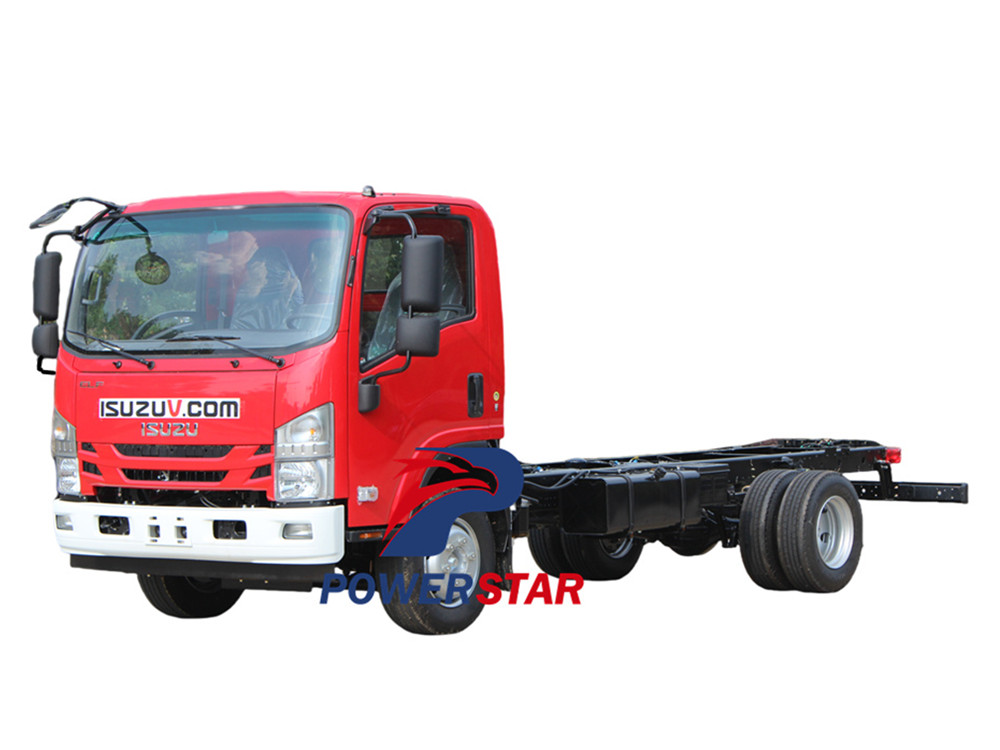

Isuzu NPR ELF 700P police fire truck chassis front view

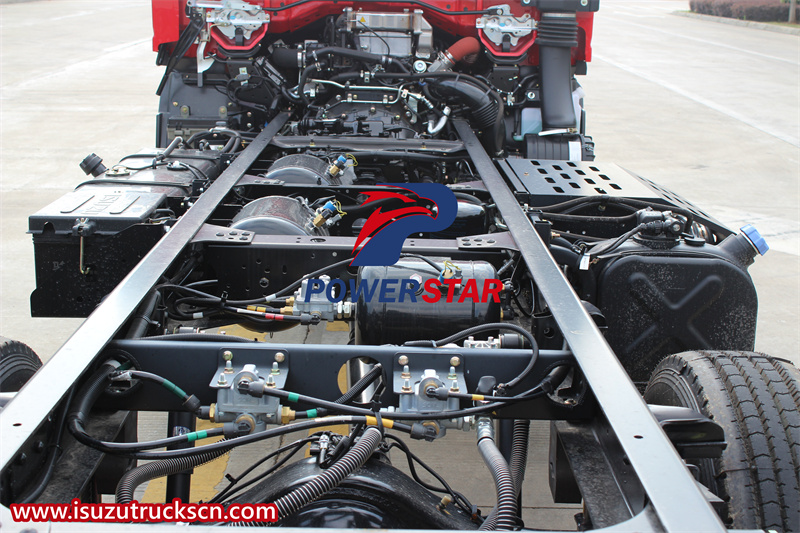

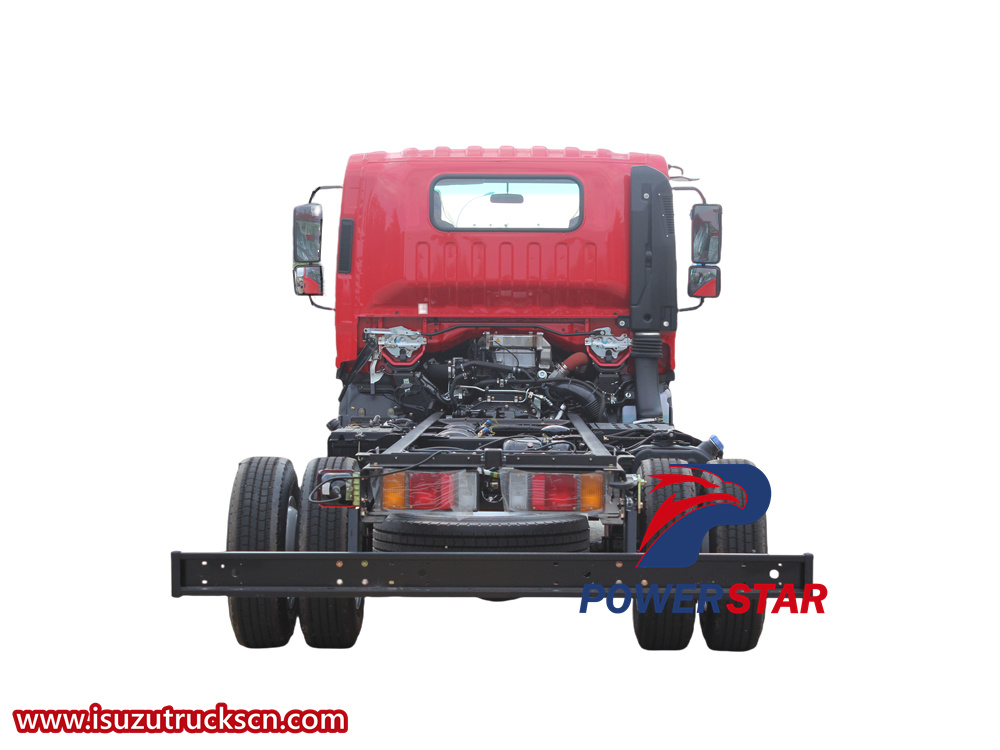

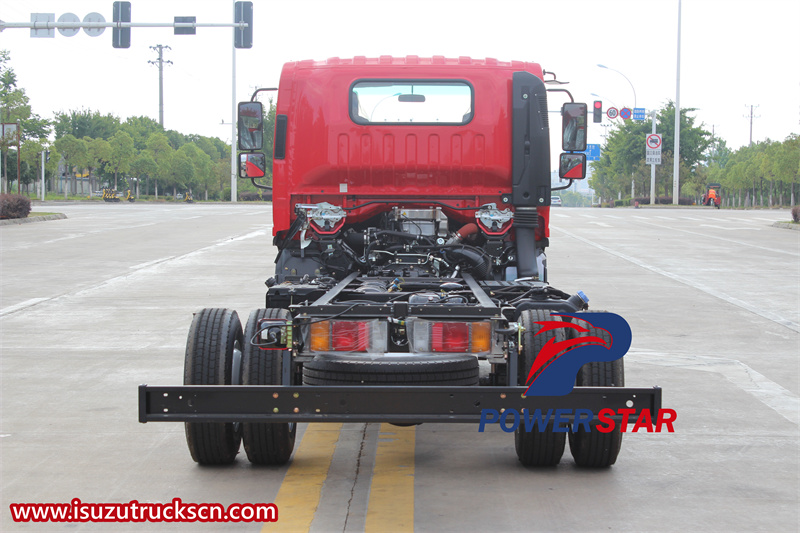

Isuzu NPR ELF 700P police fire truck chassis rear view

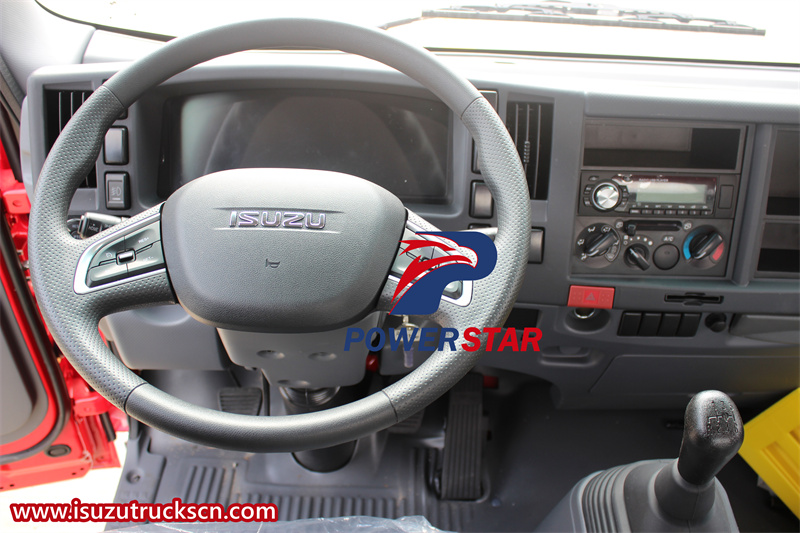

Isuzu NPR ELF 700P police fire fighting truck chassis steering wheel

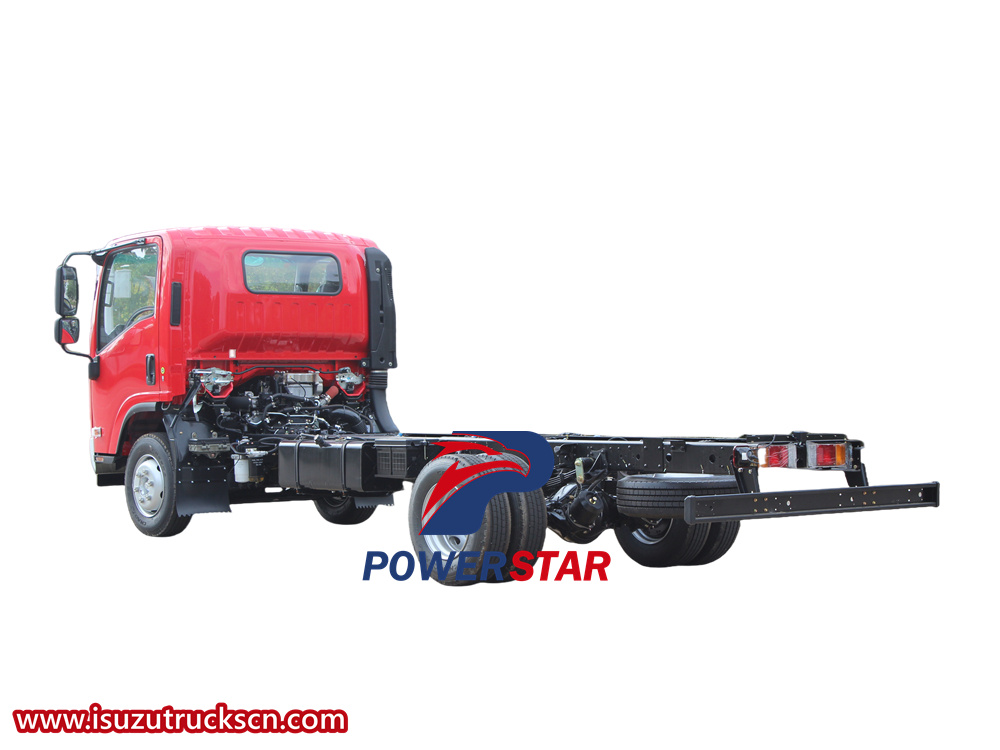

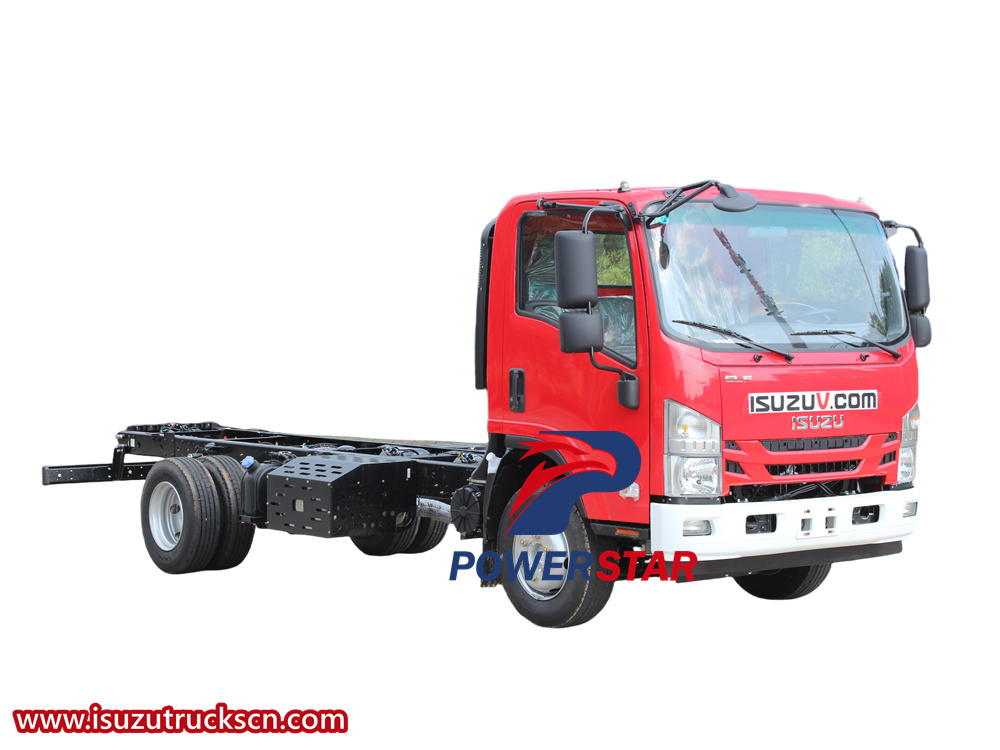

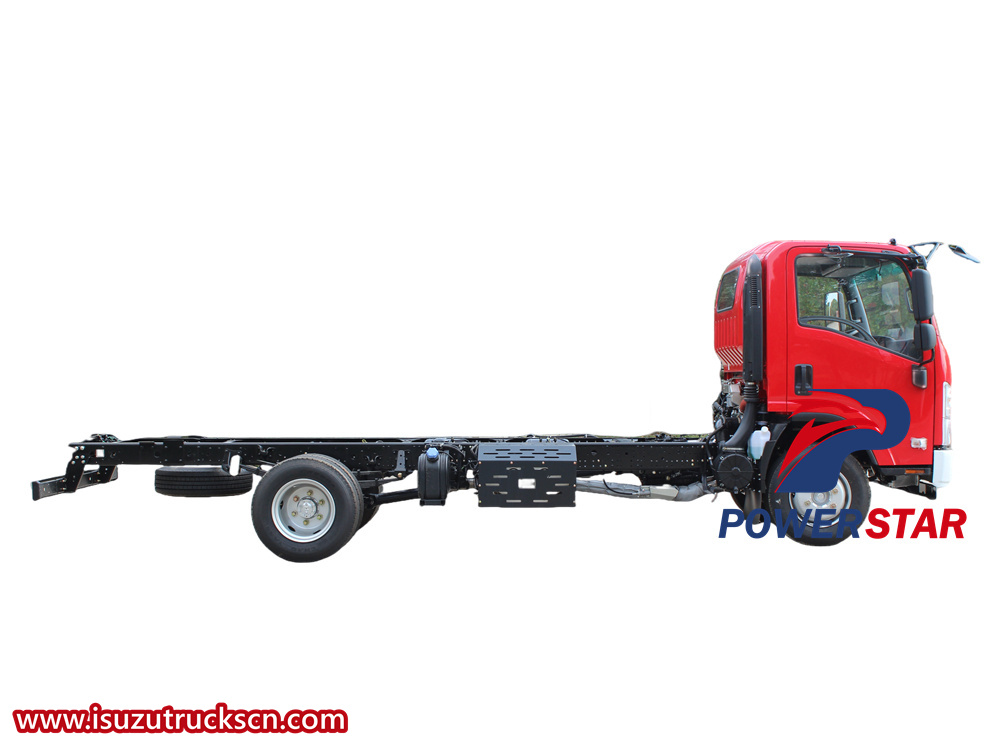

Isuzu NPR ELF 700P police fire engine chassis

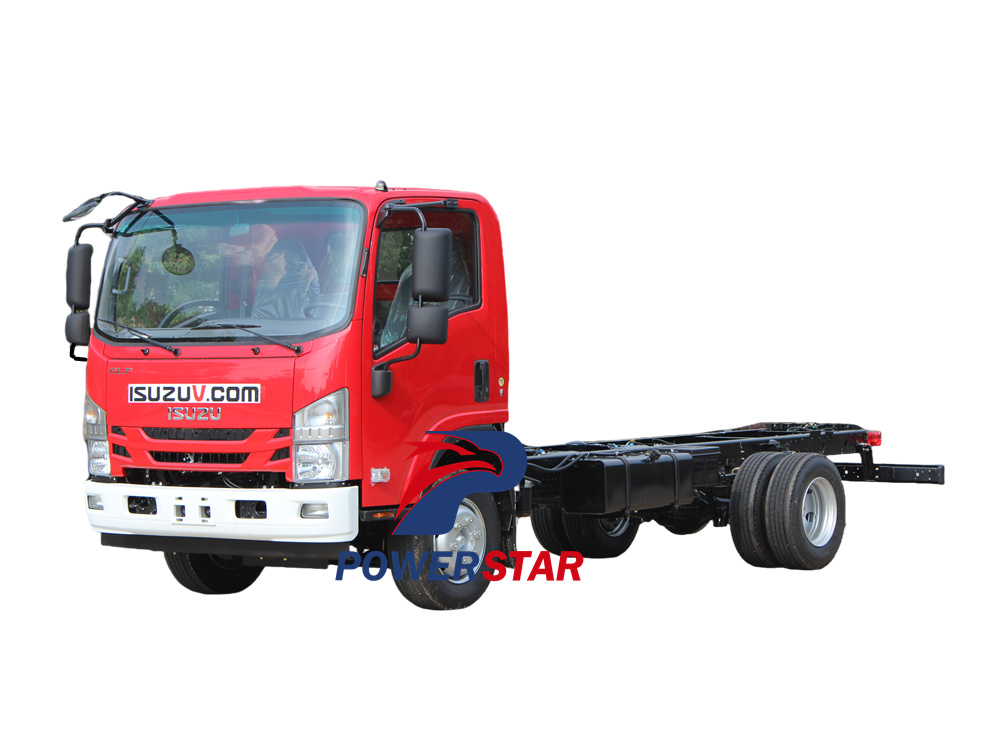

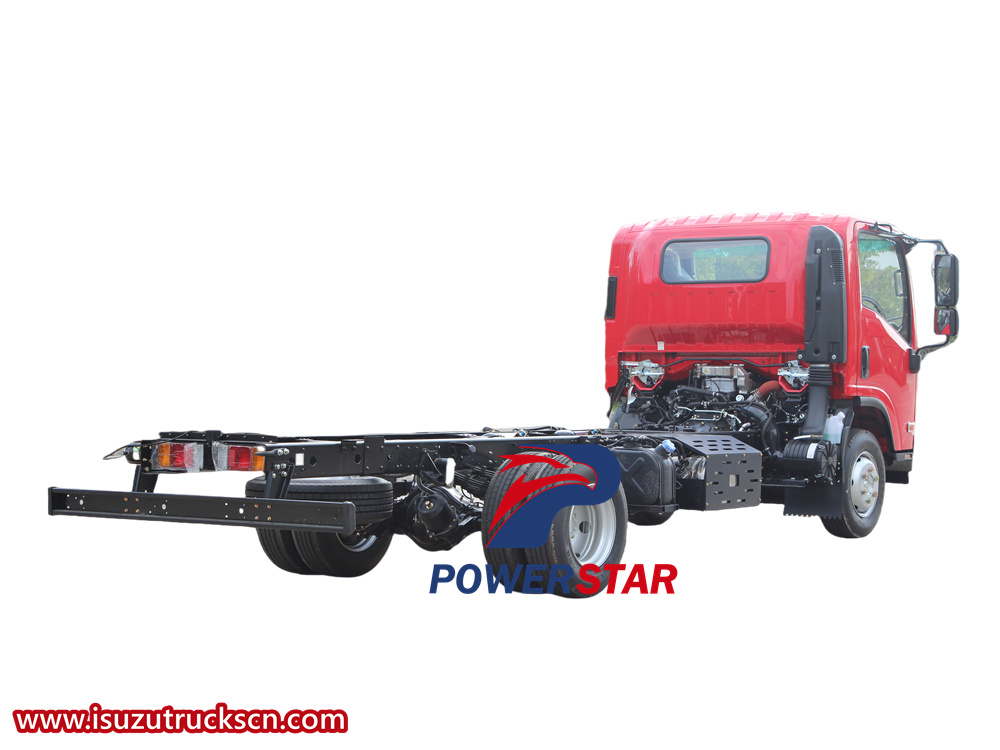

Isuzu NPR ELF 700P police fire tender chassis
