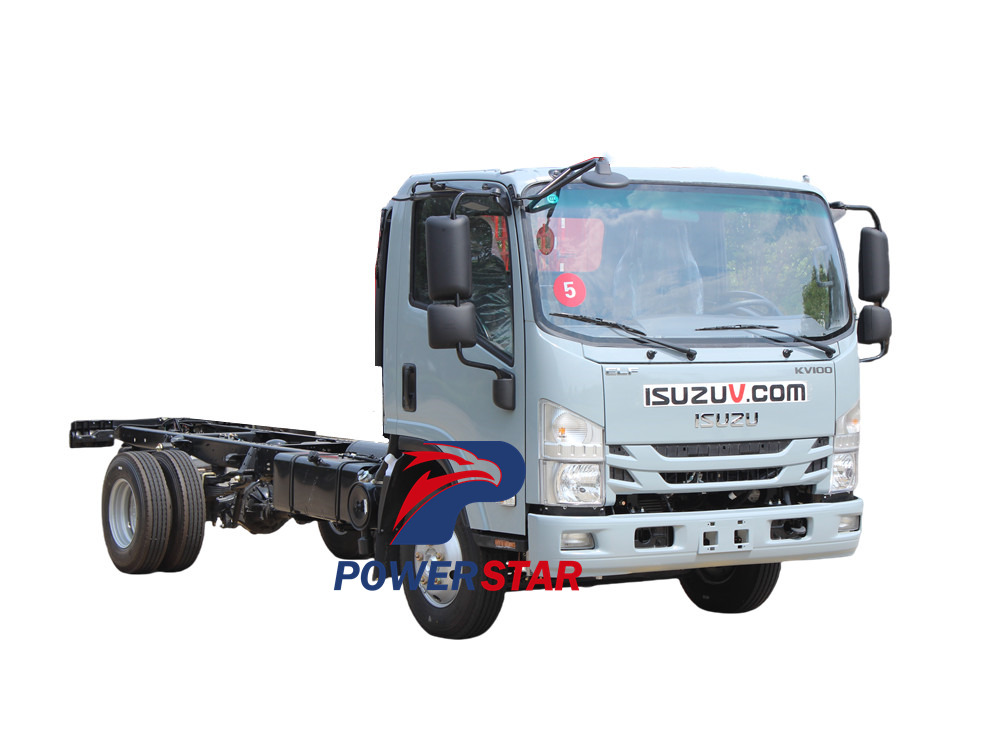

The Isuzu KV100 chassis is economical, practical, efficient and reliable, and is suitable for various light transport tasks, such as short-distance urban distribution, urban logistics transportation, etc. The Isuzu KV100 chassis has a solid structural design, abundant power, stable control, safety and reliability, and is a small commercial vehicle chassis favored by users.
Work capacity:
3～6tonsTruck model:
PT5080GWYEngine power:
120HPEngine type:
4HK1CN6LBAxle drive:
4x2,LHDGear box:
MSB-5MTRemarks:
Isuzu KV100 3x cabin truck chassis
Isuzu KV100 light cargo truck with 4KH1 engine also called Isuzu KV100 chassis,Isuzu KV100 light-duty chassis,Isuzu KV100 NPR caogo truck chassis,Isuzu 120HP KV100 light truck chassis,Isuzu KV100 3x cabin truck chassis, is an economical, practical, efficient and reliable light commercial vehicle chassis, suitable for urban freight and short-distance delivery business. The 120-horsepower powertrain provides strong power support for the vehicle, and the lightweight structural design improves the operating efficiency and fuel economy of the vehicle. The chassis has stable control, comfortable driving, excellent safety performance and reliability, and is favored by the majority of users. Isuzu KV100 light cargo truck with 4KH1 engine provides users with a reliable and efficient commercial transportation solution, injecting vitality and innovation into the urban logistics and transportation industry.
Isuzu KV100 3x cabin truck chassis is a high-quality chassis designed for light commercial vehicles. It combines Isuzu's years of technical accumulation and commercial vehicle market demand to provide users with efficient and reliable transportation solutions. The KV100 chassis is equipped with a 120-horsepower powertrain, has excellent handling and stability, and is very suitable for short-distance urban distribution and freight business.
|
Isuzu KV100 light cargo truck with 4KH1 engine |
||
|
Chassis Dimensions and Parameters |
Chassis Brand |
Isuzu |
|
Overall Dimension(L x W x H) |
5995×1995×2260mm |
|
|
Wheelbase: |
3360mm |
|
|
Front/ Rear Wheel Distance: |
1685/1525mm |
|
|
Front/Rear Suspension |
1110/1525mm |
|
|
Weights and Capacities |
Curb Weight: |
2350kg |
|
Payload: |
5450kg |
|
|
GVW: |
8400kg |
|
|
Axle Loads: |
2580/4720kg |
|
|
Engine |
Engine Model: |
4KH1CN6LB |
|
Max output: |
88Kw |
|
|
Displacement: |
2999ml |
|
|
Horsepower: |
120HP |
|
|
Exhaust Gas Treatment Technology： |
DPF |
|
|
Transmission |
Transmission: |
MSB-5MT |
|
Forward Gear: |
5 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake |
Hydraulic Brake |
|
|
Front Drum Back Drum |
||
|
Generator |
12V-60A |
|
|
Cab |
Number of Seats: |
3 |
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7(Including Spare Tire) |
|
|
Tire Model: |
7.00R16 8PR |
|
|
Fuel Tank
|
Number: |
1 |
|
Capacity: |
100L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS |
|
|
4 |
Tubeless Tire |
|
|
5 |
Retro-reflective Marking |
|
|
6 |
Free Maintenance Battery |
|
|
7 |
Cab Tilting Mechanism |
|
The Isuzu 120HP KV100 light truck chassis is a chassis designed for light commercial vehicles. It is equipped with a 120-horsepower powertrain, has excellent handling performance and stability, and is suitable for short-distance urban freight and distribution operations. The chassis combines Isuzu's advanced technology and high-quality quality to provide users with efficient and reliable transportation solutions.
First of all, the Isuzu KV100 chassis focuses on lightweight and structural strength in design. The overall weight of the vehicle is light and the structure is sturdy and durable. The chassis is made of high-strength steel, which improves the safety and collision resistance of the vehicle and ensures that the vehicle can still maintain stable driving under harsh road conditions. The chassis structure is reasonably designed, which reduces the vehicle's air resistance and improves the vehicle's fuel economy and operating efficiency. The vehicle is a new N series light truck with a new cab shape, using headlight follow-up steering technology. The new NKR cab is more beautiful, comfortable and safe. The Isuzu KV100 cab is wider than the 100P, and the front seats are increased to 3.

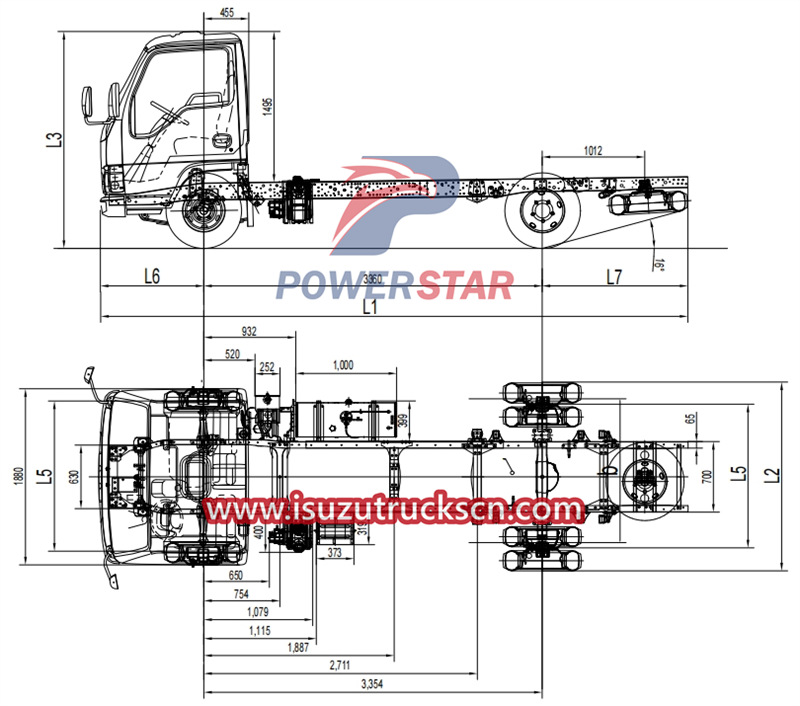

Technical drawings of Isuzu KV100 wheelbase 3360mm chassis

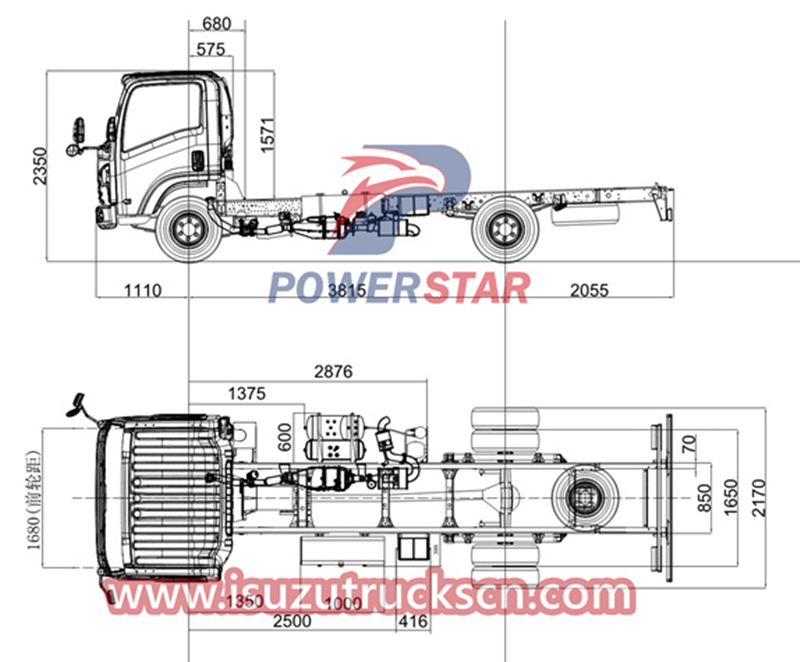

Technical drawings of Isuzu KV100 wheelbase 3815mm chassis
Secondly, the KV100 chassis uses a 4KH1 engine with a 120-horsepower powertrain. The 4KH1 engine features an output power of 120 horsepower, adopts electronic injection, intercooling and supercharging technology, SCR/PDF post-processing system, and a supercharger with cooling device. It provides the vehicle with strong power output and reliable performance. The powertrain design is efficient, the acceleration is rapid, and the power output is linear and smooth, which can meet the operation needs of urban freight vehicles. The 120-horsepower powertrain strikes a balance between economy and power performance, has low fuel consumption and emission levels, meets the requirements of environmental protection and energy saving, and saves operating costs for users.
In addition, the Isuzu KV100 light-duty 120HP chassis has excellent handling performance and driving experience. The chassis suspension system is reasonably designed, and the vehicle's handling stability and comfort are improved by optimizing the suspension structure and shock absorption system. The cab design is spacious, the sitting position is comfortable, and it is equipped with comfortable seats and a humanized operating system, providing the driver with a good driving experience. The chassis is also equipped with advanced driving assistance systems such as ABS, EBD, vehicle stability control system, etc., which improve the safety and handling of the vehicle.

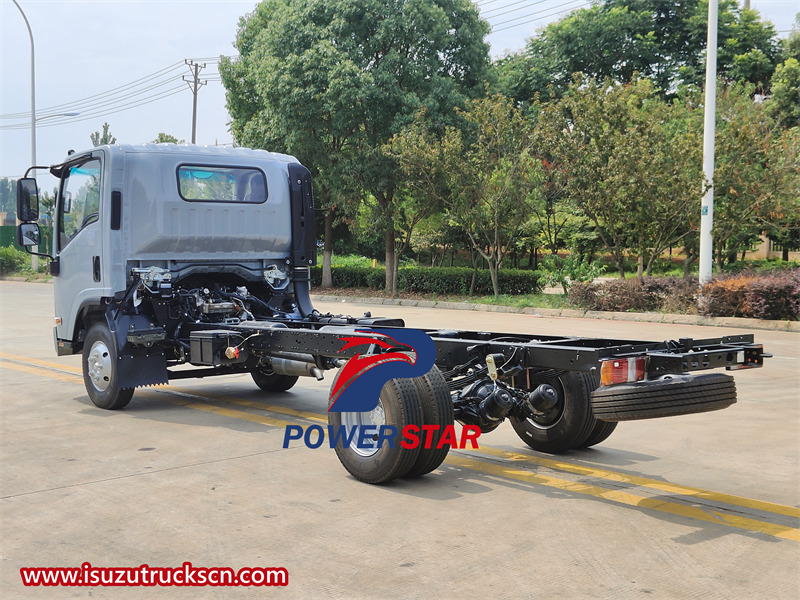

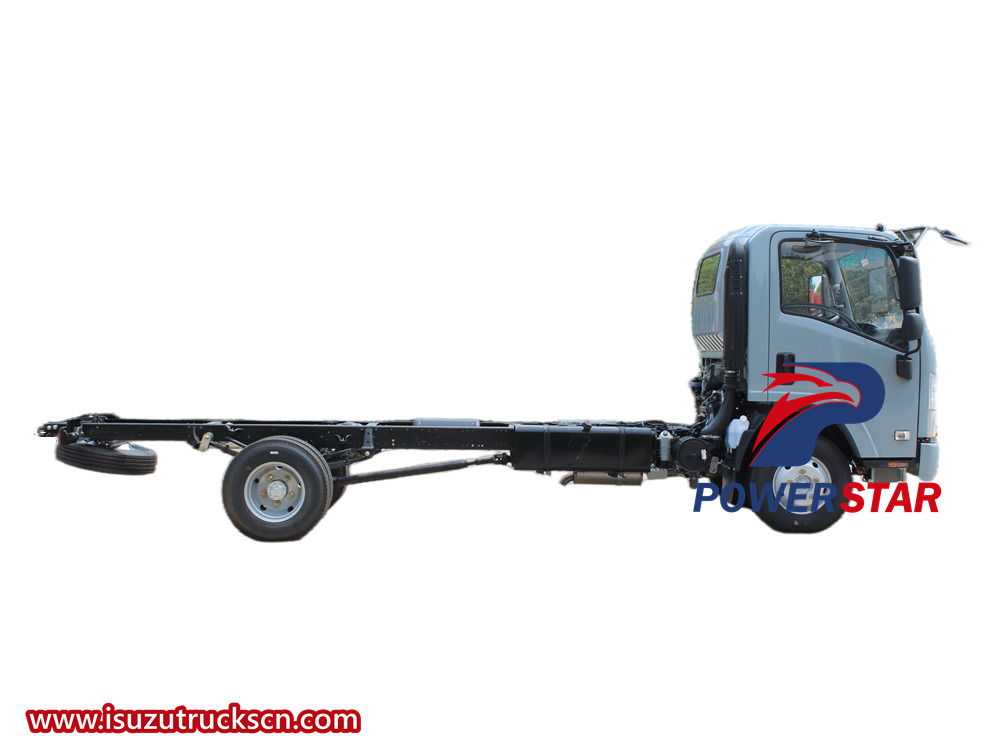

Isuzu KV100 light cargo truck with 4KH1 engine
Finally, Isuzu KV100 cargo truck chassis have achieved low pollution and low fuel consumption throughout their life cycle, and the performance of the entire vehicle has been improved simultaneously, with lower noise, less shaking, and a quieter and more comfortable vehicle. In addition, the fuel consumption is low, and the fuel cost is 10%-15% lower than other vehicles with the same load capacity. It has high reliability and low maintenance costs. It complies with the development trend of environmental protection and energy saving, saving operating costs for users.

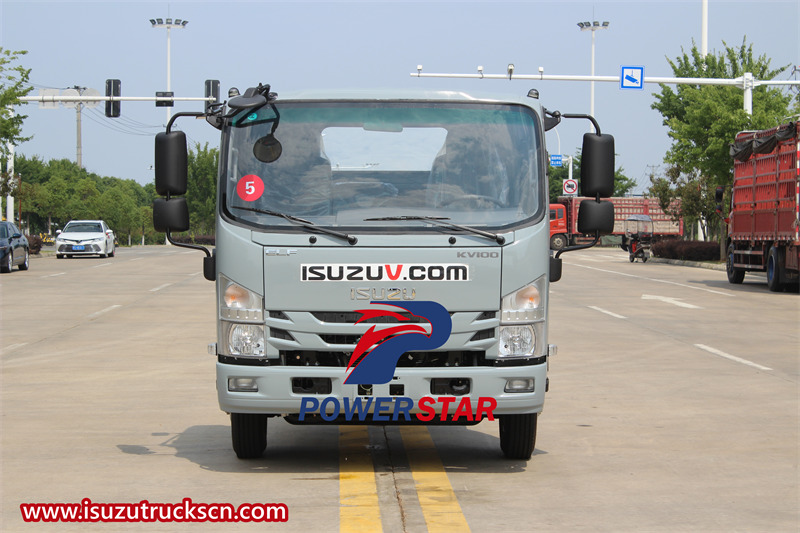

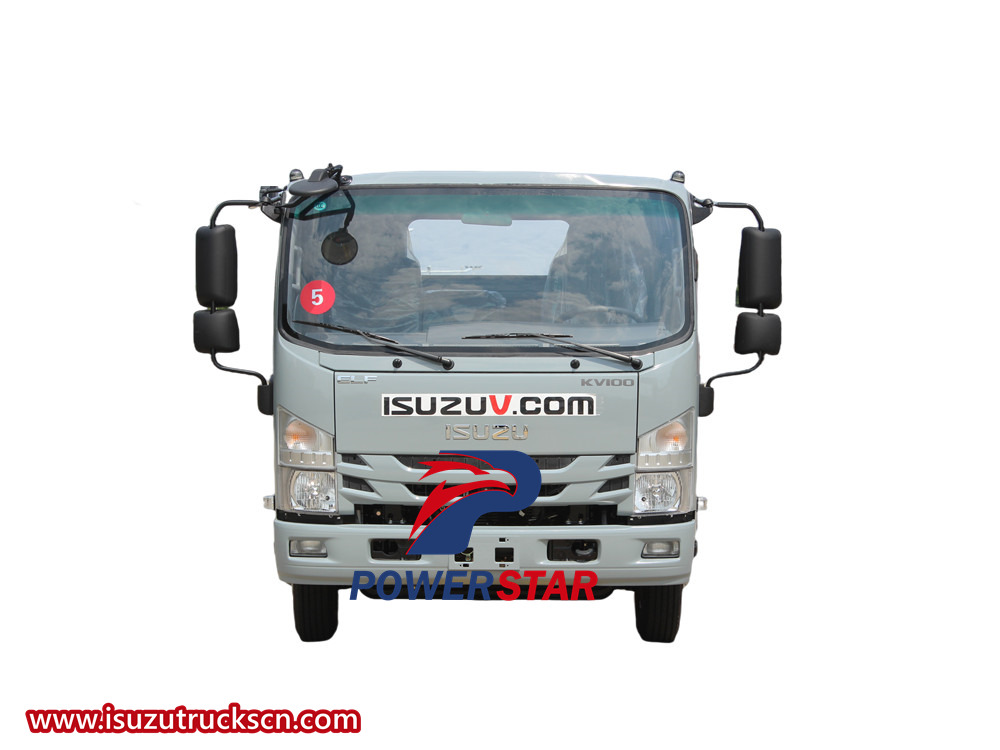

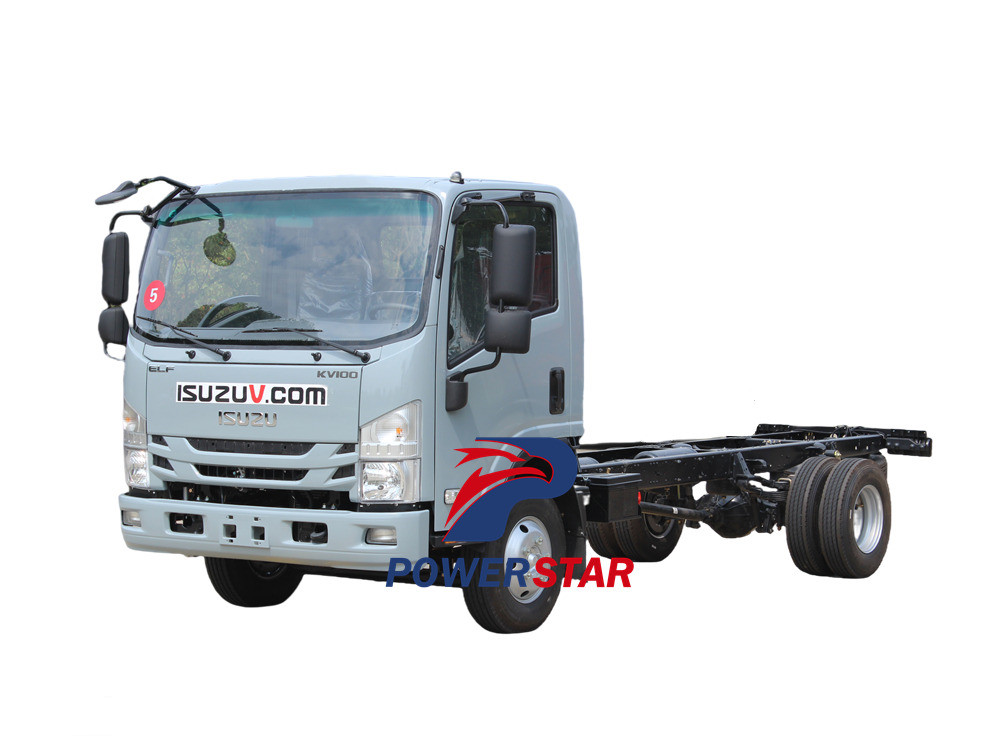

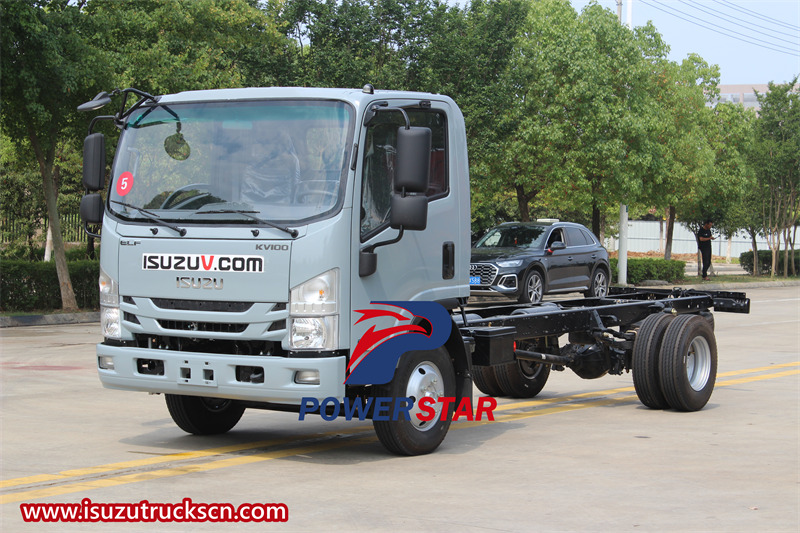

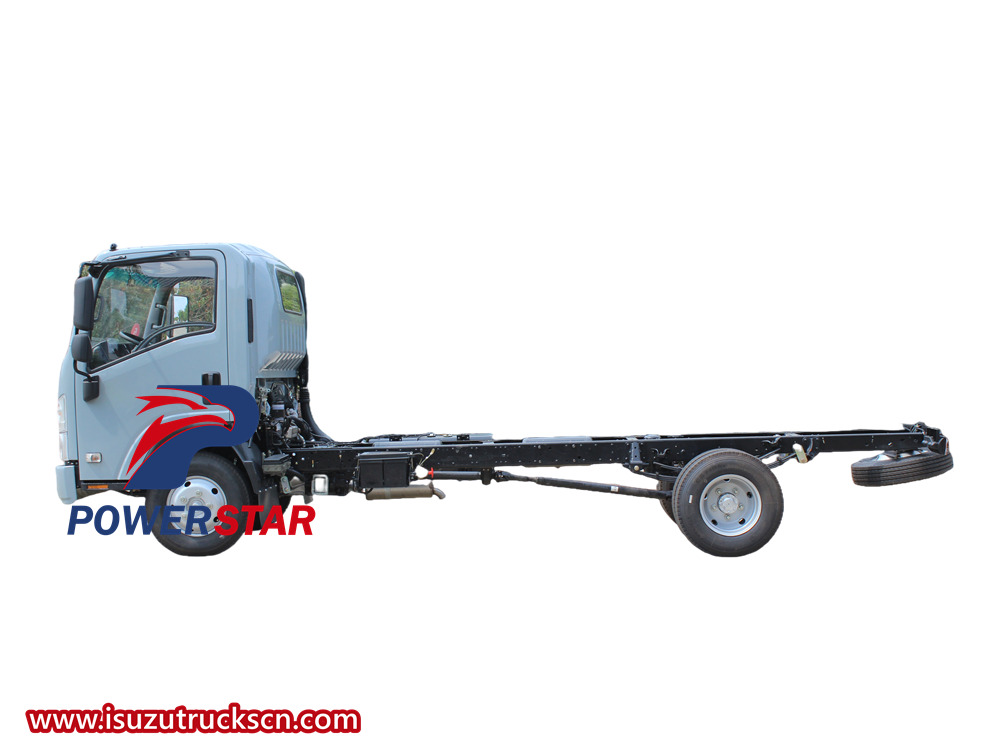

Isuzu KV100 cargo truck chassis front view

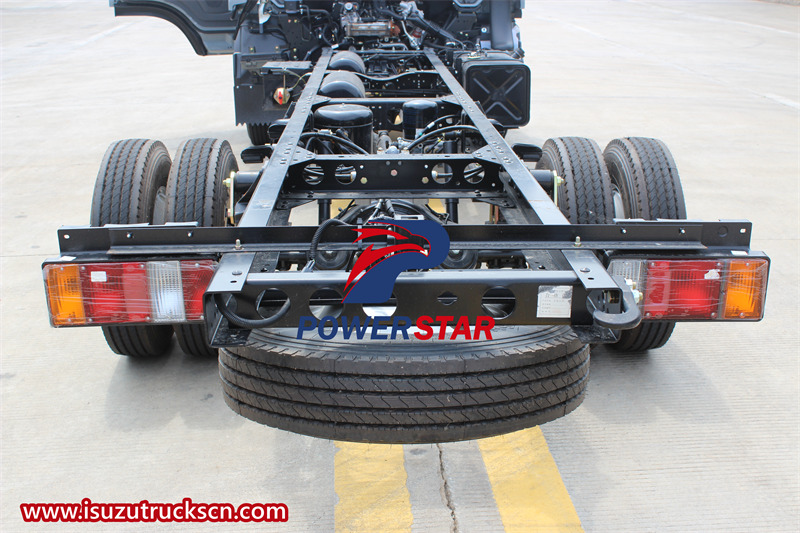

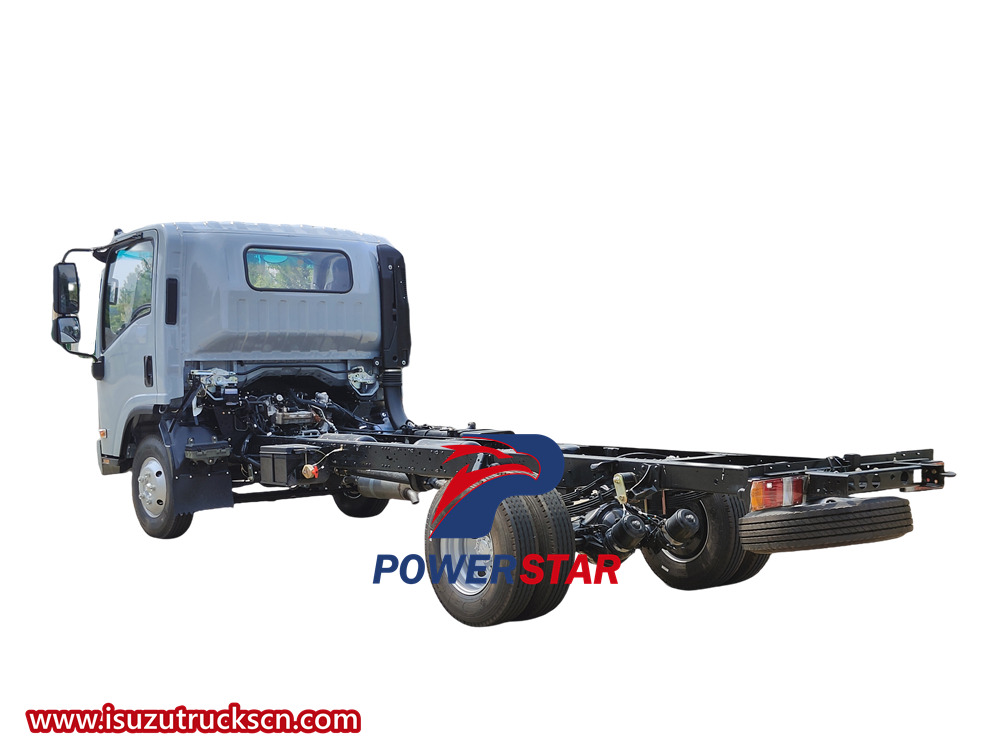

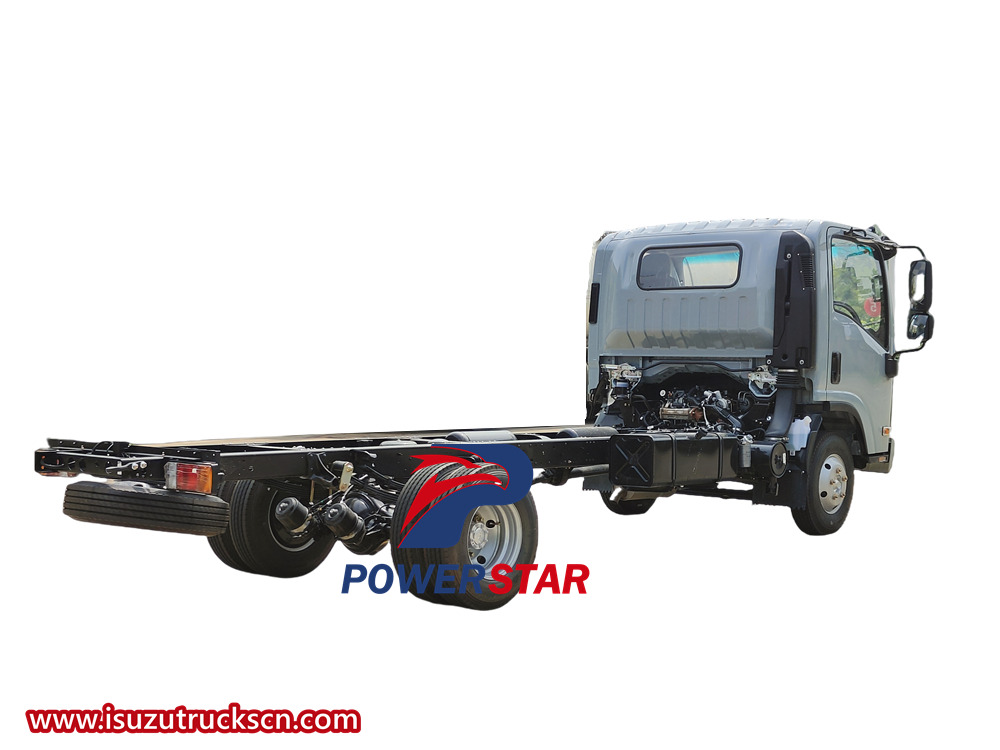

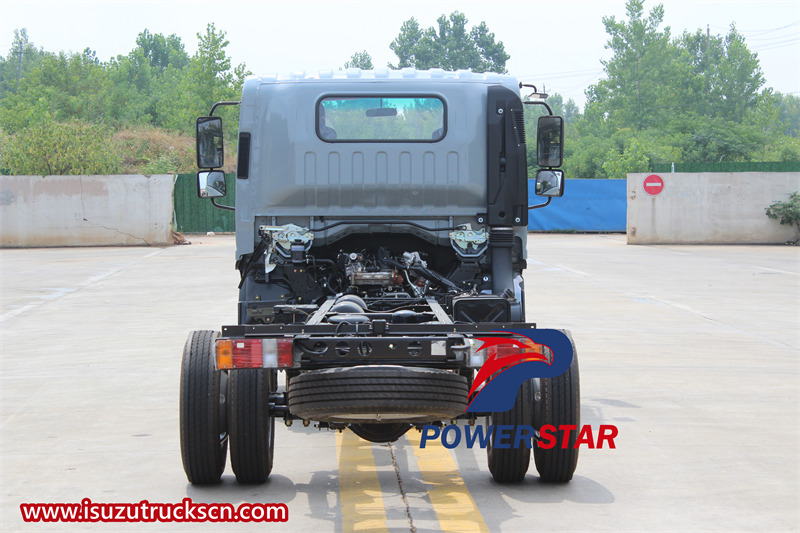

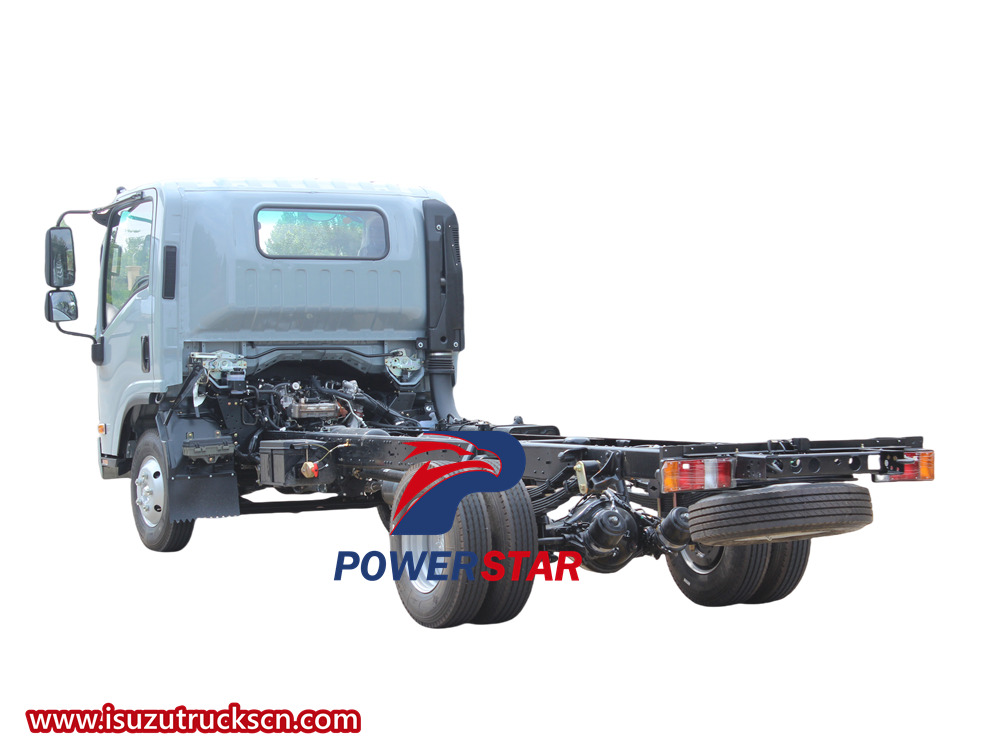

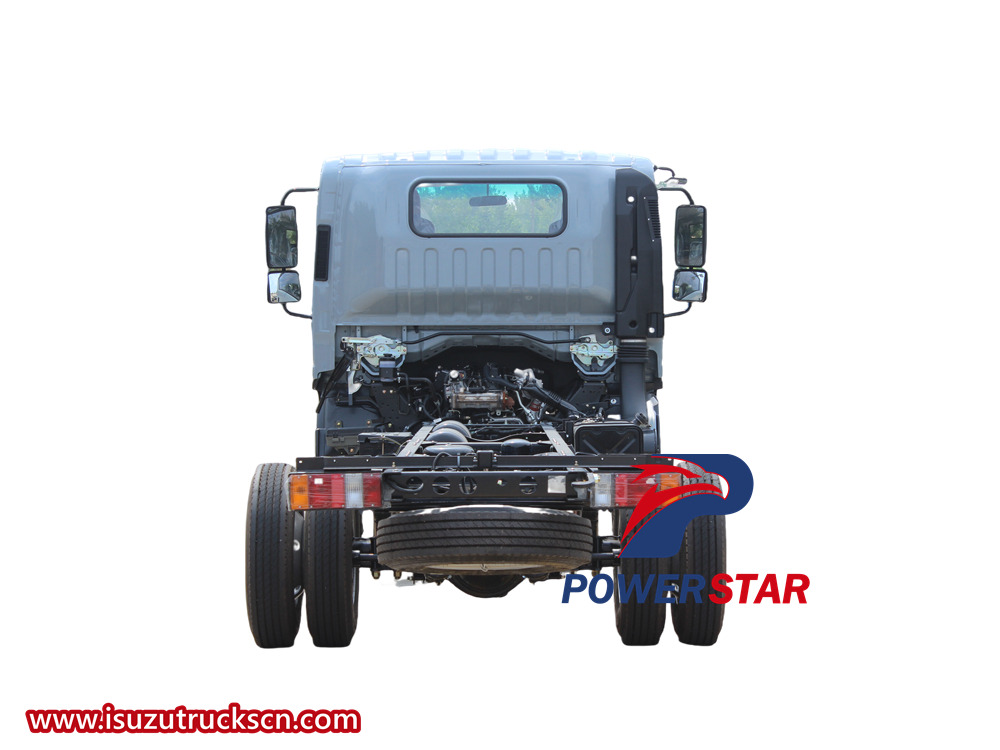

Isuzu KV100 cargo truck chassis rear view

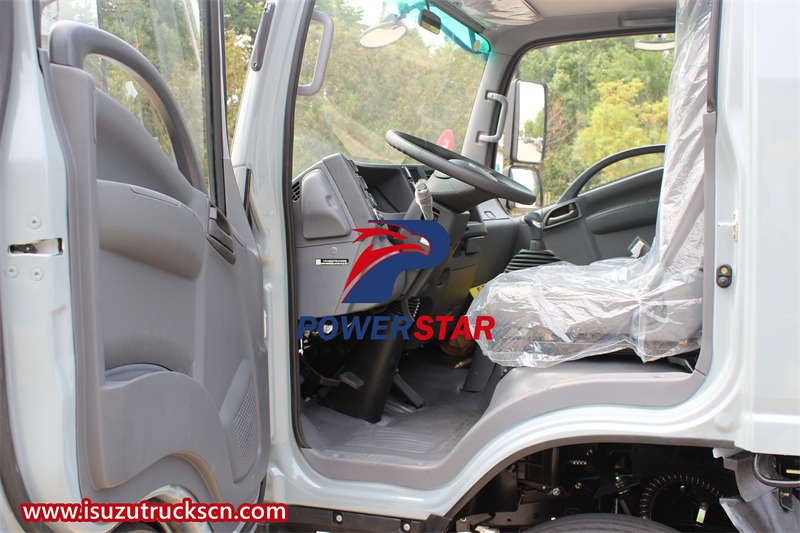

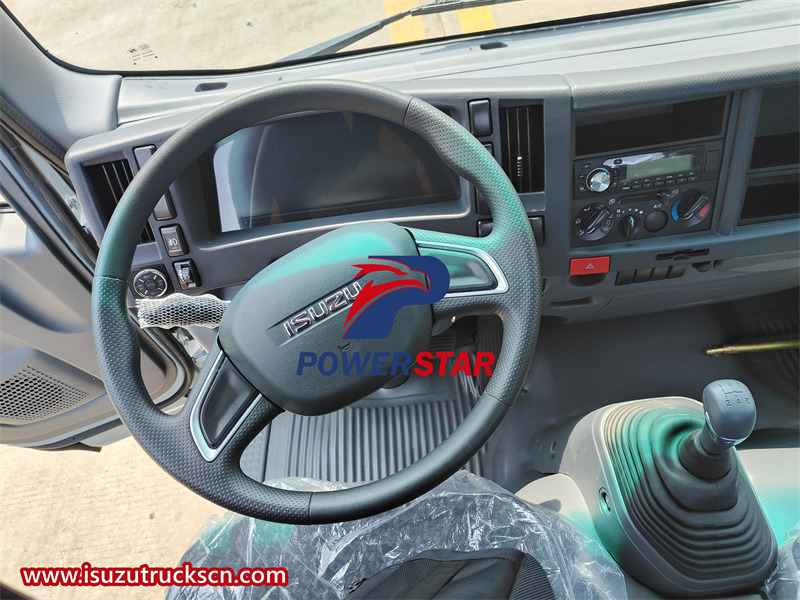

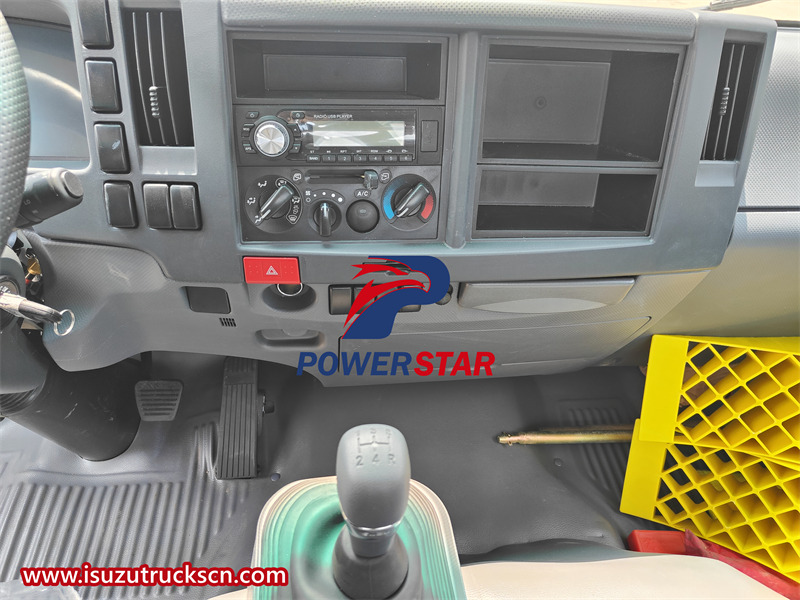

Isuzu KV100 cargo truck chassis steering wheel

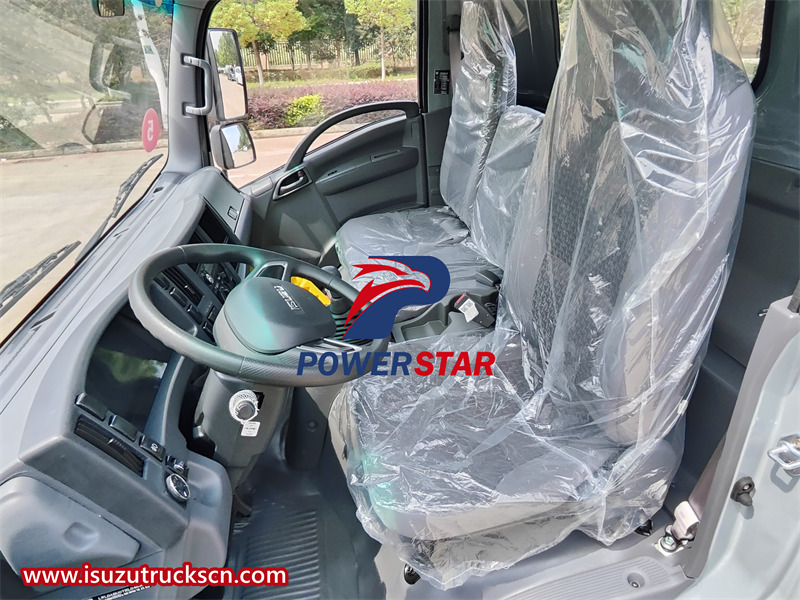

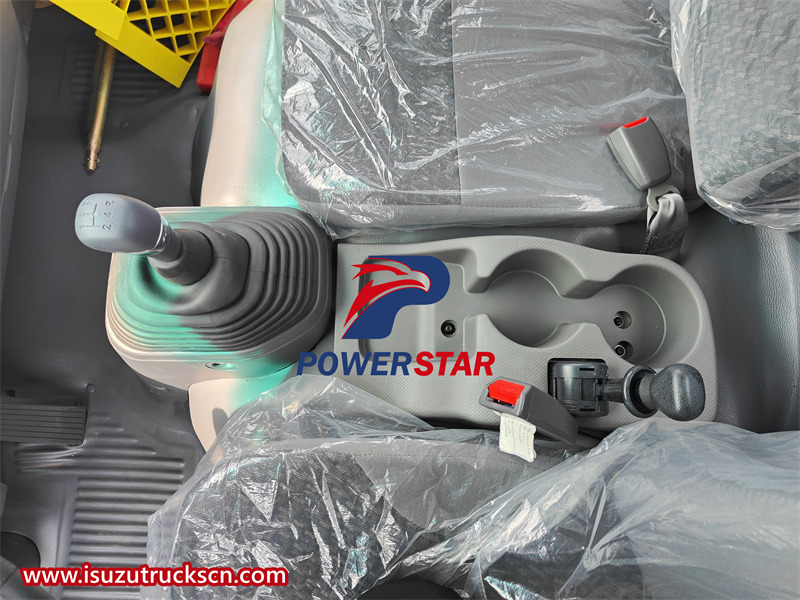

Isuzu KV100 light cargo truck with 4KH1 engine seats

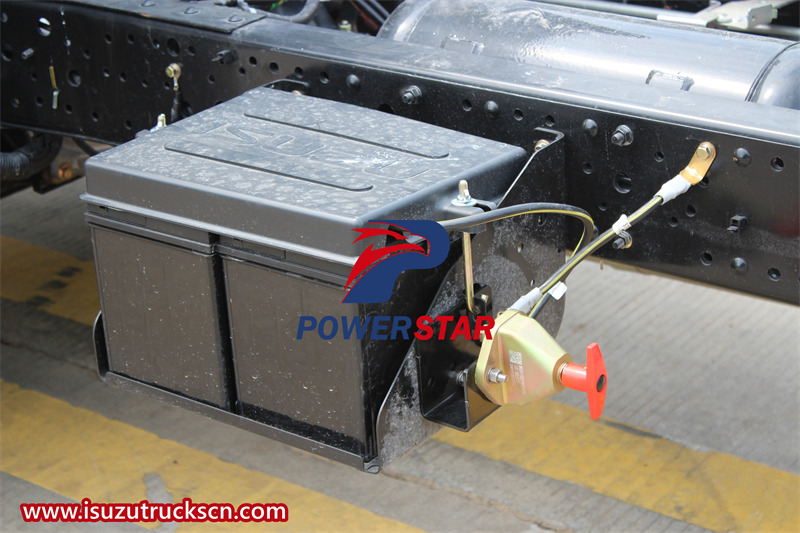

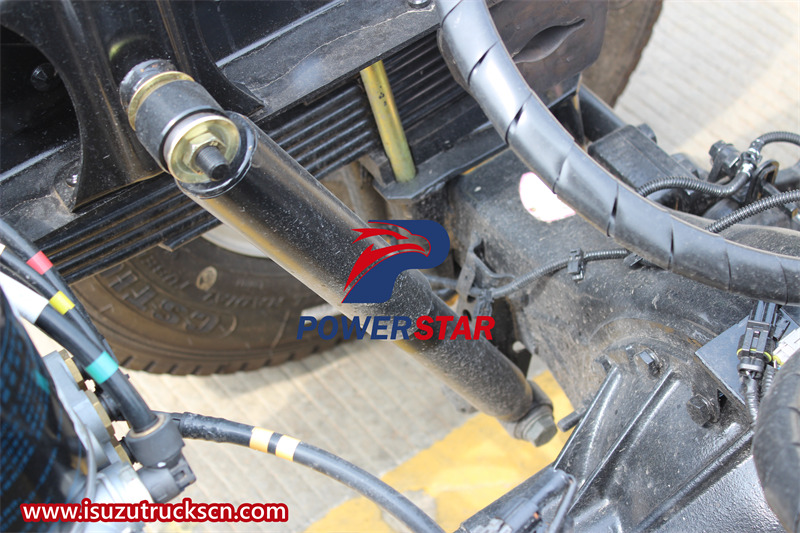

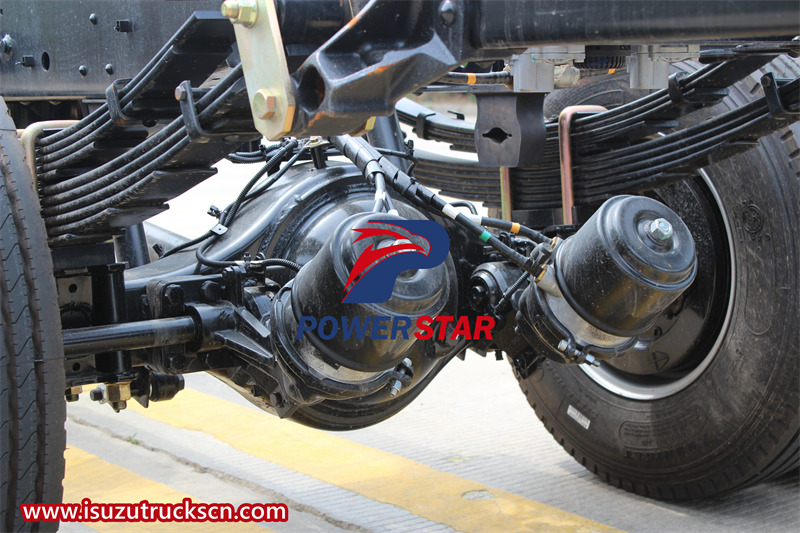

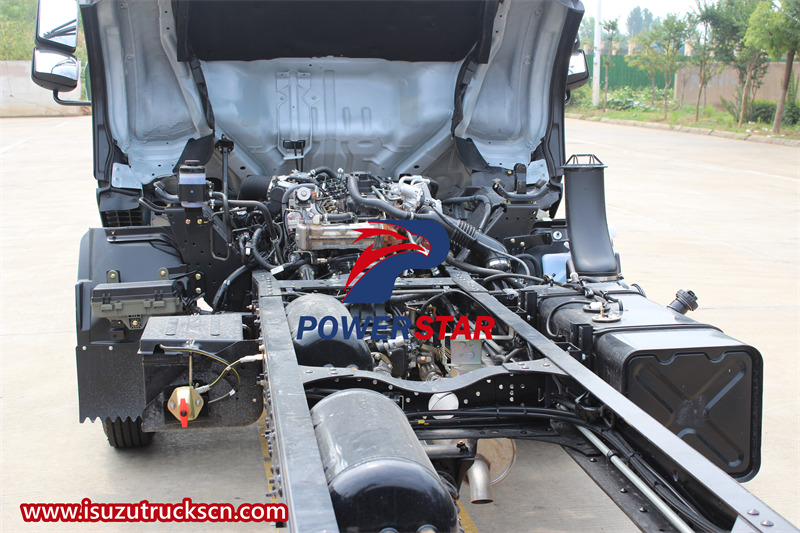

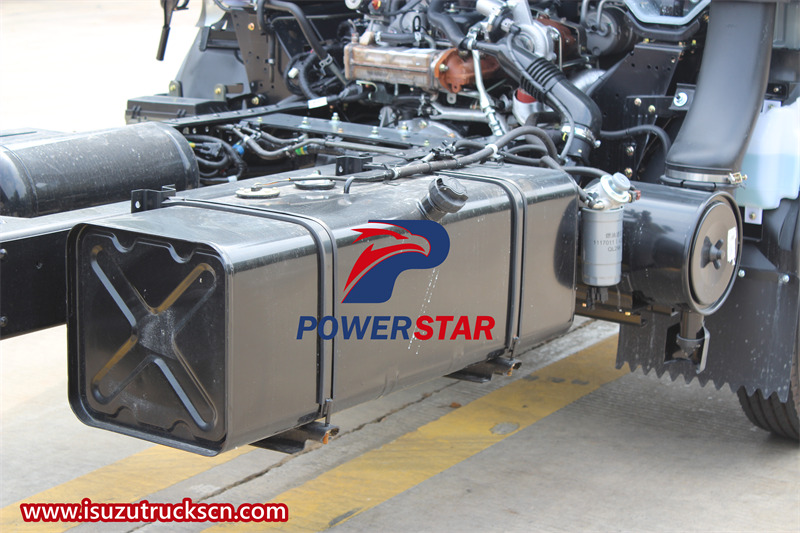

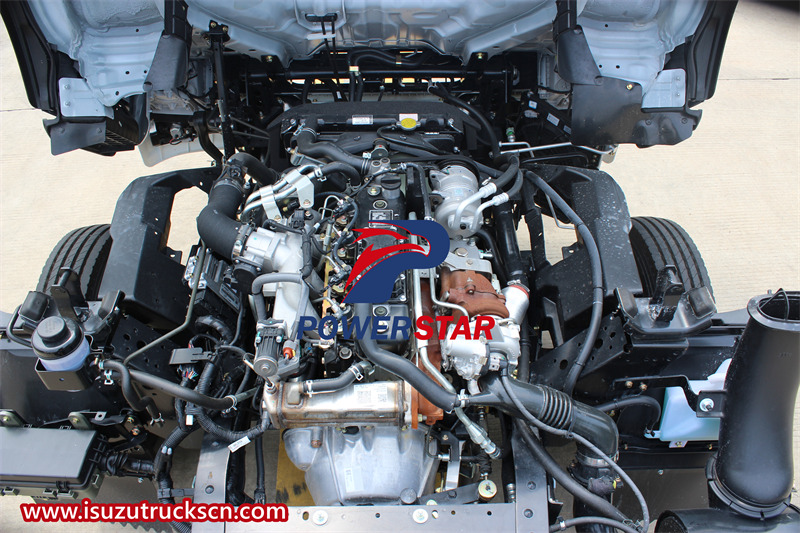

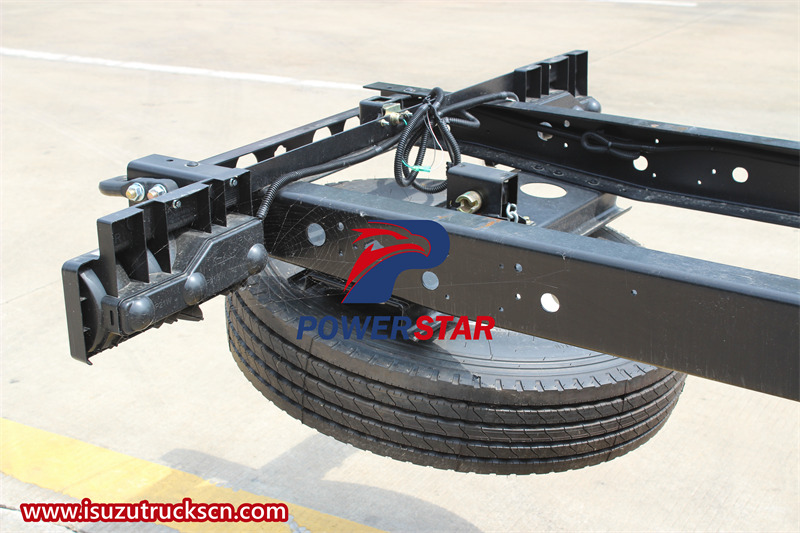

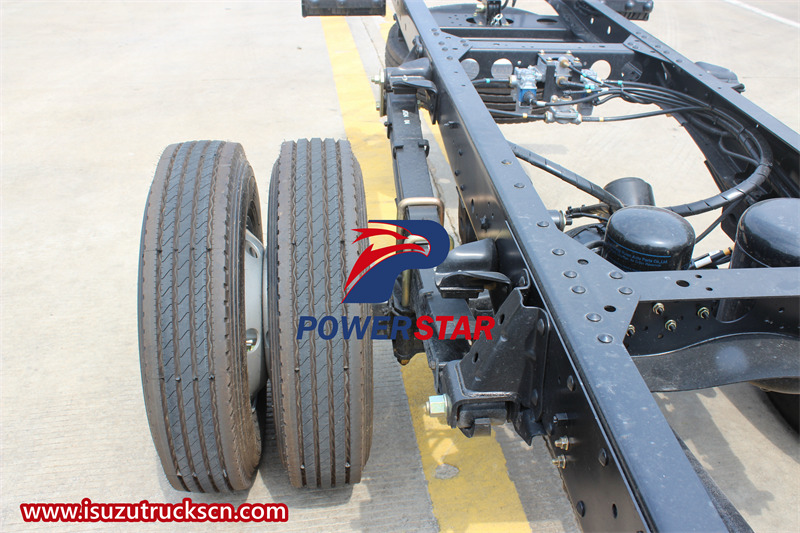

Isuzu KV100 light cargo truck with 4KH1 engine details

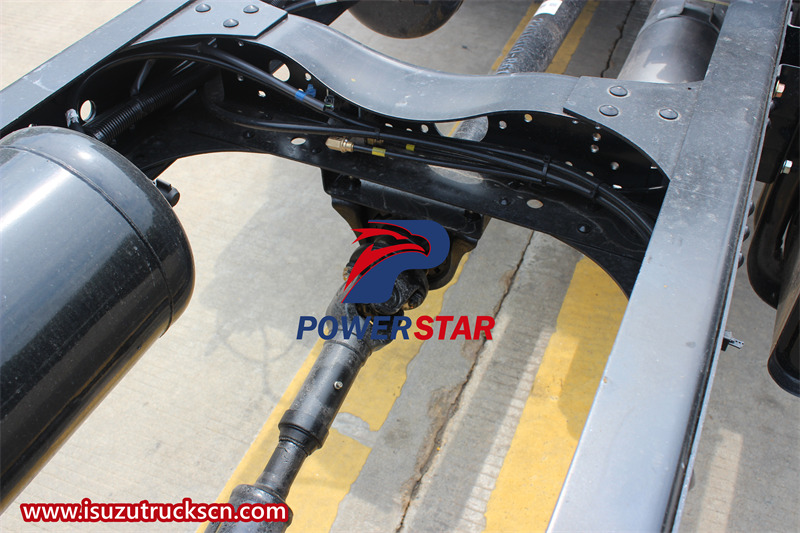

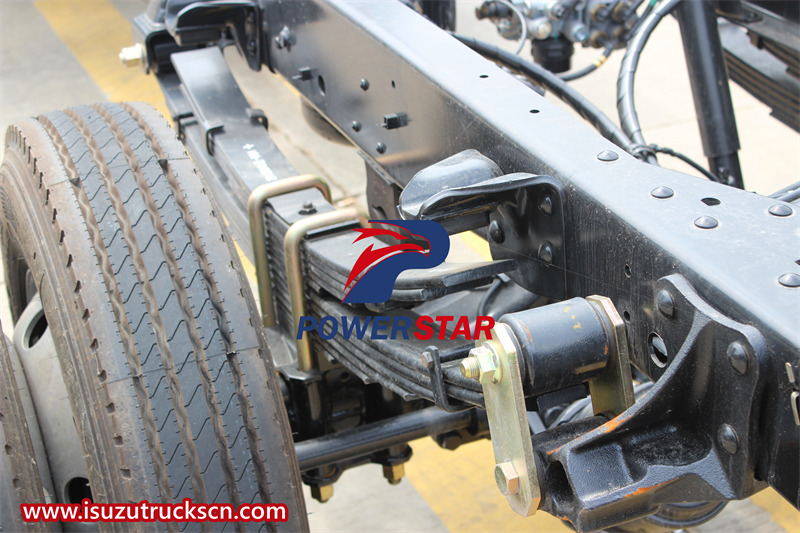

Isuzu KV100 light cargo truck with 4KH1 engine details
Brand new ISUZU N series truck chassis, to be mounted with 4KH1CN diesel engine, with engine power can be 98HP or 120HP, 4 Cylinders in line, turbo charging, inter cooling, high pressure common-rail diesel injection system, liquid-cooled engine. 4x2 or 4x4 truck drive model with front axle 2.5tons and rear axle 4.8tons. In cabin comfortable driving feeling with Air conditional equipped, also AM/FM radio and USD MP3 for video play. The truck can be mounted with ISUZU garbage compactor truck, Isuzu road sweeper truck, Isuzu sewage truck, Isuzu fire truck, Isuzu tanker trucks, etc.
