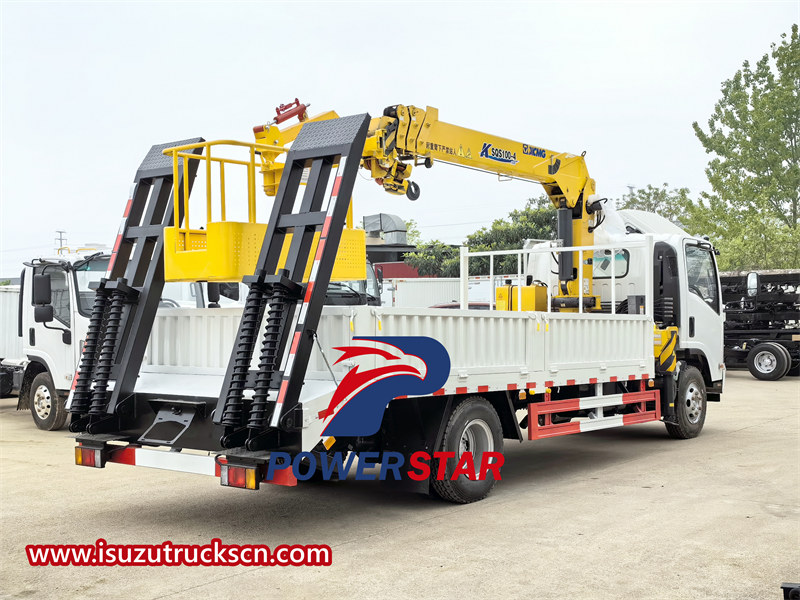

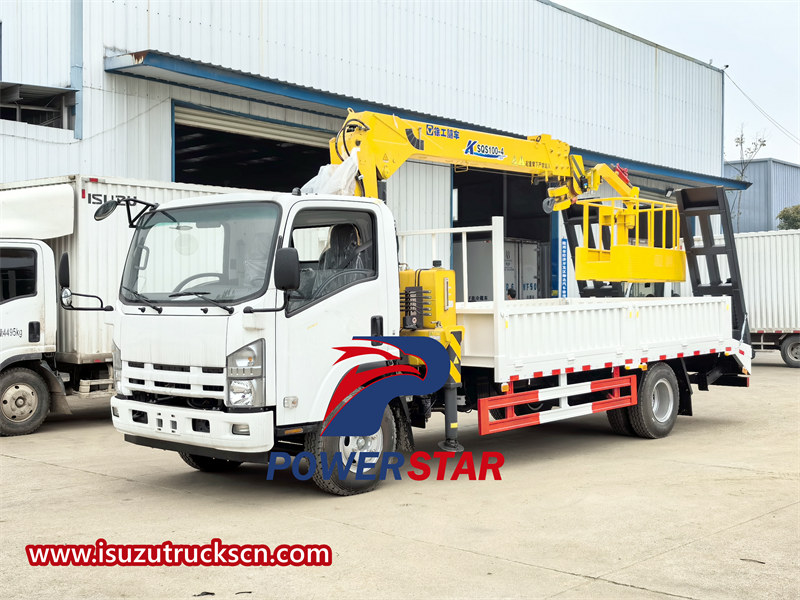

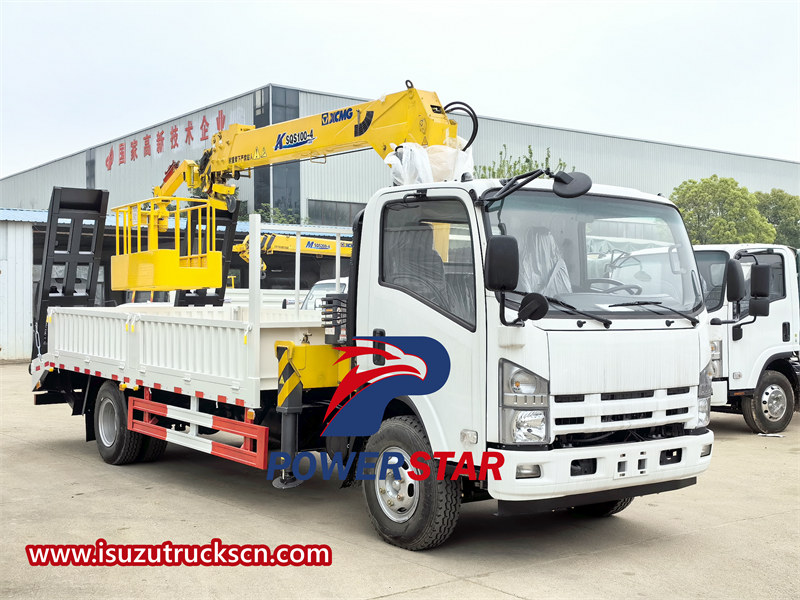

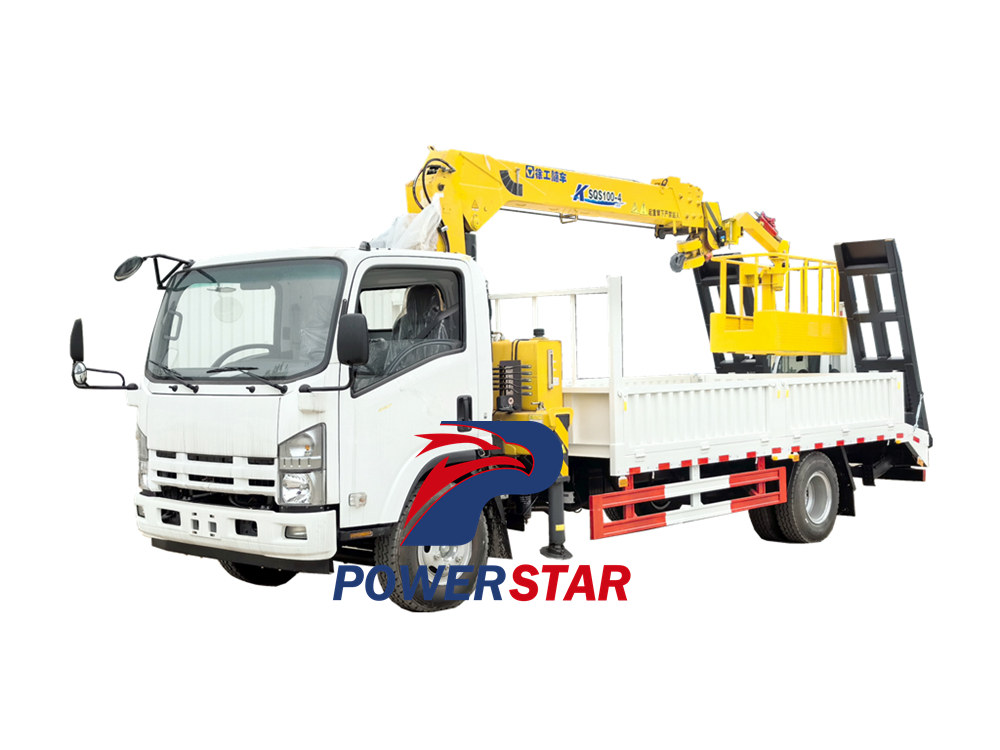

ISUZU 700P crane truck with aerial bucket is a powerful and excellent engineering vehicle. It combines the functions of lifting and high-altitude operations, providing great convenience for engineering operations. Whether it is a construction site or a maintenance site, it can give full play to its unique advantages and contribute to engineering construction.
Work capacity:
4 tonsTruck model:
PT5110JSQ4Engine power:
190 HPEngine type:
4HK1-TCG61Axle drive:
4×2Gear box:
MLD 6-speedRemarks:
Equipped with aerial work bucket and rear ladderISUZU 700P crane truck with aerial bucket is an advanced engineering vehicle that combines lifting and aerial work functions. Based on the consistent durability and reliability of the ISUZU chassis, this truck-mounted crane provides great convenience for engineering operations through its unique design and innovative functions.

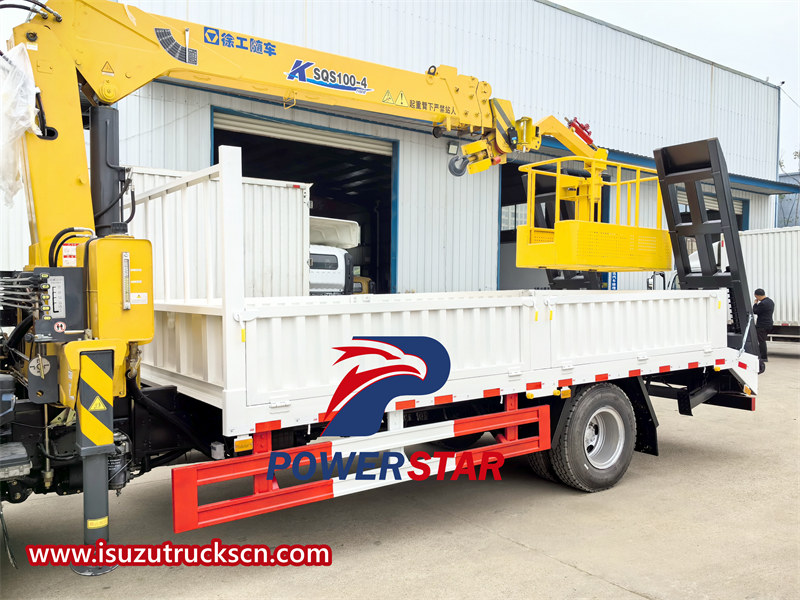

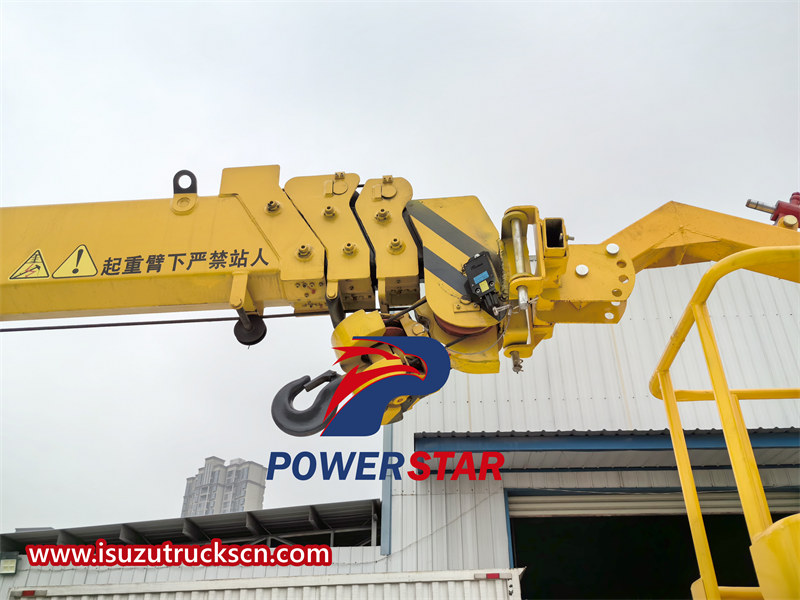

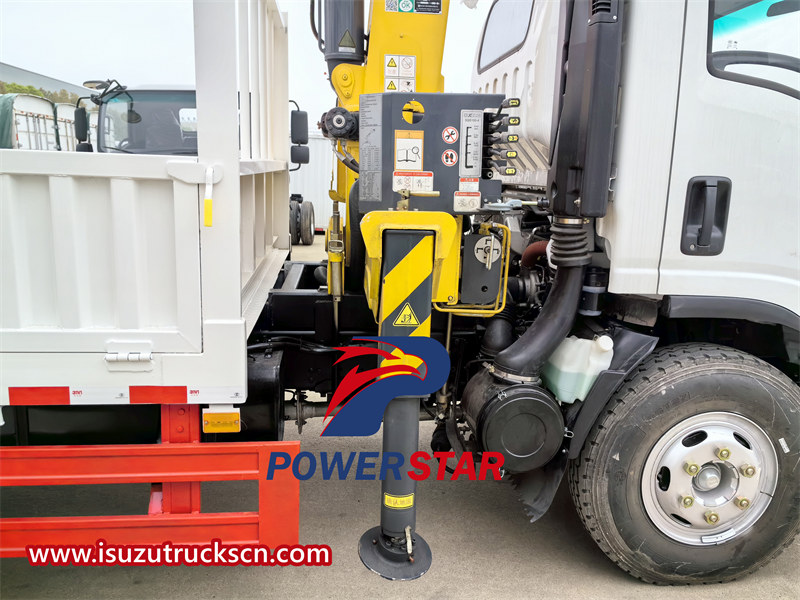

This ISUZU crane truck is equipped with an XCMG crane. Its powerful lifting capabilities allow this truck-mounted crane to cope with various complex operating environments. Whether it is material handling at a construction site or loading and unloading operations in a cargo warehouse, it can easily handle the task.

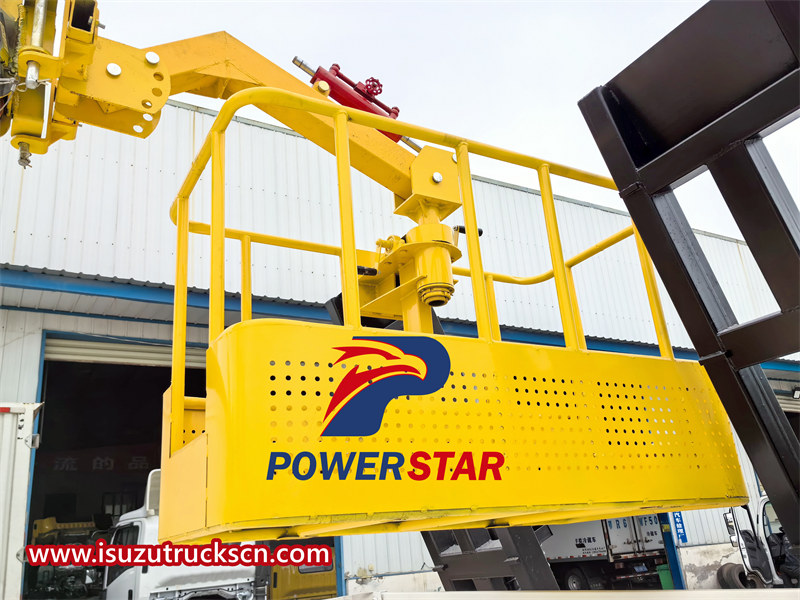

The biggest highlight of this car is undoubtedly the aerial work bucket. This bucket is located at the end of the boom and can move as the boom is raised and lowered, allowing operators to easily reach high-altitude working areas. The interior of the bucket is spacious and comfortable, and is equipped with necessary safety facilities to ensure the safety of operators during the operation. Through the aerial work bucket, operators can perform various high-altitude work tasks, such as exterior wall construction, maintenance, installation, etc. The flexibility and stability of the bucket enable these tasks to be completed efficiently and safely.

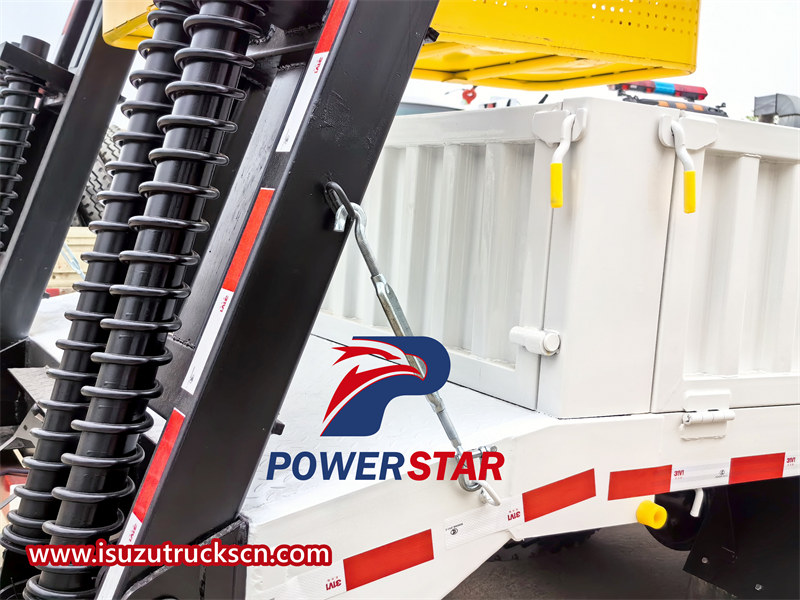

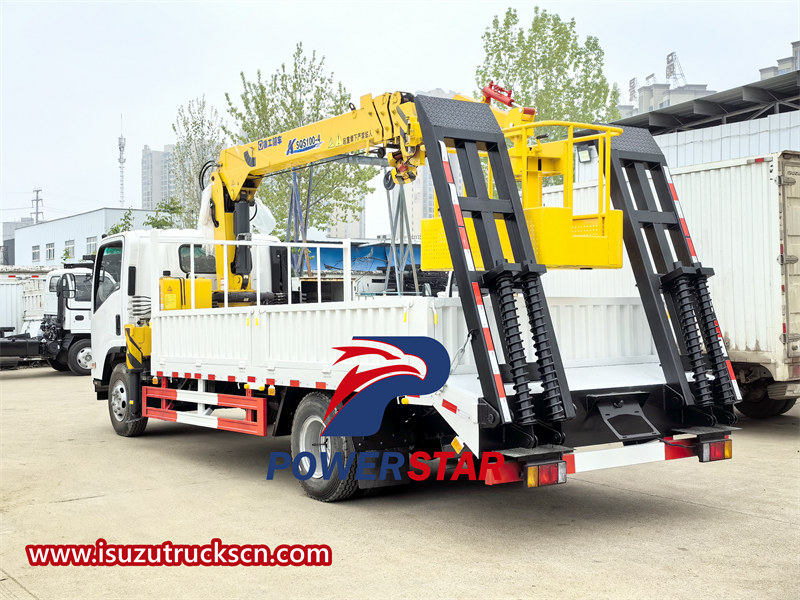

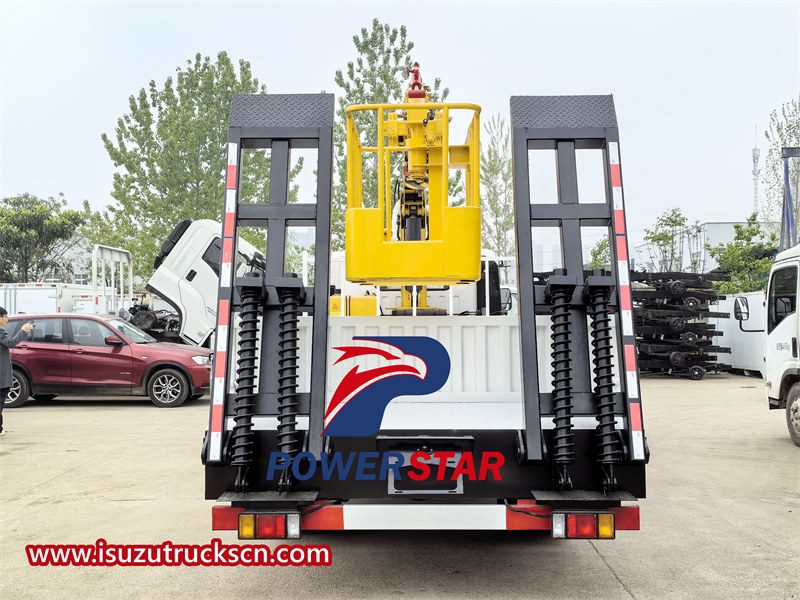

Another highlight of this ISUZU truck mounted crane is the ladder installed at the rear, which greatly enhances the efficiency of cargo loading and unloading. For situations where loading and unloading operations need to be carried out at the rear of the container, such as transporting construction materials, loading and unloading equipment, etc., the ladder provides a fast and safe passage for the operator.
Product Specifications
|
ISUZU truck with crane specifications |
|||
|
Overall dimensions |
7200×2300×3250(mm) |
Cargo box dimensions |
3800x2000x450(mm) |
|
Gross vehicle weight |
11,000 kg |
Rated Load capacity |
5000 kg |
|
Chassis specifications |
|||
|
Chassis Brand |
ISUZU |
Color |
White or optional |
|
Engine |
Fuel Type |
Diesel |
|
|
Model |
5HK1-TCG61 |
||
|
Horse power |
141kw/190HP |
||
|
Displacement |
5193ml |
||
|
Engine Type |
4 cylinders in line, water cooling, intercooled, turbocharged |
||
|
Emission Standard |
Euro 6 |
||
|
Wheel Base(mm) |
4175 |
Driving type |
4x2 |
|
Type & Size of Tyre |
235/75R17.5 (6+1pcs) |
Air Conditional |
Heating and cooling air conditioning |
|
Cab |
Single-row tilted cab |
Gear Box |
ISUZU MLD 6 speed forward with 1 reverse, manual |
|
Brake |
Air brake |
Steering Wheel |
Left Hand Drive with power-assisted |
|
Crane specifications |
|||
|
Crane model |
KSQS100-4 |
Crane weight |
1396 kg |
|
Max. lifting weight |
4000 kg |
Max. working height |
9.6 m |
|
Max oil flow of hydraulic system |
25 L/min |
Rated pressure of hydraulic system |
20 Mpa |
|
Oil tank capacity |
60 L |
Installation space |
850 mm |
|
Max. working radius |
9.42 m |
Max lifting Moment |
10 T.M |
|
Rotation angle |
360°, all rotation |
Boom |
4 sections |
|
Others |
|||
|
Aerial work bucket |
Stainless steel |
Payload of bucket |
200 kg |
|
Rear ramp |
2 units |
Type |
Mechanical |
Product Features
1. Powerful lifting capacity: This vehicle is equipped with an XCMG crane, which has excellent lifting capabilities and can easily cope with various complex operating environments. Whether it is material handling at a construction site or loading and unloading operations in a cargo warehouse, it can be completed efficiently.
2. Advanced aerial work functions: The equipped aerial work basket is the biggest highlight of this vehicle. The hanging basket can move with the lifting and lowering of the boom, allowing operators to easily reach the high-altitude working area and perform various high-altitude working tasks, such as exterior wall construction, maintenance, installation, etc., which greatly improves work efficiency and safety.
3. Comfortable and safe working environment: The interior of the aerial working basket is spacious and comfortable, and is equipped with necessary safety facilities to ensure the safety of operators during the operation. This design not only improves work efficiency, but also reduces labor intensity and safety risks for operators.
4. Convenient cargo loading and unloading design: The ladder installed at the rear of the cargo box provides the operator with a fast and safe passage, greatly enhancing the efficiency of cargo loading and unloading. For situations where loading and unloading operations need to be carried out at the rear of the container, the use of ladders can significantly improve work efficiency and reduce labor costs.
5. Rugged and durable chassis: Based on the design of the ISUZU chassis, this vehicle inherits the consistent durability and reliability of the ISUZU brand, allowing it to maintain stable and efficient working conditions in various harsh engineering operating environments, providing great support for engineering construction. Provided strong support.
