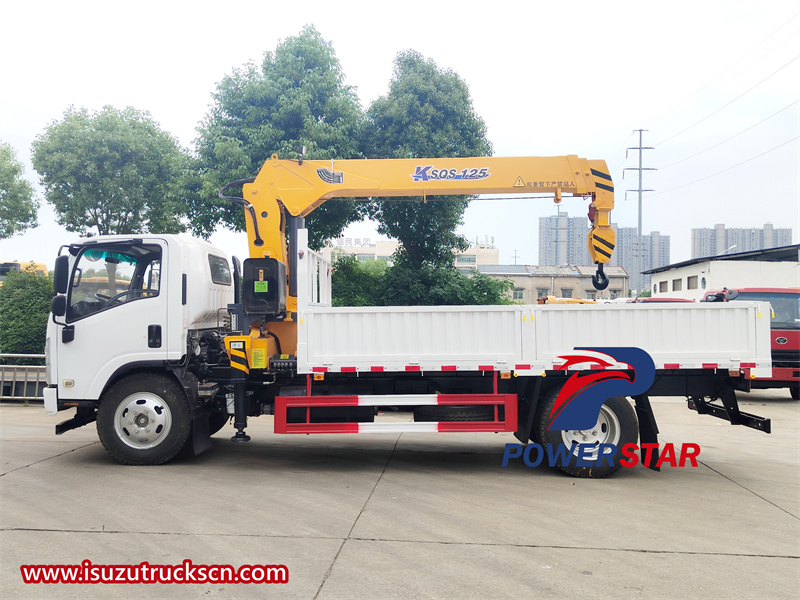

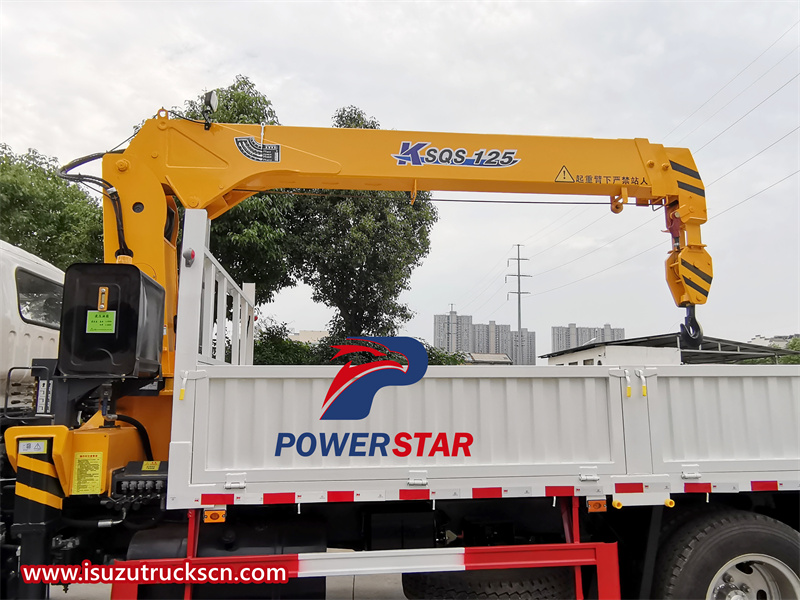

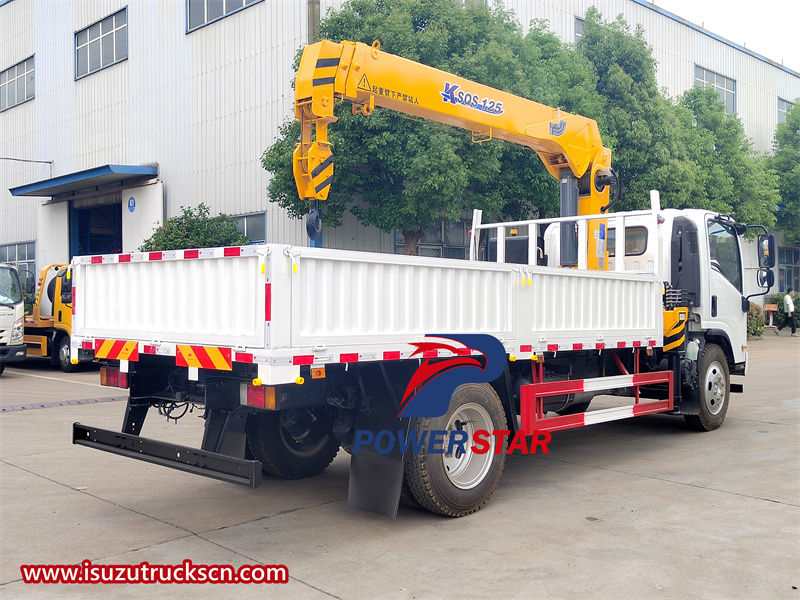

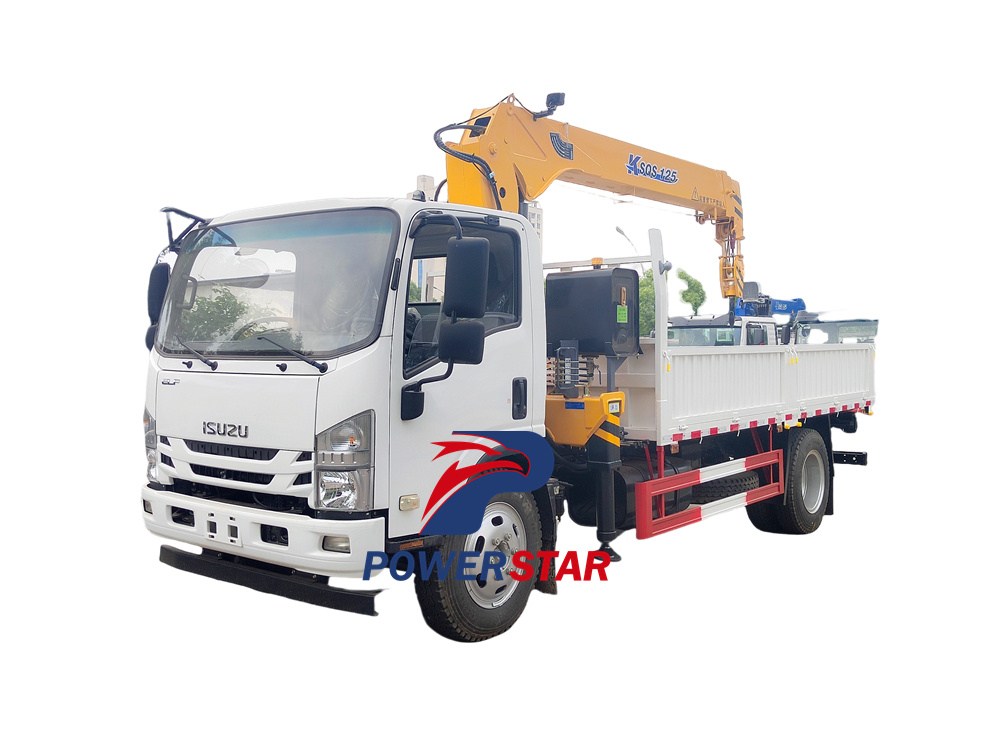

Isuzu ELF 4 ton lorry crane truck is a kind of equipment that uses a hydraulic lifting and telescopic system to realize the lifting, turning and lifting of goods. It is usually installed on a truck. The advantages are good maneuverability and rapid transfer. It can integrate hoisting and transportation functions to improve resource utilization. The Isuzu truck-mounted crane can be loaded with various grabbing aids, such as wood clamping grabs,hanging baskets, brick clamping clamps, etc. Drilling tools, etc., to achieve multi-scenario operations.
Work capacity:
4 tonTruck model:
PT5110GXWEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4X2, LHDGear box:
MLD 6-speed, manualRemarks:
Isuzu ELF chassis, customized boom crane

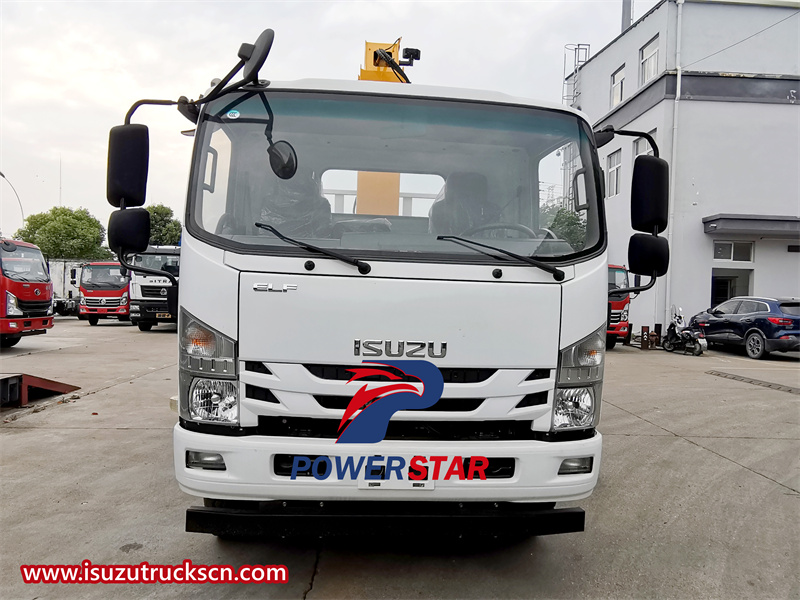

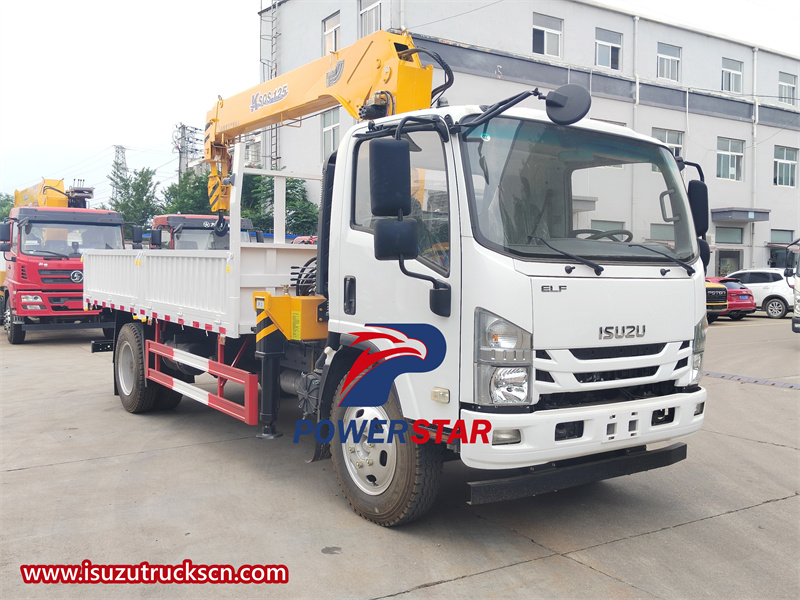

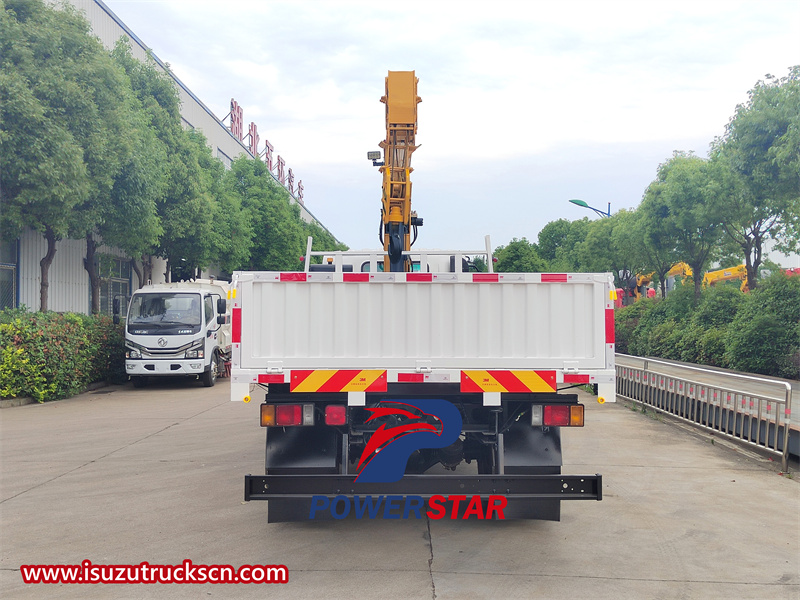

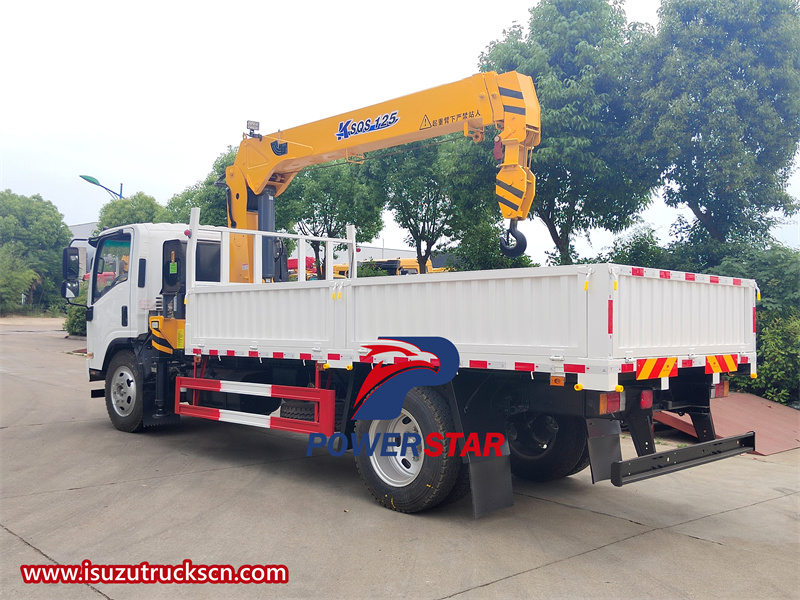

The Isuzu ELF 4 ton lorry crane truck also called Isuzu ELF truck-mounted crane,Isuzu ELF boom crane truck,Isuzu 4ton crane truck,Isuzu mounted hydraulic crane, is a special vehicle that combines the Isuzu ELF truck chassis and lifting arm.The Isuzu ELF 4 ton lorry crane truck is usually used for lifting and transporting various goods, and is especially suitable for working environments that require frequent lifting operations. This kind of truck-mounted crane usually has a telescopic boom, which can easily adjust the lifting height and angle to adapt to different lifting needs.
The Isuzu ELF 4 ton lorry crane truck is a multi-functional vehicle that combines the functions of a truck and a crane, integrating hoisting and transportation. It is mostly used in stations, warehouses, docks, construction sites, field rescue and other places.The vehicle can be equipped with cargo compartments of different lengths and cranes of different tonnages.
|
Product name |
ISUZU ELF 4 ton lorry crane truck |
|
|
Vehicle Dimensions, Weights & Capacities |
Chassis brand |
ISUZU ELF |
|
Overall dimension (L*W*H) |
7500*2450*2850mm |
|
|
Wheelbase |
4475mm |
|
|
Curb weight |
5,650 Kg |
|
|
Gross weight |
11,000 Kg |
|
|
Axle loads |
4000/7000Kg |
|
|
Chassis |
Drive mode |
4x2 |
|

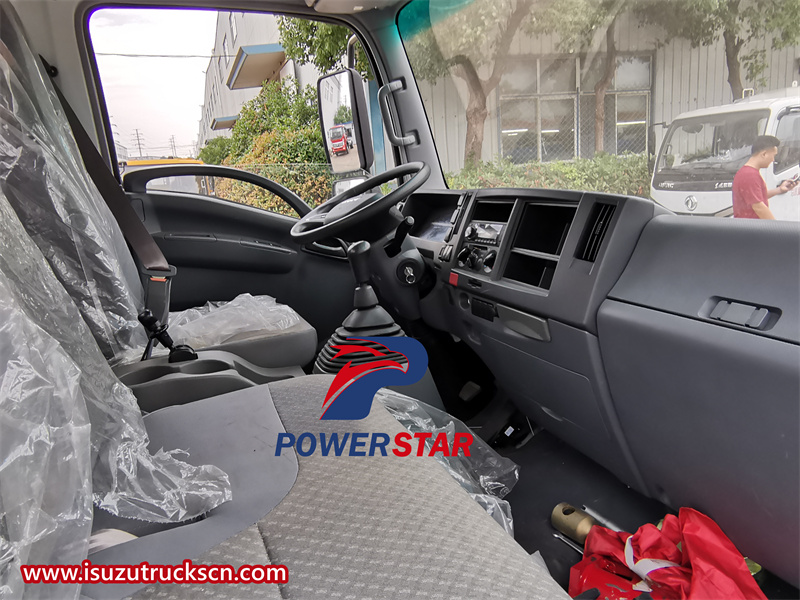

Cabin type |
Standard single row cab |
|
|
Seats |
3 seats |
|
|
Steering |
LHD |
|
|
Tires |
6+1 spare tire,235/75R17.5 |
|
|
Max speed |
90Km/h |
|
|
A/C |
Air conditioning |
|
|
Engine |
Engine model |
4HK1-TCG61 |
|
Fuel and engine type |
Diesel, 4 cylinders in-line |
|
|
Horse power |
190HP |
|
|
Displacement |
5.193 L |
|
|
Other Standard Configurations |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS for option, Automatically Air-cut Brake/Oil cut for option |
|
|
4 |
Tubeless tires for option |
|
|
5 |
Retro-Reflective Marking |
|
|
6 |
Free Maintenance Battery |
|
|
7 |
Central Lock |
|
|
8 |
Power Window |
|
|
9 |
USB, Radio |
|
|
10 |
Widened Bumper |
|
|
11 |
For New Face Front Chrome Kit for option |
|
|
Tops Parameters |
Cargo Box Dimension ( L×W×H ) |
4600*2450*550mm |
|
Truck Colour |
According to wish |
|
The Isuzu ELF 4 ton lorry crane truck refers to a multi-action lifting machine installed on the chassis of a car that lifts vertically and carries heavy objects horizontally within a certain range. It is also called a truck-mounted crane and is a material handling machinery.

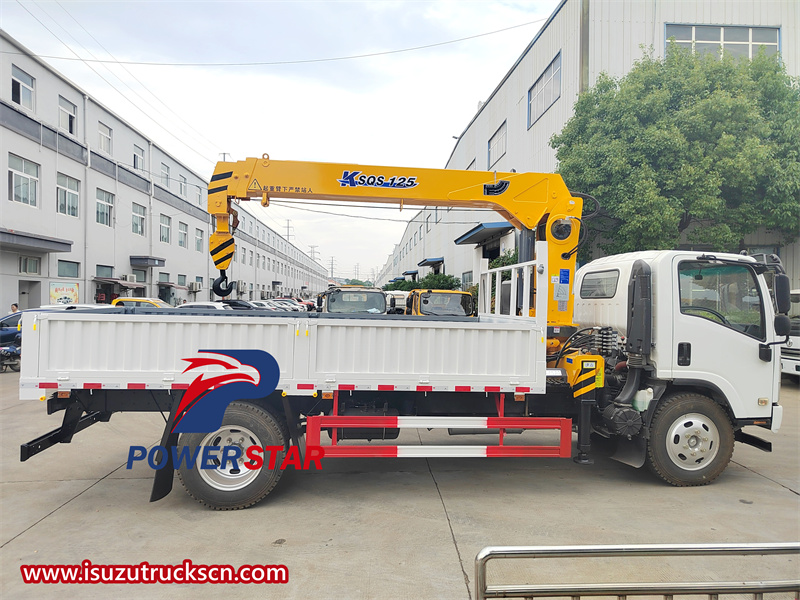

The Isuzu ELF 4 ton lorry crane truck consists of the following parts:
1. Crane arm

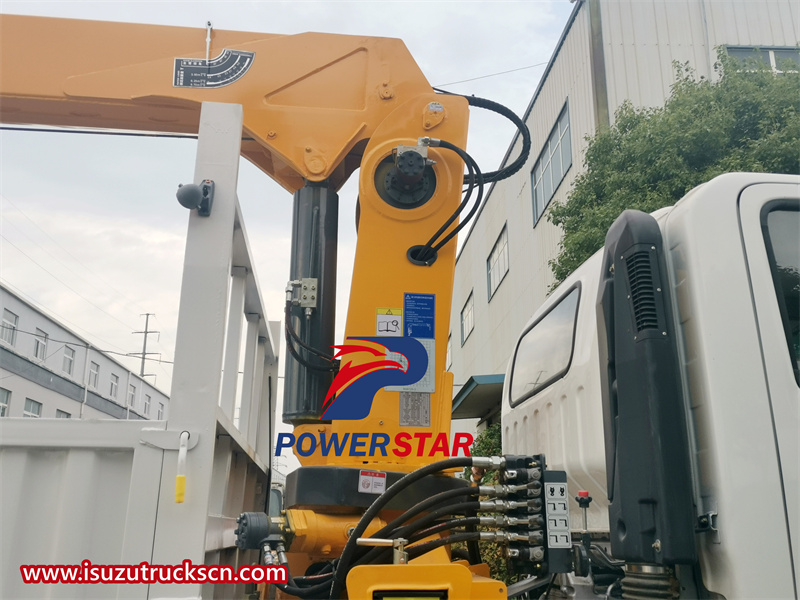

The boom is extended and retracted by a hydraulic cylinder, and the hook pulley is suspended from the top of the boom.

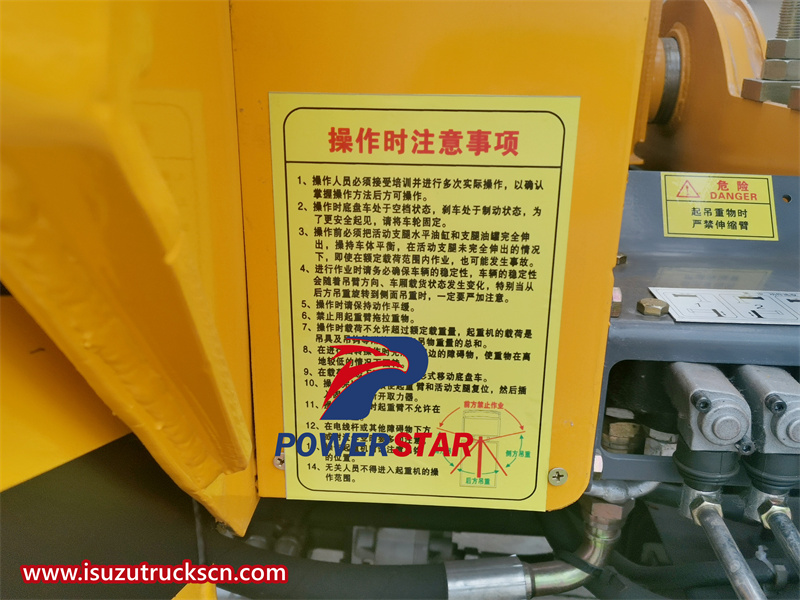

2. Load indicator
The load indicator indicates the total rated load of the vehicle chassis in the unloaded state for various boom lengths and boom angles.
3. Hoisting mechanism
The winch mechanism is driven by a hydraulic motor and lifts or lowers heavy objects through a wire rope.
4. Column
The column supports the boom, hoisting mechanism and luffing cylinder, and is driven by the slewing system.
5. Rotary system
The rotary system generally includes a hydraulic motor, a hydraulic reduction gearbox, etc., to rotate the column.
6. Frame base
The base is mounted directly to the car chassis and supports the uprights and leg frames.
7. Hydraulic oil tank
The hydraulic oil tank contains the hydraulic oil specially used for truck-mounted cranes, and plays the role of heat dissipation and sedimentation filtration.

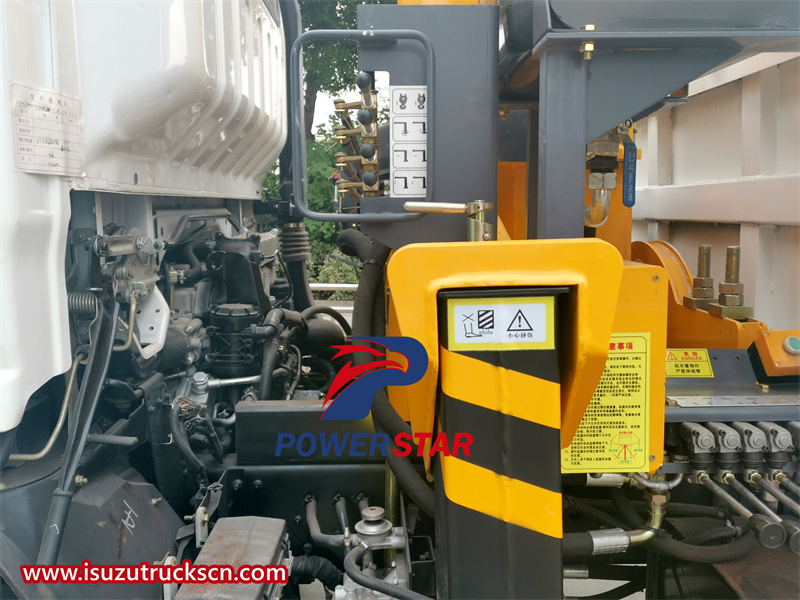

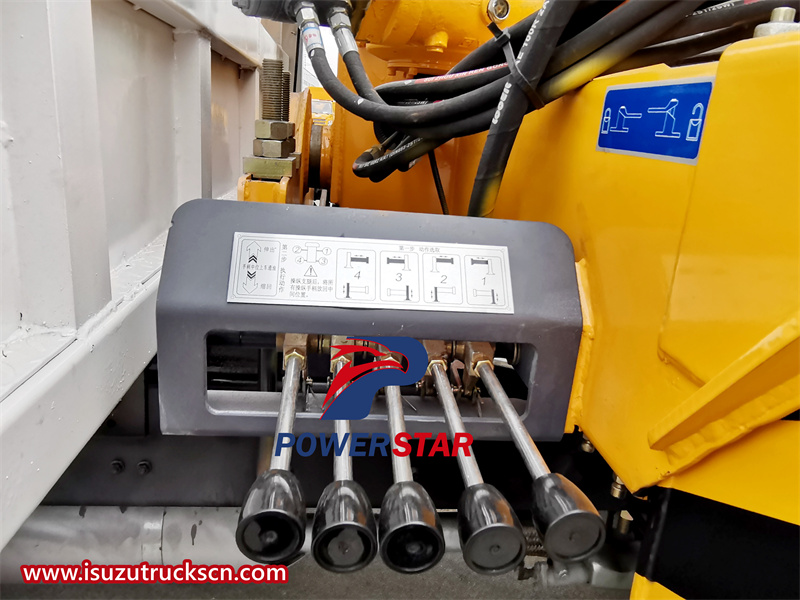

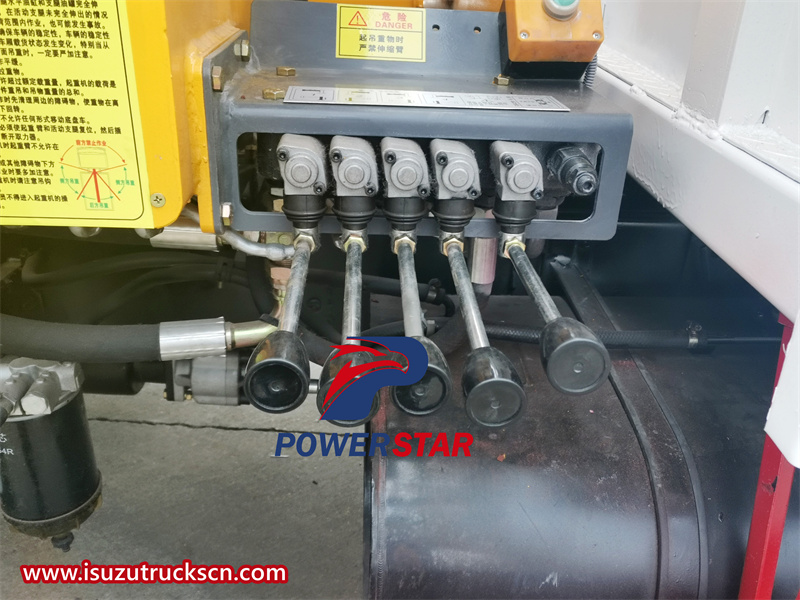

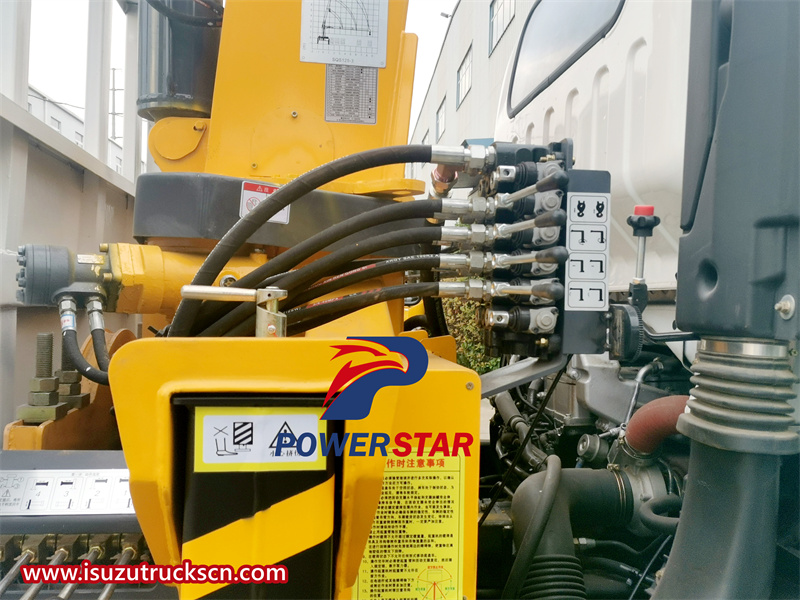

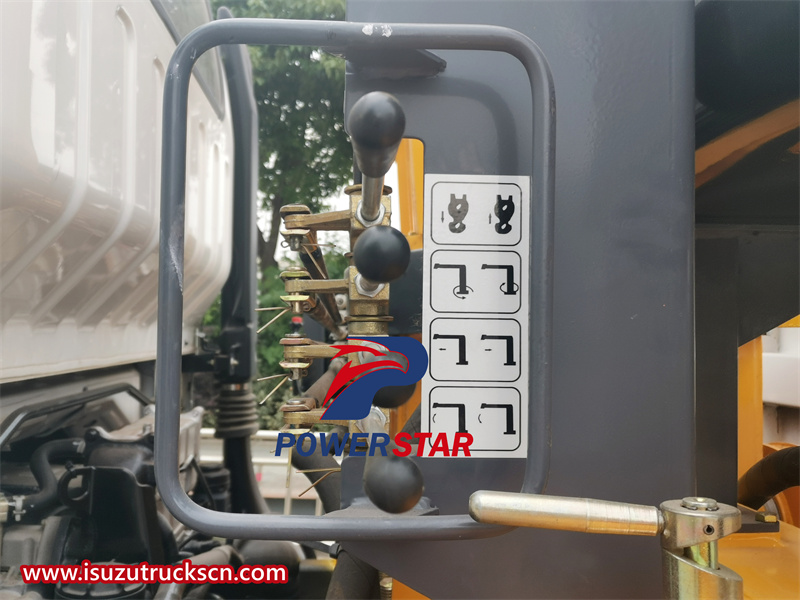

8. Outrigger joystick
The outrigger joystick is used to control the telescopic movement of the left and right outrigger cylinders.

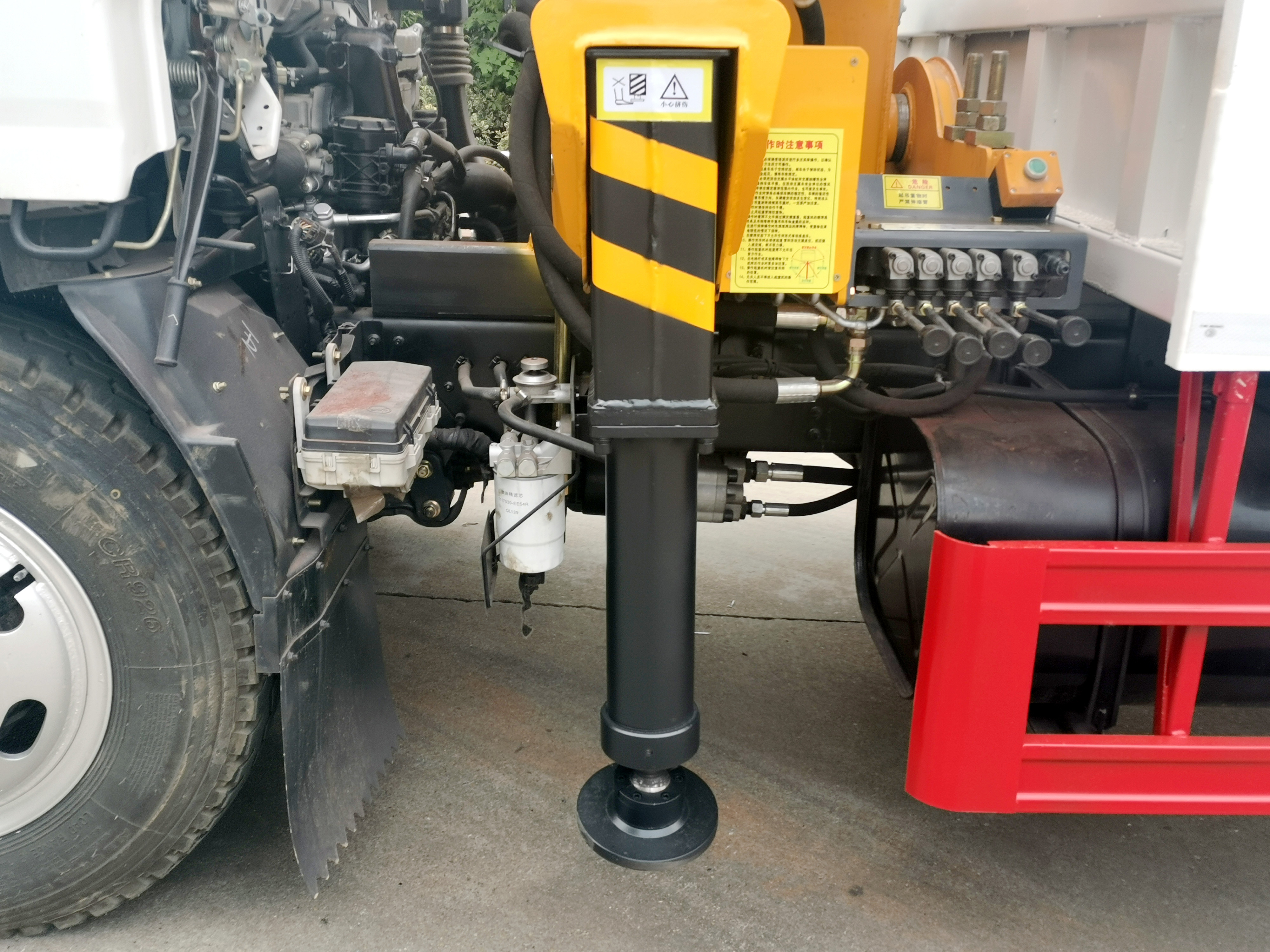

9. Outrigger cylinder
During the operation of the truck-mounted crane, in order to stabilize the vehicle, the outrigger cylinders are extended to the ground to improve the operational stability of the truck-mounted crane.
10. Speaker
Used to warn people within the working range during lifting operations.
11. Accelerator lever
The accelerator lever is used to adjust the engine speed and power output to meet the lifting requirements.
12. Rotary joystick
The slewing joystick is used to control the slewing mechanism to make the column and boom rotate left and right.
13. Amplitude joystick
The luffing joystick is used to control the telescopic action of the luffing cylinder to control the height of the boom.
14. Hoist control lever
The hoist control lever is used to control the hoist mechanism (raising or lowering heavy objects).
15. Telescopic joystick
The telescopic joystick is used to control the movement of the telescopic cylinder, and the telescopic pulley frame is used to control the telescopic boom.
16. PTO
The PTO rod (power take-off rod) is used to control the engine's power output and cutoff to the truck crane.
17. Luffing cylinder
The luffing cylinder is an actuator that makes the boom move upward or downward.

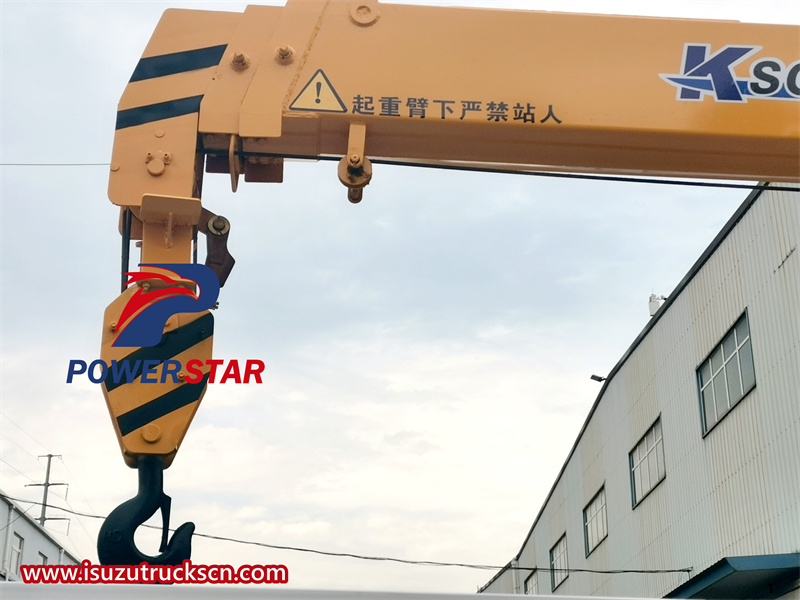

18. Hook pulley block
By increasing or decreasing the pulley on it, the hoisting magnification can be converted, and heavy objects can be lifted directly by the hook.
19. Steel wire rope
The output torque of the drum is transferred to the hook.
20. Over-roll alarm device
When the hook pulley approaches the top of the boom, the over-roll alarm device automatically sends an alarm signal.
21. Front outriggers
It is installed at the rear of the vehicle's front axle and connected to the frame to further improve the stability of the vehicle.
Crane arm
As a special transportation vehicle, the Isuzu ELF 4 ton lorry crane truck performs well in hoisting and transportation operations. Here are some key features of the Isuzu ELF 4-ton truck-mounted crane:
Powerful lifting capacity: This truck-mounted crane has a lifting capacity of 4 tons and can meet various lifting needs. Whether it is a construction site, logistics center or other occasions that require lifting operations, it can easily handle it.
Flexible lifting arm: The equipped lifting arm can telescope and rotate, making the operation more flexible and able to easily cope with lifting operations at different angles and heights, improving work efficiency.
Stable chassis: Based on the Isuzu ELF truck chassis design, this truck-mounted crane has good stability and load-bearing capacity, and can remain stable even in complex road conditions, ensuring the safety of hoisting operations.
Efficient operating efficiency: Due to its strong lifting capacity and flexible lifting arm, the Isuzu ELF 4 ton lorry crane truck can quickly complete hoisting operations, saving time and labor costs, and improving work efficiency.
Good adaptability: This truck-mounted crane is suitable for a variety of working environments, whether it is urban or rural, whether it is flat road or rugged mountain road, it can easily cope with it and has good adaptability.
Safe and reliable:Isuzu ELF 4 ton lorry crane truck fully considers safety during the design and manufacturing process, using high-strength materials and advanced safety technology to ensure safety and reliability during hoisting operations.
Easy operation: The vehicle is equipped with a humanized operation control system, which allows the driver to easily master and operate, reducing the difficulty of operation and improving work comfort.
Convenient maintenance: The vehicle adopts a modular design, which makes maintenance more convenient and reduces maintenance costs and time.
In short, the Isuzu ELF 4 ton lorry crane truck is widely used in the market due to its powerful lifting capacity, flexible boom, stable chassis, high operating efficiency, good adaptability, safety and reliability, easy operation and convenient maintenance. It has broad application prospects in the hoisting and transportation industries.
Isuzu ELF 4 ton lorry crane truck
Isuzu ELFtruck-mounted crane
