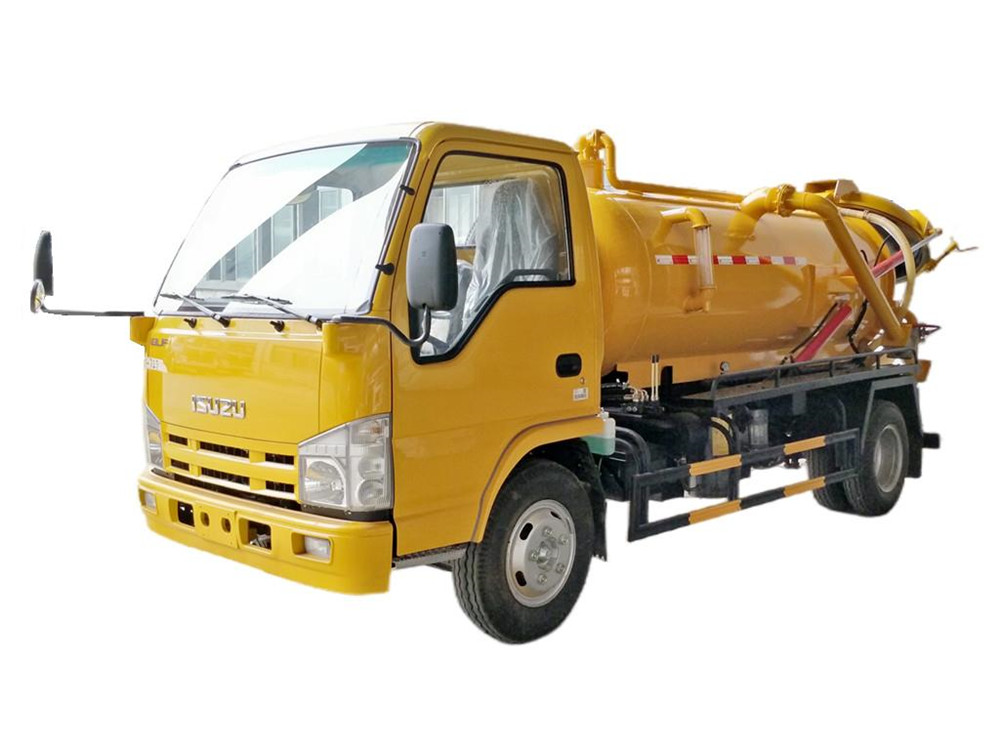

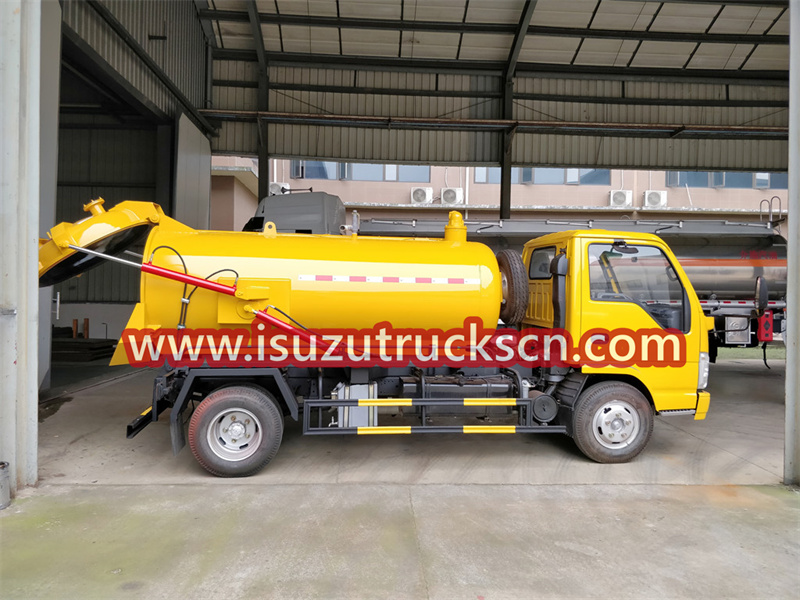

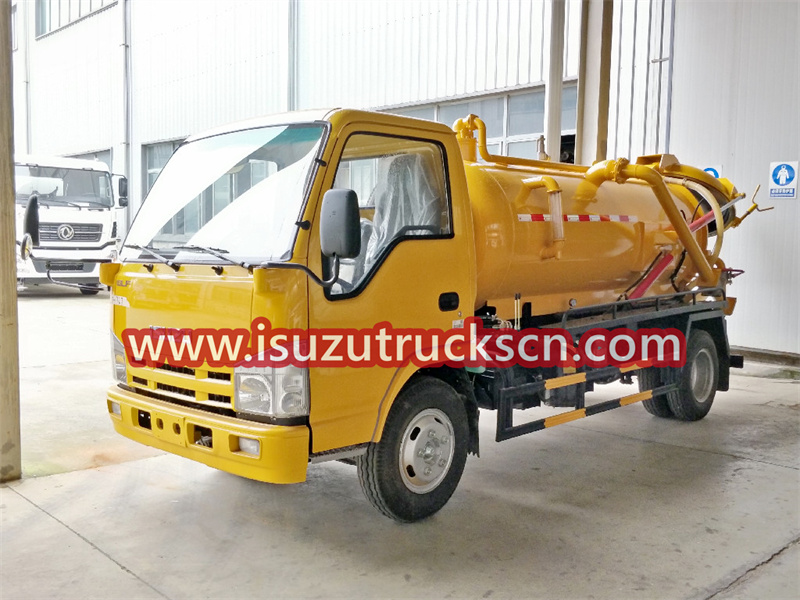

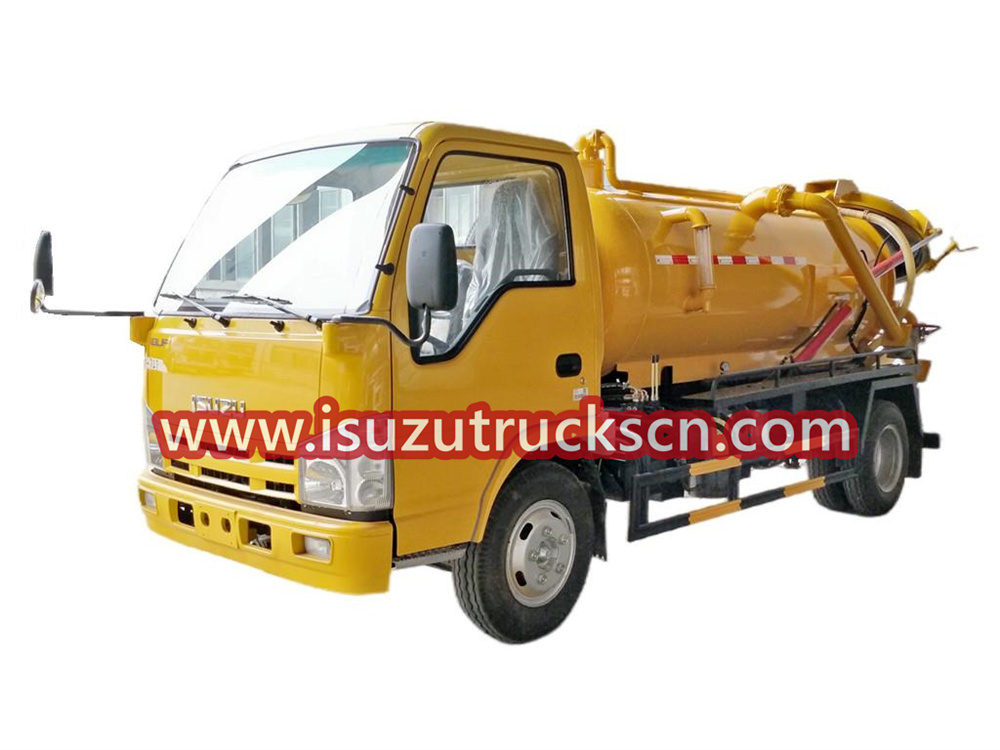

The Isuzu NKR vacuum tank truck is based on ISUZU NKR and adopts a 4×2 left-hand drive configuration. It is specially designed for efficient and reliable sewage treatment tasks. The curb weight is 3,010 kg, ensuring strong load-bearing capacity and stability. The cab uses hydraulic power steering to provide the driver with a comfortable driving experience and can accommodate 1 driver and 2 passengers at the same time. Equipped with ISUZU 4KH1CN6LB engine, four-cylinder in-line, four-stroke direct injection, water-cooling, and intercooling supercharging technology, providing a strong power of 120 horsepower. The Isuzu mini vacuum tank truck is matched with the ISUZU/MSB five-speed manual transmission to ensure strong power output and efficient fuel economy.
Work capacity:
5000 LitersTruck model:
PT5070GXWEngine power:
120 HPEngine type:
4KH1CNAxle drive:
4×2Gear box:
MSB 5-speed manualRemarks:
Mini sewage tank truckApplications:
ISUZU ELF Vacuum Sucation Truck (also called isuzu NKR sewage tanker truck, ISUZU mini 50000L vacuum tank truck, ISUZU 6 wheel vacuum suction truck, ISUZU NKR sewer sucker, ISUZU hydro-vac, China vacuum truck manufacturer) is used for suctioning and transporting various types of liquids, sludge, or solids. The vacuum system on the truck creates negative pressure inside the tank, allowing it to suck up and store materials such as sewage, wastewater, grease, septic waste, industrial byproducts, and hazardous or non-hazardous materials.environment and sanitation field.
ISUZU Vacuum truck which use Italy MORO or BP vacuum pump, for 5CBM or more recommend Double Pump for efficiently working.
The septic pump truck can be equipped with cabin Pneumatic Control for easy operation.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU technology engine option, super powerful, no overhaul within 100,000 km.
---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Isuzu NKR vacuum tank trucks are designed and constructed with high quality and practicality in mind. It adopts ISUZU 100P chassis with a special body, including tailgate (rear hopper), discharge/unloading plate, compaction plate, sliding plate, etc., to achieve efficient and convenient sludge treatment. Its 3,000-litre capacity and 5,000-litre sludge/sewage tank are enough to handle most operations.
Isuzu NKR sewage tank truck is equipped with VERYONG/68-7000 water-cooled vacuum pump, which has strong air pumping capacity. The maximum air pumping capacity reaches 800 cubic meters/hour and the maximum vacuum degree can reach 93%, providing strong support for efficient sludge treatment. . In addition, it is equipped with a heavy-duty spiral sewage suction pipe with a diameter of 4 inches and a length of 3 meters. It is equipped with quick-connect joints and male and female couplers to facilitate sewage suction operations.
The Isuzu NKR vacuum tank truck is also equipped with an anti-backflow device to effectively prevent sludge backflow and ensure operational safety. Overall, this Isuzu NKR vacuum tank truck is an efficient, stable and safe sludge treatment equipment suitable for various sewage treatment scenarios.
Specification Data:
|
GENERAL |
|
|
Make/Model |
ISUZU / VST03QL98L5 |
|
Drive Type |
4×2 Left-Hand Drive |
|
Overall Dimension(L x W x H) |
5,900×1,950×2,400 (mm) |
|
Gross Vehicle Weight |
5,700kg |
|
Curb Weight |
3,010kg |
|
Wheelbase |
3,360mm |
|
Chassis Designed |
ISUZU 100P |
|

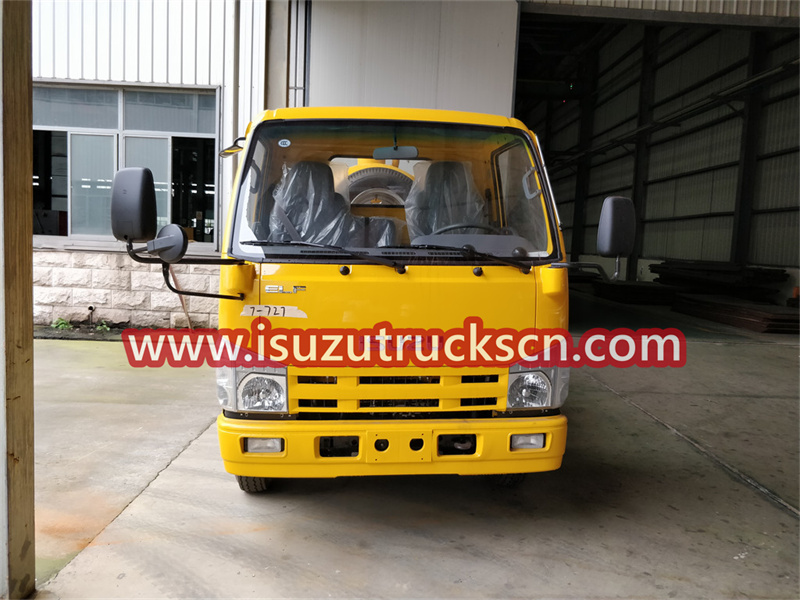

Cabin |
Hydraulic power steering type.1 driver+2 passengers |
|
Drive wheel(Tires ) |
4+2 and one spares (total of 7 wheels) |
|
Tire Size |
7.00R16 |
|
ENGINE |
|
|
Make / Model |
ISUZU / 4KH1CN6LB |
|
Type |
4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
|
Displacement |
2.999L |
|
Nominal Power |
120HP (88kw) @ 3400rpm |
|
Peak Torque |
220N.m@1,700rpm |
|
Emission Standard |
Euro 5 |
|
TRANSMISSION |
|
|
Make / Model |
ISUZU/MSB |
|
Type |
Diesel |
|
Operation |
Manual |
|
Number of Speeds |
5F+1R |
|
CONSTRUCTION |
ISUZU chassis; Body; Tailgate (rear hopper); Ejection/discharging Plate; Compaction Plate; Slide Plate |
|
CAPACITY |
3,000L |
|
Sludge Tank |
|
|
Tipping |
The tank is mounted with an arrangement for the rear tipping |
|

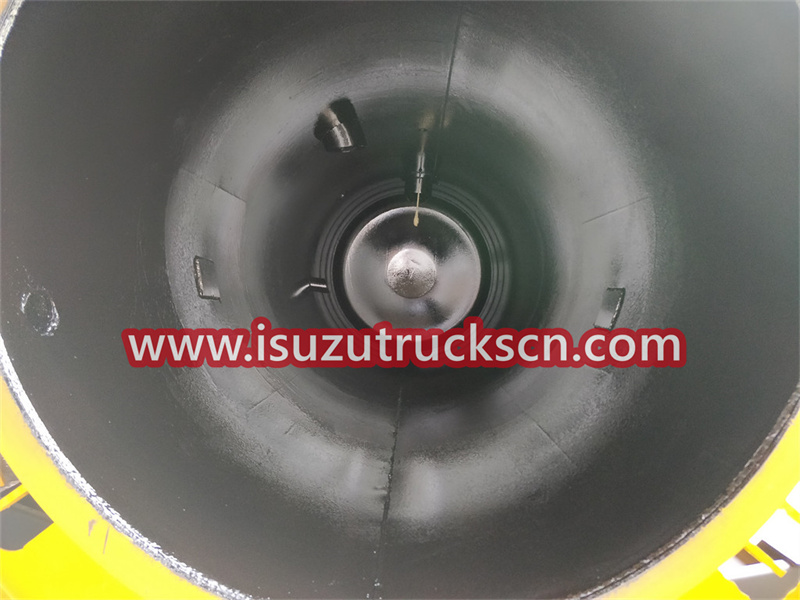

Thickness |
6mm |
|
Compartment |
Sludge/sewage tank compartment: 5,000liters |
|
Level Indicators |
Material: Transparent acrylic tubing with thick wall Quantities: Total two units. One on each compartment. |
|

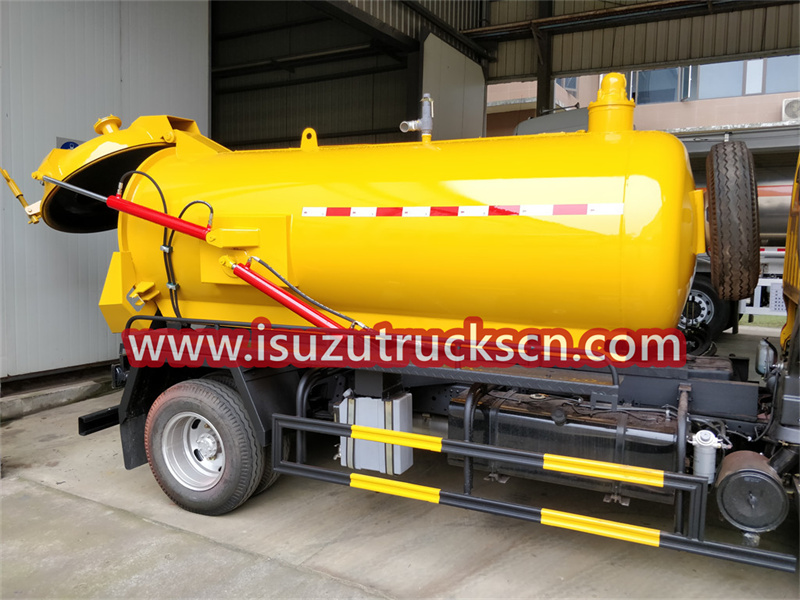

Rear Door |
Fully open-able type It is reinforced for structural integrity. Raised to the angle of 80°to the vertical. Locking and sealing (no leakage) are done by hand wheel-operated bolts, which are a robust design located circumferentially on the tank’s rear end of the shell. The liquid is tight by means of a self-compensating seal and is locked by means of manual latches. |
|
Vacuum Pump |
|
|
Make/Model |
VERYONG/68-7000 |
|
Pump Capacity |
800m3/h |
|
Speed |
950r/min |
|
Maximum Vacuum |
93% |
|
Type |
Water-cooled vacuum pump, heavy duty/multi-cylinder type, strong high-pressure, continuous duty. |
|
Max. Exhaust Power |
<=10kw |
|
Hose |
|
|
Heavy Duty Spiral Suction Hoses |
Provided with five heavy Duty spiral suction hoses, 4″ diameter. The hose is 3 meters in length with aluminum or galvanized steel light and easy-to-handle PVC hose along with quick-connect fittings on each end and provided with male-female couplings for the suction application |
|
Safety Device |
Equipped with anti-flow devices |
Isuzu mini vacuum tank truck plays a vital role in urban sanitation:
1. Daily cleaning and maintenance: Isuzu mini vacuum tank truck can easily travel through every corner of the city. Whether it is streets, parks, squares or other public areas, they can effectively clean up garbage, fallen leaves, stagnant water and other debris, keeping the The neatness and cleanliness of city roads.
2. Prevent sewage blockage: Isuzu mini vacuum tank truck can not only clean surface garbage, but also perform deep cleaning of sewage pipes and septic tanks. This helps prevent blockages in sewage pipes and ensures the smooth operation of urban drainage systems, thereby preventing environmental damage caused by sewage flooding.
3. Industrial cleaning: During the industrial production process, a large amount of liquid waste and sludge will be generated. Isuzu mini vacuum tank truck can efficiently clean up these wastes and maintain the environmental sanitation of factories and businesses, while also helping to protect the surrounding environment from pollution.
4. Disaster emergency response: In natural disasters or emergencies, such as floods, earthquakes, etc., the urban environment is often severely damaged, producing large amounts of sewage, sludge and other waste. Isuzu mini vacuum tank truck can respond quickly to help clean up and process these wastes and reduce the impact of disasters on the environment.
5. Improve the quality of urban environmental sanitation: Through daily cleaning and maintenance, Isuzu mini vacuum tank truck helps improve the quality of urban environmental sanitation and create a more livable and healthy living environment for citizens.
