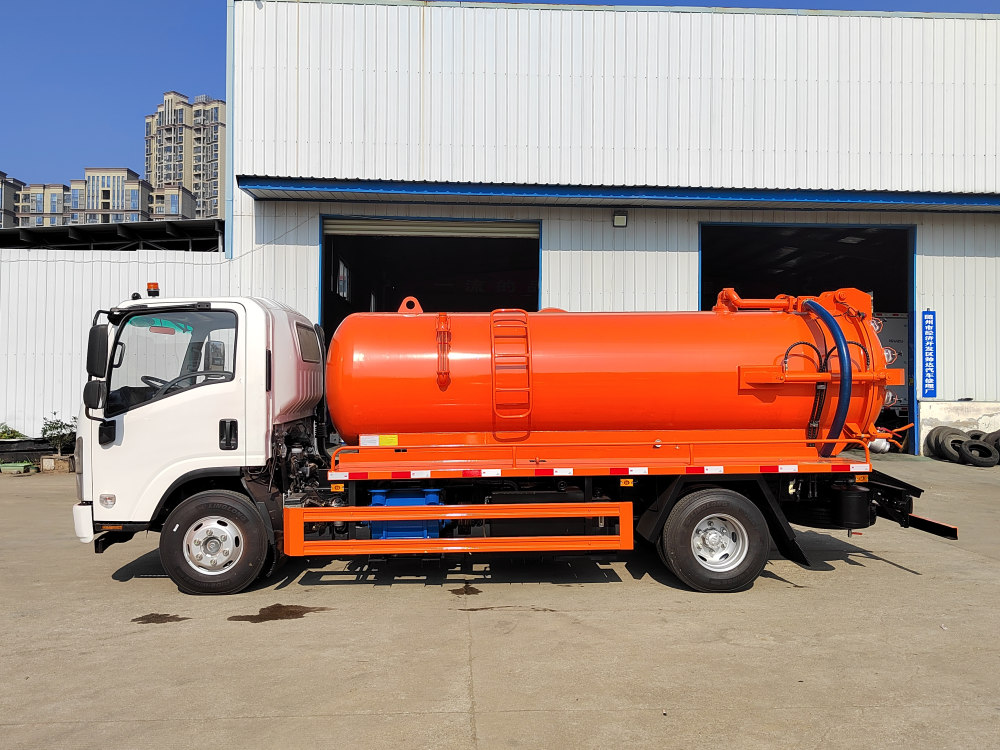

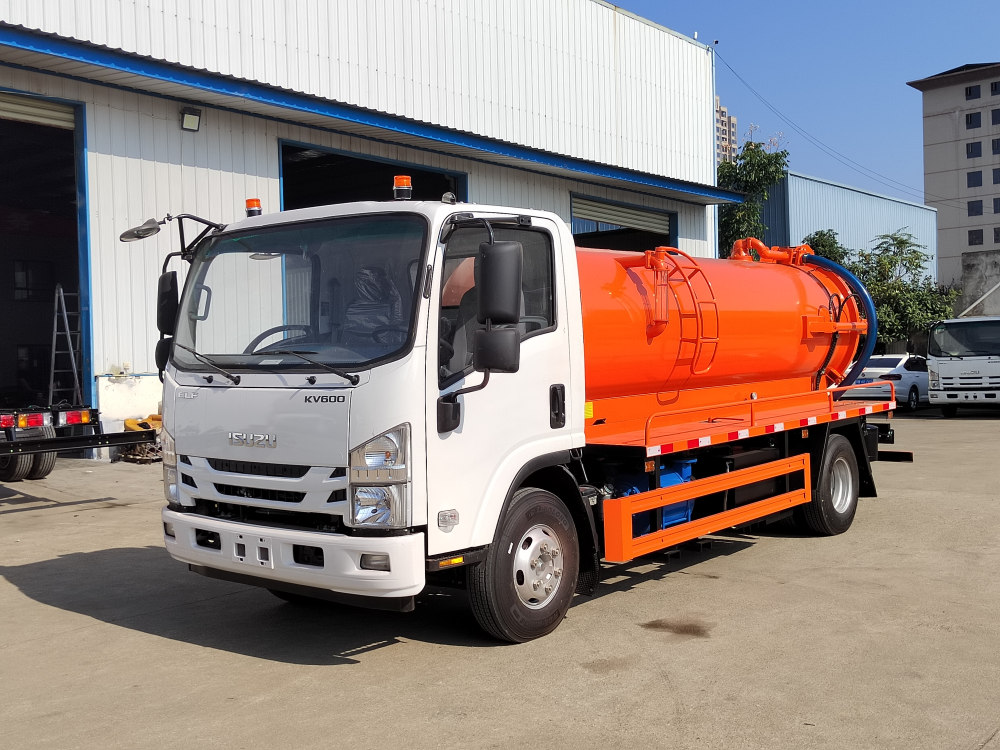

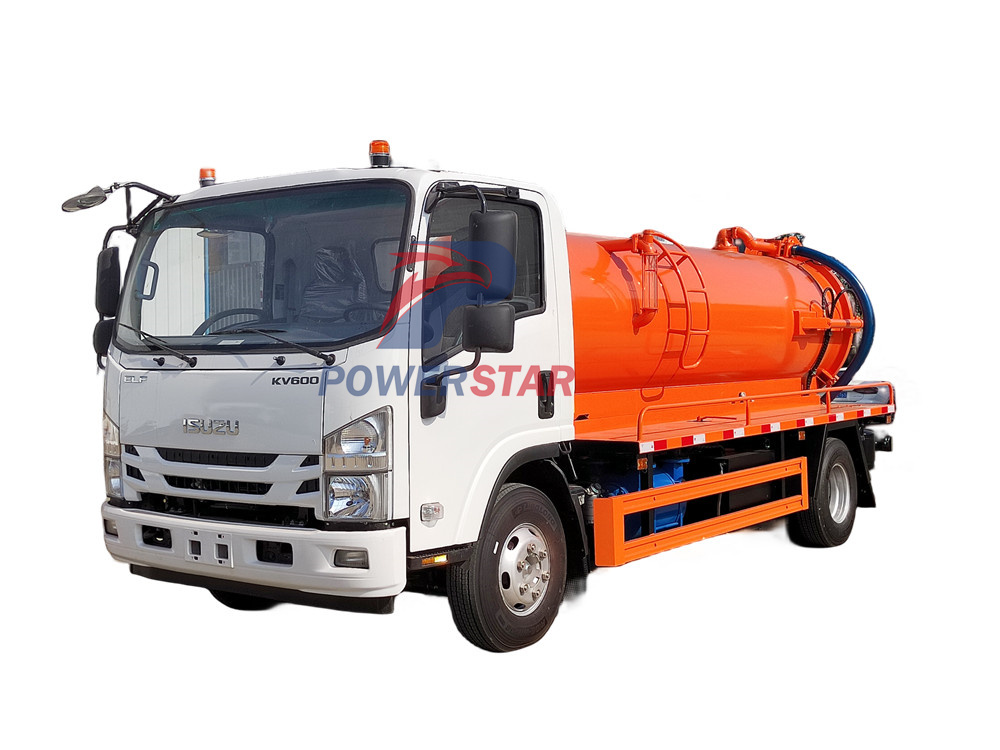

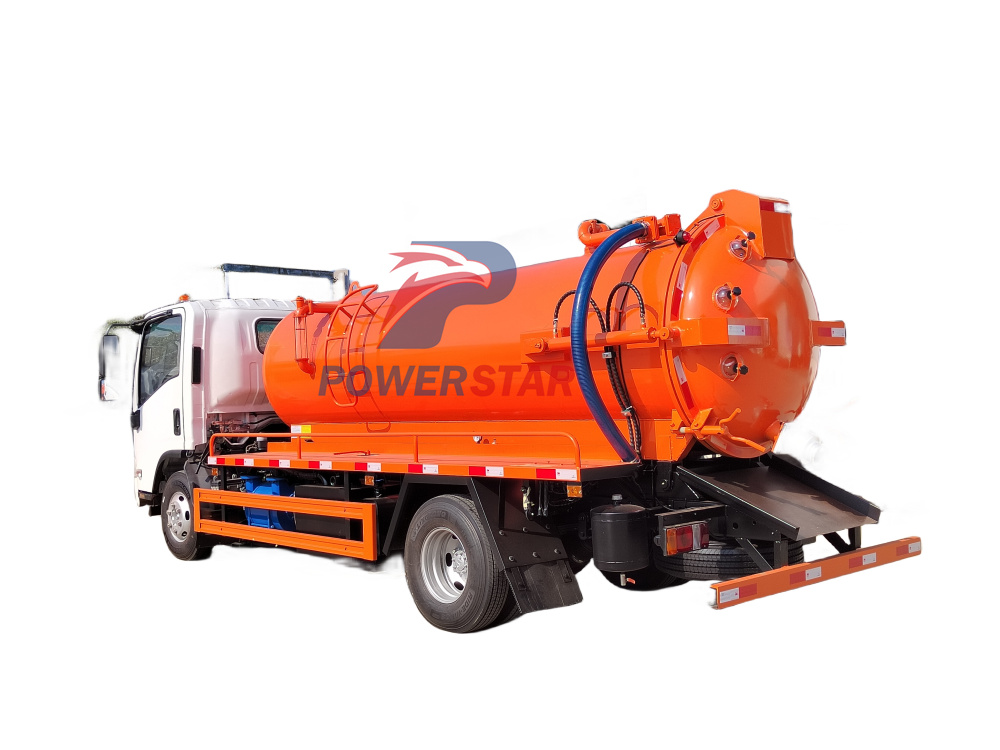

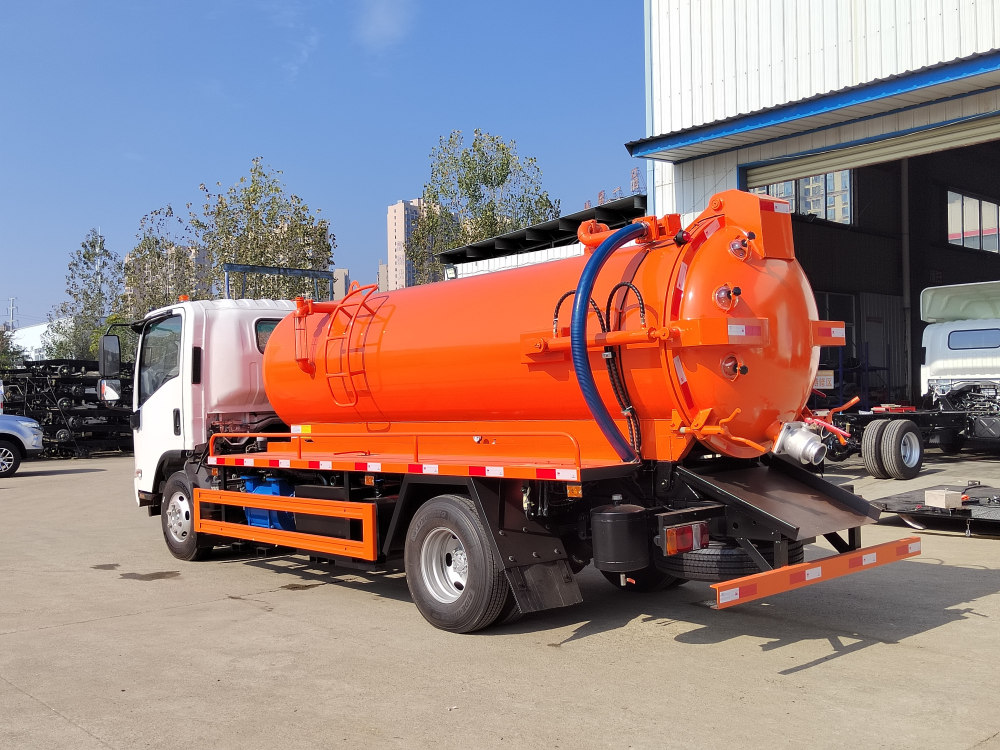

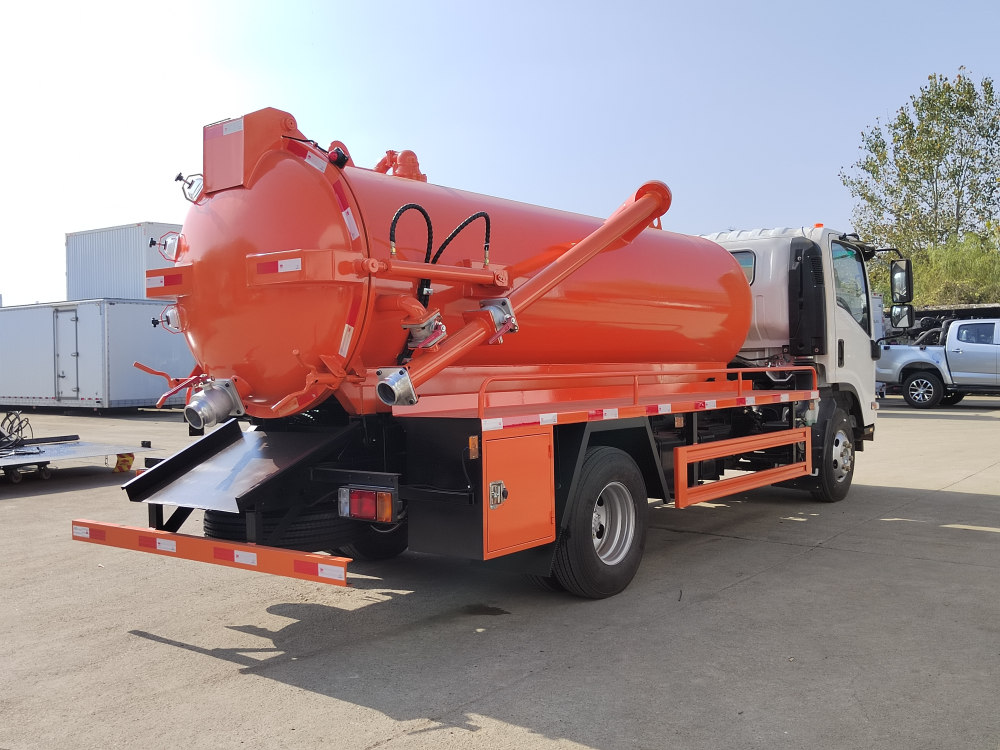

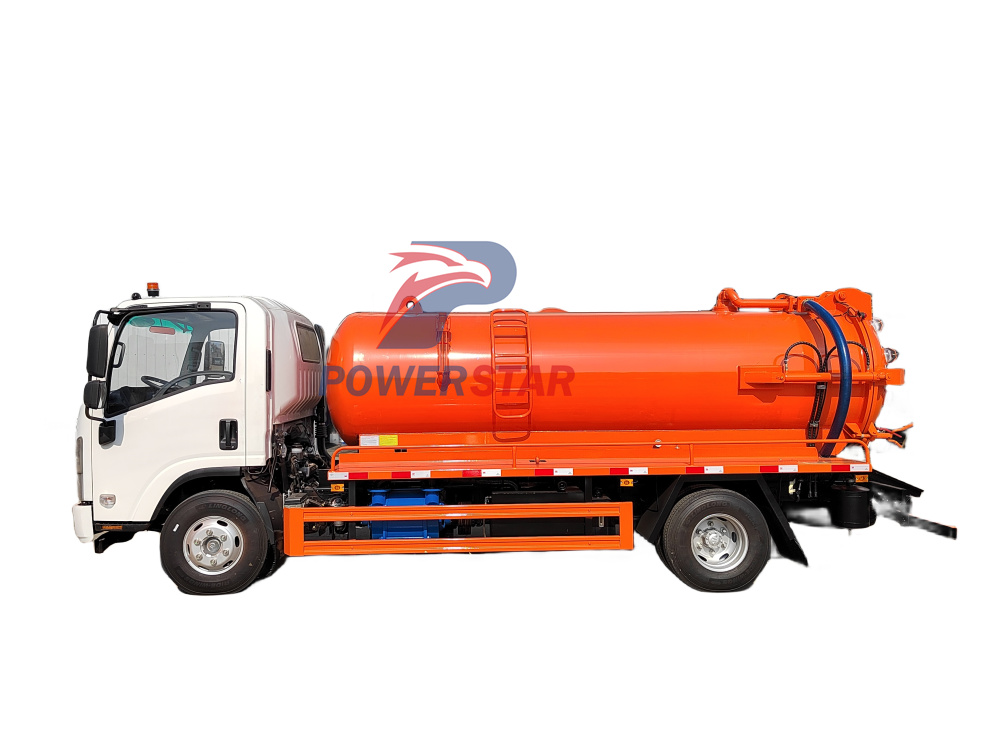

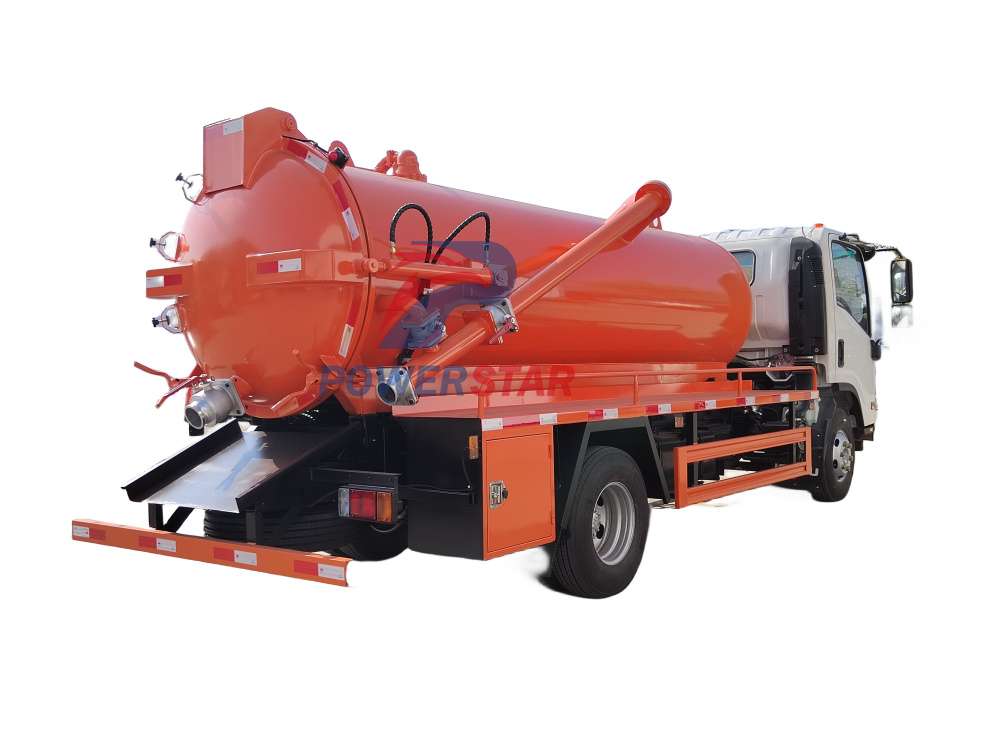

New MORO PM80A vacuum pump Isuzu KV600 Sewer Cleaner Suction Truck is a robust and efficient solution for sewer cleaning and waste management. With its powerful suction capabilities, large capacity tank, and precision jetting nozzles, it offers exceptional performance in maintaining clean and functional sewer lines. Its versatility, customizable options, and comprehensive after-sales service make it the ideal choice for municipal authorities, industrial facilities, and commercial establishments.
Work capacity:
7000LTruck model:
PT5090GXWEngine power:
Isuzu 4KH1Engine type:
130 HPAxle drive:
4x2Gear box:
Isuzu MSB5SRemarks:
Italy MORO PM80A vacuum pumpThe Isuzu Sewer Suction Truck KV600 with MORO PM80A pump is a highly efficient and reliable solution for sewer cleaning and waste management. It is specifically designed to meet the demanding requirements of municipal authorities, industrial facilities, and commercial properties. This powerful truck offers exceptional performance in maintaining clean and functional sewer lines, ensuring a cleaner and healthier environment.
Features of Japan ISUZU KV600 Vacuum Sewage Suction Truck :
1. Powerful Vacuum System: The Isuzu Sewer Suction Truck with MORO vacuum pump is equipped with a high-performance vacuum system, capable of generating strong suction for efficient removal of liquid and solid waste from sewer lines.
2. Large Capacity Tank: It features a spacious tank, allowing for the collection and transportation of substantial volumes of sewage and debris, reducing the need for frequent emptying and increasing operational efficiency.
3. Precision Jetting Nozzles: The truck is fitted with precision jetting nozzles that facilitate accurate water flow, ensuring thorough cleaning and preventing blockages within sewer lines.
4. Configurable Options: The Isuzu Sewer Suction Truck offers customizable options such as tank capacity, nozzle configurations, and additional accessories, enabling it to be tailored to specific customer requirements.
Advantages:
1. Efficient Cleaning: The powerful vacuum and precision jetting technologies ensure thorough and efficient cleaning of sewer lines, effectively eliminating blockages and maintaining their functionality.
2. Increased Productivity: The large capacity tank reduces the frequency of emptying, saving time and labor costs. Additionally, the precision jetting nozzles enhance cleaning efficiency, minimizing the need for repetitive cleaning cycles.
3. Versatile Applications: The Isuzu Sewer Suction Truck is suitable for various applications, including municipal sewer line maintenance, industrial waste management, and commercial property sanitation.
Applications:
1. Municipalities: This truck is ideal for municipal authorities responsible for maintaining and cleaning sewer lines in urban and rural areas, ensuring effective waste management and public health.
2. Industries: Industrial facilities dealing with wastewater, such as manufacturing plants and wastewater treatment facilities, can benefit from the truck's efficient cleaning capabilities.
3. Commercial Establishments: The truck is useful for maintaining the cleanliness and functionality of sewer lines in shopping malls, hotels, and other commercial properties.
| Vehicle Description | |
| Overall dimensions | 6610*2500*3250 mm |
| Curb Weight | 5400kg |
| Chassis brand | ISUZU |
| Traction type | 4*2 |

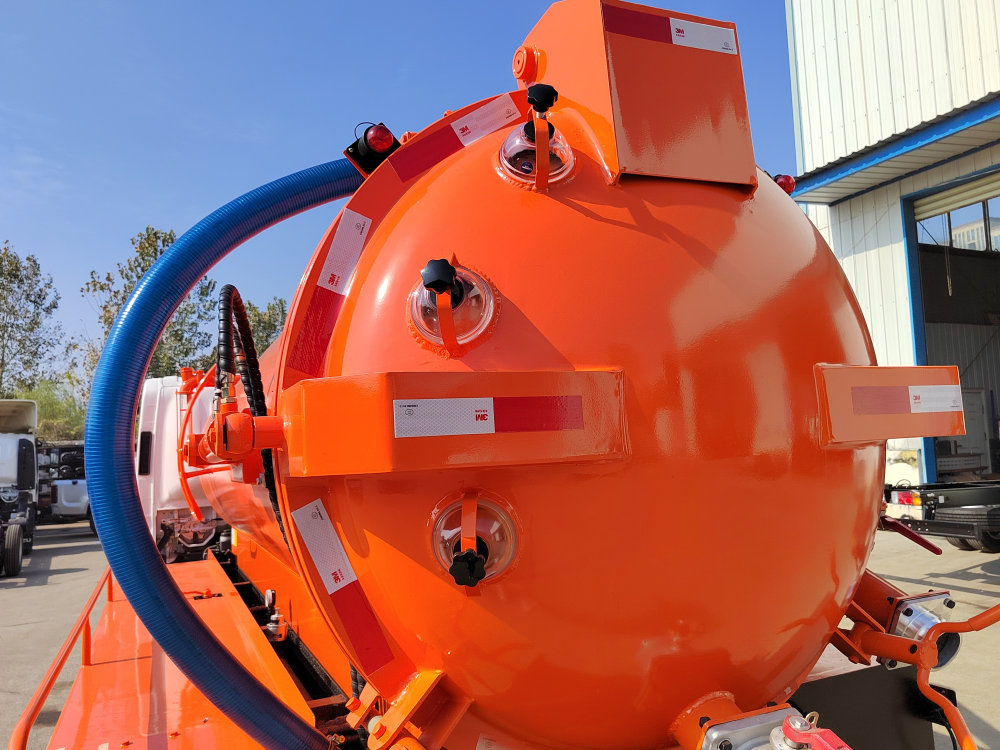

| Tanker Description | ||
| Tanker | Capacity | 7000L |
| Material | 6mm thickness, high quality carbon steel | |
| Structure | Welding, vacuum tank, Cylindrical | |
| Pump | Type | ITALY MORO PUMP PM80A |
| Flux | 80 m3/h | |
| Rating speed | 800~1000(r/min) | |
| Shaft power | 2.2(kw) | |
| Features | Low speed, low fuel consumption, low noise, high vacuum, high efficiency | |
| Manufacture | Hangzhou WEILONG Pump Co., Ltd. | |
| Pipe | Suction and discharge pipe | |
| Special function | Suction time ≤ 5mins, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45 |
|

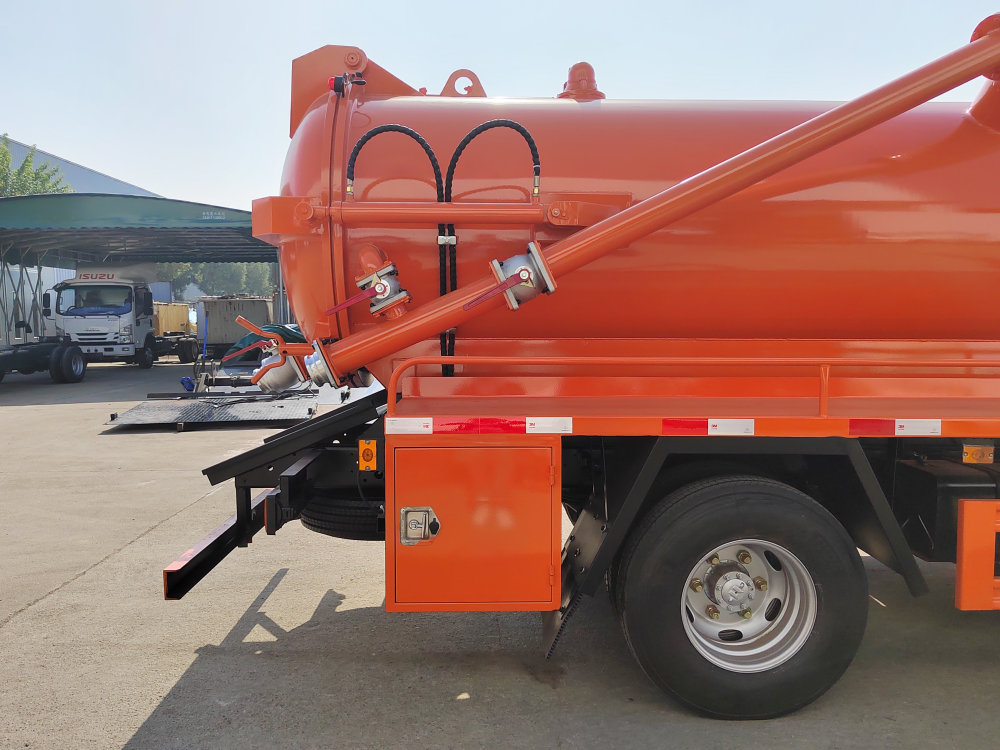

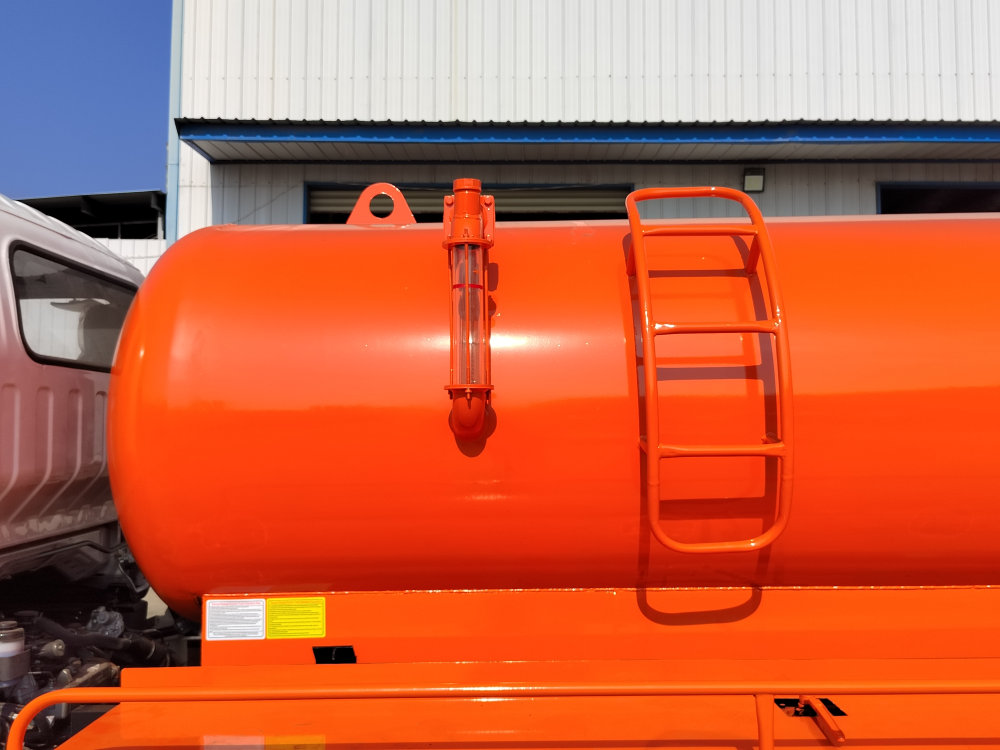

| Standard configuration | Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically. |
|
| Optional configuration | Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank |
|
| Chassis Description | ||
| Chassis model | KV600 ISUZU | |
| Cab | Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. | |
| Traction type | LHD or RHD | |
| Drive type | 4*2 | |
| Wheelbase | 3815mm | |
| Tire specification | 7.00R16 | |
| Tire quantity | 6+1 units | |
| Engine | Emission level | Euro 5 |
| Displacement/output | 3000ml/96kw | |
| Horse power | 130hp | |
| Gear box | Model | ISUZU MSB |
| Number of gears | 5 forward gears& 1 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake | |
| Axle | Front | 3T |
| Rear | 5T | |

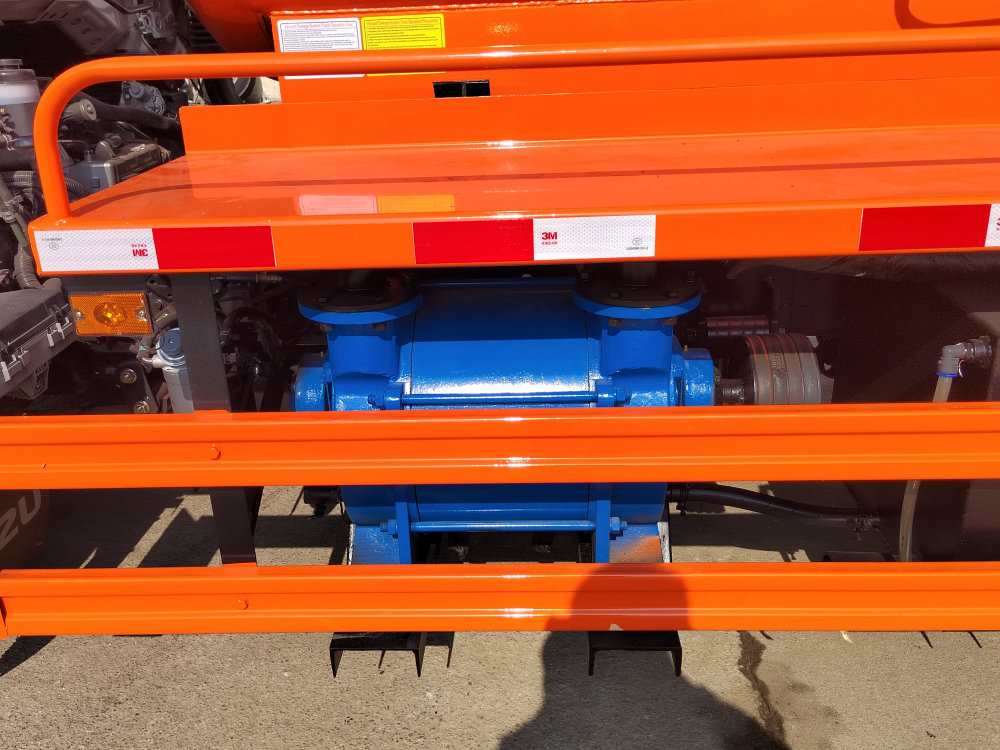

The Italy Vacuum Pump PM80A is a high-quality and reliable vacuum pump manufactured by a reputable Italian brand. It is designed to provide efficient and consistent vacuum pressure for various industrial applications, including automotive, healthcare, and manufacturing.
Key Specifications:
- Model: PM80A
- Power Supply: 220-240V, 50Hz
- Power Rating: 2.2kW
- Maximum Vacuum Pressure: 0.1 mbar
- Air Displacement: 80 m³/h
- Noise Level: <70dB
- Weight: 35 kg
- Dimensions: 450mm x 350mm x 350mm
Features:
1. Robust Construction: The Italy Vacuum Pump PM80A is built with a sturdy and durable construction, ensuring long-lasting performance and reliability in demanding industrial environments.
2. Efficient and Consistent Vacuum: With a maximum vacuum pressure of 0.1 mbar and an air displacement of 80 m³/h, this pump offers efficient and consistent vacuum performance, allowing for rapid and effective processes.
3. Low Noise Operation: The pump operates at a noise level of less than 70dB, minimizing noise pollution in the workplace and ensuring a more comfortable and productive working environment.
4. Easy to Install and Maintain: The PM80A is designed for easy installation and maintenance, with accessible components and user-friendly interfaces, reducing downtime and optimizing operational efficiency.
Advantages:
1. High Performance: The Italy Vacuum Pump PM80A delivers exceptional performance with its powerful vacuum pressure and air displacement capabilities, meeting the challenging requirements of various industrial applications.
2. Energy Efficient: With a power rating of 2.2kW, this vacuum pump is designed to be energy-efficient, reducing overall power consumption and operational costs.
3. Versatile Application: The PM80A can be used in a wide range of applications, including vacuum packaging, pneumatic conveying, laboratory equipment, and more, making it a versatile choice for different industries.
4. Reliable and Reliable: Manufactured by a trusted Italian brand known for its quality and reliability, the PM80A vacuum pump offers consistent performance and durability, ensuring uninterrupted operations and minimal downtime.
Applications:
The Italy Vacuum Pump PM80A is suitable for various industrial applications, including:
- Vacuum packaging in the food and healthcare industries
- Pneumatic conveying in manufacturing facilities
- Degassing and drying processes in laboratories
- Vacuum forming in the automotive industry
- Central vacuum systems in commercial establishments
After-sales Service:
We provide comprehensive after-sales service to ensure the smooth operation and longevity of the Isuzu Sewer Suction Truck. Our dedicated team of technicians is available for maintenance, repairs, and technical support whenever required. Additionally, we offer training programs to ensure the efficient and safe operation of the truck.
FAQs:
Q1: What is the tank capacity of the Isuzu Sewer Suction Truck?
A1: The tank is available in various capacities, ranging from [2,000L] to [25,000L] liters, depending on your specific needs.
Q2: Can the truck be customized to meet specific requirements?
A2: Yes, we offer customization options, including tank capacity, nozzle configurations, and additional accessories, to suit the unique requirements of our customers.
Q3: How often does the truck require maintenance?
A3: Regular maintenance is recommended to ensure optimal performance. Our technicians can provide guidance on the maintenance schedule.
Q4: Is the truck environmentally friendly?
A4: Yes, the Isuzu Sewer Suction Truck complies with environmental standards and regulations, ensuring minimal impact on the environment.
Q5: Are spare parts readily available?
A5: Yes, we ensure the availability of genuine spare parts to facilitate quick repairs and minimize downtime.
