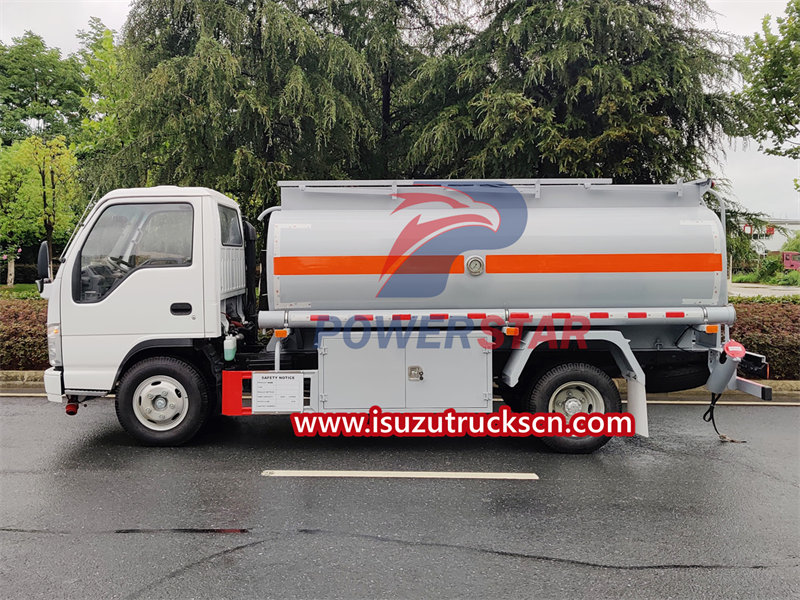

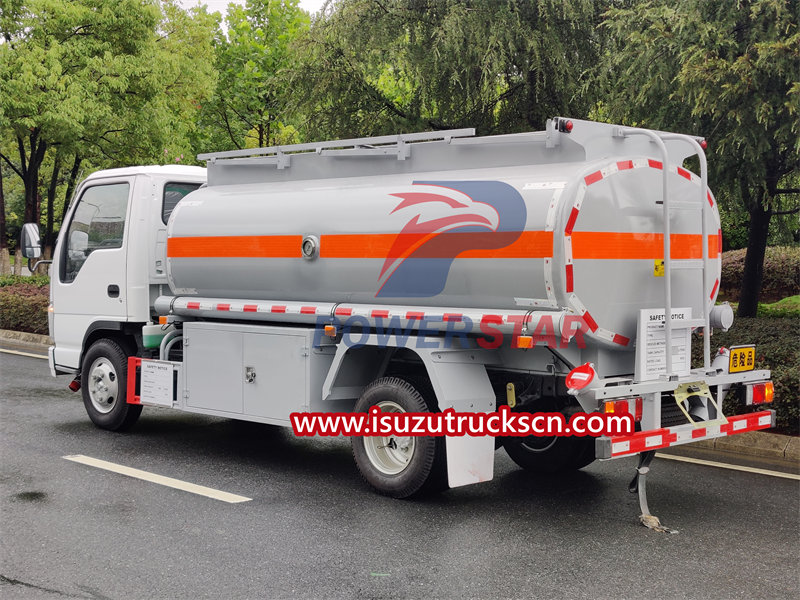

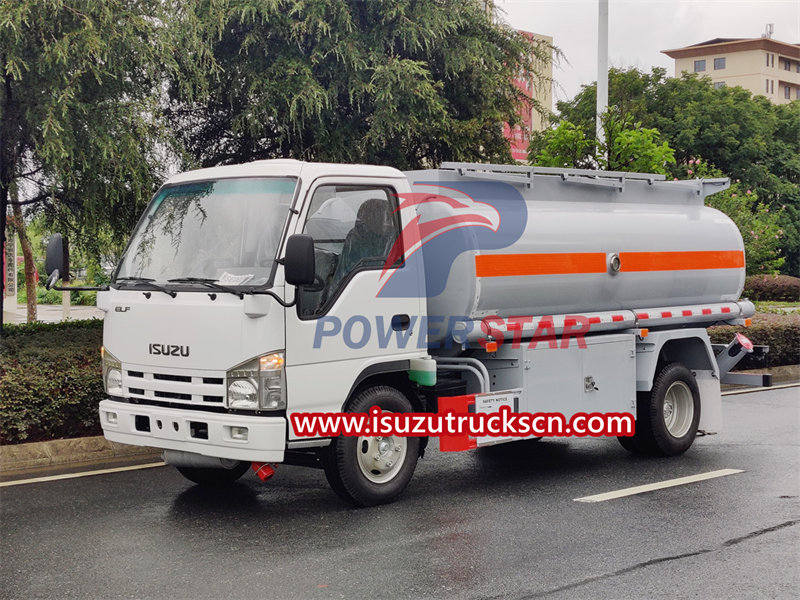

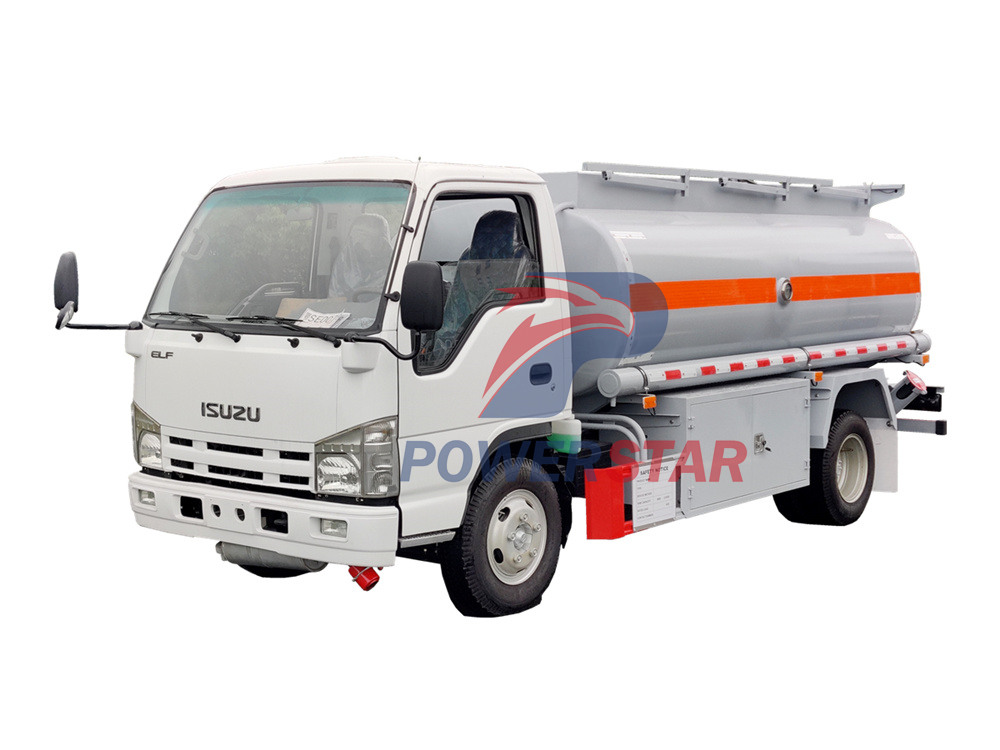

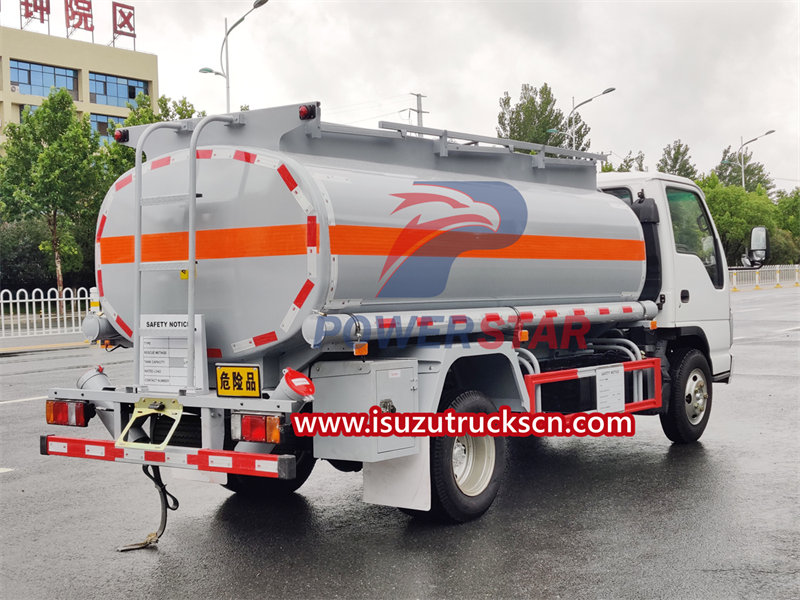

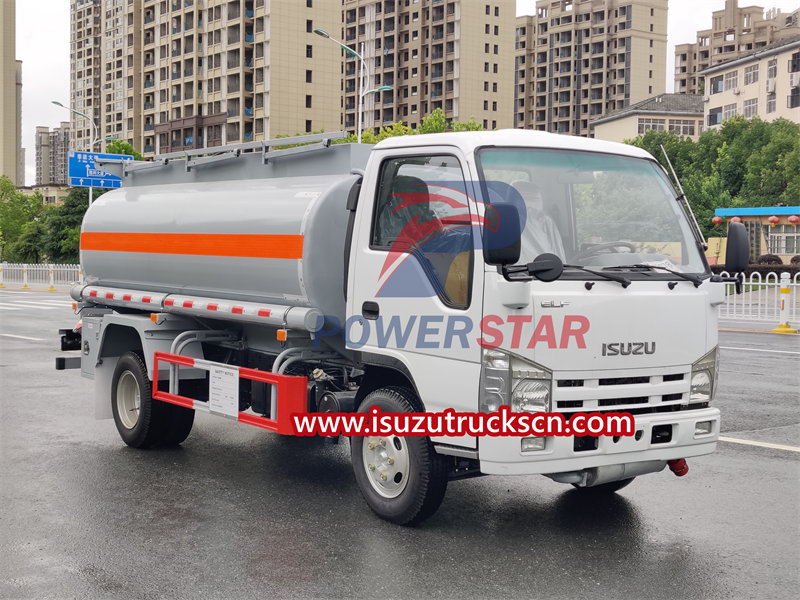

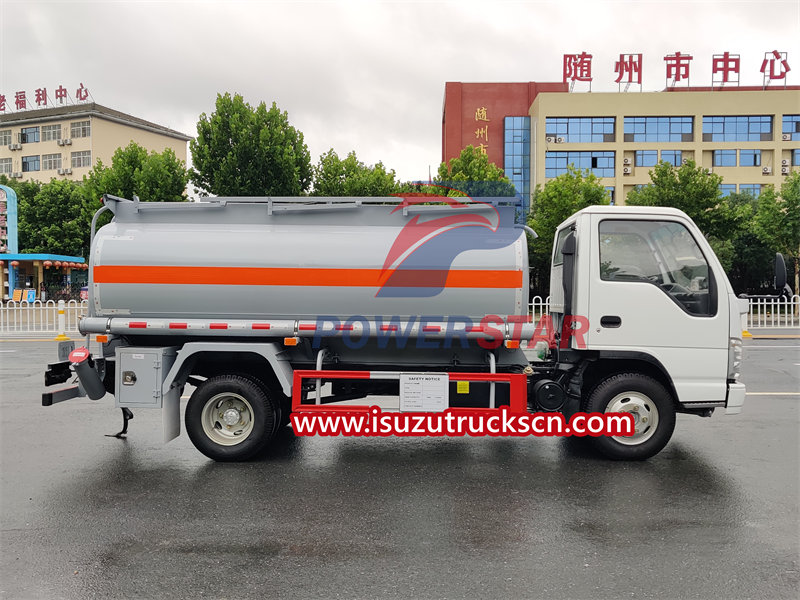

The Isuzu mobile fuel bowser is a convenient and flexible energy replenishment solution designed to meet changing energy needs. This vehicle combines refueling and fuel transportation functions and is suitable for a variety of application scenarios. Whether in cities, rural areas or remote areas, it can provide fuel supply services quickly and efficiently.
Work capacity:
5000 LitersTruck model:
PT5050GJYEngine power:
98 HPEngine type:
4KH1CN5LSAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:

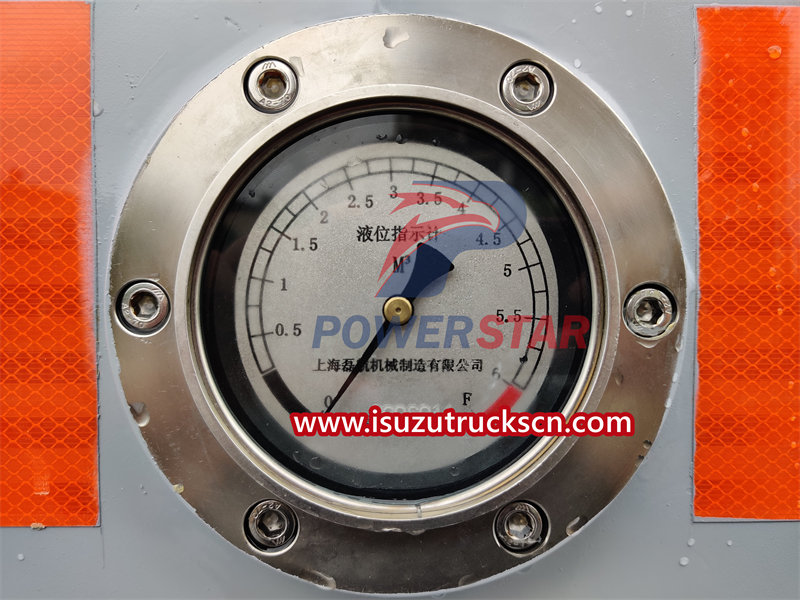

With fuel dispenser, float level gauge
ISUZU mobile fuel bowser is a convenient oil transportation and supply equipment, often used in on-site operations, remote areas or areas without access to traditional gas stations. It can provide oil supply within a certain range and plays an irreplaceable role in emergencies, field operations or emergency rescue.

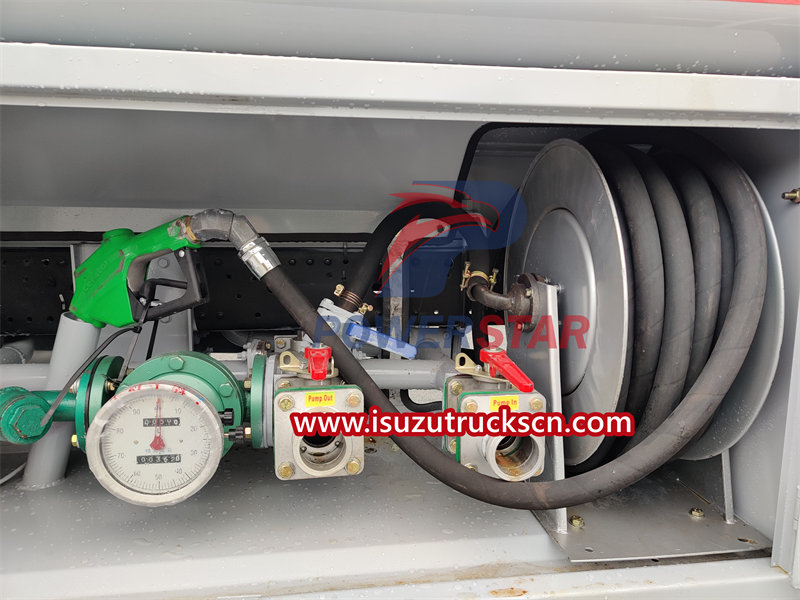

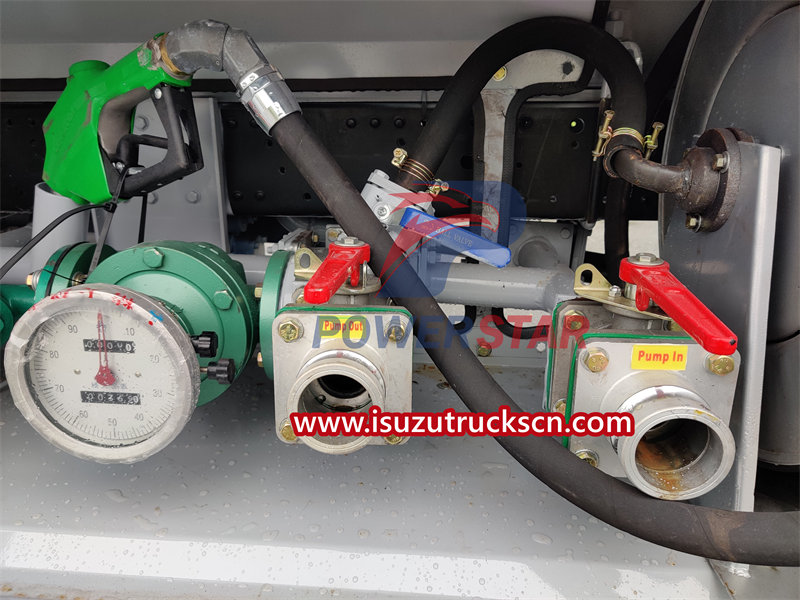

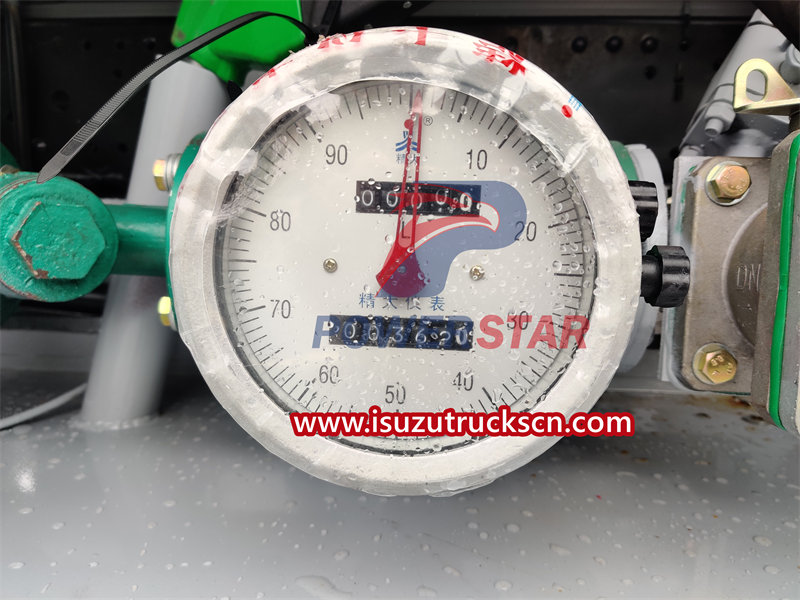

ISUZU oil tanker truck consists of chassis, oil tank, pump, dispenser and related auxiliary devices. The tank is used to store oil, the dispenser is used to control the flow and direction of the oil, and the chassis provides transportation capabilities. The vehicle is also equipped with an automatic control system, which can realize automatic metering and pumping of oil products. When oil flows from the tank, the flow meter inside the dispenser will accurately measure and deliver the oil to the oil-receiving equipment through the oil pipeline. Some advanced refueling machines also have an automatic shut-off function, which can automatically cut off oil delivery when the oil-receiving equipment is filled with oil.
With the development of social economy and the continuous improvement of infrastructure construction, the market demand for mobile fuel trucks will continue to grow. Especially in emergency rescue, engineering operations and supply in remote areas, mobile fuel trucks have broad application prospects. In the future, with the continuous advancement and application of technology, mobile fuel trucks will become more intelligent and environmentally friendly, with huge market potential.
Product Specifications
|
ISUZU Mobile Fuel Bowser Specifications |
||
|
General |
Vehicle Brand |
POWERSTAR |
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension |
5900 * 2100 * 2350 mm |
|
|
GVW / Kerb Weight |
7,300 kg / 3,400 kg |
|
|
Cab |
Cab Capacity |
2 persons allowed |
|
Air Conditioner |
Standard |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU |
|
|
Moedl |
4KH1CN5LS |
|
|
Power |
98 Ps (72 KW) |
|
|
Displacement |
2999 ml |
|
|
Emission Standard |
Euro 5 |
|
|
Chassis |
Drive Type |
4X2, left or right hand drive |
|
Transmission |
ISUZU MSB 5-speed, manual |
|
|
Wheelbase/No. of axle |
3360 mm / 2 |
|
|
Tyre Specification |
7.00R16 |
|
|
Tyre Number |
6 tyres and 1 spare tyre |
|
|
Max Speed |
95 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Tank Capacity |
5,000 Liters |
|
Tank Material |
Carbon steel |
|
|
Pump |
Equipped for overhead delivery, 1000 litres / min |
|
|
Suction Head |
6 m |
|
|
Hose |
High quality, wire strengthened hose, with cooper wire, anti-static |
|
|

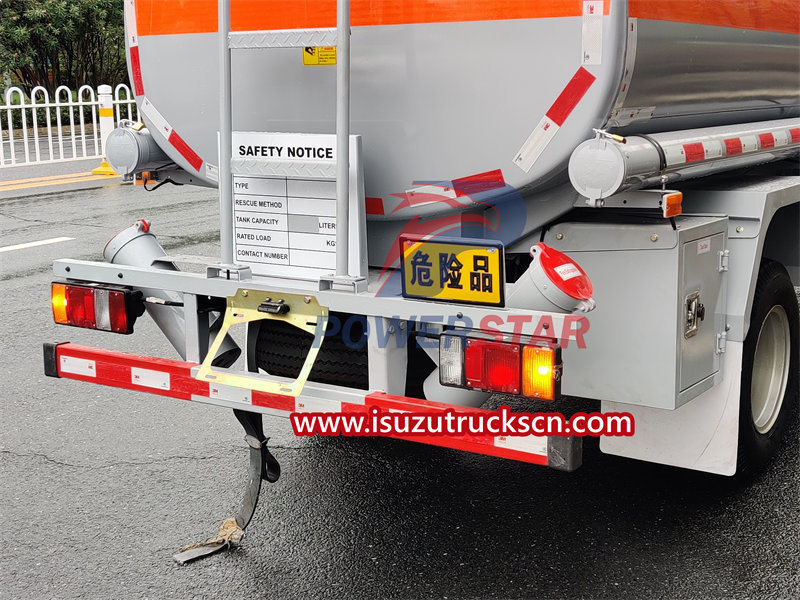

All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers..... |
||
|
Optional |
Tank material could be carbon steel, stainless steel, aluminum alloy |
|
Specific application scenarios of ISUZU fuel tanker trucks
1. Construction projects
In the field of construction engineering, ISUZU fuel trucks are mainly used to provide fuel for various mechanical equipment on the construction site, such as excavators, loaders, road rollers, etc. These equipment need to continue to operate during the construction process, and the fuel truck can replenish fuel for these equipment at any time to ensure the smooth progress of the project.
2. Transportation
In the field of transportation, ISUZU fuel bowsers are mainly used to provide fuel for road transportation vehicles such as trucks and buses. These vehicles require frequent refueling during long-distance transportation or urban logistics, and refueling trucks can provide convenient refueling services and improve transportation efficiency.
3. Agricultural machinery
In the field of agricultural machinery, ISUZU oil tanker trucks are mainly used to provide fuel for agricultural machinery and equipment such as tractors and harvesters. With the development of agricultural modernization, agricultural machinery and equipment are used more and more widely. Refueling trucks can provide timely refueling services for these equipment to ensure efficient agricultural production.
4. Emergency rescue
In the field of emergency rescue, ISUZU refueling trucks are mainly used to provide fuel for emergency rescue vehicles such as fire trucks and ambulances. These vehicles need to respond quickly when dealing with emergencies, and fuel trucks can follow the rescue team to supply fuel for the vehicles in a timely manner to ensure the smooth progress of the rescue work.
Isuzu portable fuel bowser is a special vehicle equipped with oil tank, oil pump, pipelines, refueling device, ancillary accessories and safety protection devices. This ISUZU tank truck is generally used to load flammable and explosive chemical dangerous goods, such as gasoline, diesel or kerosene and other light fuels.
