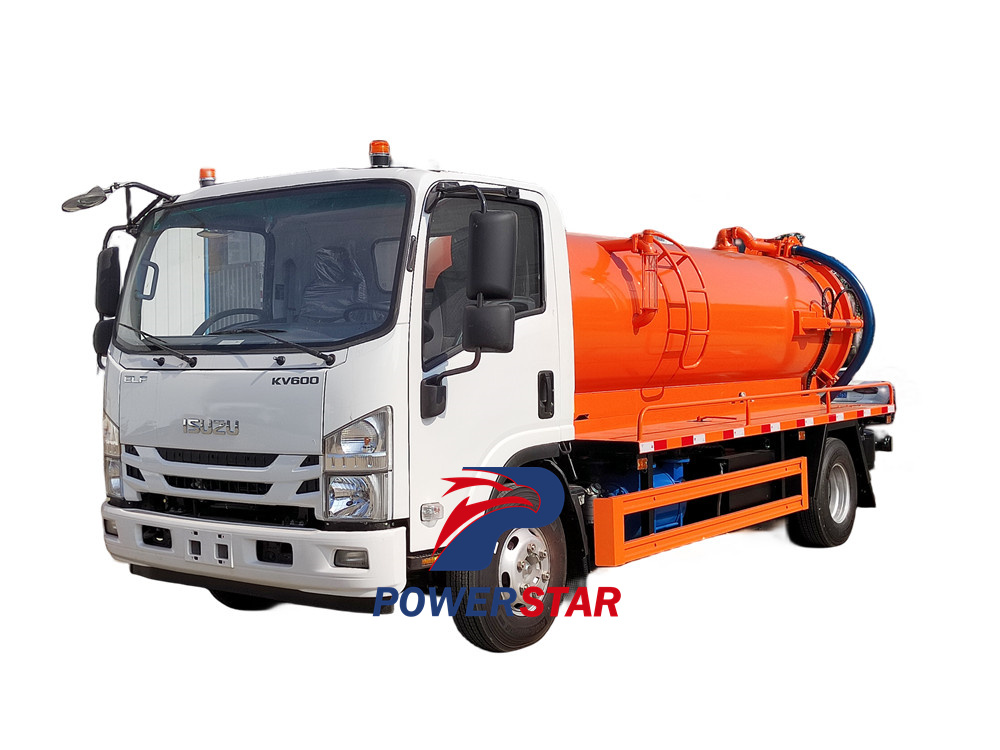

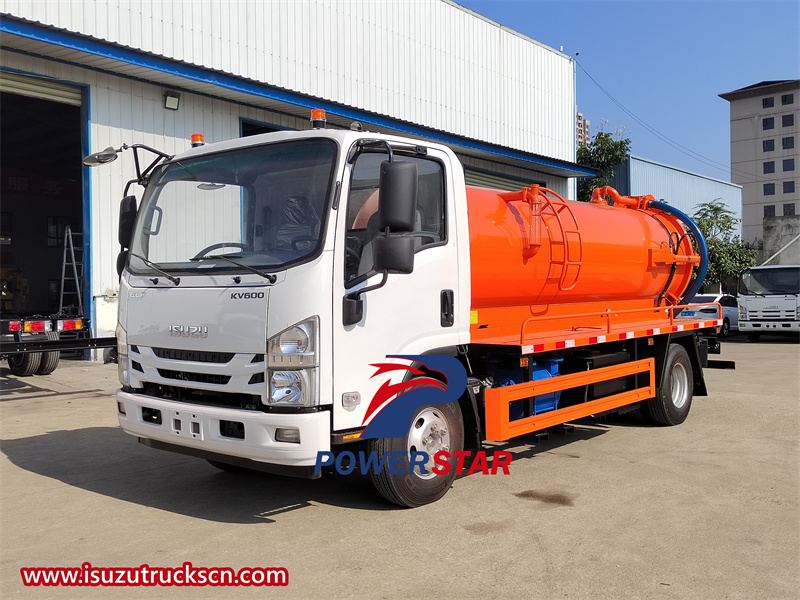

Isuzu's latest 8-ton sewage suction tank truck, featuring the robust KV600 chassis and a generous 5000-liter sewage tank capacity, epitomizes excellence in liquid waste management solutions. Crafted with precision and innovation, this specialized vehicle is engineered to tackle the most demanding waste disposal challenges effectively and efficiently.
Work capacity:
5000LTruck model:
PT5080GZYEngine power:
132HPEngine type:
4KH1CN6HBAxle drive:
4x2，LHDGear box:
MLD 6-speed,manualRemarks:
Chinese brand water circulation vacuum pumpIsuzu Latest 8ton sewage suction tank truck also called Isuzu 8-ton vacuum suction tanker,Isuzu KV600 vacuum pump tanker truck,Isuzu KV600 5000L sewer vacuum truck,Isuzu light sewer cleaner truck,Isuzu KV600 4x2 waste vacuum truck.
The Isuzu Latest 8ton sewage suction tank truck is a powerful and reliable machine that is ideally suited to a wide range of sewage and waste management tasks. Its rugged KV600 chassis, 5,000-litre suction tank and advanced suction capabilities make it an essential tool for municipalities, construction companies and other organisations responsible for managing waste and sewage. Whether you need to transport sewage from a construction site, clean out storm drains or respond to sewage spills, this latest Isuzu 8-ton sewage suction tanker is up to the task.
Features
★ Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
★ Adopt EU vacuum pump (ltaly brand) or equivalent China top brand double vacuum pumps, super powerful,highly efficient
★ Pump can be operated by a hydraulic motor or by an auxiliary engine
★ Overfil system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pumpwhen the tank is full.
★ Nice shape, rational structure, durable and long service life.
|

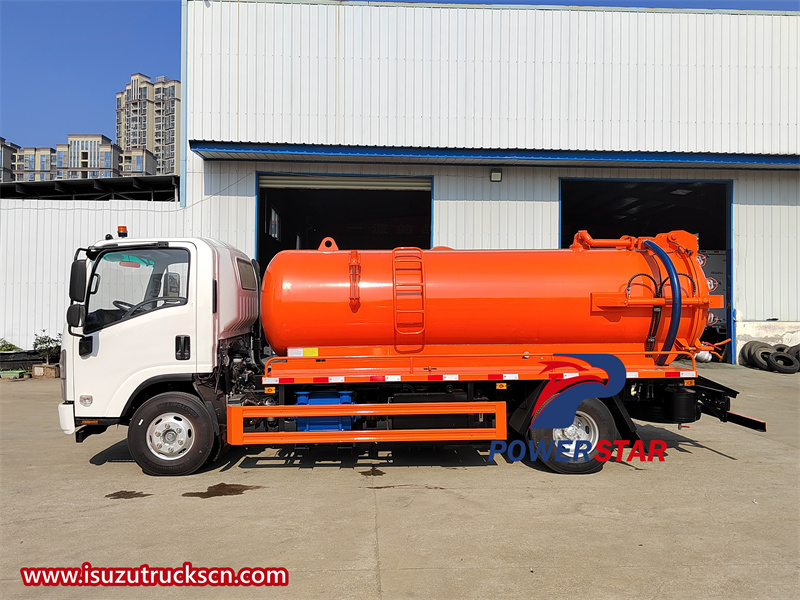

Isuzu KV600 8ton sewage suction truck |
|||
|
Vehicle description |
|||
|
Overall Dimension mm (L*W*H) |
6720*2050*2500 (mm) |
||
|
GVW |
8000 (kg) |
||
|
Curb weight |
3050 (kg) |
||
|
Wheelbase |
3815mm |
||
|
Chassis Description |
|||
|
Chassis brand |
ISUZU |
||
|
Chassis condition |
Brand new |
||
|
Cab |
Isuzu KV600 single cabin, 2 doors,3 seats with A/C |
||
|
Driving type |
4x2,Left hand driving |
||
|
Tire |
750R16 tire, 6+1(pcs) |
||
|
Engine |
Brand |
ISUZU 4KH1CN6HB |
|
|
Fuel |
Diesel |
||
|
Emission standard |
Euro VI |
||
|
Displacement |
2999ml |
||
|
POWER |
132HP / 97Kw |
||
|
Number of cylinders |
Inline 4 cylinder |
||
|
Gear box |
Brand |
ISUZU - MLD |
|
|
Number of gears |
6 Forwards gear & 1 reverse gear |
||
|
Axle |
Front |
3T |
|
|
Rear |
5T |
||
|
Brake System |
Oil brake and vacuum booster pump |
||
|
Suction tanker description |
|||
|
Tanker |
Capacity |
5,000L |
|
|
Material |
High quality carbon steel,Q235 |
||
|
Thickness |
6mm for tanker body and rear cover |
||
|
External tank treatment |
Rust proofing treatment as standard |
||
|
Structure |
Machine welding automatically, cylindrical tank |
||
|
Hydraulic dump system |
The tank lift angle could be higher up to 45° |
||
|
Rear door hydraulic open |
|||
|
Painting and logo |
As required |
||
|
Vacuum pump |
Brand |
YIFENG |
|
|
Model |
SK-12 |
||
|
Pumping rate |
12CBM/min |
||
|
200 L/S |
|||
|
Max speed |
970 r/min |
||
|
Max pressure |
8000 pa |
||
|
Suitable |
5,000Liter |
||
|
Standard Specs |
PTO |
Equipped |
|
|
Gear pump |
China famous brand |
||
|
Multi-way valve |
Equipped |
||
|
Hydraulic cylinders |
4sets |
||
|
Liquid level view pipe |
Standard |
||
|
Liquid level alarm device |
Standard |
||
|
Anti-overflow valve |
Standard |
||
|
Suction hose |
Standard 8 meters |
||
|
Drain valve |
Standard |
||
Isuzu's latest 8-tonne sewage suction tanker represents the pinnacle of engineering excellence, designed to meet the stringent requirements of the sanitation and waste management industries. Its powerful suction system, large sewage tank and advanced features make it an essential tool for a variety of tasks, including sewage transport, storm drain cleaning and sewage spill response. Whether you need to transport sewage from a construction site, clear a clogged storm drain or respond to a sewage spill, this truck is up to the task.

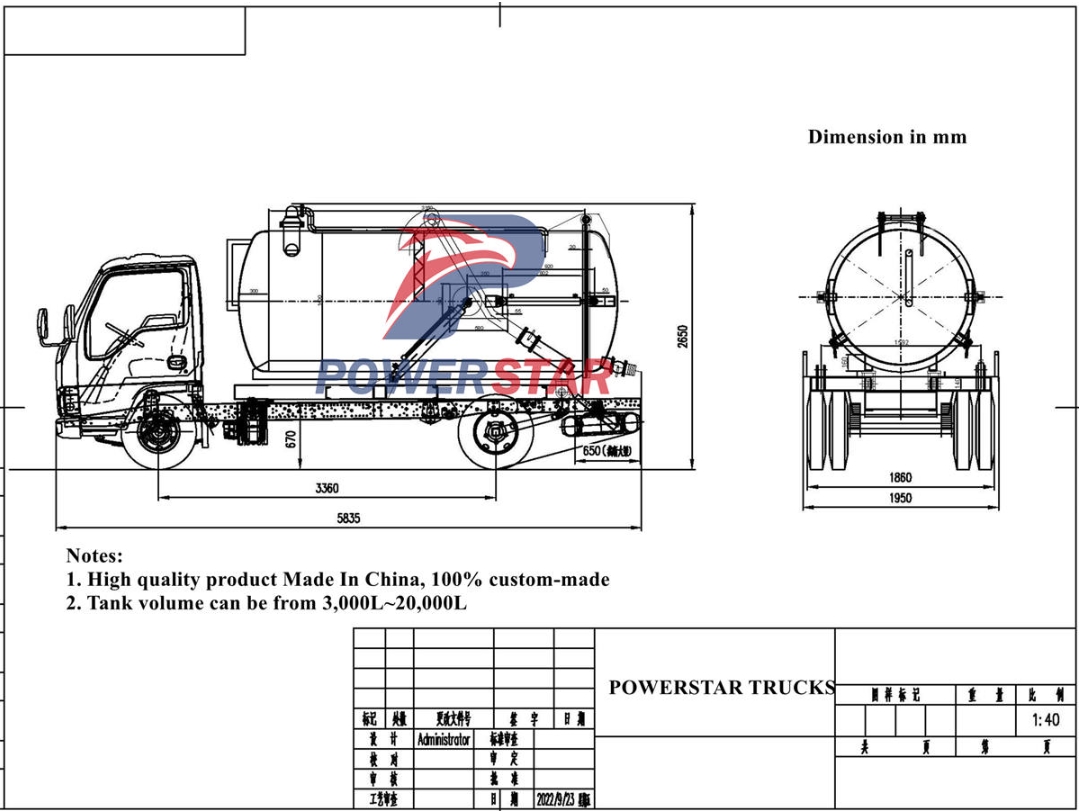

Technical drawing of Isuzu sewage suction truck
Powerfull Engine
At the heart of this sewage suction tanker is the powerful and fuel-efficient Isuzu 4KH1CN6HB engine, engineered to deliver optimal performance while minimising environmental impact. Its efficient powertrain ensures reliable operation even in the most challenging operating conditions, making it a dependable workhorse for handling a wide range of waste disposal tasks.
Sturdy Chassis
The truck's KV600 chassis has been engineered to provide exceptional strength and durability, capable of withstanding heavy loads and rough terrain. It features excellent manoeuvrability and stability, ensuring safe and precise operation during waste collection and transport activities. The chassis has been carefully optimised to enhance vehicle control and maximise operating efficiency, enabling seamless navigation through city streets and rural areas.
Sewage Tank
The sewage sludge tank system on this Isuzu truck is a masterpiece of innovation, featuring a 5000L capacity tank made from high-grade materials that are able to withstand the corrosive nature of liquid waste. The tank is carefully designed to optimize storage volume while ensuring ease of operation and maintenance. The tank is equipped with advanced suction and discharge mechanisms to achieve efficient waste collection and treatment, streamlining the entire waste management process.
Sewage Tank System
Well-designed with attention to detail, the sewage tank system simplifies the waste collection and treatment process with advanced suction and discharge mechanisms. Operators can rely on the efficient operation of the tank to speed up tasks, increase productivity and reduce turnaround time during waste handling operations. The design of the tank system optimizes functionality and convenience, ensuring seamless operation and maintenance for more efficient operations.
Sewage Suction System
The sewage suction system on this truck is extremely efficient in itself, utilizing a powerful pump and specialized hoses to quickly and effectively suck sewage or waste into the tank. The system is designed to be flexible and can handle a variety of materials, including sludge, sewage, and even certain types of industrial waste. The hoses are made of durable materials that can withstand abrasion and chemical corrosion, ensuring reusability without degradation.
Advantage：
1. The tank body is rolled and formed from 6mm thick high-quality steel plate, which is strong and durable.
2. The tank body is automatically welded by machine
3. Equipped with water circulation vacuum pump, with large suction power and long lift
4. The inside of the sewage suction tank is pickled and an epoxy resin anti-corrosion coating is added to increase the service life of the tank.
5. Detachable transparent observation tube for easy cleaning and replacement
6. Chinese brand high-quality multi-way valve with high precision and stable operation

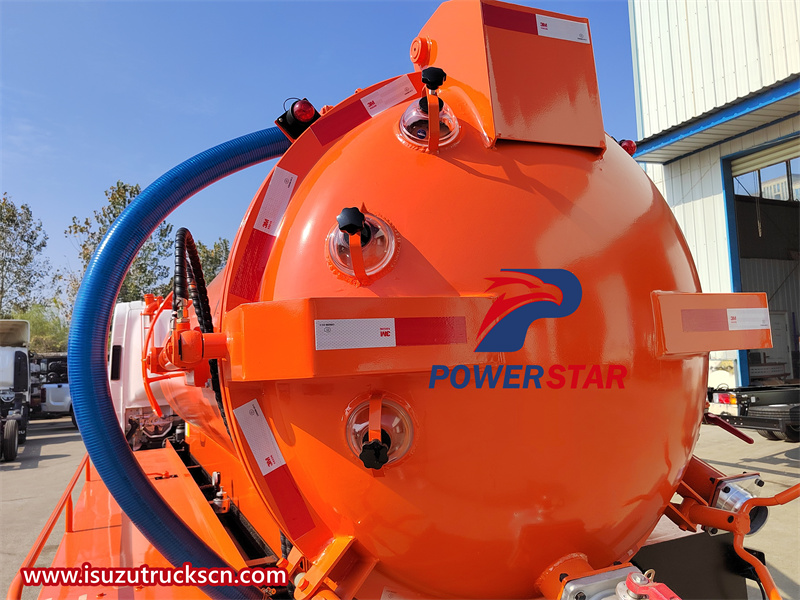

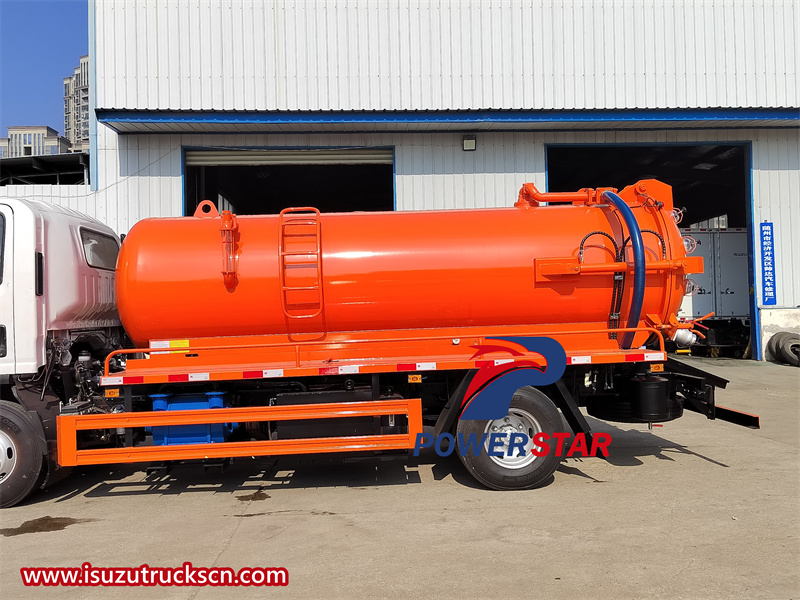

Sewage tank

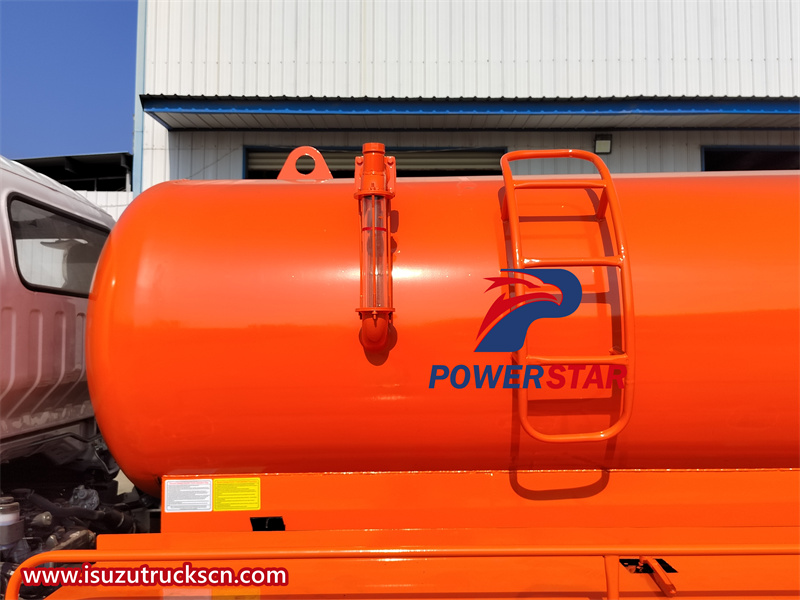

Ladder and view window
Hydraulic cylinder

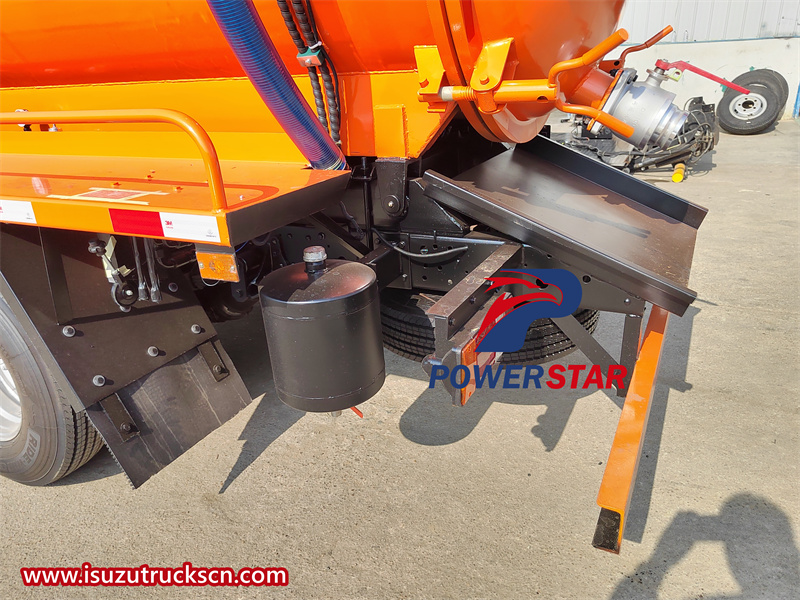

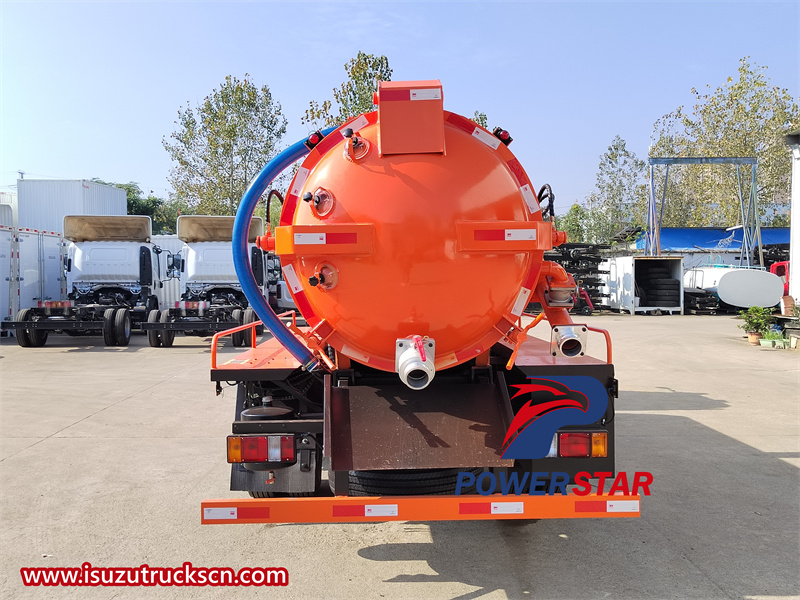

Tailgate
Discharge valve

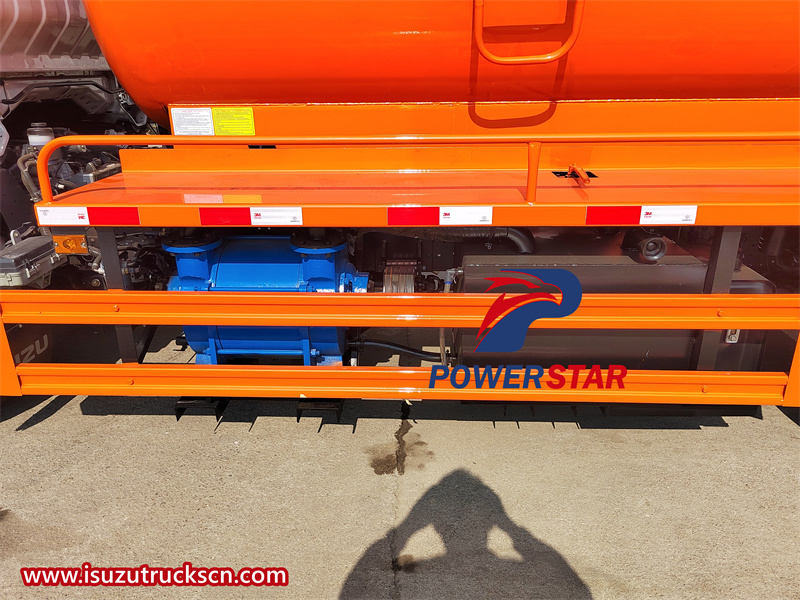

YIFENG water circulation vacuum pump
