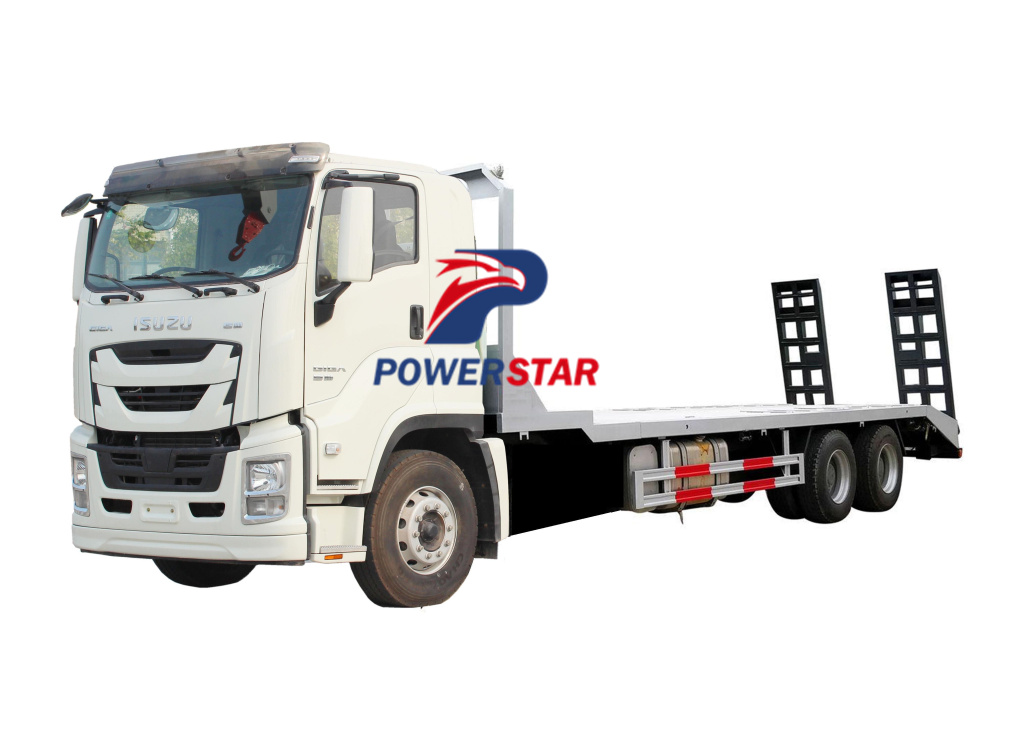

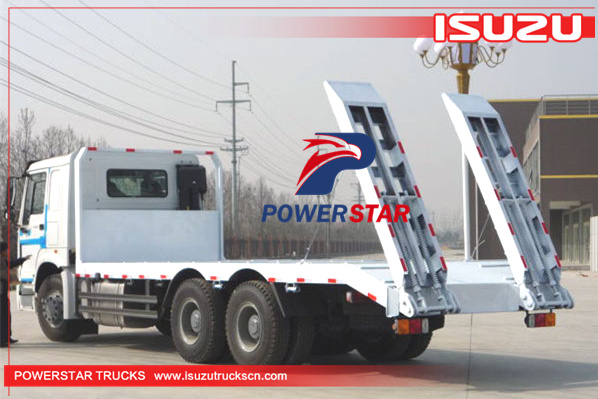

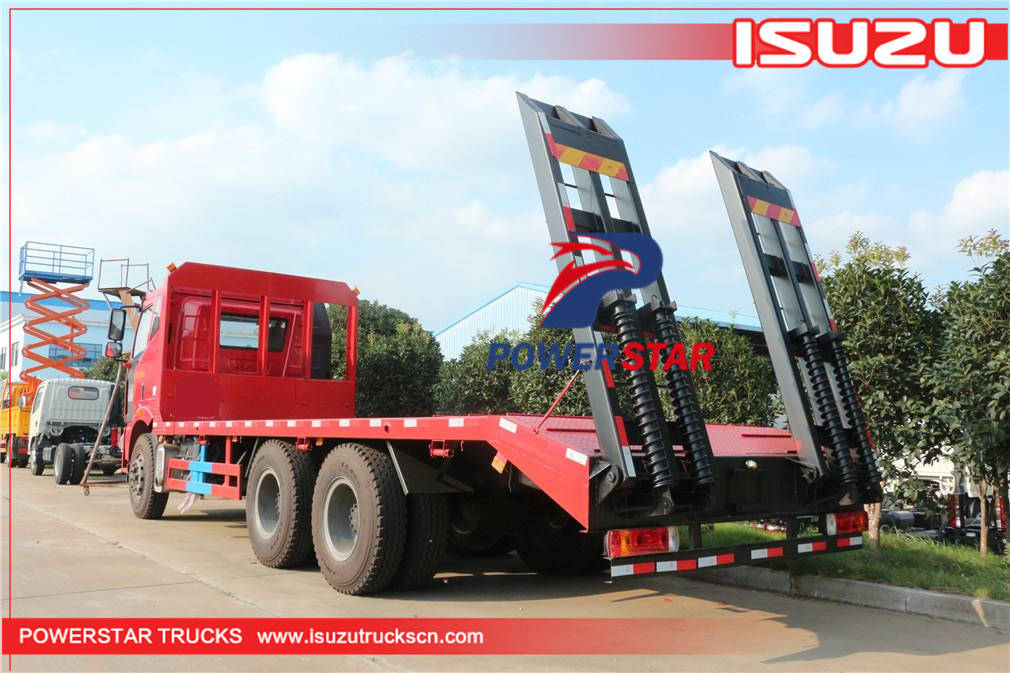

ISUZU GIGA Self Loader Excavator Carrier Flatbed trucks for Machinery
Latest isuzu giga 20 tons 6x4 6 wheels low flat bed excavator carrier flat plate transport truck, Isuzu Excavator transport carriers are specialized vehicles designed to transport excavators and other heavy machinery. The type of carrier used depends on the size and weight of the equipment being transported.
Order(MOQ):
1Work capacity:
25 tonsTruck model:
PT5258TWYEngine power:
350 HPEngine type:
Isuzu 6UZ1Axle drive:
6x4Gear box:
FAST 9-shiftRemarks:
Optional 5~10tons hydraulic winch ISUZU GIGA Self Loader/Excavator Carrier/Flat bed Cargo Truck for sale, Isuzu brand Excavator carrier flatbed trucks are specialized vehicles designed to transport excavators and other heavy machinery. These Isuzu flatbed carrier trucks typically have a flatbed body that can accommodate the size and weight of the machinery being transported. Some features of excavator carrier flatbed trucks include:
1. **Payload Capacity**: Isuzu Excavator carrier flatbed trucks have a payload capacity ranging from 2 to 80 tons.
2. **Easy Operation and Maintenance**: These trucks are designed for easy operation and maintenance.
3. **Various Tipper Body Options**: Various types of tipper bodies are available for excavator carrier flatbed trucks.
4. **Solid Tires**: Some models of excavator carrier flatbed trucks are equipped with high elastic solid tires that can increase the carrying capacity and service life.
5. **Cummins Engine**: Some models of excavator carrier flatbed trucks are equipped with a Cummins engine with a power output of .
6. **Manual Transmission**: Some models of excavator carrier flatbed trucks have a fast 6-speed manual transmission.
Applications:
ISUZU GIGA Excavator Carrier Truck (also called Construction Equipment Carrier, Machine Flatbed Vehicle, Self Loader Flatbed truck, Excavator Transport Truck ) is mainly used to transit constructino machines or engineering machines or agricultural machines like excavator, road roller, harvestor, etc; isuzu self loading truck can also transport broken cars or un-registered vehicles on road; self loading truck can also transport bulk goods
Key Features:
---- ISUZU heavy duty chassis, perfect performance
---- ISUZU 6UZ1-TCG51 engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 2ton to 80 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.
Specifications:
|
Japan ISUZU 6X4 GIGA Excavator Transport truck (20-30 tons) |
||
|
General |
Vehicle Brand |
POWERSTAR |
|
Chassis Brand |
ISUZU GIGA |
|
|
Overall Dimension |
9800 * 2500 * 3100 mm |
|
|
GVW / Kerb Weight |
31,000kg / 11,500kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU 6UZ1-TCG51 |
|
|
Power |
350 HP (258 KW) |
|
|
Displacement |
9836 ml |
|
|
Emission Standard |
Euro 5 |
|
|
Chassis |
Drive Type |
6X4, (left hand drive) |
|
Transmission |
12- speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
4650+1350 mm / 3 |
|
|
Tire Specification |
11.00-20 |
|
|
Tire Number |
10 tires and 1 spare tire |
|
|
Max Speed |
95 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Pay loading capacity |
20Tons~30Tons |
|
Platform Size |
6500*2500 mm |
|
|
Thickness of Platform |
Bottom 6mm |
|
|
Climbing Ladder |
2 pcs |
|
|
Square Steel Tube |
120x120 mm |
|
|
Square Tube Spacing |
350 mm |
|
|
Color & LOGO |
Accroding to wish |
|
|
All standard accessories: Sub frame,pattern plate, two double spring climbing ladders,square steel tube, square tube spacing 350mm, 12# channel steel frame. |
||
|
Optional |
** Back alarm and Camera can be equipped.
** Hydraulic lifting cylinder for Unloading, Crane. ** Other material and plate thickness can be choose.
|
|
