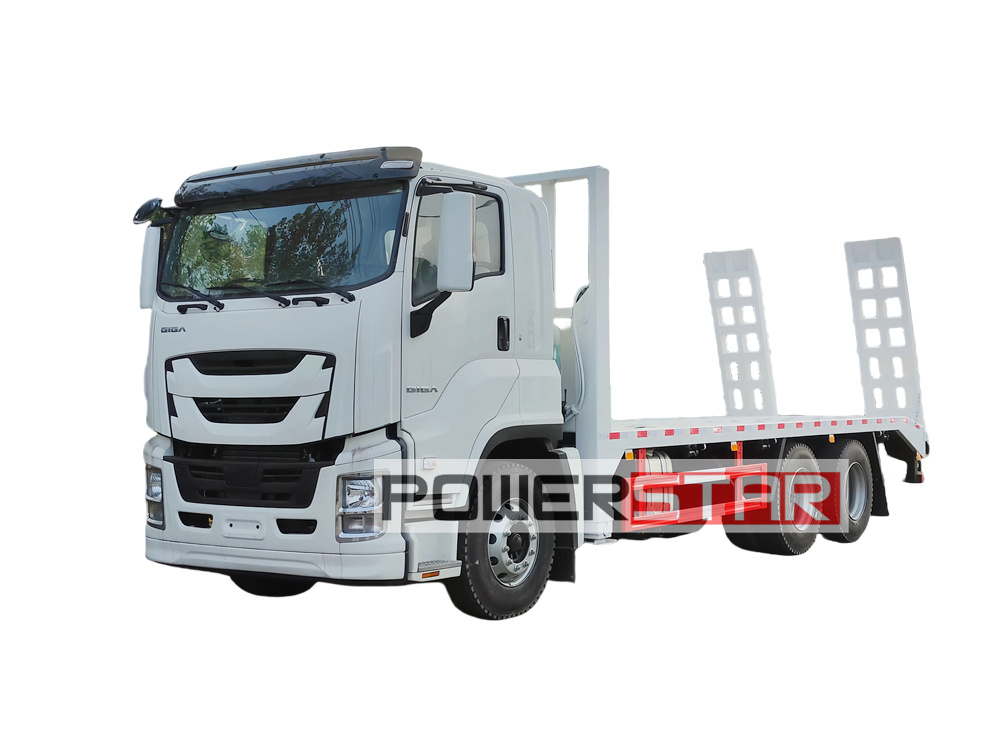

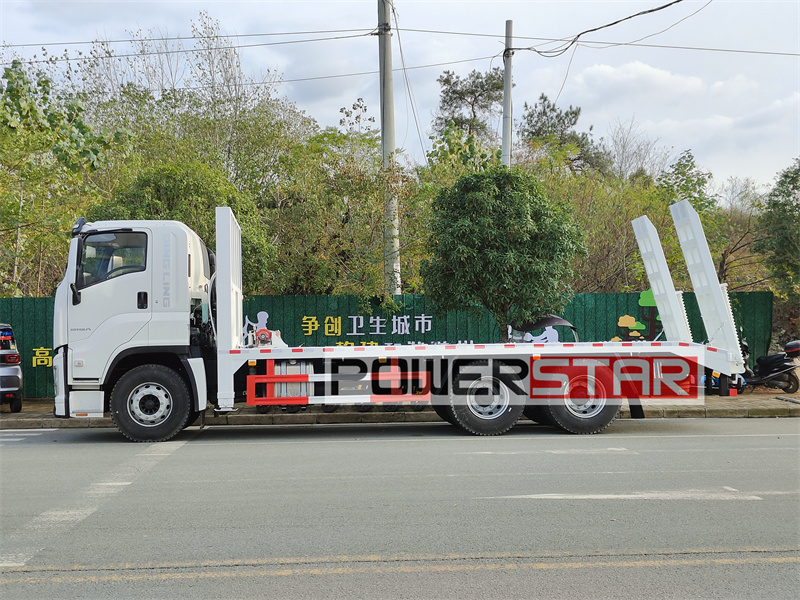

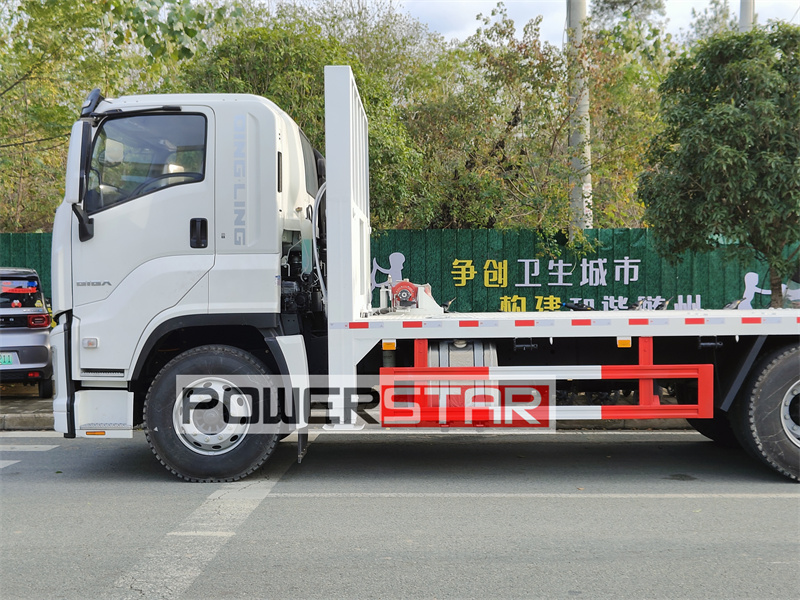

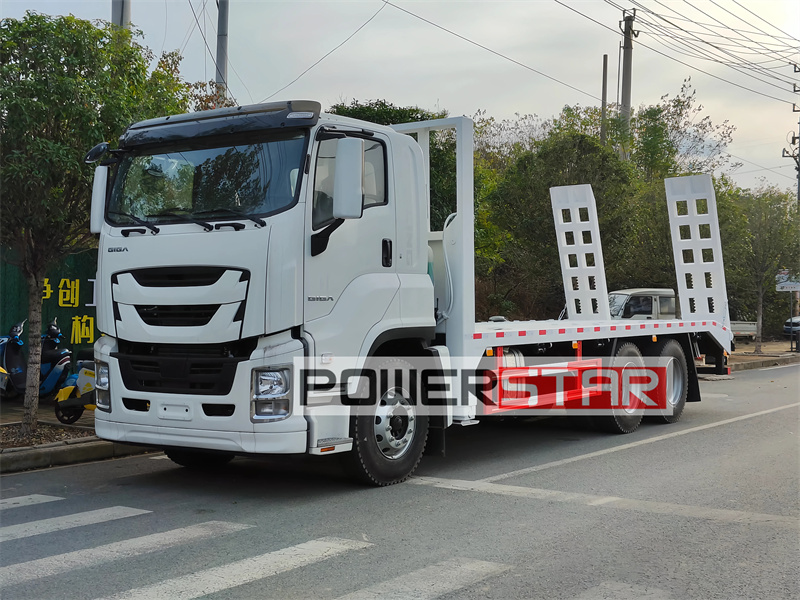

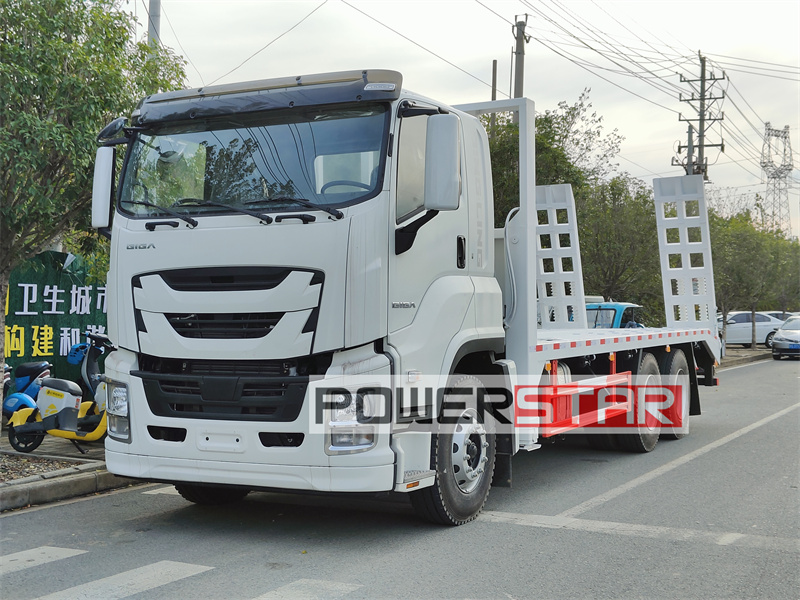

POWERSTAR's Isuzu GIGA 6x4 flatbed truck is modified on the Isuzu GIGA 6x4 chassis, with a wheelbase of 5200+1370mm, equipped with an Isuzu 6WG1-TCG60 420HP engine and a Fast 12-speed gearbox. It has a flatbed of 7800mm long and 2500mm wide, can carry 20tons, a winch is installed on it, and there is a ramp at the rear.
Work capacity:
20TTruck model:
PT5330GXHEngine power:
420 HP/309 KWEngine type:
6WG1-TCG60Axle drive:
6x4,LHDGear box:
FAST 12-speed,manualRemarks:
Large loading capacityIsuzu Giga 20 Ton work ready flatbed truck is a heavy-duty transport vehicle that is professionally modified based on the powerful chassis of Isuzu GIGA 6x4. It adopts 6x4 drive mode, provides strong traction and stability, and can easily cope with various complex road conditions. The flatbed design enables it to carry up to 20 tons of cargo and is widely used in logistics, construction and other fields.
The Isuzu Giga 20 Ton work ready flatbed truck's body is sturdy and durable, ensuring the safety and reliability of cargo transportation. At the same time, the vehicle is flexible to control and comfortable to drive, providing a good working environment for the driver. Whether it is long-distance transportation or short-distance distribution, Isuzu 6x4+20-ton flatbed truck is a trustworthy choice.
Key Features:
★ ISUZU heavy duty chassis, perfect performance
★ ISUZU 6WG1-TCG60 engine, super powerful; reliable performance, no overhaul within 100,000 km.
★ Payloading from 2ton to 80 tons.
★ Easy operation and easy maintenance.
★ Various types of tipper body are available.
|
ISUZU GIGA excavator transport truck |
||
|
General |
Vehicle Brand |
POWERSTAR |
|
Chassis Brand |
Isuzu |
|
|
Overall Dimension |
10100*2550*3100mm |
|
|
GVW / Curb Weight |
33000/11500kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Chassis |
Drive type |
6x4,LHD |
|
Wheelbase/No. of axle |
5200+1370mm/3 |
|
|
Tire Specification |
315/80R22.5 |
|
|
Tire Number |
10 tires and 1 spare tire |
|
|
Max Speed |
95 km/h |
|
|
Transmission |
FAST 12-speed,manual |
|
|
Paint |
Metallic paint |
|
|
Engine |
Fuel Type |
Diesel, Inline 6 cylinder 4 stroke |
|
Engine Brand |
ISUZU |
|
|
Model |
6WG1-TCG60 |
|
|
Power |
420 HP (309 KW) |
|
|
Displacement |
15981 ml |
|
|
Emission Standard |
Euro 6 |
|
|
Rated speed |
1400rpm |
|
|
Maximum torque |
2250N.m |
|
|
Maximum torque speed |
900-1300rpm |
|
|
Flatbed Body |
Length |
7800mm |
|
Width |
2500mm |
|
|
Feature |
The plate width can be telescopic and extended for 3.2 m operated manually. |
|
|
Bottom beam |
120x120x5mm GB square steel |
|
|
Thickness |
8mm checkered plate with antiskid |
|
|
Mechanical ramp |
Type |
mechanical spring |
|
Length |
2200mm |
|
|
Material |
All Steel Ramp |
|
|
Feature |
It adopts heavy load strengthening design, and three reinforcement, double spring reinforcement treatment, with rear outrigger |
|
|

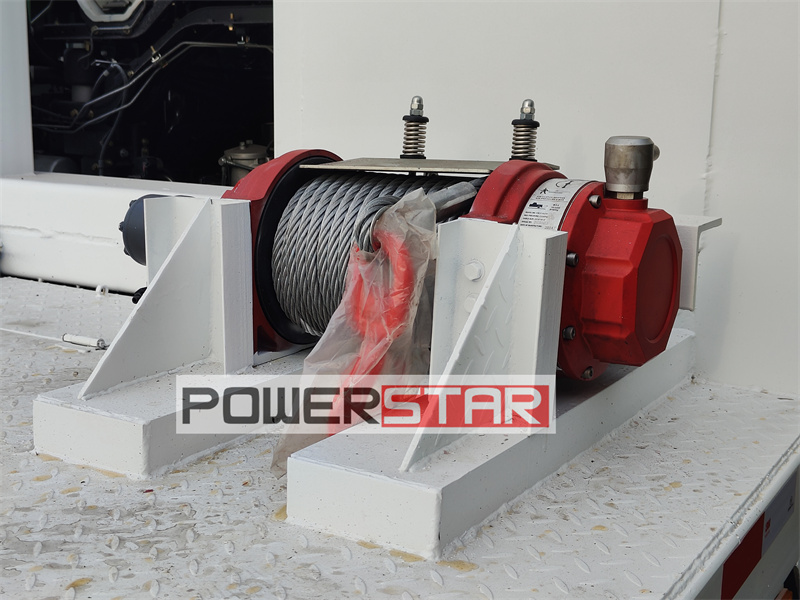

Winch |
Type |
Hydraulic,10ton,45m,18mmthick |
Isuzu GIGA 6x4 flatbed truck, this type of vehicle is usually widely used in factories, construction sites and other large-scale production or engineering sites. Because of its strong load-bearing capacity, it plays an important role in economic development.
1. Chassis and power system
Isuzu GIGA 6x4 flatbed truck adopts a wheelbase configuration of 5200+1370mm, which ensures the stability and good handling of the vehicle. This wheelbase design allows the vehicle to easily cope with complex road conditions and maintain excellent passability.
In terms of power, the vehicle is equipped with Isuzu 6WG1-TCG60 engine, which is a high-performance and high-reliability diesel engine with a maximum horsepower of up to 420HP. With Fast 12-speed gearbox, the vehicle's power output is smoother and the gear shifting is more flexible, which can meet the power requirements under various complex working conditions.

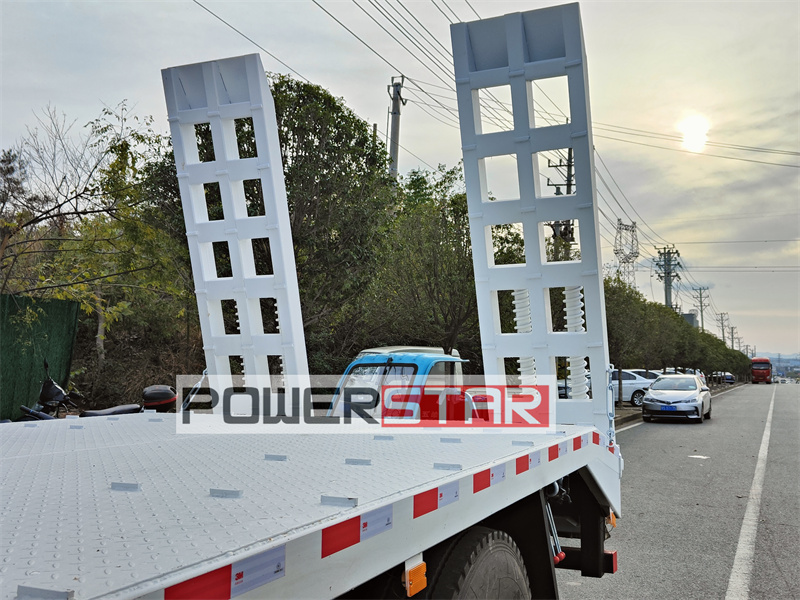

2. Flatbed design
The flatbed design highlight of the flatbed truck is that its width can be manually adjusted. The basic dimensions of the flatbed are 7800mm long and 2500mm standard width, but through the advanced telescopic mechanism, the width can be expanded to a maximum of 3.2 meters, which significantly improves the loading flexibility and cargo adaptability. A sufficiently large platform area can carry a variety of large cargoes, such as machinery and equipment, building materials, etc.
In order to facilitate the loading and unloading and fixing of cargo, a winch is installed on the flatbed, which can easily tow and fix the cargo to ensure safety and stability during transportation. In addition, the material and manufacturing process of the flatbed are carefully selected and strictly controlled to ensure the durability of the flatbed.

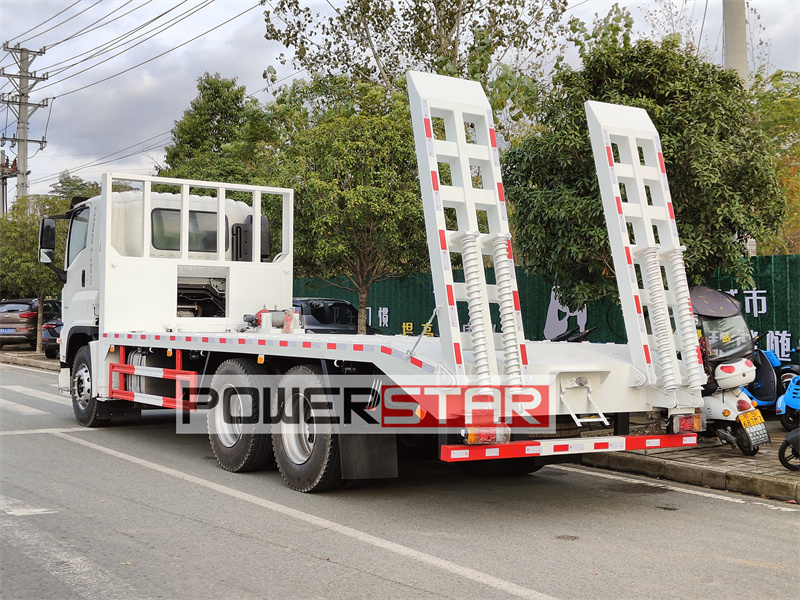

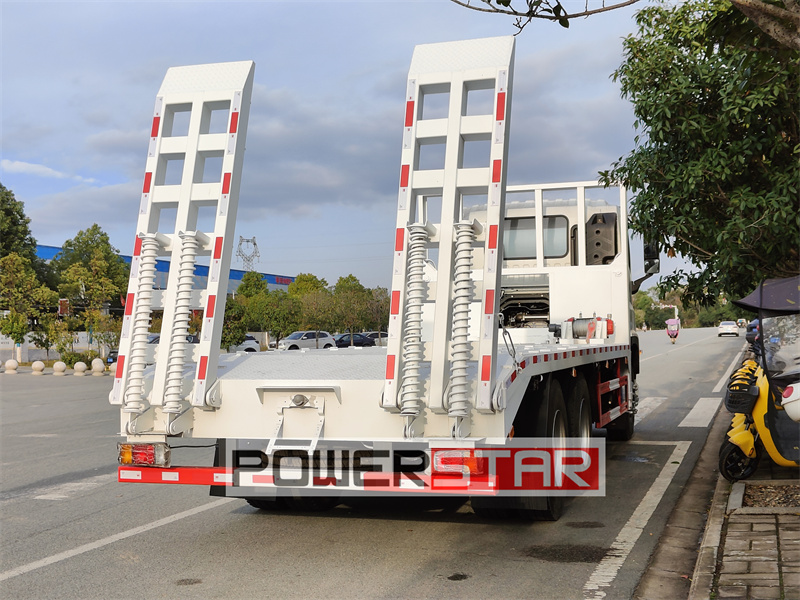

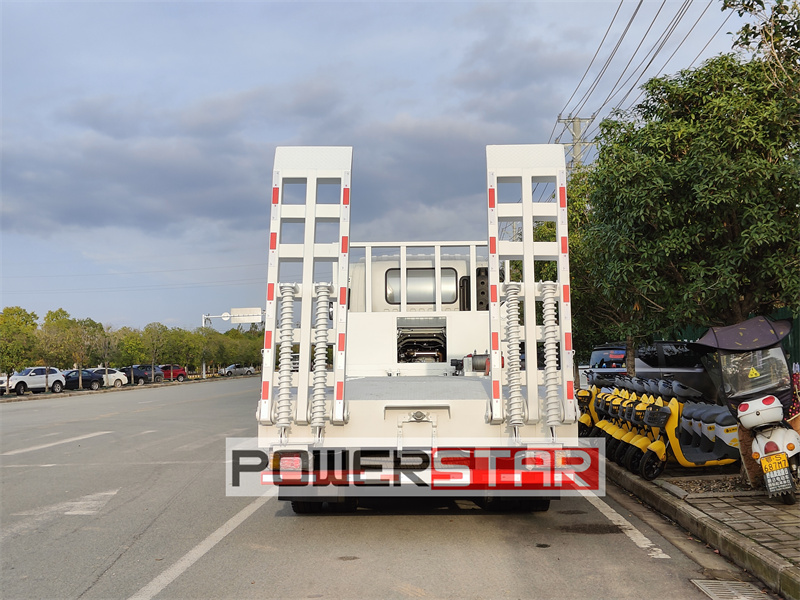

3. Tail design
In the tail design, this truck is equipped with a ramp, which is a device that facilitates the loading and unloading of goods. The design of the ramp not only improves the loading and unloading efficiency, but also reduces the labor intensity of the operator. At the same time, the connection between the ramp and the flatbed is made of high-strength materials to ensure the firmness and safety of the connection.
Truck main features
1. Flatbed mode: chassis, flatbed, power take-off, winch, ladder
2. High power, high lifting height, wide operating range
3. Outriggers: H-shaped outriggers are used, each outrigger can be adjusted independently to adjust the frame level, the outrigger span is large, and the whole machine has good stability
4. The width of the plate can be adjusted manually
