Work capacity:
20 CBMTruck model:
PT5250ZYS21KEngine power:
380 hpEngine type:
6UZ1-TCG61Axle drive:
6x4Gear box:
Fast 12-shiftRemarks:
ISO9001 certify strength steel T420 material side and floor 5mm

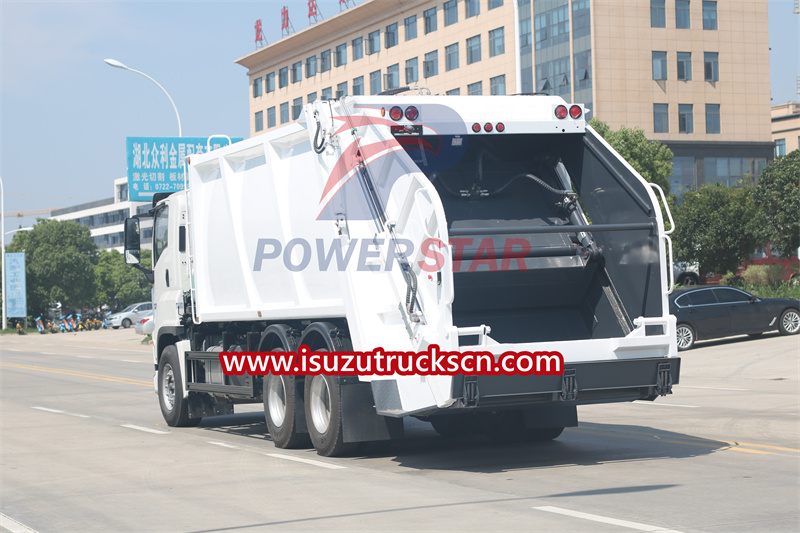

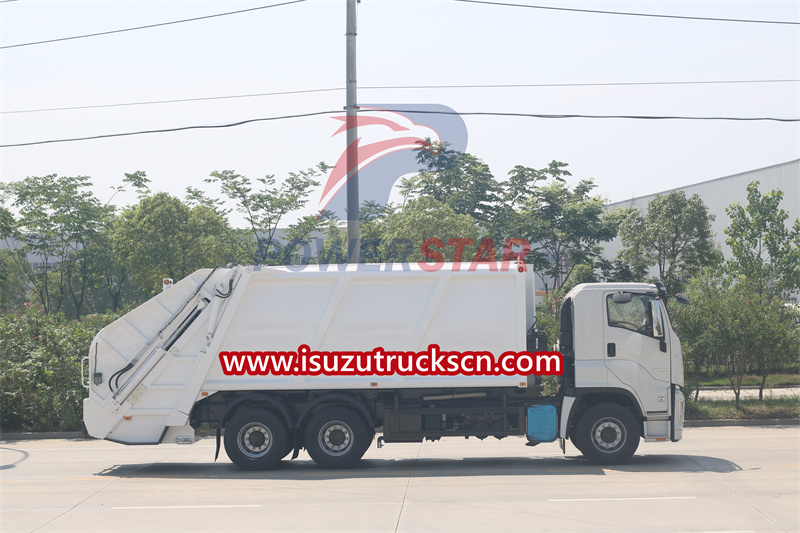

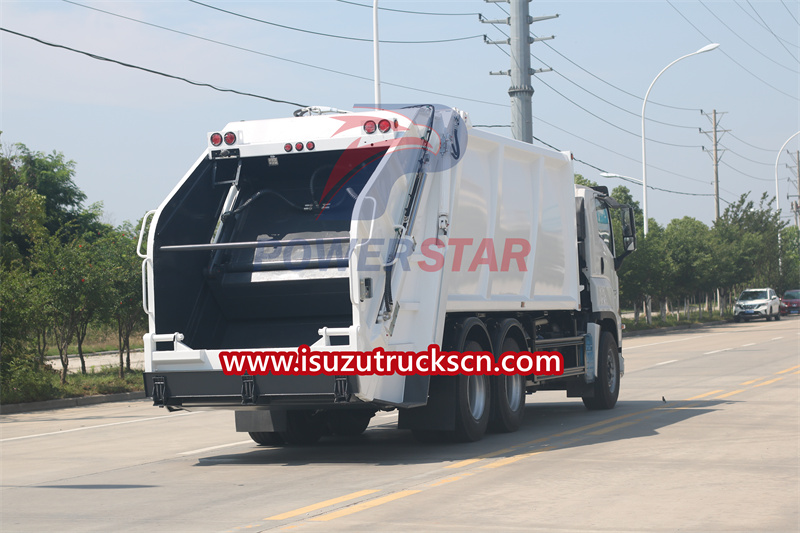

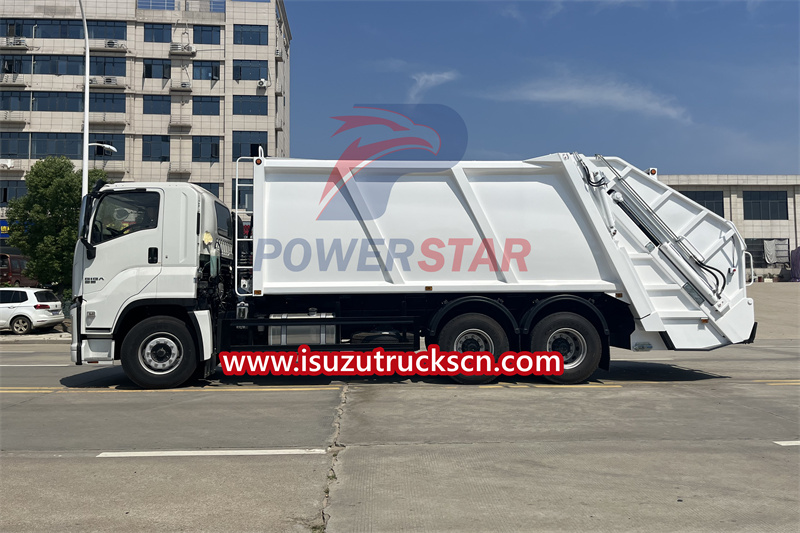

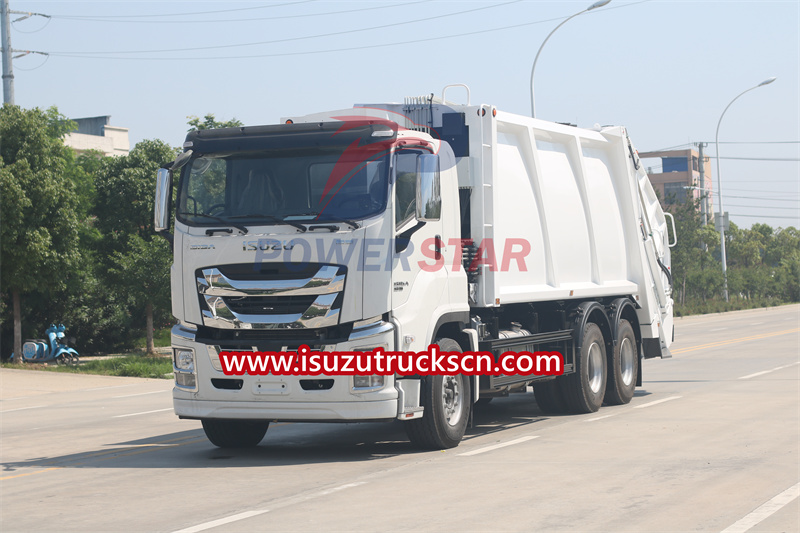

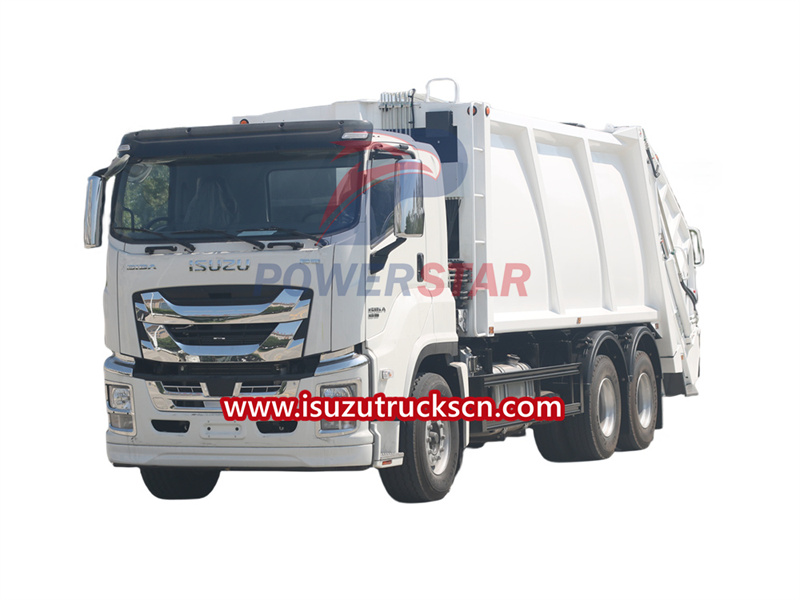

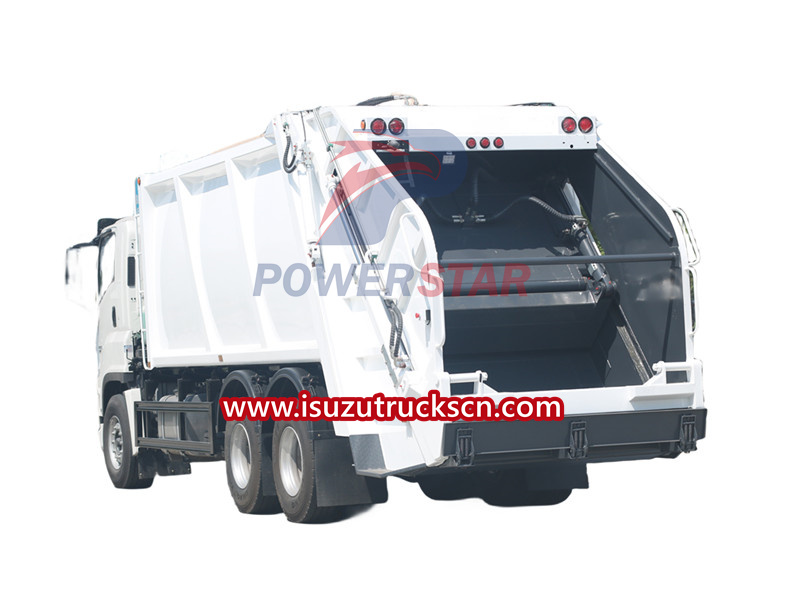

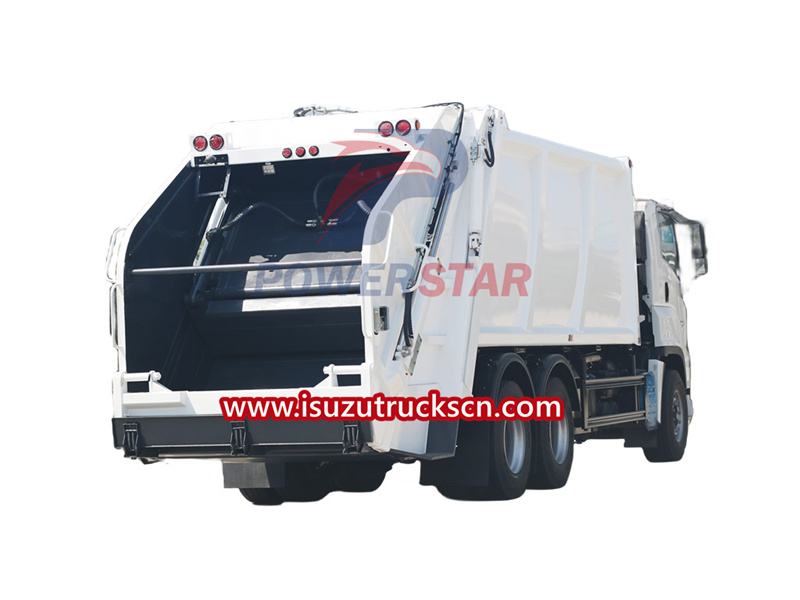

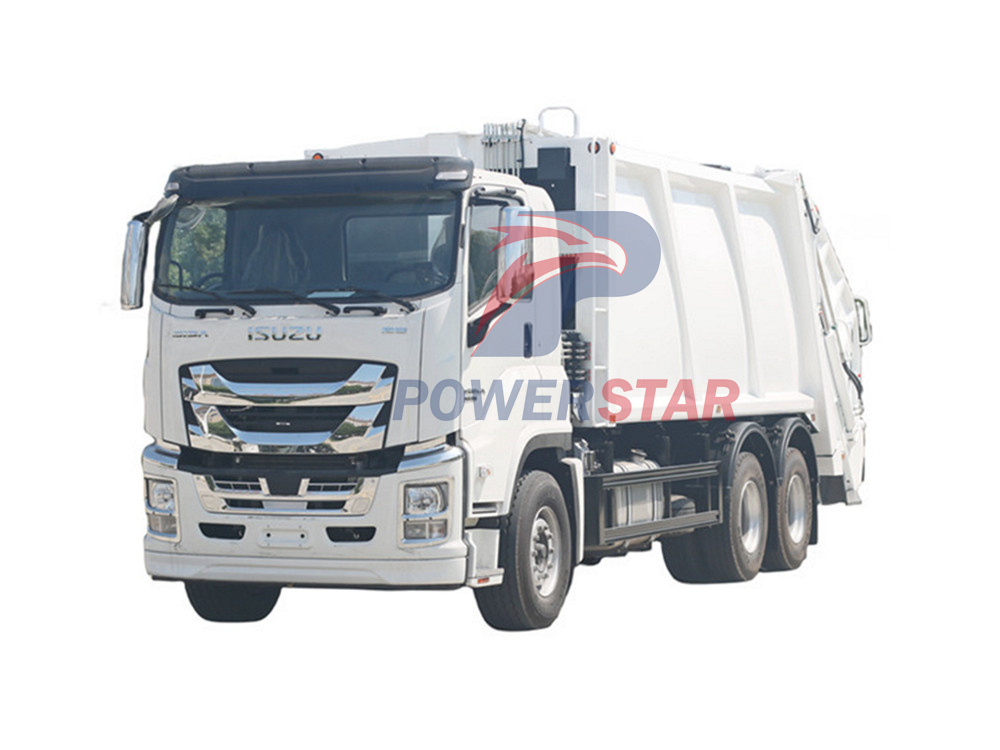

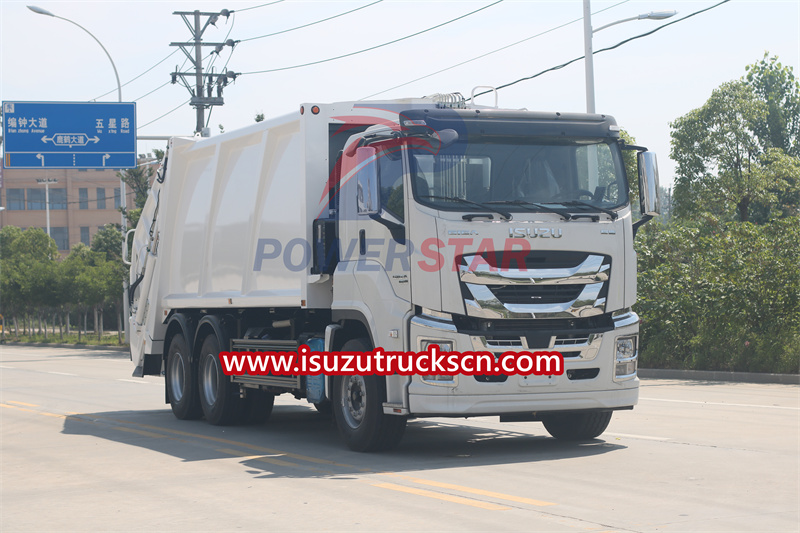

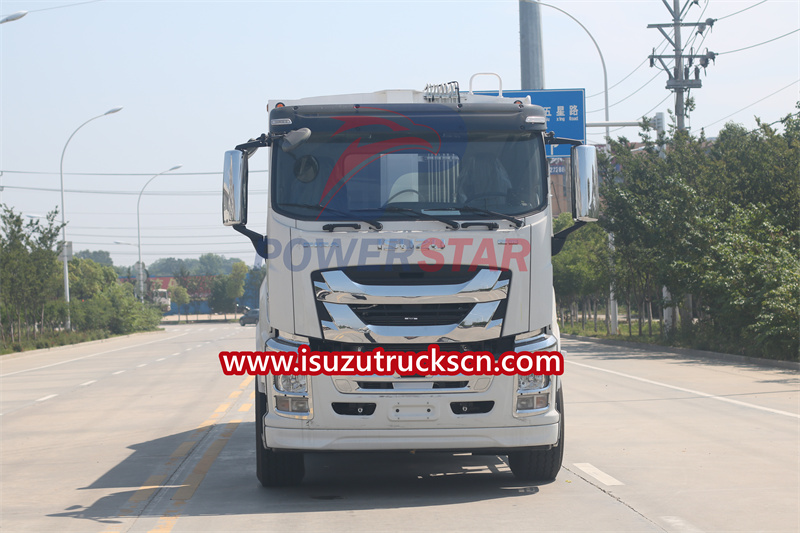

High quality ISUZU GIGA 6x4 LHD 20m3 Municipal garbage collection truck, Isuzu giga compression garbage truck, compactor garbage truck with garbage filler for sales

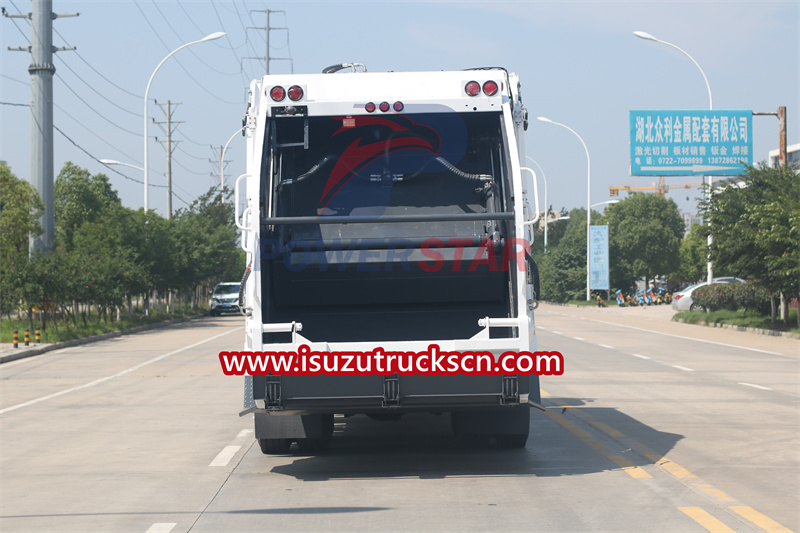

The Isuzu compressed garbage truck is composed of garbage compartment, sewage tank, compactor, filler, scraper, multiple directional value, hydraulic system, operating system, etc. This giga refuse compactor truck can be equipped with an outrigger leg and a swing arm oil cylinder. It is simple to complete the operation of hoisting or unloading. When the vehicle is driving, the outrigger leg is retracted up. The Isuzu rear loader garbage compression truck compresses garbage automatically and repeatedly, increasing the loading capacity of garbage. Compressed garbage trucks have a loading capacity that is 2.5 times that of standard garbage trucks. This ISUZU GIGA COMPACTION GARBAGE TRUCK is our new production with square-shaped chamber compactor box, the loading capacity is 20m3, CAN-BUS Operation system with remote control, and rear tilting device can be used to lift international standard garbage bins.
Products Parameters
|
ISUZU GIGA Compaction Garbage Truck Compactor Upper-Body Specification |
||
|
Tank |
Volume |
20CBM |
|
Material |
High strength steel T420 |
|
|
Thickness (side/bottom) |
5mm/5mm |
|
|
Dirty Tank Volume |
200L |
|
|
Filler Volume |
600L |
|
|
Filing Time(s) |
8-10s |
|
|
Filling Cycle Time (s) |
50-60s |
|
|
Discharge Type |
Flat-pushing and Dumping |
|
|
Dumping Time |
30-40s |
|
|
Hydraulic Pressure |
16Mpa |
|
|
Controlling Way |
Manually and electrical control |
|
|
Hydraulic Pump |
Double pump |
|
|
Isuzu GIGA Waste Compactor Truck Specification |
||
|
General |
Model |
PT5250ZYS21K |
|
Chassis Brand |
ISUZU GIGA |
|
|
Wheelbase |
4600+1370 |
|
|
Overall Dimension |
Appro. 11000*2600*3800 (mm) |
|
|
Max Axles Payload |
Appro. 25000 (kg) |
|
|
Truck Tare Weight (kg) |
Appro. 13500 (kg) |
|
|
Garbage Container Capacity |
Appro. 20CBM |
|
|
Drive Type |
6x4, Left Hand Drive with power assisted steering |
|
|
Drive Speed |
≥100Km/h |
|
|
Cab |
Type |
One and a half row cab, forward control type, all welded steel cab of tilt type, rear mechanical cab suspension, adjustable driver seat |
|
No of Seats |
2 persons and a sleeper bed, with safety belts |
|
|
Number of Doors |
2 |
|
|
Air Conditional |
With air conditional |
|
|
Electric System |
24V |
|
|
Audio System |
FM/AM radio, CD/USB player |
|
|
Engine |
Brand |
ISUZU |
|
Model |
6UZ1-TCG61 |
|
|
Fuel Type |
Diesel Fuel |
|
|
Emission Standard |
Europe 6 |
|
|
Type |
Water-cooled four-stroke, direct injection, turbocharged & intercooled, High pressure common rail fuel system, cold start. |
|
|
Nos of Cylinder |
6 |
|
|
Cylinders Arrangement |
In-line |
|
|
Max Output Power |
279 (kw) |
|
|
Exhaust |
9839 (ml) |
|
|
Max output power/rated speed |
380/2000 (hp/rpm ) |
|
|
Max torque/rotate speed |
1800/1400 (N.m/rpm) |
|
|
Compression Ratio |
17:01 |
|
|
Bore x Stroke |
120*145mm |
|
|
Fuel System |
Fuel Tank Capacity |
400Ltr |
|
Material |
Steel fuel tank |
|
|
Filler Cap |
Lockable |
|
|
Fuel Gauge |
Pointer dial type |
|
|
Fuel Filter |
With water separator device |
|
|
Gear Box |
Model |
FAST 12-shift |
|
Type |
Manual |
|
|
Forward Speeds |
12 |
|
|
Rear Speeds |
2 |
|
|
Clutch |
Type |
Single-plate dry diaphragm spring clutch |
|
Bridge |
NOs of Axle |
3 |
|
Front Alex |
7.5 Tons |
|
|
Rear axle load-bearing (kg) |
13 Tons * 2 |
|
|
Electric System |
Voltage |
24V |
|
Braking System |
Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles, exhaust brake |
|
|
Tire |
Type |
315/80R22.5 |
|
Nos |
Total 11 pieces, including one spare tire |
|
Brand new ISUZU GIGA garbage compactor truck (garbage compacting truck, rear loader compactor truck, Isuzu Garbage Compactor Truck) is mainly used for municipal sanitation and large factories and mines to transport all kinds of garbage. The garbage in the truck hopper will be compressed, crushed to make its density increased and the volume reduced, which greatly improves the efficiency of garbage collection and transportation. The upper part of Isuzu giga compaction garbage truck is composed of a sealed garbage container, filling device, push shovel, hydraulic transmission system and an electrical control system. The whole truck is fully closed, using electric-hydraulic integration technology. The sewage in the process of compression all enters the dirty water collecting tank, which solves the problem of secondary pollution in the process of garbage transportation, which can efficiently avoid second pollution during delivery.
Main parts for ISUZU GIGA rear loader truck compactor as below:
(1) Compacting System: Include collecting panel and pressing panel, all made of high strength steel for longer service life.
(2) Loading System: Rear lifting device can be 100% customized, which can be lifting international bins 240L, 660L and 1100L, also can be mounted with swing arm for garbage containers.
(3) Sewage Container: Standard 2 sets containers for waste water collection, volume can be 200L+200L, avoid second pollution during delivery.
(4) Control System: CAN-BUS electric control and Hydraulic control multiple working, which guarantee your compactor truck working normally.
(5) Painting and Logos: All Isuzu garbage compactor trucks from POWERSTAR can have the truck painting and logos 100% as wish.
The heavy-duty of the ISUZU Giga rear loading compression truck is a compaction garbage truck specially designed for high capacity garbage disposal. The value and significance of the truck lies in its high load-carrying capacity, efficient garbage compression function, improved environmental hygiene, reliability and durability. The Isuzu giga garbage truck helps meet large-scale waste disposal needs, improves urban environmental quality, and contributes to sustainable development.
High load capacity: The heavy-duty version of the ISUZU Giga rear loader garbage truck has a strong load capacity and can carry a large amount of garbage. It is used for waste disposal in commercial and urban environments, and can effectively cope with the needs of large quantities of waste, improving transportation efficiency and cost-effectiveness.
Efficient garbage compression function: The Isuzu refuse compactor truck is equipped with advanced garbage compression technology that can quickly compress garbage into smaller volumes. The compression of garbage reduces the number of transportation times and emissions, and improves the efficiency of garbage disposal. At the same time, due to effective garbage compression, Isuzu trash compactor trucks with compression ratio 1:4 that can load more garbage, reduce driving distance, and reduce fuel consumption and carbon emissions.
Improve environmental sanitation: The heavy-duty ISUZU Giga truck mounted garbage compressor can effectively handle large amounts of garbage and improve the sanitation of urban environments. Reducing the volume and odor emissions of garbage reduces the risk of environmental pollution and disease transmission, helping to create a cleaner and healthier urban living environment.
Reliability and Durability: The ISUZU Giga truck is known for its high quality and reliability. The ISUZU Giga rear end loader garbage compactor has undergone strict quality control testing to ensure its stability and reliability under long-term use and heavy loads. This reduces maintenance costs and downtime, allowing the vehicle to continue working efficiently.
