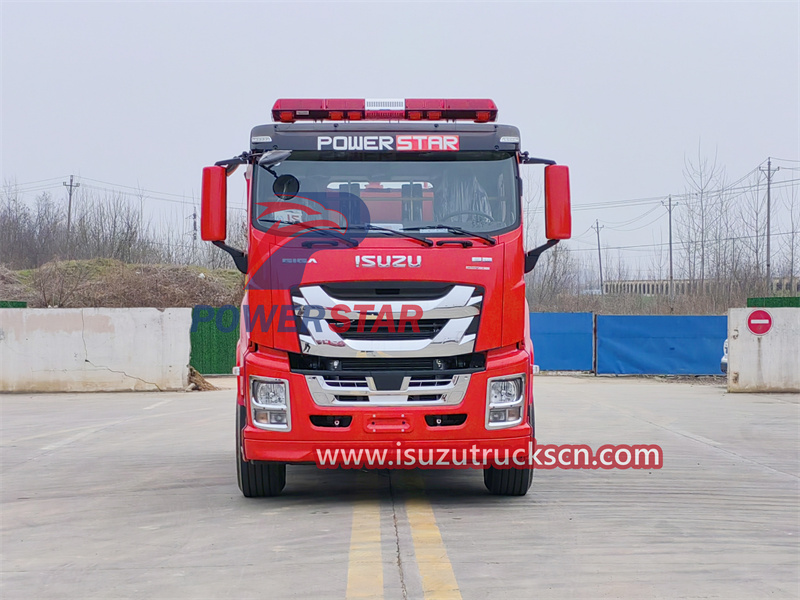

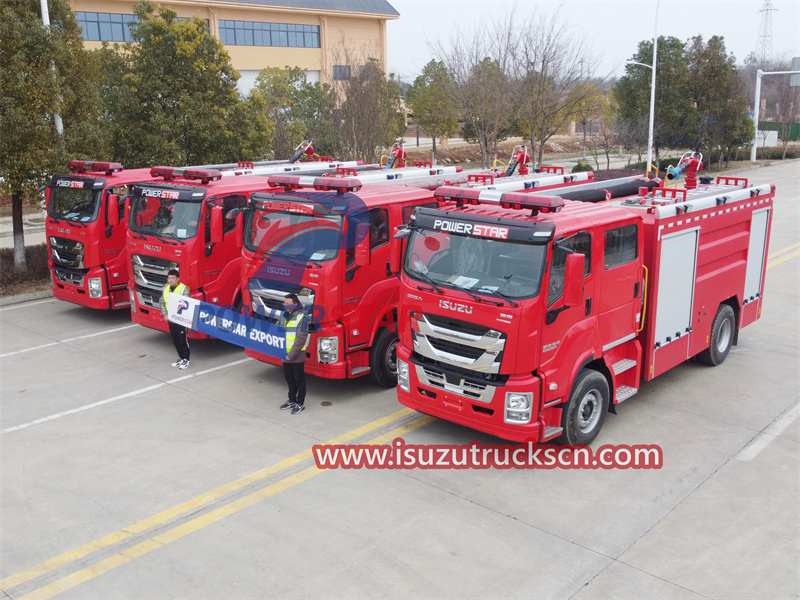

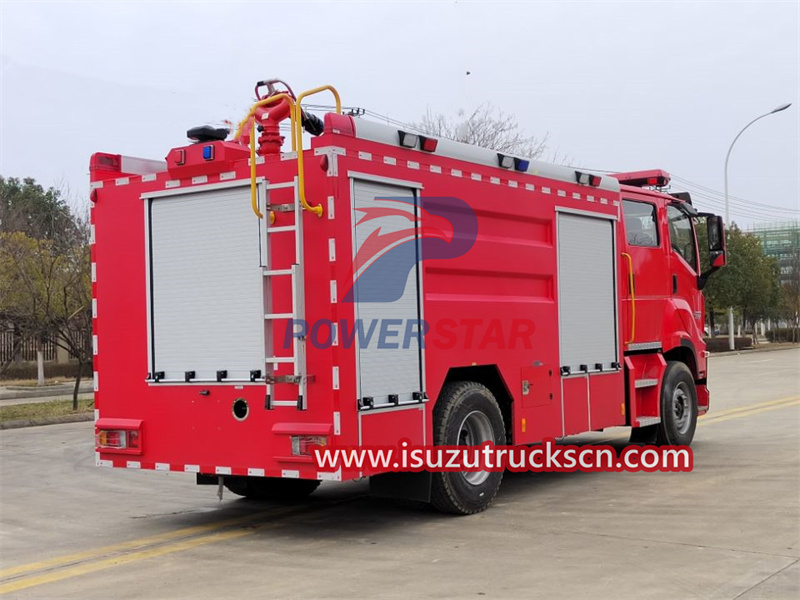

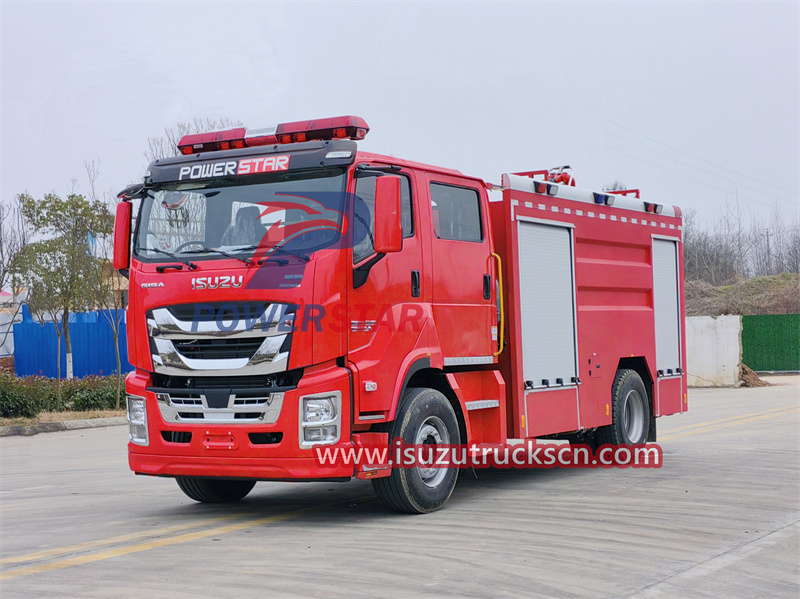

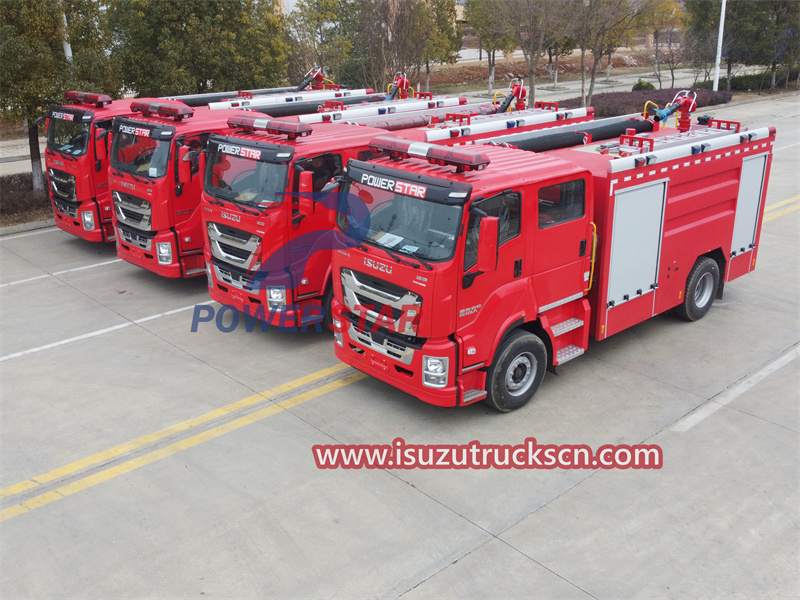

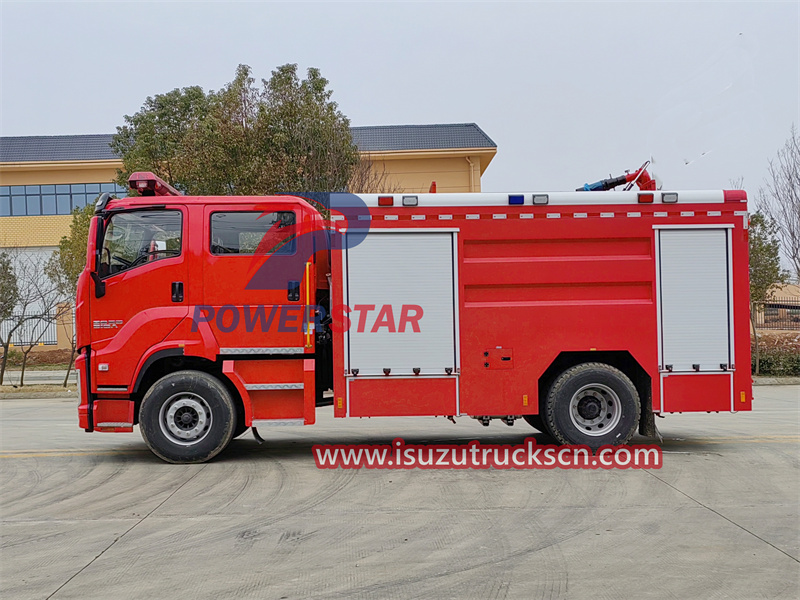

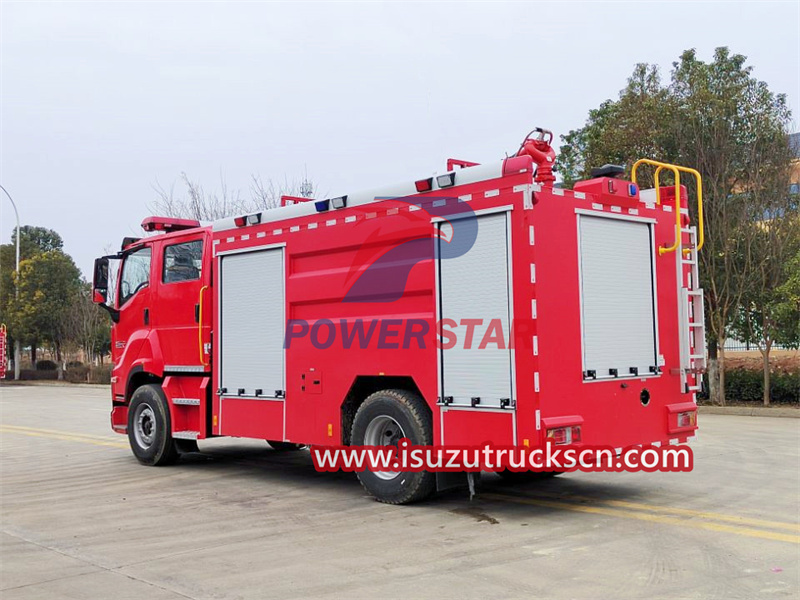

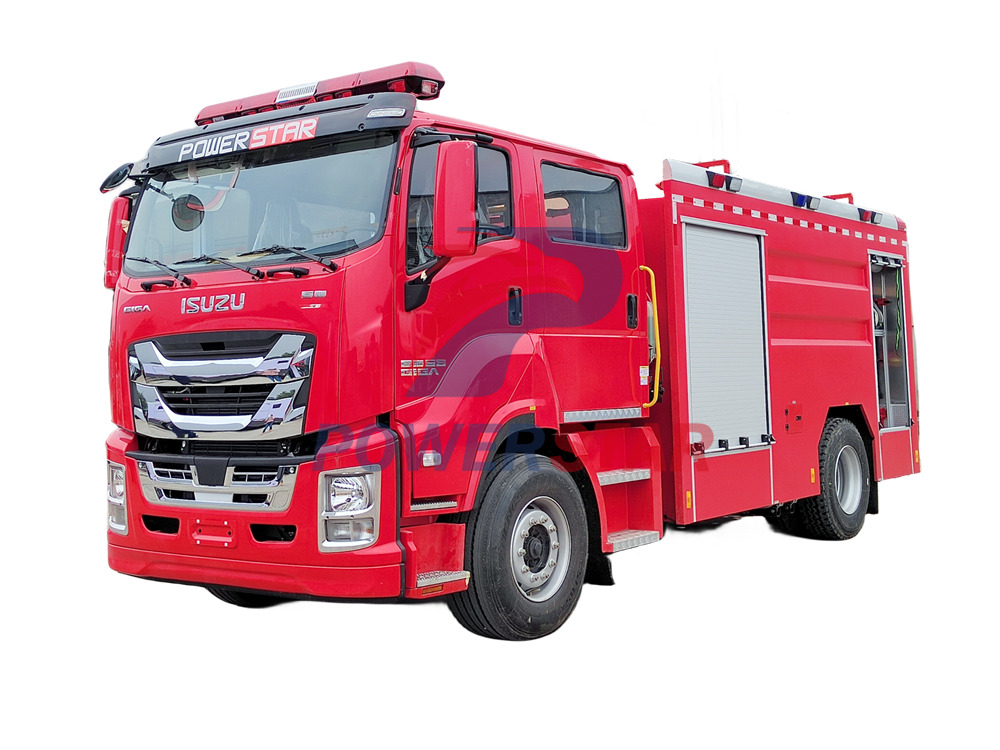

The Isuzu GIGA 8000L fire fighting truck stands out for its excellent performance and professional firefighting configuration. It is built on the sturdy Isuzu GIGA chassis and adopts an extended double cab design to provide the driver with a comfortable working environment. It is also equipped with an efficient air-conditioning system and a flexible and adjustable steering wheel. Equipped with 315/80R22.5 16PR tires and a hydraulic steering system with power assist, as well as a FAST 12-speed forward and 2-speed reverse manual transmission, making driving more stable and smooth. The Isuzu GIGA fire water truck is equipped with an ISUZU 6UZ1-TCG61 diesel engine with an output of up to 380 horsepower, providing strong and reliable power support for firefighting operations.
Work capacity:
8000+2000 LitersTruck model:
PT5220GXFPMEngine power:
6UZ1-TCG50Engine type:
380 HPAxle drive:
4×2Gear box:
FAST 12-speedRemarks:

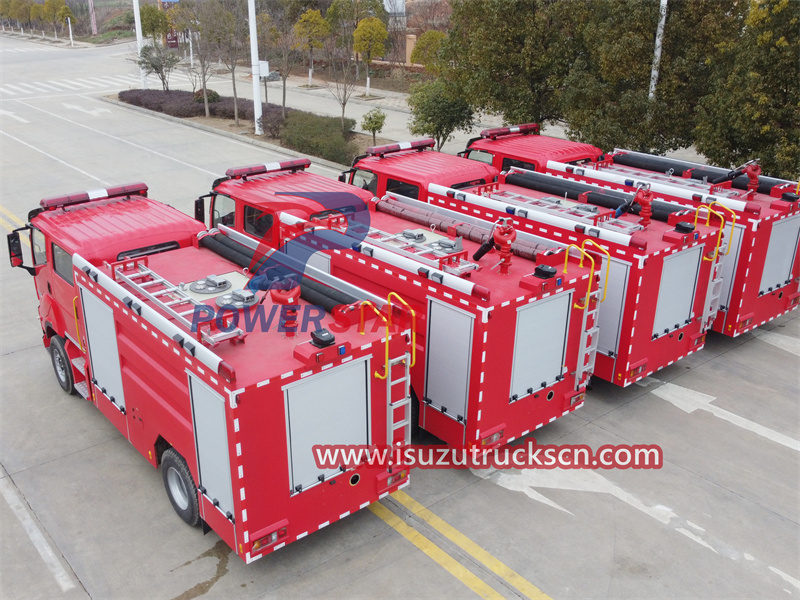

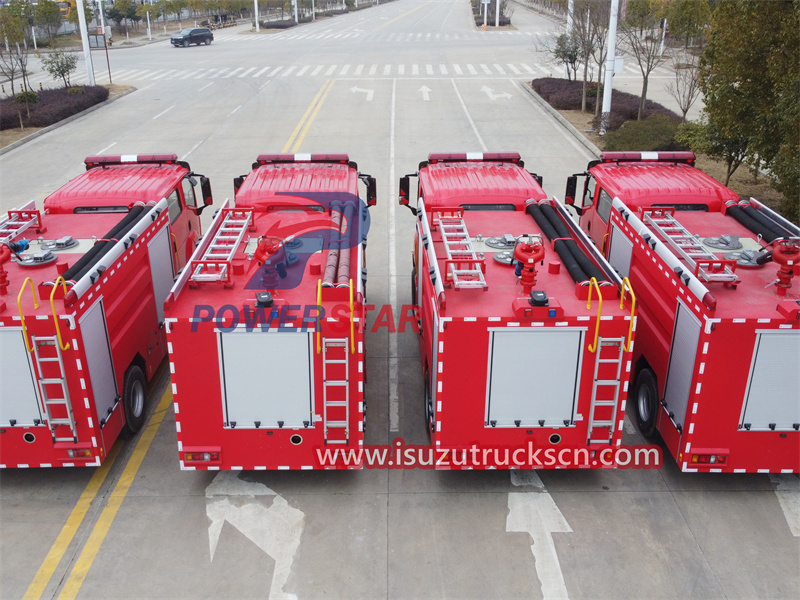

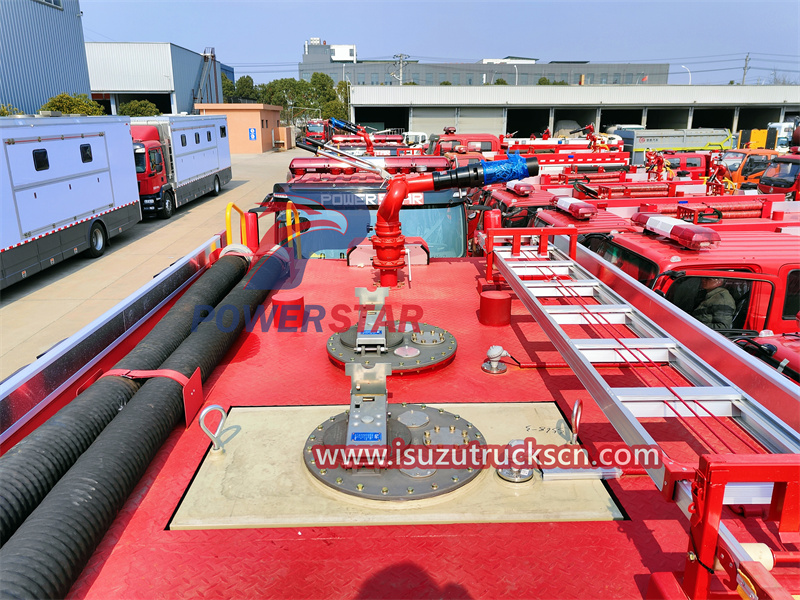

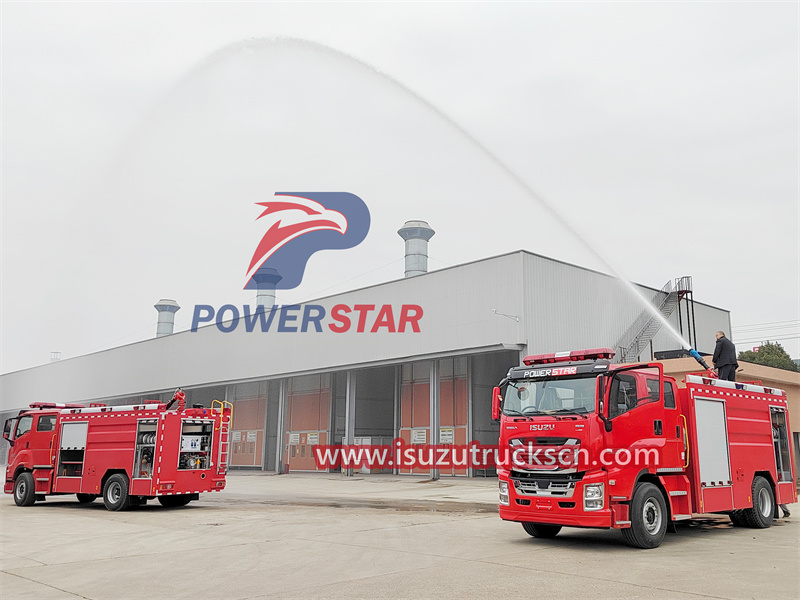

Strong Jet Water CannonsIsuzu GIGA 8000L fire fighting truck is equipped with an 8000-liter water tank and a 2000-liter foam tank, which are made of anti-rust treated carbon steel plates and stainless steel plates respectively, ensuring the durability and corrosion resistance of the tanks. The fire pump is model CB10/60, which has a pressure of 1.0Mpa, a water flow rate of 60L/S and a foam flow rate of 30L/S. The water absorption depth can reach more than 7 meters, and the water absorption time does not exceed 35 seconds. In addition, the Isuzu GIGA fire fighting truck is also equipped with a PL32 fire cannon with a water shooting range of more than 48 meters and a foam shooting range of more than 55 meters. The working pressure does not exceed 1.0Mpa and the horizontal rotation angle is 360 degrees.
This Isuzu GIGA 8000L fire fighting truck not only has powerful power and excellent driving performance, but is also specially designed to handle various fire and emergency rescue tasks. It is equipped with large-capacity water tanks and foam tanks, as well as high-efficiency fire pumps and fire cannons, allowing firefighters to quickly launch fire extinguishing and rescue operations at the first time. Whether it is a complex situation such as urban fire, forest fire or chemical leakage, the Isuzu GIGA fire water truck can provide comprehensive and professional firefighting support to protect people's lives and property to the greatest extent. Therefore, this Isuzu GIGA fire water tank truck is an indispensable and important equipment for the fire department and a key force in ensuring social security and stability.
Specification Data:
|
Fire Truck Specification |
||
|
Chassis model |
Isuzu GIGA |
|
|
Cab |
extended double cab, single berth, up/down and front/back adjustable steering wheel, with air conditioning. |
|
|
Driving Type |
4X2 Left hand driving (LHD) |
|
|
Max Speed (km/h) |
95 |
|
|
Overall dimension (mm) |
8980*2500*3700 |
|
|
GVW (kg) |
22000 |
|
|
Curb Weight (kg) |
8000 |
|
|
Wheelbase (mm) |
4600 |
|
|
Tire |
315/80R22.5 16PR |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
FAST 12 speed forward & 2 reverse manual |
|
|
Bridge |
Front axle |
7500kg |
|
Rear axle |
15000kg |
|
|
Engine
|
Model |
6UZ1-TCG61 |
|
Brand |
ISUZU |
|
|
Emission Standard |
EURO 6 |
|
|
Fuel Type |
Diesel |
|
|
Horsepower (hp) |
380 |
|
|
Exhaust (ml) |
9839 |
|
|
Braking system |
Service Brake |
Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Auxiliary brake |
engine exhaust brake |
|
|
Electric system |
24v |
|
|
Upper-Body Specification |
||
|
Liquid tanker |
Volume |
8,000Liter Water Tank |
|
Material |
Carbon steel plate,anti-rust treatment inside. |
|
|
Volume |
2000 Liter Foam Tank |
|
|
Material |
Stainless steel plate |
|
|

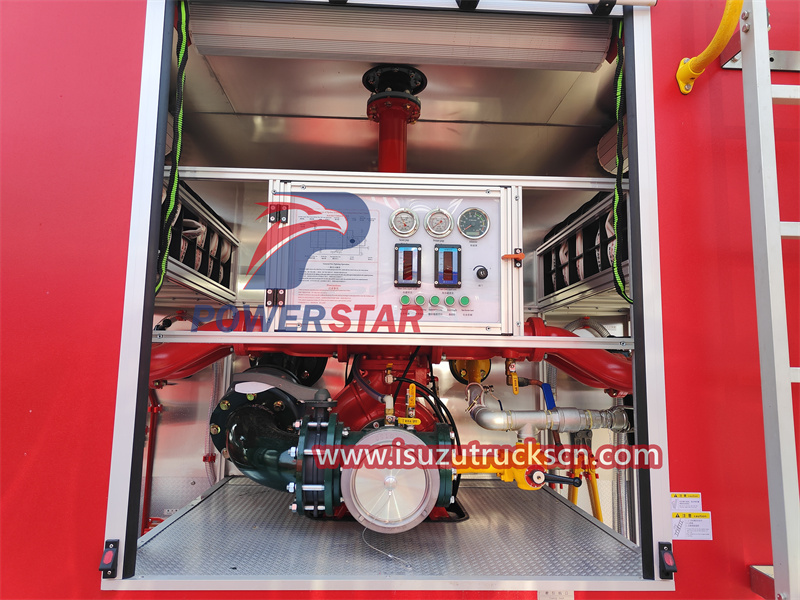

Fire fighting pump |
Model |
CB10/60 |
|
Pressure: |
1.0Mpa |
|
|
Flux: |
Water 60L/S Foam 30L/S |
|
|
Suction depth |
:≥ 7m |
|
|
Suction time |
≤35s |
|
|
Fire fighting nozzle
|
Model: |
PL32 |
|
Range: |
Water ≥ 48m Foam ≥ 55m |
|
|
working pressure |
≤1.0(Mpa) |
|
|
Horizontal rotation angle |
360 º |
|
|
color |
According to customer wish |
|
.
Here are five notable features of this Isuzu GIGA 8000L fire fighting truck:
1. High-efficiency power and environmental protection coexist: Equipped with the ISUZU brand 6UZ1-TCG61 diesel engine, it not only provides strong power of up to 380 horsepower, but also complies with EU 6 emission standards, achieving the perfect combination of power and environmental protection.
2. Excellent driving and controllability: Using a 4X2 left-hand drive layout and a FAST 12-speed forward and 2-speed reverse manual transmission, and equipped with a hydraulic steering assist system, the fire truck can show superiority on urban roads or complex terrains driving and handling performance.
3. Large-capacity and multi-functional firefighting equipment: The large-capacity design of 8000-liter water tank and 2000-liter foam tank, combined with CB10/60 high-efficiency fire pump and PL32 fire cannon, enables the vehicle to respond to various types of fires and achieve rapid firefighting , effective fire fighting and rescue.
4. Advanced safety braking system: It adopts multiple braking systems such as compressed air braking, spring energy storage parking brake and engine exhaust auxiliary braking to ensure safe and reliable parking in various emergency situations.
5. Eye-catching appearance and practical design: The entire vehicle is painted in red frosted fire-fighting paint, which not only complies with fire protection regulations, but is also easy to identify at a fire scene. At the same time, the extended double cab design and comfortable internal configuration provide a good working environment for firefighters and embody the practical and humanized design concepts.
