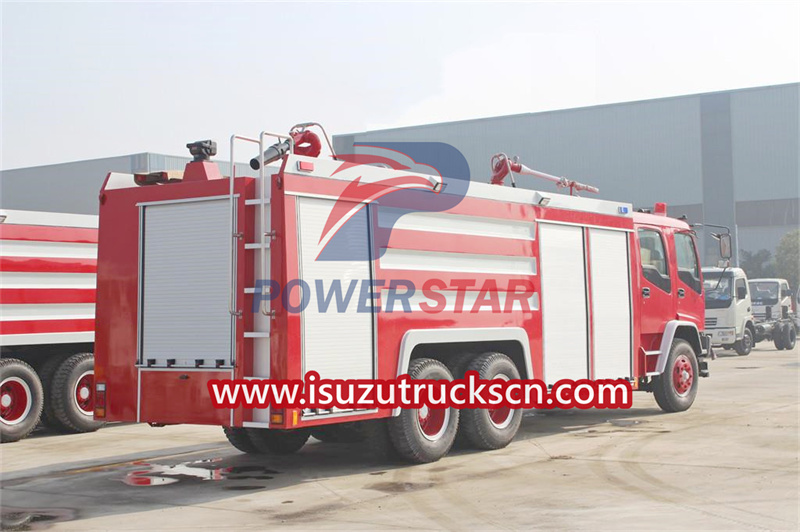

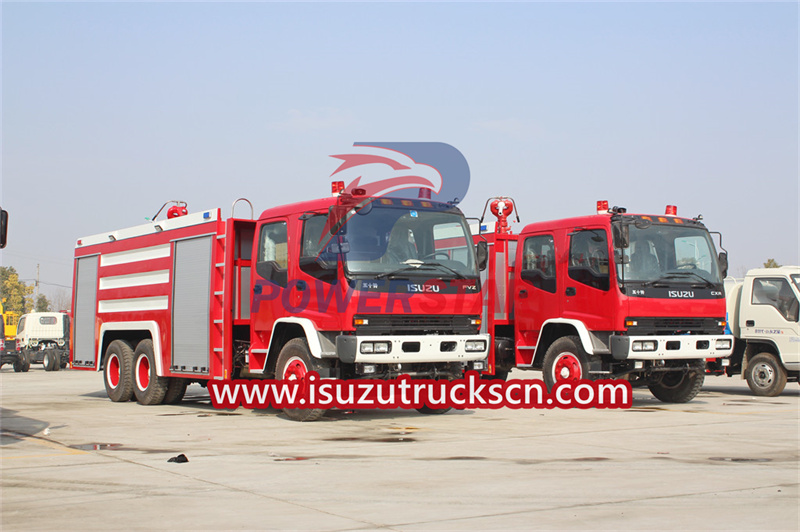

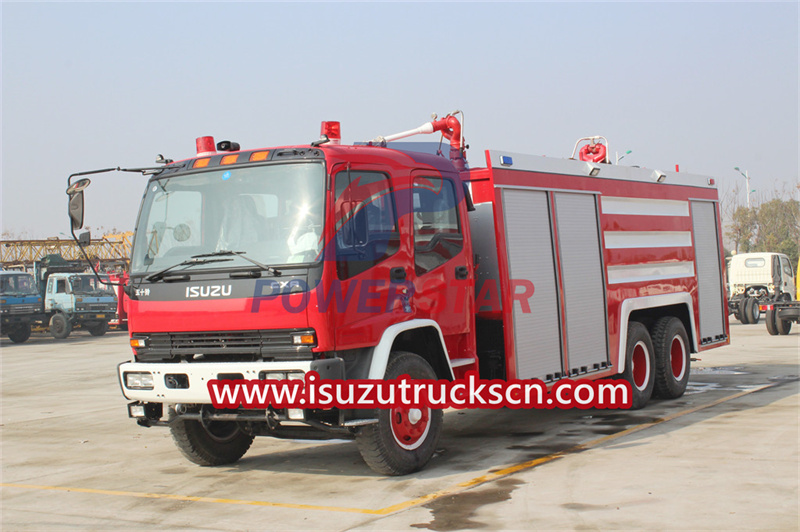

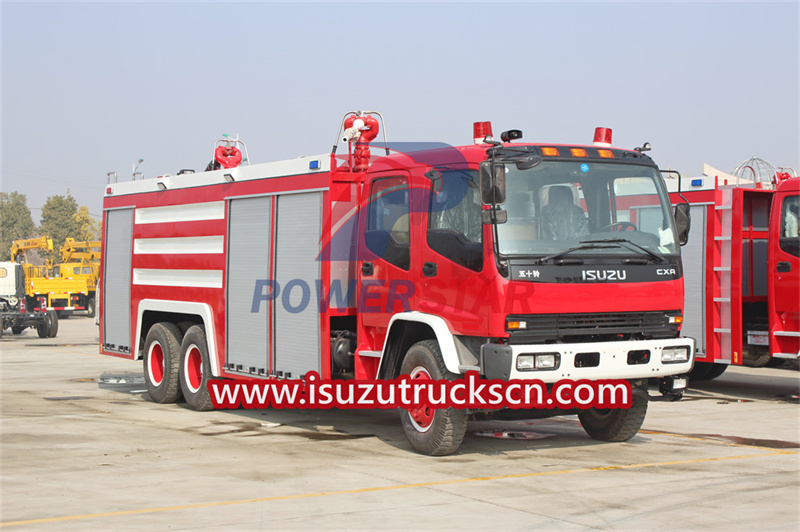

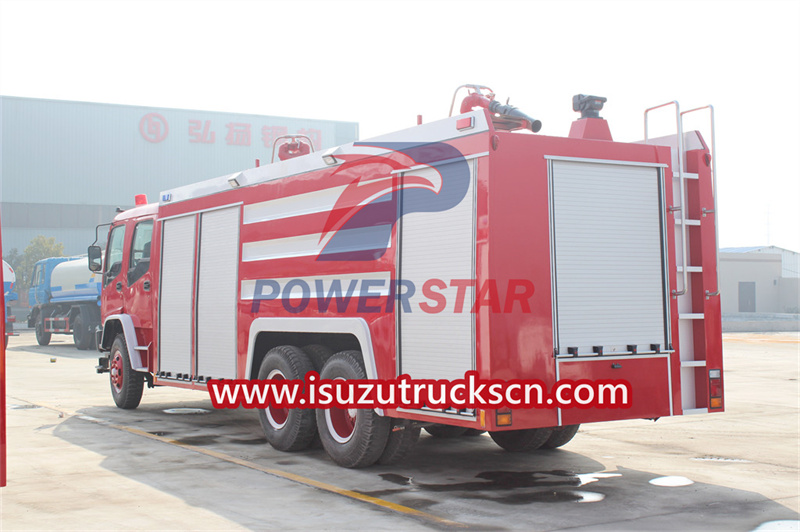

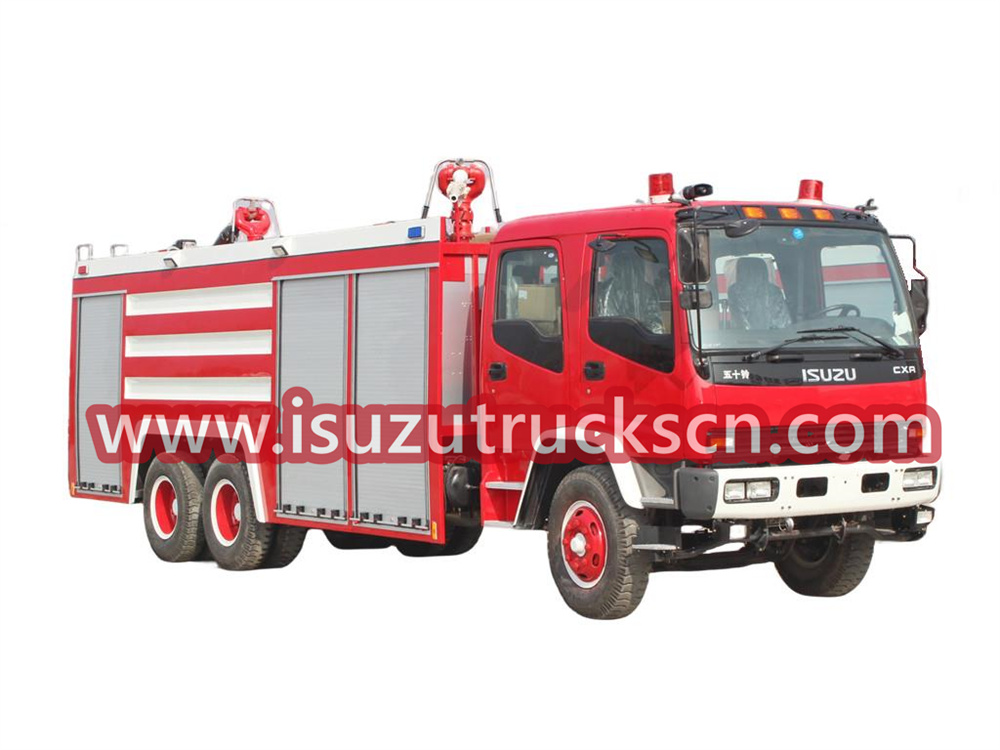

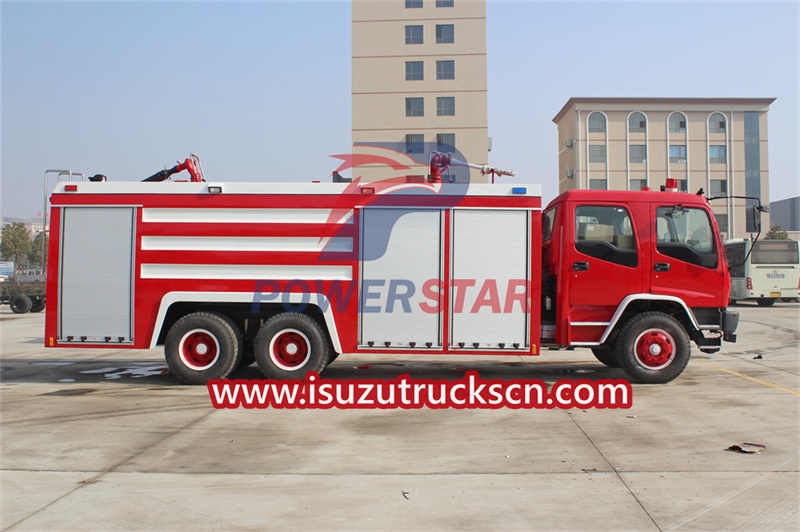

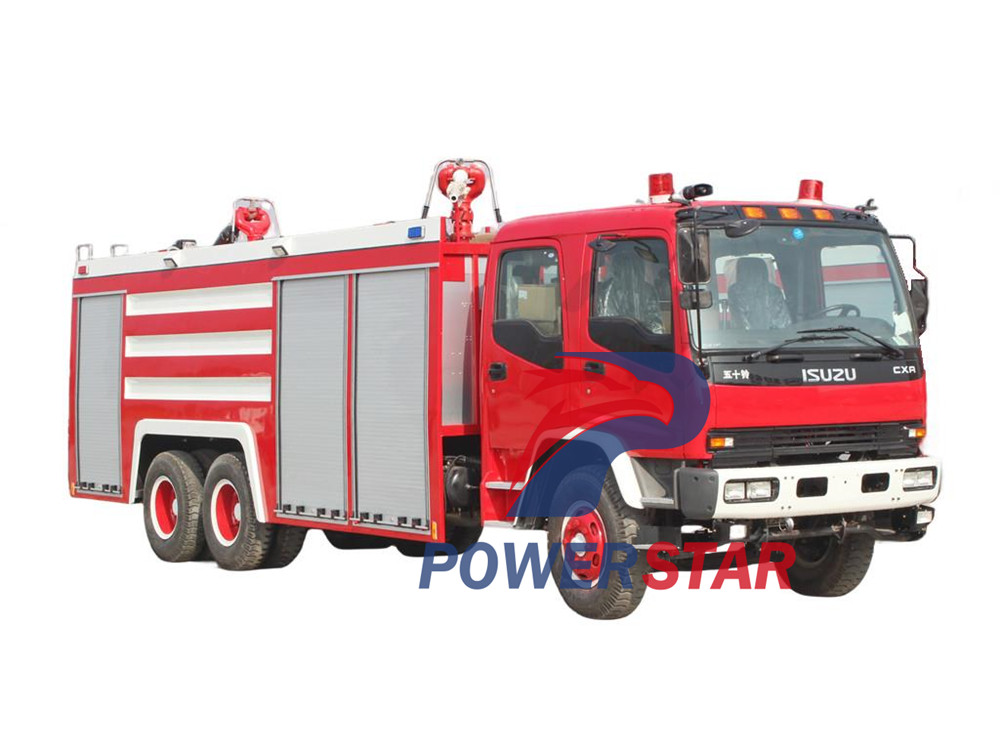

The Isuzu FVZ fire fighting truck demonstrates its efficient response capabilities in the firefighting field with its excellent performance and advanced technical equipment. Equipped with a 6 cubic meter water tank and a 2 cubic meter foam tank, made of stainless steel to ensure stability and durability during fire extinguishing. The Isuzu heavy-duty fire fighting truck uses a 4x2 drive system with a maximum speed of 85km/h and can quickly reach the fire scene in a short time. It is equipped with the Isuzu brand 6HK1-TCH diesel engine, which has a power of 221Kw and a torque of 980N.m, ensuring strong power output.
Work capacity:
8000LTruck model:
PT5120GXFPM52Engine power:
300HPEngine type:
6HK1-TCHAxle drive:
6X4, left hand driveGear box:
Fast 9-speedRemarks:
6x4 drive, 8m3 water capacity, CB10/40 normal pressure pump
Applications:
ISUZU FVZ 8000L Fire Fighting truck (also called ISUZU Fire Tender, ISUZU GIGA fire truck, ISUZU GIGA 6×4 Water fire truck, ISUZU FVZ fire vehicle) is apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance.It carry water tanks, hoses, and nozzles that allow firefighters to spray water or fire suppressants directly onto the flames to control and extinguish them.
Powerstar Trucks can supply water fire truck, foam fire truck, Foam and powder fire vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle, CAFS fire trucks and so on.
All our fire trucks with huge fire equipment and you can put fire-fighting immediately.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine & gearbox, super powerful, no overhaul within 100,000 km.
---- Water tank and Foam tank capacity can be optional.
---- Easy operation and easy maintenance.
---- Various types of fire equipment are available.

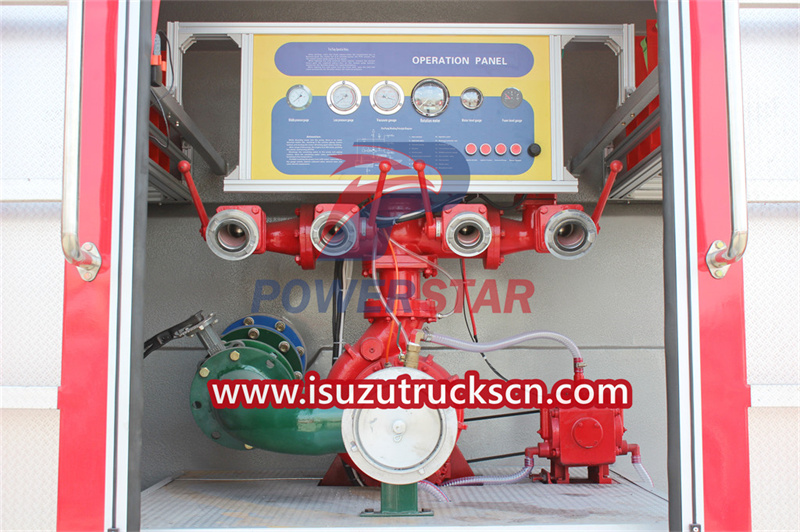

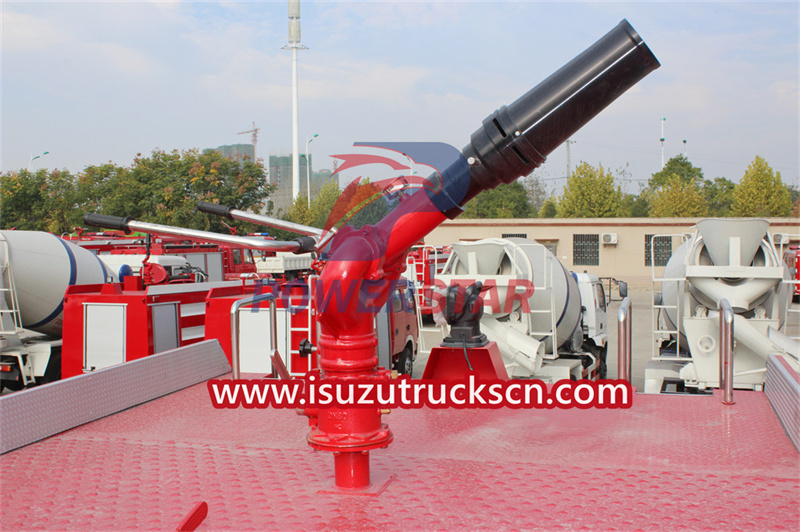

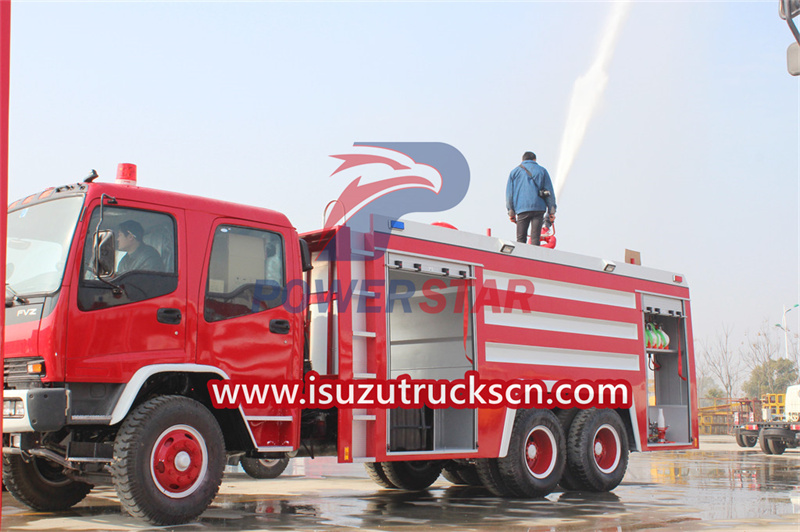

The Isuzu FVZ fire fighting truck is undoubtedly an outstanding representative in the field of fire protection. Isuzu FVZ fire fighting truck’s excellent performance and professional design have won high praise from our professional fire brigade. First of all, its powerful power system, equipped with Isuzu 6HK1-TCH diesel engine, ensures that it can reach the fire scene quickly and stably in emergency situations. In terms of fire extinguishing, the top of the Isuzu heavy-duty fire fighting truck is equipped with a PS 40 water cannon and an optional PP 24 foam cannon. The water cannon has a range of more than 55 meters and the foam cannon has a range of 40 meters. It can be flexibly selected according to the fire situation. Way. At the same time, the manually operated fire pump CB10/40 can provide a flow rate of 40L/s and a pressure of 1.0Mpa to ensure fire extinguishing efficiency.
The Isuzu FVZ fire fighting truck is undoubtedly an outstanding representative in the field of fire protection.The sturdy body structure and high-quality material selection ensure long-lasting durability in complex and harsh rescue environments. Not only that, the advanced electronic equipment and humanized cab design inside the Isuzu FVZ 8000L fire fighting truck further enhance the safety and comfort of driving. This Isuzu FVZ fire fighting truck also fully considers the flexibility to deal with various fire scenarios, providing a wealth of spare parts and optional equipment, such as long-arm warning lights, light detectors, rear ladders and other auxiliary equipment, as well as rich Spare parts, such as fire hoses, fire axes, fire hooks, etc., provide comprehensive support for fire fighting and rescue. The optional foam tank has a capacity of 2000 liters and is made of stainless steel, providing more options for fire extinguishing.
Specifications:
|
Isuzu FVZ Fire Fighting Truck |
|||
|
Dimension(mm) |
9600*2480*3470 |
||
|
Tank Dimension(m3) |
Water Tank |
Foam Tank |
|
|
6 |
2 |
||
|
Curb Weight(kg) |
9605 |
||
|
Wheel Base(mm) |
4000+1300 |
||
|
F/R Axled-Load(kg) |
7000 / 18000 |
||
|
Drive system |
4*2 |
||
|
Max speed(Km/h) |
85 |
||
|
Tire Specification/Number |
10.00R20, 6+1 pcs |
||
|
Engine |
Model |
6HK1-TCH |
|
|
Emission/Kw |
7790 cc, 221 Kw |
||
|
Horse Power |
300 Hp |
||
|
Power |
980 N.m |
||
|
Type |
Diesel, 6 cylinder, turbocharge, water cooling |
||
|
Brand |
Isuzu |
||
|
Gear box |
model |
6F&1R, Manual |
|
|
Electronic |
V |
24 |
|
|
Cab |
Cab Capacity |
2 people allowed |
|
|
Air Conditioner |
Heating/cooling air conditioner |
||
|
Superstructure Specification |
|||
|
Fire Cannon |
PS 40, water |
Working Range |
Water >55 m |
|
Foam type, Optional Item |
|||
|
PP 24, mulity |
Working Range |
Foam >40 m |
|
|
Working angle |
- 30 ~ 80 |
Operation |
Mannual |
|
working pressure |
1~4 Mpa |
||
|
Flowing Speed |
<50 L / s |
||
|
Fire Pump model |
CB10/40 |
||
|
Flowing Speed |
40L/s |
Pressure |
1.0 Mpa |
|
Water input Port |
DN 135mm x 1 |
Water suction pipe |
8 m, one Unit |
|
Fire Pipe |
DN 65 x 8 Unit |
Fire Pipe |
DN 80 x 4 Unit |
|
Fire pipe protector |
4 |
Fire Pipe storage |
1 |
|
Fire Pipe Hocker |
4 |
Fire extinguisher |
1 |
|
Optional |
** Tank material could be carbon steel, stainless steel, aluminum ** It can be divided into many compartments. ** Imported all kinds of famous brand pump as optional. |
||
Advantage:
1. Large liquid carrying capacity: The Isuzu FVZ fire fighting truck has a 6 cubic meter water tank and a 2 cubic meter foam tank. The large capacity design allows the fire truck to carry more fire extinguishing media in a single dispatch, thus Respond to large fires more effectively. Whether facing a raging oil fire or a general material fire, the Isuzu FVZ fire fighting truck can provide sufficient fire-extinguishing resources to ensure that the fire is quickly controlled.
2. Good maneuverability: Isuzu FVZ fire fighting truck is equipped with advanced fire pumps and flexible fire cannon systems. The driver can quickly and accurately adjust the fire extinguishing strategy according to the specific conditions of the fire scene. The range of water cannon and foam cannon exceeds 55 meters and 40 meters respectively, and they are easy to operate, making fire extinguishing operations faster and more effective. In addition, the stability of the Isuzu FVZ 8000L fire fighting truck and the comfort of the cab also provide the driver with a good operating environment, further improving the control performance.
3. Easy maintenance: The design of this Isuzu FVZ fire fighting truck fully considers the maintenance needs in actual use, and adopts a modular design to make maintenance work easier and faster. At the same time, the abundant spare parts and optional equipment also greatly reduce maintenance time and improve the attendance rate of Isuzu FVZ 8000L fire fighting truck. This is crucial for the fire brigade because time is of the essence and quick repairs mean the Isuzu FVZ fire water tank truck can return to the fire scene faster and continue its firefighting mission.
4. Strong adaptability: The Isuzu FVZ fire fighting truck can not only deal with various types of fires, but can also be widely used in public security fire brigades, factories and mines, communities, docks and other places. Whether in the city or in the countryside, day or night, the Isuzu FVZ 8000L fire fighting truck can exert its powerful fire-fighting capabilities. This wide adaptability makes the Isuzu FVZ fire fighting truck an all-rounder in the firefighting field, providing comprehensive support for firefighting and rescue operations.
