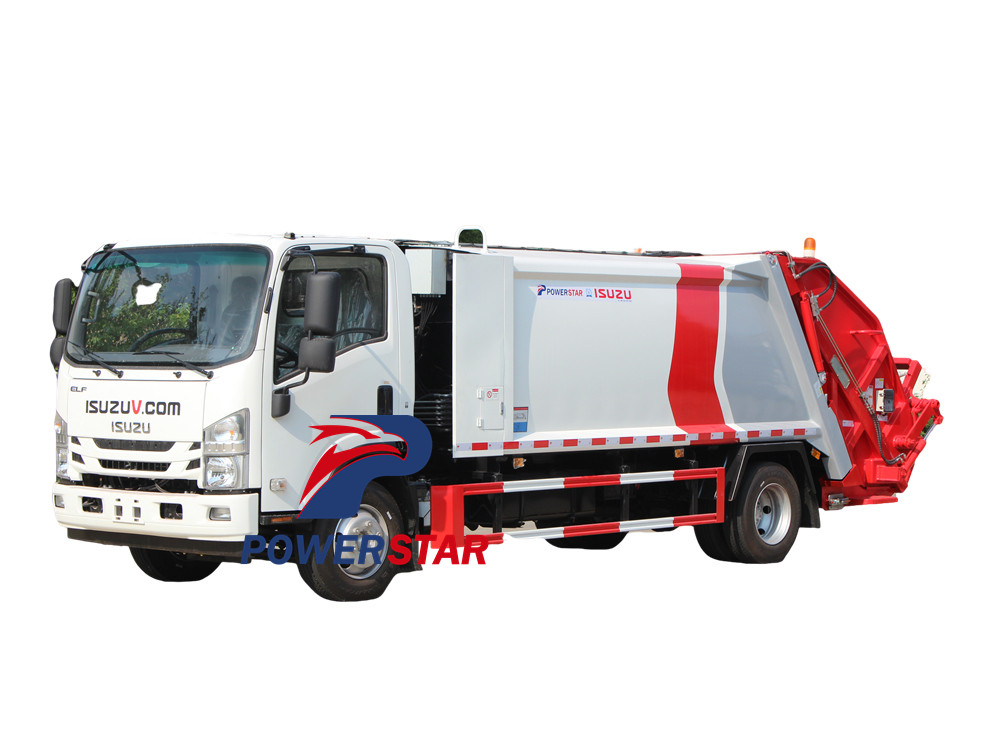

The Isuzu 700P 8 cbm compactor garbage truck is a specialized commercial vehicle designed for efficiently collecting and compacting garbage. It offers a capacity of 8 cubic meters for trash storage and features a compactor to reduce the volume of waste, making it ideal for municipal waste management tasks. Isuzu trucks are known for their durability and reliability in various industries, including garbage collection and disposal.
Work capacity:
8cbmTruck model:
PT5100ZYSEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4X2,LHDGear box:
ISUZU MLD 6 speed forward and one reverse, manualRemarks:
Beautiful appearance, powerful engine, efficient compression.
Isuzu 8 cbm compactor garbage truck also called Isuzu 700P rear loader compactor truck, Isuzu waste collection truck,Isuzu 8cbm trash crusher truck,Isuzu NPR refuse compactor truck,Isuzu 700P garbage disposal truck,is a special commercial vehicle designed for garbage collection and treatment. Its body structure is strong and durable, suitable for a variety of scenarios such as urban cleaning, garbage disposal centers, community sanitation, etc., and is an important tool for modern urban garbage disposal. The Isuzu 8 cbm compactor garbage truck not only improves the efficiency of garbage collection and transportation, but also reduces operating costs, and contributes an important force to the cause of urban environmental protection. With the acceleration of urbanization and the improvement of environmental protection requirements, this model will surely play a more important role in the future.
Key Features:
---- Using Japanese technology ISUZU ELF 700P Chassis , super power, larger displacement, with Stronger Engine performance.
---- Quality test from the production to the finish of the whole truck.
---- Professional and experienced technical team support to provide customized trucks with high quality & reasionalble price.
---- Genuine spare parts supply.
---- Prompt delivery. All the truck will be polished with wax before shipping and accordingly the truck type and destination port to choose the most suitable and cost-effective shipping way.
The Isuzu 700P 8m3 garbage compactor truck is a powerful garbage disposal vehicle equipped with a 190HP engine. Its unique bin flip design makes it excellent in garbage collection and compaction. This vehicle combines high efficiency, reliability and excellent performance, making it a powerful assistant for urban cleaning, garbage disposal centers and community sanitation.
|
Isuzu 700P 8m3 garbage compactor truck |
||
|
Model |
PT5100ZYS |
|
|
Overall Dimensions(mm) |
7300×2100×2800 |
|
|
GVW |
10550kg |
|
|
Curb Weight |
3420kg |
|
|
Driving Type |
4x2,LHD |
|
|
Cab |
700P,single row cab, allowable 3 passengers, car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump |
|
|
Wheelbase |
3815 mm |
|
|
Front/Rear Suspension |
1110/2405 mm |
|
|
Steering |
Power steering |
|
|
Approach/departure angle |
17/12 |
|
|
Wheels & tire |
235/75R17.5 |
|
|
Tire number |
6+1 |
|
|
Compactor capacity(m3) |
8 |
|
|
RHD or LHD |
optional |
|
|
Engine |
Model |
4HK1-TCG61 |
|
Horsepower |
190HP |
|
|
Maximum output |
139Kw |
|
|
Maximum torque |
510N.m |
|
|
Type |
4cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine |
|
|
Displacement |
5193ml |
|
|
ISUZU brand, Euro 5/6 |
||
|
Transmission |
ISUZU MLD 6 speed forward and one reverse, manual |
|
|
Front Axle |
4T |
|
|
Rear Axle |
7T |
|
|
Brake System |
air brake exhaust brake |
|
|
Color and LOGO |
customized |
|
|
Electric system |
24V |
|
|
Standard configuration |
Compactor body, sub frame, rear lifting part, loading bunker, pushing-out plate, hydraulic system, pressing system, sewage tank, climbing ladder, pneumatic control ,PLC control. |
|
|
Selective equipment |
Rear side arm swing type turning over instrument |
|
|
compactor |
capacity |
8m3 |
|
Loading cycle |
15-30s |
|
|
Unloading cycle |
20-30s |
|
|
Compressed proportion |
1:3 |
|
|
Garbage bin turning over instrument |
available |
|
|
Different instrument selective |
||
|
Packing |
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. |
|
Isuzu 700P 8 cbm rear loader compactor truck, as a sanitation equipment that integrates high efficiency, environmental protection and durability, plays an important role in modern urban garbage disposal with its excellent performance and reliable quality. This model is equipped with a powerful 190-horsepower engine, and with the bin flip design, it not only improves the operating efficiency, but also greatly facilitates the garbage collection and transportation process.

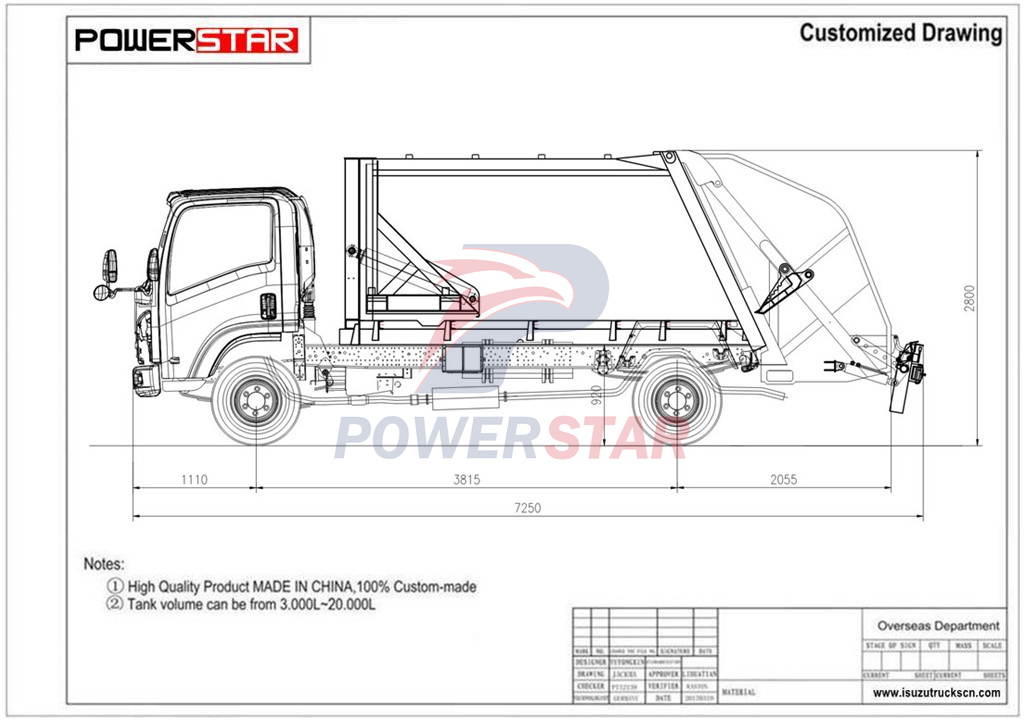

Technical drawing of Isuzu 4x2 700P garbage compactor truck
Strong power, efficient operation
Isuzu 700P 8 cbm garbage disposal truck is equipped with an inline four-cylinder diesel engine, model 4KH1-TCG61, with a maximum output power of 139 kw (190 horsepower) and a torque of up to 510 Nm. Such a power configuration ensures that the vehicle can maintain strong power output and fuel efficiency under various working conditions. The power transmission system is well designed to ensure that all performance is in the best state. Whether it is full-load climbing or fast driving, it can be done with ease. At the same time, the engine meets the National VI emission standards, which not only meets environmental protection requirements but also ensures fuel economy.

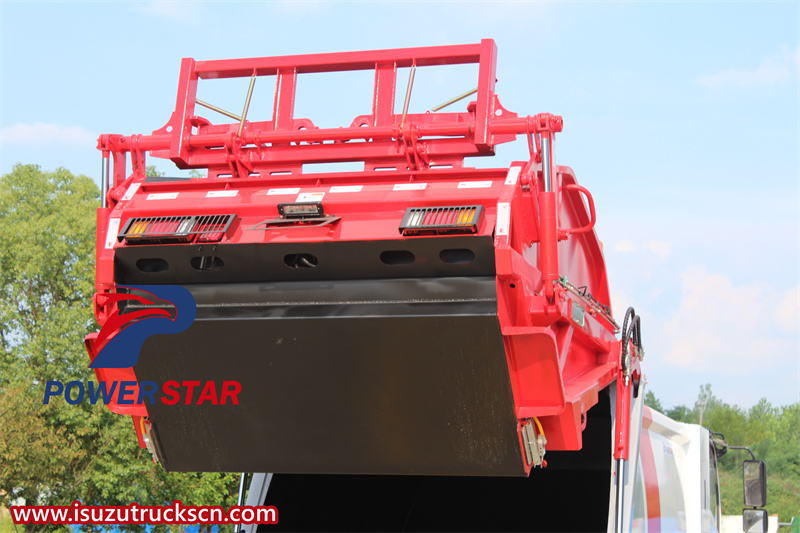

Bin flip design, convenient and efficient
This model adopts a bin flip garbage collection method, which greatly improves the efficiency of garbage collection. A special flipping mechanism is installed at the rear of the vehicle, which can easily hang and flip a standard-sized garbage can (such as a 240-liter plastic garbage can) to automatically pour the garbage in the bucket into the compression box. During this process, the driver only needs to operate the control button in the cab to complete the entire series of actions such as bucket turning, material pouring, and compression, which greatly saves labor costs and time. In addition, the bin flip design also reduces the secondary pollution that may be generated during garbage disposal and improves the cleanliness of the working environment.

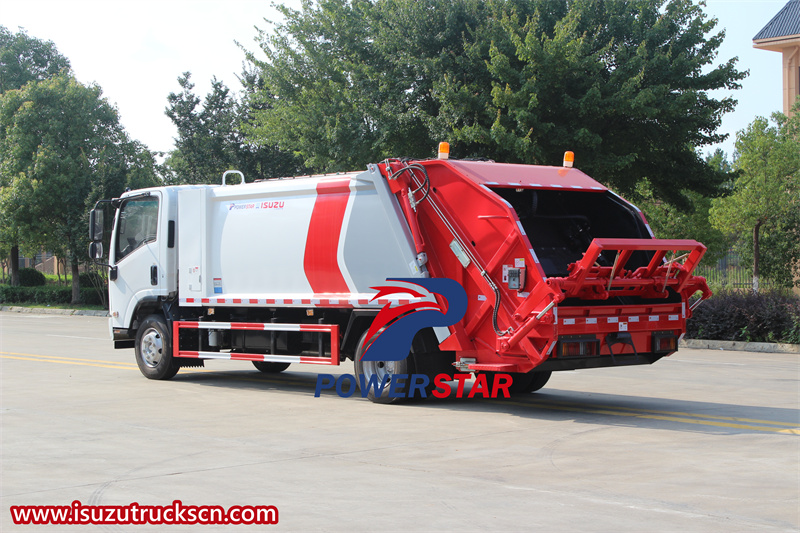

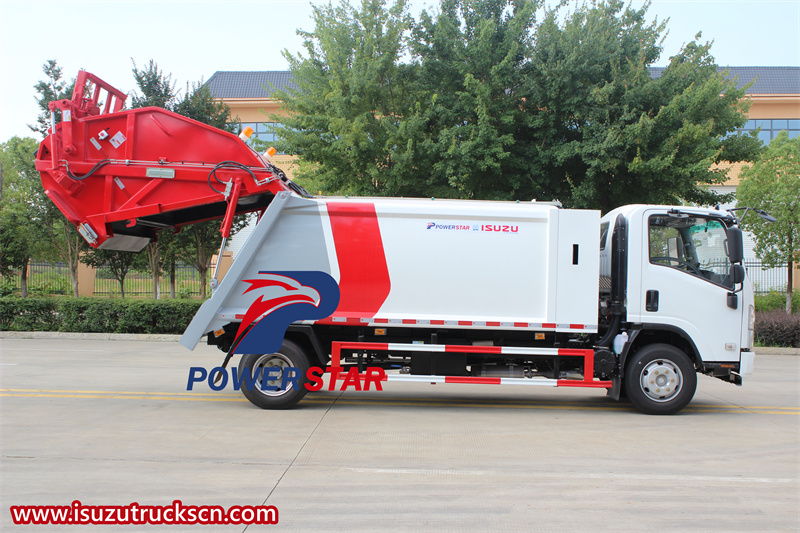

Isuzu 700P 4x2 rear loader compactor truck
Compression technology, space saving

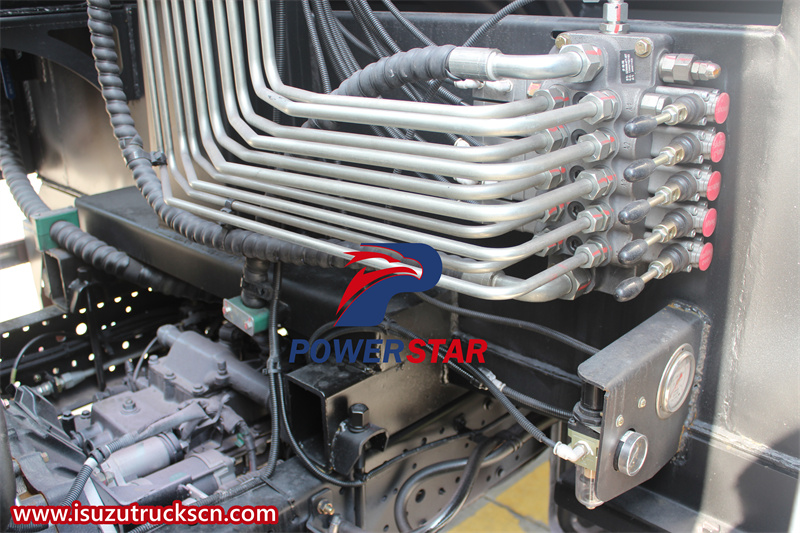

As a refuse compactor truck, the core advantage of the Isuzu 700P 8cbm model lies in its efficient compression system. The vehicle is equipped with an advanced compression device, which realizes automatic compression of garbage through a hydraulic mechanism. During the compression process, the volume of the garbage is greatly reduced, thereby increasing the loading capacity. The high compression ratio and high pressure of this model can ensure that the garbage is evenly and tightly compressed in the box, with a loading capacity of up to 8 cubic meters, effectively solving the transportation problem in urban garbage disposal.
Environmentally friendly sealing, safe and reliable
The whole vehicle adopts a fully sealed design. Both the box and the loader are welded with high-strength, corrosion-resistant carbon steel plates to ensure the sealing of the garbage during transportation. At the same time, all the sewage generated by the vehicle during the compression process is collected in the sewage tank, effectively preventing sewage leakage and secondary pollution. In addition, the waste collection vehicle is also equipped with a number of safety configurations, such as ABS anti-lock braking system, shock-absorbing seats, oil brake belt vacuum booster pump, etc., to ensure the safety of the driver and the vehicle.

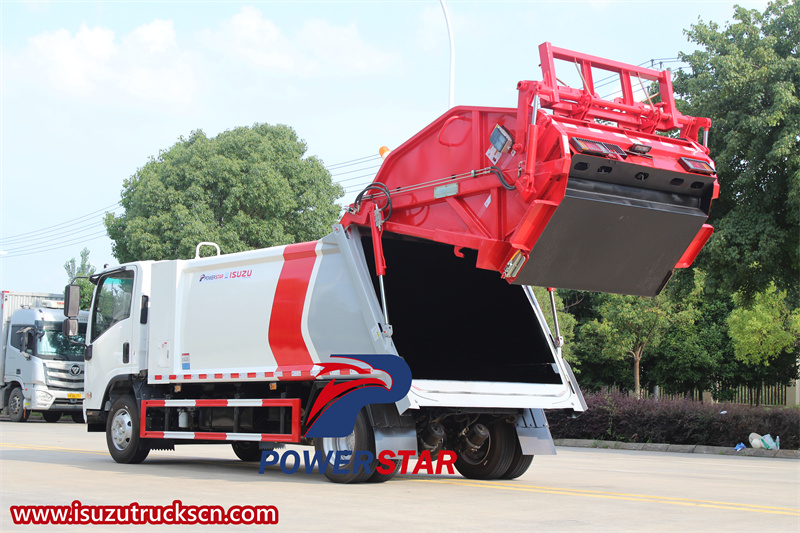

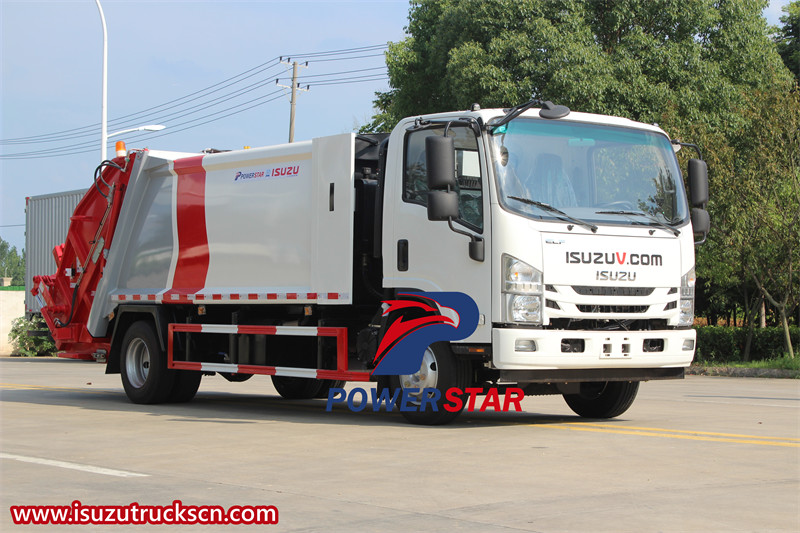

Isuzu 700P 8cbm waste collection truck
The garbage collection method of the Isuzu 700P 8cbm compaction garbage truck mainly adopts a bin flip design, which is one of its significant features and advantages. These advantages make this model play an increasingly important role in modern urban garbage disposal. The following are the main advantages of this model in terms of garbage collection:
● Efficient and convenient: The bin flip design allows the vehicle to quickly and automatically hang and flip standard-size trash cans (such as 240-liter plastic trash cans), and pour the garbage in the bucket directly into the compression box. This process greatly saves labor costs and time, and improves the efficiency of garbage collection. The driver only needs to operate the control button in the cab to complete the entire barrel turning and material dumping process without getting out of the car, which greatly improves work efficiency.
● Reduce secondary pollution: Due to the fully sealed compression box and loader design, garbage is effectively isolated during collection, compression and transportation, reducing the risk of secondary pollution such as garbage scattering and sewage dripping. This helps keep the working environment clean and hygienic and reduces negative impact on the urban environment.
Isuzu 8cbm trash crusher truck
● Strong adaptability: The bin flip garbage collection method can be compatible with various specifications and types of garbage cans, including garbage cans of different materials and sizes. This enables the model to be widely used in various urban garbage collection scenarios, including residential areas, commercial blocks, public places, etc., with strong adaptability and flexibility.
● Improved work safety: The bin flip garbage collection method reduces the manual handling of garbage and reduces the risk of injury to workers. At the same time, the vehicle is equipped with a number of safety configurations, such as ABS anti-lock braking system, shock-absorbing seats, etc., which further improves safety during operation.
● Promote resource recycling: Through efficient compression technology, the Isuzu 700P 8cbm compression garbage truck can greatly reduce the volume of garbage and increase the loading capacity. This not only reduces the number of transportation times and costs, but also helps promote waste classification and resource recycling. Compressed waste is easier to store, transport and process, making subsequent waste disposal processes easier.

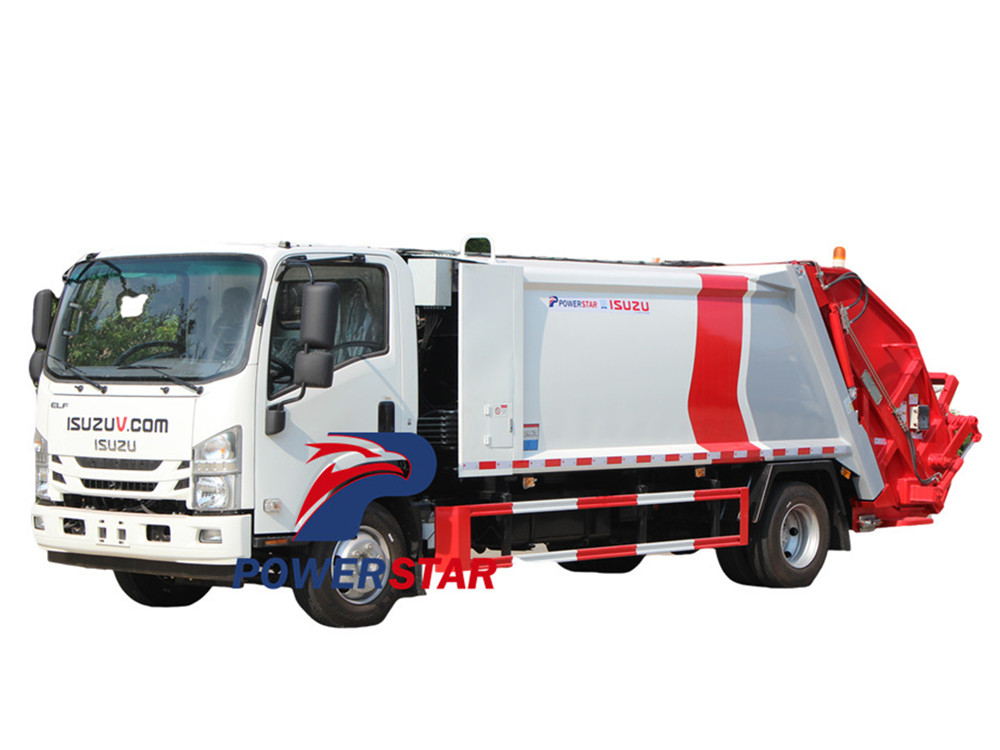

Isuzu 700P refuse compactor truck
