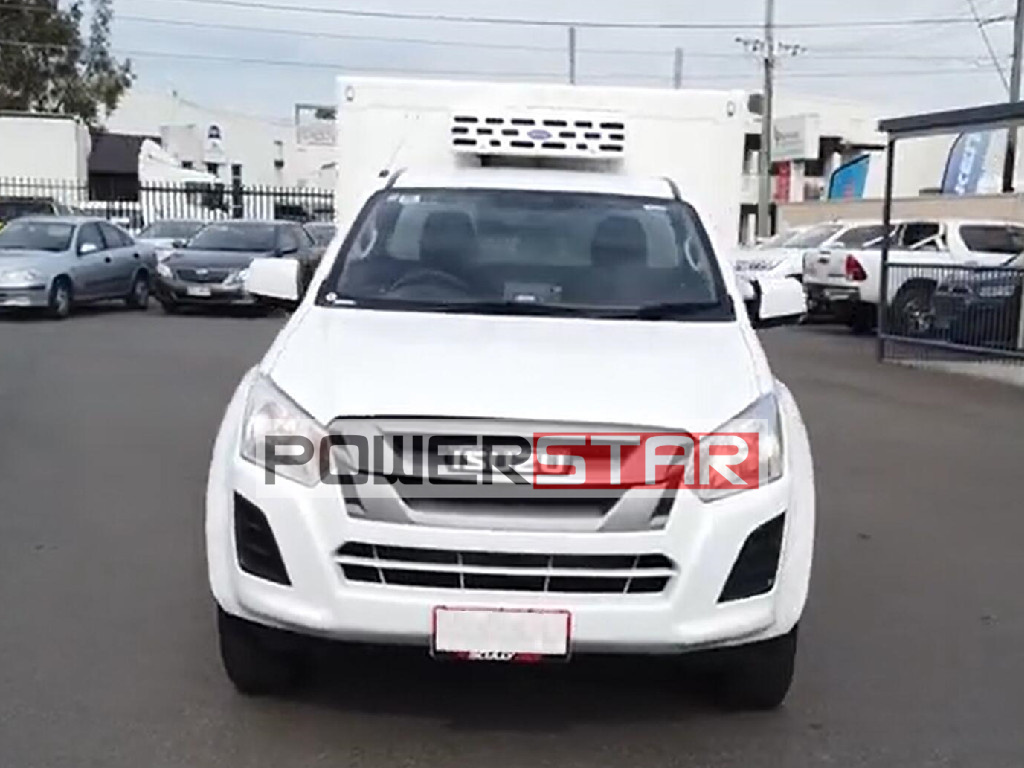

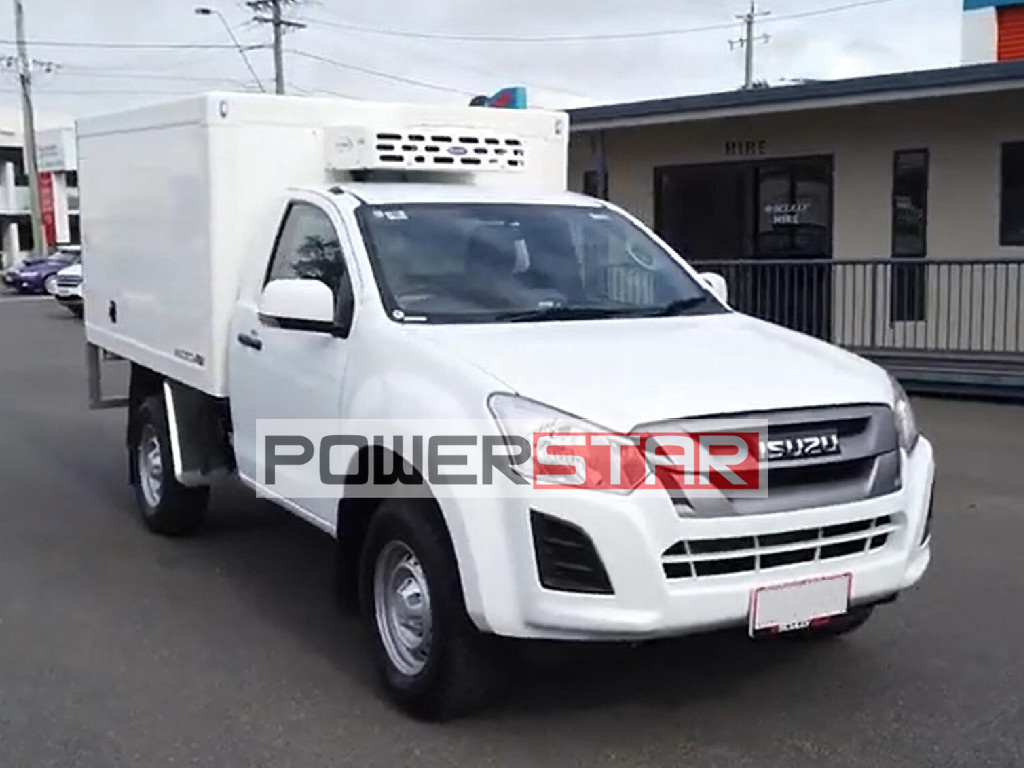

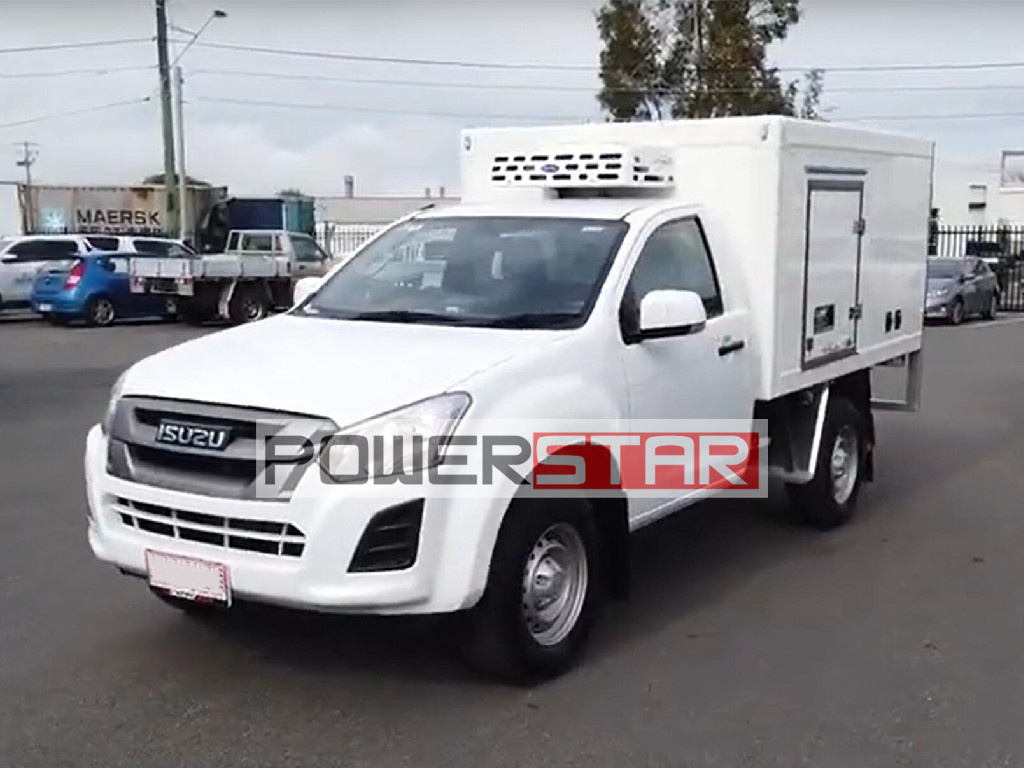

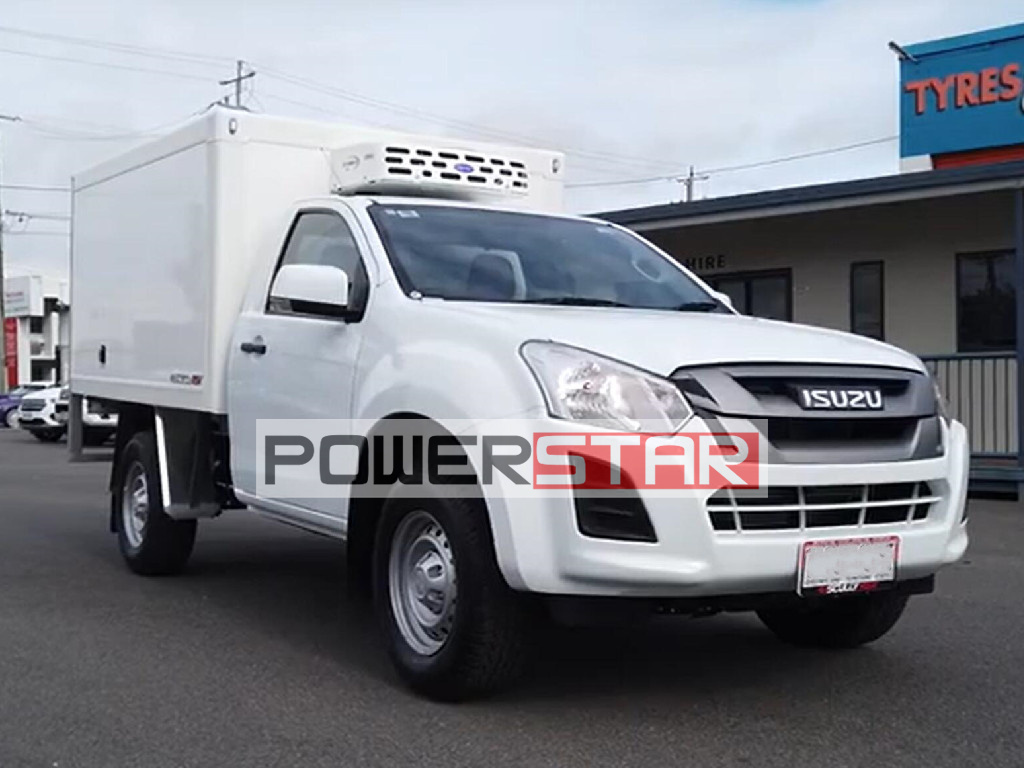

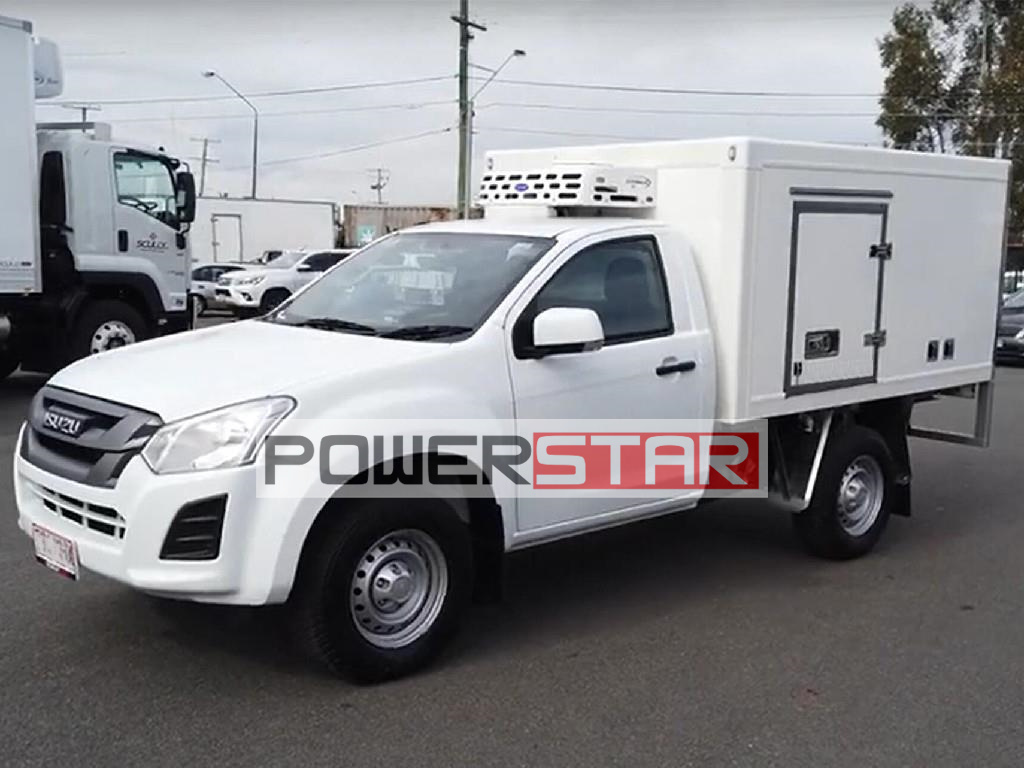

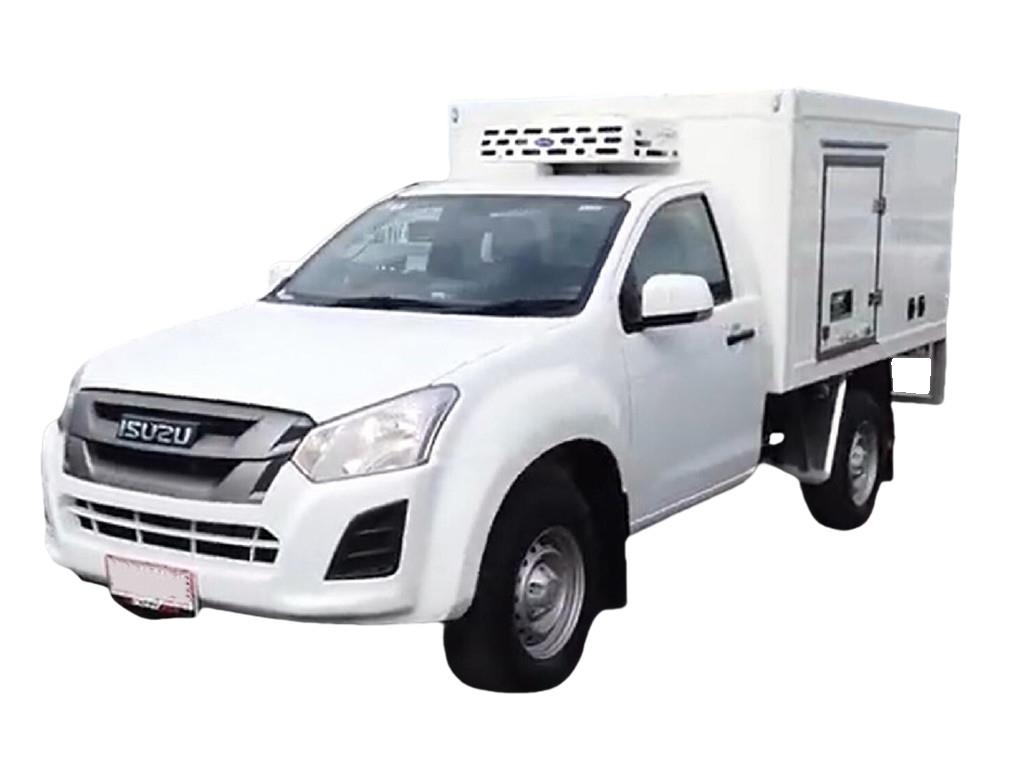

The Isuzu new model pickup refrigerated truck is a closed van type transport vehicle used to transport frozen or fresh goods. It is equipped with a refrigeration unit and insulated box, which can Control temperature of box to ensure the freshness and quality of goods. Commonly Isuzu pickup reefer van cooling box body truck used for transporting seafood, meat, vegetables, fruits, frozen foods, dairy products, beverages, vaccines, blood products, biological products, and certain chemicals. We POWERSTAR have different volume refrigerator truck, from 2m to 9.6m box length.
Work capacity:
1000 kgTruck model:
PT5030XLCEngine power:
105kW / 143HPEngine type:
4KH1CT6H1Axle drive:
4x2 / 4x4，LHDGear box:
5-speed manualRemarks:
Reefer van body with refrigerated unitISUZU pickup refrigerated truck is a new pickup truck model specially built for cold chain logistics under the ISUZU brand. ISUZU pickup reefer van truck has a wide range of applications in the field of cold chain logistics due to its precise design, powerful power system, comprehensive safety configuration and intelligent and comfortable driving experience. Whether it is long-distance transportation or short-distance distribution, Isuzu refrigerated van box body truck can easily cope with the transportation needs of goods of various sizes and temperature-sensitive goods (such as food, medicine, etc.). ISUZU pickup mobile cooling van truck is an excellent model in the field of cold chain logistics, and its excellent performance and reliable quality have won wide acclaim.
Isuzu 4x4 pickup reefer van cooling body truck advantages:
Body and box design
The Isuzu pickup freezer truck body size is carefully calculated to maximize loading efficiency and space utilization.
The box adopts advanced insulation materials to ensure that the goods are always in the best temperature environment during transportation, effectively extending the shelf life and reducing losses.

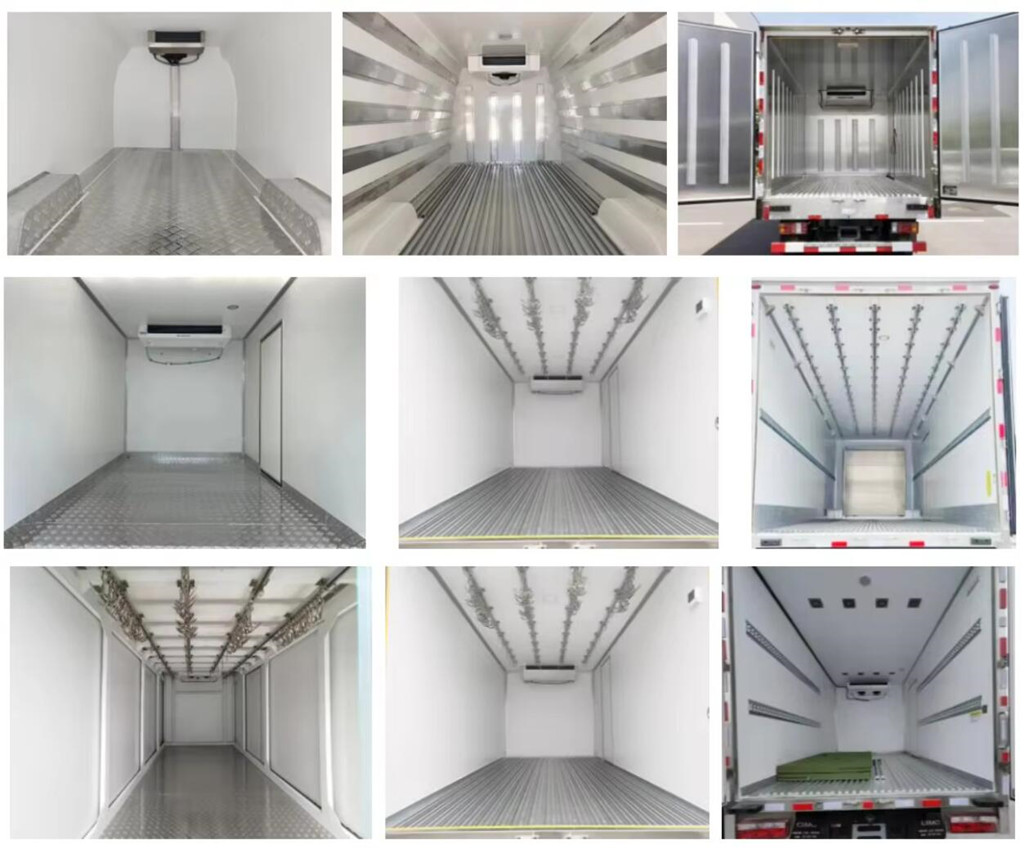

The box configuration may include internal and external fiberglass plates, middle polyurethane insulation plates, bottom aluminum pattern anti-skid plates, etc. to enhance insulation effect and durability.

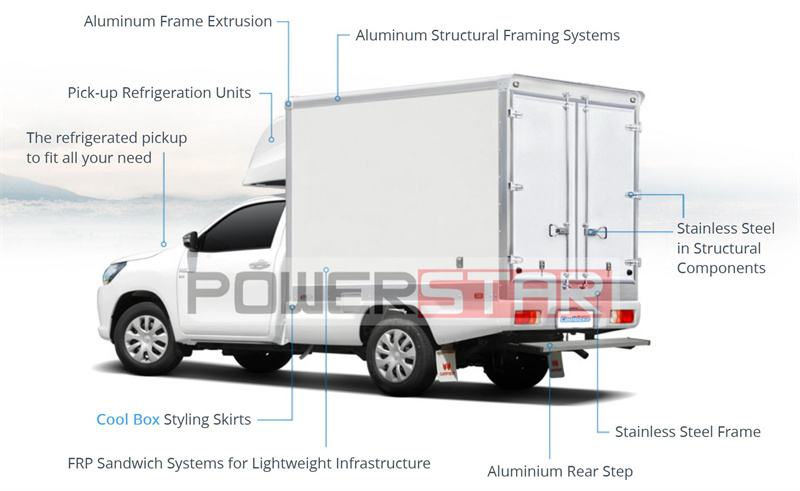

Main structure
of the Coolbox walls

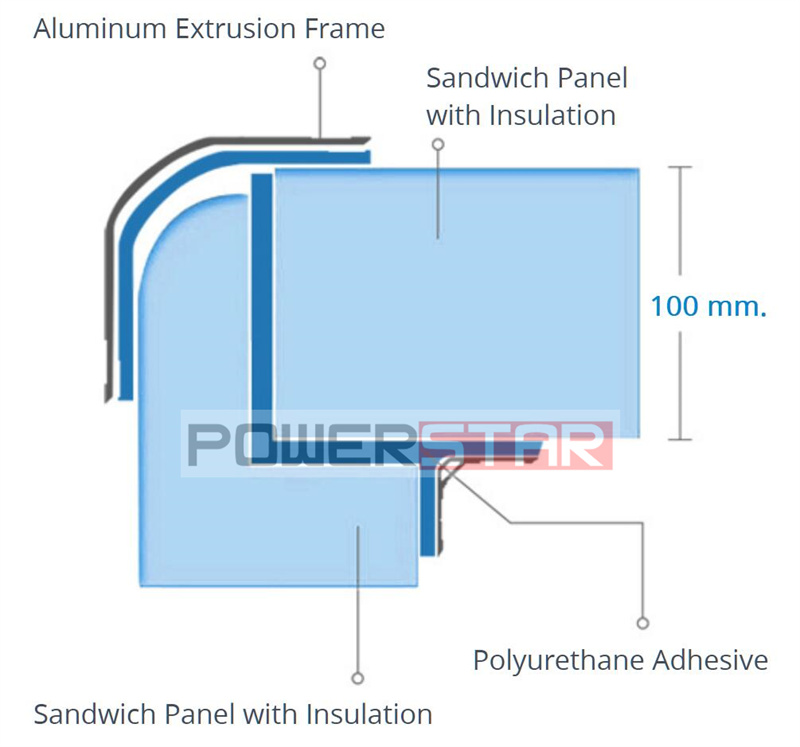

The Isuzu pickup reefer van refrigerated truck walls use a sandwich system — smooth fiberglass panels with built-in white gel coat, seamless design, reinforced with Polystyrene Foam. This creates a lightweight yet strong structure, resistant to compression, and provides excellent thermal insulation.
Wall Thickness
POWERSTAR Isuzu pickup Cool box walls are available in thicknesses of 28 mm, 42 mm, 60 mm, and 100 mm. Designed for exceptional strength and cooling efficiency, these panels ensure your cargo is consistently kept at the ideal temperature during transport.
Materials

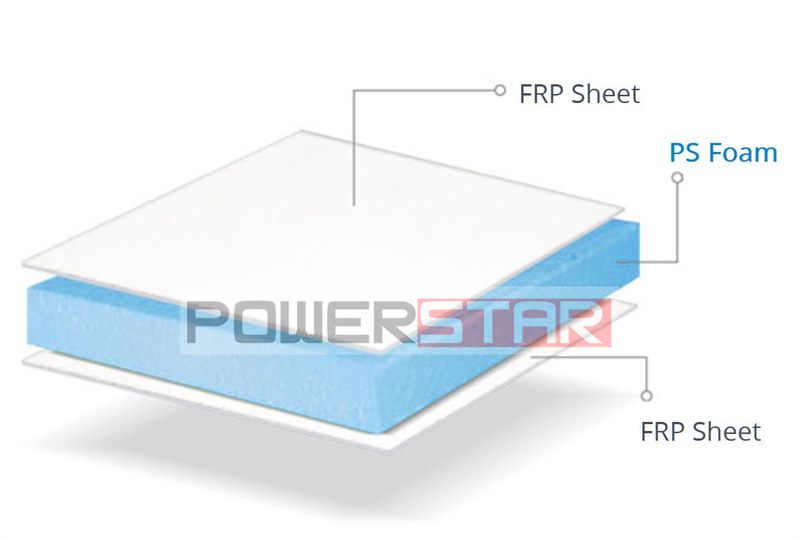

The polystyrene foam insulation is encased between two layers of fiber-reinforced plastic (FRP), delivering a smooth, easy-to-clean surface that is resistant to dirt and liquid spills.

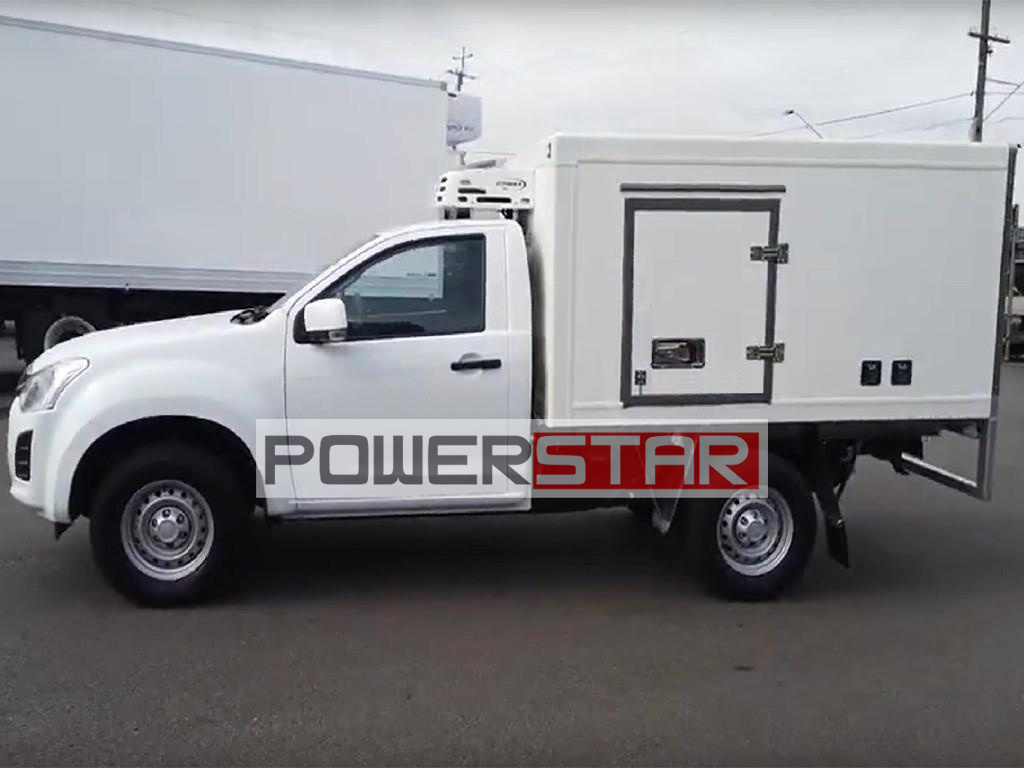

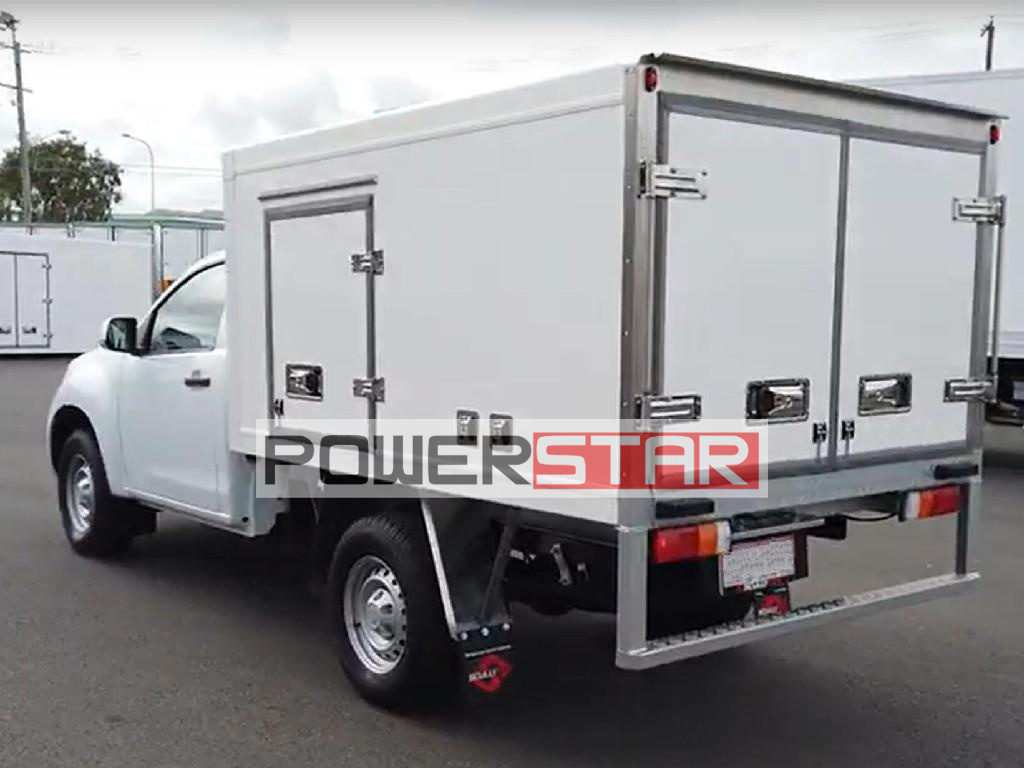

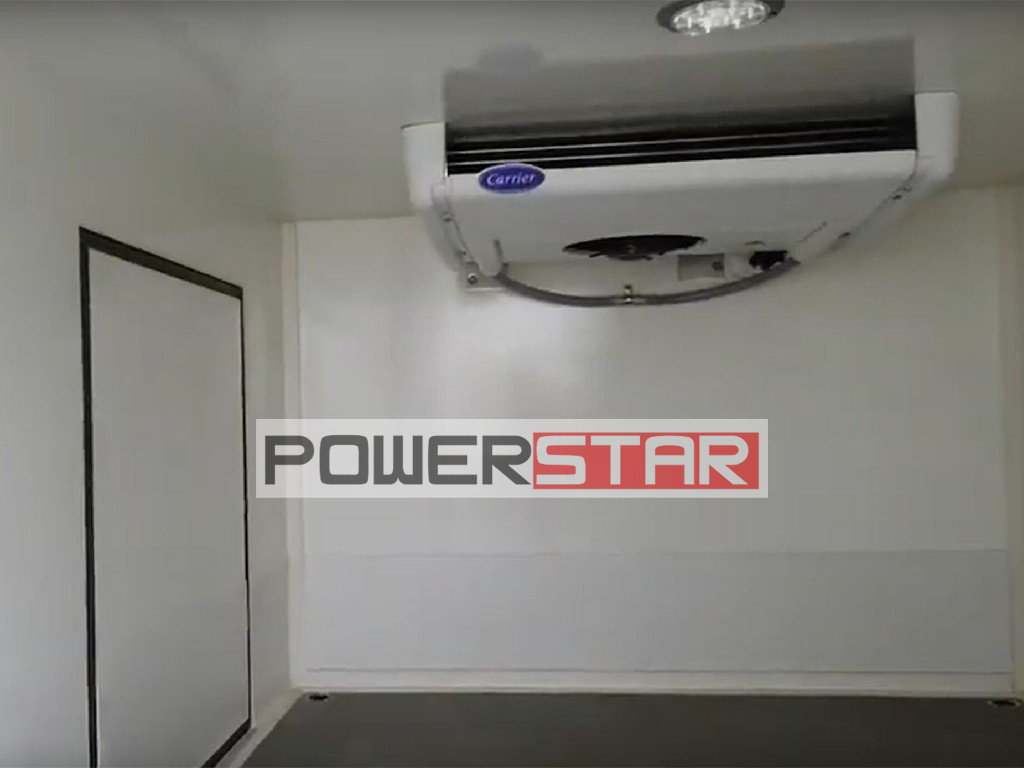

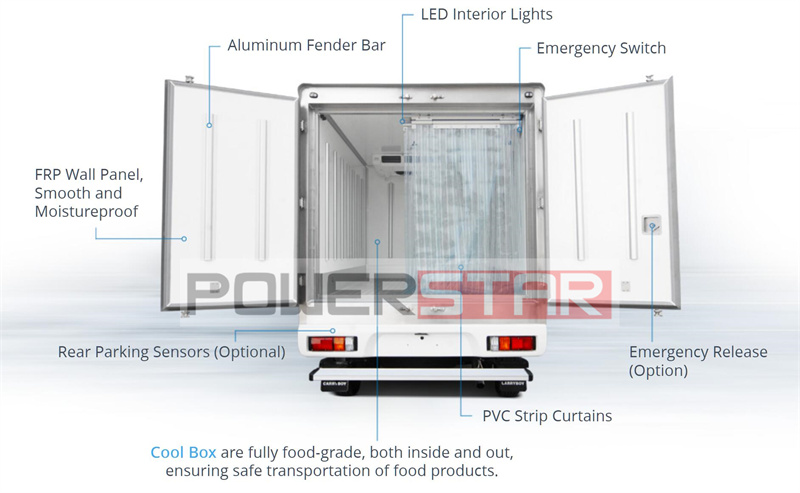

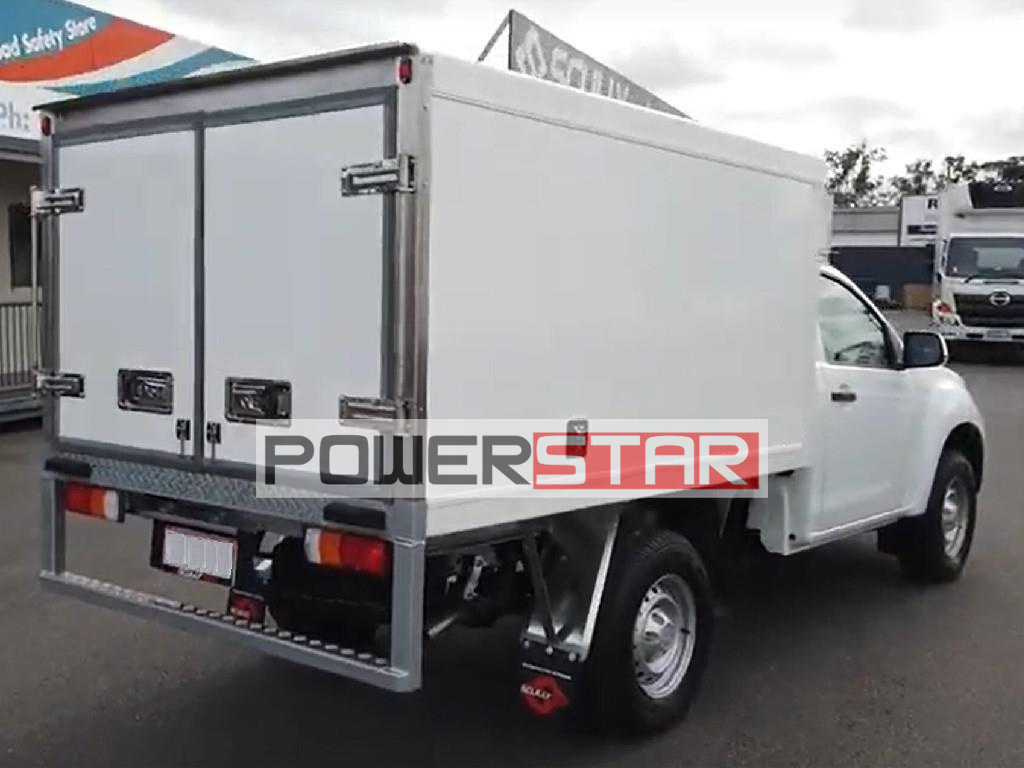

Isuzu pickup mobile freezer truck box size 2000*1830*1090mm, FRP+insulated foam+FRP, aluminum floor, stainless steel door frames and accessory, rear bi-fold door, side door. China famous brand refrigerator unit, can customize thermo king or carrier refrigerator unit. temperature is adjustable. Equipped with Isuzu diesel engine, it provides strong power output, such as 105KW/143 horsepower, to meet different transportation needs. With a five-speed gearbox, the gear shift is smooth and the response is fast. The driver can flexibly adjust the power output according to the actual road conditions to further improve fuel economy. The front four-wheel drive drive mode effectively distributes power to ensure that the vehicle has excellent grip and passability under various road conditions. Wide tire design, such as 265/60R18, further improves the stability and carrying capacity of the vehicle.
Isuzu pickup reefer truck Equipped with ABS anti-lock braking system and EBD electronic brake force distribution system, it effectively shortens the braking distance, prevents wheel locking, and improves safety and stability during emergency braking. It may also be equipped with main and auxiliary airbags, power steering, air brake and other safety configurations to provide all-round protection for the driver.
Isuzu 4x4 pickup refrigerated body truck technical specification:
Customized Japanese ISUZU technology pickup refrigerated truck with Remote control key, front and rear electric windows, electric adjustment rearview mirrors and other configurations improve the convenience of daily use. Heating and cooling air conditioning, fabric seats or more luxurious seat designs make the cockpit environment more comfortable and pleasant. The cruise control function allows the driver to free his right foot when driving long distances at high speeds and enjoy a more relaxed driving pleasure. Entertainment systems such as MP3 or MP5 audio entertainment systems add fun to the monotonous driving process.
| Item | PT5030XLC | |
| Size | Dimension (mm) | 5300*1900*2370 |
| Box container(mm) | 2000*1700*1200 | |
| Wheelbase (mm) | 3125 | |
| Weight | Total weight(kg) | 2885 |
| Curb weight(kg) | 2250 | |
| Passenger Capacity | 2 | |
| Performance | Min Turning Diameter(m) | 11.9 |
| Overhang (F/R)(mm) | 540/1115 | |
| MIN.Clearance(mm) | 140 | |
| Max Speed(km) | 120 | |
| Engine | Displacement(ml) | 2999 |
| Model | 4KH1CT6H1 | |
| Rated Power(kw) | 105kW / 143HP |
|
| Refrigerator | Cooling range | -15ºC |
| Fuel Consumption With The Regrigerator Closed(L/100km) | 9.5 | |
| Fuel Consumption When Refrigerating(L/100km) | 12.4 | |
| Transmission | Five Speed | |

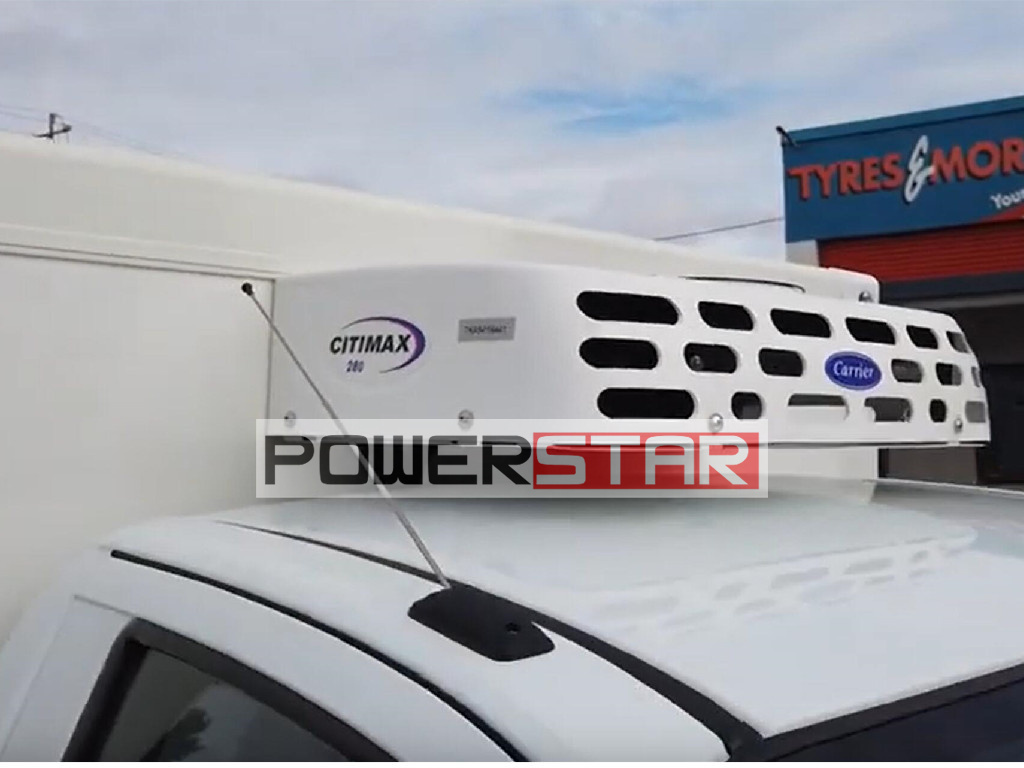

| Refrigerated unit |
|
| Item | WLQ5029XLCPY |
| Model | YX-260S |
| Reefer temperature range | -15ºC~+20ºC |
| Refrigerating output(W) | 1500W(-15ºC) |
| Driving mode | Driven by engine |
| Voltage DC(V) | 12V |
| Refrigerant | R404a |
| Reefer temperature adjusting | Electronic digit display |
| Safety device | High-low voltage switch safety protection |
| Defrosting mode | Manual/automatic defrosting |
