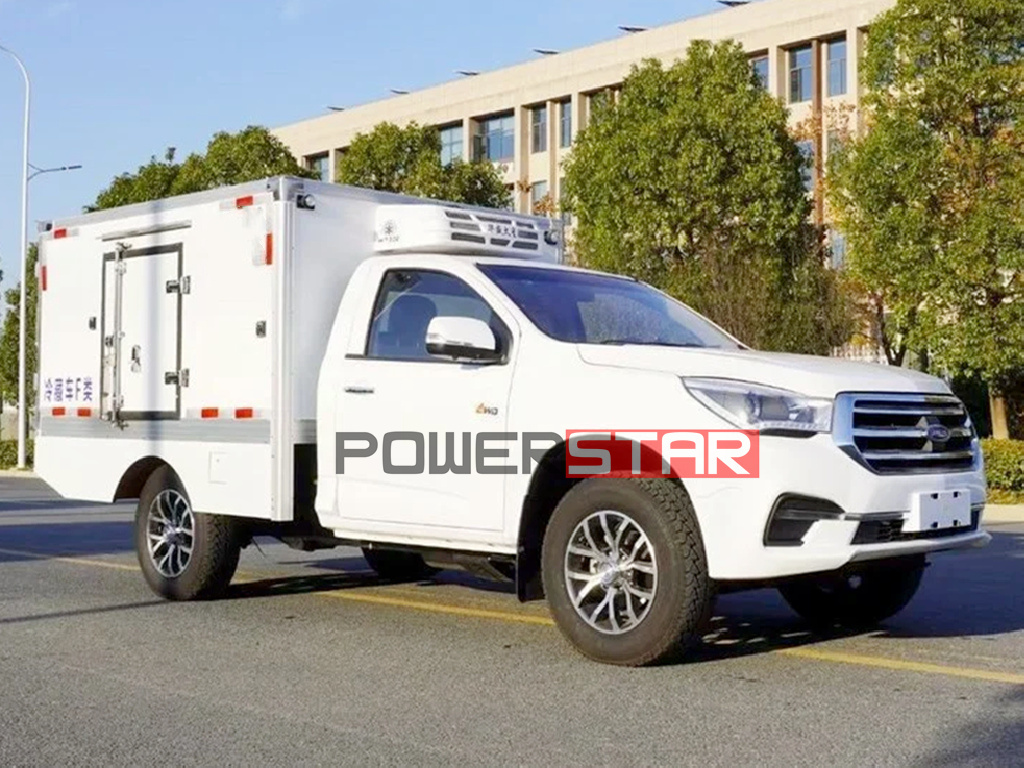

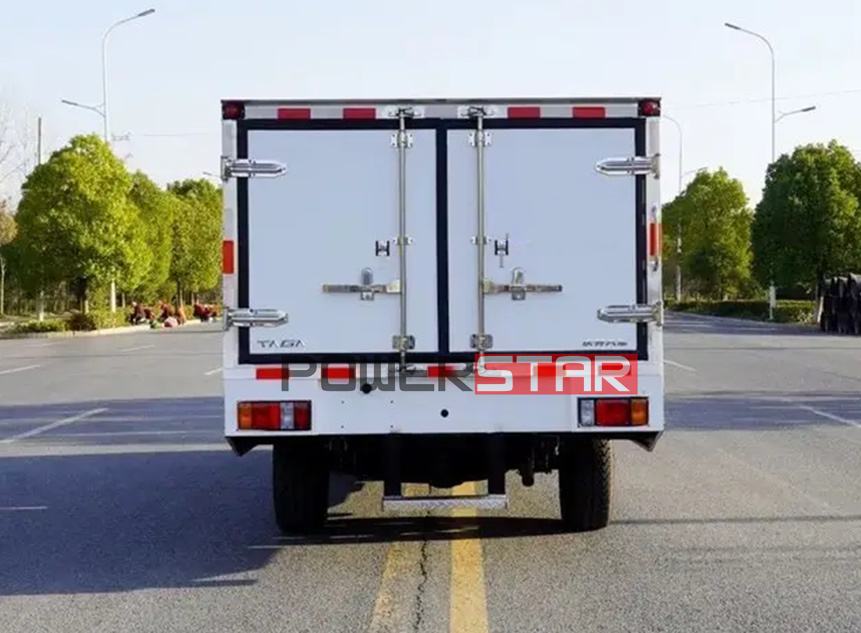

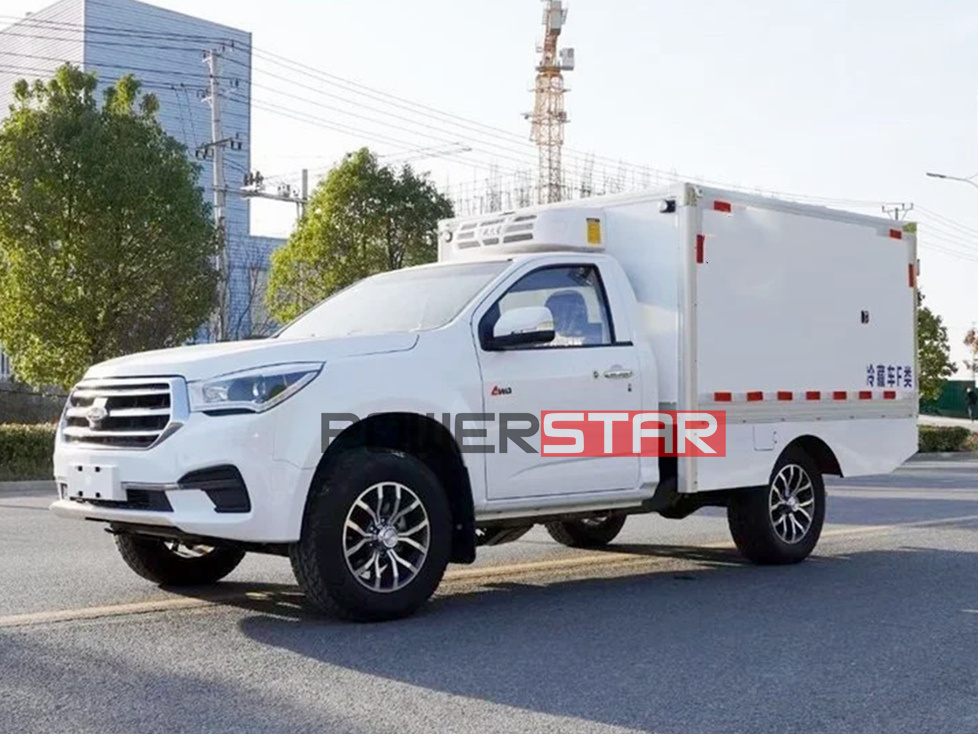

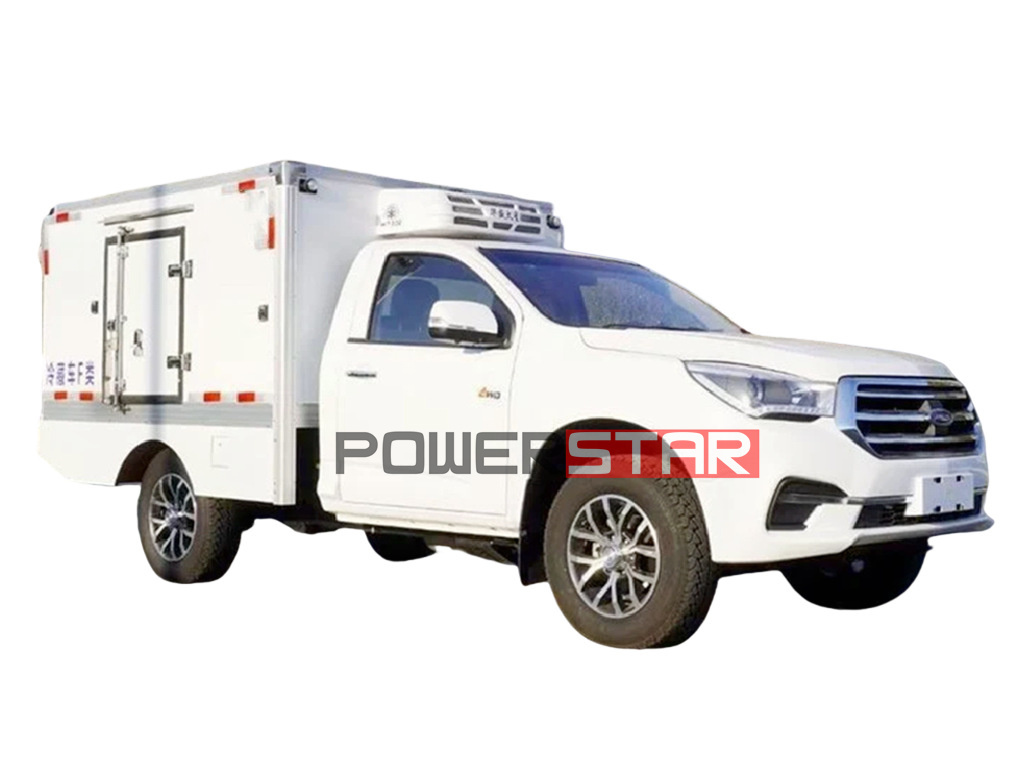

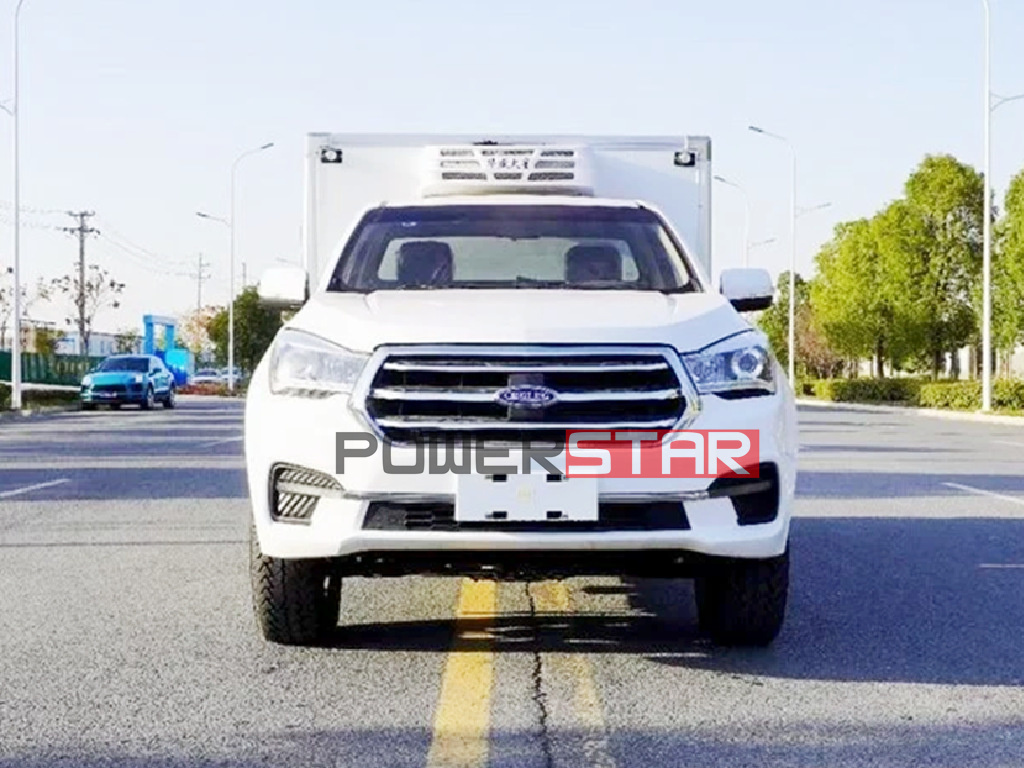

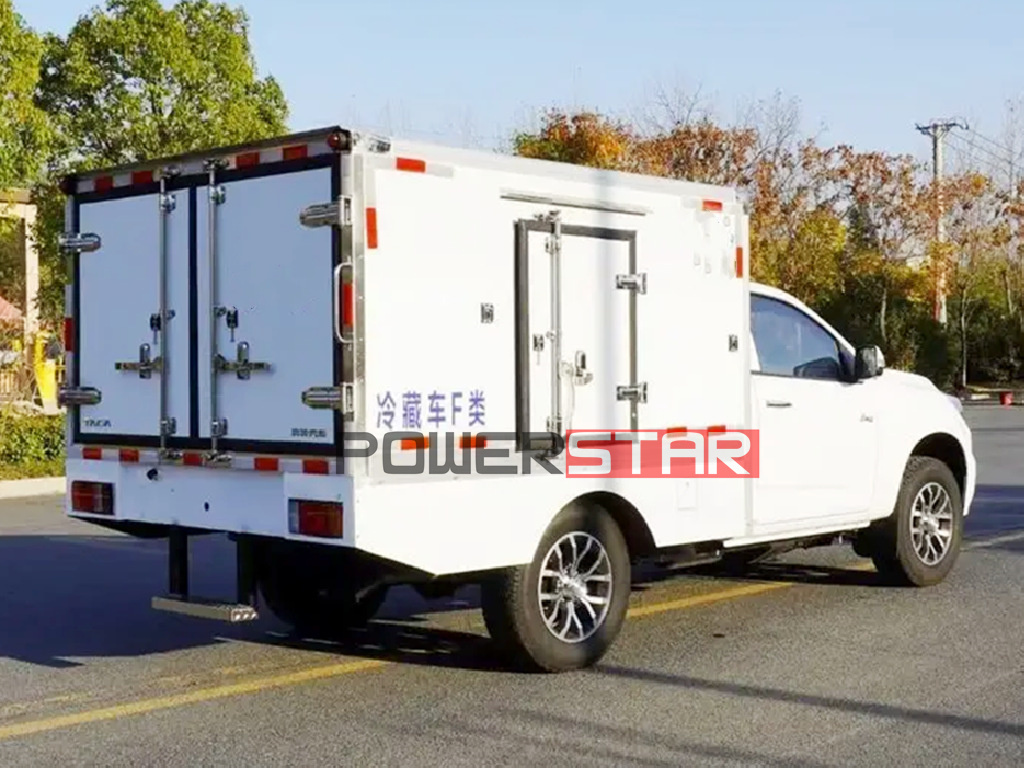

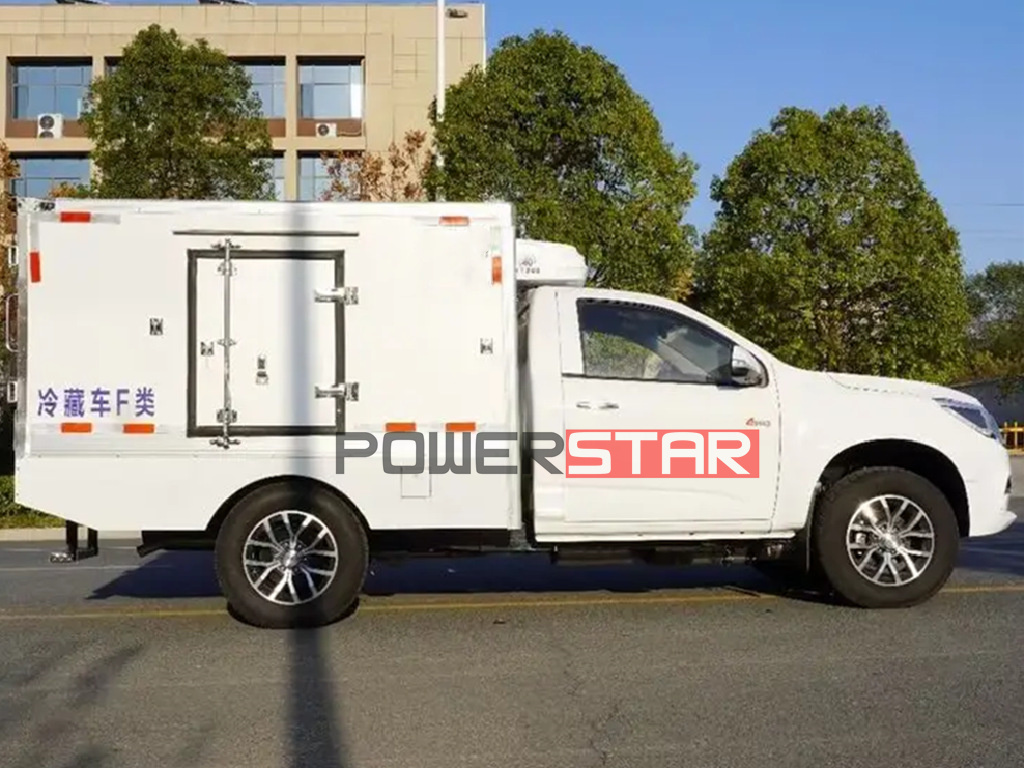

Isuzu TAGA pickup refrigerated truck is based on ISUZU TAGA pickup truck, original Isuzu cabin Double row cabin, Left-Hand drive, with air conditioner, power steering, 2+3 passengers (with driver). and is modified by adding professional refrigeration equipment and box body. It retains the driving comfort and ISUZU 4x4 off-road performance of the pickup truck model, and at the same time has the refrigeration and preservation function of the refrigerated truck, which is suitable for transporting frozen or fresh goods.
Work capacity:
2000LTruck model:
PT5030XLCEngine power:
143HP/105kwEngine type:
Isuzu 4KH1CT6H1Axle drive:
4×4, LHDGear box:
Isuzu 5 speed,manualRemarks:
Import Freezer UnitJapanese technology Isuzu pickup refrigerated truck is a special vehicle that combines the functions of an ISUZU 4x4 pickup truck and a refrigerated body. Isuzu reefer van truck has multiple advantages such as driving comfort, refrigeration and preservation performance, off-road performance, and compliance, and is suitable for a variety of transportation scenarios. Isuzu 4x4 pickup freezer truck is suitable for scenes such as urban frozen product transportation, with advantages such as no restrictions in urban areas and C licenses. At the same time, Original Isuzu 4x4 AWD four-wheel drive model has sufficient power and can adapt to the transportation needs of different road conditions, making it a good choice for blue-brand refrigerated trucks.
Isuzu pickup truck mounted refrigerated unit Brief Introduction:
Isuzu pickup refrigerated trucks are mainly enclosed special transport vehicles used to transport frozen or preserved food. Besides good refrigerating effect, its also has a good preservation effect on some foods that need to be refrigerated (such as frozen food, dairy products, vegetables and fruits). And Isuzu 4x4 pickup reefer van truck can ensure the safety of the food. Inner structure of the compartment is of excellent sealing performance, and heat insulation and heat preservation effect, so people can conduct refrigerated transport according to different foods. Isuzu pickup cooling truck can ensure the fresh taste and flavor of the food during consuming, it brings people health and safety.
Isuzu Pickup reefer van truck for export
European customer purchase ISUZU pick up freezer truck
Isuzu pickup freezer truck Advanced Features:
1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.
2. Light in weight: 40% lighter than metal body.
3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers a very good thermal insulation performance.
5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat preservation, box open model: Rear double-open or Side-open.
6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan, hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise, easy installation and maintenance and other advantages.
| Isuzu pick up freezer truck Upper-Body specification | |
| Material of van box | In the middle of Polyurethenefoam, Inner and coating is glass fiber |
| Thickness of van box (mm) | 80mm Polyurethene foam |
| Model of Refrigeration unit | CARRIER unit or Domestic brand |
| Cooling capacity (w) | 1960 |
| Van box dimension(mm) | 2000x1600x1200 |
| Length of van (m) | 2 |
| Capacity of van (m³) | 3.84m³ |
| Mini temperature in van (ºC) | -15(suitable for transfer food ) |
| Truck Specification | ||
| Cab | Single row cab, with power steering. Electronic flameout | |
| Driving Type | 4*4 offroad Left hand driving | |
| Max Speed (km/h) | 140Km/h | |
| Overall dimension(mm) | 5660*1900*2400 | |
| GVW( kg) | 3295 | |
| Wheelbase(mm) | 3406 | |
| F/R track base (mm) | 945/1309 | |
| Tire | 245/70R17 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | 5-speed | |
| Enging | Model | 4KH1CT6H1 |
| Fuel Type | Diesel | |
| Type | Straight line four cylinder turbocharging | |
| Exhaust(ml) | 2999mL | |
| Max output power/rotate speed (hp /rpm ) | 143HP/1800RPM | |
| Max torque/rotate speed(N.m/rpm) | 320N·m/1800RPM | |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Auxiliary brake | parking brake | |
| Eletric system | 12v | |
Isuzu pickup reefer van truck Application:
Isuzu pickup refrigerated truck is mainly consists of Isuzu pickup truck chassis, heat insulation box body, refrigeration unit, temperature recorders in the carriage. For special purpose, optional parts including meat hook, aluminum alloy rail, ventilation channel etc. According to the different chassis model, we have mini type, middle-sized, large-scale etc. refrigerator trucks for your choice with different brands.
The ISUZU pickup cooler van truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc. Isuzu refrigerated cooling truck is used for short-distance transportation in major supermarkets, vegetable markets, and stores in the city. According to customer requirements, it is converted into refrigerated trucks, insulated vehicles, refrigerated trucks, etc. for various purposes such as transportation of medicines (medical vaccine transport vehicles), vegetables, fruits, fresh meats, frozen meats, seafood, and chickens.
Reefer truck size: The vehicle size and box size of the Isuzu TAGA pickup refrigerated truck may vary depending on the specific model and configuration, but it usually has a large loading volume to meet the needs of frozen goods transportation in urban areas.
Isuzu Engine: Equipped with an Isuzu diesel engine 4KH1CT6H1 model with 143HP, it has strong power output and good fuel economy, ensuring the stability and reliability of the refrigerated truck during transportation.
Transmission: Matching the Isuzu brand 5 shift manual transmission, smooth shifting, high transmission efficiency, helps to improve the vehicle's fuel economy and driving performance.
Pickup Chassis: Adopting the original Japanese Isuzu truck chassis, it has been professionally adjusted and has good load-bearing capacity and driving stability.
Refrigeration equipment: The box composed of professional refrigeration equipment and polyurethane insulation materials can ensure that the temperature inside the refrigerated truck reaches and remains within the ideal range to meet the refrigeration and preservation needs of different goods.
