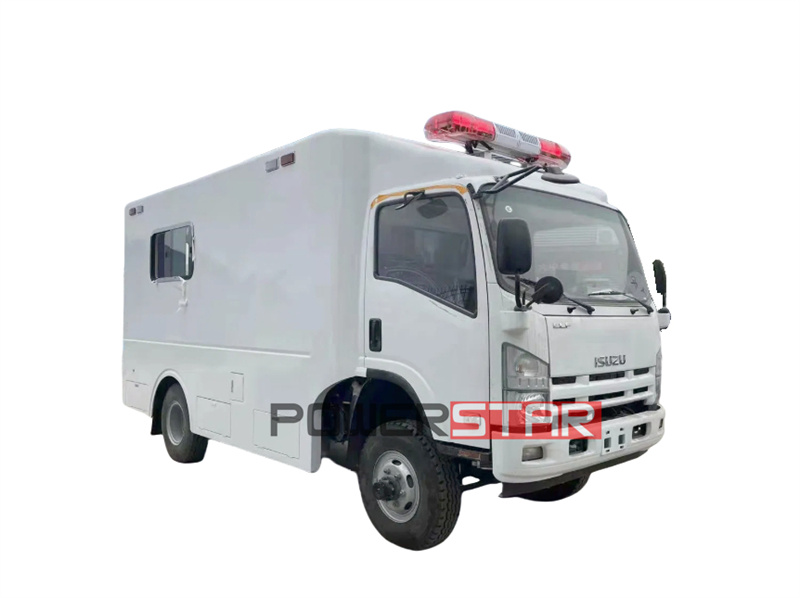

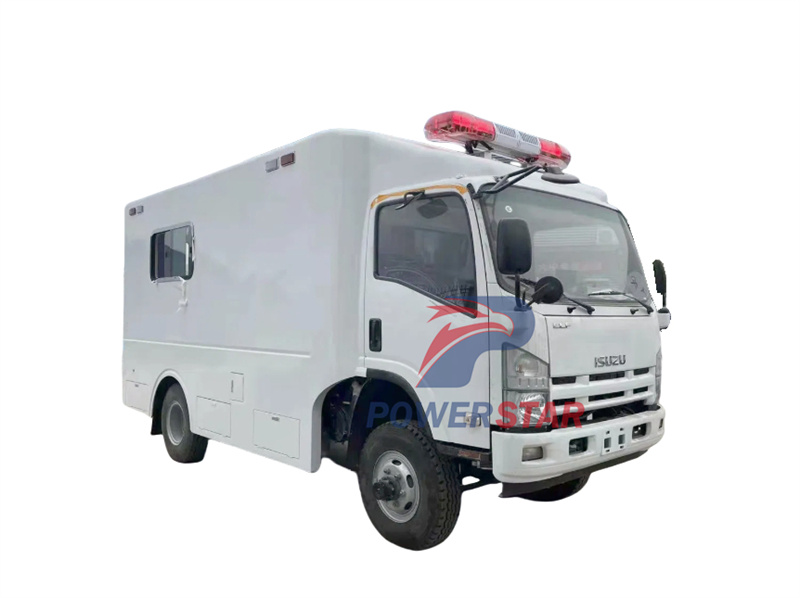

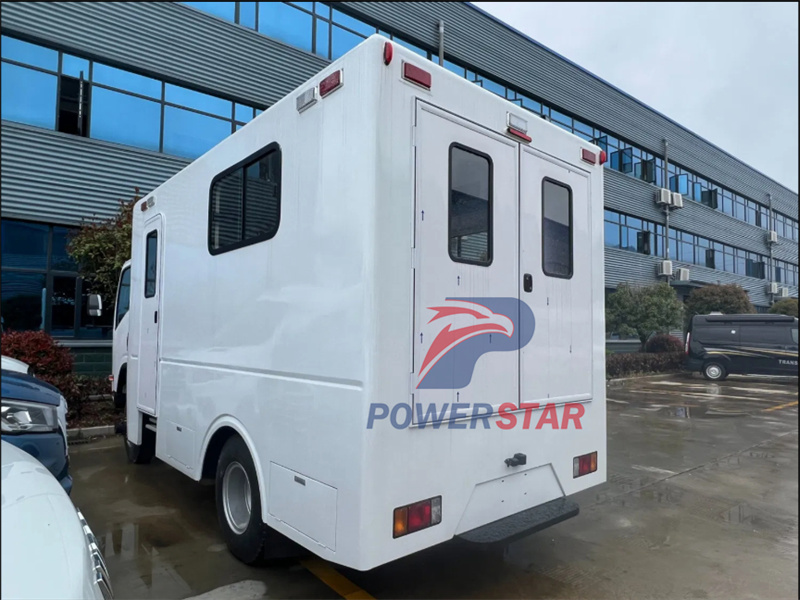

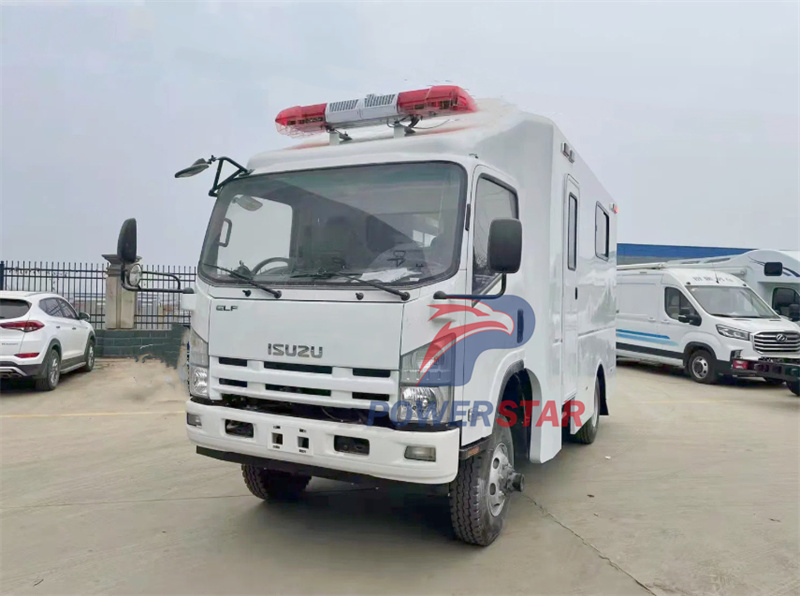

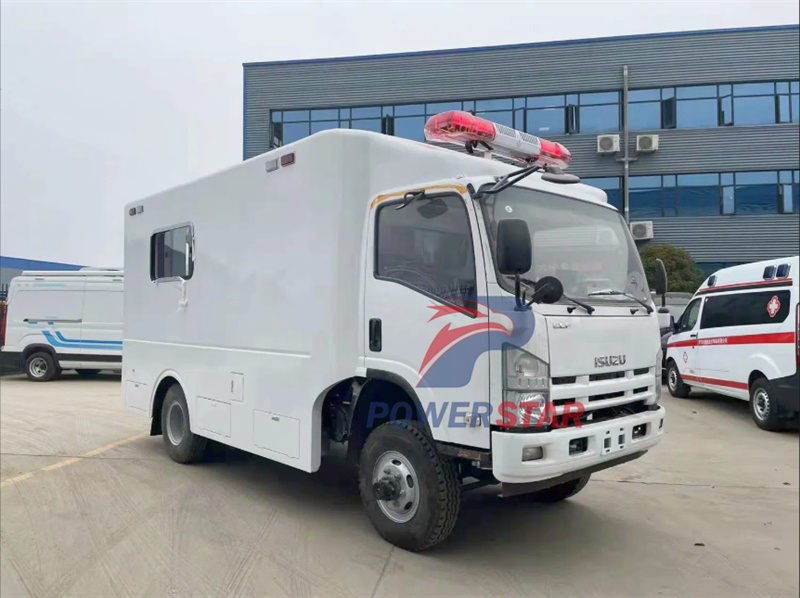

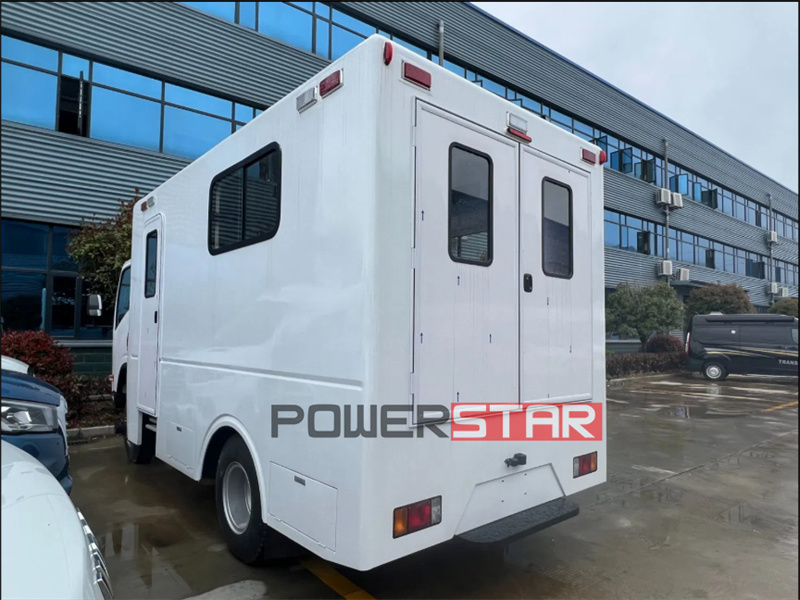

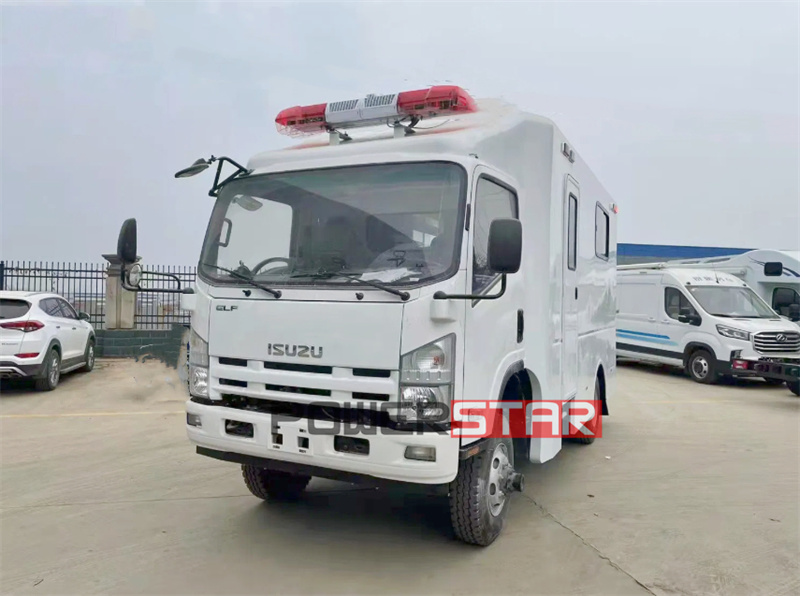

This ISUZU NPR 4x4 amblunce combines excellent structural design and powerful performance. The Isuzu NPR chassis is equipped with a 4x4 drive system and an MLD 6-speed gearbox to ensure good power performance under various road conditions. The 4HK1-TCG61 diesel engine uses 4-cylinder in-line turbocharging and intercooling technology to provide an output of 190 horsepower, meeting the Euro 6 emission standards, and is both environmentally friendly and efficient. The ISUZU NPR 4x4 amblunce has a reasonable internal configuration, including an automatic loading stretcher, an oxygen supply system, and an intelligent power supply system to ensure that the rescue equipment is always in the best working condition. The medical cabin uses flame-retardant and mildew-proof materials with antibacterial and easy-to-clean properties. In addition, the independently controllable air conditioning and heating system provide a comfortable environment for patients. The vehicle design takes into account both practicality and safety, using a front ventilated disc and a rear solid disc brake system, and comes with warning lights and an in-vehicle communication system to meet the needs of emergency medical assistance.
Work capacity:
6 personTruck model:
PST5113NJHQEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x2,LHDGear box:
MLD 6-speed,manualRemarks:
With GPS MonitoringThis ISUZU NPR 4x4 amblunce features driving comfort and handling. Thanks to the ISUZU NPR 4x4 chassis design, this ambulance maintains a good sense of handling and stability. The cab is equipped with an ergonomic seat, an adjustable steering wheel, and a modern infotainment system, all of which help reduce fatigue from long hours of driving. At the same time, the addition of modern safety technologies such as the electronic stability system and anti-lock braking system further improves the safety and driving convenience of the vehicle. These features not only improve the efficiency and safety of the driver, but also indirectly provide a smoother and safer transportation experience for patients.

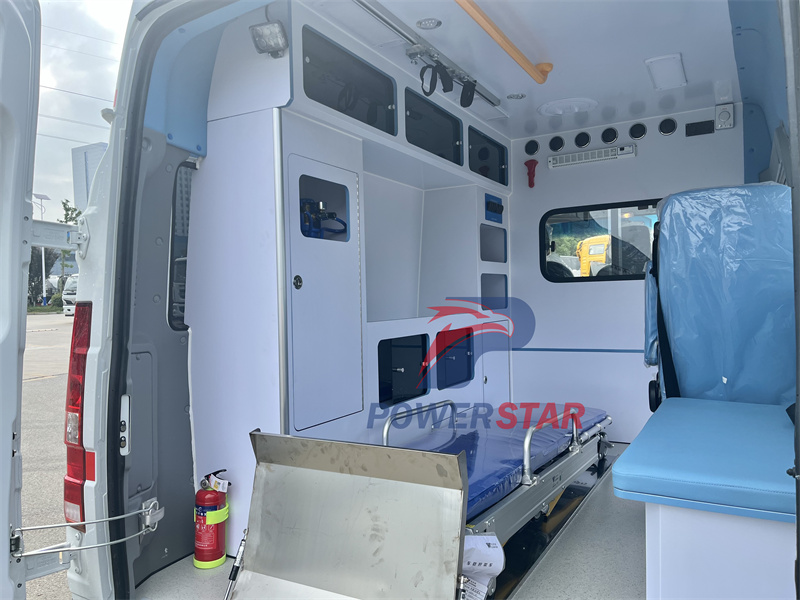

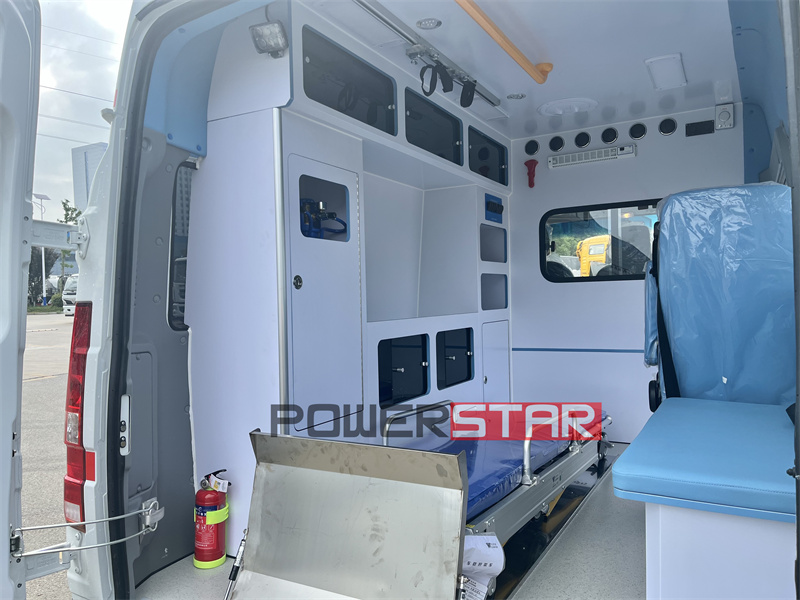

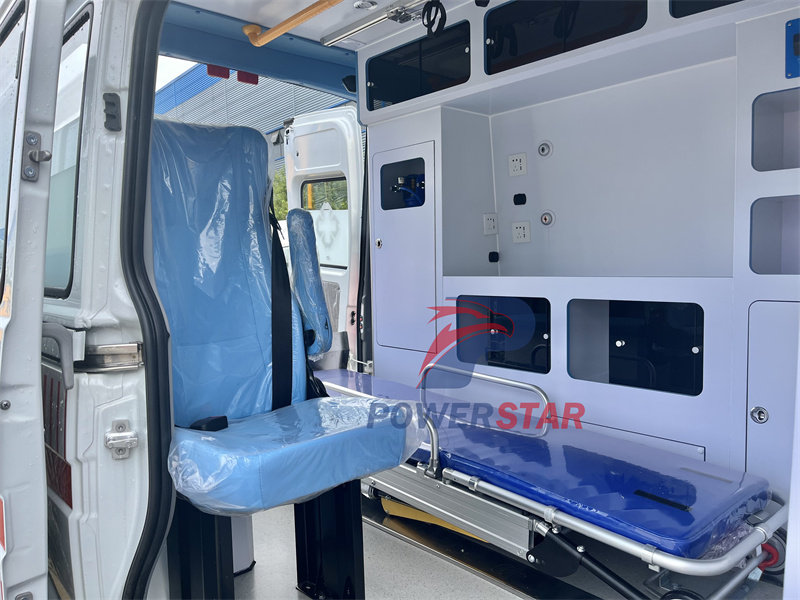

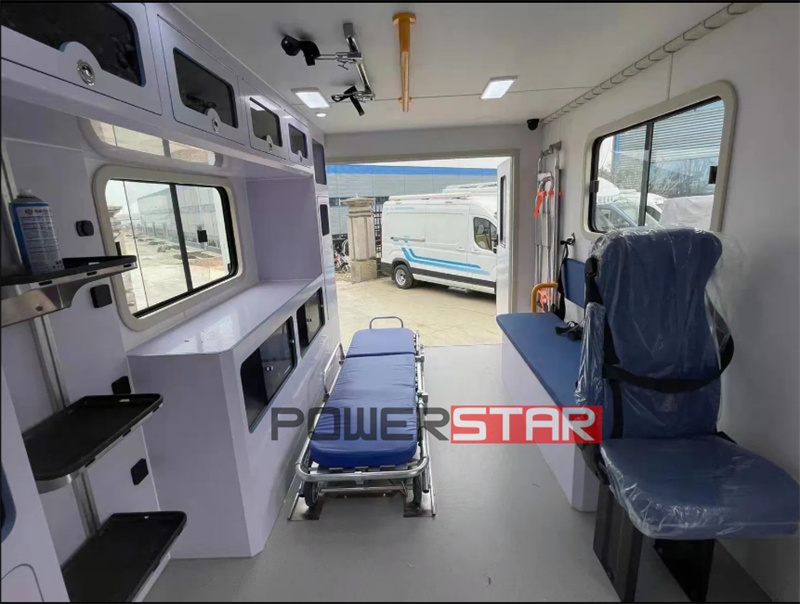

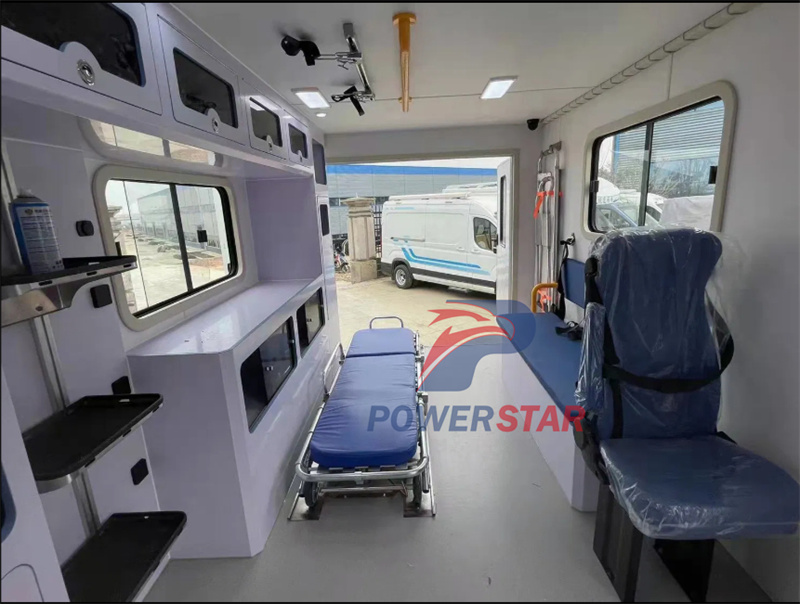

The interior design of the medical cabin is perfect. The automatic loading stretcher system facilitates the quick and safe transfer of patients, while the independent air conditioning and heating system ensures a comfortable environment. UV disinfection lights, ventilation systems and easy-to-clean interior materials work together to create a hygienic medical space. Equipment such as advanced oxygen supply systems, infusion stands and 1000W inverters provide comprehensive first aid support for medical staff. In terms of appearance, the eye-catching white body with bright first aid logo ensures high visibility. The LED warning light and 100W speaker system on the top further enhance its recognition in emergency situations. This ISUZU NPR 4x4 ambulance represents the pinnacle of modern emergency vehicles. It is not only a reliable means of transportation, but also a mobile life support system. It is undoubtedly a wise investment choice for any medical institution that values efficiency, safety and patient comfort.
In addition to the regular emergency transport mission, this ISUZU 4x4 NPR ambulance also has multiple functions that can be used in various emergency situations. For example: In natural disasters, it can be used as a mobile medical station to provide basic medical services to the affected areas. In large public events, it can be used as an on-site emergency center to quickly respond to possible unexpected situations. In remote areas, it can act as a mobile clinic to provide regular medical services to areas lacking medical resources.
The durability and reliability of the ISUZU 4x4 NPR chassis are fully preserved and enhanced in the modified ambulance. The enhanced suspension system and chassis protection measures enable the vehicle to cope with various adverse road conditions. Anti-corrosion treatment and high-quality sealing systems improve the adaptability of the vehicle in various climatic conditions. Whether in hot desert areas or cold mountainous areas, this ambulance can maintain stable performance. This environmental adaptability makes it an ideal choice for cross-regional and long-distance medical transportation, and is also suitable for performing rescue missions in extreme weather conditions.
Although based on a traditional commercial vehicle platform, this ISUZU 4x4 ELF ambulance has not fallen behind the digital trend. It integrates a number of intelligent functions:
1. The on-board GPS navigation system can not only optimize the route, but also share location information with the emergency center in real time.
2. The digital patient monitoring system can transmit the patient's vital signs data to the hospital in real time to prepare for the reception.
3. The intelligent on-board communication system supports remote consultation with the hospital, improving the treatment effect on the way.
4. The on-board camera system not only increases driving safety, but can also be used to record the rescue process for subsequent training and improvement.
Specification:
|
New Isuzu 4x4 NPR ambulance Specification |
|
|
Model |
PST5113NJHQ |
|
Overall dimensions(mm) |
6300*2250*2680 |
|
Wheelbase(mm) |
3360 |
|
GVW (kg) |
10000 |
|
Kerb Weight (kg) |
4470 |
|
Ground clearance (mm) |
260 |
|
Cab |
Single cabin,2 seats,A/C,USB... |
|
Fuel Type: |
Diesel |
|
Fuel tank volume （L）： |
76 |
|
Engine Model |
4HK1-TCG61 |
|
Engine works |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling，diesel |
|
Exhaust displacement ml: |
5193 ml |
|
Engine power : |
190HP/139Kw |
|
Maximum torque (Nm/rpm) |
507 |
|
Emission standards |
Euro 6 |
|
Drive System |
4x4 |
|
Transmission |
MLD 6 speed |
|
Max Speed km/h: |
140 |
|
Tire Size |
235/75R17.5, 4pcs + 1 spare tire |
|
Brake system |
Front ventilated disc type, rear solid disc type |
|
Rated capacity (including driver) |
7-8 |
|
Medical Alert Appearance |
|
|
Appearance of vehicle |
The car body is white, with body color strips and first aid signs, bright and eye-catching colors. The windows of the medical cabin are pasted with dark colors. Solar film (black film on the left window of the medical cabin, 2/3 frosted glass film on the right rear window) |
|
Warning lights |
1. Alarm assembly 1 set: embedded warning light, 100W speaker, alarm handheld. 2. LED sign light (strobe) 1 set: 64 LED (blue), 2 LED (white), a total of 6 lights. |
|
Medical cabin rescue facilities |
|
|
Rescue system
|
Automatic loading stretcher: The frame is made of high-quality aluminum alloy, which is light, strong and easy to operate. Through operation, the stretcher carrying the patient can be pushed into or pulled out of the ambulance quickly and smoothly. The backrest is supported by an adjustable structure, and the backrest is adjustable. It is equipped with a patient safety belt to facilitate the fixation between the patient and the stretcher. |
|
Stretcher assistance |
Made of high-quality stainless steel, it assists the stretcher in getting on and off the vehicle. |
|
Infusion bottle holder |
Two foldable infusion bottle holders (slide rail type) are installed on the top of the medical cabin. |
|
Oxygen supply system |
Special vehicle oxygen supply system assembly, equipped with 2units 10L steel oxygen cylinders, hidden oxygen pipeline, including 2 oxygen terminals, oxygen inhaler and pressure regulating valve |
|
Medical power supply system |
|
|
Medical cabin power system |
1. 1000W intelligent inverter 2. Power control: 1 set of boat-shaped piano-style control panel. 3. 4 220V sockets |
|
Cabin lighting |
One set of embedded lighting (4 LEDs), two embedded infusion spotlights and one backfield lighting are installed on the inner ceiling. |
|
Intercom System |
An intercom system is installed between the medical cabin and the cockpit. |
|
Disinfection system |
|
|
UV disinfection lamp |
Install a UV disinfection lamp on the upper part of the middle partition |
|
Medical cabin ventilation system |
1 ventilation fan on the top of the medical cabin |
|
Medical cabin air conditioning and heating system |
|
|
Air conditioning/heating |
1 set of independently controllable rear air conditioning and rear heating, with independent cooling and heating controls to reasonably regulate the temperature in the medical cabin. |
|

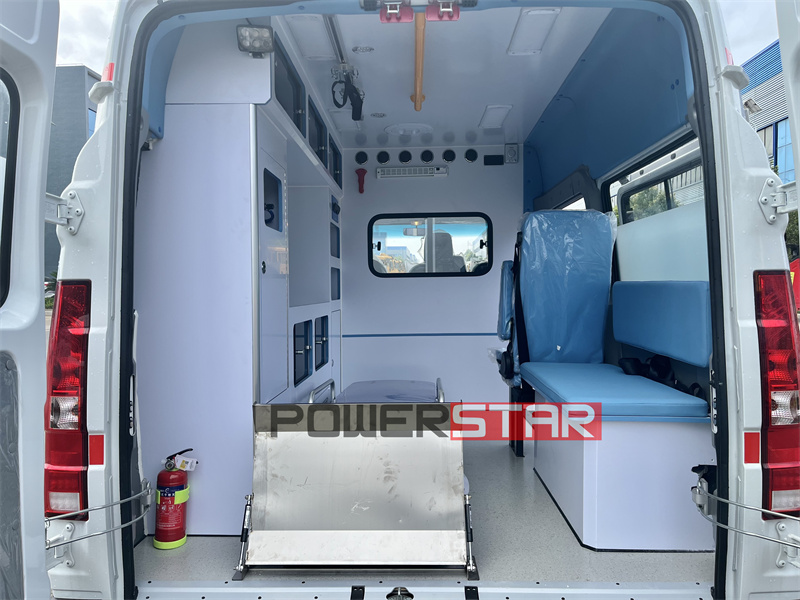

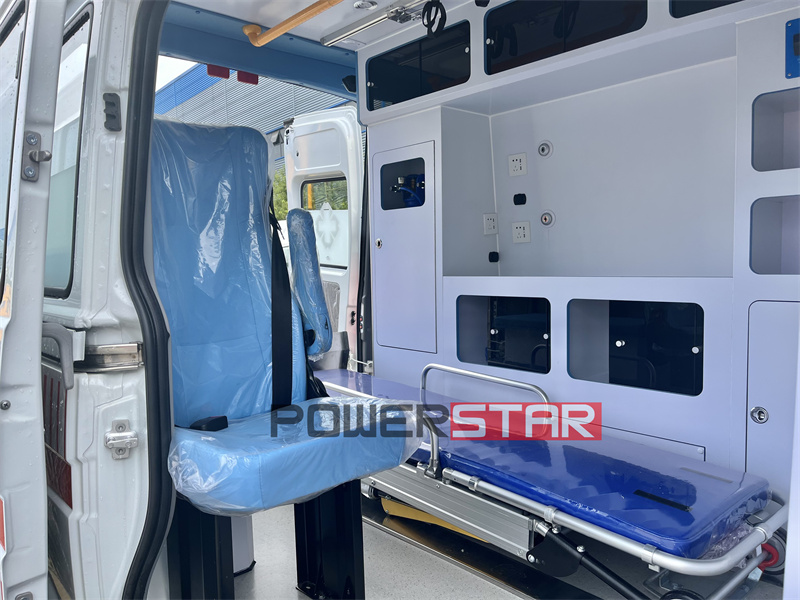

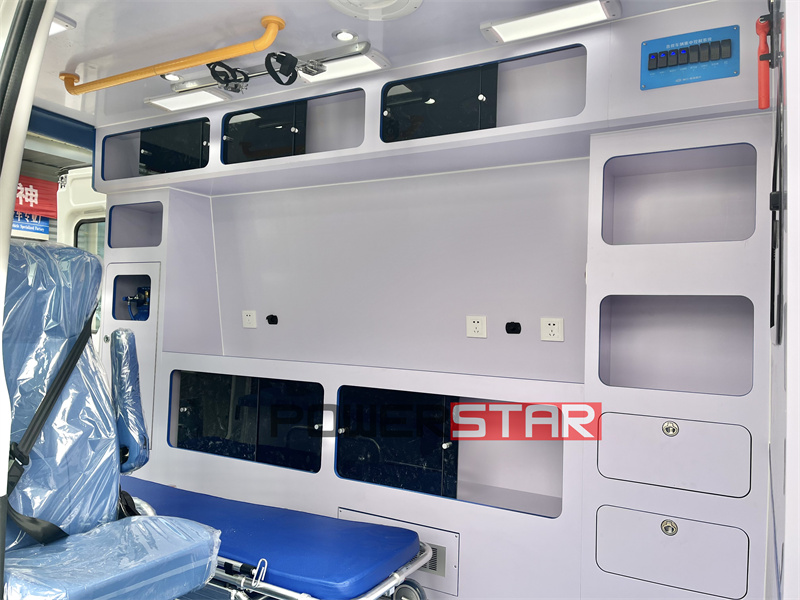

Medical cabin cabinet interior configuration |
|
|
Middle partition wall assembly |
A set of new environmentally friendly material partition wall is installed between the cab and the medical cabin, and a sliding glass observation window is set on the partition wall to facilitate observation and communication between the front and rear cabins. |
|
Cabinet assembly |
Install 1 set of long equipment cabinet made of new environmentally friendly materials, with sliding window storage space on the cabinet body Install 1 set of oxygen cylinder cabinet made of new environmentally friendly materials, which can accommodate 2 10L oxygen cylinders; Install 1 set of wall cabinet made of new environmentally friendly materials, with sliding window structure for the wall cabinet door, and integrated storage and other functions. |
|
Medical cabin interior |
Medical cabin interior: Made of flame-retardant composite materials, waterproof, mildew-proof, antibacterial, and easy to clean. Medical cabin floor: Made of integral new lightweight materials, the medical floor is acid-base, corrosion-resistant, wear-resistant, anti-static, and easy to clean. The raised edges around the edges prevent dust accumulation and are anti-slip, and are easy to wash with water. |
|
Auxiliary facilities |
|
|
Seats |
1 set of seats: right cabinet-style bed for two persons made of PVC material, with seat cushion and backrest covered with leather; right cabinet-style bed with single folding seat in front. |
|
Fire extinguisher |
1 fire extinguisher (1KG) |
|
Dirt Bucket |
1 units 5L stainless steel waste bucket Safety handrail Top safety handrail 1 pair |
Advantage:
Five core advantages of this ISUZU 700P 4x4 ambulance:
1. Powerful power and all-terrain adaptability This ambulance is equipped with Isuzu's powerful and reliable 4HK1-TCG61 engine, which outputs 190 horsepower and 507Nm of torque. Combined with the 4x4 drive system, it can easily cope with various complex road conditions, including city streets, country roads, and even some off-road terrains. This excellent maneuverability ensures that the ambulance can quickly reach remote or difficult-to-access accident sites, greatly improving the efficiency and coverage of emergency response. In an emergency, this all-terrain adaptability may be the key factor in saving lives.
2. Advanced medical equipment and humanized design The interior of the medical cabin is equipped with comprehensive and advanced first aid equipment. The automatic loading stretcher system not only facilitates the transfer of patients, but also reduces the physical burden on medical staff. The independently controlled air conditioning and heating systems provide a comfortable environment for patients and medical staff, while the UV disinfection lamp and ventilation system ensure hygienic safety. In addition, the medical cabin is also equipped with a complete oxygen supply system, infusion stand and 1000W inverter and other equipment, providing strong support for various emergency medical treatments. These designs fully reflect the in-depth understanding of medical needs, making the ambulance not only a means of transportation, but also a mobile first aid station.
3. High safety and reliability As an ambulance modified based on Isuzu pickup trucks, it inherits Isuzu's excellent safety performance. The front ventilated disc brake and rear solid disc brake system ensure excellent braking performance. The body is made of high-strength materials, providing good collision protection. At the same time, as a model that meets the Euro 6 emission standards, it also reflects the importance of environmental protection. This high level of safety and reliability not only protects the medical staff and patients in the truck, but also provides a solid guarantee for daily emergency tasks.
4. Excellent visual recognition and warning system In an emergency, quick identification and giving way are crucial for ambulances. This ambulance adopts a striking white body with bright first aid signs and color strips, which greatly improves its visibility on the road. The LED warning light combination and 100W speaker system on the top further enhance its warning effect. This high degree of visual recognition not only helps the ambulance pass through traffic quickly, but also serves as a clear warning at the scene of the accident, creating a safe environment for emergency work.
5. Flexible interior space and versatility Although it is based on the ISUZU NPR 4x4 chassis modification, the interior space design of this ambulance is very flexible and efficient. There are multiple lockers and wall cabinets in the medical cabin to accommodate various medical equipment and medicines. The foldable infusion stand, multi-functional seat and other designs reflect the careful consideration of space utilization. This flexible interior layout not only meets the needs of conventional emergency treatment, but also provides the possibility of handling various special situations. Whether it is daily medical transportation or emergency treatment in large-scale accidents, this ambulance can respond flexibly.
This ISUZU pick-up ambulance perfectly combines ISUZU's reliable performance and advanced medical equipment, providing an ideal mobile medical platform for emergency personnel and patients. It adopts a 4x4 drive system and is equipped with a powerful 4KH1CT6H1 engine. The power output of 143 horsepower ensures excellent performance in various road conditions. The engine that meets Euro 6 emission standards is not only environmentally friendly, but also provides a strong torque of 320Nm, allowing this ambulance to respond quickly in emergency situations. The 5-speed gearbox and the maximum speed of 140km/h further enhance its maneuverability, allowing it to quickly reach the scene of the accident.
Learn More
2015 Isuzu New Design High-efficiency Mini Self Loading Concrete Mixer Truck,6X4 Isuzu Cement Mixer Truck 10000L/Concrete mixer truck for sale,Japan ISUZU 6x4 10CBM concrete mixer truck price
Learn More

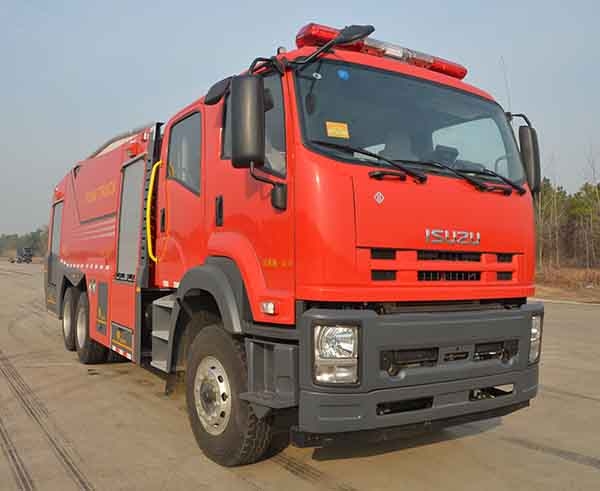

VC46 fire fighting truck 6*4 Isuzu sprinkler truck 12000 liters fire rescue truck portable fire fighting pump, 6UZ1-TCG40 ISUZU PT5270GXF Foam Fire truck 12000L capacity
Learn More

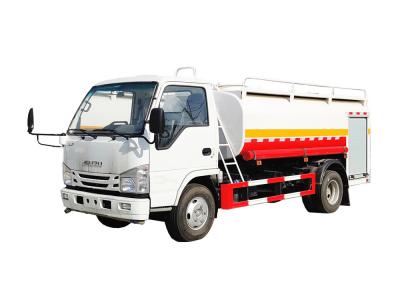

The Belgium Isuzu water truck for firefighting is designed for various firefighting applications, including residential areas, commercial buildings, industrial sites, and forest fires. It plays a crucial role in ensuring public safety and protecting properties from fire hazards.
Learn More
The ISUZU 3.2 Ton hydraulic crane lorry truck, equipped with the XCMG SQS125-4 boom crane, represents a significant advancement in the field of construction and cargo handling vehicles. This combination offers a robust, reliable, and versatile solution for a wide range of applications, from construction sites to industrial parks and beyond.
Learn More

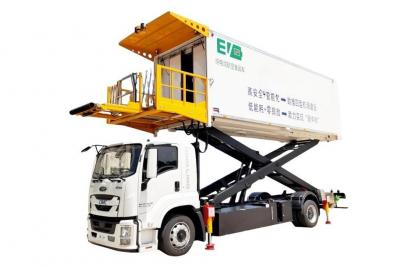

New or used Isuzu Electric Catering Vehicle Airport food Truck，There are many types of airline catering carts. Different manufacturers and airlines may customize different types of catering carts according to their specific needs and specifications. Electric airline catering carts: They are powered by electricity and are environmentally friendly and energy-saving. They have stable driving speed and are easy to operate, which reduces the labor intensity of staff. They are suitable for large airports or occasions where frequent delivery is required. Standard airline catering carts: They usually have moderate size and load capacity, and are suitable for the delivery needs of most airports and airlines.
