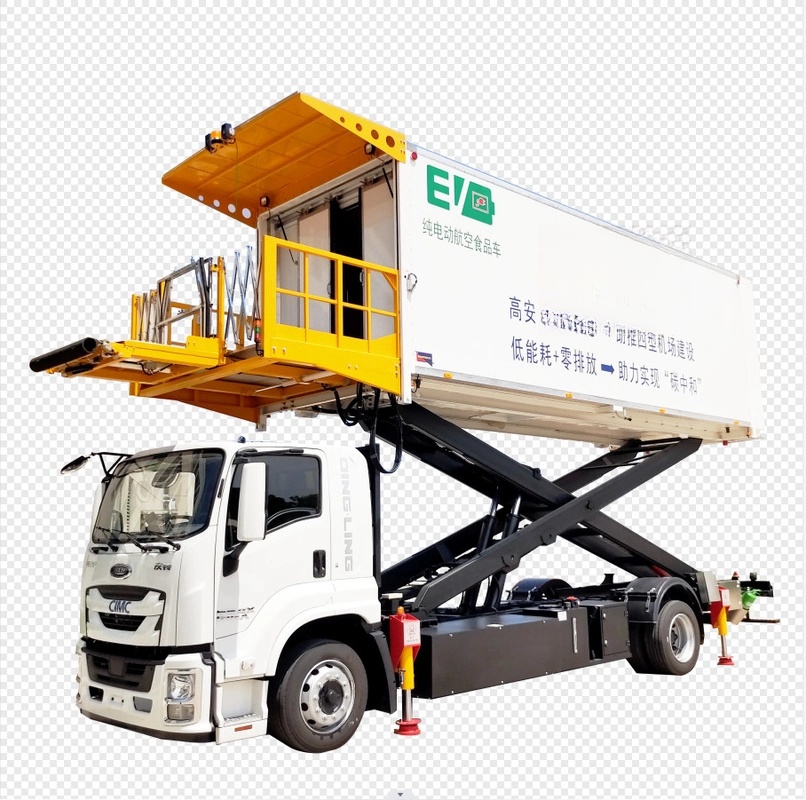

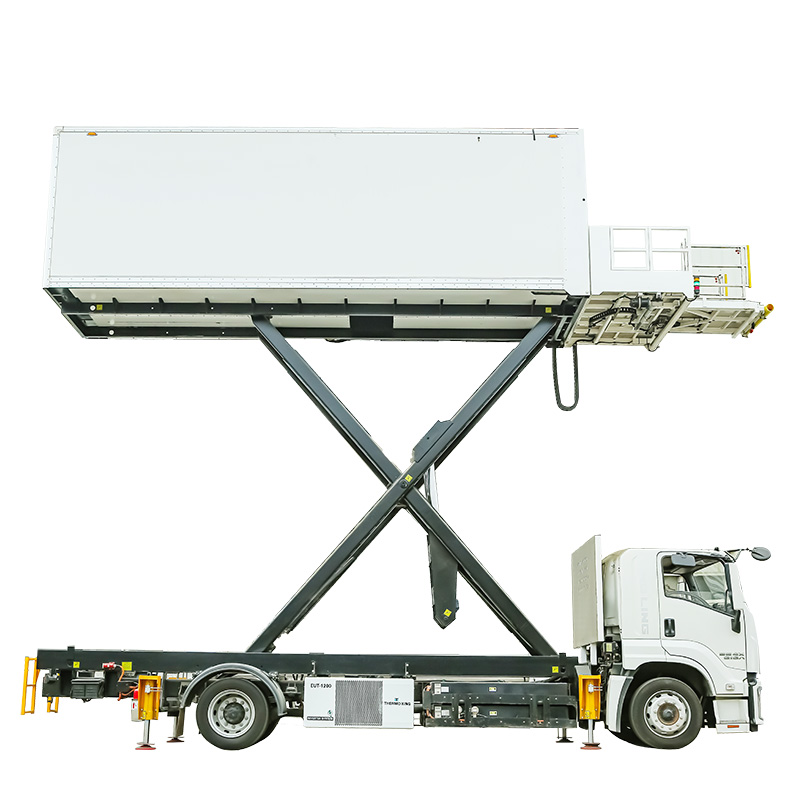

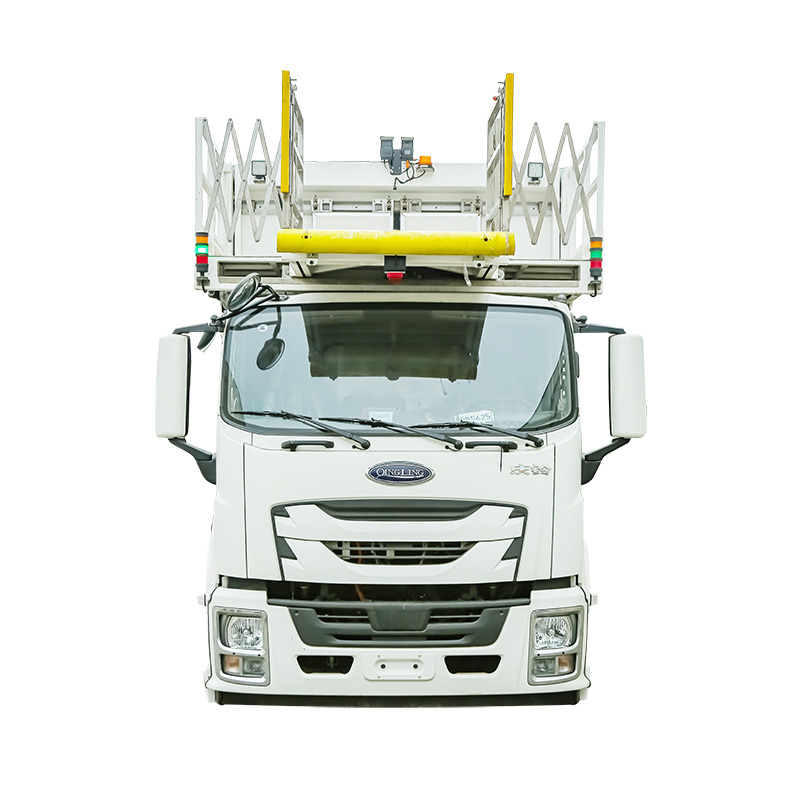

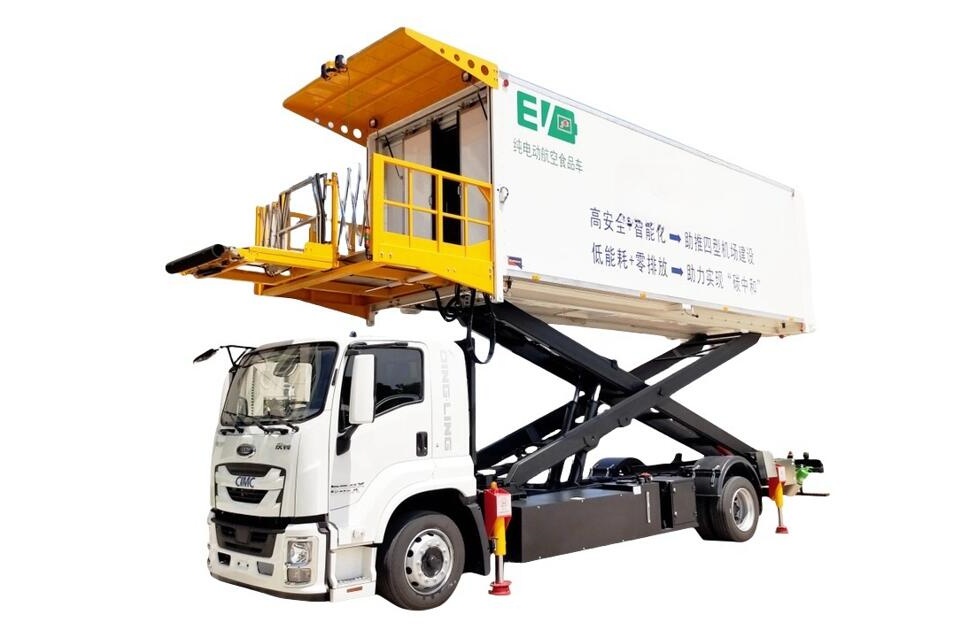

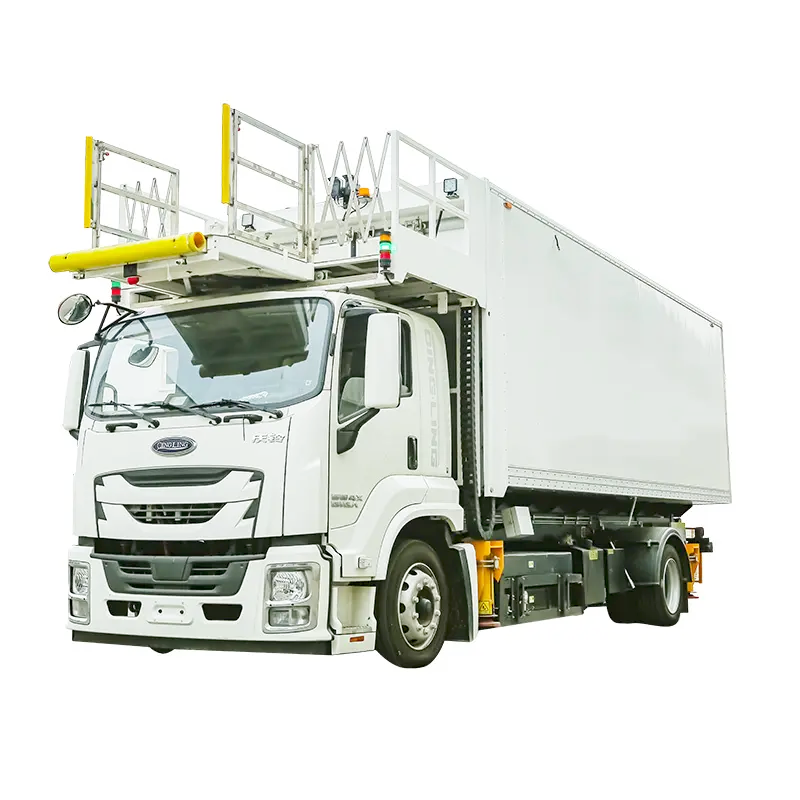

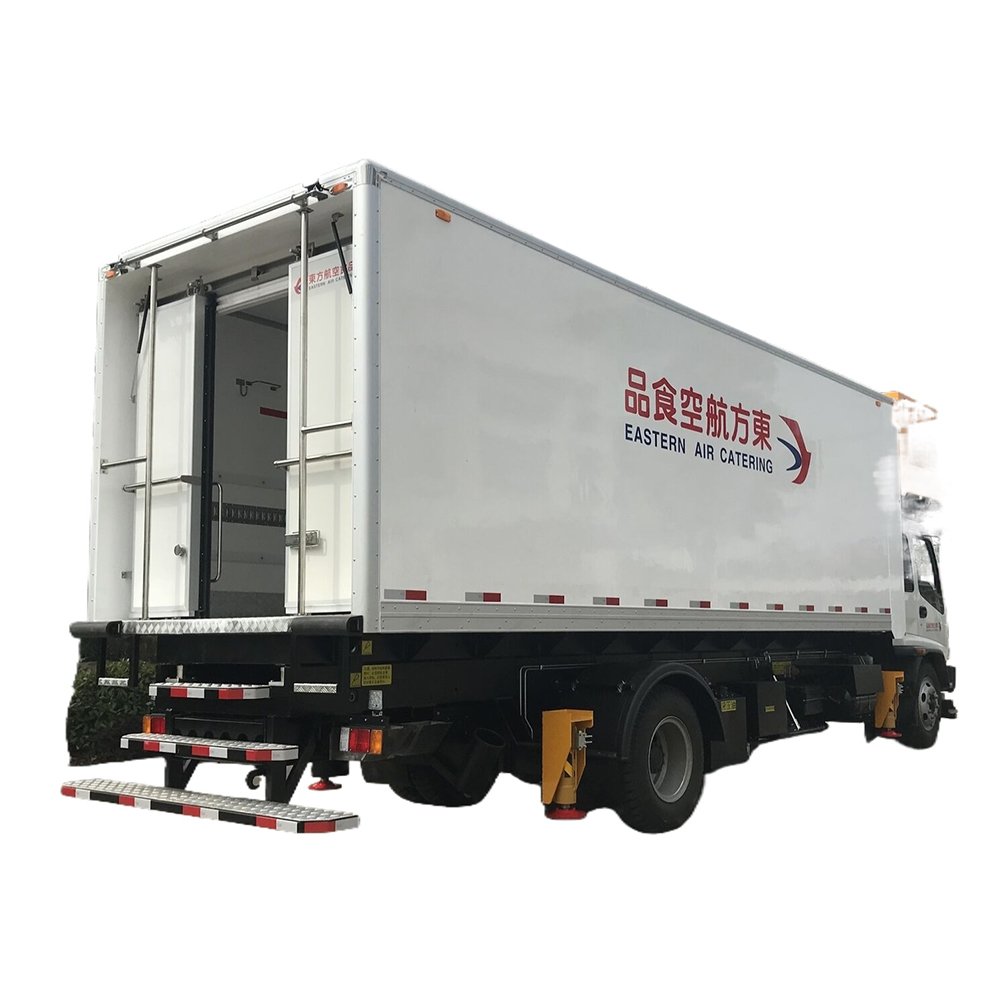

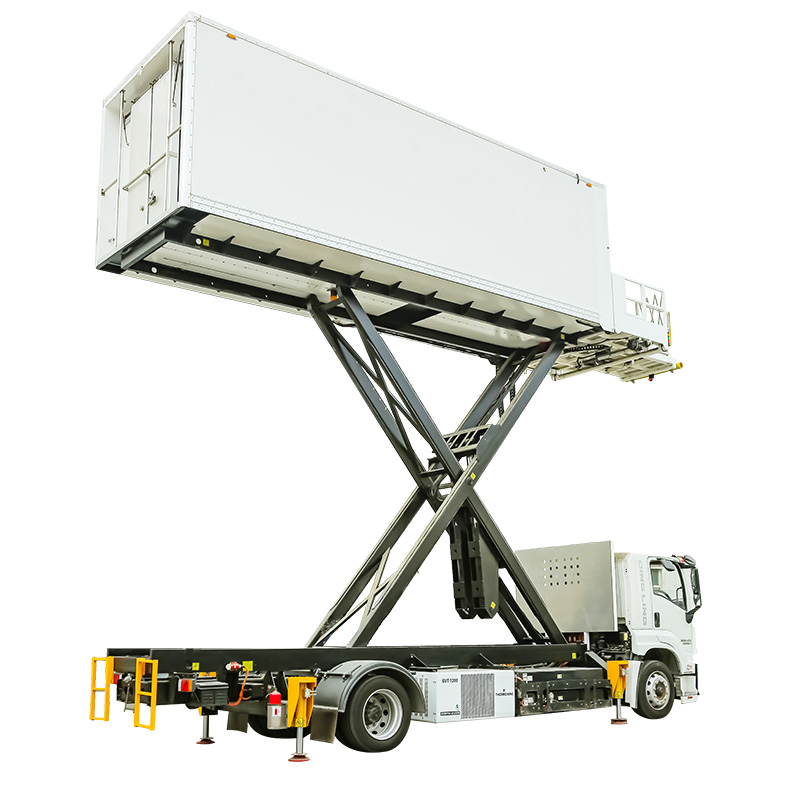

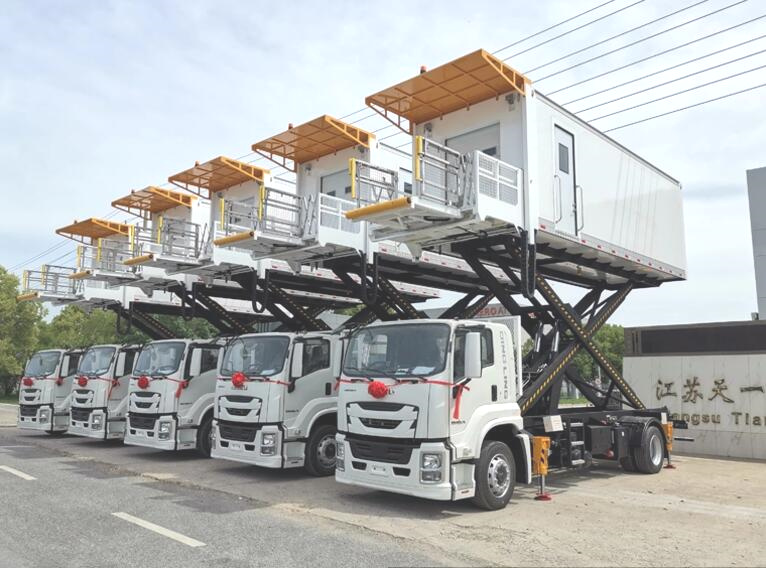

Isuzu Electric Refrigerated aircraft catering trucks
New or used Isuzu Electric Catering Vehicle Airport food Truck，There are many types of airline catering carts. Different manufacturers and airlines may customize different types of catering carts according to their specific needs and specifications. Electric airline catering carts: They are powered by electricity and are environmentally friendly and energy-saving. They have stable driving speed and are easy to operate, which reduces the labor intensity of staff. They are suitable for large airports or occasions where frequent delivery is required. Standard airline catering carts: They usually have moderate size and load capacity, and are suitable for the delivery needs of most airports and airlines.
Work capacity:
4000 kgTruck model:
PT5180ECCEngine power:
CATL 246.67KWEngine type:
ElectricAxle drive:
4x2Gear box:
AutomaticRemarks:

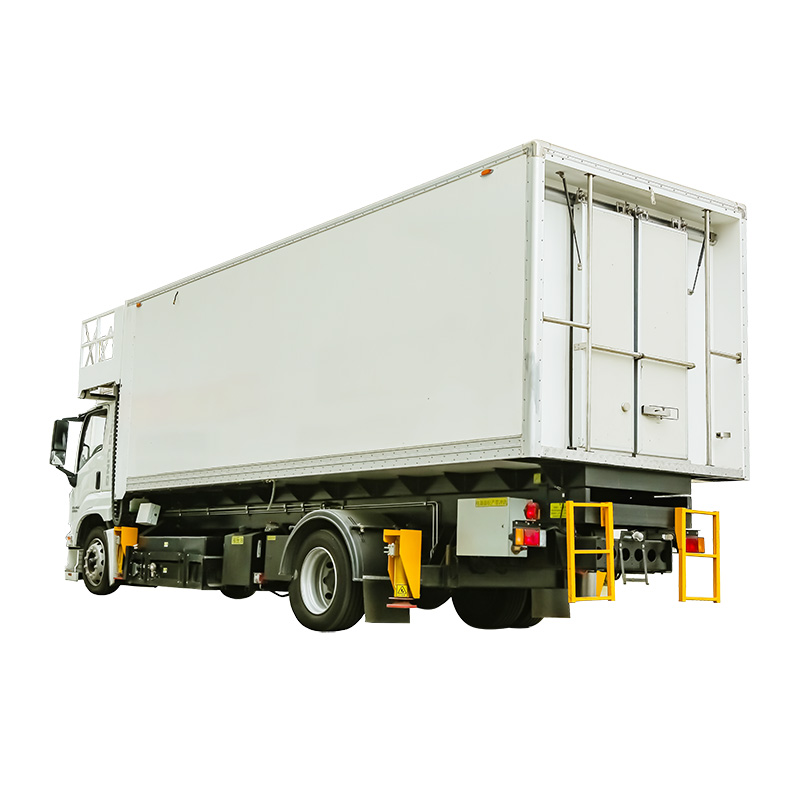

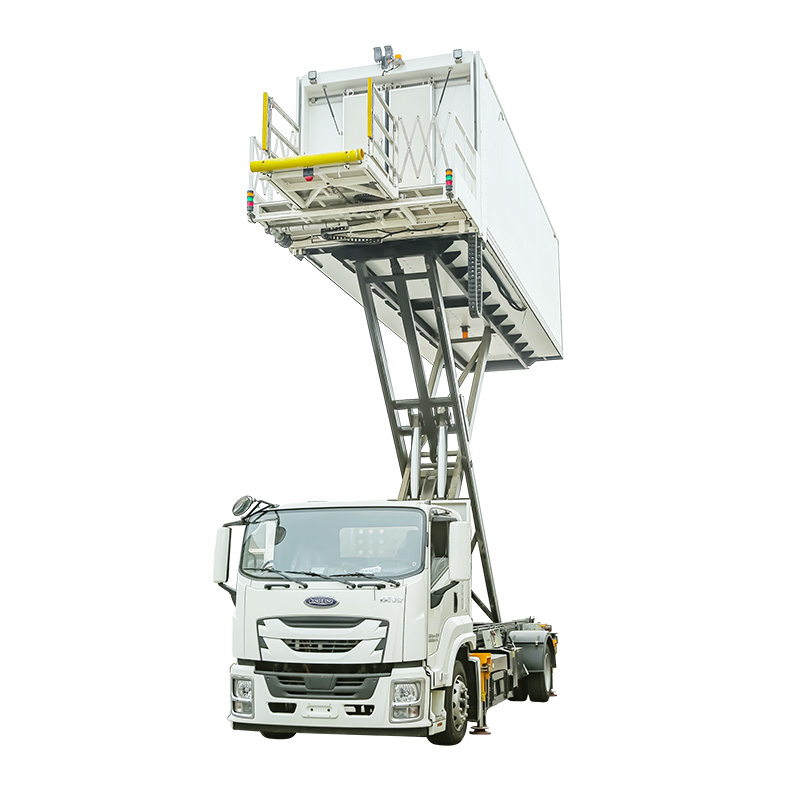

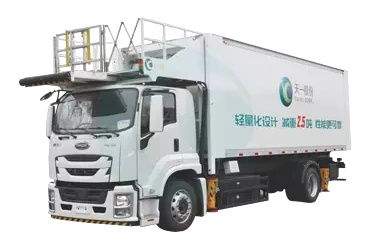

Customer special request availableBrand new ISUZU brand airport Catering truck, also named Isuzu Airport scissor lift Catering Trucks, Isuzu Reliable aircraft catering truck or new Isuzu Airport catering truck for sale, is a kind of ground special equipment produced by Isuzu powerstar trucks. It is mainly composed of the ISUZU giga type unpowered chassis . converted into Isuzu electric chassis, support feet, scissor-type hydraulic lifting mechanism, car body, elevatable front platform, hydraulic system, electrical system, etc. The product can be widely applied to A300, A310, A318, A319, A320, A330, A340, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and other models in addition to Airbus A380 aircraft Use.
Mongolia International Airport Acquires 3 Units of Isuzu Electric Refrigerated Aircraft Catering Trucks
Mongolia, a vast inland country renowned for its expansive grasslands and abundant mineral resources, has witnessed rapid economic growth in recent years. This growth has fueled an increasing demand for transportation tools, particularly in the light truck market. Mongolia International Airport, specifically Chinggis Khaan International Airport (IATA: UBN, ICAO: ZMCK), located in Tsongmod City, Central Province, has emerged as a key hub connecting Mongolia to the world.
Chinggis Khaan International Airport, also known as New Ulaanbaatar International Airport, officially opened on July 5, 2019. With a terminal area of 53,726 square meters and six boarding bridges, the airport boasts a runway that stretches 3,600 meters long and 45 meters wide, capable of accommodating up to 11 million passengers and 119,000 tons of cargo annually. The airport's strategic location and modern facilities have positioned it as a vital gateway for international travel and trade in Mongolia.

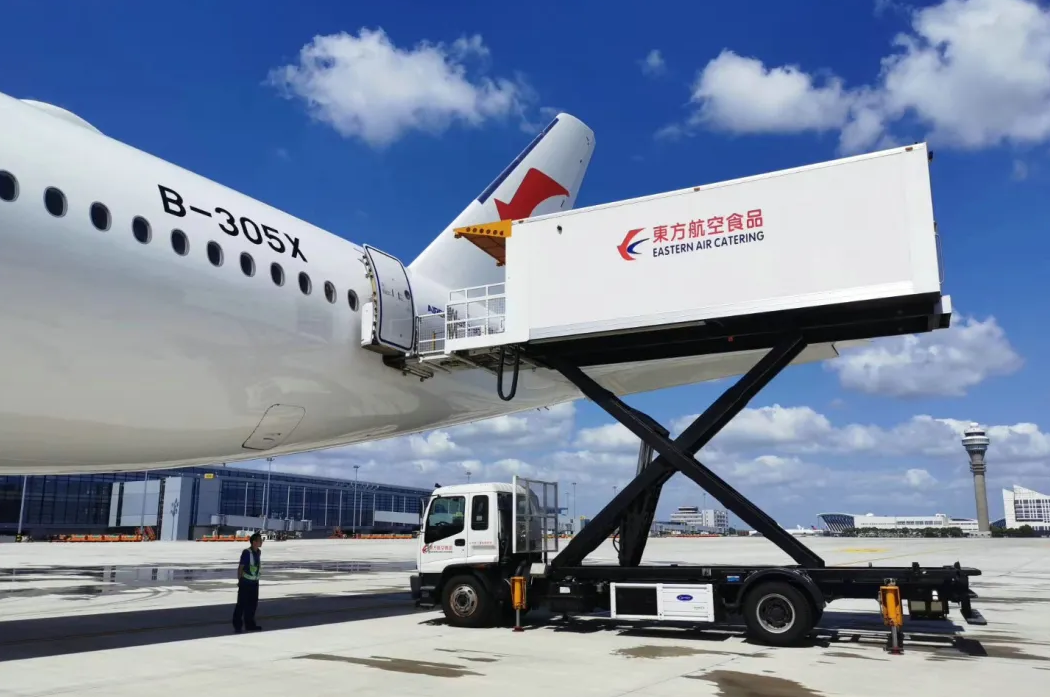

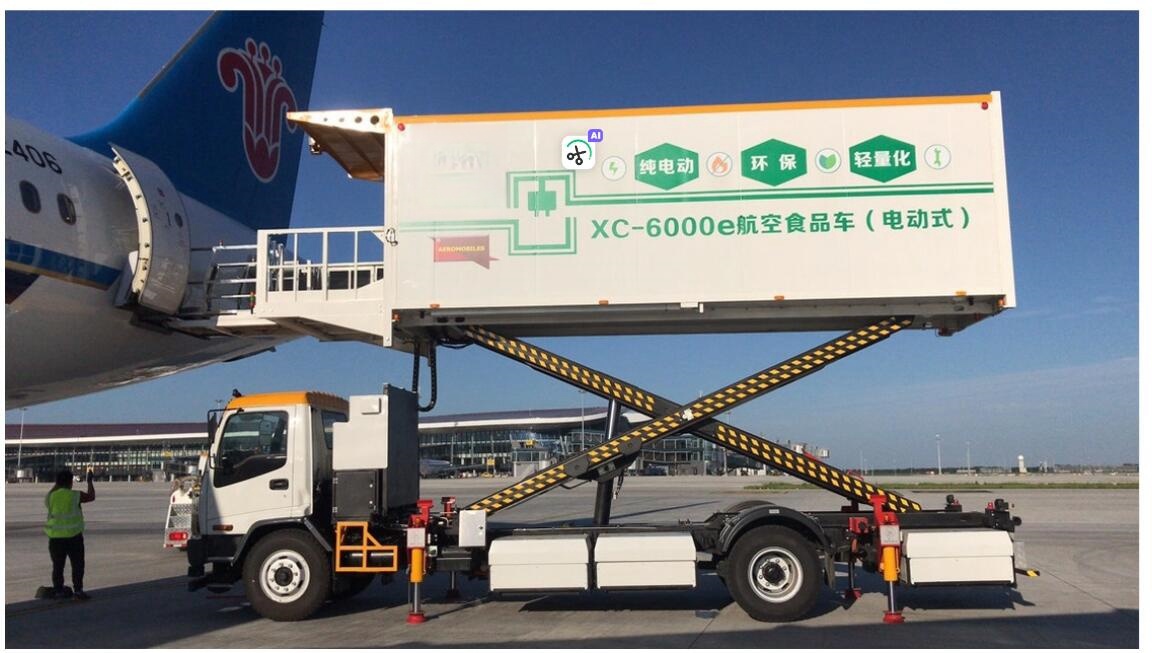

In a recent significant procurement move, Chinggis Khaan International Airport has acquired three units of Isuzu Electric Refrigerated Aircraft Catering Trucks. This purchase underscores the airport's commitment to enhancing its ground handling capabilities and ensuring the seamless transportation of perishable goods, particularly food items for aircraft catering.
The decision to purchase Isuzu Electric Refrigerated Aircraft Catering Trucks was driven by several factors. Firstly, Isuzu, a Japanese brand with a rich history dating back to 1916, is renowned for its robust and reliable vehicles. The company, which initially specialized in heavy-duty trucks, has expanded its portfolio to include a variety of vehicles, including refrigerated trucks tailored for specific industries. Secondly, the electric refrigerated trucks align with Mongolia's growing emphasis on environmental sustainability and reducing carbon emissions. Finally, the airport recognized the need for advanced and efficient catering trucks to meet the increasing demands of international flights and maintain high standards of food safety and quality.
Looking ahead, the Isuzu Electric Refrigerated Aircraft Catering Trucks have a promising future in the Mongolian market. As the country's economy continues to grow and international travel increases, the demand for efficient and eco-friendly catering trucks will likely rise. The trucks' ability to preserve food quality and reduce environmental impact makes them an ideal choice for airports and other transportation hubs.
Moreover, Mongolia's focus on infrastructure development and the exploitation of mineral resources will further drive the demand for light trucks, including refrigerated variants. With their reputation for reliability and efficiency, Isuzu trucks are poised to capture a significant share of this market.
Main technical data of XINFA Full-electric Catering Truck is as below:
| Chassis | ||
| l Model | ISUZU QL1180BEVELQHY | |
| l Type | Electric commercial chassis | |
| l Overall dimensions |
|
|
|
14,300kg | |
|
18,300kg | |
|
5,550mm | |
|
1,960 / 1,850mm | |
|
200mm | |
|
≤10,500mm | |
|
1,335 / 2,880mm | |
|
10° / 9° | |
|
Included | |
|
Hydraulic powered steering | |
|
1+2 | |
|
295/60R22.5 18PR | |
|
80km/h | |
|
Dual-circuit air brake system | |
|
Brand | CATL |
| Type | Lithium iron phosphate battery | |
| Battery capacity | 246.67kwh | |
| Battery package | 04 packages around the chassis | |
| Battery life | >4,000 times by circularly charging | |
| Charging time | <02 hours by D/C quick charger for charging from 20% alert value to 100% (Note: if 120 charging power) | |
| IP Grade | IP67 | |
|
200km (Note: actual data under full load with refrigeration system on when the battery power consumes from 100% to 20% alert value) | |
|
Type | PMSM (permanent magnetic synchronous motor) |
|
|
Model | LVKON GC-TM1300-01 |
|
|
Rated power | 100kw@1270rpm |
|
|
IP Grade | IP67 |
| Van Body | ||
|
4,000kg | |
|
|
|
|
|
|
|
- Isuzu Powerstar food-grade van body by using environmental CPA foamer and leading sandwich injection foaming technology with compacter foam and excellent insulation achieved - Internal & external surfaces are covered with white smooth aluminum board to be cleaned easily |
|
|
Front & rear sliding door | |
|
Be fully covered with anti-slip aluminum alloy plate (25mm thick) | |
|
- 01 resistant track extending from front to rear mounted on both sides - 02 rubbing rails made of solid rubber extending from front to rear on both sides - 04 sets of nylon tie-down straps to be provided - 01 box on the right wallboard to hold straps |
|
| Front Platform & Canopy | ||
| ● Servicing height | 2,700 ~ 6,000mm | |
|
4-way hydraulic platform with side shift & extension ● Fixed-section platform ● Movable-section platform |
|
|
|
|
| ● Movable-section platform |
- Side shift: 400mm to left / right
- Rubber bumper mounted at leading edge with 02 mechanic & 02 laser sensors for collision protection |
|
|
Be well fenced |
|
| Chassis | ISUZU (LHD) |
| Overall dimension (L×W×H) mm | 9800×2590×3800 |
| Container dimension (L×W×H) mm | 7200×2480×2400 |
| Axle base mm | 5550 |
| Platform lift range mm | 2750～6000 |
| Fixed platform (L×W) mm | 2480×1400 |
| Platform left/right moving （L×W）mm | 1200×930 |
| Platform rear/forward (L×W) mm | 500×1080 |
| Ground clearance (L×W): Min mm | 1400 |
| Max. mm | 6000 |
| Total weight (kg） | 12830 |
| front axle (kg） | 5200 |
| rear axle (kg） | 7630 |
| Min ground clearance（mm） | 200 |
| Min turning diameter（m） | 18 |
| Max weight of container（kg） | 4000 |
| Max load of fixed platform（kg） | 1000 |
| Max load of movable platform（kg） | 400 |
| Transverse central distance between front and rear stabilizers （mm） | 5450 |
| Vertical central distance between front and rear stabilizers （mm） | 0～500 |
| Lifting time of container(S) | 70/55 |
| Contracting time of stabilizers (S) | 15 |
| Time for platform moving forward/backward（S） | 8/6 |
| Allowable wind speed | 8 |
| Max vehicle speed | 35 |
| Vehicle speed for approaching aircraft | ≤5 |
| Hydraulic oil | hydraulic oil 46# |
| Volume of hydraulic oil tank (L) | 180 |
| Volume of fuel tank (L) | 150 |
| Refrigerated unit | Carrier 750S |
| Engine type | 6HK1 |
| Max working pressure（Mpa） | 15 |
The Isuzu Electric Refrigerated Aircraft Catering Trucks are equipped with state-of-the-art refrigeration systems and electric engines, ensuring optimal temperature control and energy efficiency. The trucks feature a spacious and insulated cargo area designed to preserve food items, including fresh produce, meats, and dairy products, over extended periods. Additionally, they incorporate advanced technology for monitoring and controlling the refrigeration process, ensuring consistent and reliable performance.
Maintaining these trucks is crucial to their longevity and operational efficiency. Regular inspections and maintenance, as recommended by the manufacturer, are essential. This includes checking engine oil and coolant levels, ensuring the refrigeration system is functioning correctly, and verifying that tire pressure is within the recommended range. Additionally, the body of the truck, particularly the refrigeration unit, should be cleaned regularly to prevent the accumulation of dirt and debris, which could affect its performance.
For specific maintenance tasks, such as replacing worn-out parts or diagnosing complex issues, it is advisable to consult authorized Isuzu dealers or service centers. These professionals have the expertise and tools necessary to perform thorough inspections and repairs, ensuring the trucks remain in optimal condition.
Main assembly structure and main technical parameters
There are many types of Isuzu airline catering carts, and different manufacturers and airlines may customize different models of catering carts according to their specific needs and specifications. The following are some common airline catering cart models and their characteristics, but please note that these models may not be comprehensive, and the specific specifications may vary depending on the manufacturer and customization needs:
Standard airline catering cart:
Usually has a moderate size and load capacity, suitable for the distribution needs of most airports and airlines.
The design is simple and practical, easy for staff to operate and maintain.
Large-capacity airline catering cart:
Compared with the standard type, it has a larger capacity and load capacity, suitable for situations where a large amount of food needs to be distributed.
Usually equipped with advanced insulation and fresh-keeping technology to ensure the quality of food during long-term distribution.
Electric airline catering cart:
It is powered by electricity and has the characteristics of environmental protection and energy saving.
The driving speed is stable and the operation is simple, which reduces the labor intensity of the staff.
It is suitable for large airports or occasions where frequent distribution is required.
Hand-pushed airline catering cart:
Relying on manpower to push, it is suitable for small airports or occasions with short distribution distances.
The design is light and flexible, easy to operate in a narrow space.
Special customized airline catering carts:
Customized according to the specific needs of the airline, they may have special sizes, shapes and functions.
For example, some special customized airline catering carts may be equipped with heating, cooling, partitioning and other functions to meet the delivery needs of different foods.
In addition, there are some other types of airline catering carts, such as multi-layer catering carts, wine carts, etc., which are usually designed and manufactured according to specific delivery needs.
It should be noted that since the models and specifications of airline catering carts vary depending on the manufacturer and customization needs, it is difficult to give a unified classification or standard. When choosing an airline catering cart, it is recommended to make a comprehensive consideration based on the specific airport environment, delivery needs and budget. At the same time, it is also necessary to pay attention to choosing a manufacturer with good reputation and strength to ensure the quality and after-sales service of the catering cart.
In conclusion, Chinggis Khaan International Airport's procurement of three units of Isuzu Electric Refrigerated Aircraft Catering Trucks marks a significant step forward in enhancing its ground handling capabilities. The trucks' advanced features and the manufacturer's commitment to quality and sustainability align well with Mongolia's growing economic and environmental aspirations. As the Mongolian market for light trucks continues to expand, Isuzu is well-positioned to capitalize on this trend and its position as a leading provider of reliable and efficient transportation solutions.
