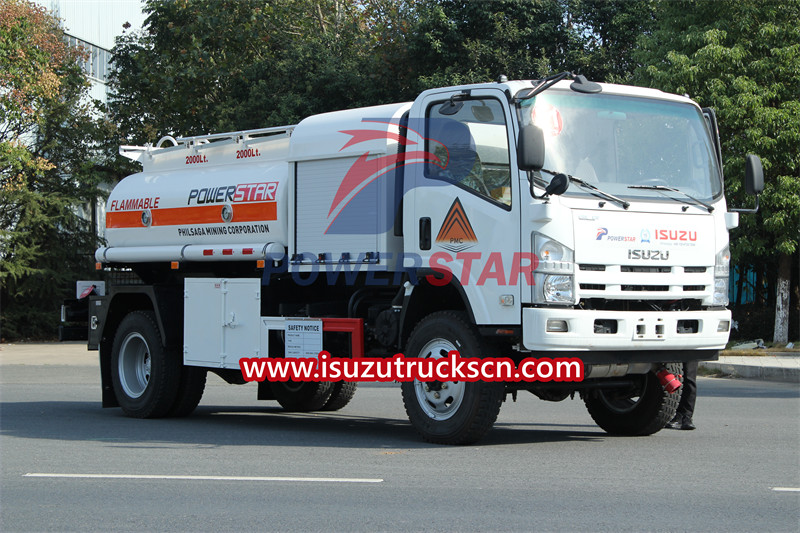

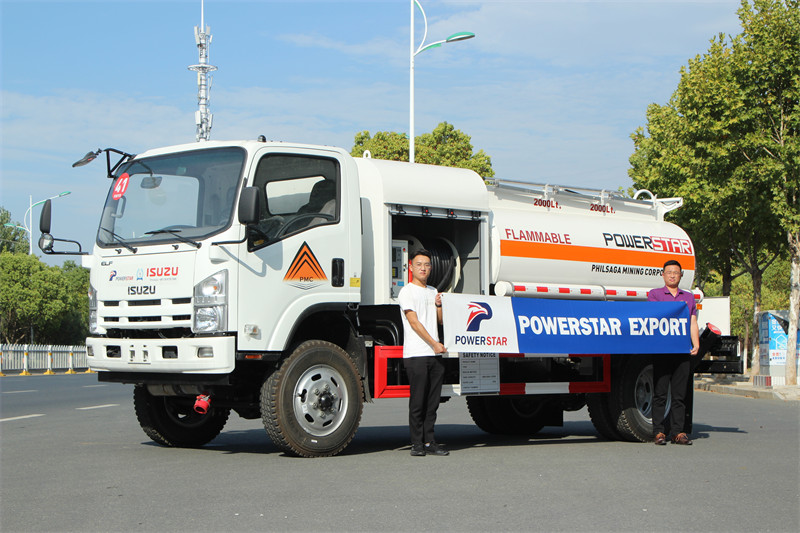

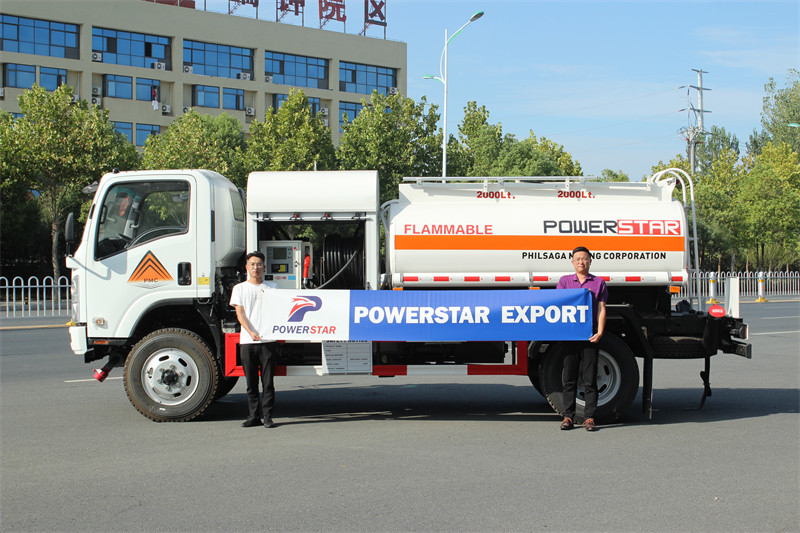

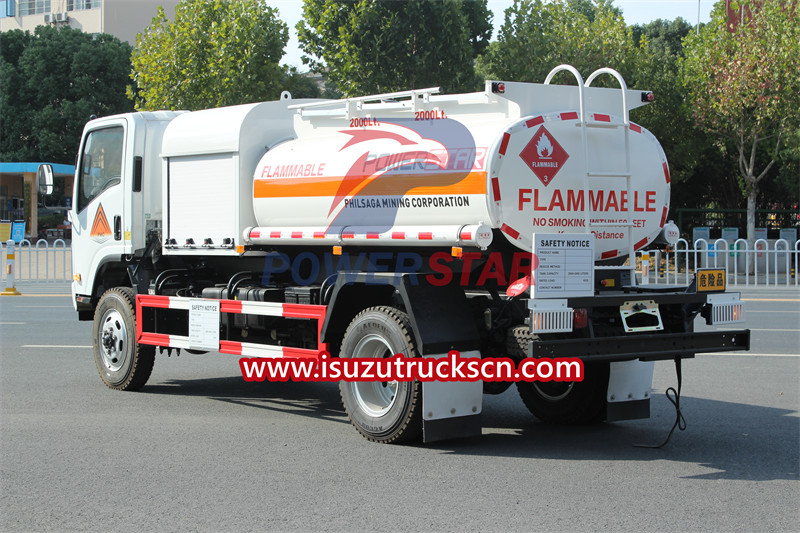

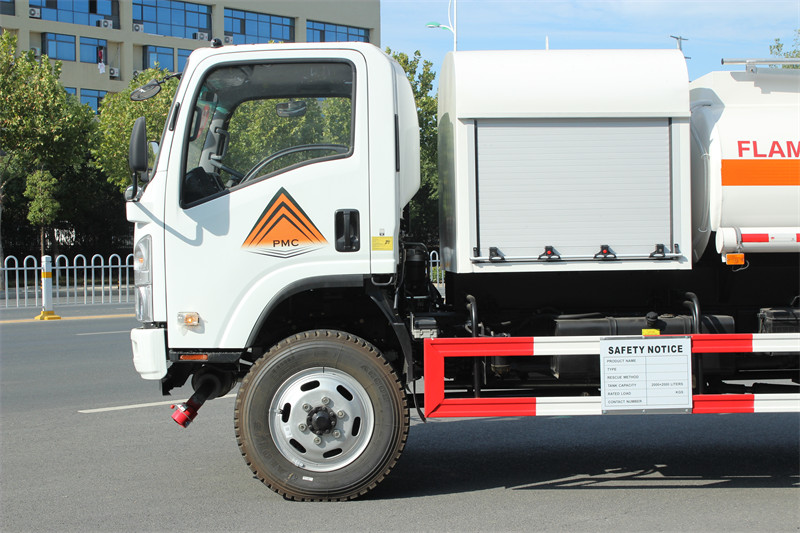

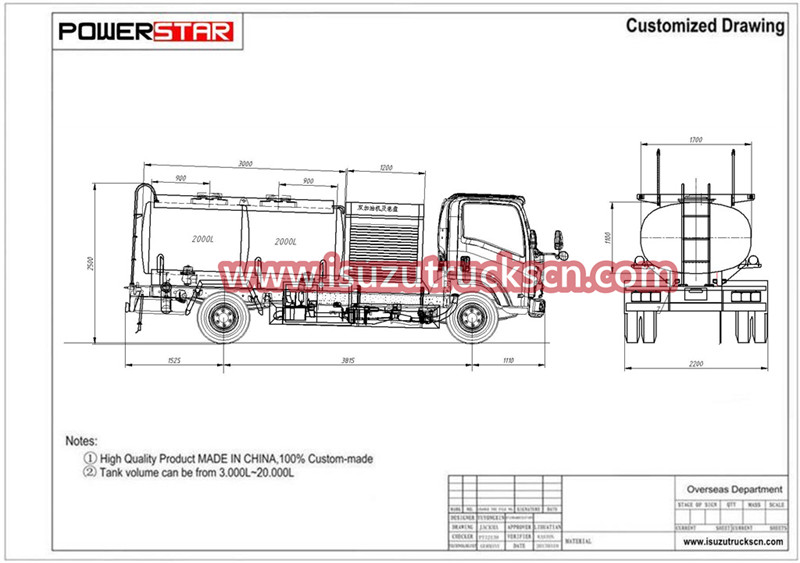

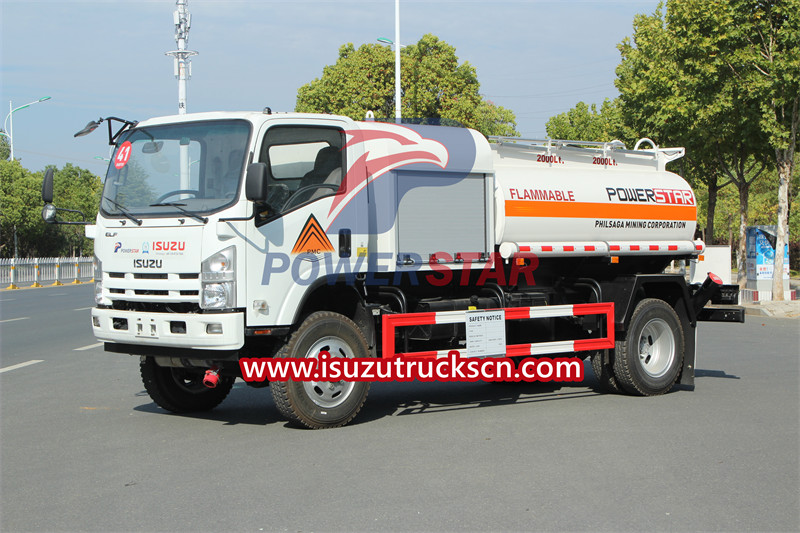

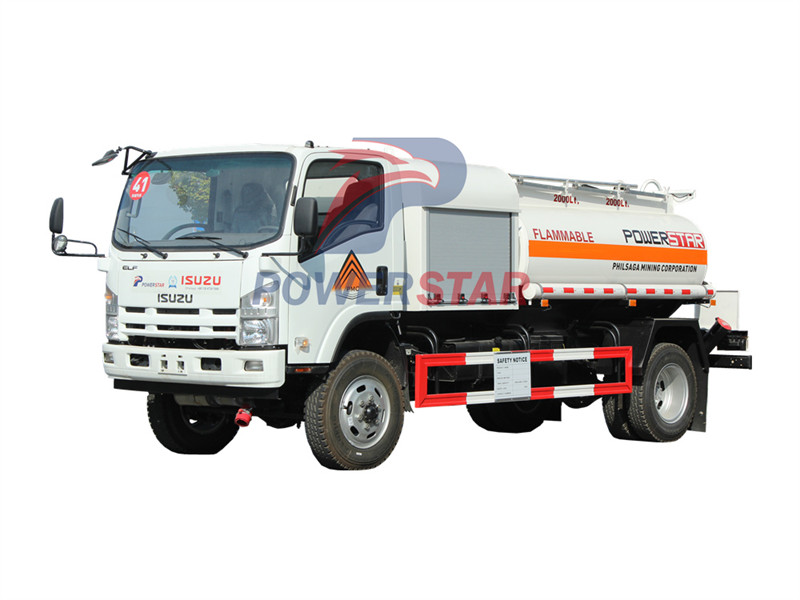

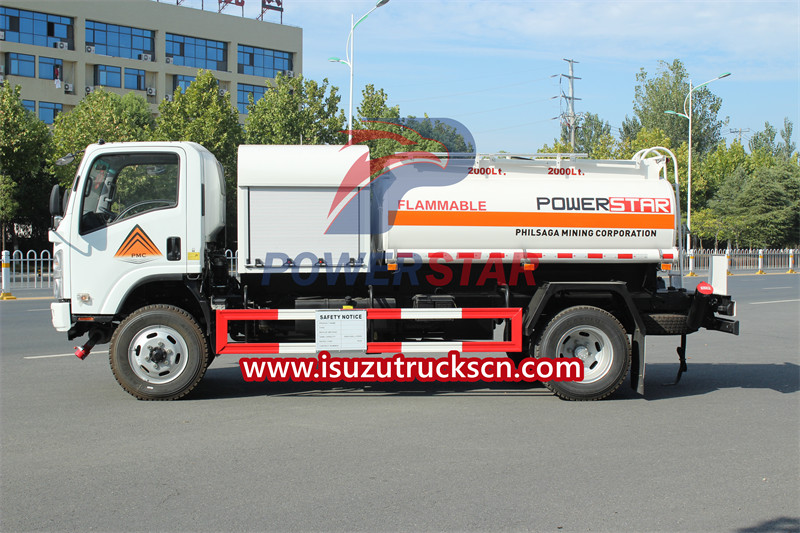

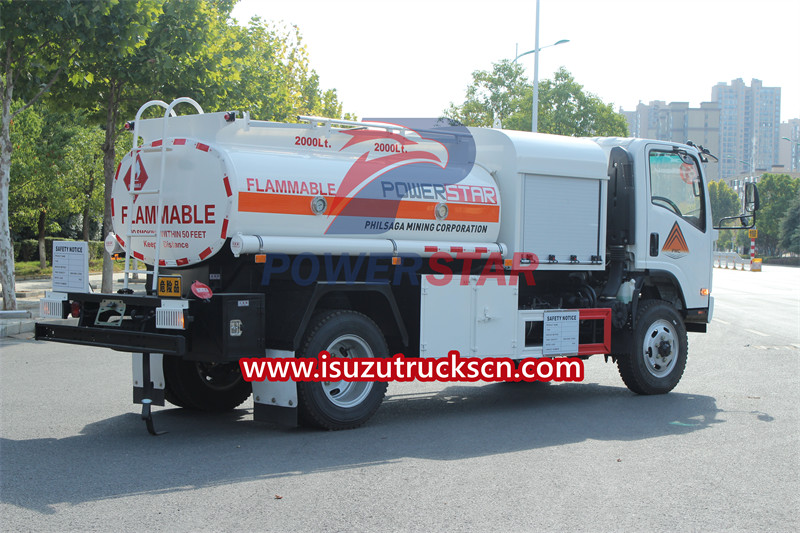

Isuzu Military Customized Model 4x4 4WD model 4CBM 4000liters Fuel Tank Oil Transport Truck Diesel Gasoline Delivery Vehicle Undertake Bulk Orders ISUZU NPR NQR Optional. Clients purchased ISUZU NPR fuel truck is based on Isuzu NPR 4x4 offroad truck chassis, mounted with 4000L fuel tanker and separated into two compartment, 2000L+2000L capacity, all with pump in and pump out function, full customized painting and logos.
Work capacity:
4000 LitersTruck model:
PT5100GJY04NEngine power:
190 HPEngine type:
4HK1-TCAxle drive:
4×4Gear box:
MLD 6-speed, manualRemarks:
Isuzu NPR 4x4 offroad 4WD truck chassis, two sets refueling system
This Refueling truck adopts Isuzu NPR ELF NQR 4x4 chassis, mounted with 4000Liters Fuel Tank ,equipped with 2 compartments, for 2 diffrent kind oil. ISUZU NPR 4x4 Fuel truck also known as oil tank truck,fuel tank truck, fuel dispenser truck ,mobile refueling truck, oil transport vehicle,mobile catering truck,mobile refueling truck, oil tanker, oil loading truck, fuel bowser truck,oil tanker, fuel tank truck, oil bowser, fuel oil tanker,oil delivery truck, petroleum service truck, fuel oil storage tank, fuel tanker lorry, refueling tanker truck, crude oil truck,mainly used for the transportation and storage of petroleum derivatives (gasoline, diesel, crude oil, lubricating oil, coal tar and other oils).
-----Tanker material: Carbon steel, stainless steel, lined with rubber, aluminum tank
-----Compartment: single or several compartments to contain different kinds of oil or chemicals.
-----Optional: Fuel pump, flow meter (back to zero), single count, double count, tax control tanker
Product Parameters:

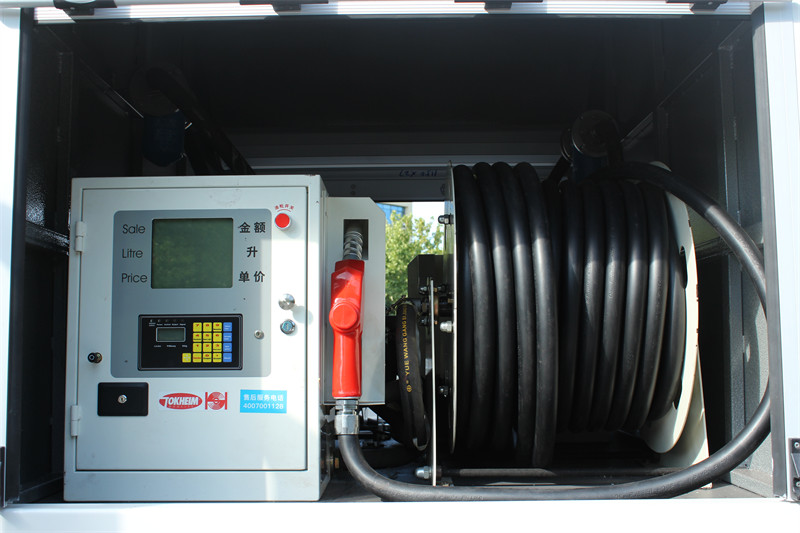

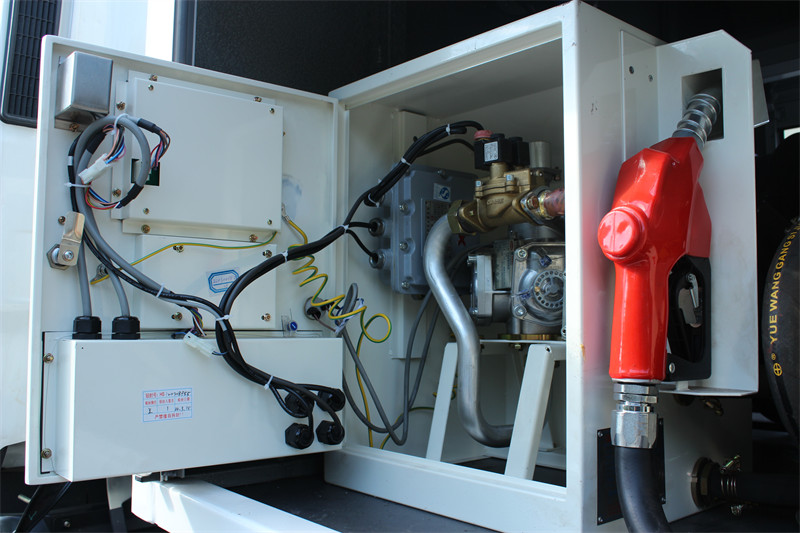

This ISUZU ELF NPR 4x4 4WD refueling tanker truck has been equipped with computer fuel dispenser. It could be used as the mobile filling station. Then the truck is with great flexibility. According to different needs, it is always used in city, suburb, mining plants, wharf, airport, bus station, country road, and many other places where there is no filling station. The fuel tanker truck has brought great convenience for people who have to get the station for the truck. And it actually can be called as the mobile filling station. ISUZU 4X4 offroad 4000L Oil Transport Tank Truck 4Ton Petrol Fuel Tank Truc, with specifications as below:
| Vehicle Description for ISUZU 4x4 military fuel bowser |
||
| Overall dimensions | 6850*2300*2980mm | |
| GVW | 10000kg | |
| Curb weight | 4850 kg | |
| Chassis brand | ISUZU NPR NQR ELF 700P |
|
| Traction type | 4x4 | |
| Tanker Description | ||
| Tank capacity | 2000Liters + 2000Liters | |
| Tanker material | Carbon Steel |
|
| Thickness | Tanker body | 6mm |
| End cover | 6mm | |
| Tanker shape | Ellipse | |
| Tanker compartment | 2 compartments (optional: several more compartment) | |
| Standard configuration | 2 set EURO manhole . | |

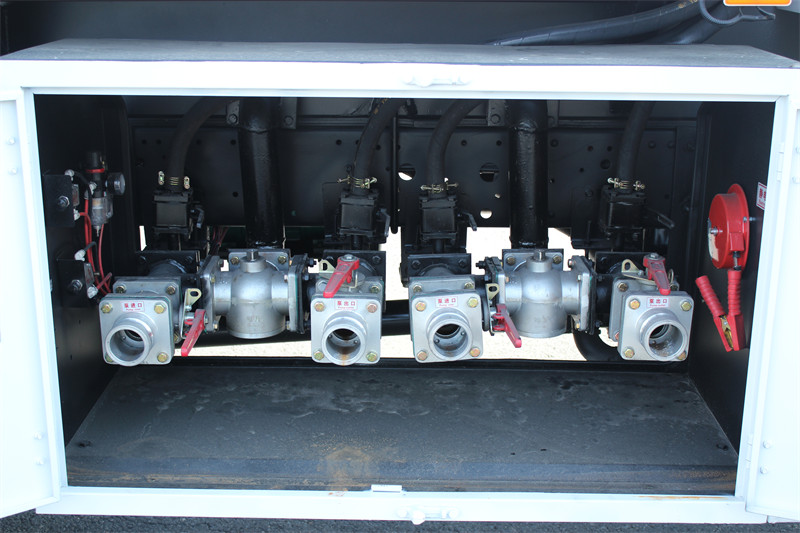

| Equipped with double discharge valve and valve box. | ||
| Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox. | ||
| Electrostatic conducting tape and double fire extinguishers. | ||
| Optional | Tanker material: aluminum alloy; stainless steel | |
| Chinese standard configuration is available, or other world famous fuel configuration. | ||
| over flow probe system, vapor recovery system, bottom valve, API adaptors. | ||
| Emergency bottom valve and foldable aluminum handrail. | ||
| Others: fuel pump, refueling dispenser, flow meter,dipstick, etc. | ||
| Chassis Description | ||
| Cab | 3 Passenger , with air-conditioner. | |
| Wheelbase | 3815 mm | |
| Tire specification | 8.25R20 | |
| Tire quantity | 6+1 units | |
| Engine | Emission level | Euro 5 |
| Brand | ISUZU 4HK1-TC |
|
| Horse power | 190 HP | |
| Gear box | Number of gears | ISUZU MLD 6-shift manual, 6 forward gears& 1 reverse |
| Brake system | Oil brake | |
| Axle | Front | 4000kg |
| Rear | 7000 kg | |
| Suspension | Leaf springs | |
| Fuel tanker | Type | Steel tanker, with lockable cap |
Advanced features and description for ISUZU NPR 4x4 offroad mobile refueling bowser tank from POWERSTAR?
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.

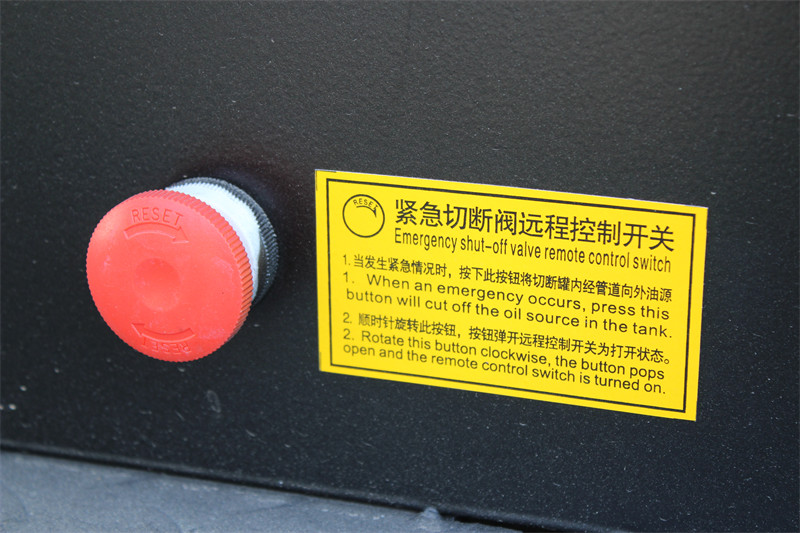

3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.

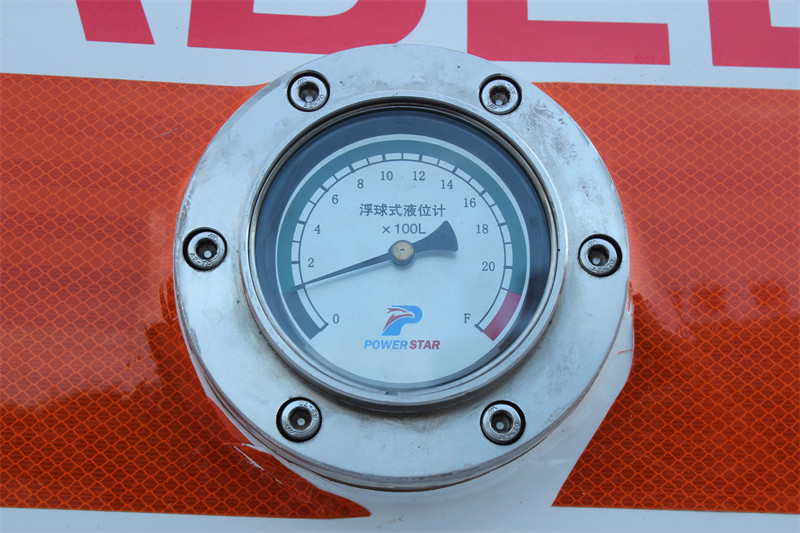

8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
1. Purpose of ISUZU NPR fuel refueler truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2. Optional for Refueling System of ISUZU fuel refueling truck: Oil pump, Hose reel with filling gun/Oil dispenser machine
3. Tank shape of ISUZU NPR 4WD fuel road tanker: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
5. Refueling machine of ISUZU offroad oil tanker truck: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
6. Optional parts of ISUZU 4x4 fuel truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
