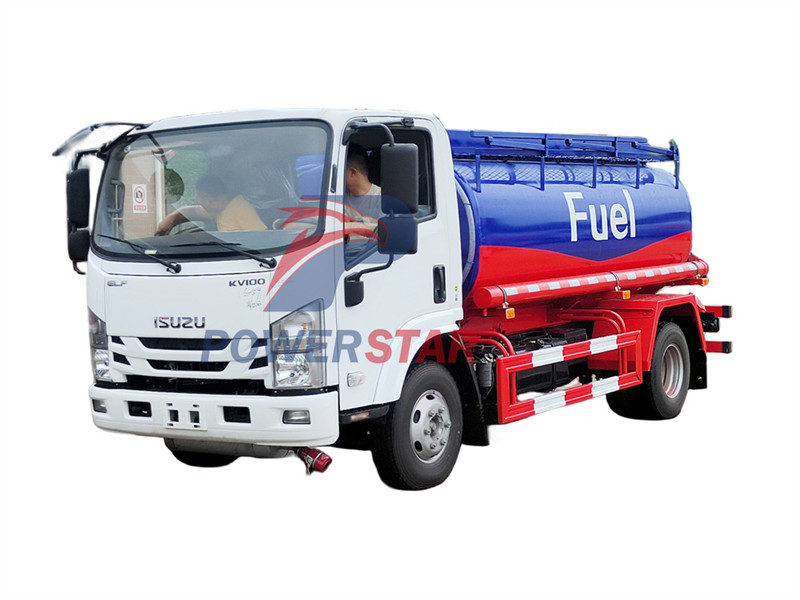

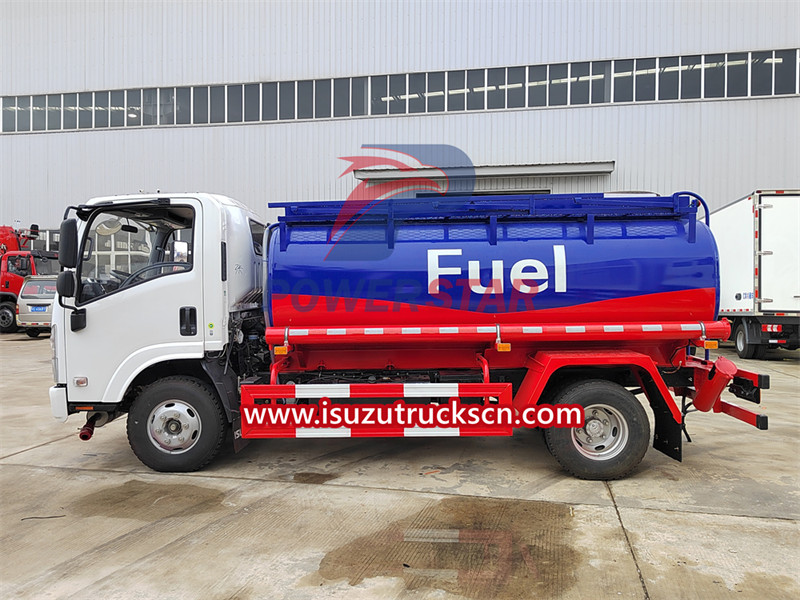

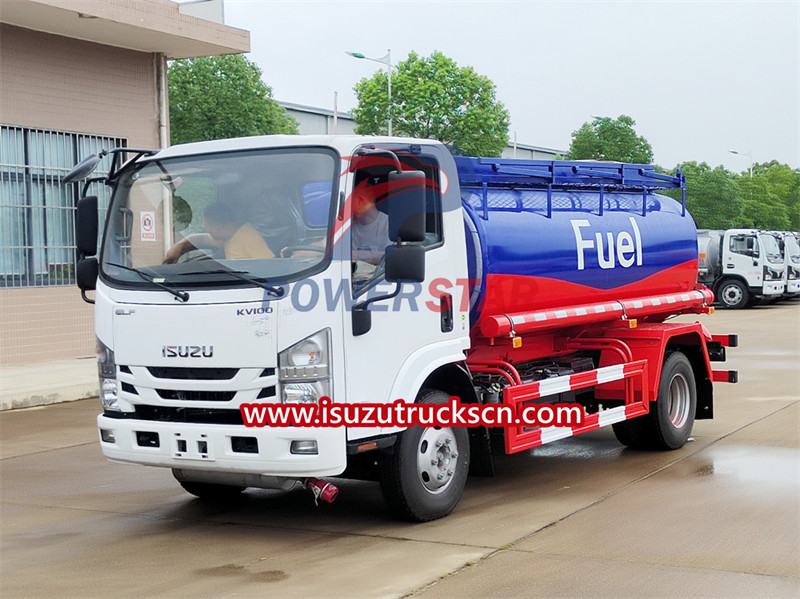

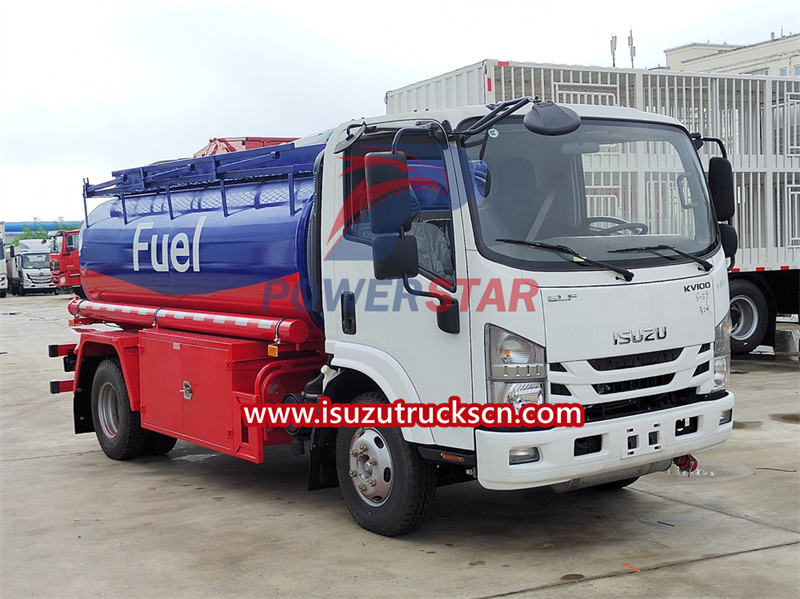

Isuzu KV100 model Fuel tank truck also called oil tank truck could be equipped with fuel pump to realize pumping in and out, with fuel dispenser to filling different kinds of oil to the other equipment at anywhere. The Isuzu oil bowser tanker could be divided into many compartments for transporting different types of fuel, which could be loading and discharging totally separate.The material of the tanker could be carbon steel, stainless steel, aluminum alloy.
Work capacity:
6000 LitersTruck model:
PT5070GJY06NEngine power:
120 HPEngine type:
4KH1CN5HSAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
Original Isuzu comfortable cabin, mounted with fuel dispenser for pump in and pump out
The Isuzu KV100 fuel truck is a special purpose commercial vehicle designed to transport and distribute various types of fuel products. As a high-performance and reliable fuel distribution vehicle, the Isuzu has excellent performance in the field of fuel transportation. The Isuzu NPR fuel bowser truck is a high-performance, large-capacity and reliable fuel distribution vehicle. It has a solid structure and is equipped with an advanced fuel distribution and metering system to ensure efficient and precise fuel delivery. Its safety device and good maneuverability make it widely used in the field of fuel transportation. Whether it is a supply station, logistics company or engineering project, the Isuzu NPR mini oil tank truck can meet various fuel distribution needs and provide reliable fuel supply services.
Product Parameters:
| Condition | New condition/LHD/4X2 | ||
| Chassis | Brand | isuzu 4x2 NKR 6000L fuel tanker truck |
|
| Curb weight(kg) | 3850kg | ||
| Wheelbase(mm) | 3360 mm | ||

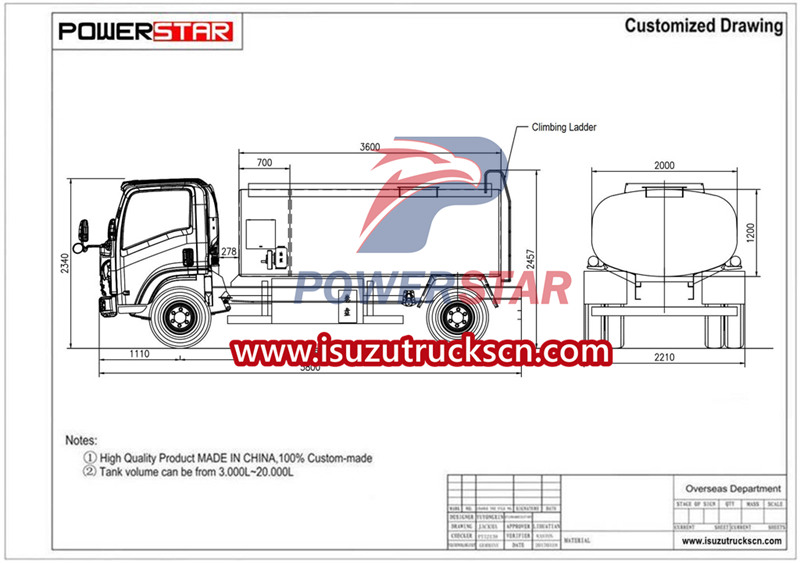

| Dimensions(mm) | 5900X2200X2550 mm | ||
| Front/Rear Axle loading(kg) | 2500/4800 kg | ||
| Wheel track (front/rear) (mm) | 1880/1800 mm | ||
| Front/Rear overhang(mm) | 1430/2370 mm | ||
| Approach/Departure angle(°) | 26/20 | ||
| Max. driving speed(km/h) | 95 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6 pcs with one spare tire | |
| Specifications | 7.00R16 | ||
| Transmission | Manual type, MSB 5-shift model with 5 Forwards and 1 reverse | ||
| Cab | It can accommodate three people. With Air Conditioner | ||
Engine |
Brand | isuzu engine | |
| Model | 4KH1CN5HS | ||
| Fuel type | Diesel | ||
| Displacement(ml) | 2999 ml | ||
| Power(kw) | 88kw | ||
| Horsepower(HP) | 120HP | ||
| Cylinder number | 4 | ||
| Emission standard | Euro V | ||
| Fuel Tank | |||
| Fuel tank | Capacity(cbm/liters) | 5~6cbm/5000~6000Liters | |
| Tank material | Tank material:Q235 high tensile strength steel. | ||
| Thickness(mm) | 5mm of tank and 6mm of end plate | ||
| Compartment No. | 1 | ||
| Baffle | 1 No, 4 mm carbon steel | ||

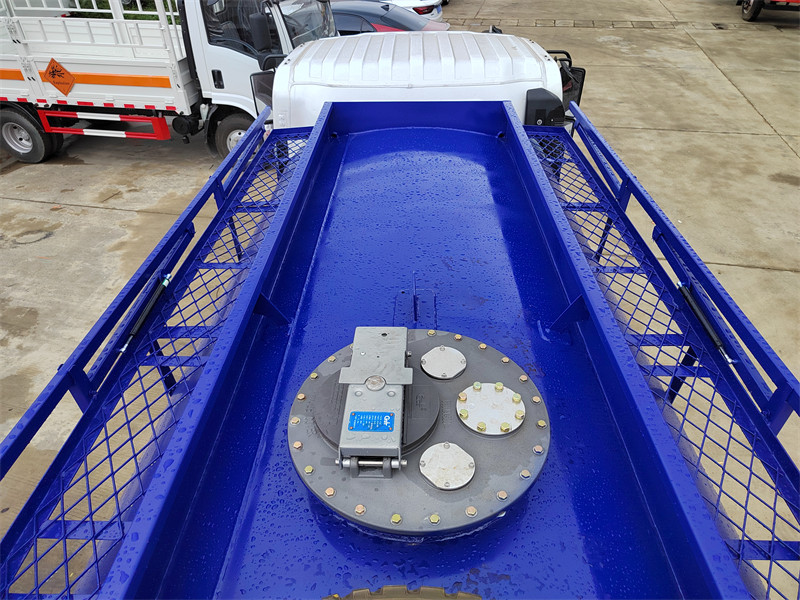

| Manhole cover | 1 manhole cover, ∮500mm 1 set with breather valve | ||
| Bottom Valve | 1 set of API Pneumatic Bottom Valve | ||
| Discharging valve | 1 set ∮ discharging valve | ||
| Handrail | Two sides | ||

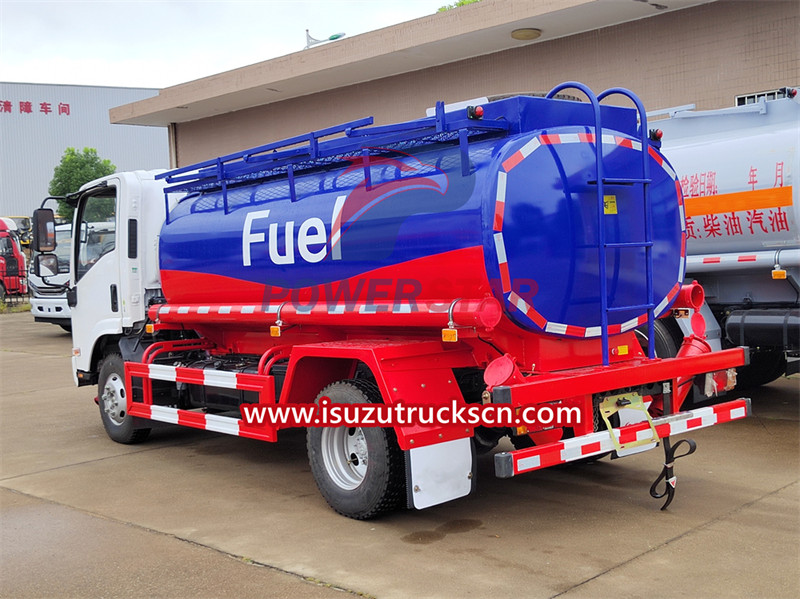

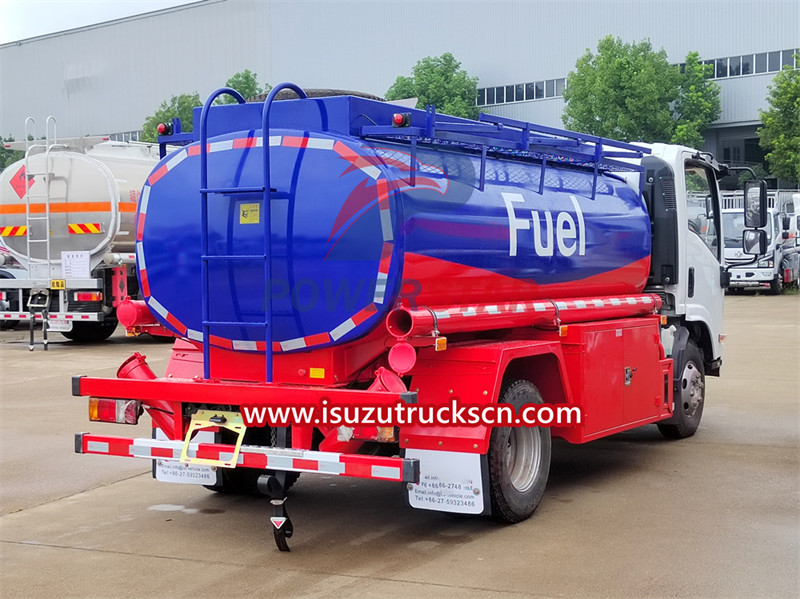

| Ladder | At rear of tank | ||
| Painting | Color and design as customer's requirement | ||
Why prefer to buy ISUZU NPR KV100 mobile fuel bowser tank from POWERSTAR?
iSUZU Fuel bowser truck (also called fuel tanker truck, oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, diesel dispensing truck,oil delivery truck, Mobile Fuel Truck, oil loading truck, oil refuelling truck, oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, fuel bowser, diesel dispensing truck) is mainly used o storage and transport oil, diesel, gasoline, kerosene, Stainless steel fuel bowser etc
Vehicle structure: The Isuzu KV100 fuel truck is built on the Isuzu GIGA truck chassis. It features a rugged chassis structure composed of high-strength steel and is equipped with specialized equipment and components adapted to fuel distribution.
Fuel container: The main feature of the Isuzu KV100 fuel truck is the large-capacity fuel container on the vehicle chassis. These containers are diverse according to the needs and can be in the form of fuel tankers, fuel tanks or containers to accommodate different types and quantities of fuel products.

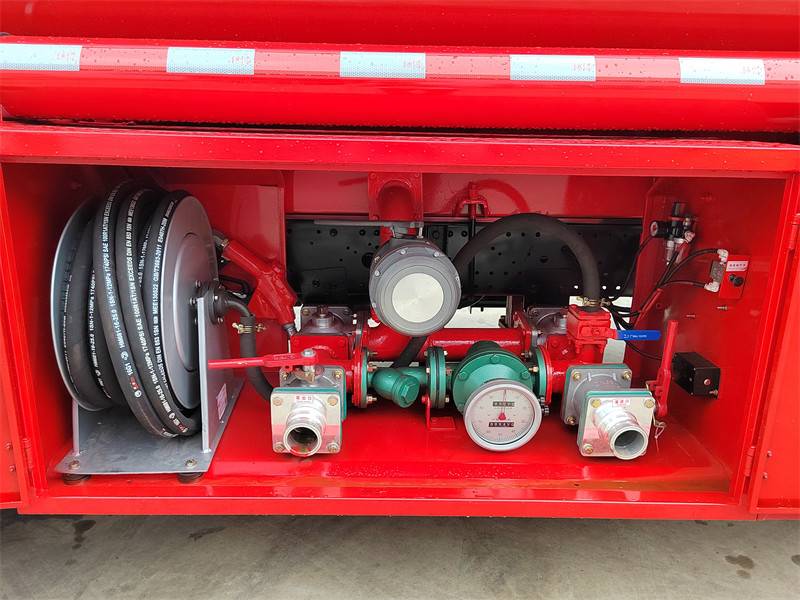

Pump and Metering System: To ensure efficient fuel distribution and precise metering, the Isuzu KV100 fuel truck is equipped with an efficient pump and metering system. The system can extract fuel from the container and deliver it to the target location to meet user needs.
Safety devices: Isuzu KV100 fuel truck pays attention to safety and incorporates a series of safety devices into the design. These devices include overflow prevention devices, fire protection devices and explosion-proof equipment to ensure safety and reliability during fuel transportation.
Transportation efficiency: Isuzu KV100 fuel truck is characterized by high transportation efficiency. It can quickly and safely transport fuel products from supply stations or refineries to their destinations, provide fast and reliable fuel supply services, and improve the efficiency and accuracy of fuel distribution.
Handling and driving comfort: The Isuzu KV100 fuel truck has good handling and driving comfort to provide a good driving experience. It adopts an advanced suspension system and cab design to reduce driver fatigue and improve operation convenience.
