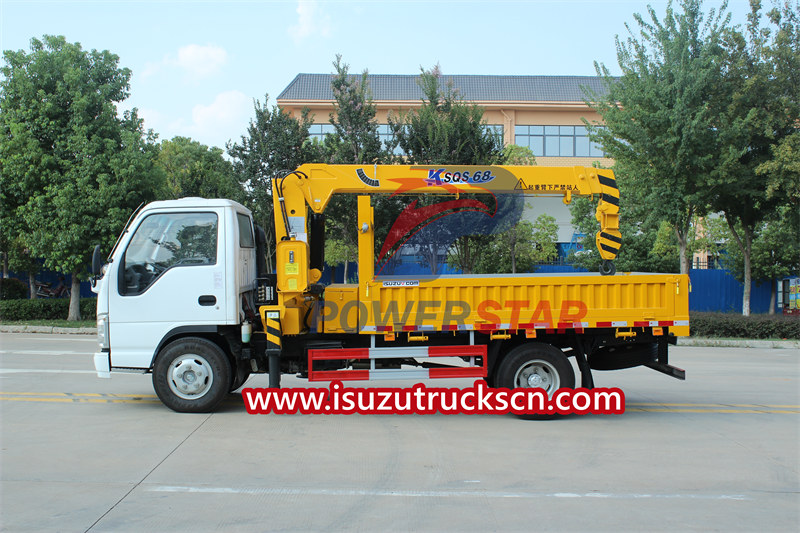

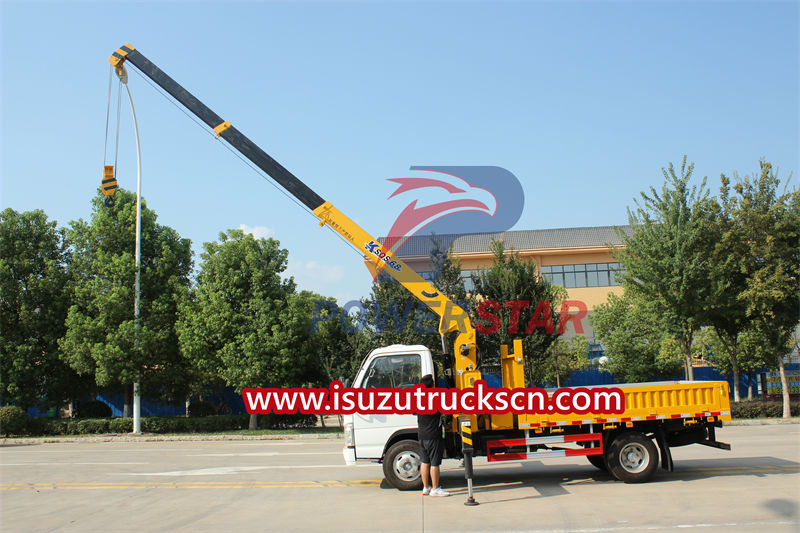

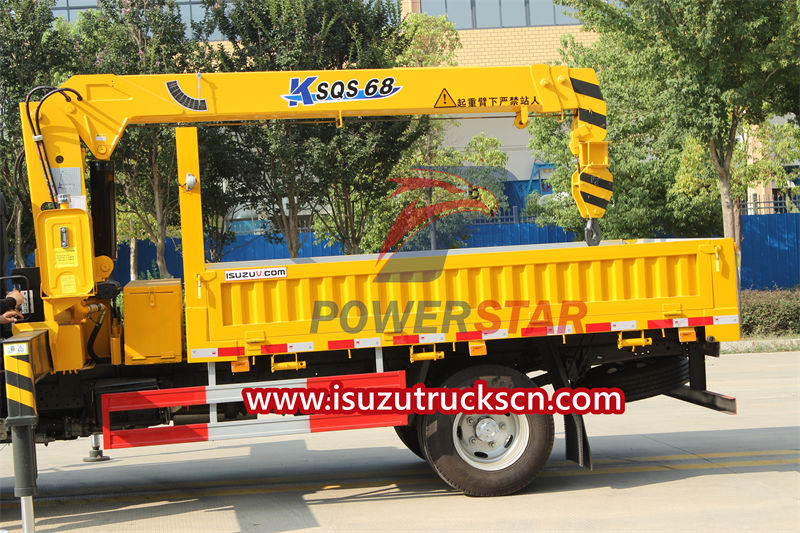

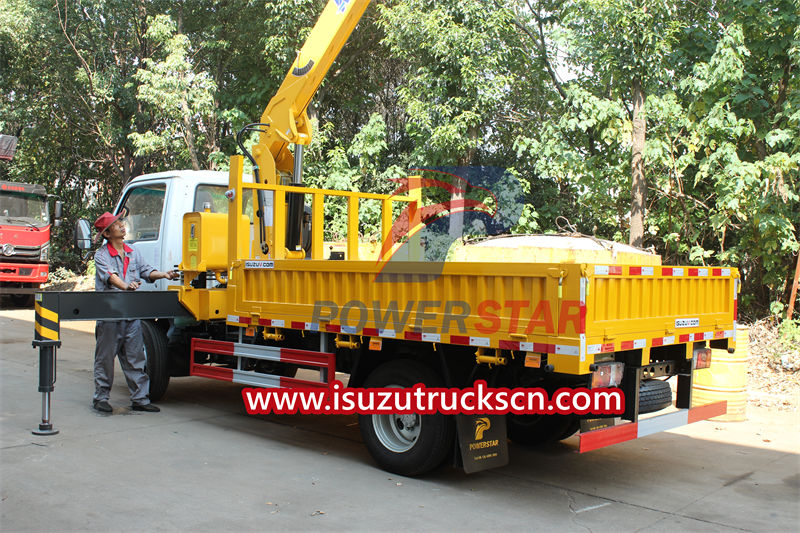

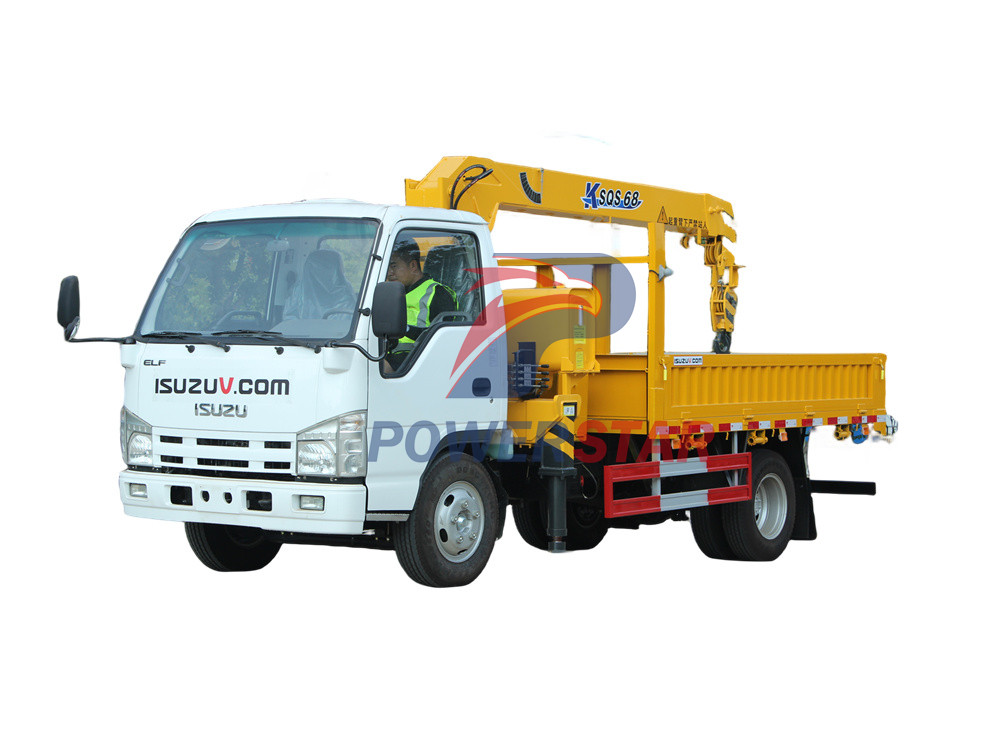

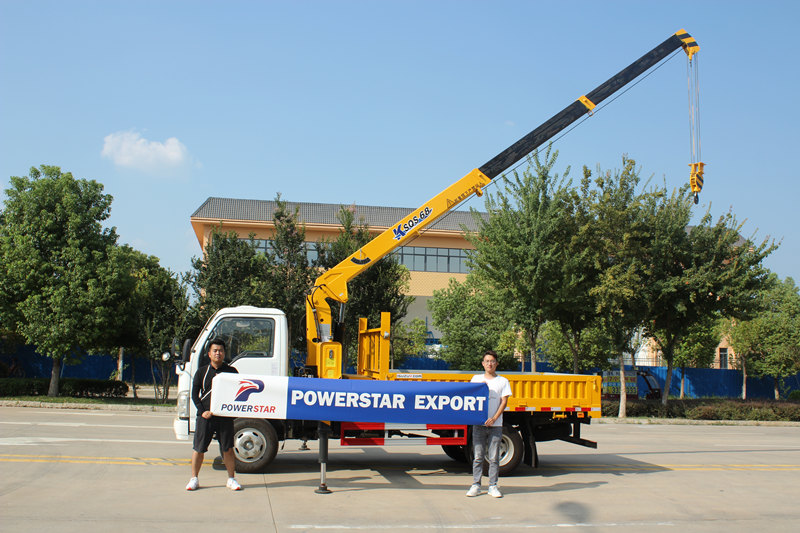

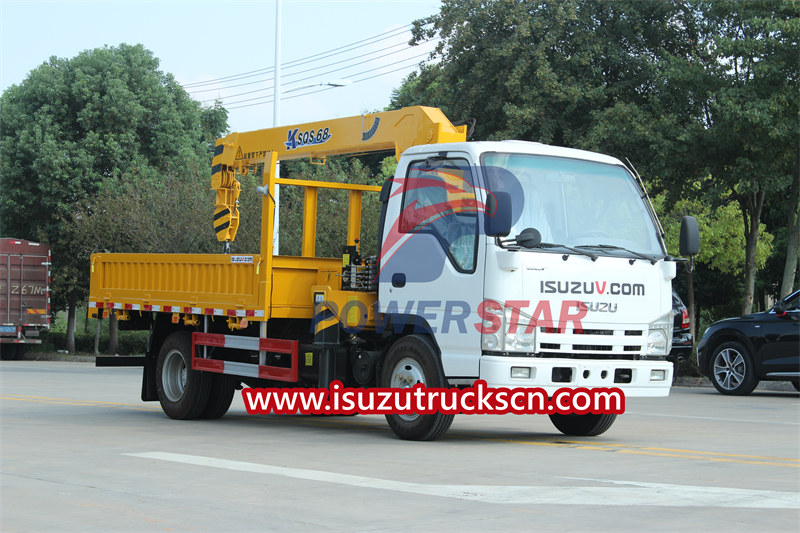

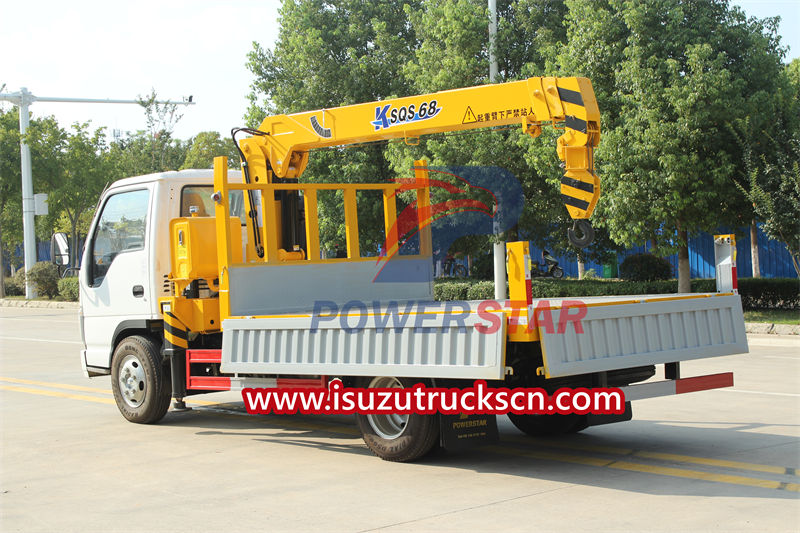

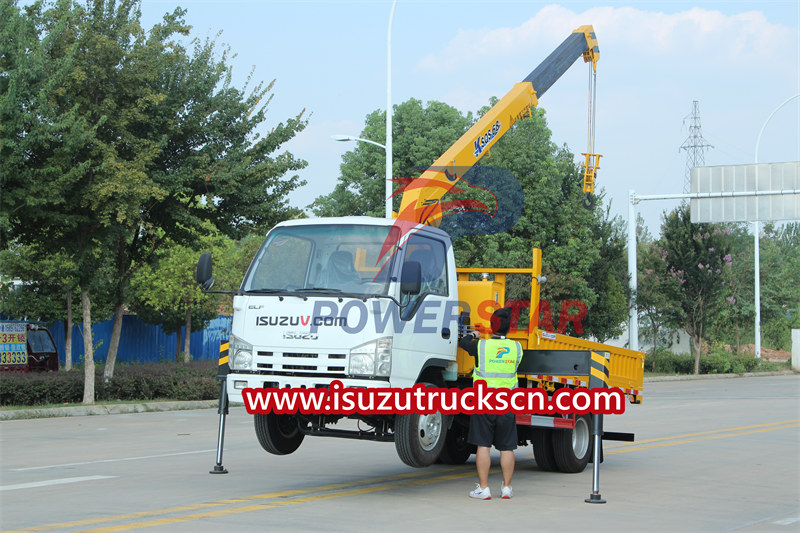

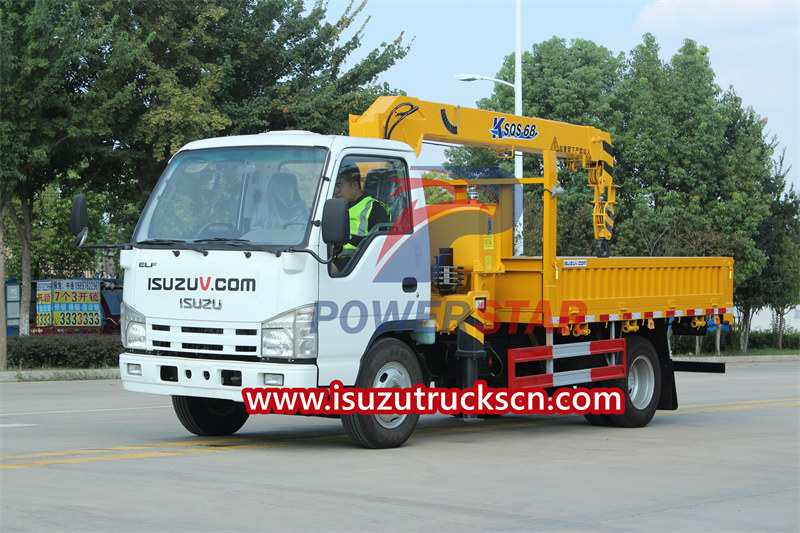

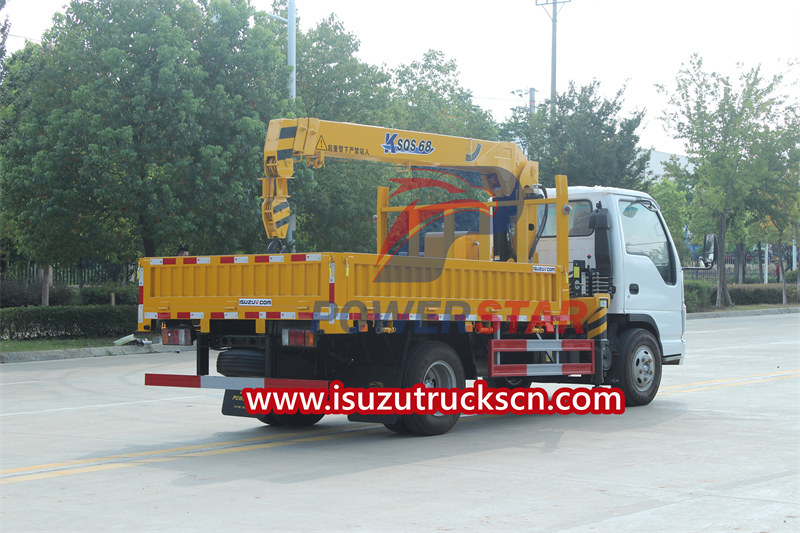

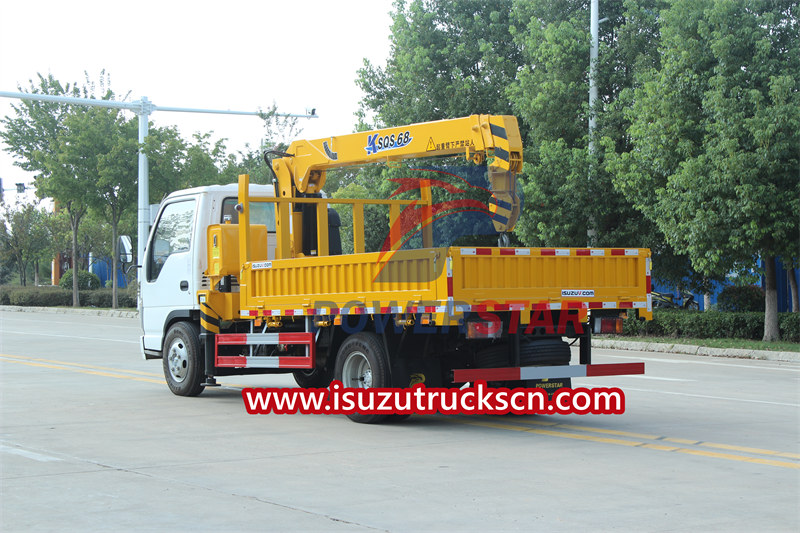

The ISUZU 3 ton truck-mounted crane is a special vehicle with a load capacity of 3 tons. It is based on the ISUZU 100P light chassis and is equipped with a 3 ton telescopic boom crane and dropside cargo box. This vehicle is widely used in construction, transportation, logistics and other industries. It is easy to operate and maintain, which can greatly improve work efficiency and reduce transportation costs.
Work capacity:
3 tonTruck model:
PT5030JSQEngine power:
98 HPEngine type:
4KH1CN5LSAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
Customized design for narrow street
ISUZU truck-mounted crane, also known as ISUZU crane truck, ISUZU crane lorry, is a multi-functional engineering vehicle. It is equipped with a crane or other similar equipment and can perform lifting operations while driving. ISUZU truck with cranes are usually used in construction, logistics, road maintenance and other fields. They can quickly complete hoisting operations at construction sites and improve work efficiency.
ISUZU 3 ton truck-mounted crane is one of the important equipment in the modern logistics industry. It is highly practical and convenient. Because it can be lifted while driving, transportation time and costs can be greatly reduced. In addition, ISUZU crane truck can also improve work efficiency and safety because it can quickly complete lifting operations on site, avoiding the trouble of frequent movements and adjustments required by traditional cranes.
Product Specifications
|
Product model |
PT5030JSQ |
|
|
Driving type |
4×2， left hand drive |
|
|
Engine |
Brand |
ISUZU |
|
Model |
4KH1CN5LS |
|
|
Type |
4-cylinder in-line with water cooled, turbocharged and intercooled |
|
|
Maximum output |
98HP (72KW) |
|
|
Maximum torque |
220 Nm |
|
|
Rated speed |
3400 rpm |
|
|
Displacement |
2.999 L |
|
|
Transmission |
Model |
ISUZU MSB |
|
Type |
5 forwards and 1 reverse, manual |
|
|
Axle |
Front |
2500 kg loading capacity |
|
Rear |
4800 kg loading capacity |
|
|
Chassis |
Frame |
U-profile parallel ladder frame and reinforced subframe, all cold riveted cross members, manganese steel |
|
Front suspension |
leaf spring |
|
|
Rear suspension |
leaf spring |
|
|
Fuel tank |
100 L capacity with locking cap |
|
|
Wheels & Tyres |
Tire size |
7.00R16 |
|
Number |
6+1 pcs |
|
|
Cabin |
Type |
Single cab, with A/C, ABS |
|
Seats |
2 |
|
|
Dimensions mm |
Wheel base |
3360MM |
|
Overall length |
5995MM |
|
|
Overall width |
2010MM |
|
|
Overall height |
2925MM |
|
|
Cargo box dimension |
3400×2000X380 mm |
|
|
Parameter of Crane |
Brand |
SQ3.2SK1Q |
|
Max lifting capacity |
3200 KG |
|
|
Max lifting moment |
6.8 T.M |
|
|
Recommended power |
14 KW |
|
|
Max oil flow of hydraulic system |
25 L/M |
|
|
Max pressure of hydraulic system |
20 Mpa |
|
|
Oil tank capacity |
30 L |
|
|
Crane weight |
1105 KG |
|
|
Rotation angle |
360 degree |
|
|
Weight kg |
Curb weight |
3800 |
|
Rated Loading Capacity |
3430 |
|
|
Gross vehicle weight(GVW) |
7300 |
|
Product Advantages
ISUZU boom crane truck has the following advantages:
1. Flexible and convenient: Due to its compact structure, the ISUZU truck-mounted crane can carry out lifting operations in areas that are inaccessible to ordinary vehicles, such as narrow streets, grasslands, muddy roads, etc.
2. Efficient operation: The ISUZU crane truck can quickly complete the lifting operation on site, avoiding the time and labor costs of disassembly and assembly of traditional cranes.
3. Save labor costs: ISUZU crane trucks are usually equipped with automatic control systems that can automatically complete lifting operations, reducing labor costs.
4. High safety: The truck adopts advanced control systems and safety protection devices to ensure safe and reliable operation.
Product Applications
ISUZU crane trucks are used in many industries. The following are some specific industries:
1. Construction industry: On construction sites, ISUZU truck-mounted crane is mainly used to transport, unload and lift various construction materials, such as steel bars, concrete, bricks, etc. In addition, it can also perform high-altitude operations during the construction process, transporting building materials to designated heights quickly and safely, greatly improving construction efficiency.
2. Logistics and warehousing industry: In the field of logistics and warehousing industry, ISUZU boom crane trucks are mainly used to transport heavier packages, such as heavy objects and bulky goods. This is because these items are often difficult to carry, load and unload under conventional transportation methods. The crane trucks can quickly move, transport and unload these items through its own lifting mechanism, which improves transportation efficiency and safety.
3. Road construction industry: In road construction, ISUZU trucks with crane are mainly used for dismantling and assembling road surfaces, moving equipment, hoisting bridges and other operations. Due to its small size and flexible operation, the truck-mounted lifting transport truck can easily travel through narrow road construction sites and complete various high-altitude operations.
4. Firefighting and rapid rescue industry: Truck-mounted cranes can also be used for firefighting and rapid rescue, such as hoisting heavy objects or transporting firefighting equipment at fire scenes.
5. Manufacturing: In the manufacturing industry, boom crane trucks can be used for logistics and transportation within the factory, such as hoisting equipment, carrying heavy objects, etc.
6. Port and terminal industry: At port terminals, ISUZU crane trucks can be used to load and unload cargo, improving the cargo handling efficiency of port terminals.
 |
 |
 |
 |
