The Isuzu 15,000 liters sewer flusher truck is an industrial powerhouse tailored for sewer maintenance tasks. With a substantial 15,000 liters capacity, it efficiently manages sewer cleaning operations with precision and reliability. Powered by a robust Isuzu engine, it delivers optimal torque and power for navigating varied terrains. Equipped with a high-pressure water jetting system and vacuum suction capability, this truck ensures thorough cleaning and swift debris removal, enhancing operational productivity.
Work capacity:
15000 litersTruck model:
PT5190GWXEngine power:
380HPEngine type:
6UZ1-TCG61Axle drive:
4x2，LHDGear box:
Fast 12-speed,manualRemarks:
Isuzu GIGA sewer dredging and cleaning truck
Isuzu 15,000 liters sewer flusher truck also called Isuzu GIGA sewer cleaning truck,Isuzu GIGA 4x2 gully sucker truck,Isuzu GIGA sewer suction truck,Isuzu GIGA 15000 liters drainage vacuum truck,Isuzu GIGA sewer vacuum truck,Isuzu GIGA sewer dredging and cleaning truck,is a specialized industrial vehicle designed for sewer maintenance and cleaning operations. With a substantial reservoir capacity of 15,000 liters, this Isuzu 15,000 liters sewer flusher truck offers a robust solution for handling the challenges of sewer infrastructure management. Its sturdy construction and purpose-driven design make it well-suited for heavy-duty applications.
The Isuzu 15,000 liters sewer flusher truck is a specialized vehicle designed for a critical function in urban and suburban sanitation systems: the efficient cleaning and flushing of sewer lines. This truck, with its robust construction and high-capacity capabilities, plays a vital role in maintaining the integrity and flow of wastewater networks, ensuring public health and environmental safety.
Powered by a high-performance Isuzu engine, the truck delivers reliable power and torque for efficient operation. Equipped with advanced features such as a control panel for water flow regulation, a vacuum system for debris removal, and safety features like rear-view cameras, the Isuzu truck ensures operational efficiency, safety, and user comfort.
The vehicle's high-pressure water jetting system and vacuum suction capability enable thorough cleaning of sewer lines and drainage infrastructure, enhancing operational productivity. Designed with sustainability in mind, the truck incorporates eco-friendly technologies to reduce emissions and promote responsible water usage, aligning with environmental standards.
|
Isuzu GIGA 4x2 15000 liters sewer flusher truck |
|||
|
Vehicle |
Brand |
ISUZU |
|
|
Overall Dimensions L*W*H |
8780*2560*3700mm |
||
|
Weights |
GVW. |
19000kg |
|
|
Kurb Weight |
9550kg |
||
|
Chassis |
Chassis Brand |
ISUZU |
|
|
Drive Type |
4x2 |
||
|
Steering |
LHD |
||
|
Engine |
Brand |
ISUZU 6UZ1-TCG61 |
|
|
Power |
380HP/279KW |
||
|
Type |
4 cylinders,in-line,turbo inter-cooling |
||
|
Fuel Type |
Diesel |
||
|
Emission Level |
EURO 6 |
||
|
Performance |
Max. Speed |
90km/h |
|
|
Wheel base |
5550mm |
||
|
Transmission |
Fast 12-speed,manual |
||
|
Tyre Specifications |
12.00R22.5 , 315/80R22.5 for option |
||
|
No. of Tyre |
7pcs (1 spare tire included) |
||
|
Cab |
Cab Capacity |
ISUZU GIGA cabin, 2 seats+1 bed,with air condition. |
|
|
Body/Superstructure |
Tank |
Capacity |
10000L+5000L |
|
Material |
5mm high quality carbon steel Q235 |
||
|
Vacuum pump |
China famous vacuum pump |
||
|
Vacuum rate |
99% |
||
|
Suction head |
6m-8m |
||
|
Rotation speed |
500 rpm,low noise,high efficiency |
||
|

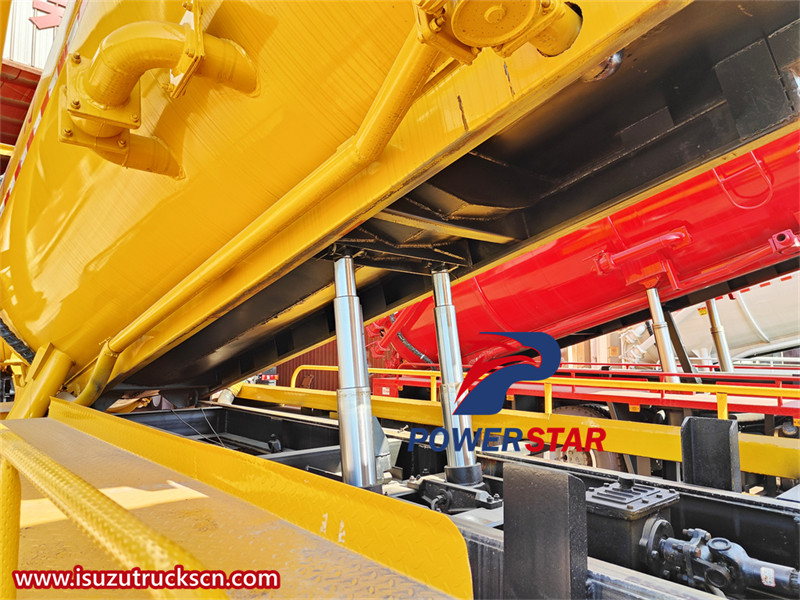

Sewage tank lifting |
Hydraulic lifting dumping |
||
|
Tank lifting angle |
≥45° |
||
|
Sewage pipe |
60mm |
||
|
Basic |
Install vacuum pumps and hydraulic systems driven by engine through |
||
|
Equipment
|
PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand washing tank and a piece of 6m suction hose |
||
|
Paint |
Tank color is according to client's requirements. |
||
|
Optional Equipment |
Italy or Spain vacuum pumps |
||
|
Stainless steel |
|||
|
Anti-rust coating inside tank |
|||
The Isuzu 15,000 liters sewer flusher truck, a stalwart in the realm of specialized industrial vehicles, exemplifies efficiency and reliability in handling sewer maintenance. With a reservoir capacity of 15,000 liters, this formidable truck caters to the demanding needs of sewer cleaning operations, showcasing a blend of power, functionality, and sustainability.

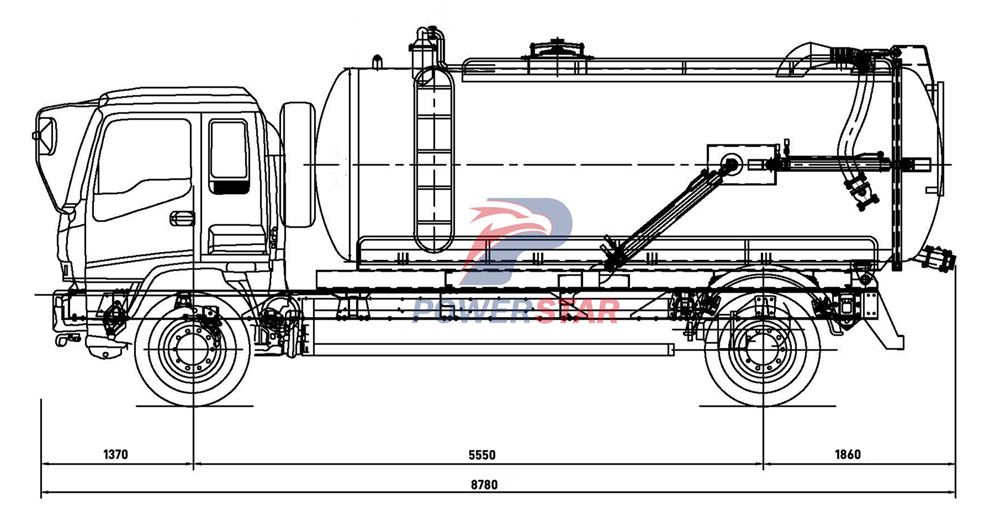

Technical drawing of Isuzu GIGA 15000 liters sewer flusher truck
Deploying a robust Isuzu engine, this sewer flusher truck harnesses substantial power and torque, essential for navigating the complexities of sewer infrastructure management. The vehicle's transmission system ensures smooth operation across diverse terrains, providing operators with enhanced control and precision in their tasks. With a focus on safety, advanced suspension and braking systems contribute to the truck's stability and operational security, promoting a seamless working environment for maintenance crews.
Operating at the core of this utility vehicle is a sophisticated control panel that empowers operators to manage water flow, pressure levels, and other critical parameters with utmost precision. Integrated features such as the vacuum system streamline the removal of debris, enhancing the effectiveness and efficiency of cleaning operations. The truck's ergonomic cabin layout prioritizes operator comfort, ensuring that controls and instrumentation are easily accessible for seamless operation.

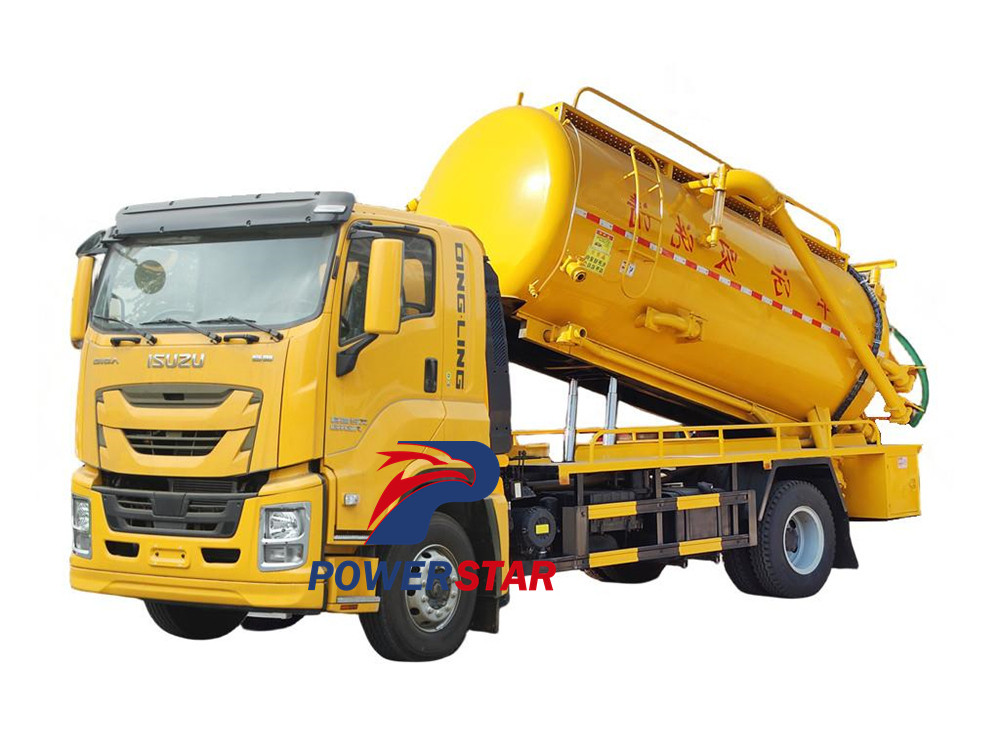

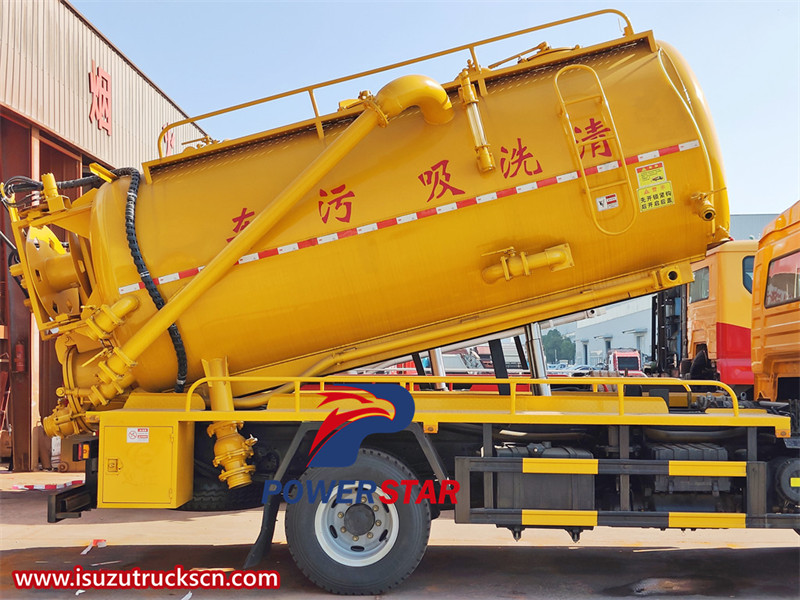

Isuzu GIGA 15000 liters sewer flusher truck
Equipped with water tanks with a capacity of up to 15,000 liters, Isuzu sewer flushing trucks optimize workflow efficiency by minimizing downtime and providing extended cleaning capabilities. The vehicles are equipped with a powerful high-pressure pumping system that delivers water at high speed and pressure for efficient cleaning of sewers. The pumps are specially designed for this purpose, with features such as adjustable pressure settings and flow rates to suit different cleaning requirements. The system also includes a range of hoses, nozzles and other accessories that enable operators to precisely direct the flow of water into the sewer, targeting specific areas or blockages.
In addition to flushing capabilities, the trucks are also equipped to handle waste encountered during cleaning operations. This may include debris, sludge or other solid waste discharged from the sewer. The trucks may be equipped with a waste collection system that captures this waste and stores it in a separate compartment for safe and hygienic disposal. The waste compartments are usually made of durable materials that can withstand the corrosive effects of sewage and are easy to clean and maintain.

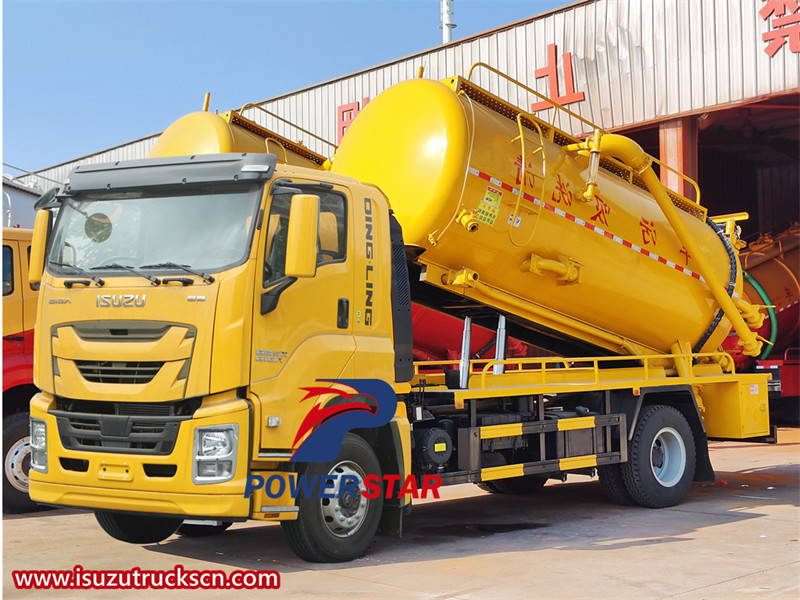

Isuzu GIGA 15000 liters sewer cleaning truck
Isuzu GIGA sewer suction truck
In alignment with contemporary environmental standards, the Isuzu sewer flusher truck integrates eco-friendly technologies to reduce its carbon footprint and emissions output. By promoting responsible water usage through advanced water recycling features, the vehicle underscores its commitment to sustainability in sewer maintenance operations. With a focus on environmental conservation, this utility vehicle contributes to environmentally friendly practices within the industrial sector, fostering a greener approach to infrastructure management.
The Isuzu 15,000 liters sewer flusher truck embodies a harmonious blend of power, efficiency, and sustainability in addressing the challenges of sewer maintenance and cleaning operations. Through its reliable performance, advanced features, and eco-friendly design, this utility vehicle stands as a trusted ally in the management of sewer systems, offering precision, agility, and operational excellence to meet the evolving needs of modern infrastructure maintenance.

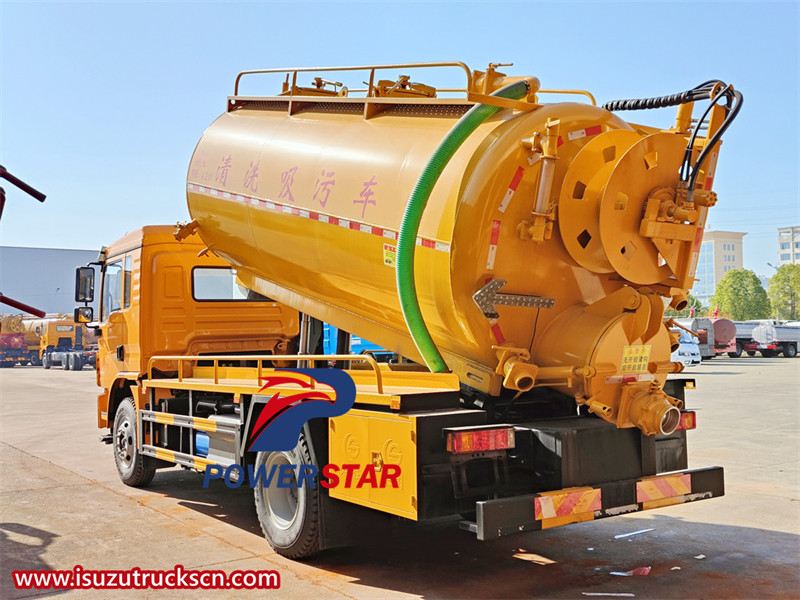

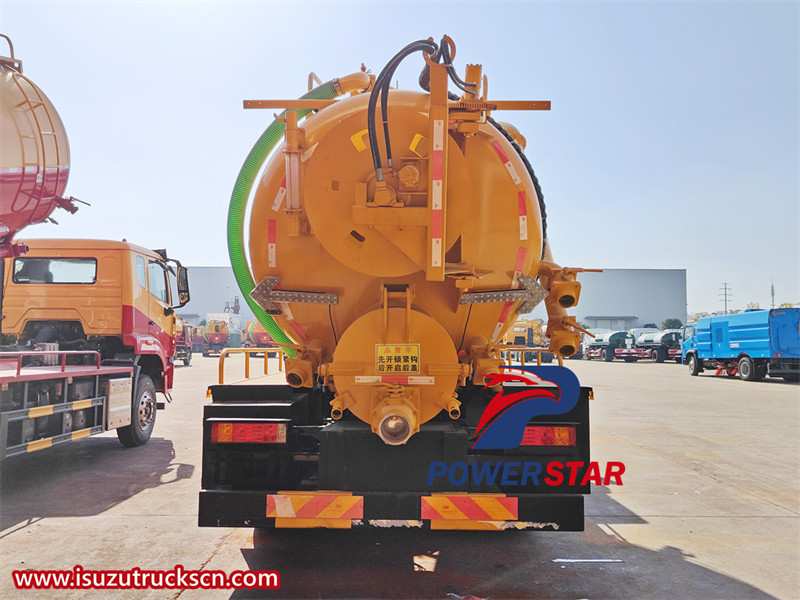

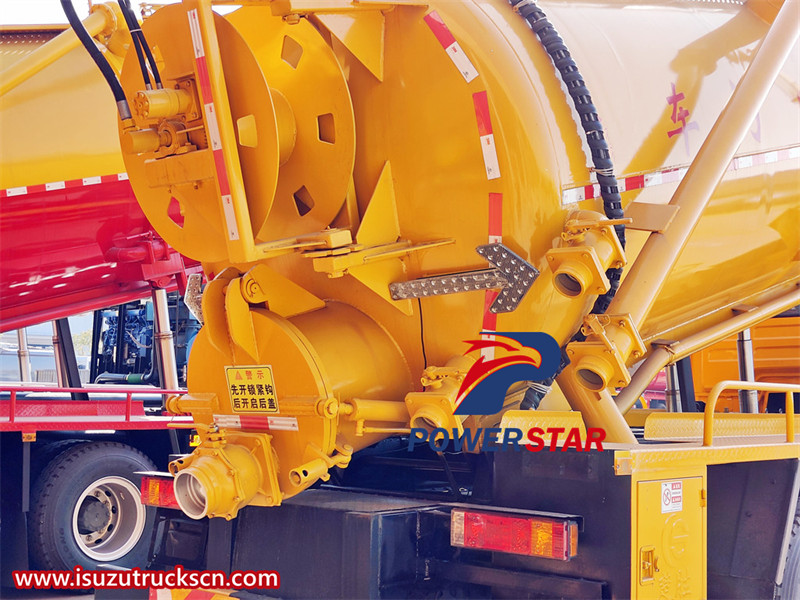

Isuzu GIGA 4x2 gully sucker truck rear view

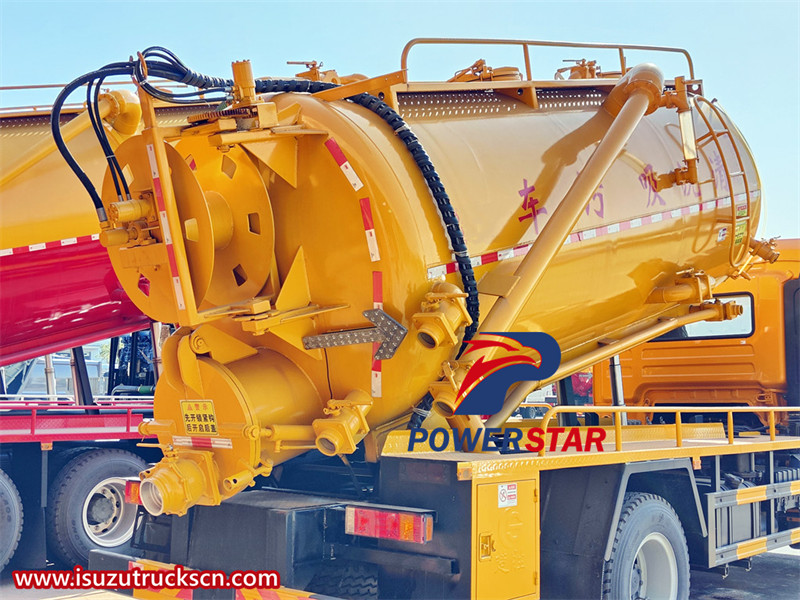

Isuzu GIGA 4x2 sewer sucker truck tail self-flow valve

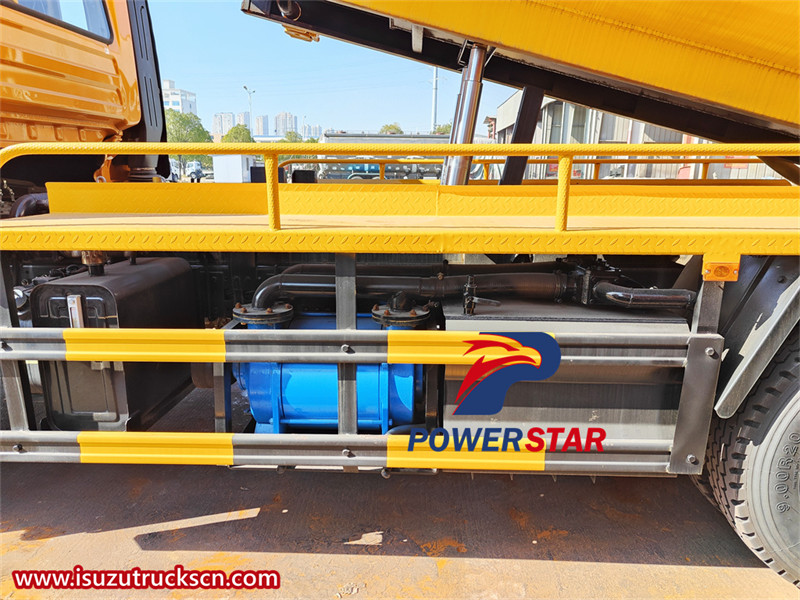

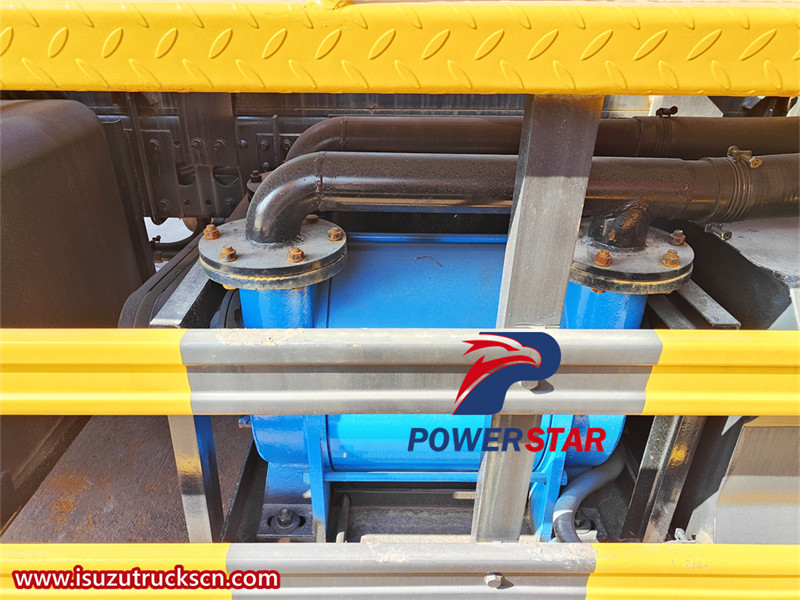

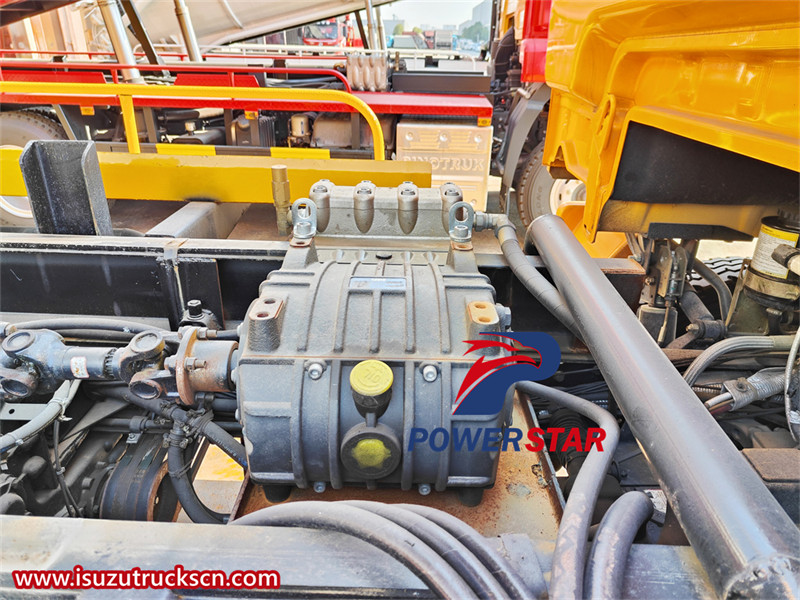

Isuzu GIGA 15CBM sewer cleaning truck vacuum pump

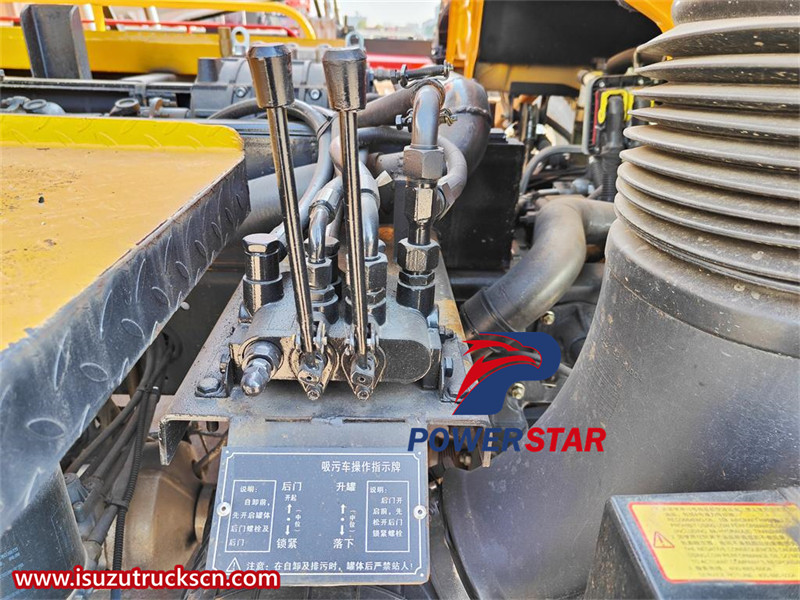

Isuzu GIGA sewage suction truck operation sign
