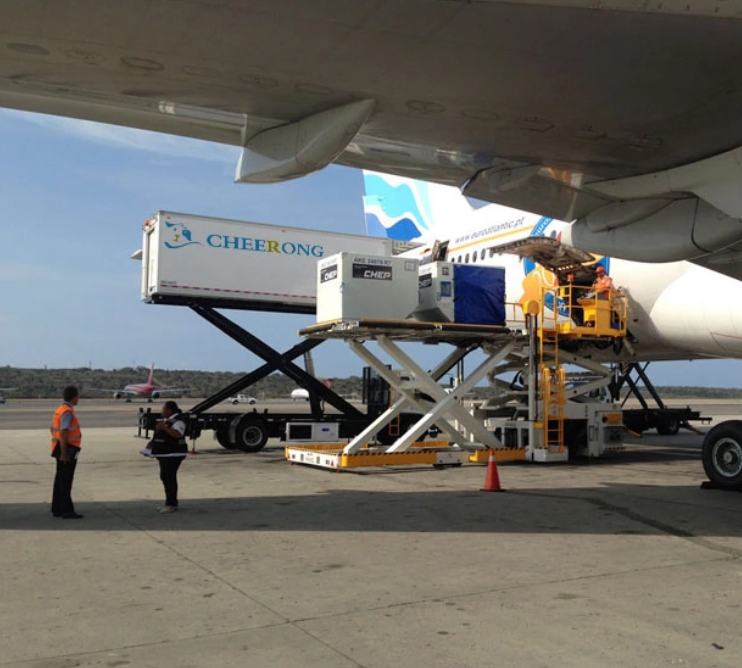

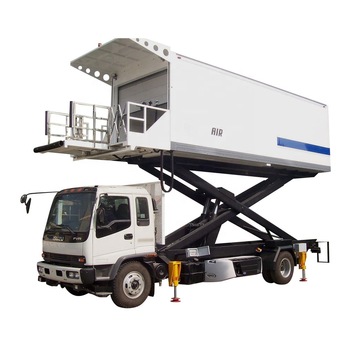

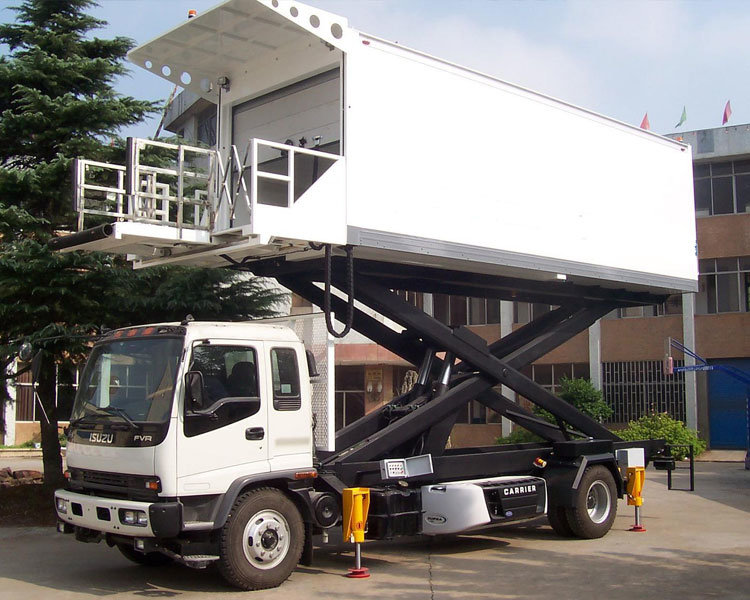

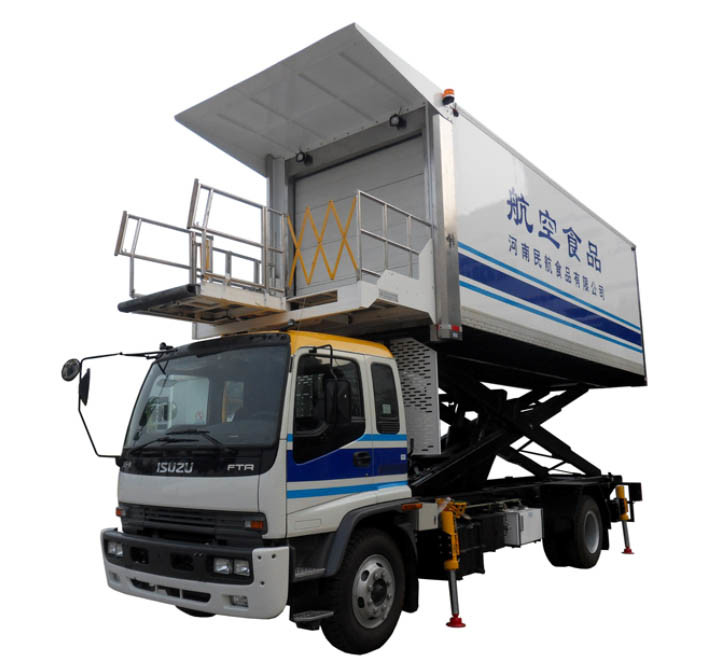

Aircraft Catering Truck ISUZU Flying food delivery cargo loaders, airport catering trucks are designed to carry and load containers with airline food for passengers.
Isuzu airport catering trucks advantage
1. high efficiency
2. high safe performance widely used in many cities we work as the special truck company for more than 15 years and we have a good relationship with most of the upper stream
supplier .the feedback from most of our clients is that our cost performance is very high in the market.
Order(MOQ):
1Work capacity:
4000 kgTruck model:
PT5180TCCEngine power:
240 HPEngine type:
ISUZU 6HK1Axle drive:
4x2Gear box:
ISUZU MLD

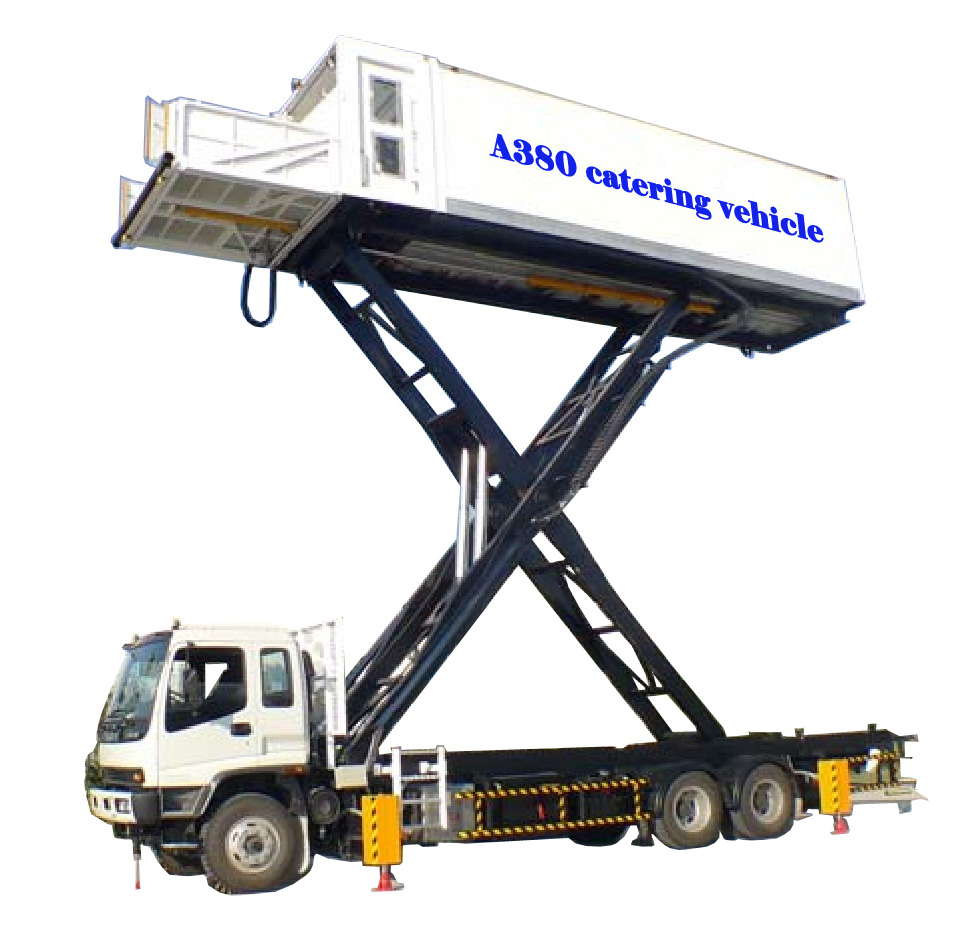

The HD-CT60 aircraft catering truck is used to transport food to the aircraft, and is suitable for use on Boeing B727, B737, B747, B757, L-1011 TriStar, McDonnell MD90, MD-11, DC10, Airbus A300, A340, A380 (one door), CONCORDE, TU-154M, TL-96-300 and other aircraft models.
The truck is mainly composed of a chassis, lifter, thermal door, carriage, supporting feet, workbench, hydraulic system, electrical system, and refrigeration unit.
Feature of Catering Truck
Automation of Catering Truck
High Security of Catering Truck
Technical Specifications of Catering Truck
| Project | CT60A Configuration 1 (FTR MT/EURO 4) | CT60B Configuration 2 (FVR MT/EURO 4) | CT60C Configuration 3 (FVR MT/EURO 5) | CT60D Configuration 4 (FVR AT/EURO 5) | |
| Platform Working Height | 2720～6050mm | 2720～6050mm | 2720～6050mm | 2720～6050mm | |
| Carriage Rated Load | 4000kg | 4500kg | 4500kg | 4500kg | |
| Fixed Platform Rated Load | 1100kg | 1100kg | 1100kg | 1100kg | |
| Mobile Platform Rated Load | 450kg | 450kg | 450kg | 450kg | |
| Platform Left-to-Right Adjustment Range | 0～800mm | 0～800mm | 0～800mm | 0～800mm | |
| Platform Scale Adjustment Range | 0～600mm | 0～600mm | 0～600mm | 0～600mm | |
| Fixed Platform Dimension (Length *Width) | 1400×2500 mm | 1400×2500 mm | 1400×2500 mm | 1400×2500 mm | |
| Mobile Platform Dimension (Length*Width) | 1100×1200 mm | 1100×1200 mm | 1100×1200 mm | 1100×1200 mm | |
| Curb Weight | 14000 kg | 14000 kg | 14000 kg | 14000 kg | |
| Boundary Dimension (Length *Width*Height) | 9880×2550×3800 mm | 9880×2550×3800 mm | 10200×2550×3800 mm | 10200×2550×3800 mm | |
| Carriage External Dimensions (Length * Width * Height) | 7200×2500×2400 mm | 7500×2500×2400 mm | 7500×2500×2400 mm | 7500×2500×2400 mm | |
| Engine Manufacturer/Model | ISUZU (ChongQing) Engine Co., LTD 4HK1-TCG40 | ISUZU (ChongQing) Engine Co., LTD 6HK1-TCL | ISUZU (ChongQing) Engine Co., LTD 6HK1-TCL | ISUZU (ChongQing) Engine Co., LTD 6HK1-TCL | |
| Underpan) | QingLing Motor Co., LTD / QL5160XXY9QFRY | QingLing Motor Co., LTD /QL1160AQFRY | QingLing Motor Co., LTD /QL1180XQFRY | QingLing Motor Co., LTD /QL1180XQFRY | |
| Gearbox) | QingLing Motor Co., LTD MLD-6Q | QingLing Motor Co., LTD MLD-6Q | QingLing Motor Co., LTD MLD-6Q | General Motors Co., LTD | |
| 1 | Model | XC6000 | |
| 2 | Truck Dimensions | Overall Length | 9,460mm |
| Overall Width | 2,500mm | ||
| Overall Height | 3,800mm | ||
| 3 | Truck Cab & Chassis | Brand | ISUZU |
| Model | QL1180XQFRY | ||
| Drive Type | 4X2 | ||
| Chassis Curb Weight | 7,300kg | ||
| Max. GVW | 18,000kg | ||
| Wheel Base | 5,550mm | ||
| Max. Speed | 90km/h | ||
| Driver Cabin Capacity | 1 driver + 2 passengers | ||
| Engine |
|
||
| Transmission |
|
||
|
Air Conditioning (driver cabin) |
Cooling capacity 5.7kw | ||
| Steering | Hydraulic power steering | ||
| Tire |
|
||
| Fuel Tank | 150L | ||
| 4 | Vanbody | Kitchen Dock Height | 1450±50mm onwards |
| Payload | 4,000kg | ||
| Vanbody Dimensions |
|
||
| Doors |
|
||
| Walls & Roof |
|
||
| Floor |
|
||
| 5 | Platform | Type | Working platform and 4-way operation platform |
| Dimensions |
|
||
| Payload |
|
||
| 4-way side shift | 800mm | ||
| 4-way max. extension | 600mm | ||
| Min. Servicing Height | 2,800±50mm | ||
| Max. Servicing Height | 6,100±50mm | ||
| Safety Handrails | 900mm high extendable tubular steel protective handrails mounted at platform sides, handrails extend to leading edge of platform | ||
| Others |
|
||
| 6 | Refrigeration System (vanbody) |
|
|
| 7 | Hydraulic System | Max. Work Pressure | 14Mpa |
| Hydraulic Oil Tank | 125L | ||
| Gear Pump |
|
||
| Manual Emergency Pump |
|
||
| Electric Emergency Pump |
|
||
| Cylinder | Twin telescopic chrome plated lift cylinders. | ||
| Functions |
|
||
| 8 | Electric System | Voltage | 24V |
| Battery | 2 units, 12V/115Ah | ||
| Light System |
|
||
| Safety Features |
|
||
| 9 | Painting | Chassis cab, platform and van body | White RAL 9003 |
| Chassis frame and mounted equipment | Black | ||
| Stabilizers | Red | ||
| Main cylinders | Black | ||
| Platform cylinders | White | ||
| Customized paiting & logo decoration | Included | ||

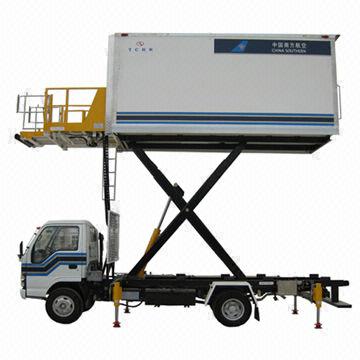

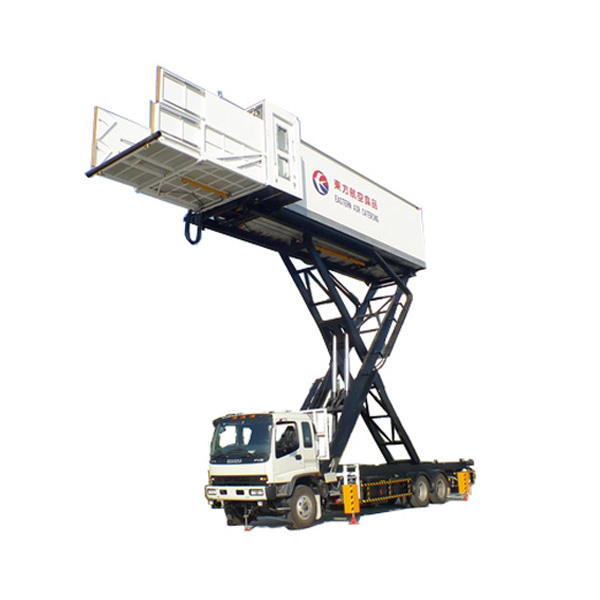

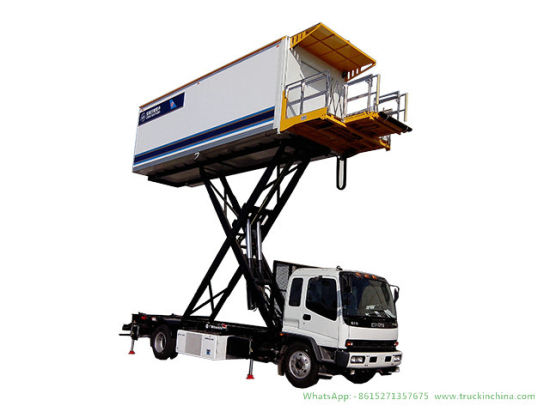

Figure 2: Van body up with stablizers extended
Figure 3: 4-way operation platform
Figure 4: Hydraulic System
Figure 5: Ground Operation Panel
Related:
Ground Support Equipment ,Airport Equipment , Cargo Handling Equipment ,Gse Equipment, Aircraft Cargo Loader, Container Loading, Aircraft Loader, Baggage Cart

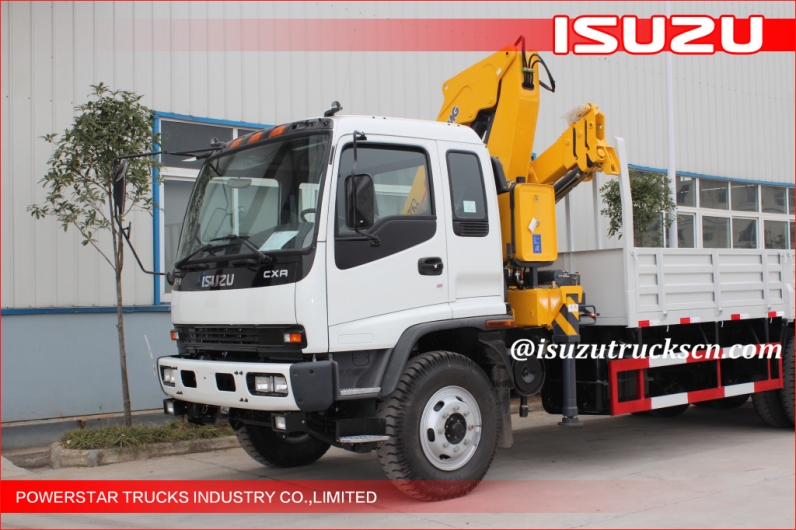

Truck Mounted Crane/Knuckle Boom Crane/Folding Arm Crane, Isuzu NKR Telescopic Truck Mounted Crane ISUZU Truck With Crane,2.1 tons telescope arm truck mounted crane track with crane
