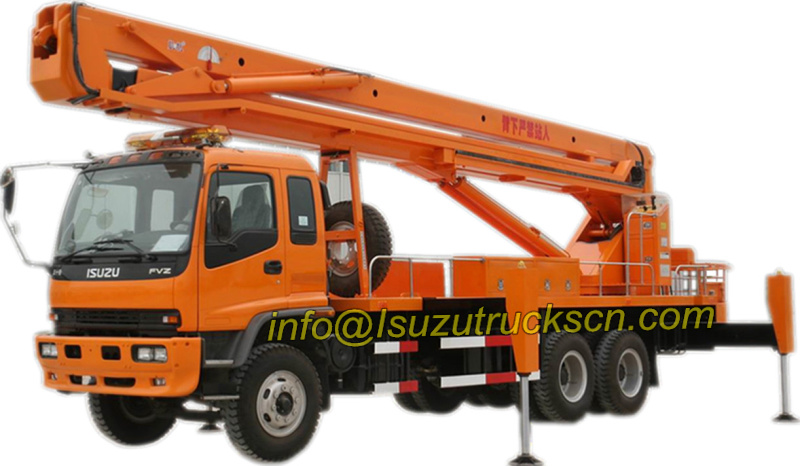

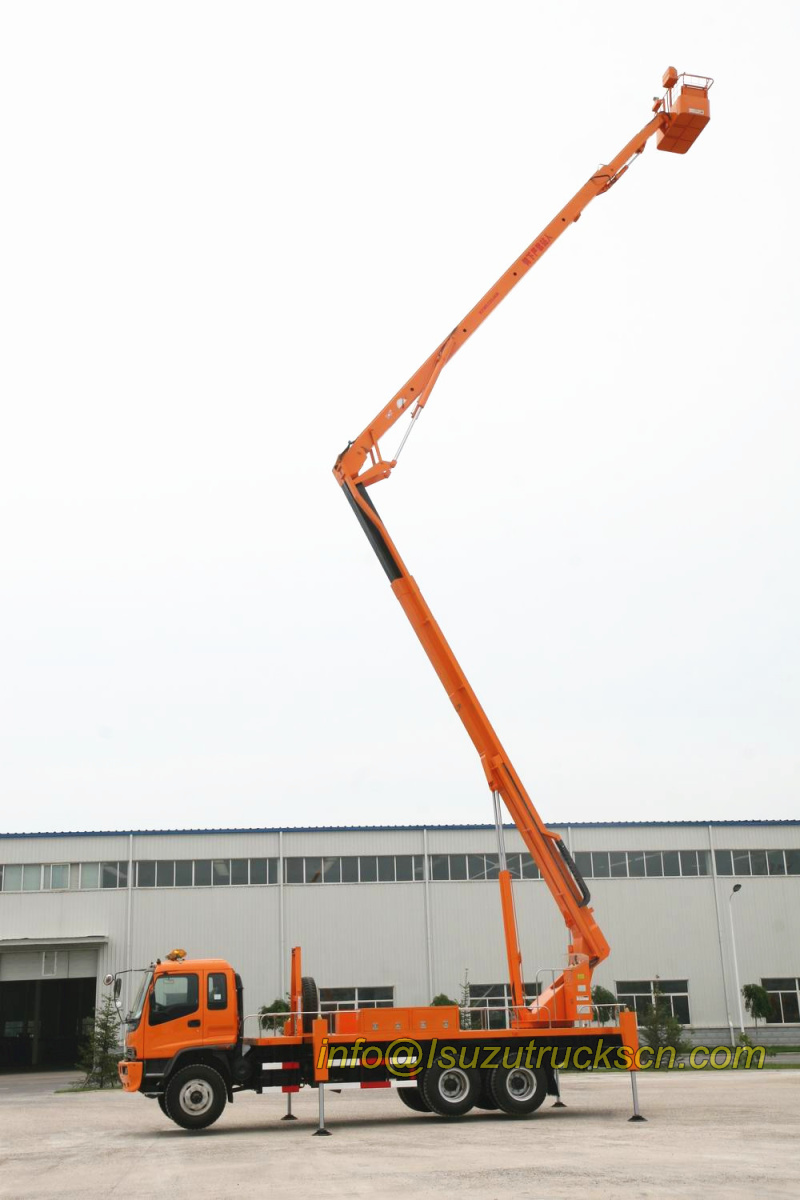

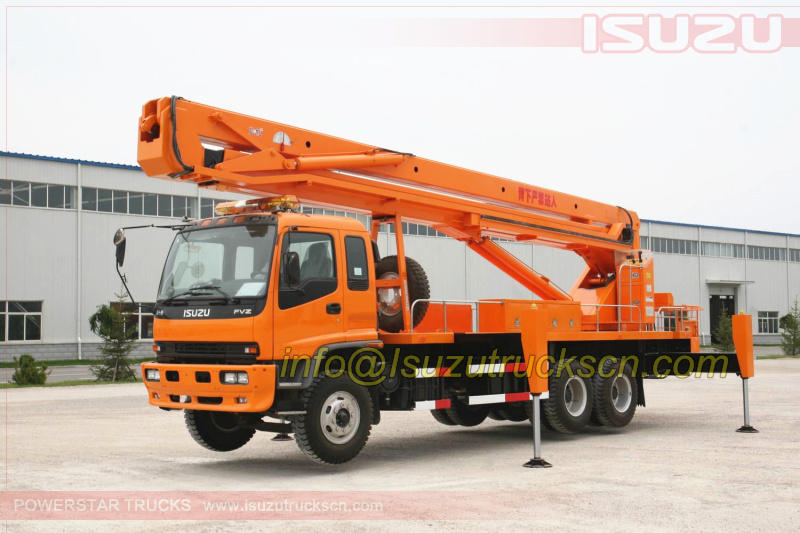

122M~26M Aerial Working Platform Truck ISUZU
Aerial Working Truck Isuzu (also called overhead working truck, Man lift truck, Aerial platform, Truck mounted aerial working platform, Aerial beamlift truck, Skylift truck, Platform truck for aerial working, Boom lift truck, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
POWERSTAR Aerial platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
Similar Key Words: Aerial work platform, bucket crane trucks, Hydraulic beam lifter, Man lift truck, Hydraulic lifting platform, bucket boom trucks
| Man Lift Working Truck ISUZU (22M~26M) | ||
| General | Vehicle Brand | POWERSTAR |
| Chassis Brand | ISUZU | |
| Overall Dimension | 11350 x 2500 x 3870 mm | |
| GVW / Kerb Weight | 25,000 kg / 10,750 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 6HK1-TCG40 | |
| Power | 280Ps (206KW) | |
| Displacement | 7790 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 6X4, left hand drive |
| Transmission | 9JS119TA transmission, 9-forward gears & 1 reverse, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 4000+1300 mm / 2 | |
| Tyre Specification | 12.00-20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cage Rated Capacity | 200 kg |
| Working Height | 22 m~26 m | |
| Beam | The beam is articulated & telescopic extension type, hydraulic actuated and controlled | |
| Slewing | Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second. | |
| Control | Control both on the ground and remote control in cage | |
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump | |
| Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground | |
| Optional | Insulated cage; Wireless remote control system | |
