The Isuzu GIGA 20tons mining dump truck is a powerful and reliable truck that can adapt to various complex mining working environments. The power is 420 horsepower and the peak torque is 2060N.M, which has a powerful power source. The truck features two air-suspension seats and a bed to provide a comfortable working environment. Its maximum speed can reach 105 km/h and its maximum gradeability is 25%. The vehicle uses an air brake system with excellent braking performance. The dump truck has a loading capacity of 20 tons and is made of high-performance carbon steel. The front/side panels are 6 mm thick and the rear/side panels are 8 mm thick. Both the tailgate and side panels can be released automatically.
Work capacity:
20tonsTruck model:
PT3050ZWYEngine power:
420hpEngine type:
Isuzu 6WG1-TCG60Axle drive:
6x4Gear box:
Fast 12 speed levers with 1 reverseRemarks:
mining dumperThis Isuzu GIGA 20tons mining dump truck is your dream truck choice. With its powerful performance and reliable quality, it will provide excellent support for your mining transportation work. This truck features left-hand drive and 6×4 drive, allowing you to easily handle a variety of tough work environments. Not only that, it also has a spacious and comfortable cab equipped with two air suspension seats and a comfortable bed to provide your driver with the best working conditions. The engine adopts advanced vertical, water-cooling, six-stroke, turbocharging and intercooling technology, and meets European Stage 6 emission standards. The output power reaches 420 horsepower, ensuring sufficient power reserve. At the same time, the Isuzu GIGA 20tons mining dump truck's loading capacity reaches 20 tons and is made of high-performance carbon steel materials to ensure durability and long life. The control system uses hydraulic technology and is equipped with a front lifting device, allowing you to complete cargo loading and unloading quickly and efficiently.
Fine craftsmanship and advanced design allow the truck to excel in gradeability, turning radius and braking performance. We also offer a wide range of optional equipment such as bin lift systems, rear view cameras and stainless steel waste water tanks to suit your individual needs. Not only that, but purchasing this truck also comes with an English operating manual, spare parts list and all necessary export documents, giving you full support and convenience. Isuzu GIGA 20tons mining dump truck will become your right assistant in mining transportation work, helping you improve work efficiency and profitability.
Applications:
ISUZU GIGA mining tipper trucks(also called Isuzu GIGA 6 Wheel tipper, Isuzu GIGA mining dump truck, Japan ISUZU Rear dumper trucks, Brand new Isuzu dump trucks ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.
Powerstar ISUZU mining dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.
Key Features:
---- ISUZU GIGA heavy duty chassis, perfect performance
---- 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.
---- Virious types of tipper body are available.
Specifications:
|
Description |
Isuzu GIGA 20 tons mining Dumper |
|
|
Item |
Powerstar dump truck |
|
|
Model |
Isuzu GIGA |
|
|
Cabin |

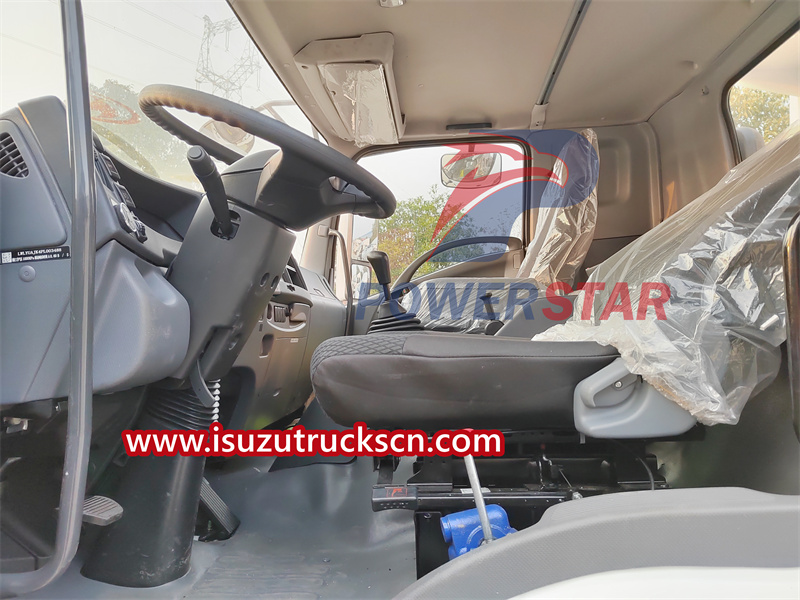

Two air-suspended seats and one bed |
|
|
whole vehicle main
|
Overall dimensions (L*W*H)mm |
9400*2680*3650 mm |
|
Dimensions of dump body (L*W*H)mm |
6000*2400*1500 mm |
|
|
Driving type |
Left hand drive 6×4 |
|
|
Wheel base |
4565+1370 |
|
|
Weight data |
Gross weight (kg) |
34,000 |
|
Kerb weight(kg) |
15,440 |
|
|
Person in cab (persons) |
3 |
|
|
whole vehicle main |
Max.speed(km/h) |
105 |
|
Max.slope of climb(%) |
25 |
|
|
Min.turning radius (m) |
7.5 |
|
|
Engine |
Engine model |
6WG1-TCG60 |
|
Engine type |
Vertical, water-cooled, six-stroke, |
|
|
Emission standard |
Euro 6 |
|
|
Displacement (L) |
15.681L |
|
|
Rated power (KW) |
420 hp |
|
|
Max torque (N.m/rpm) |
2060N.M |
|
|
Steering gear type |
Power steering |
|
|
Brake system |
Service brake and boosting type |
Air brake |
|
Parking brake |
Central drum brake |
|
|
Auxiliary brake |
Air brake |
|
|
Tyre size |
295/80R22.5 |
|
|
Electric system |
Rated voltage |
24V |
|
Battery |
100Ah |
|
|
Dump Performance |
Loading Capacity |
20 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 6mm |
|
|
Rear/Side are 8mm |
||
|
Control System |
Hydraulic |
|
|
Discharging System |
Middle lifting device |
|
|
Lifting Time |
Tipping 45 degree |
|
|
Lowering Time |
35 s |
|
|
Tailgate |
25 s |
|
|
Drop side |
Auto release |
|
|
Painting |
Detachable |
|
|
Color & Logo |
Two primers,and one final paint coating |
|
|
Loading Capacity |
According to wish |
|
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|
The production characteristics of Isuzu GIGA mining dump trucks can be summarized as the following five points:
1. Powerful and reliable performance: This Isuzu mining dump truck is equipped with a 6WG1-TCG60 engine, which uses advanced turbocharging and intercooling technology. The output power reaches 420 horsepower and the peak torque is 2060N.M. This powerful power reserve will ensure that the vehicle performs well in a variety of complex and difficult mining working conditions.
2. Excellent loading capacity: The Isuzu GIGA mining dump truck has a loading capacity of 20 tons and is made of high-performance carbon steel materials. The thickness of the front/side panels is 6 mm and the thickness of the rear/side panels is 8 mm, ensuring the durability and long life of the vehicle. In addition, the control system uses hydraulic technology and is equipped with a front lifting device to make cargo loading and unloading faster and more efficient.
3. Comfortable driving experience: The vehicle's cab is equipped with two air suspension seats and a comfortable bed, providing the driver with a good working environment. In addition, the left-hand drive design makes the driver more convenient and comfortable during operation.
4. Advanced safety configuration: Isuzu GIGA mining dump truck is equipped with an air brake system, including service brake, parking brake and auxiliary brake. These systems ensure the truck's safe performance in emergency situations. In addition, the high-strength dump truck frame, safety protection devices and equipped rotating lights and work lights increase the visibility and safety of the truck.
5. Customizable configuration options: In order to meet the needs of different customers, Isuzu GIGA mining dump trucks provide a variety of optional configurations. Examples include dumpster lift systems, rear view cameras and stainless steel waste water tanks. This allows customers to customize according to their own needs, improving work efficiency and comfort.
