waste collector compactor up structure
Order(MOQ):

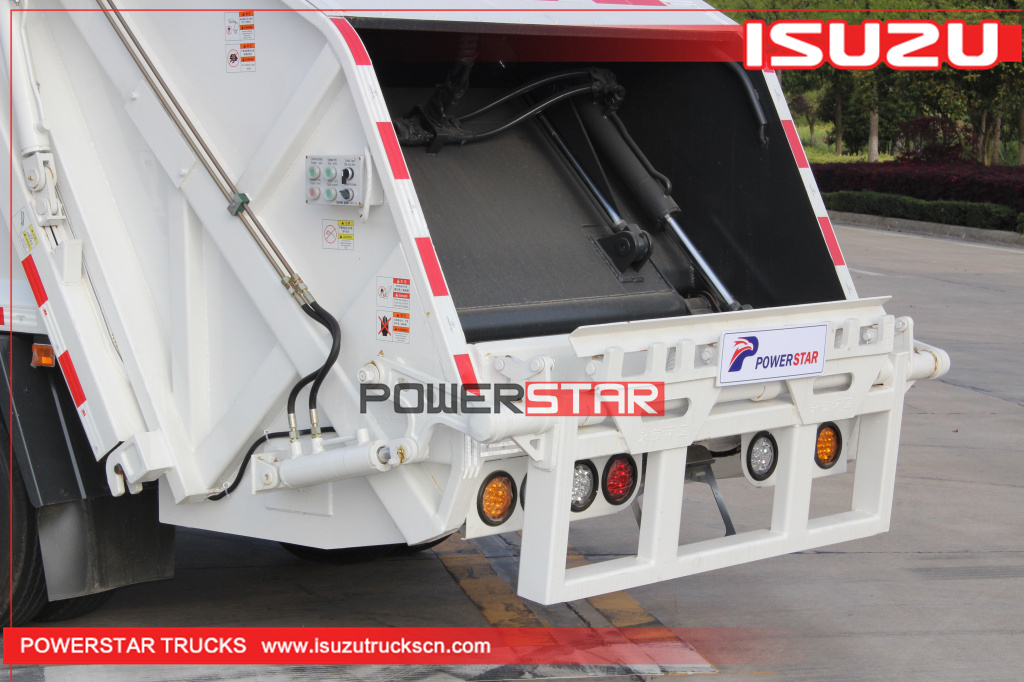

1Waste compactor vehicle up structure
Waste compactor vehicle up structure (also called as Rubbish compactor vehicle up structure, Rear loader garbage truck super structure, Compressive garbage truck body kit, Rear loading garbage truck up body set) is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrical and mineral enterprises and military units.
  |
100% custom-made
|
|
3 cbm to 22 cbm available
|
|
Short delivery time 7~30 days
|
|
Easy operation & Easy maintenance
|
|
15 years spare parts & Technical support
|

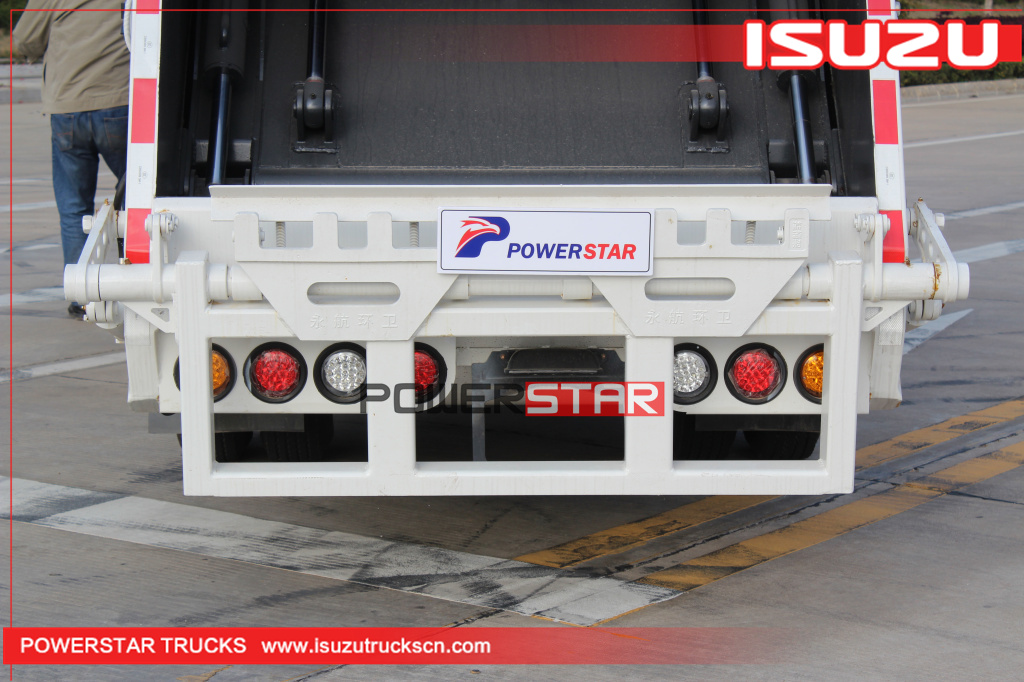

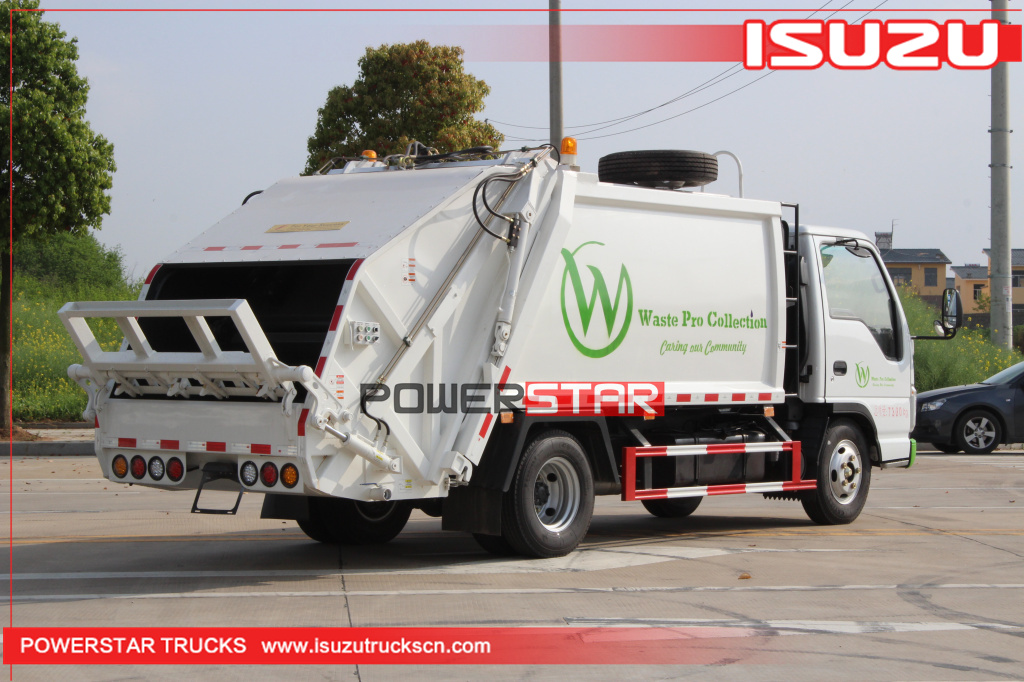

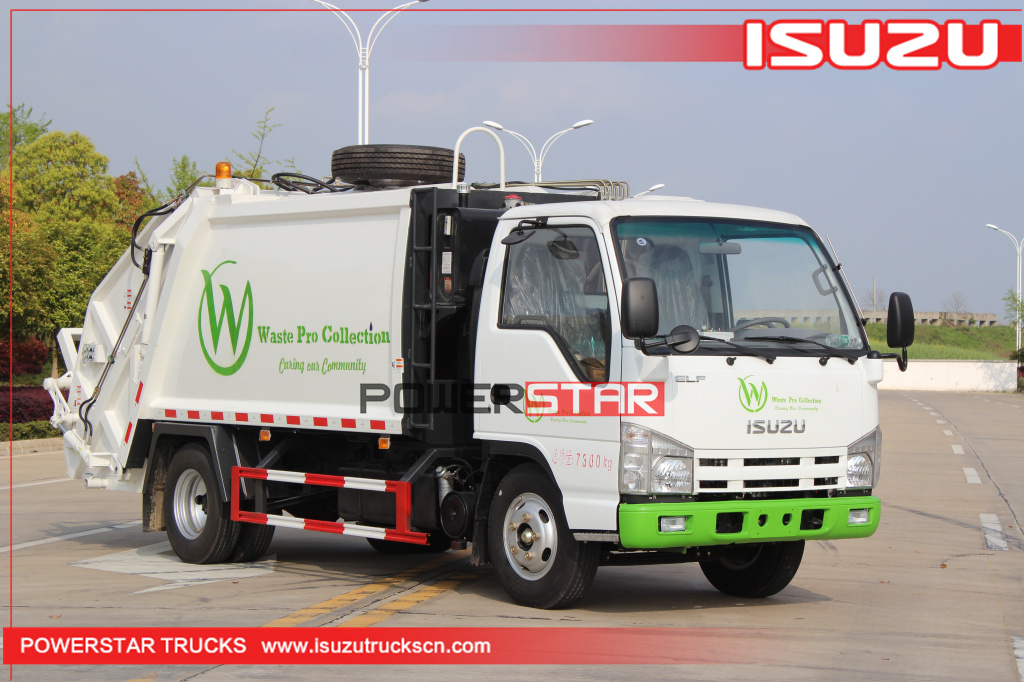

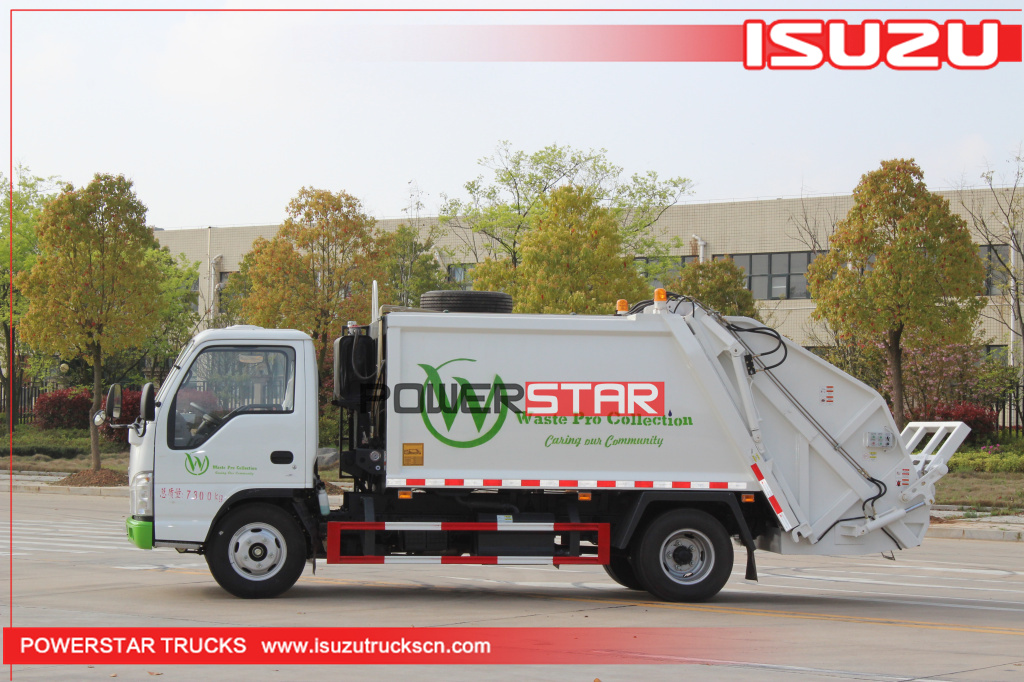

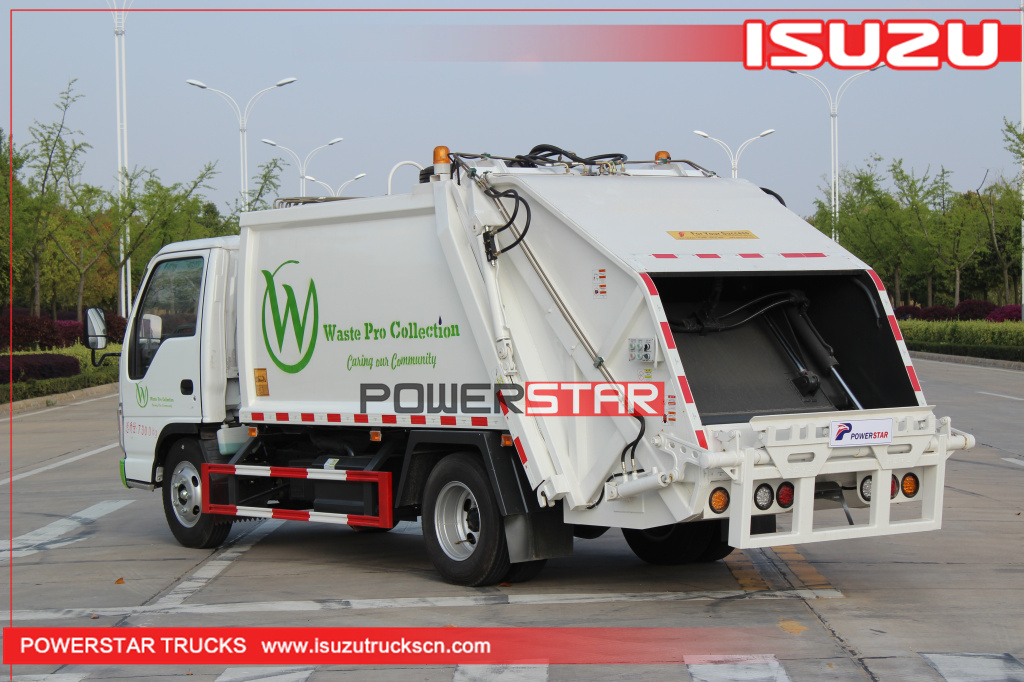

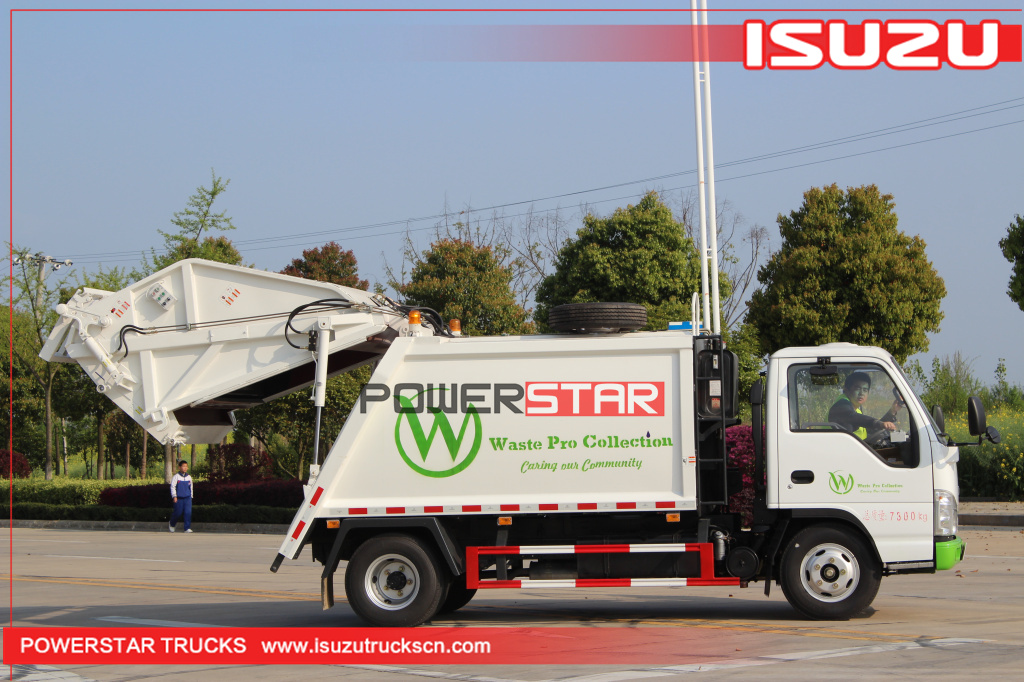

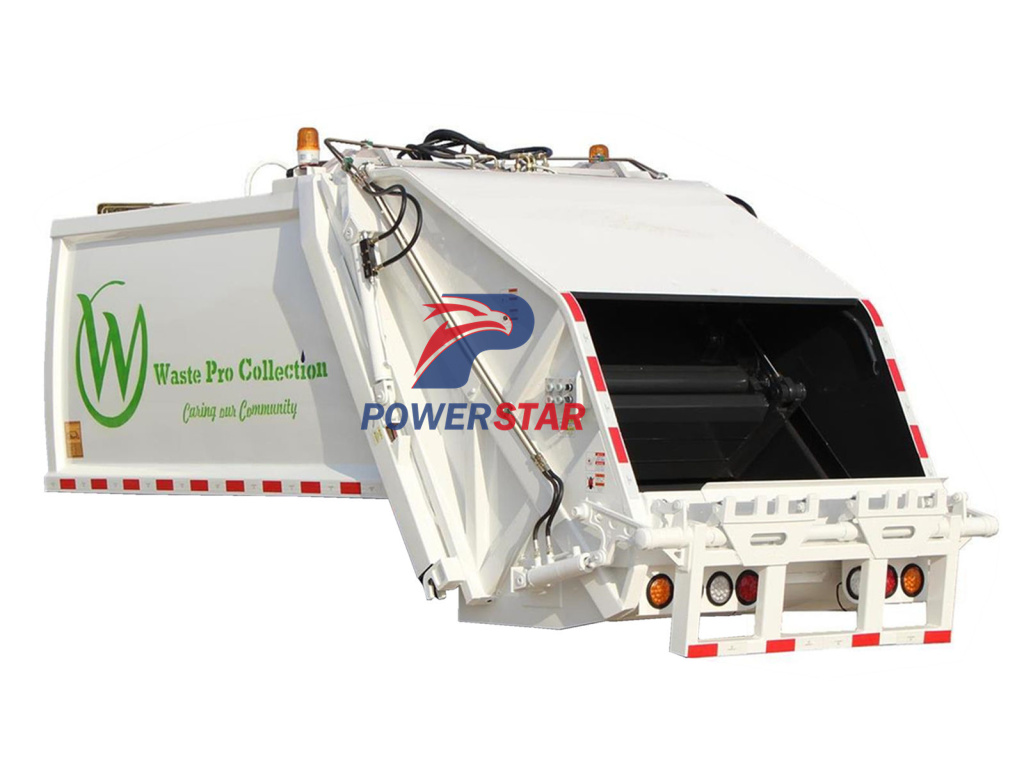

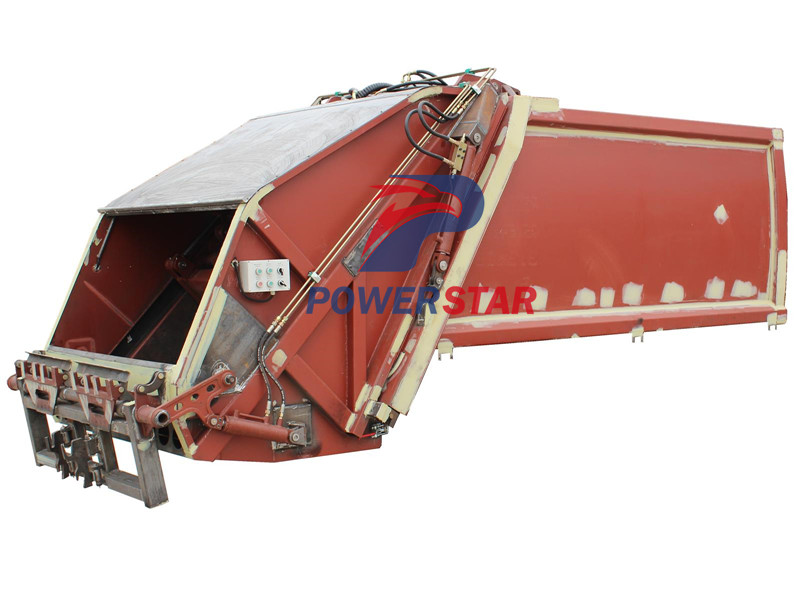

Rear loader garbage truck super structure kit
Rear loader garbage truck super structure kit
Rear loader garbage truck super structure kit
Rear loader garbage truck super structure kit
Rear loader garbage truck super structure kit
Rear loader garbage truck super structure kit
| Powerstar Trucks |
Other Supplier |
| Hydraulic Control Valve |
|
|
Italy brand, 5 years working time |
unknown brand, 1 year working time |
| Electrical Control Box |
|
|
Germany Siemens, reliability arise 30% |
unknown brand, poor reliability |
| Steel Hydraulic Pipe |
|
|
Standard balance valve ,safety |
No balance valve, dangerous |
| Control System |
|
|
CAN intelligent system, work efficiency arise 20%, double control box equipped, |
Common system, work slow , Single control box |
| Hydraulic Pipe |
|
|
Galvanized steel hydraulic pipe |
Inexperienced steel pipe |
| Hopper Cylinder System |
|
|
Reinforced cylinder, good design Blasting and anti-dust painting |
Common cylinder, poor design simple painting |
Specifications:
| NO. |
Item |
Name |
Code |
Quantity |
Comments |
|
1 |
Compactor tank |
Tank Assembly |
YS12-0100000 |
1 |
|
|
2 |
Tail Gate Assembly |
YS12-0200000 |
1 set |
|
|
|
3 |
Scraper Assembly |
YS12-0300000 |
1 set |
|
|
|
4 |
Slide Plate Assembly |
YS12-0400000 |
1 set |
|
|
|
5 |
Tilt Device Assembly |
YS12-0500001 |
1 set |
|
|
|
6 |
Spare Parts |
Oil Pump |
|
1 unit |
|
|
7 |
PTO |
|
1 unit |
|
|
|
8 |

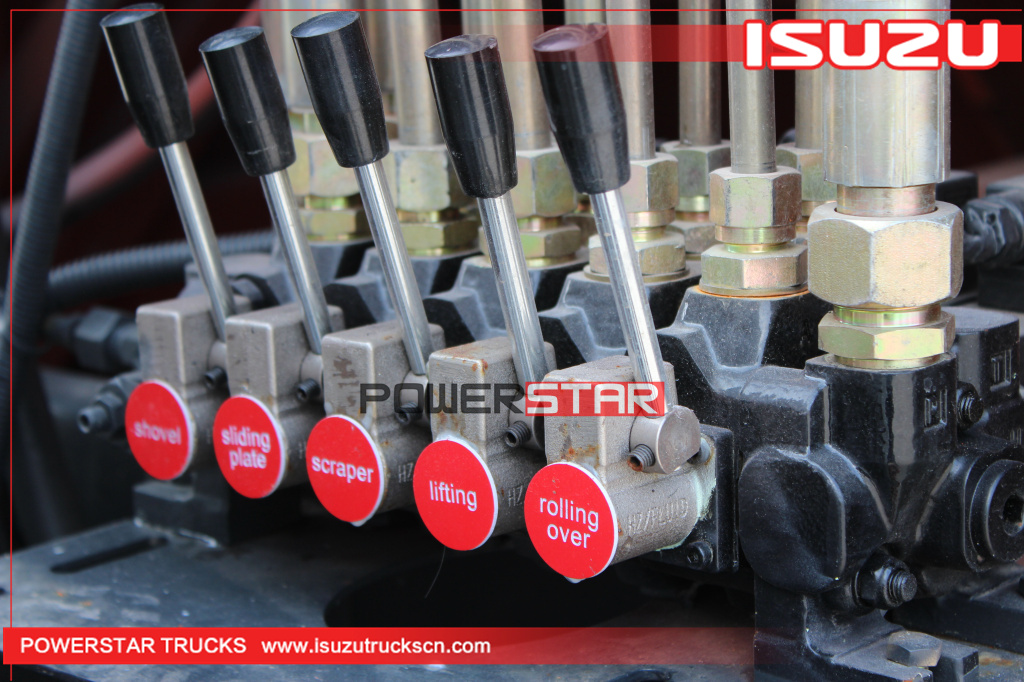

Five Function Multi-way Valve |
|
1 set |
Installed |
|
|
9 |
Hydraulic Oil Tank |
80L |
1 unit |
Installed |
|
|
10 |
PLC Control Box |
|
1 set |
Installed |
|
|
11 |
Electric System |
|
1 set |
Installed |
|
|
12 |
Balance Valve |
5060BF2 |
2 units |
Installed |
|
|
13 |
Hosepipe, oil pipe & Joint |
|
1 set |
Installed |
|
|
14 |
Slide Plate Oil Cylinder |
50/90-1300x830 |
2 units |
Installed |
|
|
15 |
Scraper Oil Cylinder |
50/80-860x570 |
2 units |
Installed |
|
|
16 |
Lifting Oil Cylinder |
50/80-840x560 |
2 units |
Installed |
|
|
17 |
Tilt Device Oil Cylinder |
45/80-410x170 |
2 units |
Installed |
|
|
18 |
Push Pate Oil Cylinder |
55/125-1220x2600 |
1 unit |
Installed |
|
|
19 |
Sliding Block |
Nylon |
1 set |
Installed |
|
|
20 |
Hose Protector |
|
1 set |
Installed |
|
|
21 |
Ball Valve |
1’ 1/4 |
1 unit |
Installed |
|
|
22 |
Stainless Steel Cover |
DN50 |
1 unit |
Installed |
|
|
23 |
Side lamps |
|
1 set |
Installed |
Case:
More details for our compactor truck body kit
