up structure of Garbage Compactor Truck Body Kit
Order(MOQ):
1Garbage Compactor Truck Body kit
|
NO. |
Item |
Name |
Coad |
Quantity |
Comments |
|
1 |
Compactor tank |
Tank Assembly |
YS12-0100000 |
1 |
|
|
2 |
Tail Gate Assembly |
YS12-0200000 |
1 set |
|
|
|
3 |
Scraper Assembly |
YS12-0300000 |
1 set |
|
|
|
4 |
Slide Plate Assembly |
YS12-0400000 |
1 set |
|
|
|
5 |
Tilt Device Assembly |
YS12-0500001 |
1 set |
|
|
|
6 |
Spare Parts |
Oil Pump |
|
1 unit |
|
|
7 |
PTO |
|
1 unit |
|
|
|
8 |
Five Function Multi-way Valve |
|
1 set |
Installed |
|
|
9 |
Hydraulic Oil Tank |
80L |
1 unit |
Installed |
|
|
10 |

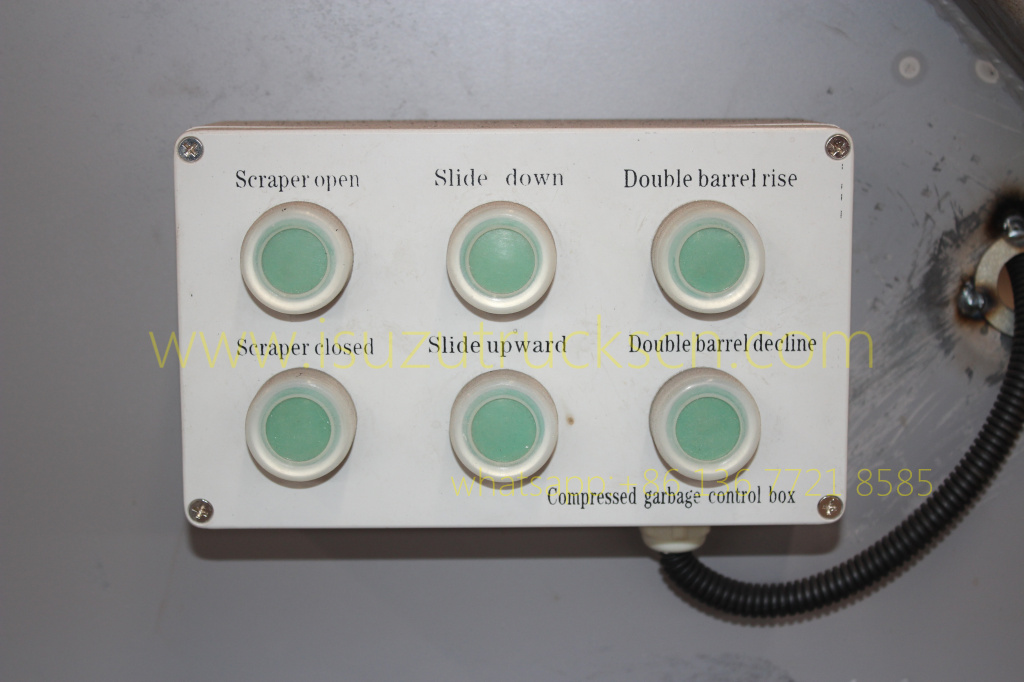

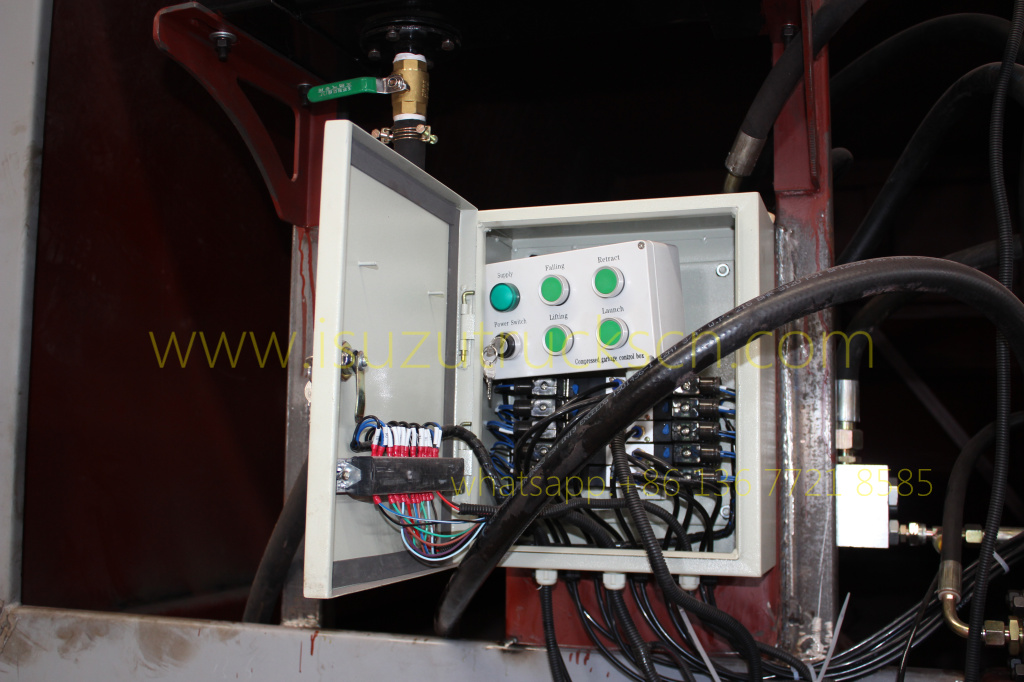

PLC Control Box |
|
1 set |
Installed |
|
|
11 |
Electric System |
|
1 set |
Installed |
|
|
12 |
Balance Valve |
5060BF2 |
2 units |
Installed |
|
|
13 |
Hosepipe, oil pipe & Joint |
|
1 set |
Installed |
|
|
14 |
Slide Plate Oil Cylinder |
50/90-1300x830 |
2 units |
Installed |
|
|
15 |
Scraper Oil Cylinder |
50/80-860x570 |
2 units |
Installed |
|
|
16 |
Lifting Oil Cylinder |
50/80-840x560 |
2 units |
Installed |
|
|
17 |
Tilt Device Oil Cylinder |
45/80-410x170 |
2 units |
Installed |
|
|
18 |
Push Pate Oil Cylinder |
55/125-1220x2600 |
1 unit |
Installed |
|
|
19 |
Sliding Block |
Nylon |
1 set |
Installed |
|
|
20 |
Hose Protector |
|
1 set |
Installed |
|
|
21 |
Ball Valve |
1’ 1/4 |
1 unit |
Installed |
|
|
22 |
Stainless Steel Cover |
DN50 |
1 unit |
Installed |
|
|
23 |
Side lamps |
|
1 set |
Installed |
|
|
24 |
Others |
Cushion |
|
2 units |
|
|
25 |
U-style Bolt |
|
8 units |
|
|
|
26 |
Plastic Fender (semicircle) |
|
2 units |
|
|
|
27 |
Side Fence Assembly |
|
2 sets |
|
|
|
28 |
Waste Water Tank Assembly (With
Support) |
|
1 unit |
|
|
|
29 |
Standard Part |
|
1 set |
|

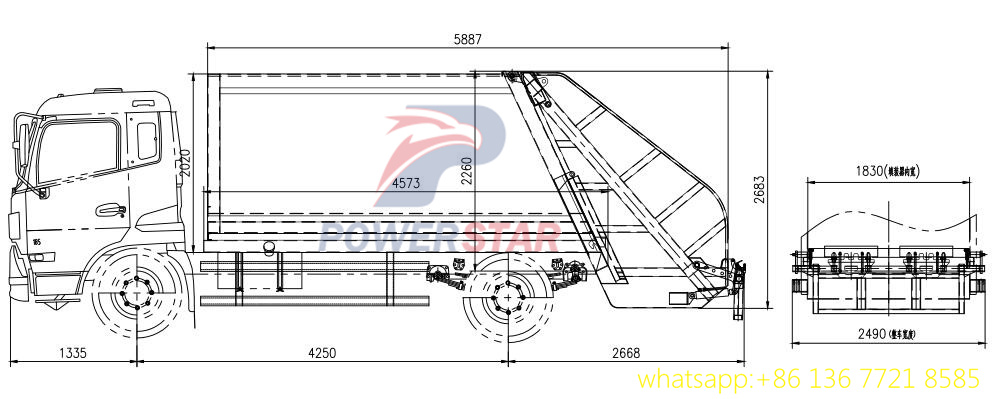

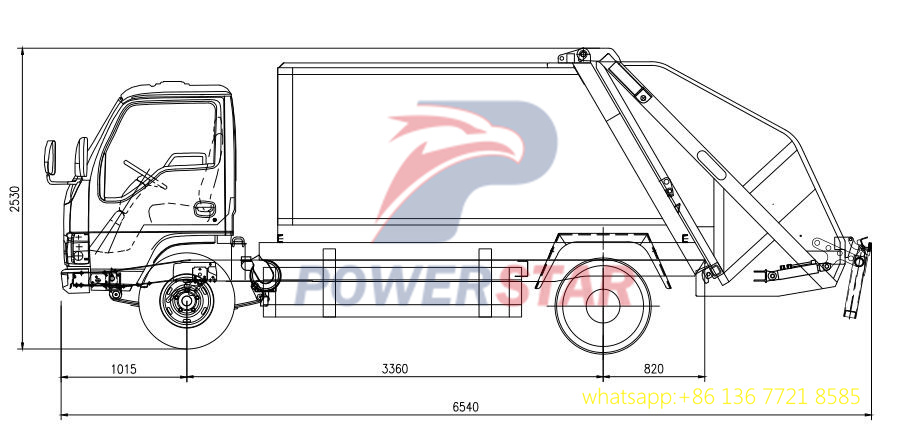

5 CBM Garbage compactor body kit drawing

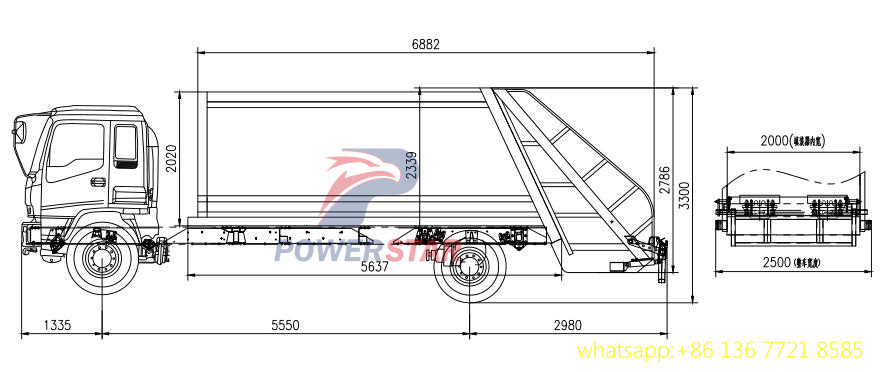

10 CBM,12 CBM Waste compactor body kit drawing
15 CBM Refuse compactor body kit drawing

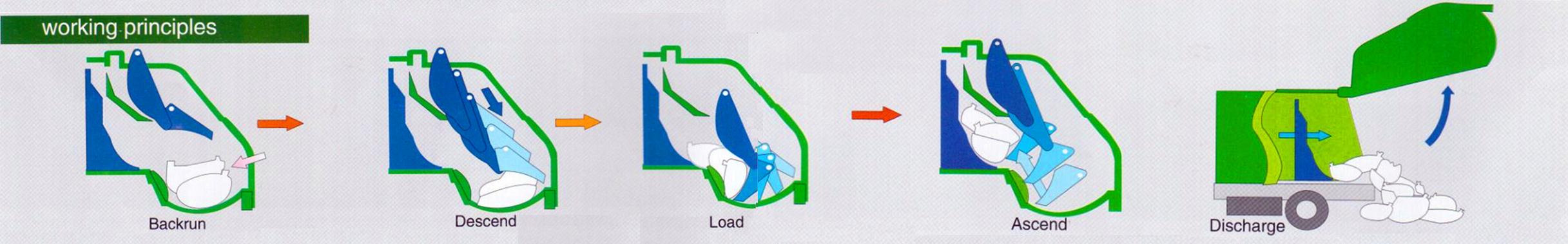

Working Principles of Garbage Compactor

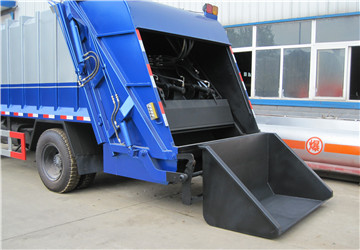

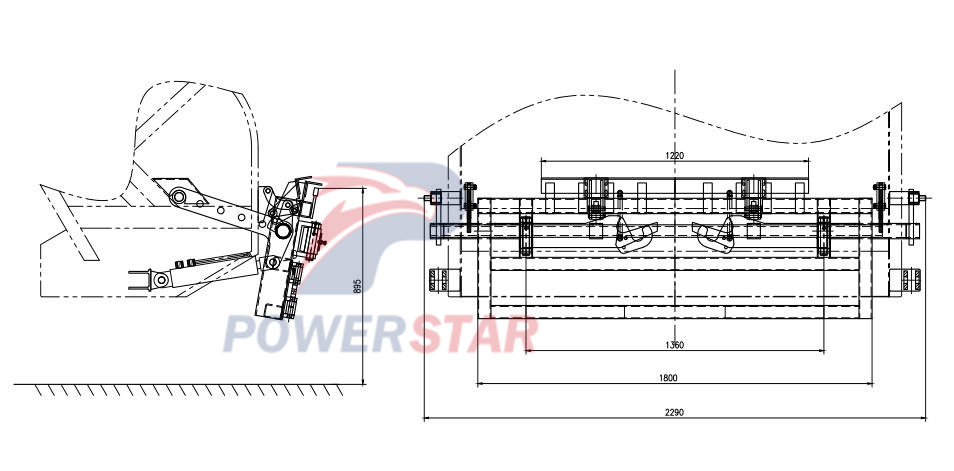

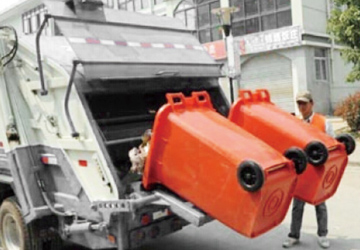

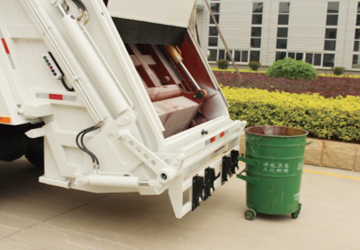

Different Mechanism type for customer choose
|
 |
|
 |
 |

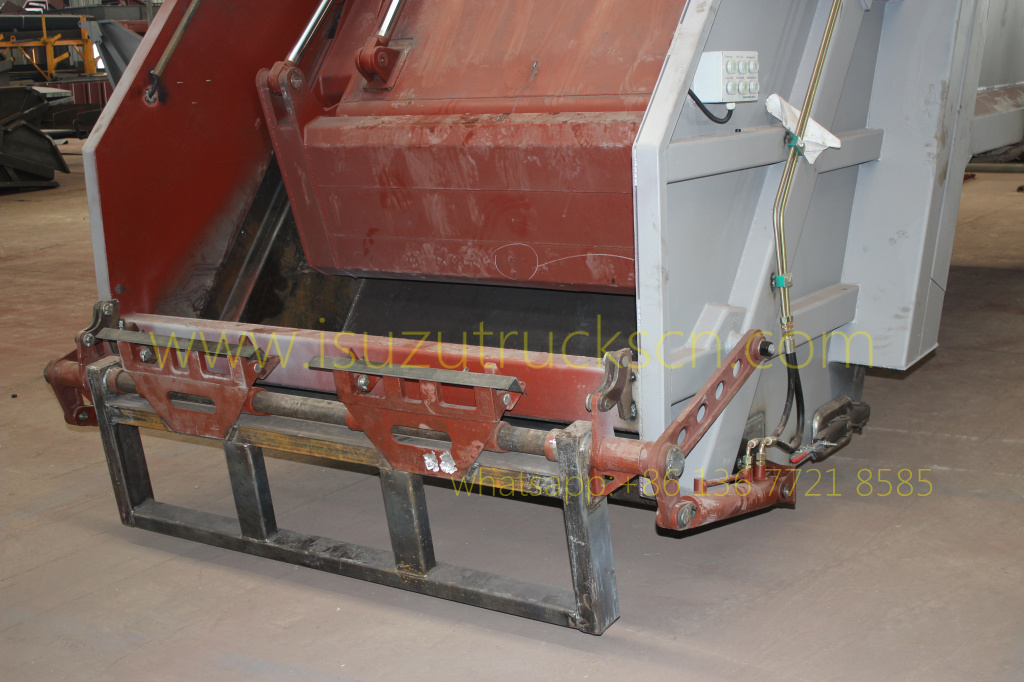

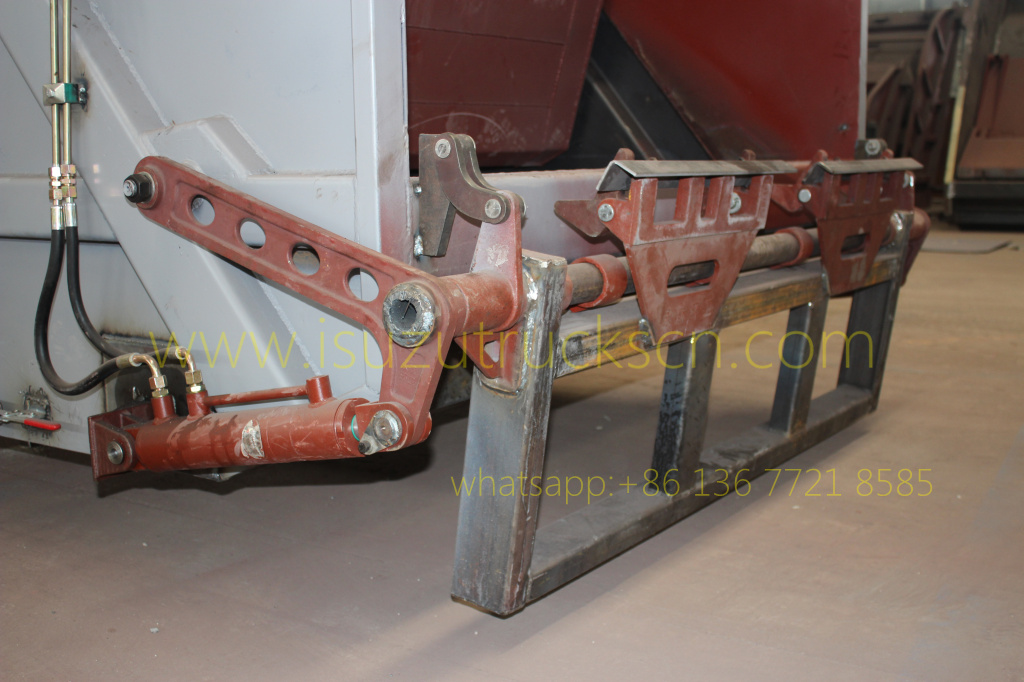

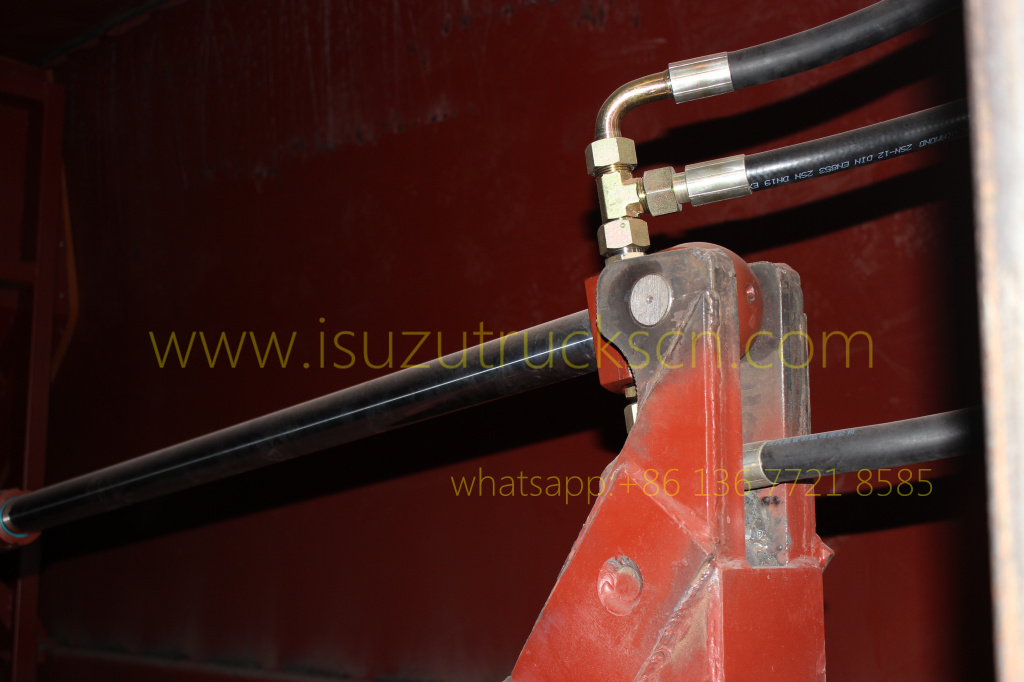

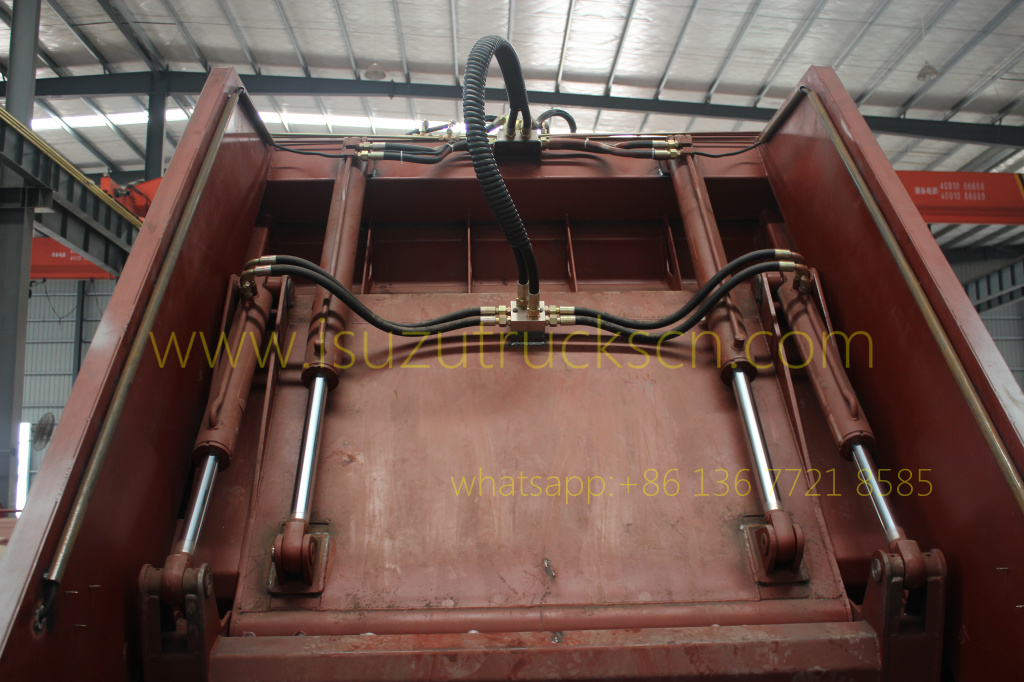

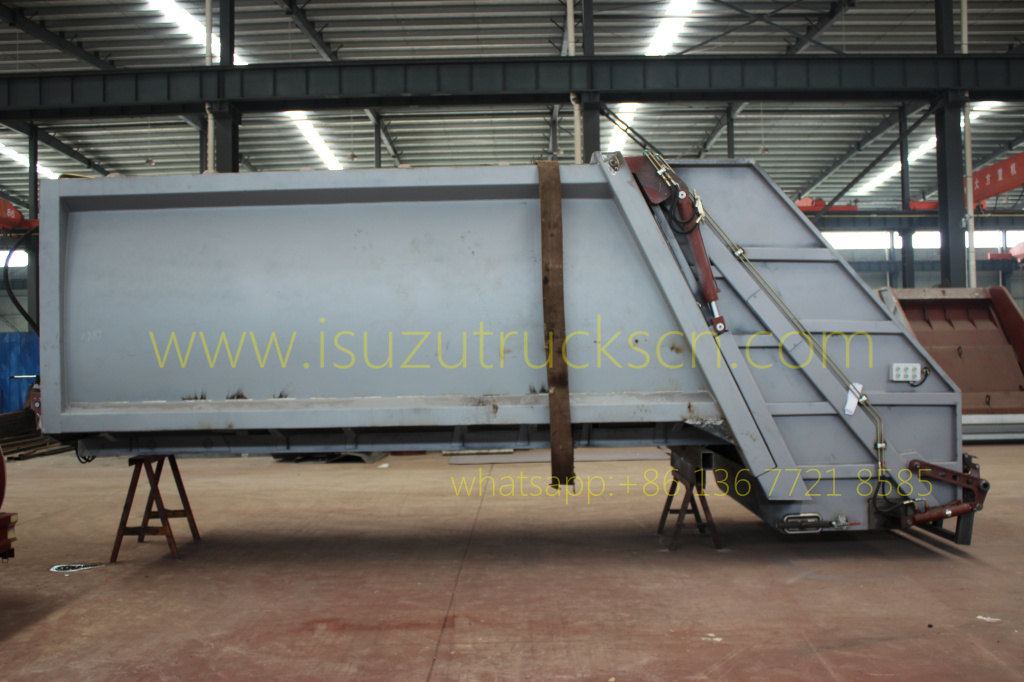

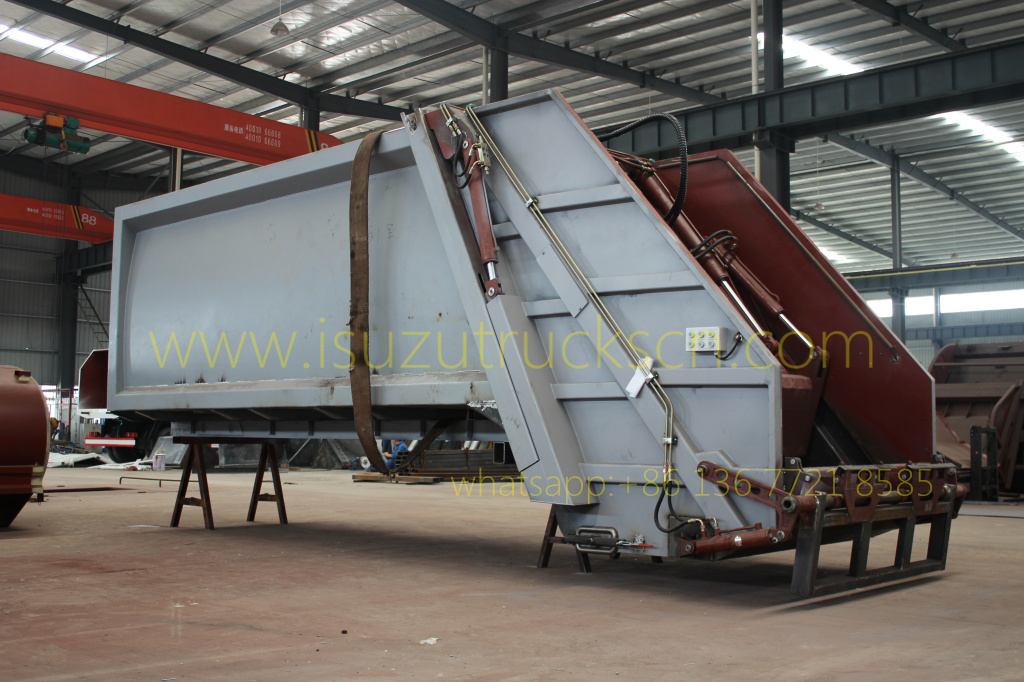

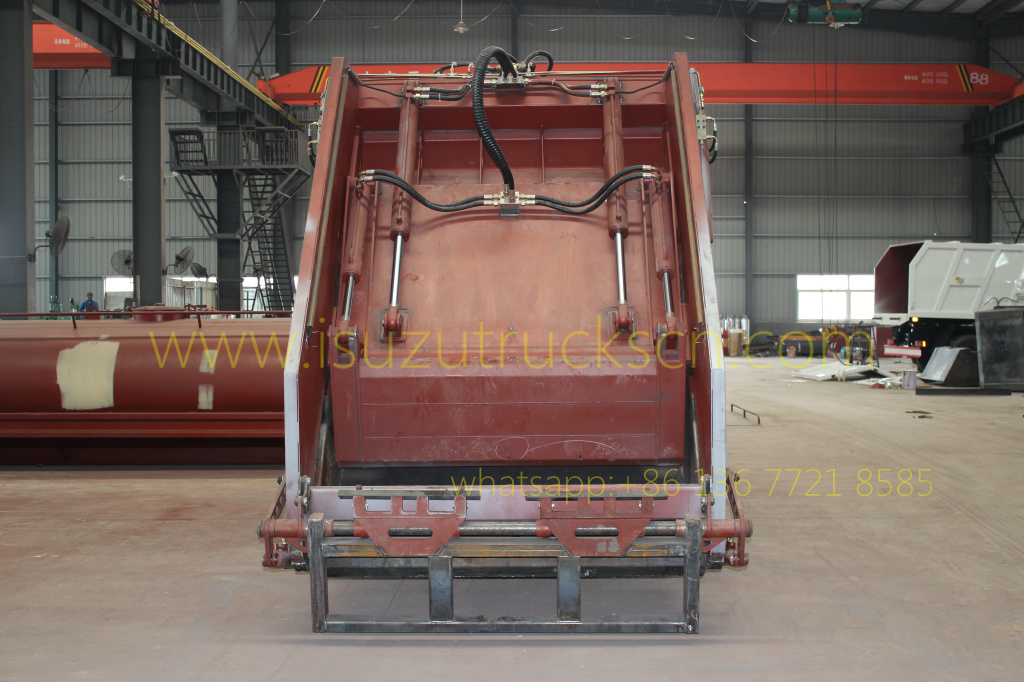

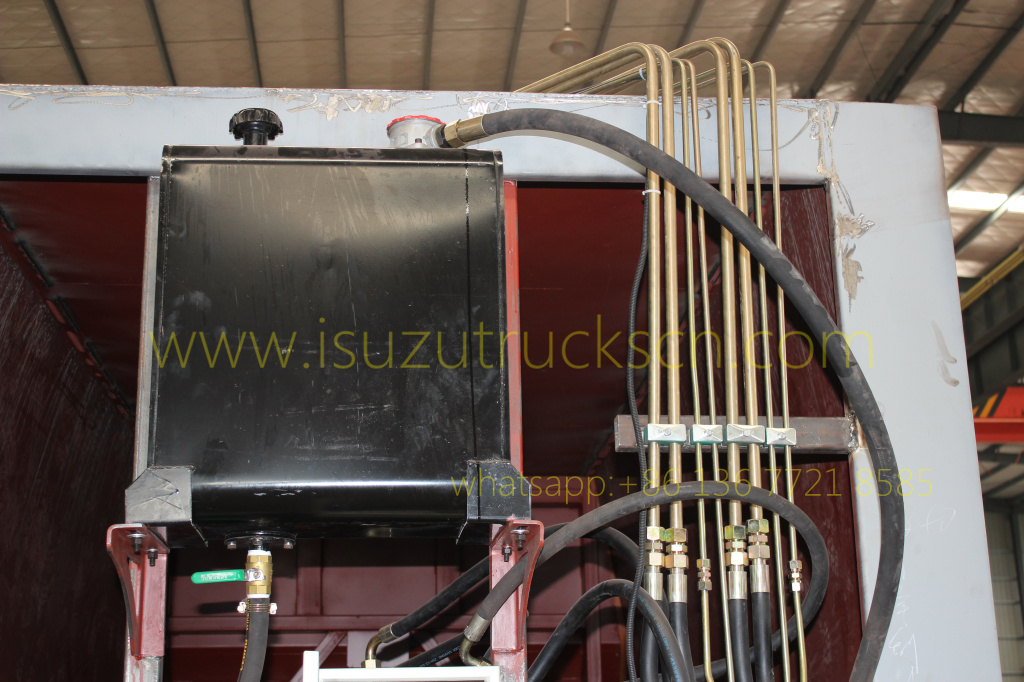

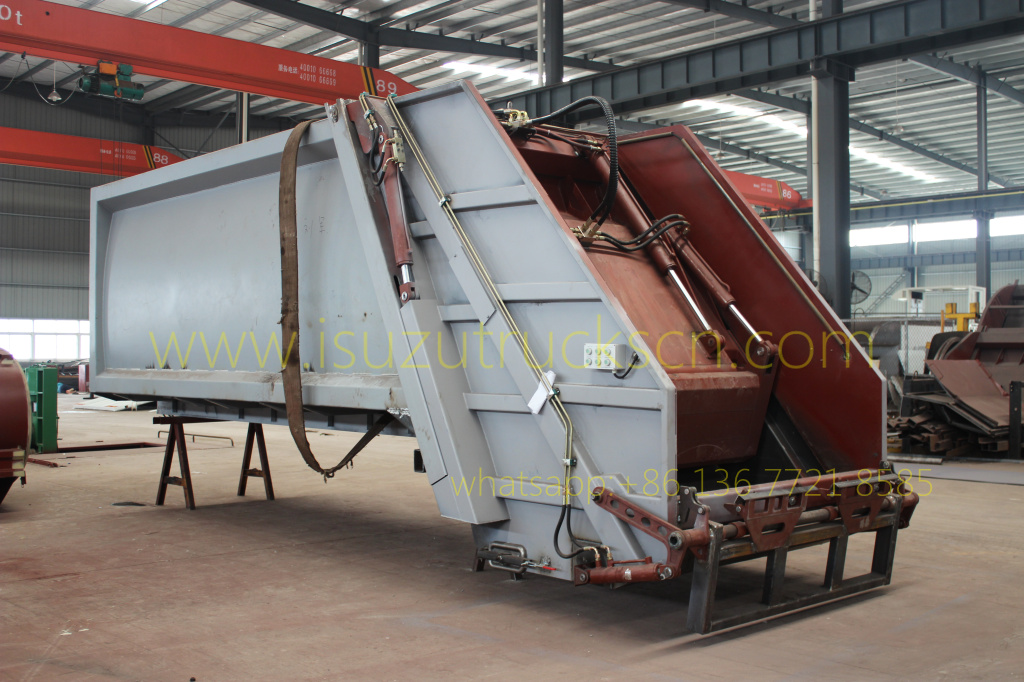

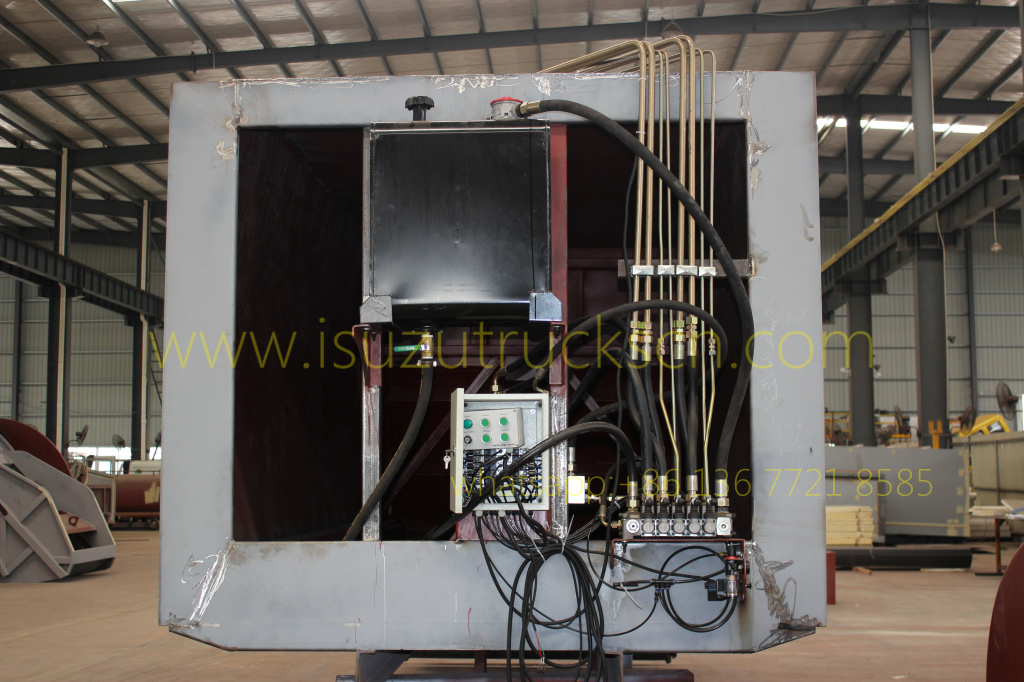

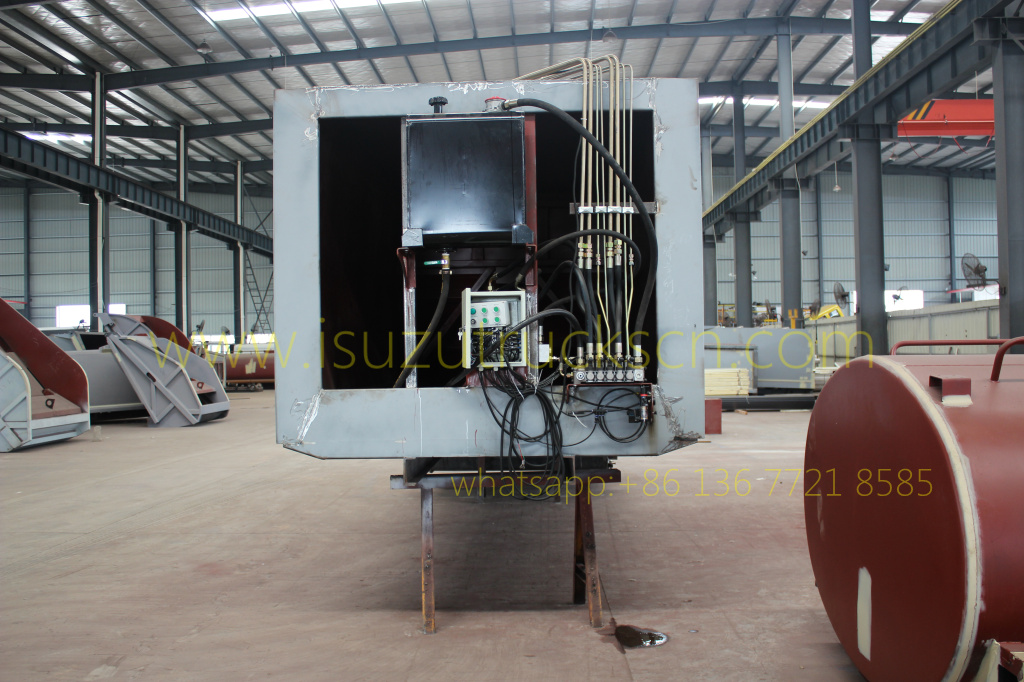

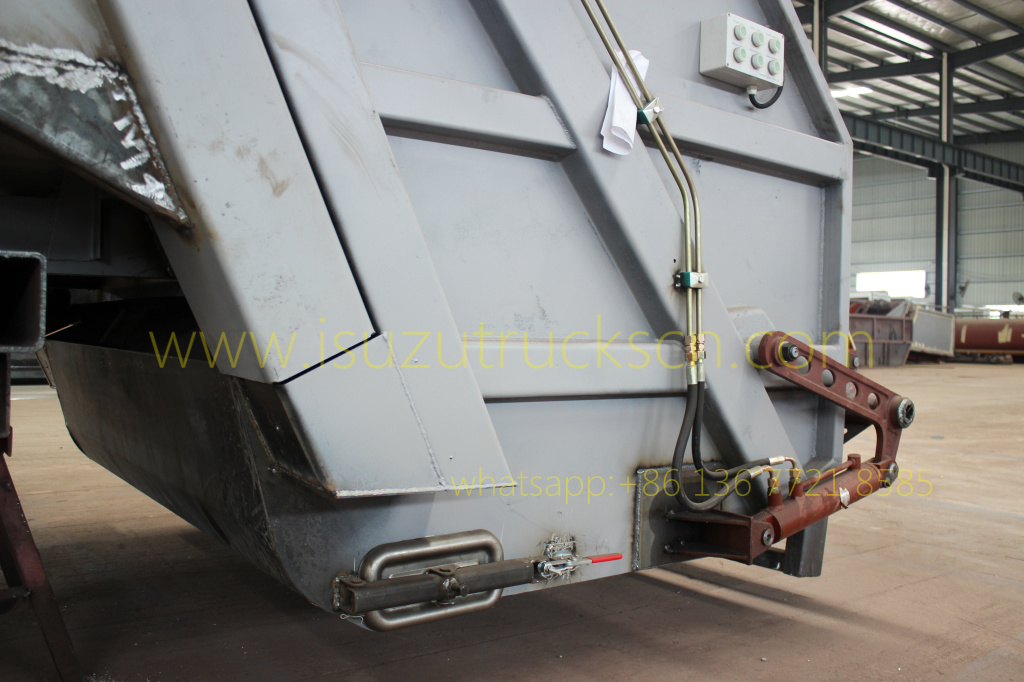

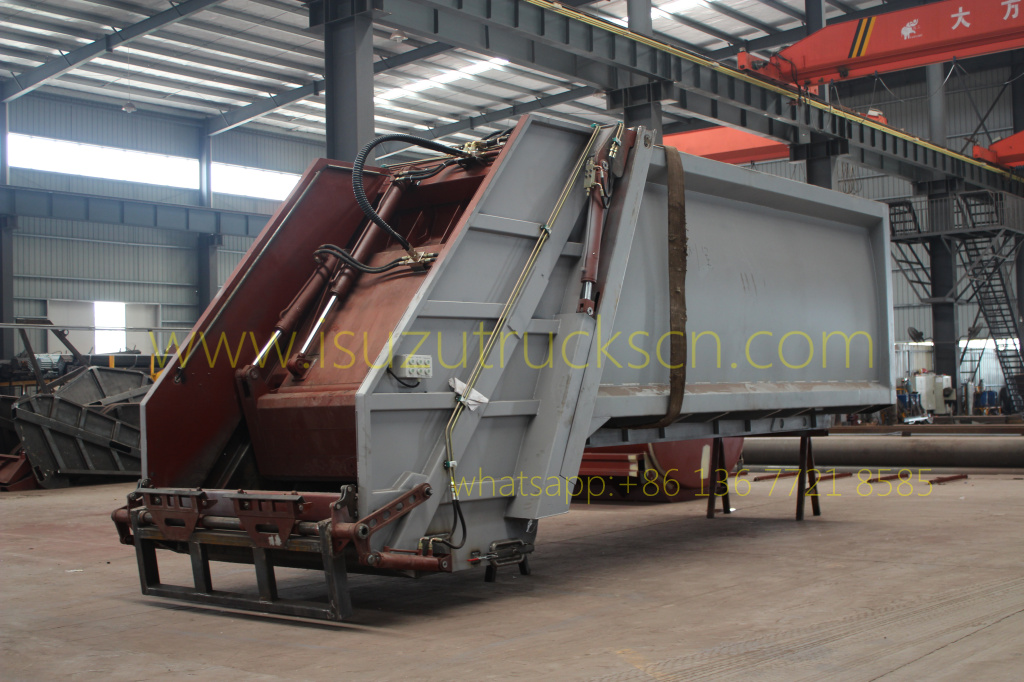

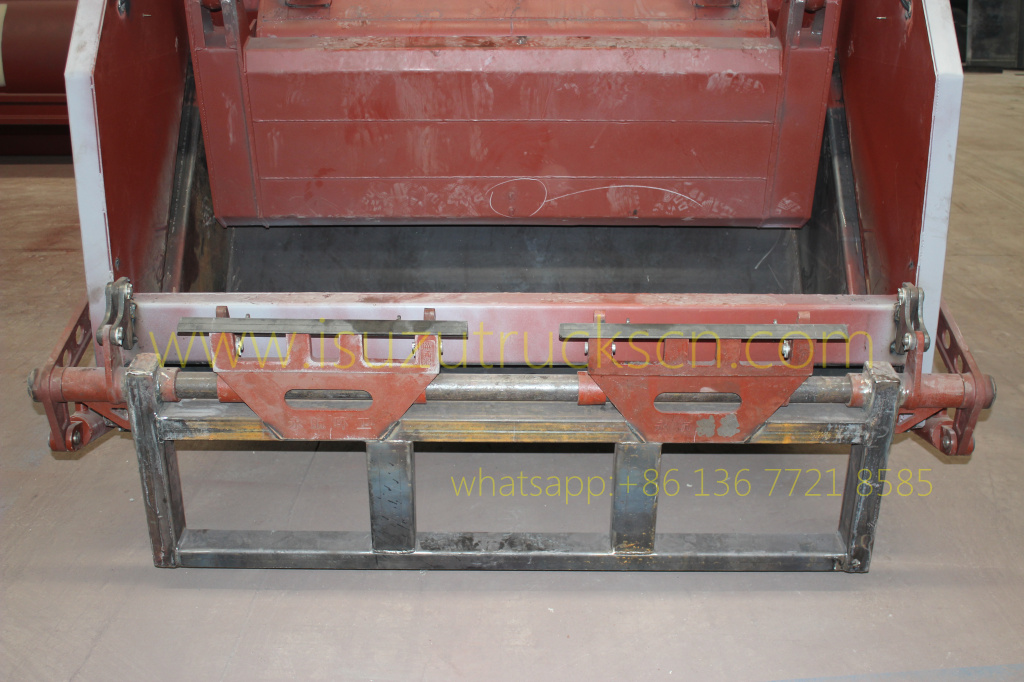

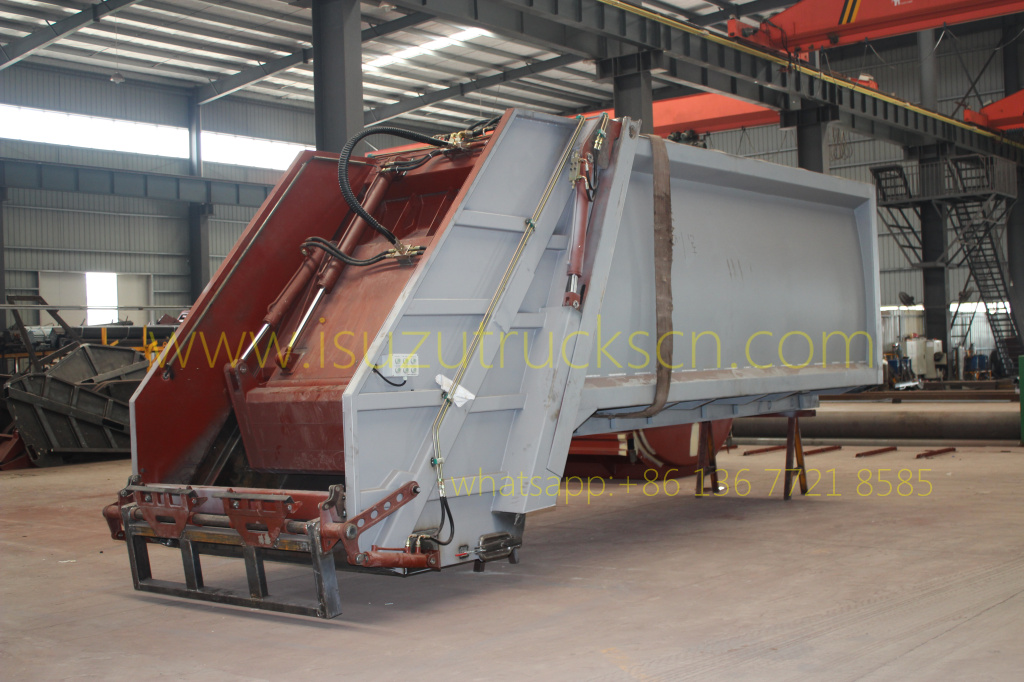

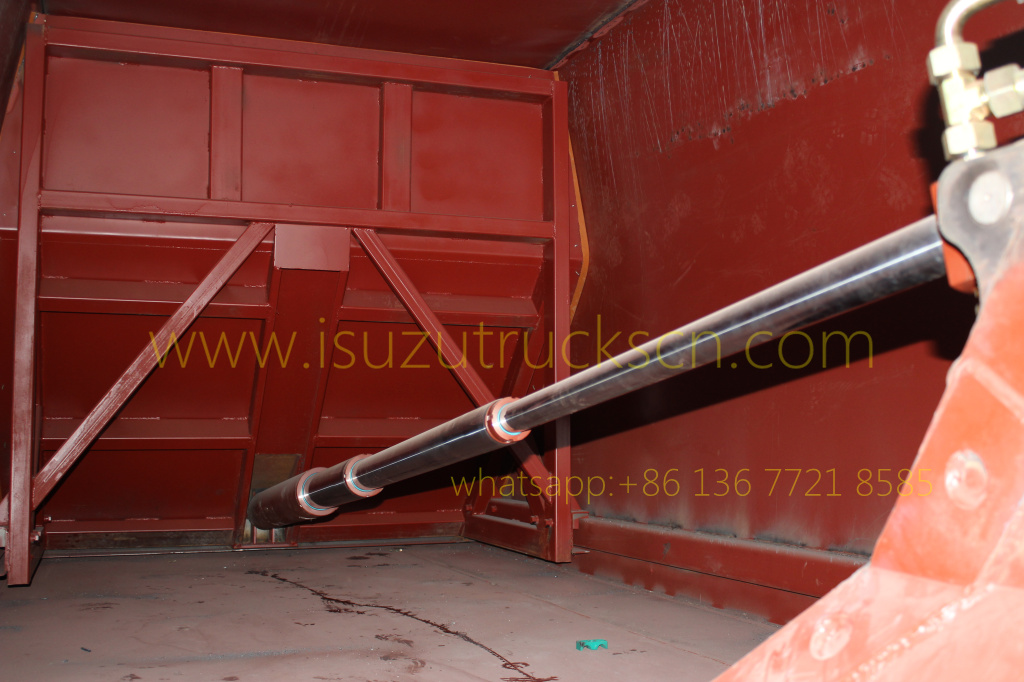

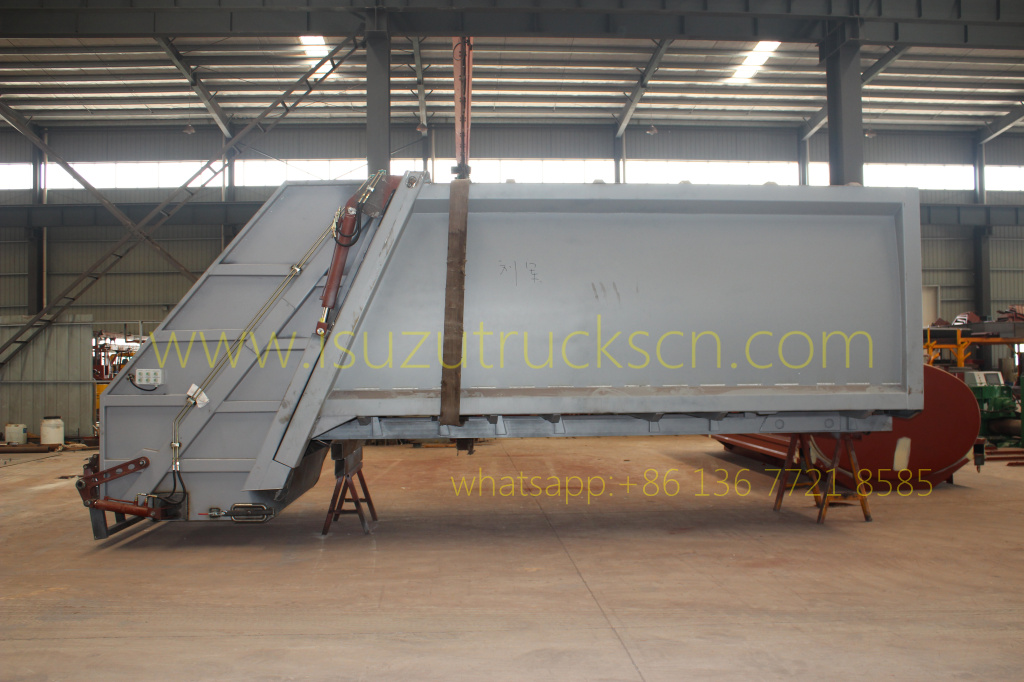

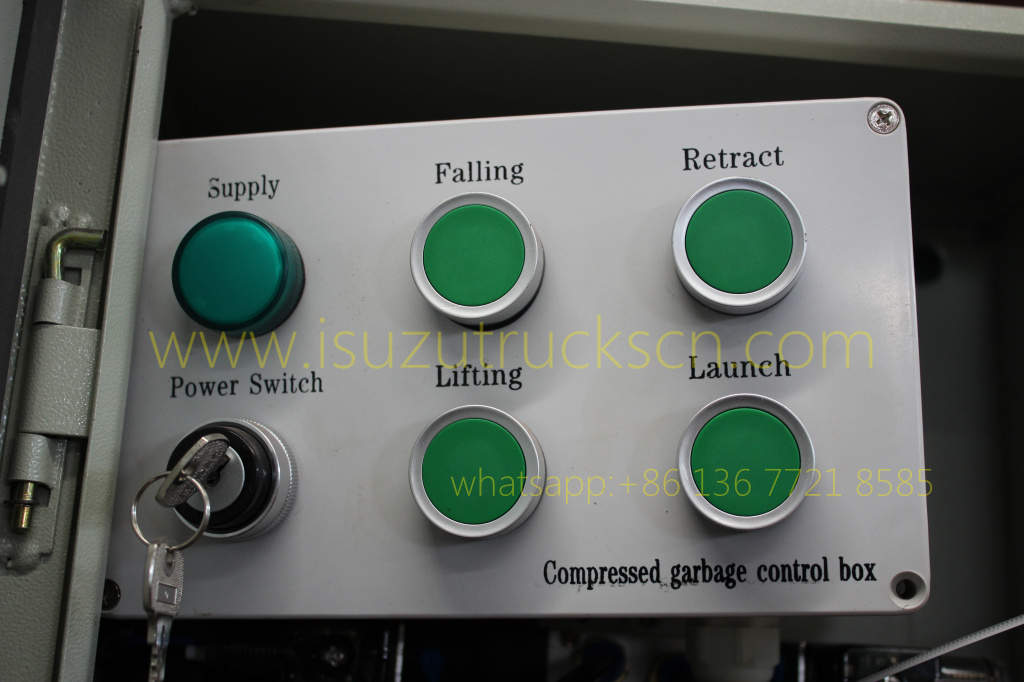

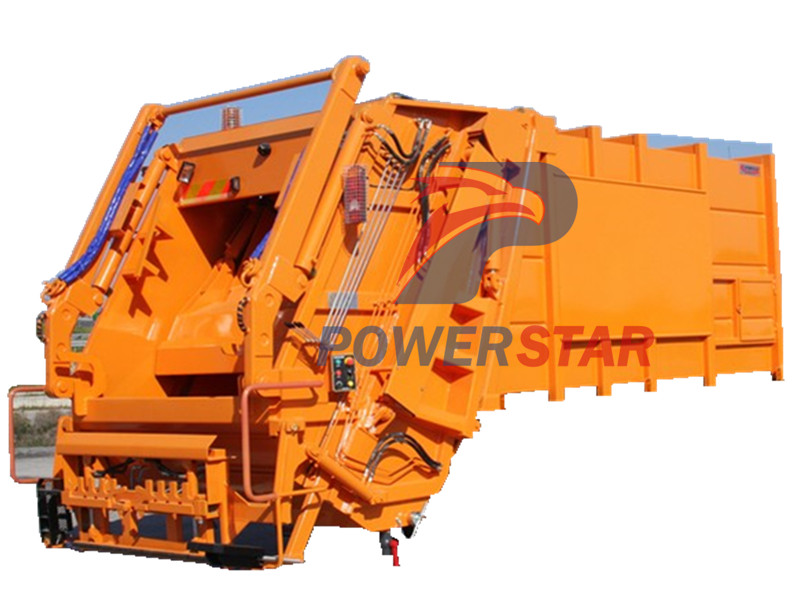

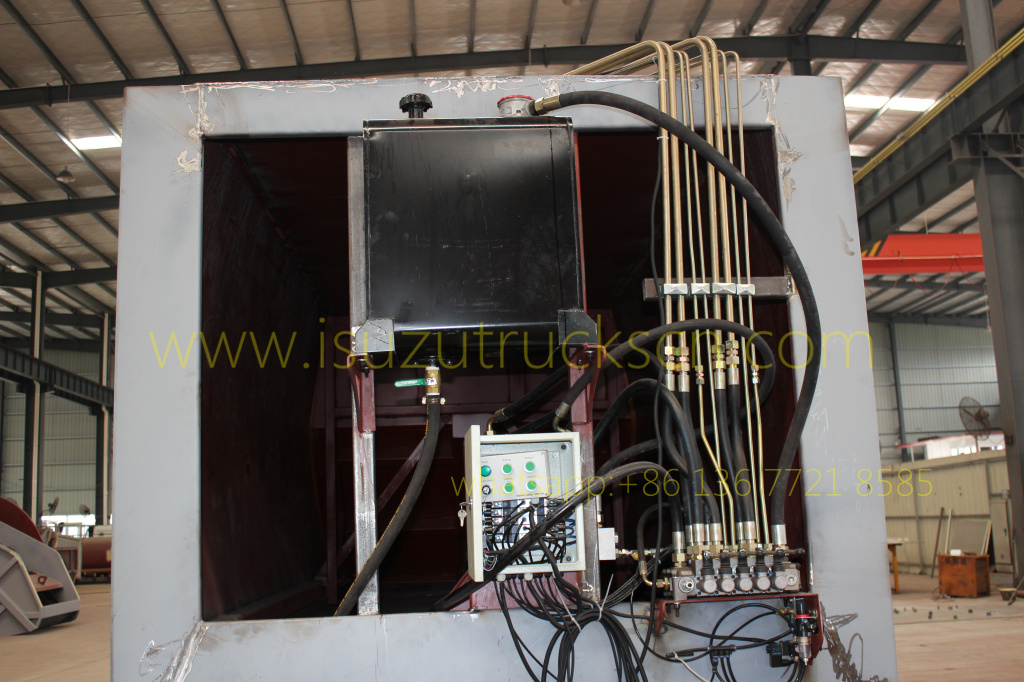

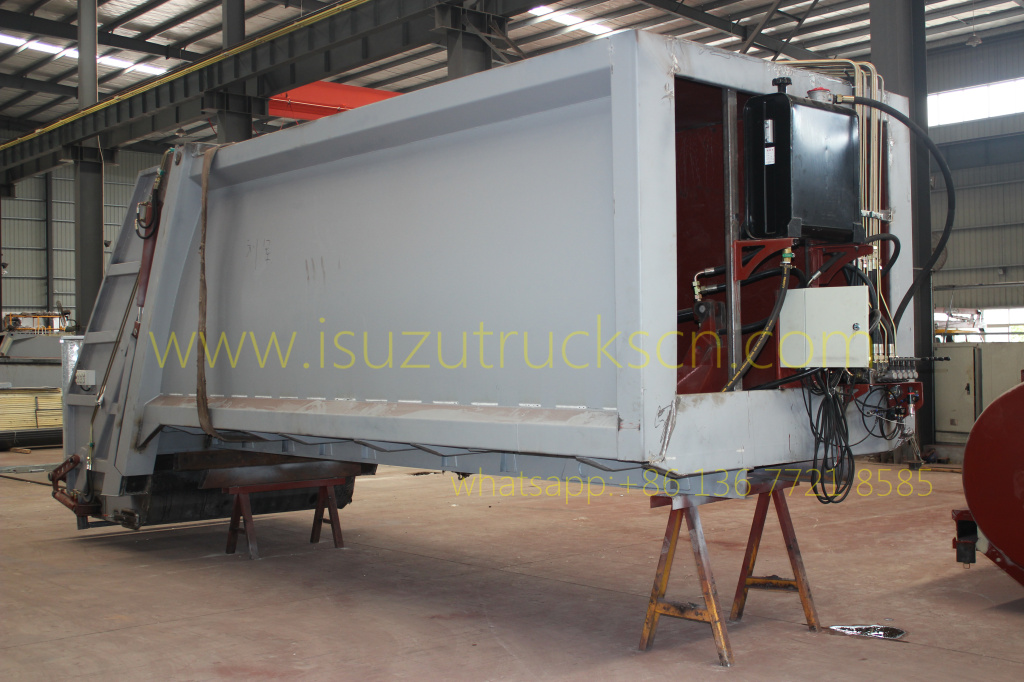

Customer made Garbage Compactor Truck Body kit detail pictures
Customer made Garbage Compactor Truck Body kit detail pictures
Customer made Garbage Compactor Truck Body kit detail pictures
Customer made Garbage Compactor Truck Body kit detail pictures
Customer made Garbage Compactor Truck Body kit detail pictures
Customer made Garbage Compactor Truck Body kit detail pictures
 |
 |
|
 |
 |
Details pictures of 4cbm Compression Garbage Truck Isuzu
Operation manual of 4cbm Compression Garbage Truck Isuzu
