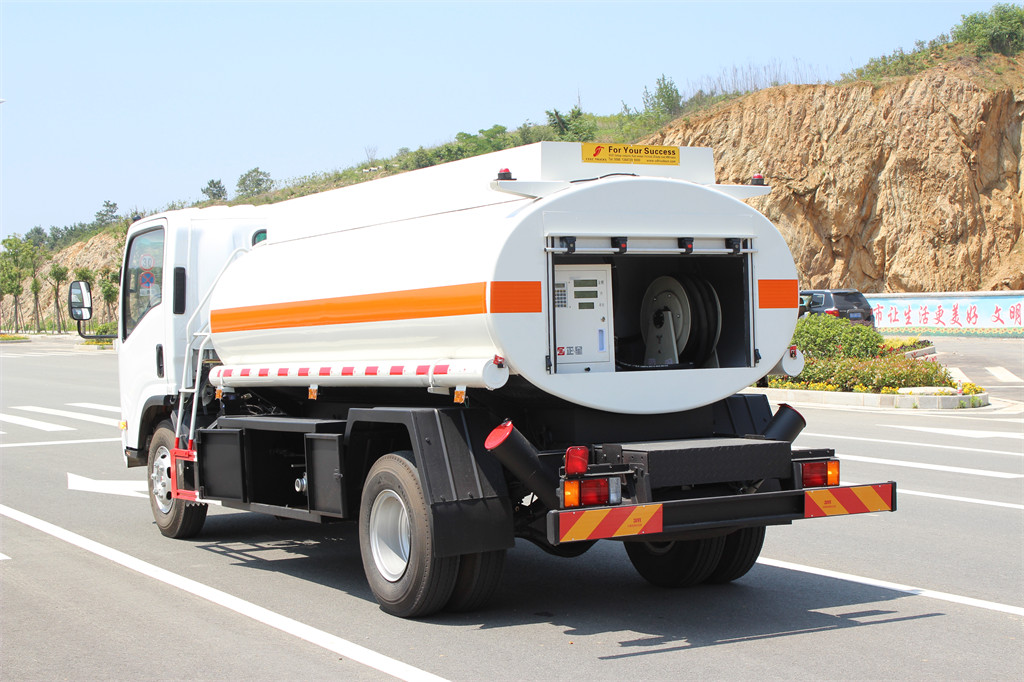

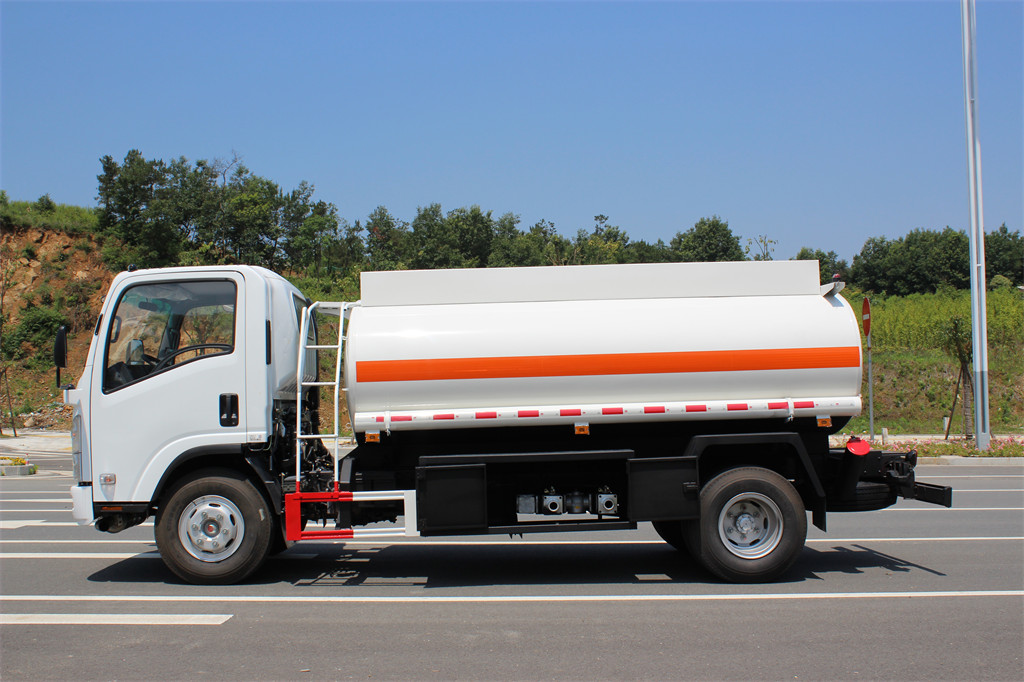

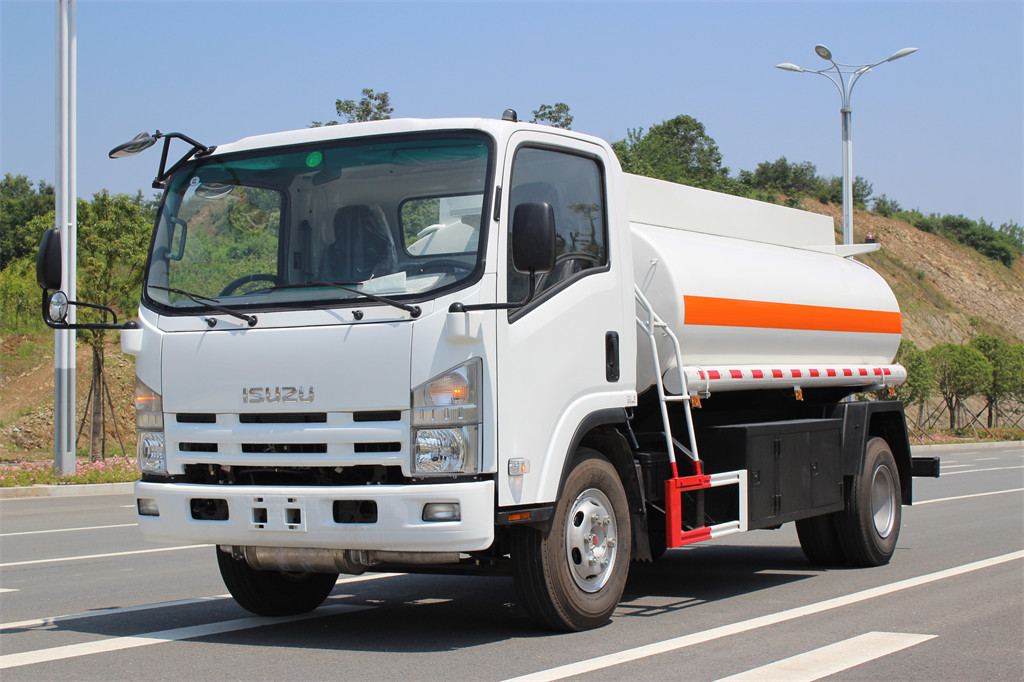

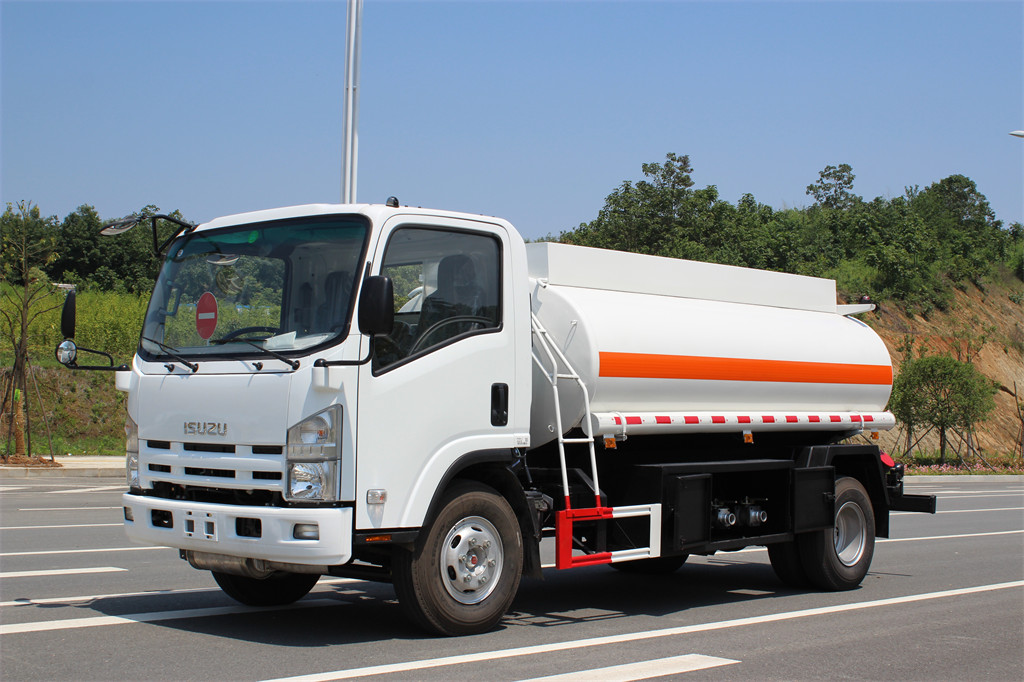

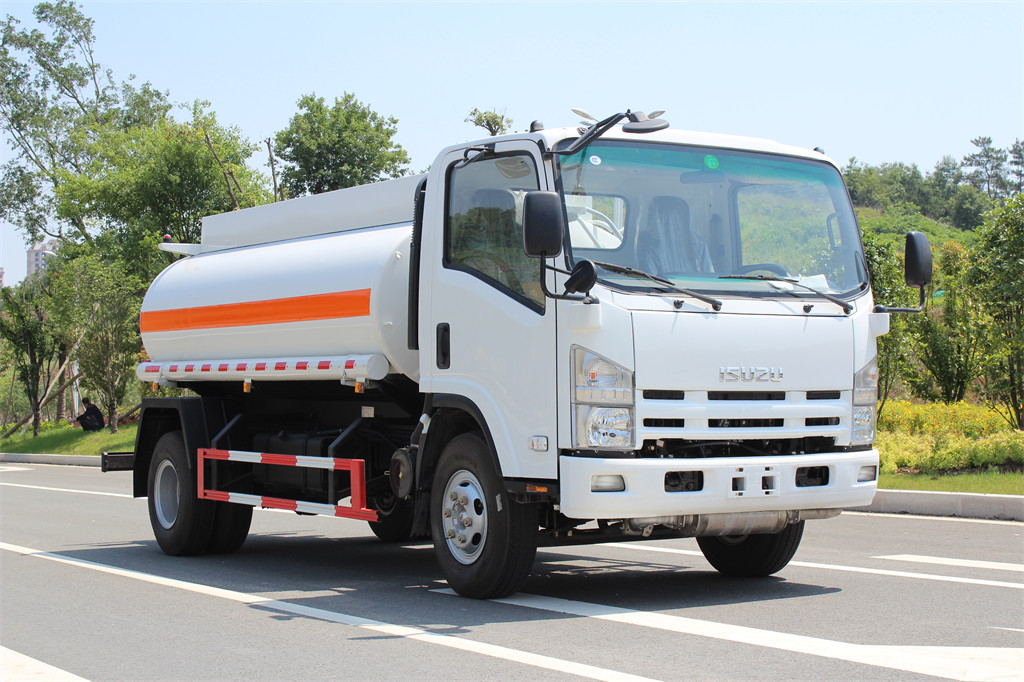

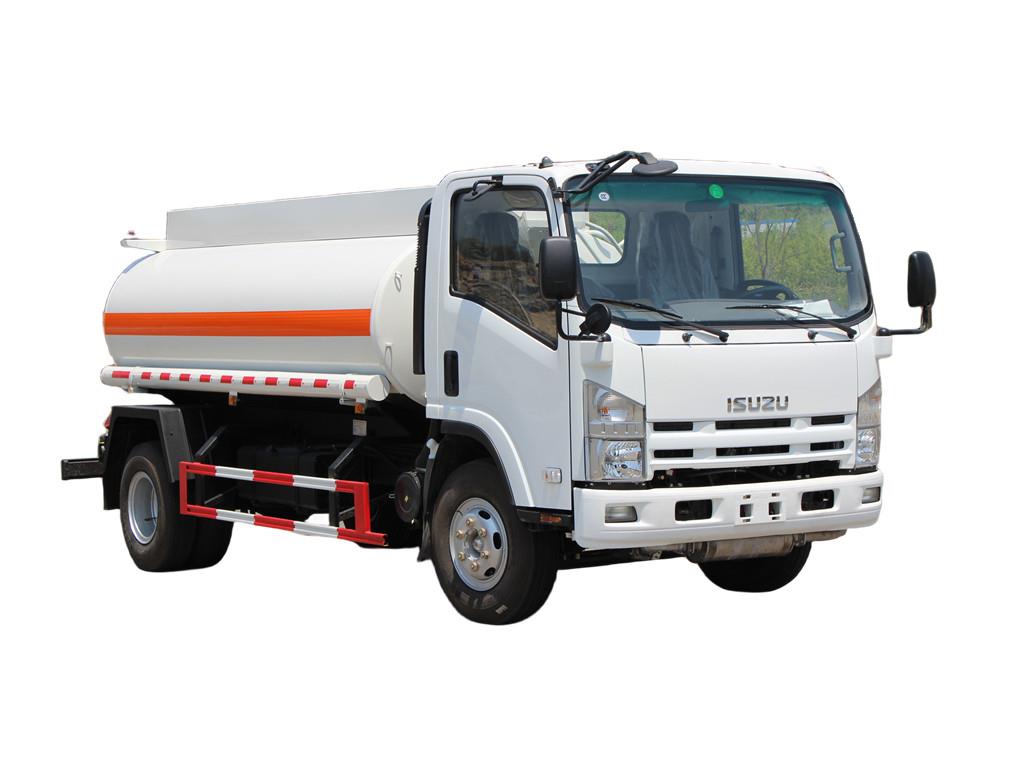

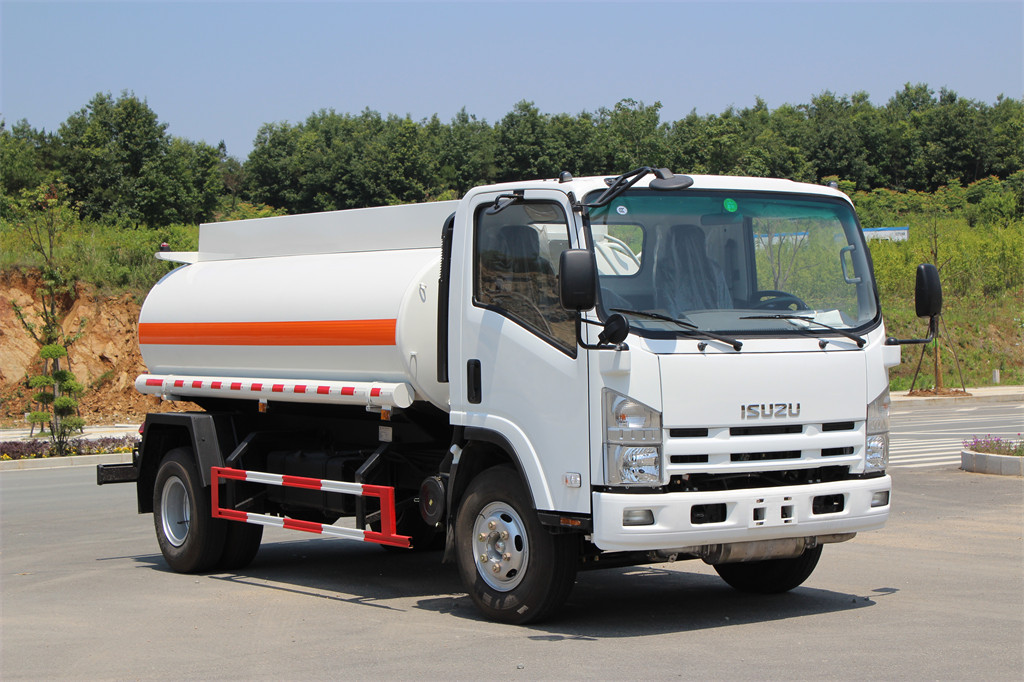

Top loading fuel tanker truck Isuzu, Widely use in various transportation units, chemical companies and other logistic industries.The Isuzu NPR fuel tank transportation series, as to the whole Isuzu diesel tank truck, usage for transport the gasoline, light diesel oil, petroleum and other non-corresive fuel properties, rarely impact the damage for oil pump, generator, refullering gun,etc.
Work capacity:
6,000LTruck model:
PT5100GJYEngine power:
120 HPEngine type:
Isuzu 4KH1Axle drive:
4x2Gear box:
Isuzu MSBRemarks:
Bottom loading optionalTop loading fuel tanker truck Isuzu is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil transportation and storage.
Competitive Advantage:
1) competitive price, cost-effective
2) quick delivery time
3) Our Isuzu NPR Oil tank truck with advanced butt welding technology, after the forming of the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity,
safe and stable vehicle characteristics;
4) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking technology, durable and beautiful appearance. Independent sub positions,
5) Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck,insulation liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle
6) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
7) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants
8) with all kinds of truck model, which can fulfill your requirement
9) the key parts adopt the world's top technology products
10) based on strong technical support and top level technology make the trucks with high quality and more reliable
11) professional export and import procedure dealing
12) If you need. using ISUZU NPR 4x4 all wheels driving truck chassis,
13) Strong more power
14) Good off-road performance
 |
 |
 |
|
Main Specification
|
|
|
Product Name
|
ISUZU fuel tank truck
|
|
Driving Type
|
4×2,right/left hand drive
|
|
Weights
|
|
|
Max.Payload (kg)
|
5000
|
|
Curb weight(kg)
|
3500
|
|
Dimensions
|
|
|
Wheelbase (mm)
|
3815
|
|
Overall Dimension (mm)
|
6395×1980×2300
|
|
Tank dimension
|
6000liters
|
|
Engine
|
|
|
Engine
|
120hp
|
|
Engine type
|
4 stroke water-cooled, Inter-cooling,Turbocharged
|
|
Displacement (L)
|
3.0L
|
|
Rated power Rev ((Kw/rpm)
|
88kw/2800rpm
|
|
Max Torque (N*m)/Rev (rpm)
|
392N.m/1400-1800rpm
|
|
Emission standard
|
EURO 2
|
|
Drive Line
|
|
|
Transmission
|
ISUZU MSB,5 forwards, 1 reverse gear, manual operation
|
|
Steering
|
With power steering
|
|
Brake system
|
Air brake
|
|
Cab
|
|
|
Cab
|
Single row, Howo cabin, A/C optional
|
|
Axles
|
|
|
Front axle
|
2 tons
|
|
Rear axle
|
3.5 tons
|
|
Tire specification
|
|
|
Tire specification
|
7.00R16 standard tire,6 tires+1 spare tire
|
|
Specification of Fuel truck
|
|
|
Tank capacity
|
5000liters,one compartment
|
|
Tanker material
|
Q235, carbon steel
|
|
Manhole
|
1 pcs manhole fixed on top of tank
|
|
Outlet and inlet
|
1 pcs outlet and 1 pcs inlet
|
|
Oil rope
|
2 pcs oil rope
|
|
Fire extinguisher
|
2 pcs 4kg fire extinguisher
|
|
Anti-static devices
|
Including ground towing, static line plate
|
|
Pump
|
Equipped Oil pump (driven from gearbox by PTO)
|
|
Model:60YHCB-30
|
|
|
Flow:30m3/h
|
|
|
Pressure :0.4Mpa
|
|
|
Rotate Speed:970r/min
|
|
|

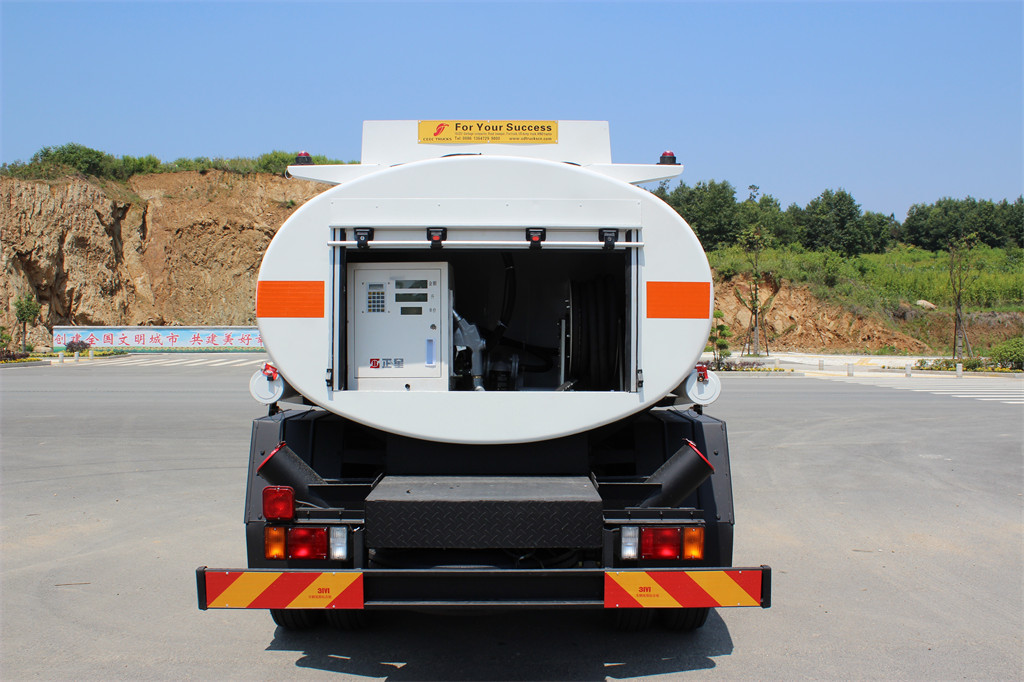

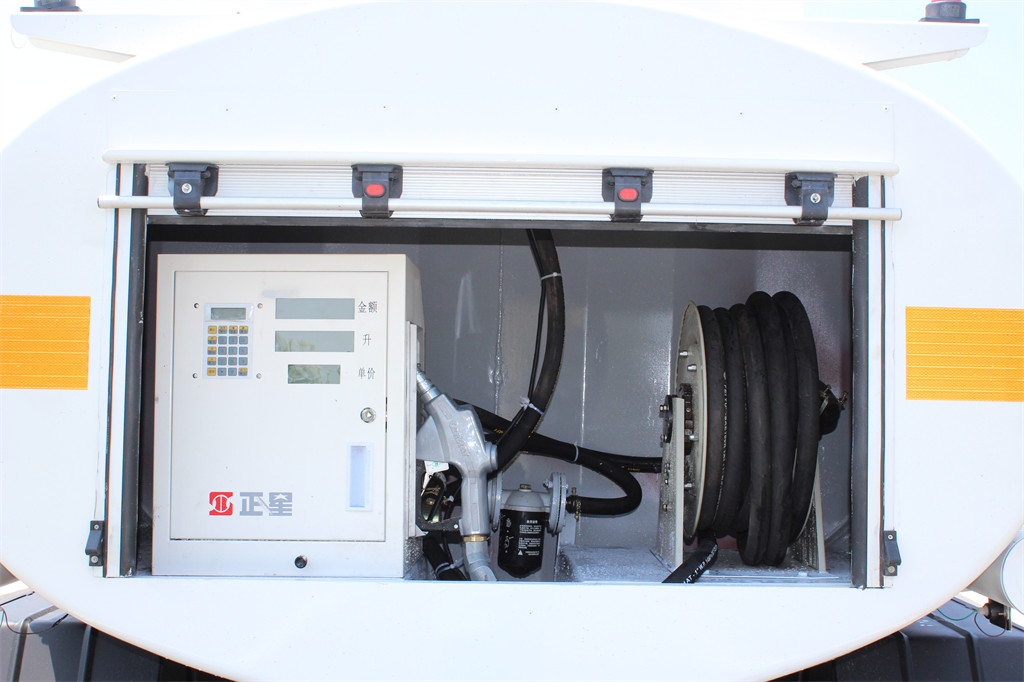

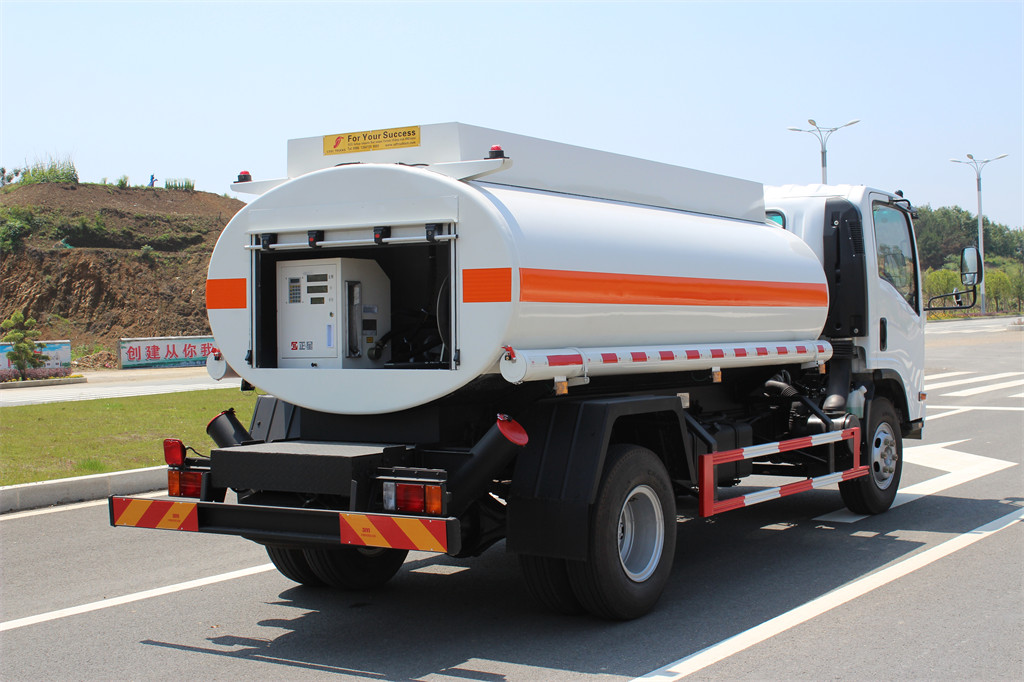

Fuel dispenser
|
This dispenser can use for diesel and gasoline
|
