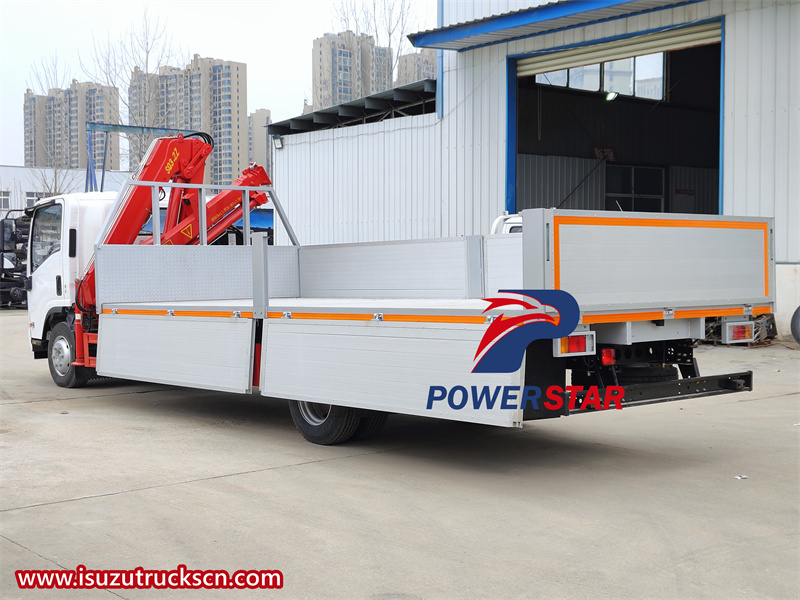

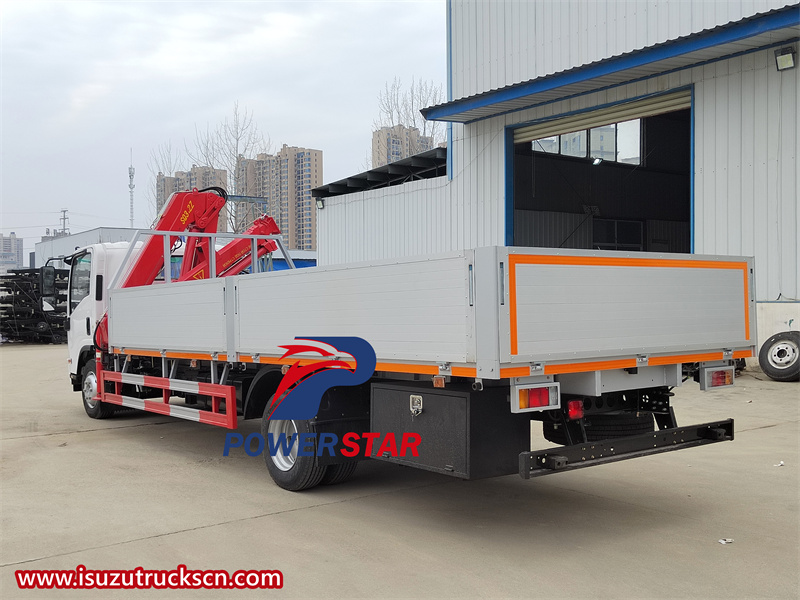

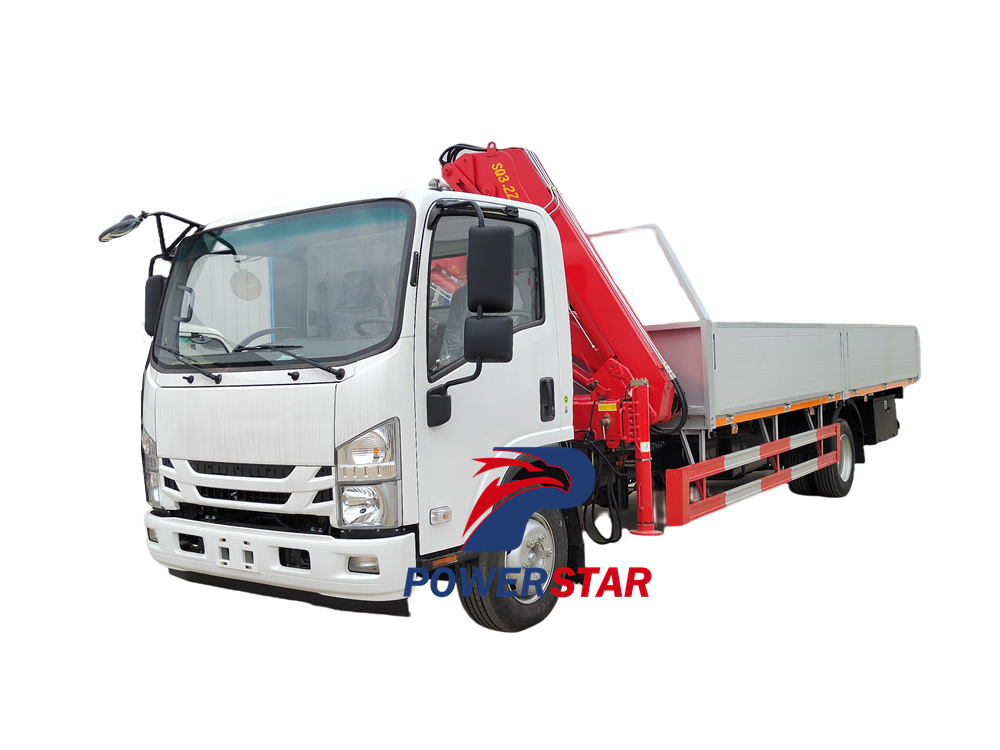

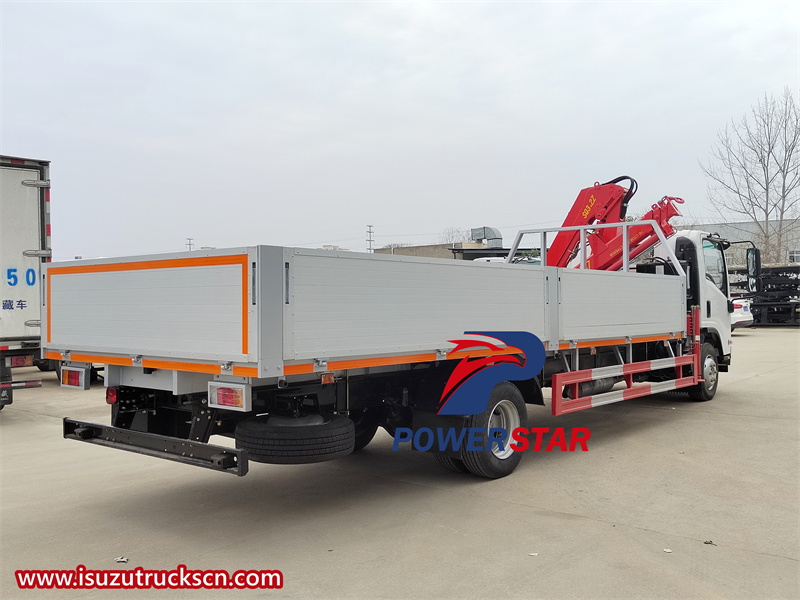

Philippines Isuzu Knuckle Boom Crane Truck With Platform
The Philippines Isuzu Knuckle Boom Crane Truck with Platform is a versatile and powerful vehicle designed for a wide range of applications, particularly in the construction, logistics, and emergency response sectors. This truck combines the mobility of a standard cargo truck with the lifting capabilities of a knuckle boom crane, making it an essential tool for many industries.
Work capacity:
5000kgTruck model:
PT5110GXREngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4X2,LHDGear box:
MLD 6-speed,manualRemarks:
Isuzu Knuckle Boom Crane Truck With PlatformPhilippines Isuzu Knuckle Boom Crane Truck with Platform also called ISUZU 700P knuckle boom truck crane,Isuzu 700P 5 tons knuckle boom truck mounted crane,Isuzu 700P hydraulic knuckle boom crane truck,Isuzu 700P truck mounted folding arm crane,Isuzu NPR knuckle loader crane.
The Philippines Isuzu Knuckle Boom Crane Truck with Platform is a versatile vehicle that combines the functionality of a sturdy truck with the lifting capabilities of a crane, providing a robust solution for various industries in the Philippines. This specialize truck is designed to handle heavy loads efficiently, making it an essential asset in construction, transportation, logistics, and utility maintenance sectors across the country.
Features:
★ Adopt world-class lSUZU 700P Chassis, High power and Fuel efficiency, Reliability, Uptime;
★ All Structural made of High Strength Steel;
★ Easy to mount and Minimum space required for Mounting;
★ Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load;
★ Optional Chassis 4x2, 6x4,8x4 and engine power;
★ Optional Crane brand: XCMG, UNIC, PALFINGER...
★ Optional Crane type: Telescopic boom crane or knuckled boom crane;
★ Radio Remote Control Available as an Optional Fitment.
|
Products Technical Specification |
||
|
Product Name |
Isuzu Knuckle Boom Crane Truck With Platform |
|
|
Truck Model |
PT5110GXR |
|
|
Fuel type |
Diesel |
|
|
Emission Standard |
Euro 6 |
|
|
Cabin |
Isuzu 700P single row,2 seats,with A/C |
|
|
Vehicle main dimensions(mm) |
Overall dimensions (L×W×H) |
7105*2300*3100 |
|
Cargo bady dimensions |
4600*2300*550 |
|
|
Wheel base |
3815 |
|
|
Front overhang |
1150 |
|
|
Rear overhang |
2140 |
|
|
Min. ground clearance |
500 |
|
|
Weight data (kg) |
G.V.W |
11200 |
|
Curb weight (chassis) |
6200 |
|
|
Max payload |
5000 |
|
|
Max. speed (km/h) |
110 |
|
|
Engine |
Model |
4HK1-TCG61 |
|
Maximum power |
139kw / 190HP |
|
|
Number of cylinders |
4 |
|
|
Displacement (L) |
5.193 |
|
|
Gear box |
Model |
MLD 6-speed,manual |
|
Number of gears |
6 forward gears & 1 reverse |
|
|
Axle loading |
Front axle |
4T |
|
Rear axle |
7T |
|
|
Steering Wheel |
left/right hand drive |
4X2,LHD |
|
Brake system |
Service brake |
Air braking with ABS |
|
Electric device |
Rated voltage |
24V |
|
Tyres & Quantity |
235/75R17.5 & 6+1 tire |
|
|
Crane Description |
||
|
Model |
SQ5ZK2Q |
|
|
Type |
Knuckle Boom Crane |
|
|
Max Lifting Capacity (kg) |
5000 |
|
|
Maximum lift height (m) |
10.5 |
|
|
Max Lifting Moment (t.m) |
8 |
|
|
Max Oil Flow of Hydraulic System (L/min) |
25 |
|
|
Rotation Pressure of Hydraulic System (MPa) |
28 |
|
|
Oil Tank Capacity (L) |
90 |
|
|
Rotation Angle (°) |
(360°)All Rotation |
|
|
Crane Weight (kg) |
2011 |
|
|
Installation Space (mm) |
1050 |
|
|
Working radius (m) |
2.1 / 4.44 / 6.2 / 8.01 |
|
|
Lifting capacity (kg) |
5000 / 2400 / 1600 / 1050 |
|
|
Standard Equipment |
Front Landing leg Using H-leg. New H-shape type; high precise drawn tube;24°tie-in. |
|
The Philippines Isuzu Knuckle Boom Crane Truck with Platform epitomizes robust versatility, combining the lifting prowess of a knuckle boom crane with a stable platform for elevated work. Crafted on a dependable Isuzu chassis, this vehicle integrates essential features tailored for diverse industries within the Philippine context, promising efficiency and safety in various applications.
Design and Build
The Isuzu Knuckle Boom Crane Truck is built on a durable Isuzu chassis, known for its reliability and performance. The robust construction of the vehicle ensures stability and safety during operations. The knuckle boom crane is strategically mounted on the truck, offering flexibility and precision in lifting and positioning loads. The platform attached to the crane provides a secure workspace for operators to carry out tasks at heights with ease.
Engine and Transmission
The knuckle boom crane is equipped with an Isuzu 4HK1 190HP engine, which is powerful and matched with an MLD 6-speed transmission, with smooth gear shifting.
Knuckle Boom Crane
Adopting the flexible SQ5ZK2Q Knuckle Boom Crane mechanism, it allows articulated movement, allowing for precise lifting and positioning tasks.
Capacity and Functionality
This crane truck boasts impressive lifting capacities, allowing it to handle a wide range of loads efficiently. The knuckle boom design enables operators to reach challenging locations with precision and control, making it ideal for lifting equipment, materials, and tools to elevated positions. The platform provides a stable working area for personnel, enhancing productivity and safety on the job site.
Applications
The versatile nature of the Isuzu Knuckle Boom Crane Truck with Platform makes it suitable for a wide range of applications. In construction, it can be used for lifting heavy construction materials to upper levels of buildings. In logistics and transportation, it facilitates the loading and unloading of cargo with precision and speed. Utility maintenance tasks such as repairing power lines or maintaining telecommunication towers can also be efficiently carried out using this specialized truck.
Benefits
Operational dynamics of the knuckle boom crane truck entail leveraging hydraulic power to articulate crane segments, facilitating precise lifting and positioning of heavy loads. The crane's adaptable reach and height parameters make it suitable for a wide array of work settings. The platform, integrated seamlessly, acts as a secure foundation for elevating tasks, ensuring operational efficiency and safety. Centralized control mechanisms streamline the coordination of crane and platform functions, optimizing task execution.
In the Philippines, the Isuzu Knuckle Boom Crane Truck with Platform is widely used in various industries, including:
1.Construction: This truck is essential for construction sites, where it is used to lift and maneuver heavy materials such as steel beams, concrete blocks, and other construction supplies. The platform can also be used for aerial work, such as painting, welding, or installing equipment.
2.Logistics: The truck's versatility makes it ideal for logistics companies, where it can be used to load and unload cargo from containers, trucks, or ships. The crane's reach and lifting capacity allow for efficient and safe handling of heavy loads.

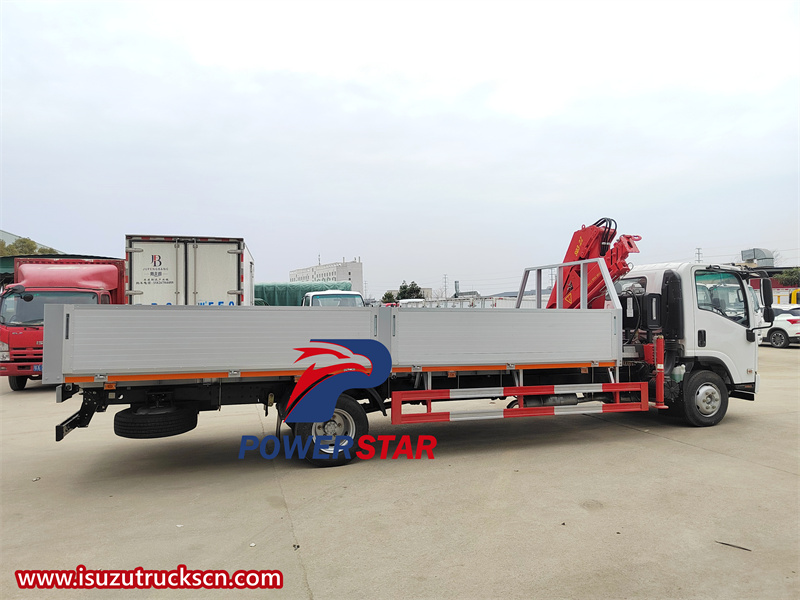

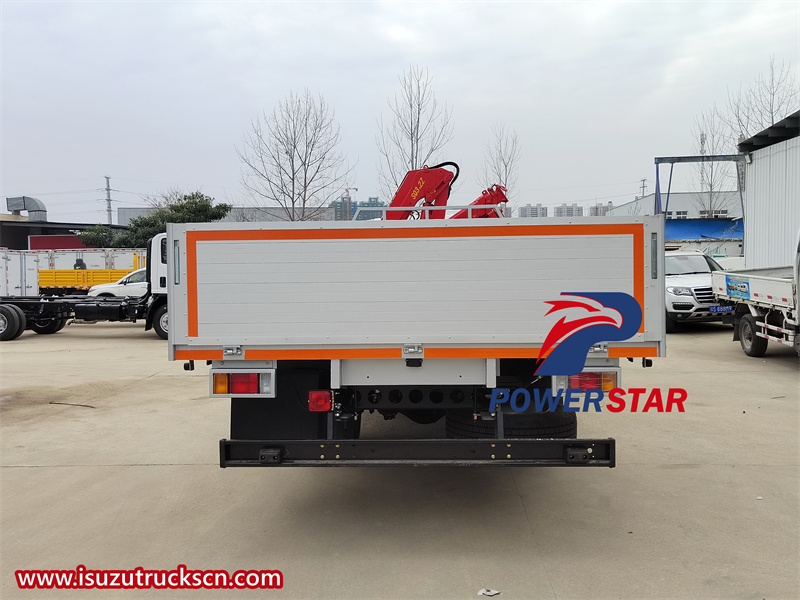

Truck Details

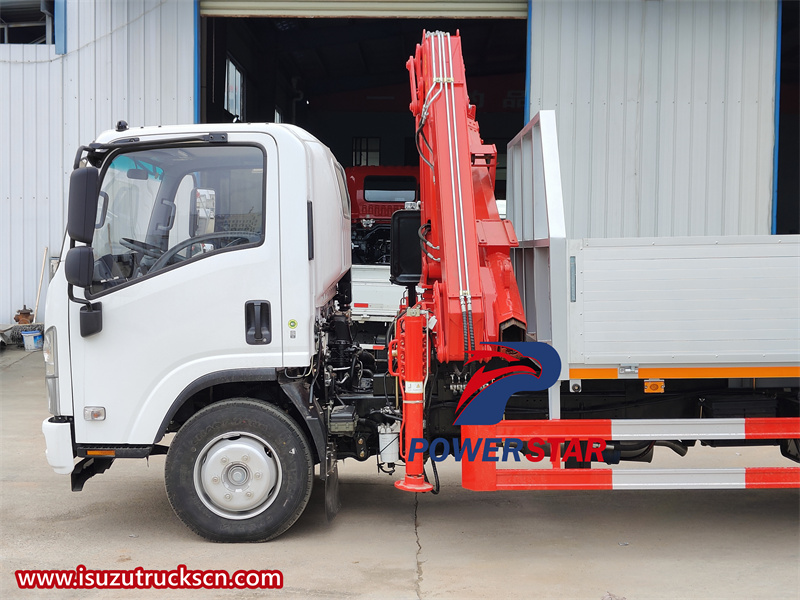

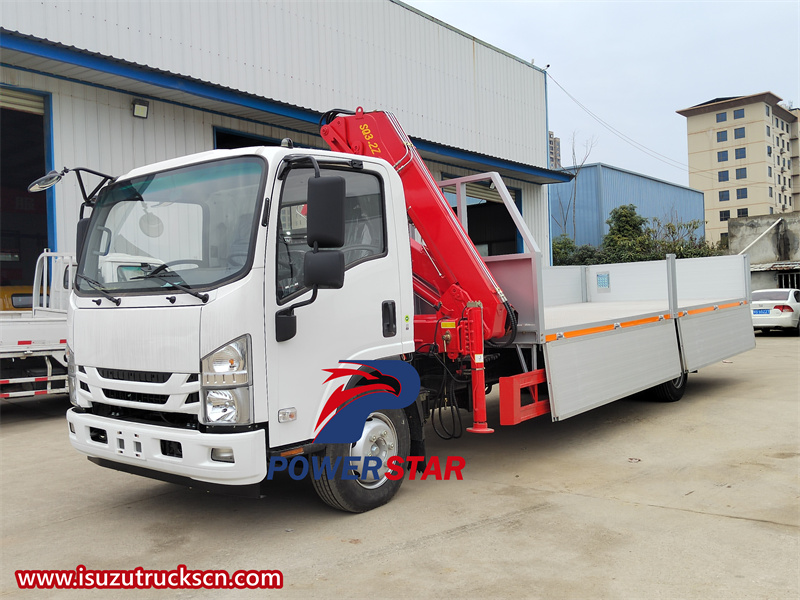

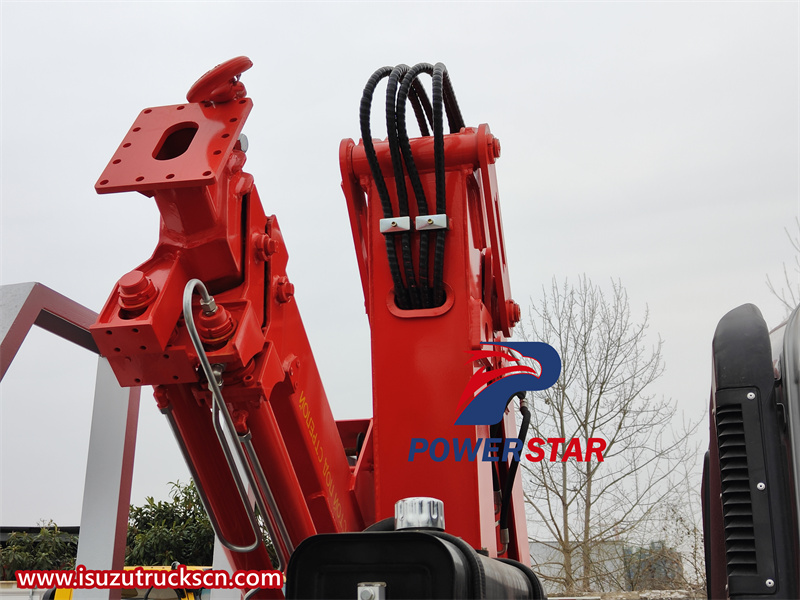

Folding arm

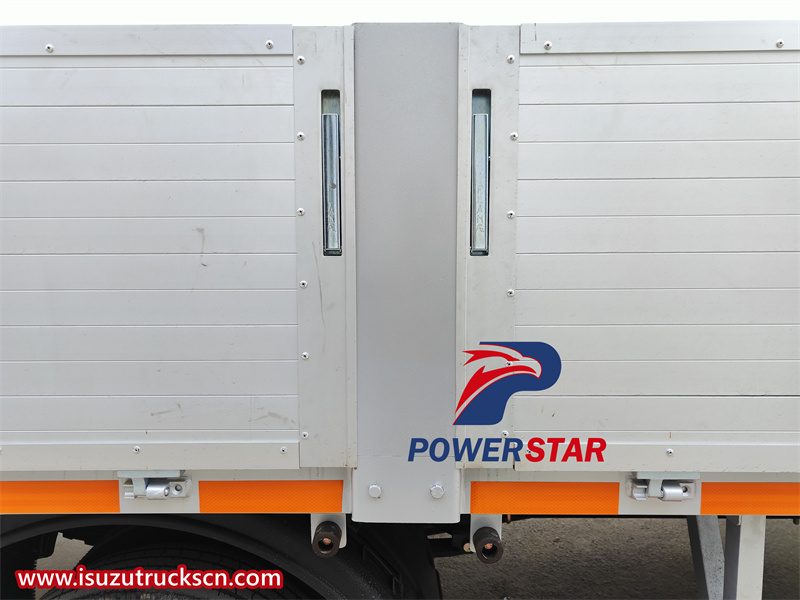

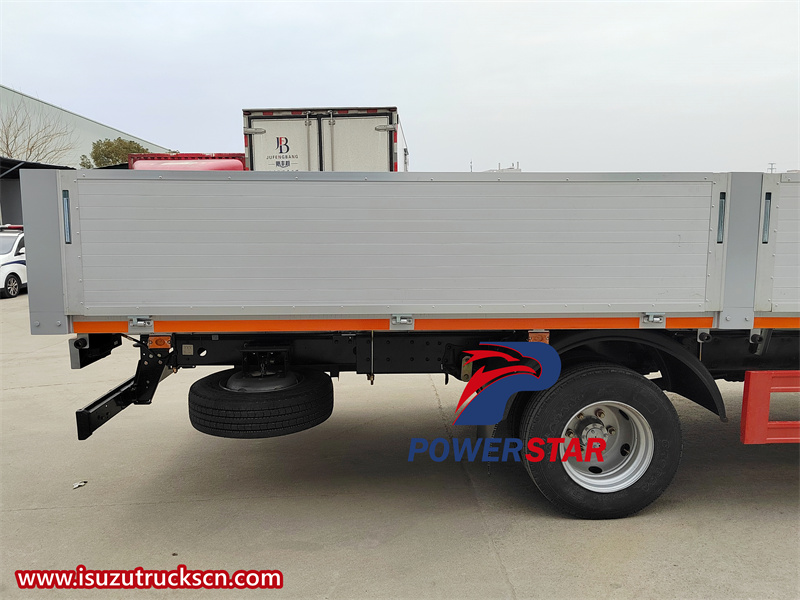

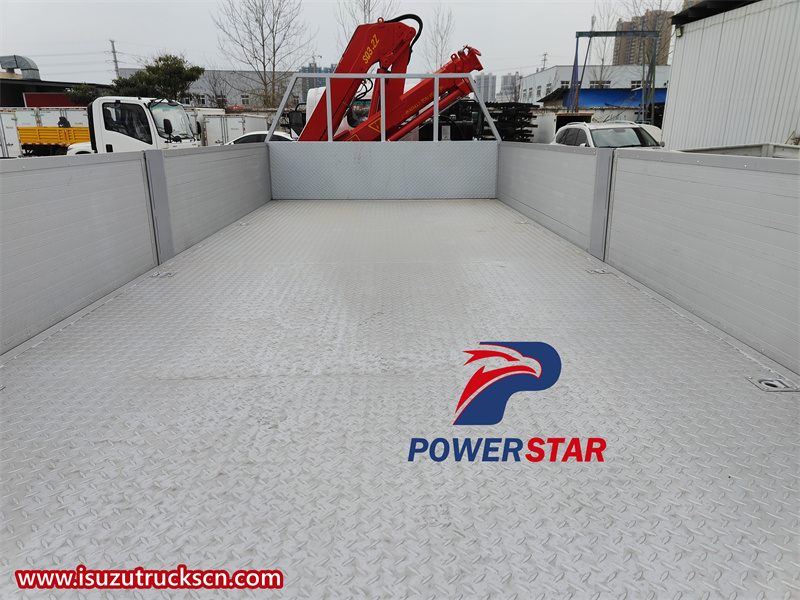

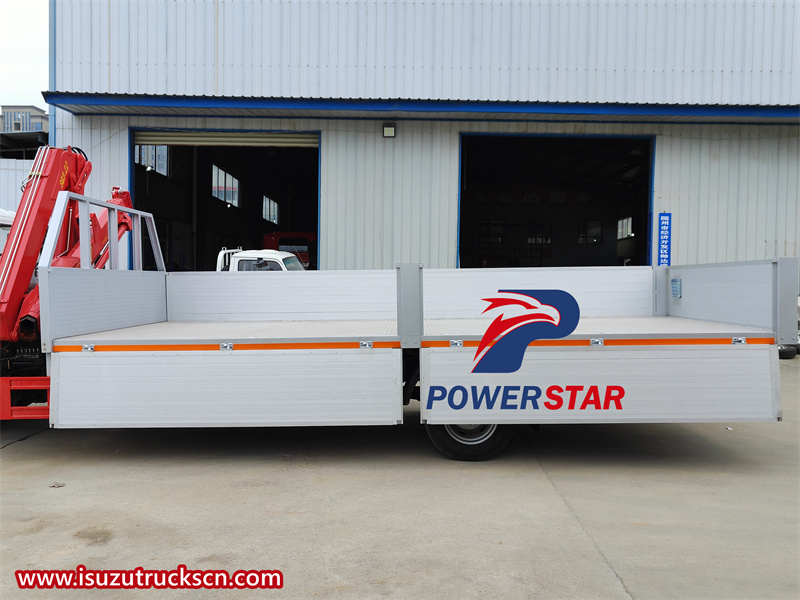

Cargo Box
3.Emergency Response: In emergency situations, such as natural disasters or accidents, this truck can be used to lift and transport debris, rescue equipment, or even injured personnel. The platform can be used to reach inaccessible areas, providing a safe and secure workspace for emergency responders.
4. Utilities: Utilities companies also use this truck for various tasks, such as installing or repairing power lines, telephone poles, or other infrastructure. The crane's reach and precision allow for efficient and safe completion of these tasks.
5.Telecommunication Support: Enables the installation and maintenance of telecommunication equipment on towers and poles, crucial for uninterrupted communication services.

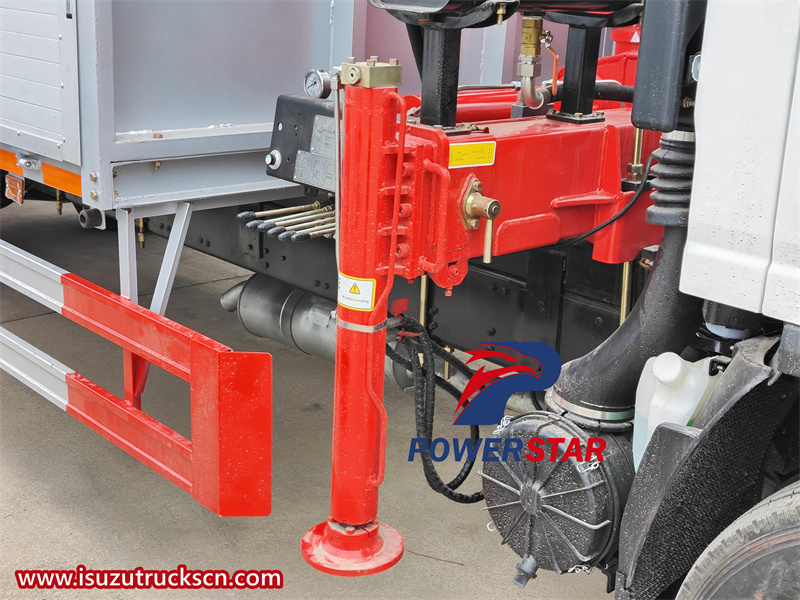

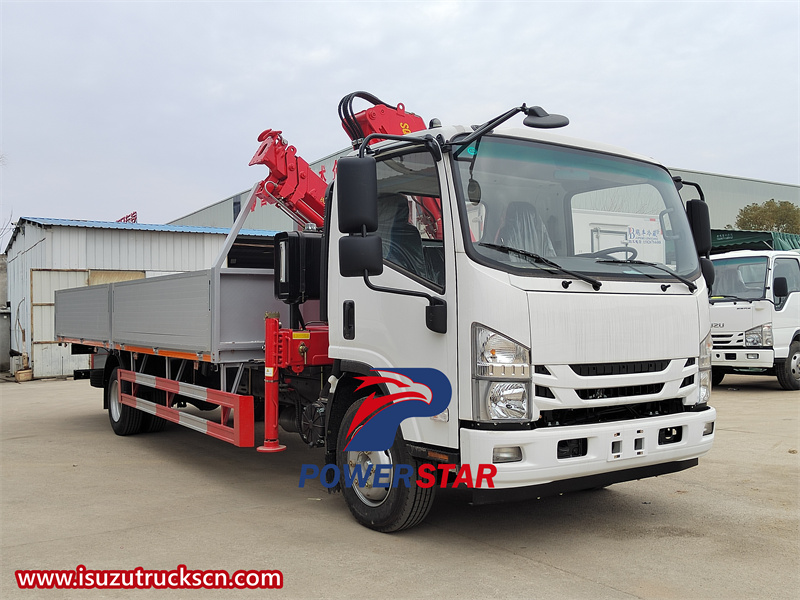

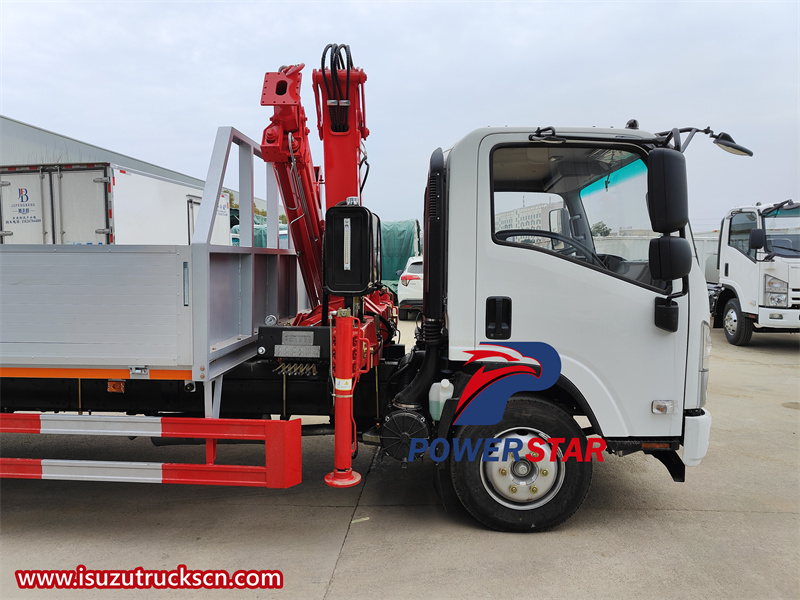

Outrigger

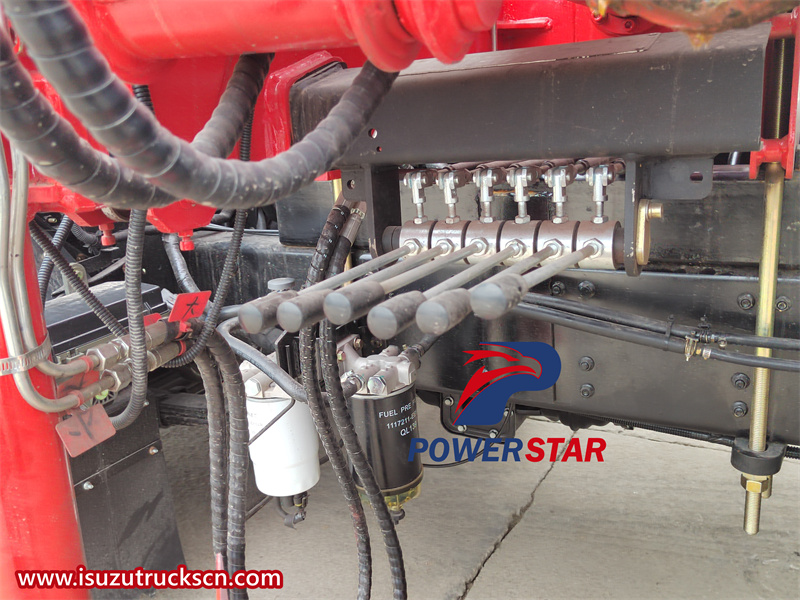

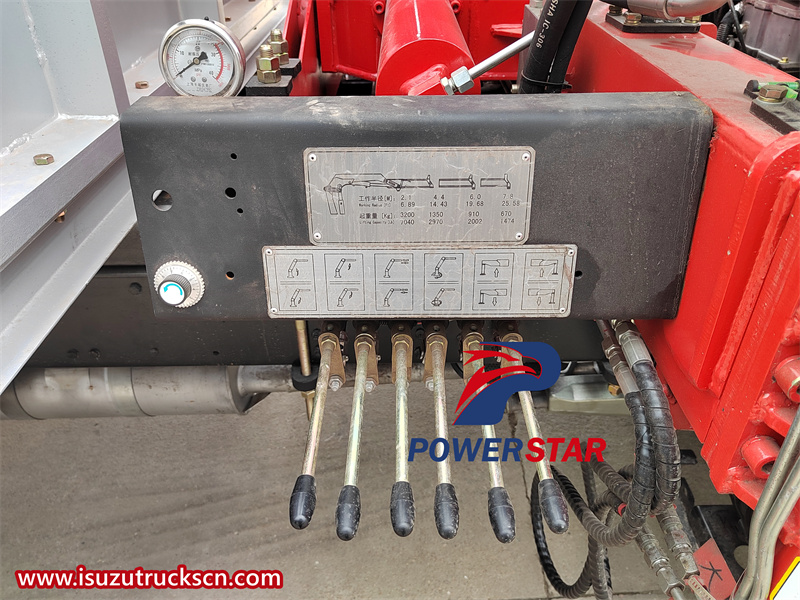

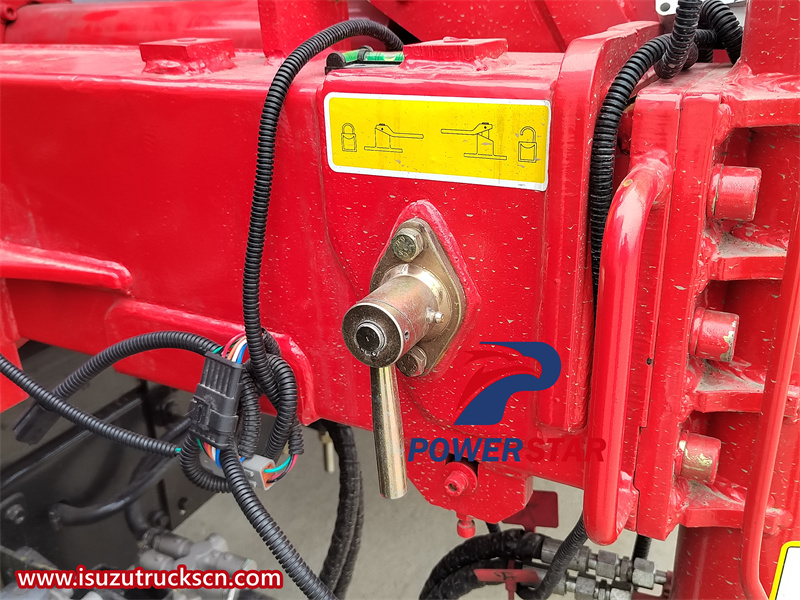

Joystick
Joystick

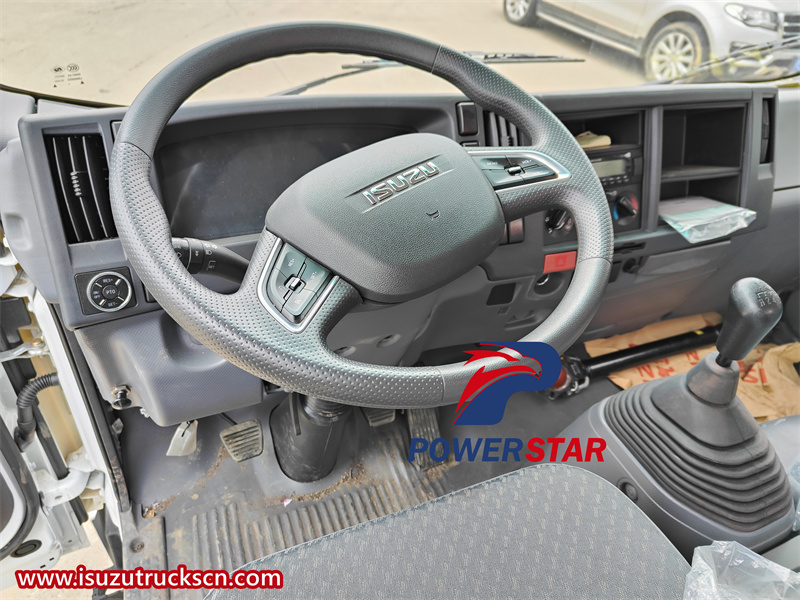

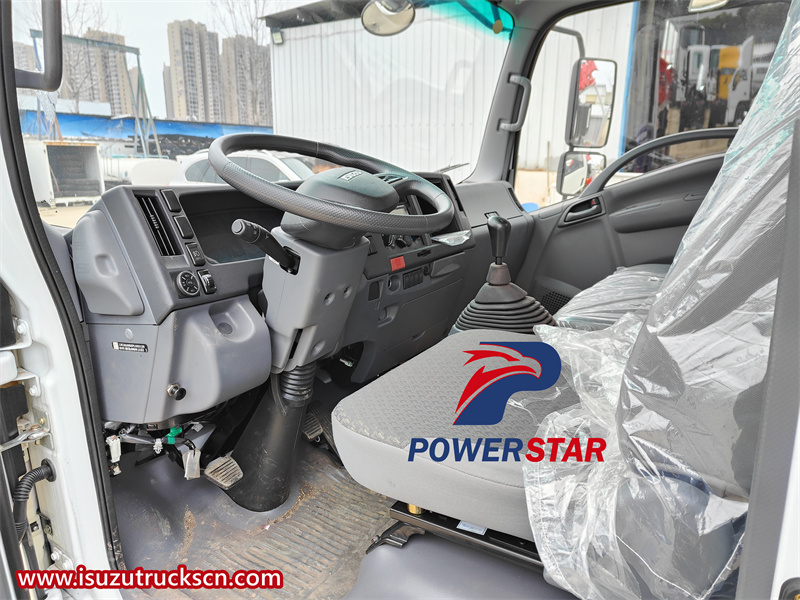

Steering wheel
