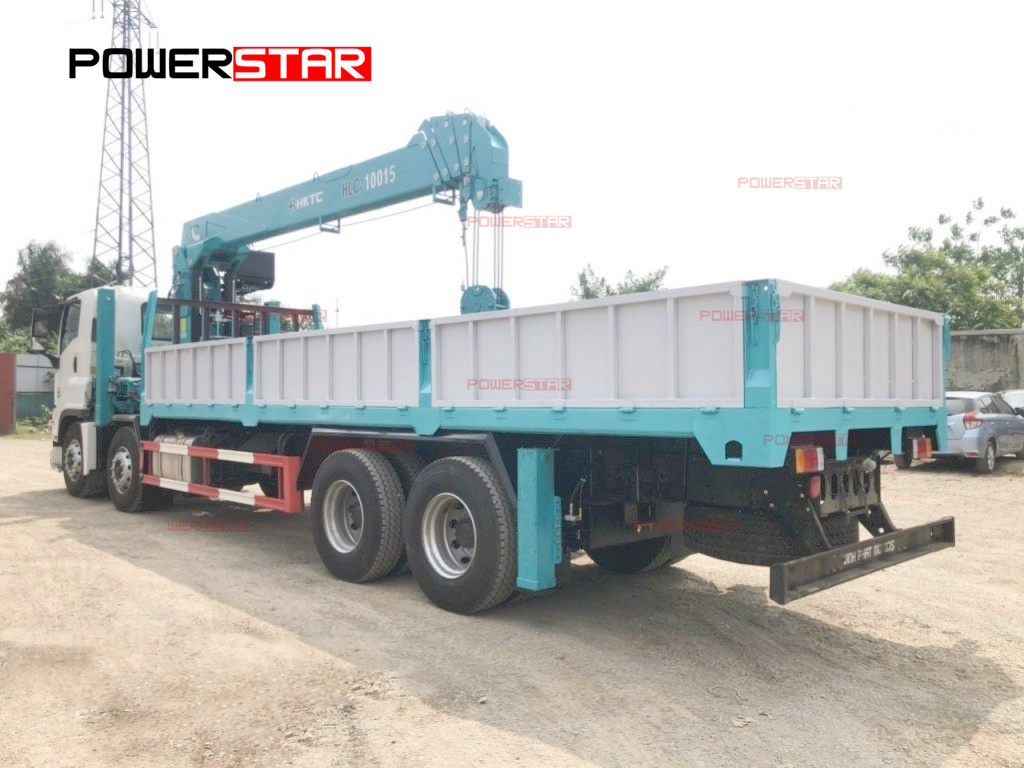

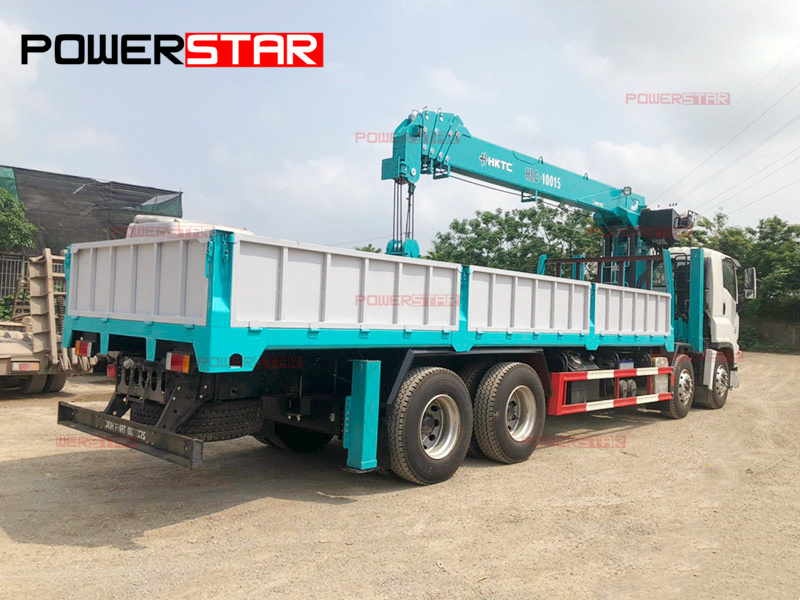

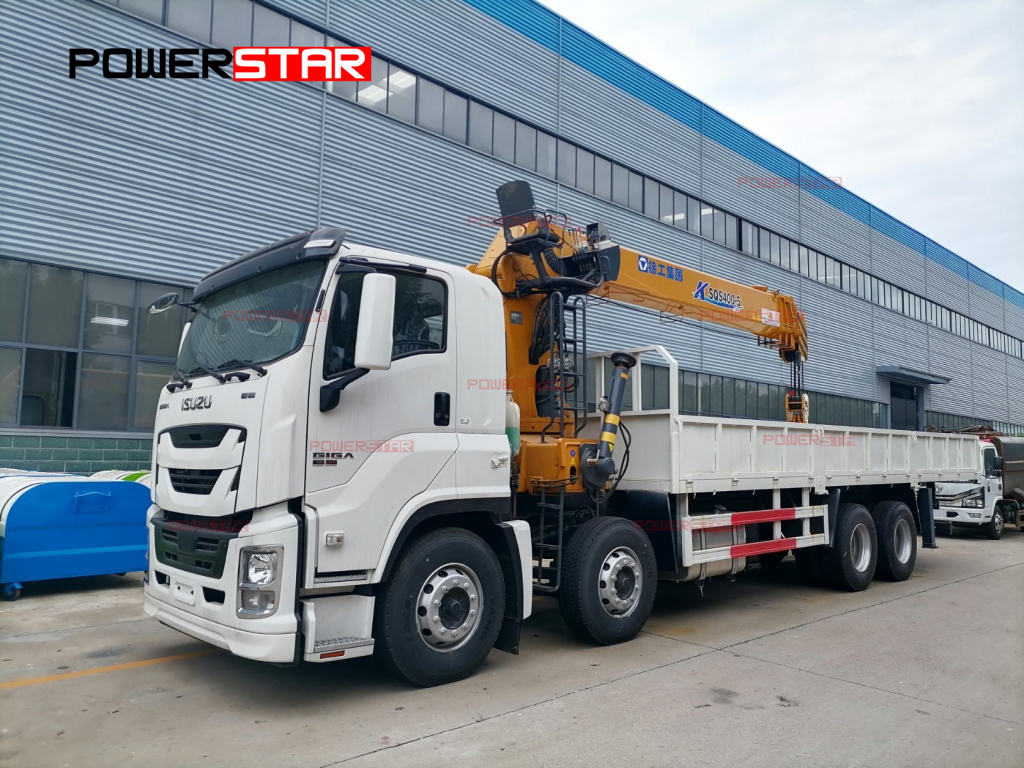

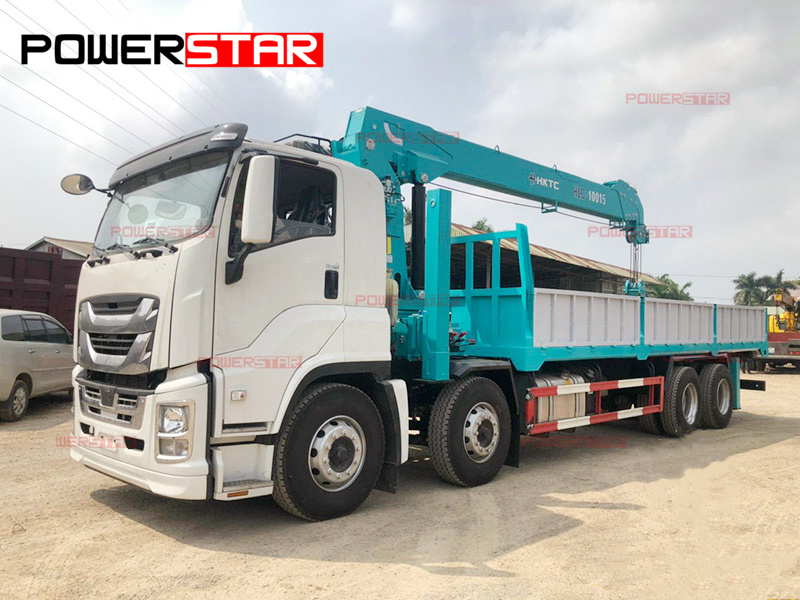

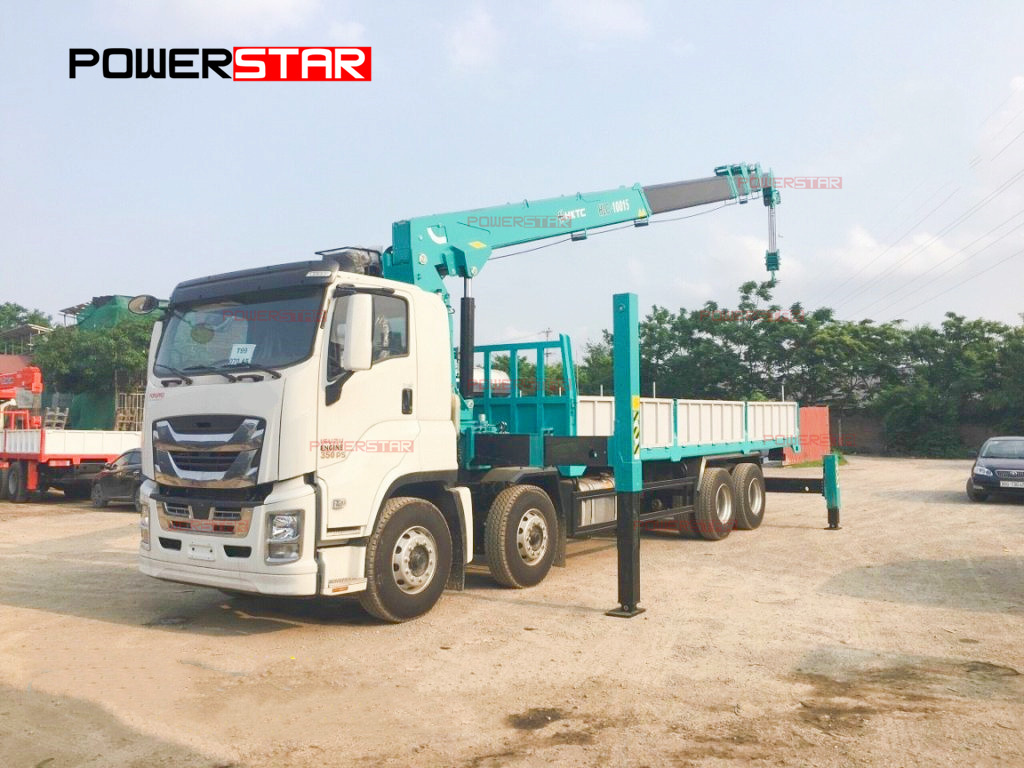

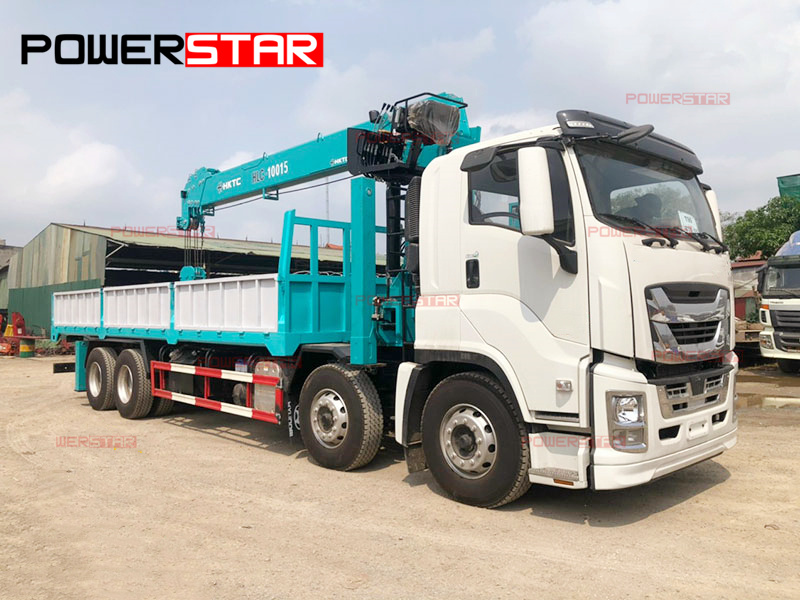

Philippines ISUZU GIGA 8x4 12 wheels Palfinger Boom Crane Trucks
Order(MOQ):
1Philippines ISUZU GIGA 8X4 12wheels Boom Crane Truck Cargo Lorry truck with Palfinger Crane
Applications:
Isuzu GIGA 12wheel boom crane trucks (also called Isuzu giga truck loader crane, Isuzu heavy cargo truck with palfinger crane) is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane.
The ISUZU loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
Specifications:
ISUZU GIGA Boom Truck crane (Palfinger 16Tons) |
||
General |
Vehicle Brand |
POWERSTAR |
Chassis Brand |
ISUZU GIGA |
|
Overall Dimension |
11230 * 2500 * 3250 mm |
|
GVW / Kerb Weight |
41,000kg / 6,370kg |
|
Cab |
Cab Capacity |
3 persons allowed |
Air Conditioner |
Heating/cooling air conditioner |
|
Engine |
Fuel Type |
Diesel |
Engine Brand |
ISUZU |
|
Power |
420 HP (308 KW) |
|
Displacement |
5200 ml |
|
Emission Standard |
Euro IV or V |
|
Chassis |
Drive Type |
8X4, (left hand drive) |
Transmission |
FAST 12- speed levers with 1 reverse |
|
Wheelbase/No. of axle |
1850+4575+1370 mm / 4 |
|
Tire Specification |
315/80R22.5 |
|
Tire Number |
12 tires and 1 spare tire |
|
Max Speed |
95 km/h |
|
Paint |
Metallic paint |
|
Superstructure |
Crane Capacity |
16 Tons |
Crane brand |
Palfinger |
|
Cargo body |
6500x2400x550 mm |
|
Body Material |
Weather resisting steel |
|
Operation language |
English |
|
Control |
Manual (Optional air operated) |
|
Rear working platform |
Standard |
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… |
||
Optional |
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
