Isuzu GIGA sprinkler truck is suitable for washing various roads, trees, green belts, lawns, roads, factory and mine construction, and high-altitude building washing. It has the functions of watering, dust suppression, high and low-position spraying, pesticide spraying, guardrail washing, etc. It also has the functions of water transportation, drainage, emergency fire fighting, etc.
Work capacity:
22cbmTruck model:
PT5400GWQEngine power:
460HPEngine type:
ISUZU 6WG1-TCG61Axle drive:
8X4,LHDGear box:
FAST 12-speed,manualRemarks:
Tank capacity can be customized

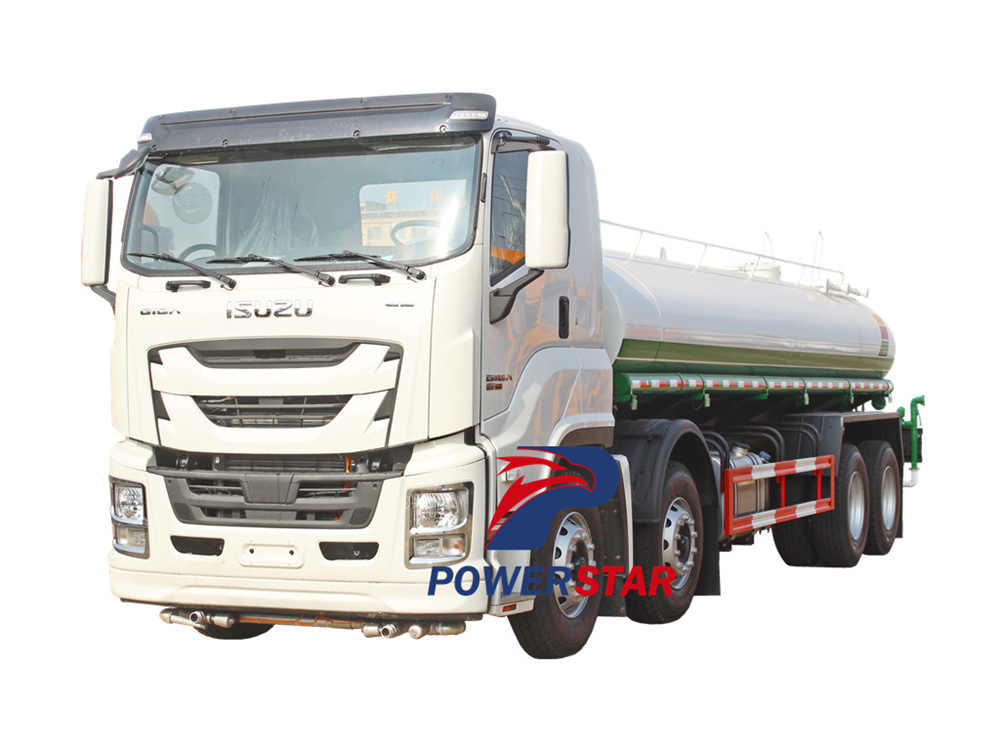

Philippine Isuzu GIGA 8x4 water spraying truck also called Isuzu GIGA water delivery truck,Isuzu 8x4 22cbm street water truck,Isuzu GIGA street wash water truck,Isuzu GIGA sprinkler truck,Isuzu GIGA water tank truck,Isuzu GIGA street cleaning truck.The Philippine Isuzu GIGA 8x4 water spraying truck is a specialized vehicle designed for various applications, primarily for road maintenance, dust suppression, and firefighting.It is an essential asset for various industries and municipal services where effective water spraying is required.
Feature:
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a good after-sell service
4.we have strong professinal design team
5.promptly delivery. any order is welcome.
|
Isuzu GIGA 8x4 water spraying truck |
||
|
|
Truck model |
PT5400GWQ |
|
parameters |
L*W*H(mm) |
11740*2480*3320 |
|
Wheelbase (mm) |
1850+4575+1370 |
|
|
Total weight (kg) |
40000 |
|
|
Chassis parameters |
Manufacturer |
ISUZU |
|
Model |
GIGA |
|
|
Drive type |
8X4,LHD |
|
|
Engine model |
ISUZU 6WG1-TCG61 |
|
|
Engine Power |
460HP |
|
|
Tyre |
315/80R22.5 |
|
|
Tank parameters |
Tank volume (M3) |
22 |
|
Tank material |
carbon steel |
|
|
Tank thickness |
5mm |
|
|
Wave-proof plate |
2pcs |
|
|
Manhole |
1pcs |
|
|
High-pressure water cannon range |
28m |
|
|
Flushing width |
≥14m |
|
|
Watering width |
≥12m |
|
|
High-pressure sprinkler working device |
Side spray/control |
Central right duckbill / single cylinder control |
|
Rear sprinkling/control |
Rear sprinkler/central control on both sides |
|
|
Platform high gun |
Adjustable spray shape |
|
|
Horizontal 360 degree optional |
||
|
Maximum range 35 meters |
||
|
Water Mist Cannon |
Type |
M80 |
|
Spray Range (calm wind state) |
≥80m |
|
|
Maximum coverage area |
13400/20000M2 |
|
|
Fan power |
22kw |
|
|
Spray pump power |
7.5kw |
|
|
Main power |
31kw |
|
|
Number of Fan |
2 |
|
|
Fan blade diameter |
900mm |
|
|
Spray pump |
High pressure plunger pump |
|
|
Spray pump speed |
2900r/min |
|
|
Fog spectrum range |
20~200μm |
|
|
Pitch angle |
-10-55° |
|
|
Water consumption |
7m³/h |
|
|
Rotation angle |
±120°/±180° |
|
|
Control mode |
Wireless remote control and touch screen |
|
|
Spray nozzle |
78 |
|
Isuzu 8x4 heavy-duty sprayer truck, also known as Isuzu multi-functional greening sprinkler. It is used for cleaning roads, sanitation, dust prevention, watering, spraying pesticides, etc. in urban roads, large factories, troops, gardens and other units to achieve the effect of beautifying the environment.

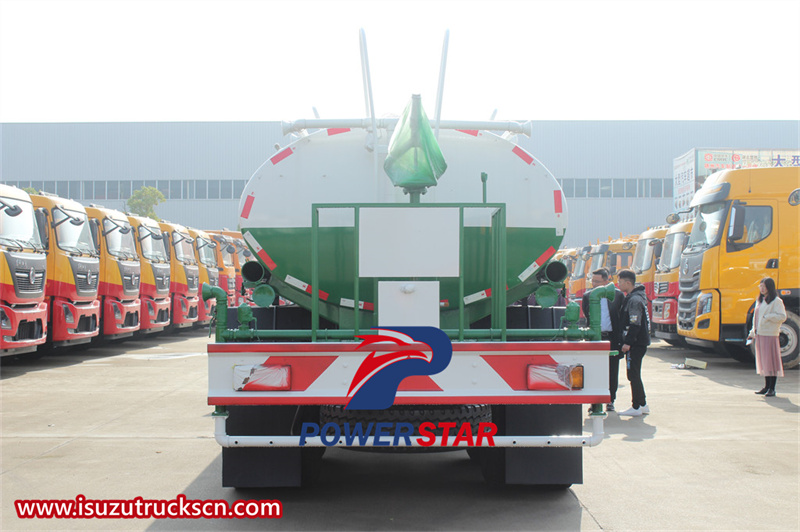

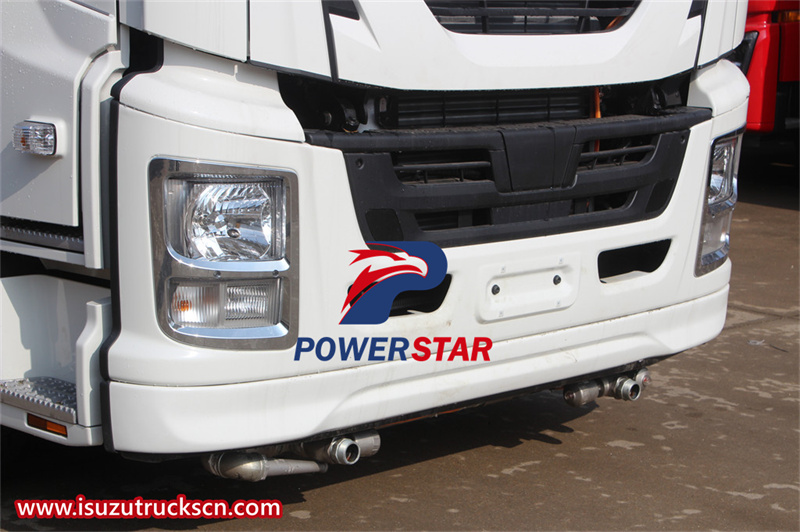

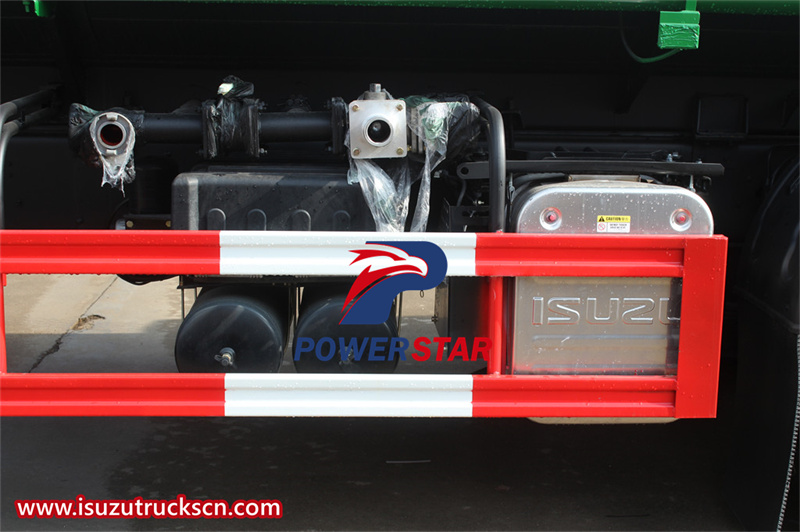

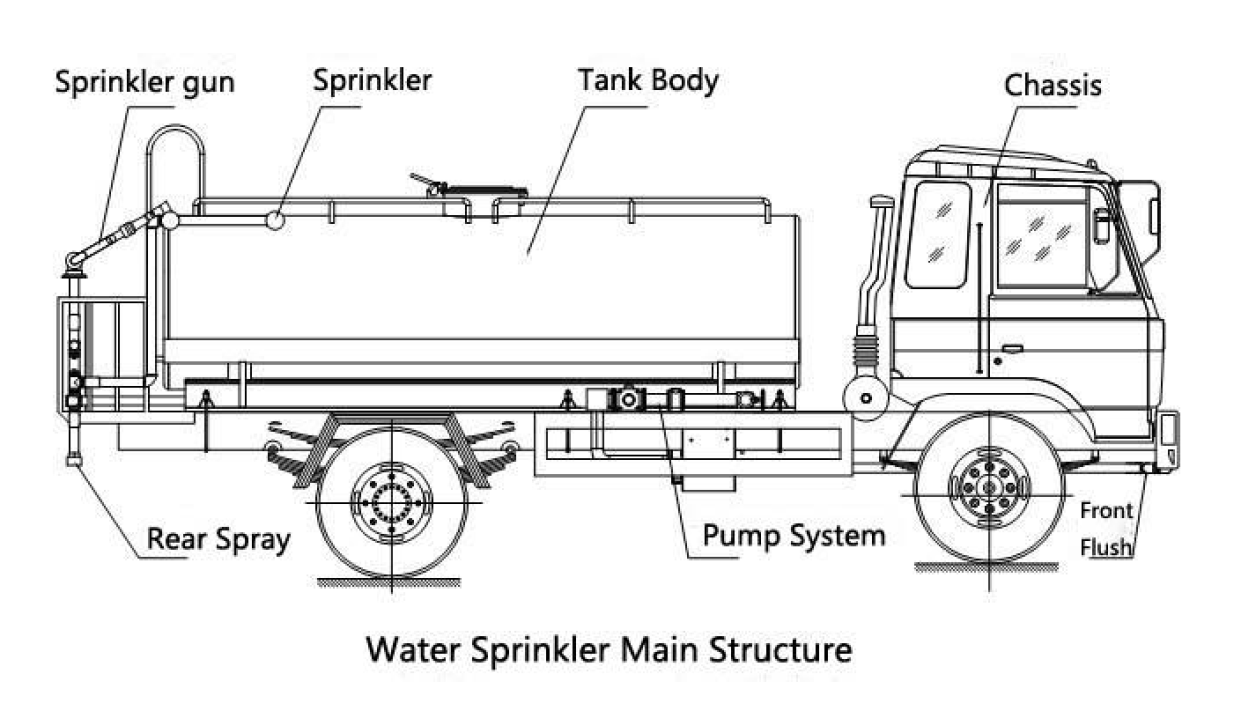

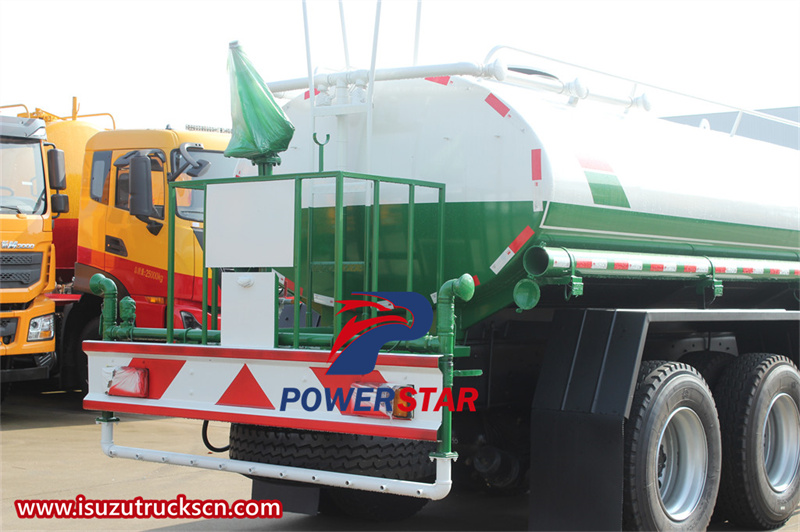

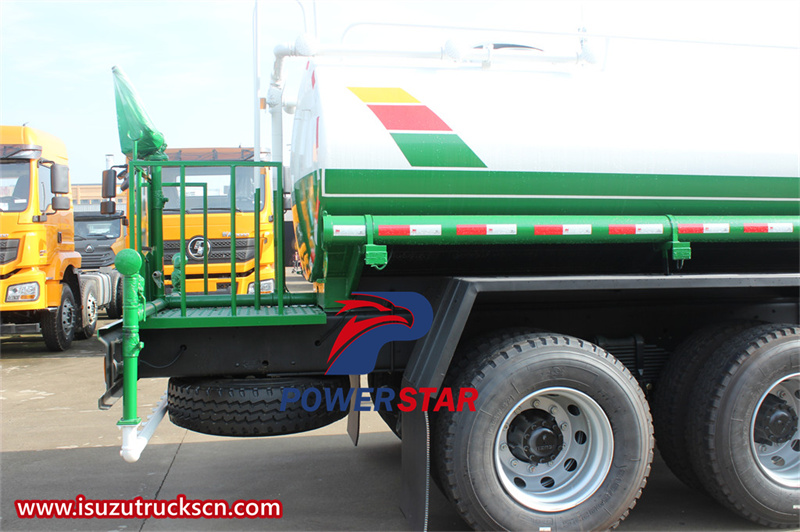

It can also be used for temporary emergency fire sprinklers. Each sprinkler is equipped with a special fire interface. The engine drives the gearbox, and the power take-off installed on the gearbox drives the sprinkler pump. The sprinkler pump generates the main power to spray the liquid inside the tank through the pipe network. It can be adjusted to a column or a mist. Spray in front and sprinkle in the back. The front is equipped with a duck-shaped nozzle or a round-headed flushing nozzle, and the back is equipped with a cylindrical sprinkler nozzle or a shower nozzle. There is a working platform at the rear, equipped with a high-pressure water cannon. 8 nozzles can also be installed at the rear (optional). Sprayers are generally used to wash streets.
Isuzu 8x4 GIGA street washing truck is a powerful multifunctional road cleaning and greening equipment, and its wide range of uses is reflected in many aspects.
First of all, Isuzu 8x4 GIGA sprinkler truck plays an important role in urban road cleaning. Through its efficient sprinkler system, it can quickly and evenly spray water mist, effectively remove dust and debris on the road, keep the road clean, and provide citizens with a more comfortable travel environment.
Secondly, the Isuzu GIGA water tanker is also a powerful assistant for urban greening. In the hot summer, it can provide necessary water supply for parks, squares and green belts, ensure the healthy growth of vegetation, and beautify the urban environment. At the same time, through the fine spray system, it can also provide plants with more uniform and delicate moisture, promoting the growth and prosperity of plants.
In addition, Isuzu 8x4 GIGA water delivery truck also has fire emergency function. In an emergency, it can quickly transform into a fire truck to provide the necessary water source for the fire scene and provide strong support for firefighting.

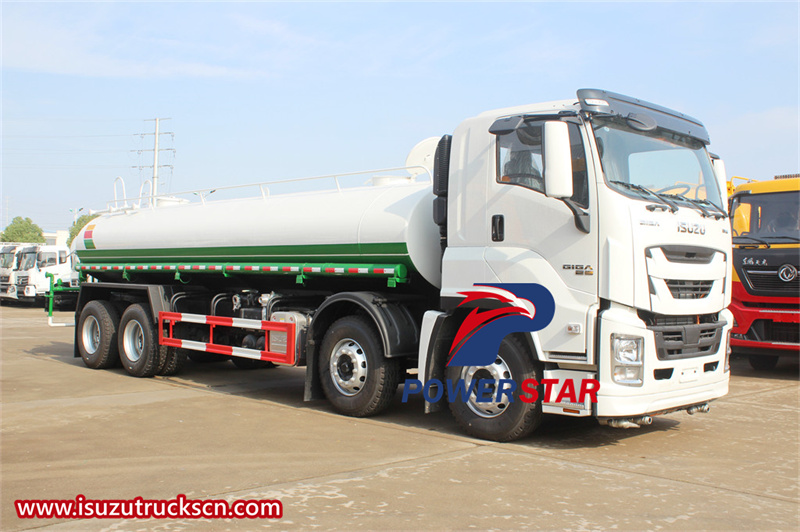

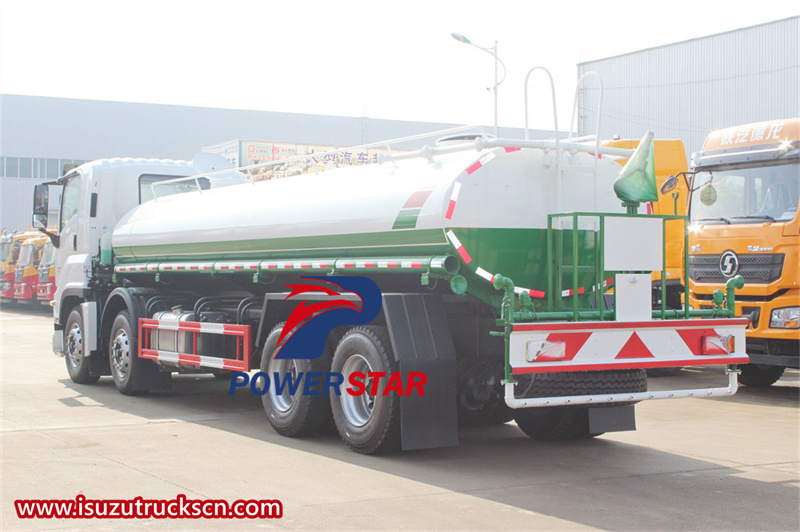

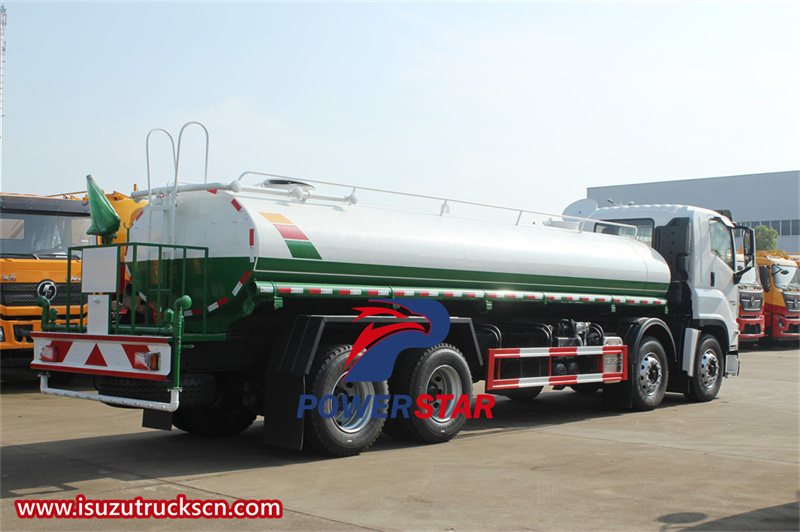

Isuzu 8x4 GIGA street washing truck
Isuzu 8x4 water spraying truck is undoubtedly a powerful assistant for urban greening and road cleaning. This sprinkler has left a deep impression in the streets and alleys of the city with its majestic appearance and powerful performance.
The Isuzu GIGA sprinkler truck has a wide body, and eight tires firmly support its huge body. The 4x4 drive system ensures that it can run smoothly under various road conditions. The sprinkler equipment on the body is arranged in an orderly manner, and the huge water storage tank demonstrates its excellent water storage capacity. When the sprinkler system is started, the fine water mist is like a thread, gently sprinkled on the road, not only bringing a touch of coolness to the hot summer, but also adding a touch of freshness to the city's environment.
The Isuzu 22cbm water spraying truck is easy to operate and the driver can easily control it. Its high-efficiency engine provides a steady stream of power for the sprinkler system, ensuring the continuous sprinkler work. At the same time, the maintenance of the vehicle is also very convenient, ensuring its stability and reliability in long-term use.

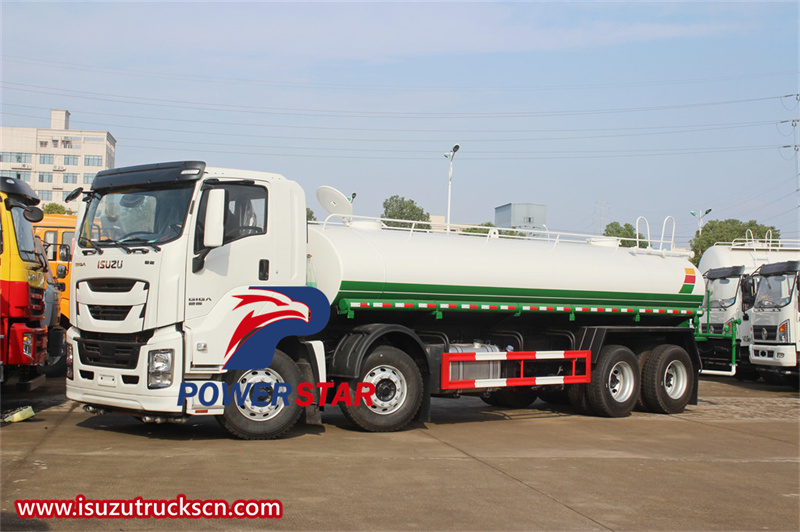

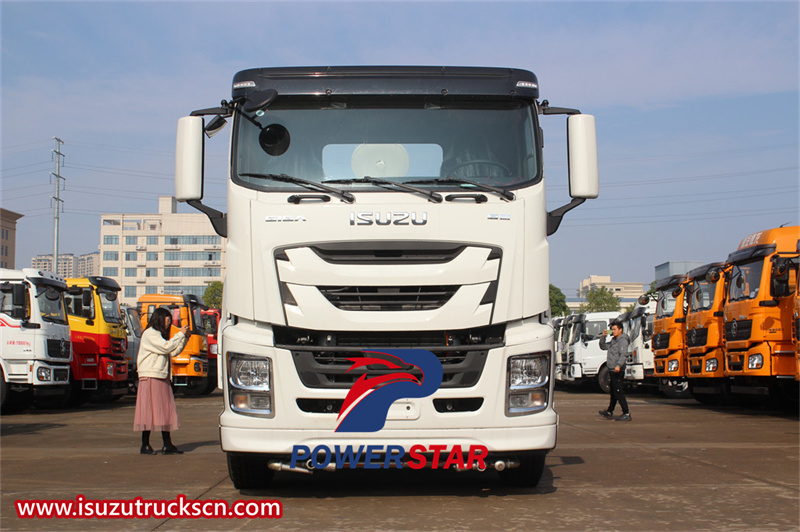

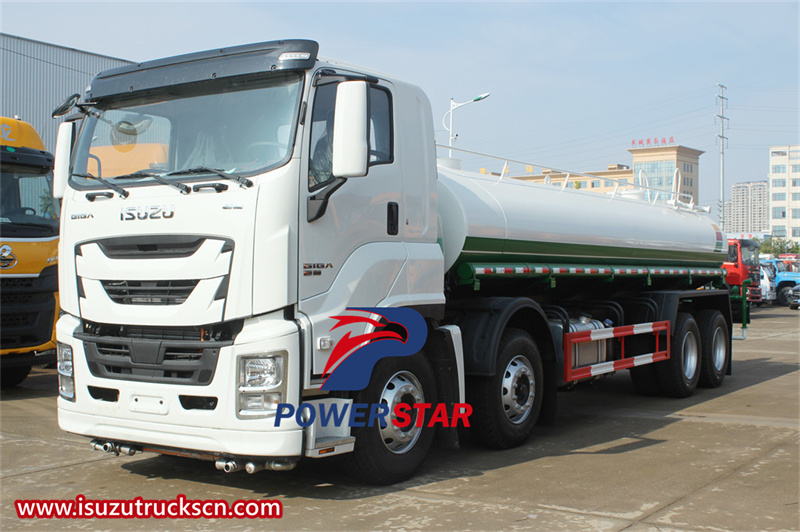

Isuzu GIGA 8x4 sprinkler truck
