The ISUZU GIGA 6WG1 10000L water tanker is a versatile and reliable vehicle designed for a variety of water transport and distribution tasks. With its rugged structure, large-capacity tank and efficient performance, this water tanker is the first choice for industries that require large-scale water supply.
Work capacity:
10000LTruck model:
PT5160GYXEngine power:
420HPEngine type:
6WG1-TCG60Axle drive:
4x2，LHDGear box:
FAST 12-speed,manualRemarks:
Isuzu GIGA 4x2 chassis,large water tank capacity
ISUZU GIGA 6W 20FT Water Tanker 10KL also called Isuzu GIGA 4X2 10000L water tanker,Isuzu GIGA water sprinkler truck,Isuzu 4x2 10000L water bowser truck,Isuzu GIGA water spray truck,Isuzu GIGA 6WG1 water tank truck.
The ISUZU GIGA 6W 20FT Water Tank Truck 10KL is a heavy-duty vehicle designed for the transport and storage of water. It has a 20-foot tank with a capacity of 10,000 liters (10KL) and is suitable for a variety of applications such as firefighting, agricultural irrigation, water supply to construction sites and emergency rescue operations. The GIGA 6W series is renowned for its durability and performance, ensuring this tank truck can handle the toughest conditions with ease.
Features:
--- Using Japanese technology ISUZU Chassis, super power, larger displacement, with Stronger Engine performance.
--- Remove the urea system and cancel DPF.
--- Quality test from the production to the finish of the whole truck.
--- Professional and experienced technical team support to provide customized trucks with high quality & reasonable price.
--- Genuine spare parts supply.
--- Prompt delivery. All the truck will be polished with wax before shipping and accordingly the truck type and destination port to choose the most suitable and cost-effective shipping way.
|
Product name |
ISUZU GIGA 6W 20FT WATER TANKER 10KL |
|
|
Vehicle Dimensions, Weights & Capacities |
Chassis brand |
ISUZU GIGA |
|
Overall dimension (L*W*H) |
8200*2500*3200mm |
|
|
Wheelbase |
4600mm |
|
|
Curb weight |
6,500 Kgs |
|
|
Gross weight |
16,000 Kgs |
|
|
Chassis |
Drive mode |
4x2 |
|
Cabin type |
Standard roof one bed |
|
|
Seats |
3 seats |
|
|
Steering |
LHD |
|
|
Tires |
6+1 spare tire |
|
|
Tires specification |
295/80R22.5 |
|
|
A/C |
Air conditioning |
|
|
|
Gear box |
FAST 12-speed,manual |
|
Engine |
Engine model |
6WG1-TCG60 |
|
Fuel and engine Type |
Diesel, 6 cylinders in-line |
|
|
Horse power |
420HP |
|
|
Displacement |
15681ml |
|
|
Other Standard Configurations |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS, Automatically Air-cut Brake |
|
|
4 |
Retro-Reflective Marking |
|
|
5 |
Central Lock |
|
|
6 |
Power Window |
|
|
7 |
USB, Radio |
|
|
8 |
Widened Bumper |
|
|
9 |
For new Giga face Front Chrome Kit for option |
|
|
Tops Parameters |
Volume of Water Tank ( Capacity ) |
10,000 Liters |
|
Loading System |
Top loading |
|
|
Body material |
High performance wear-resisting carbon steel with anti-corrosion treatment paint, SS304 stainless steel for option |
|
|
Thickness of the tank body |
5mm |
|
|
Compartment |
One, with internal anti-wave baffles |
|
|
Manhole |
One or two as required |
|
|
Rear working platform has green high-pressure water spray gun ( water cannon ) |
The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze |
|
|
Sprinkling width of front/rear/side Sprinkler |
≥14m |
|
|
Rear working platform range of Water Cannon |
≥28m |
|
|
Others |
As per factory standard |
|
|
Logo painting |
As required |
|
|
Water pump |
Reliable and high quality water pump |
Yes |
|
Front and rear spraying water |
Yes |
|
|
Left and right side spraying water |
Yes |
|
|
Flow rate |
60 m3/h |
|
|
Head |
90 m |
|
|
Input speed |
1480 r/min |
|
|
Self-priming performance |
1.5 min/4m |
|
|
Equipped power |
22.2 kw |
|
The ISUZU GIGA 6W 20FT Water Tanker 10KL is the epitome of ruggedness, efficiency and precision in the water transport sector. This purpose-built vehicle is the legacy of ISUZU in building reliable commercial vehicles, designed to excel in demanding environments. At the heart of the GIGA 6W 20FT Water Tanker is a perfect blend of cutting-edge technology, thoughtful engineering and ergonomic design, all designed to optimize functionality and performance.
Powerful Engine
At the heart of the ISUZU GIGA 6WG1 10000L water bowser truck is the powerful 6W engine. Known for its reliability, fuel efficiency and high torque output, the engine enables the tanker to traverse a variety of terrains with ease. The 6W engine has a wide power output range, ensuring the tanker maintains optimal performance under varying load conditions.
Large Capacity Water Tank
The 20ft water tank has a 10,000 liter capacity and is made from high-quality materials to ensure durability and corrosion resistance. The water tank is designed to withstand the rigors of transportation and storage, ensuring the water remains clean and safe to use. The water tank also features a convenient filling and draining system, making loading and unloading water easy and efficient.

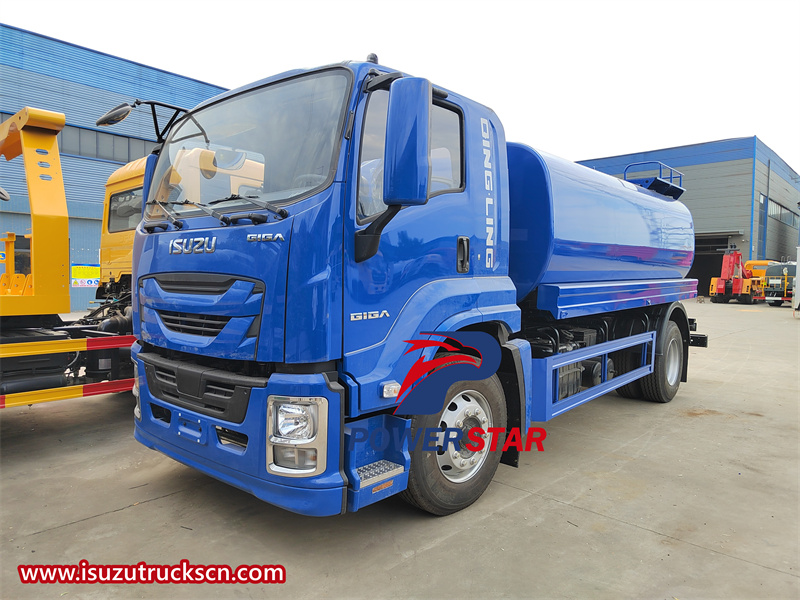

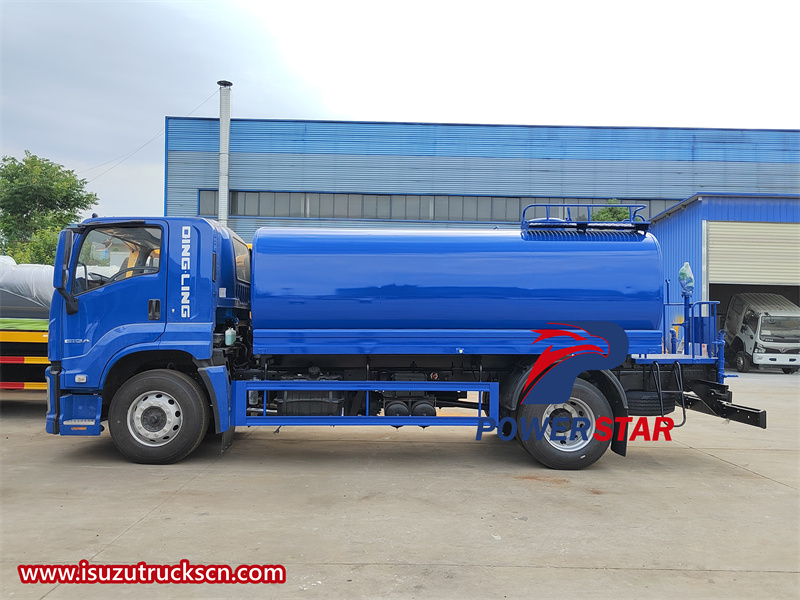

ISUZU GIGA 6W 20FT Water Tanker 10KL
Advanced Technology
The ISUZU GIGA 4x2 water tanker is equipped with advanced technology that enhances its performance and safety. Features such as ABS (Anti-lock Braking System) and EBD (Electronic Brake-force Distribution) ensure optimal braking performance, reducing the risk of accidents. The tanker is also equipped with a range of safety features, including pre-tensioned seatbelts, airbags and a rugged chassis that can withstand collisions.
Efficient Transmission
The GIGA 6W series is equipped with a smooth-shifting transmission system that ensures efficient power transmission from the engine to the wheels. This improves acceleration performance and fuel economy, making the operation of the tanker more cost-effective. The transmission system is also designed to withstand the rigors of heavy-duty use, ensuring long-term reliability.

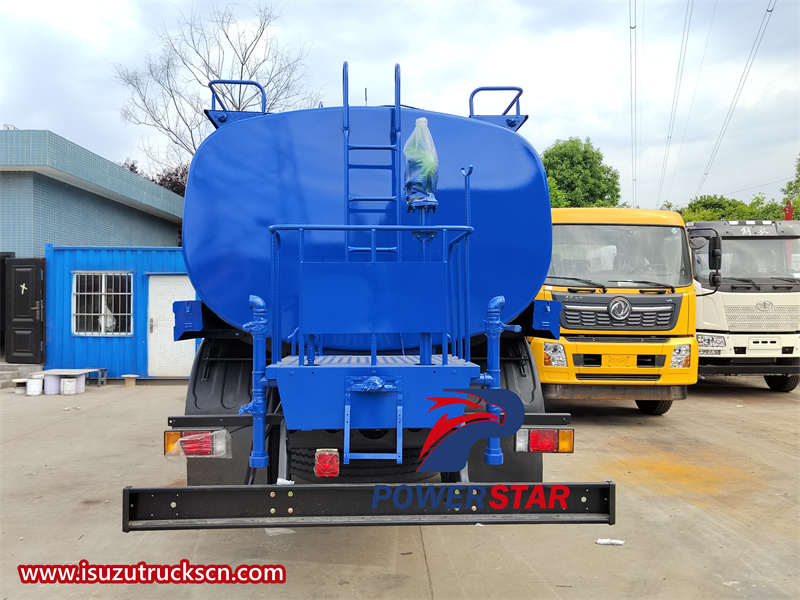

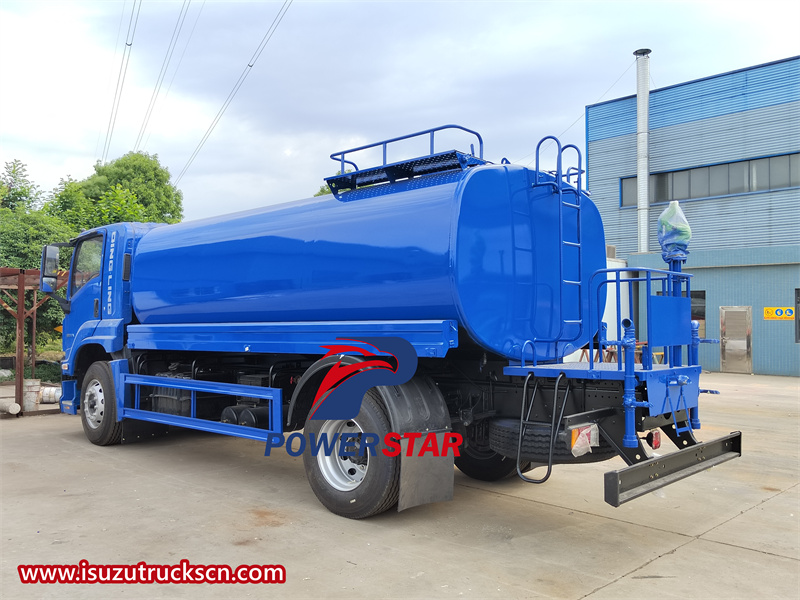

Isuzu GIGA 4X2 10000L water tanker
Comfortable Cab
The ISUZU GIGA water truck has a spacious and comfortable cab, providing ample space for the driver and co-driver. The cab is equipped with ergonomic seats, adjustable steering and an advanced climate control system, ensuring a pleasant driving experience even on long journeys. The cab is also equipped with an advanced infotainment system, including a large touchscreen, Bluetooth connectivity and USB ports, allowing drivers to enjoy entertainment and connectivity while on the road.
The ISUZU GIGA 6W 20FT Water Tanker 10KL is a perfect blend of power, efficiency and innovation. From its rugged construction and high performance to its focus on safety and comfort, the GIGA embodies ISUZU's commitment to providing reliable commercial vehicles that meet the changing needs of modern industry. Whether used for construction projects, emergency response or agricultural applications, the GIGA water tanker is a reliable and versatile solution for all water transportation needs.

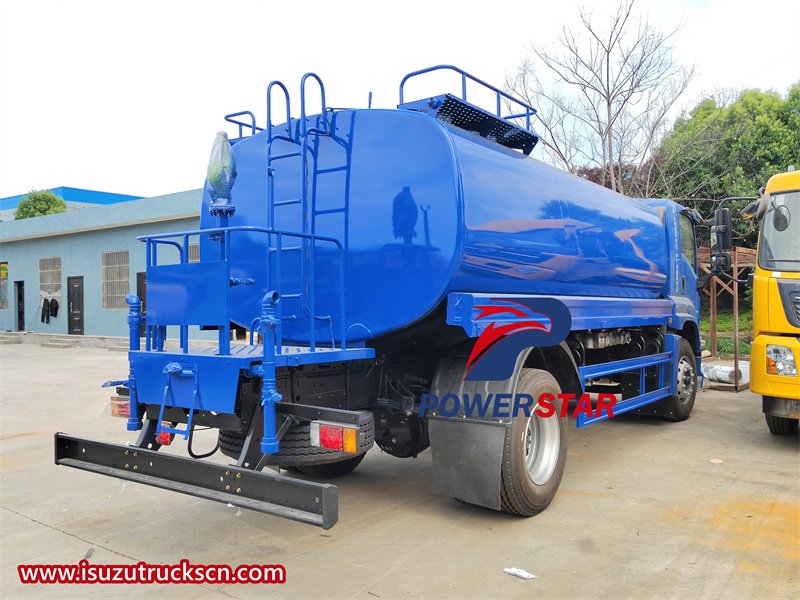

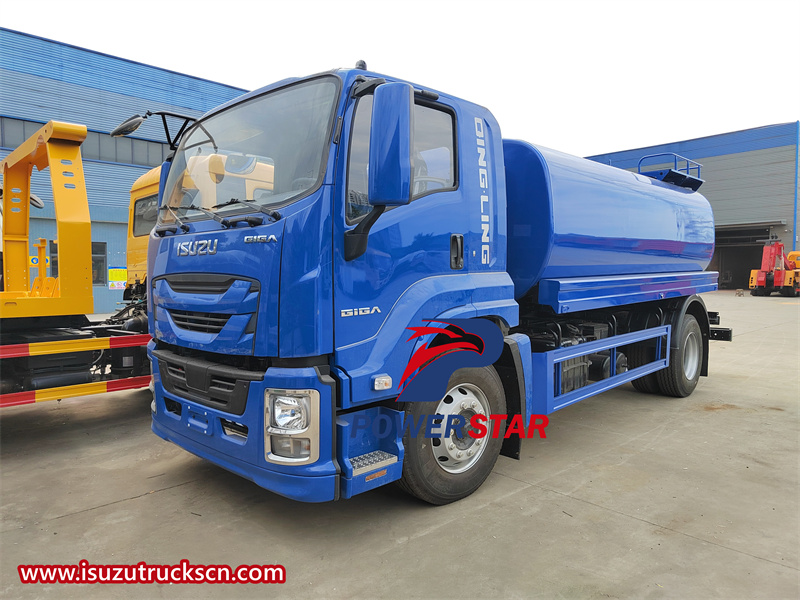

Isuzu GIGA water sprinkler truck
ISUZU GIGA 10 tons water tanker plays an important role in a variety of application scenarios with its large capacity, strong power, advanced safety technology, comfortable driving environment and durable materials.
Use scenarios
1. Agricultural irrigation: In areas with drought or water shortage, ISUZU GIGA 10 tons water truck can be used to provide irrigation water for farmland to ensure the normal growth of crops.
2. Construction site: On the construction site, this water tanker can be used to provide drinking water for workers, cooling water or cleaning water for construction equipment, etc.

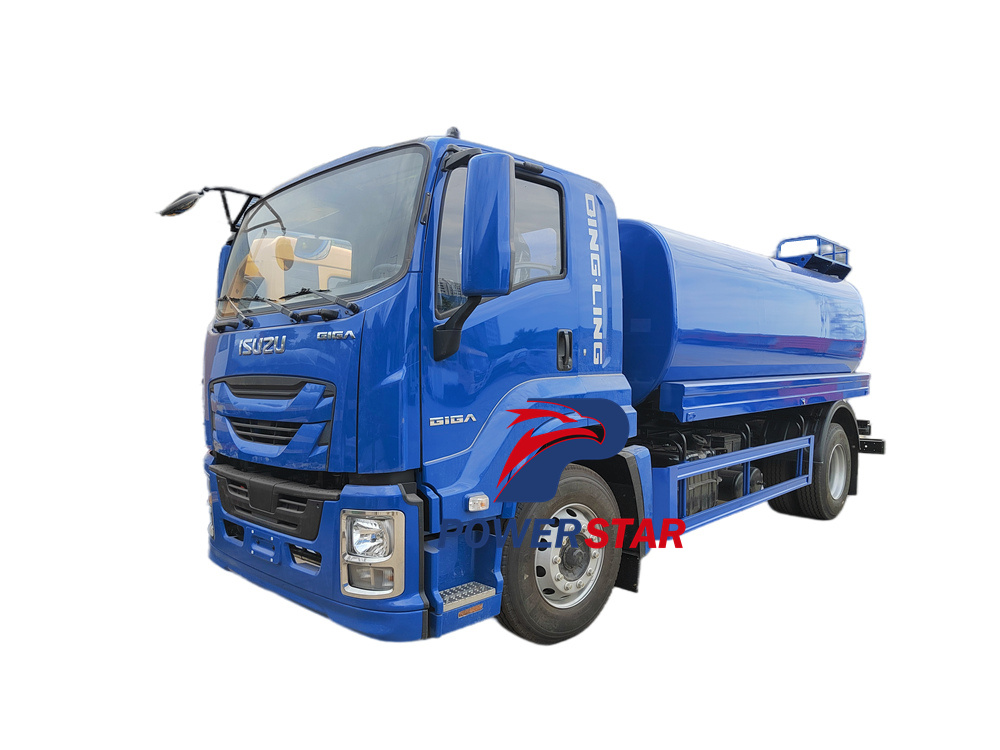

Isuzu 4x2 10000L water bowser truck
3. Firefighting: Due to its large capacity and rapid response capabilities, this water tanker is also often used as a fire truck or auxiliary fire truck to provide timely water support at the fire scene.
4. Emergency rescue: In emergency situations such as natural disasters, ISUZU GIGA water bowser can be used to provide drinking water for disaster victims or for other emergency rescue tasks.
5. Other applications: In addition, this water tanker can also be used in a variety of fields such as landscaping, road washing, municipal water supply and transportation.
In summary, ISUZU GIGA 6W 20FT Water Tanker 10KL plays an important role in a variety of application scenarios with its large capacity, strong power, advanced safety technology, comfortable driving environment and durable materials.

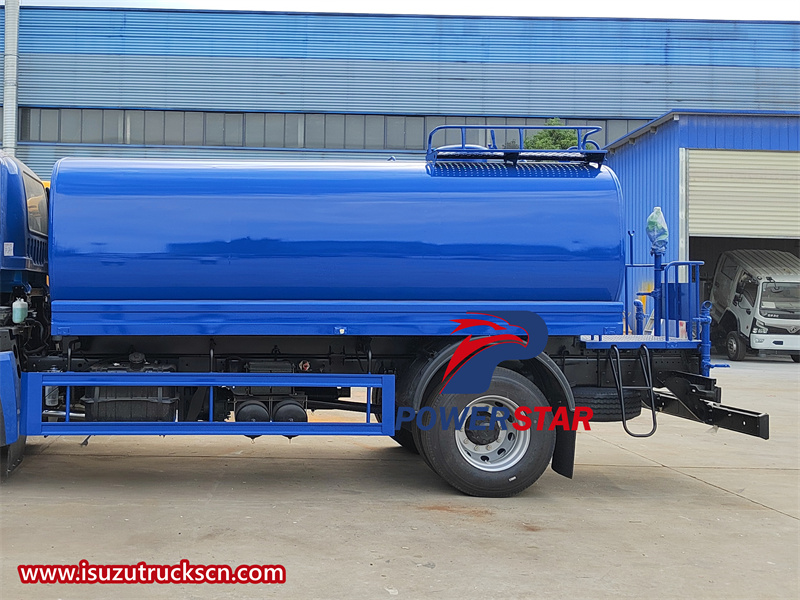

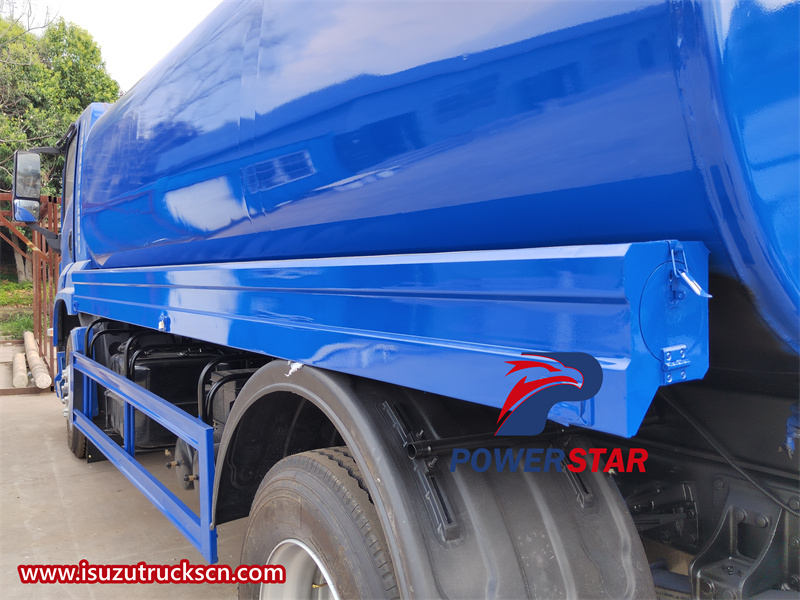

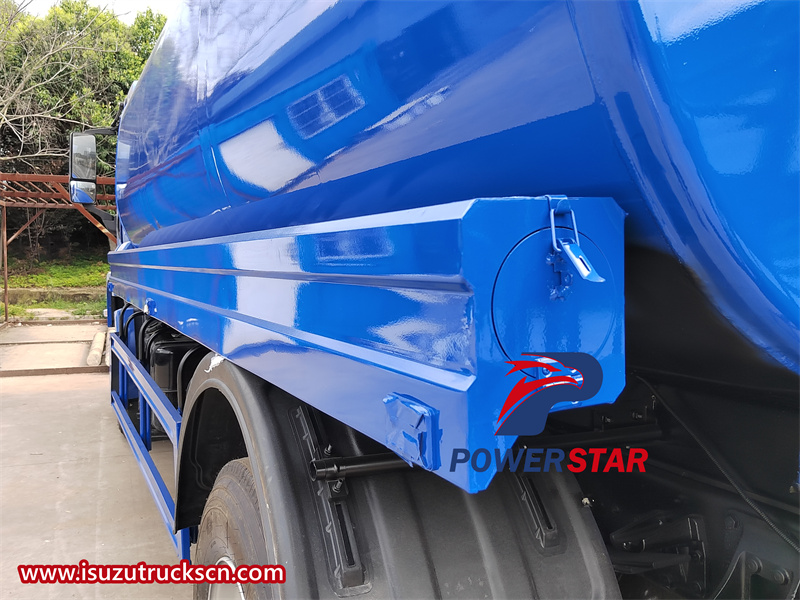

Water tank

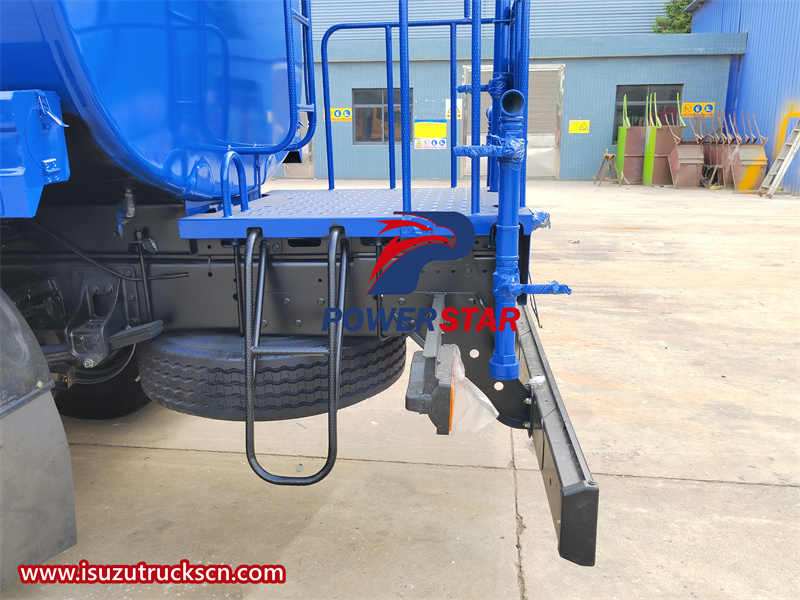

Operating platform

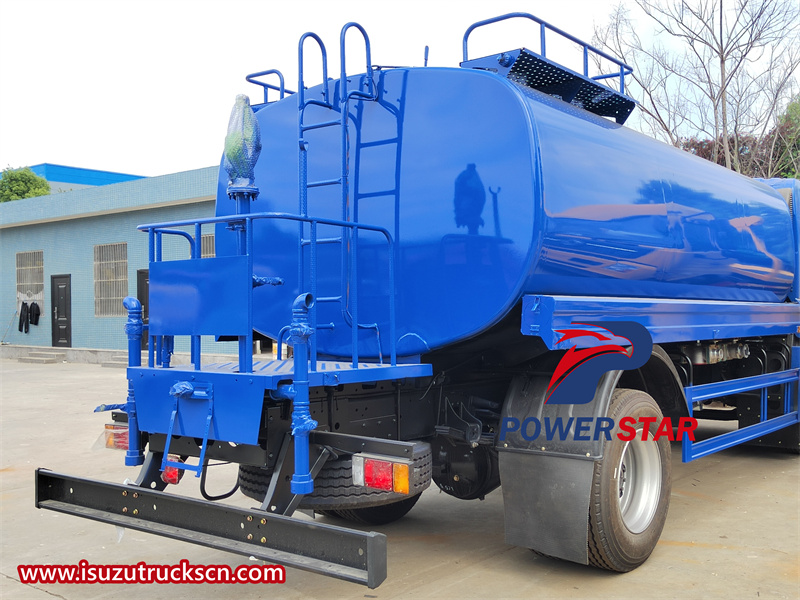

Ladder

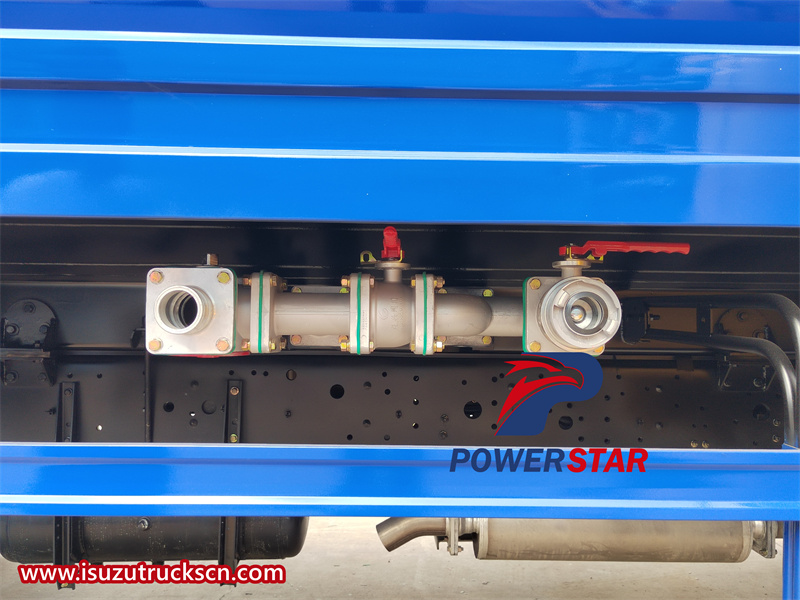

Pump in and pump out

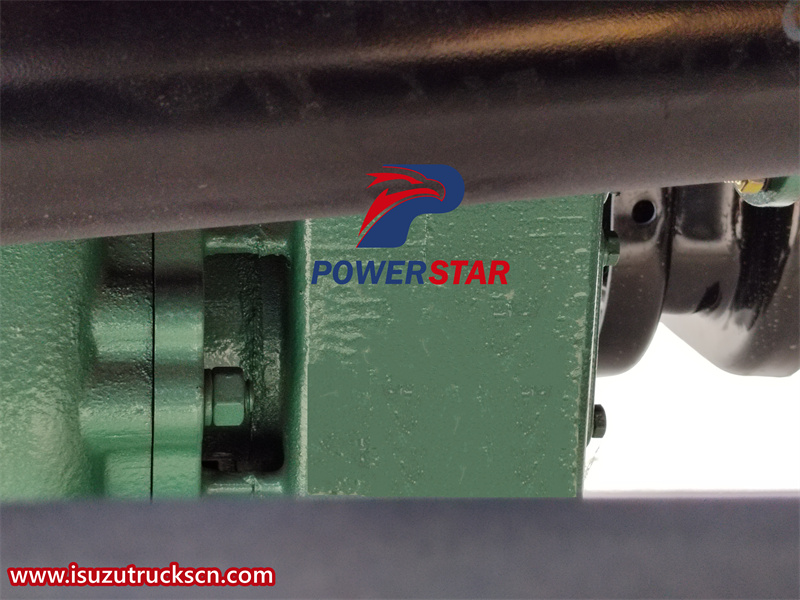

Water pump
