The Isuzu FVZ 14000L mine water truck equipped with a fire monitor embodies a harmonious blend of functionality and versatility tailored for the rigorous demands of mining environments. This stalwart vehicle stands as a beacon of reliability, capable of delivering critical water supplies for dust suppression, equipment cleaning, and other essential tasks within mining operations.
Work capacity:
14000LTruck model:
PT5250GXZEngine power:
300HPEngine type:
6HK1-TCG60Axle drive:
6x4,LHDGear box:
FAST 9-speed,manualRemarks:
Isuzu FVZ chassis,14000L water tankIsuzu water bowser with fire monitor also called Isuzu FVZ 6X4 mine spec water truck,Isuzu FVZ 14000L mining water tanker with fire monitor,Isuzu 6x4 mining water delivery truck,Isuzu FVZ support water tanker.
The Isuzu water bowser with fire monitor is a beacon of reliability, efficiency and innovation in the field of specialized mining vehicles. Whether it is fighting wildfires or meeting the water needs of mining operations, this vehicle is a steadfast ally and embodies the pinnacle of Isuzu's engineering prowess and commitment to excellence.
A major feature of the Isuzu FVZ water truck is the integrated fire monitor, which increases its practicality and allows for rapid response to emergency situations. The fire monitor is located on top of the water tank, allowing the operator to release a targeted stream of water to effectively extinguish fires, protecting people and assets at the mining site. This dual-purpose capability highlights the vehicle's readiness to respond to unforeseen challenges with precision and speed.
Features：
★ ISUZU chassis, perfect performance
★ ISUZU engine, super powerful, reliable performance, no overhaul within 100,000 km.
★ Nice shape, rational structure.
★ Water pump super powerful, efficient pump in and out
★ Strong, durable, perfect performance.
|
Product Name |
ISUZU FVZ 14000L Water Bowser Tanker Truck |
||
|
Chassis |
Overall dimensions |
mm |
8650*2500*3350 |
|
Gross weight |
kg |
25,000 |
|
|
Kerb weight |
11,000 |
||
|
Wheelbase |
mm |
4650+1370 |
|
|
Driving type |
6*4 |
||
|
Chassis model |
ISUZU FVZ |
||
|
Tire size |
295/80R22.5 |
||
|
Number of Tires |
10+1 |
||
|
Passengers in cab |
3 |
||
|
Gear box |
FAST 9-speed,manual |
||
|
Engine |
Engine model |
6HK1-TCG60 |
|
|
Type |
6 cylinder inline,water cooling,direct injection type,turbocharged |
||
|
Type of fuel |
Diesel |
||
|
Power |
300HP |
||
|
Displacement |
7790ml |
||
|
Emission standard |
EURO 6 |
||
|
Max speed |
Km/h |
95 |
|
|
Water Tanker performance |
Tanker Body |
14,000Liters |
|
|
Body Material |
Carbon Steel |
||
|
Tanker Shape |
Ellipse as standard |
||
|
Water Pump |
China Famous Brand,optional Italy, Euro brand |
||
|
Water pump drive mode |
Hydraulic drive |
||
|
Washing Width |
≥14 M |
||
|
Washing Speed |
5~20 km/h |
||
|
Rear Cannon Range |
360 degree rotation,shooting range≥28M |
||
|
Spray Bar |
Optional |
||
|
Hose & Hose-carrier |
Factory standard |
||
|
Control Panel |
English |
||
|
Walkway and Hand rail |
Yes |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
"U" shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1. Stainless steel tank, Aluminum alloy tank |
||
A staunch guardian in rugged terrain, the Isuzu FVZ 6x4 14000L Mining Water Tanker with Fire Monitor is a vital lifeline against raging fires, satisfying the endless thirst of arid lands. This powerful vehicle is characterized by reliability, versatility and efficiency, reflecting Isuzu's commitment to excellence in providing specialized equipment in challenging environments.

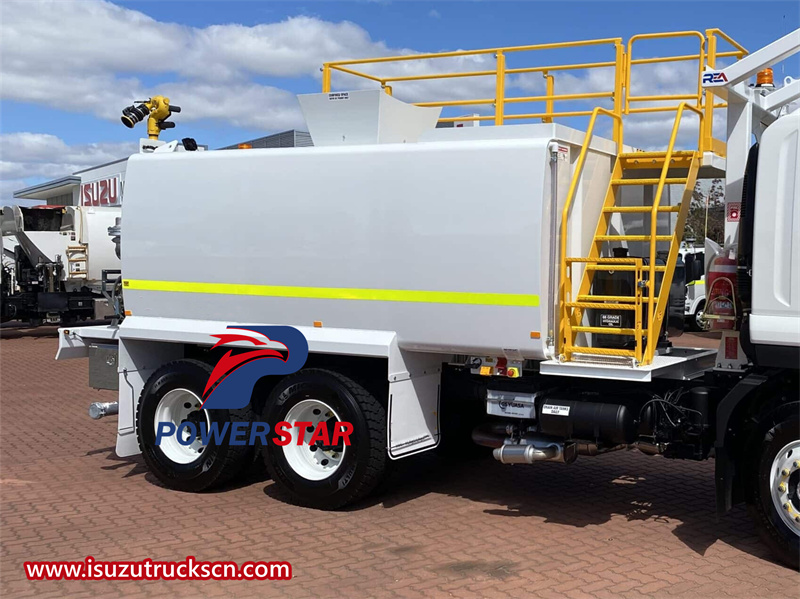

Isuzu FVZ 6x4 14000L Mining Water Tanker with Fire Monitor

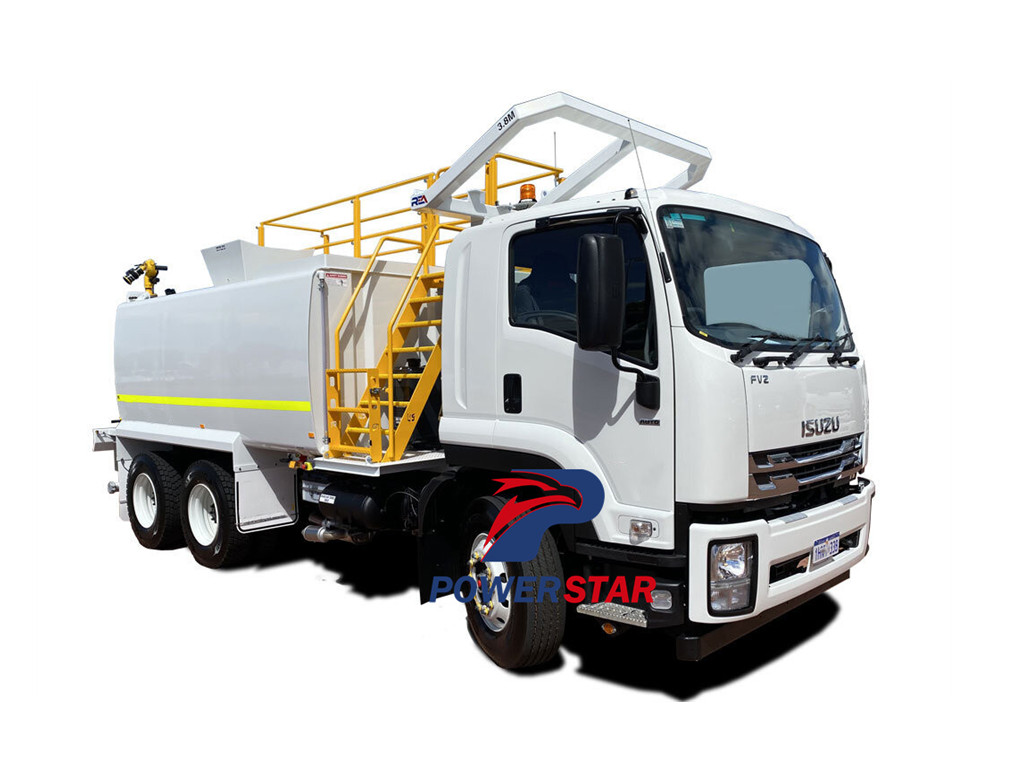

Isuzu FVZ 6X4 mine spec water truck
The exterior design of the Isuzu water tanker combines functionality with aesthetics. Its rugged structure is an essential attribute to withstand the rigors of the mining environment. The sleek contours and aerodynamic styling hint at Isuzu's commitment to optimizing fuel efficiency without compromising performance, a testament to the brand's engineering prowess.
The Isuzu FVZ 6x4's cab features a state-of-the-art instrument panel, ergonomic controls and an intuitive interface, ensuring the operator can maneuver the vehicle with precision and ease. Strategically placed windows and mirrors give the driver a clear panoramic view of the surroundings, enhancing safety and maneuverability in challenging terrains.

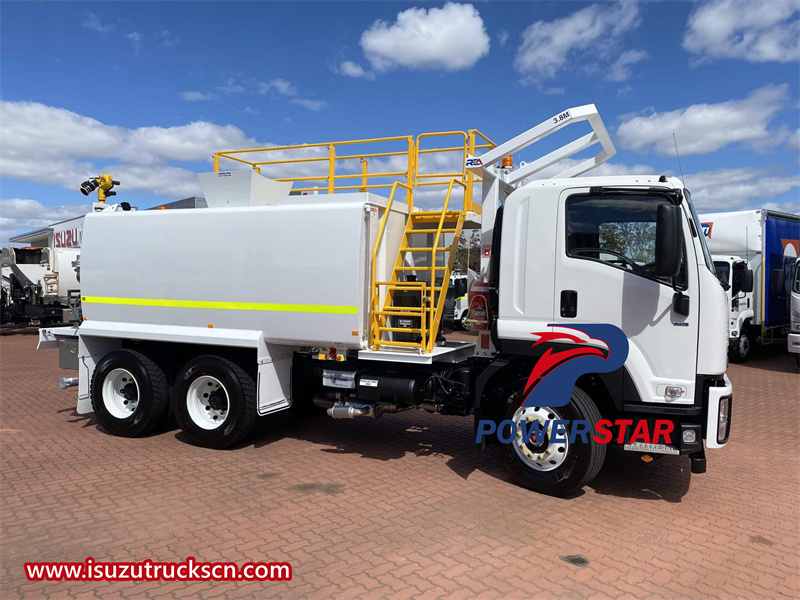

Isuzu water bowser with fire monitor
The heart of the Isuzu water truck beats to the pulsating rhythm of a high-performance engine that is engineered to deliver strong power and torque. The 6x4 drivetrain configuration takes full advantage of the engine’s powerful performance, translating it into seamless mobility over the various terrains encountered in mining operations. Thanks to the vehicle’s powerful propulsion system, tackling steep slopes, rough roads and adverse weather conditions becomes a breeze.
Navigating the mine's maze of roads requires precise handling and nimble maneuvering, and the Isuzu FVZ 6x4 perfectly embodies these qualities. Driving this behemoth through narrow passages, sharp turns and uneven terrain is a breeze, thanks to the vehicle's responsive steering system and flexible suspension settings.

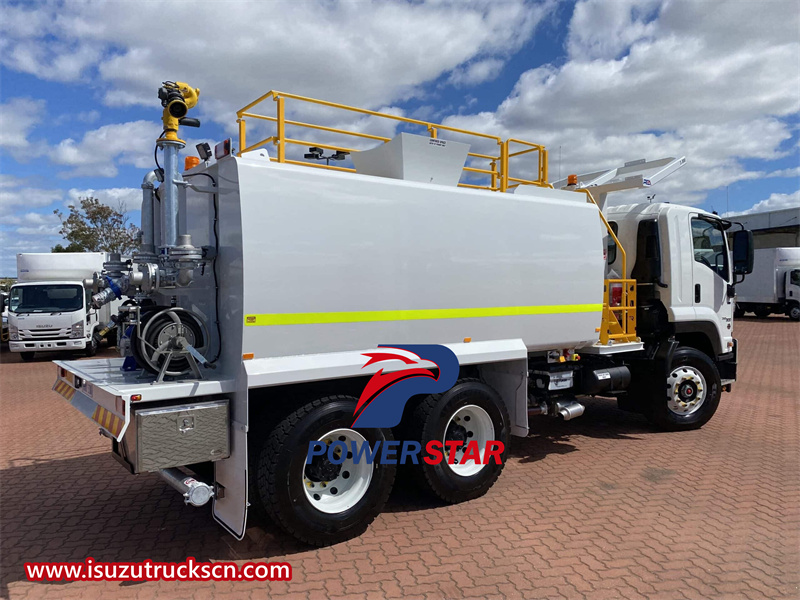

Isuzu 6x4 mining water delivery truck
The 14000L water tank is a life-sustaining reservoir of liquid, ready to irrigate dry land and meet the various water needs of mining operations. From dust suppression and equipment cleaning to personnel hydration and industrial processes, the ample water supply in the water tanker ensures seamless continuity of operations within the mine. The truck’s ability to precisely transport, store and distribute water highlights its critical role in sustaining mining activities.
The top-mounted fire monitor on the water truck takes the vehicle's practicality to new heights, making it a powerful firefighting device. Whether it's extinguishing wildfires caused by industrial activities or responding to emergencies on mining sites, the fire monitor allows operators to accurately and powerfully release water to quickly extinguish flames and minimize potential damage.

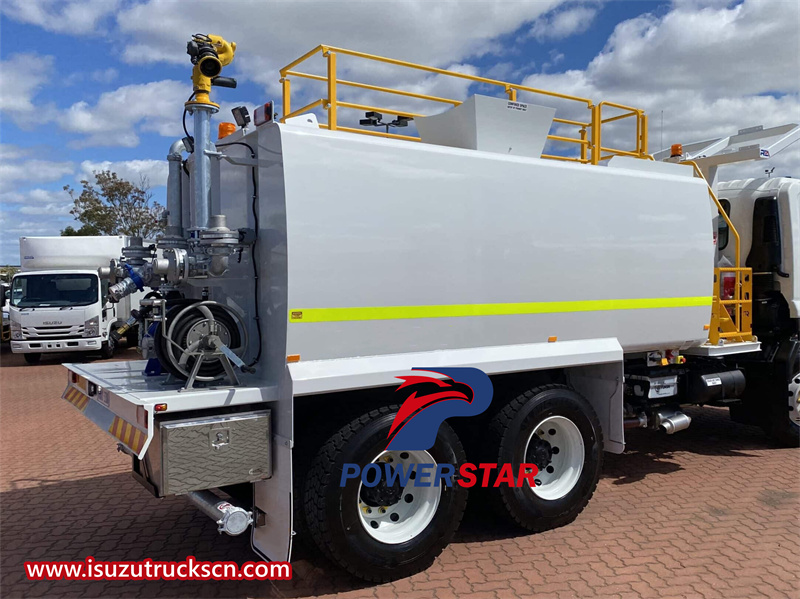

Water tank
fire monitor

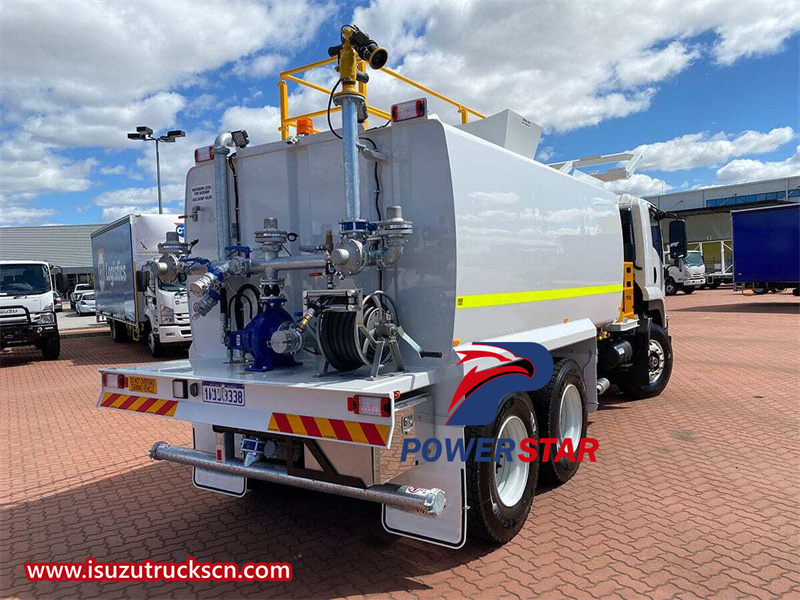

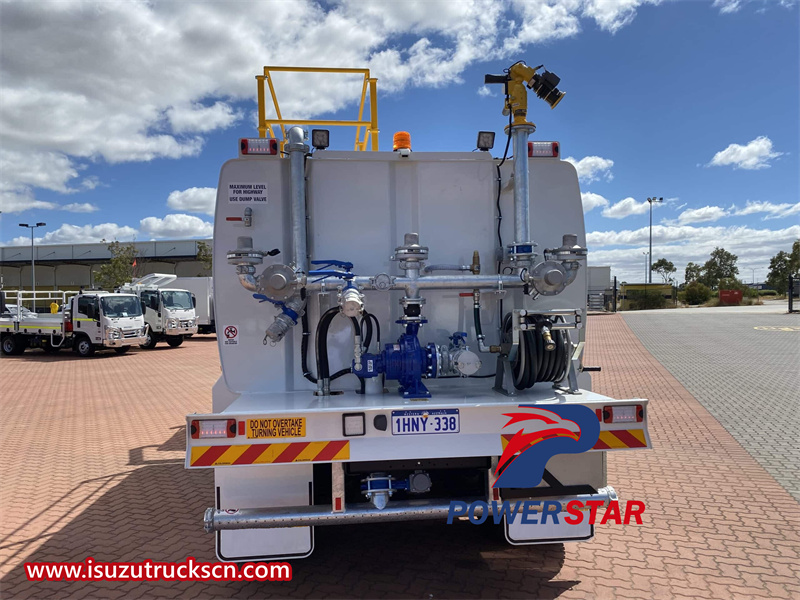

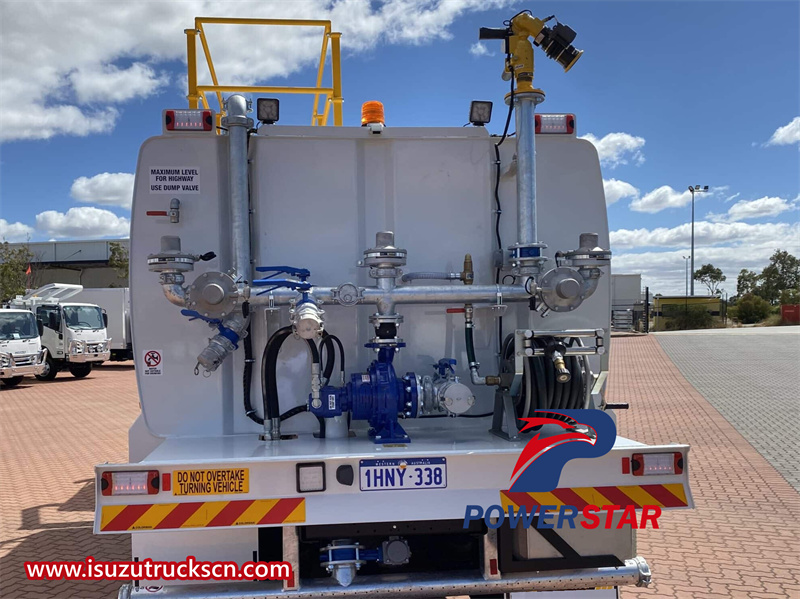

water pump and pipeline
