The Isuzu VC61 water fire tender truck is the epitome of firefighting excellence, embodying a harmonious blend of power, precision and reliability. From its rugged structure to its advanced firefighting capabilities, this vehicle embodies the pinnacle of engineering ingenuity, providing unrivalled protection and support in the battle against fire.
Work capacity:
14000LTruck model:
PT5250GXZEngine power:
380HPEngine type:
6UZ1-TCG61Axle drive:
6x4,LHDGear box:
FAST 12-speed,manualRemarks:
14000L water tank,CB10/60 fire pumpIsuzu VC61 water fire truck with 6UZ1 engine also called Isuzu VC61 water fire tender truck,Isuzu GIGA water fire sprinkler truck,Isuzu GIGA 6x4 road sprinkler fire truck,Isuzu GIGA water tanker sprinkler truck,Isuzu GIGA 14000L water sprinkler fire engine.
The Isuzu VC61 GIGA 6x4 14000L water sprinkler fire truck stands as a pinnacle of purpose-built engineering, a robust guardian in the realm of firefighting. Tasked with quelling raging infernos and providing relief in crisis situations, this formidable vehicle embodies the synergy of power, capacity, and precision.
The Isuzu fire sprinkler truck is modified on the basis of the Isuzu VC61 6x4 chassis. The vehicle is equipped with a 6UZ1 380HP engine with strong power and a FAST 12-speed gearbox for smooth gear shifting. The overall exterior dimensions of the vehicle are 10700*2550*4080mm, with a wheelbase of 4600+1370mm. The front of the vehicle is a fire pump room with a CB10/60 fire water cannon installed. In the middle of the vehicle is a 14000L carbon steel water tank, which can carry a large amount of water for long-term firefighting or water spraying operations. The rear of the vehicle is a water sprinkling platform with a water sprinkling width of ≥20m and a water sprinkling range of ≥50m, which can provide good rescue support.
Features
★ ISUZU GlGA chassis, perfect performance
★ ISUZU engine, super powerful, no overhaul within 100.000 km
★ Water tank capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
★ Easy operation and easy maintenance
Specifications
|
Isuzu GIGA 6x4 road sprinkler fire truck |
|||
|
General |
Cab |
Isuzu VC61 6x4 chassis,one and half row,allowable 3 passengers,A/C,USB... |
|
|
Overall Dimensions(mm) |
10700*2550*4080mm |
||
|
Wheelbase |
5100+1370mm |
||
|
GVW/curb weight |
25000/11000kg |
||
|
Water tank capacity |
14000L |
||
|
Steering |
Power steering |
||
|
Chassis |
Brand |
Isuzu |
|
|
Tire specifications |
10+1 pcs,315/80R22.5 |
||
|
Transmission |
FAST 12-speed,manual |
||
|
Front Axle |
7T |
||
|
Rear Axle |
18T |
||
|
Max speed |
95Km/h |
||
|
Engine |
Model |
6UZ1-TCG61 |
|
|
Horsepower |
380HP |
||
|
Maximum output |
279Kw |
||
|
Maximum torque |
1800N.m |
||
|
Type |
6cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine |
||
|
Displacement |
9839ml |
||
|
Emission standard |
Euro 6 |
||
|
Brake System |
Air brake |
||
|
Color and LOGO |
Yellow,customized |
||
|
Electric system |
24V |
||
|
Tank |
Material |
Carbon steel |
|
|
Capacity |
14000L |
||
|
Shape |
Ellipse as standard |
||
|
Water fire pump |
Model |
CB10/60 |
|
|
Max. working pressure |
1.082MPa |
||
|
Max. allowable inlet pressure |
0.4MPa |
||
|
Speed Ratio |
1:1.542 |
||
|
Working conditions1 |
60L/s/1MPa |
3m Suction head |
|
|
Working conditions2 |
42L/s/1.3MPa |
||
|
Working conditions3 |
30L/s/1MPa |
7m Suction head |
|
|
Fire monitor |
Model |
PS8/50W |
|
|
Rated working pressure |
0.8MPa |
||
|
Rated flow |
50L/s |
||
|
Range |
≥70m |
||
|
Max.working pressure |
1.0MPa |
||
|
Pitch rotation |
-35～+70° |
||
|
Front and rear water sprinkler |
Sprinkling width |
≥20m |
|
|
Range |
≥50m |
||
|
Standard configuration |
carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder. |
||
Applications
The Isuzu VC61 GIGA 6x4 14000L water sprinkler fire truck is built on the rugged GIGA platform, known for its heavy-duty capabilities and reliable performance. The 6x4 drive configuration provides excellent traction and stability, making it suitable for a variety of terrains and conditions. The truck is equipped with a large 14000-liter water tank, which can carry a large amount of water for long firefighting or water spraying operations.
Technical drawing of Isuzu VC61 GIGA 6x4 14000L water sprinkler fire truck
Exterior Design and Structure
At first glance, the Isuzu VC61 GIGA exudes a majestic presence on the road with its majestic stature and unique fire truck markings. The chassis is tailored for firefighting missions, embodying strength and durability to withstand the rigors of emergency response scenarios. The striking red exterior, adorned with reflective strips and flashing lights, ensures high visibility even in the most challenging conditions.

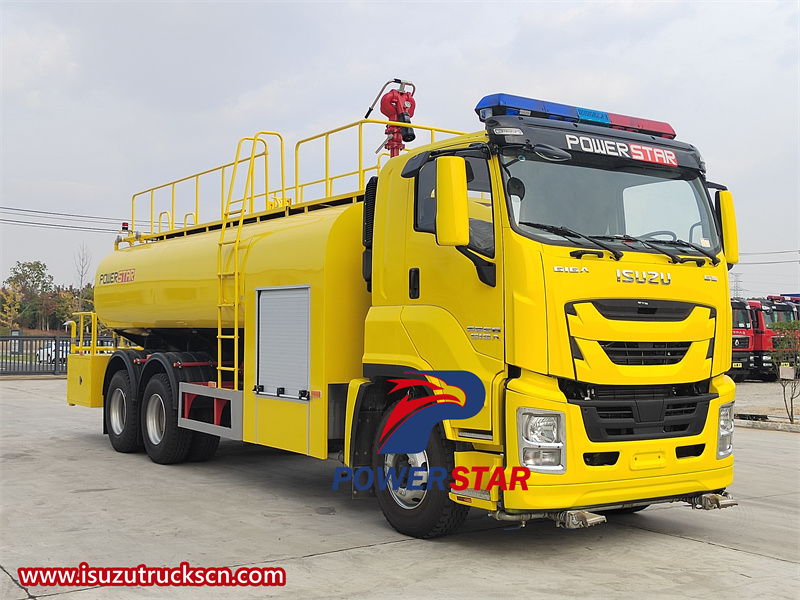

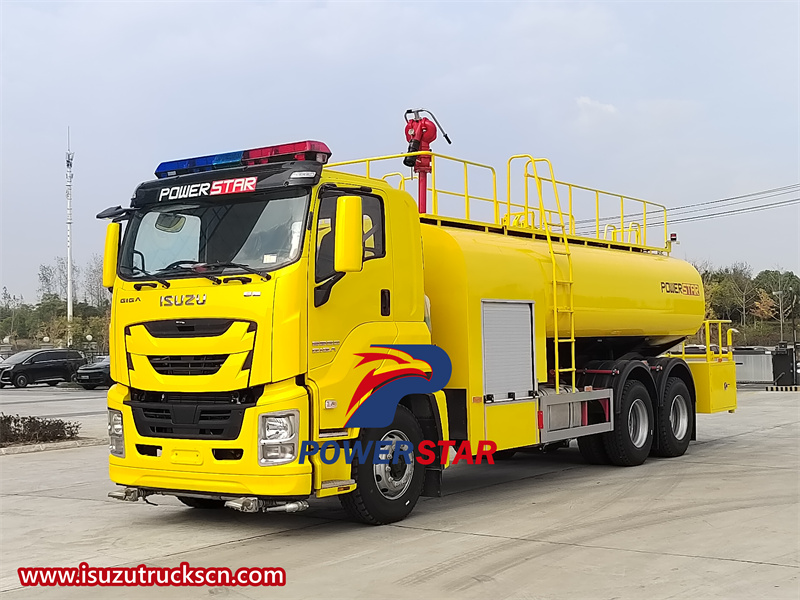

Isuzu VC61 water fire truck with 6UZ1 engine
Engine Performance
Under the hood is a powerful Isuzu 6UZ1 380HP 6-cylinder 9839ml engine, proving Isuzu's commitment to delivering superior performance. The powerful powertrain is carefully tuned to meet the needs of firefighting, propelling the vehicle with unwavering agility and speed. Cutting-edge engine technology not only ensures optimal fuel efficiency, but also provides high torque at low speeds, making it easy to traverse rough terrain and congested urban environments while maintaining fuel efficiency. The vehicle is equipped with a FAST 12-speed transmission, and the powertrain is matched with a durable and reliable drivetrain to ensure smooth and efficient transmission of power to the wheels. The truck is also equipped with a sturdy axle and suspension system that can withstand the heavy loads and pressures associated with firefighting operations.

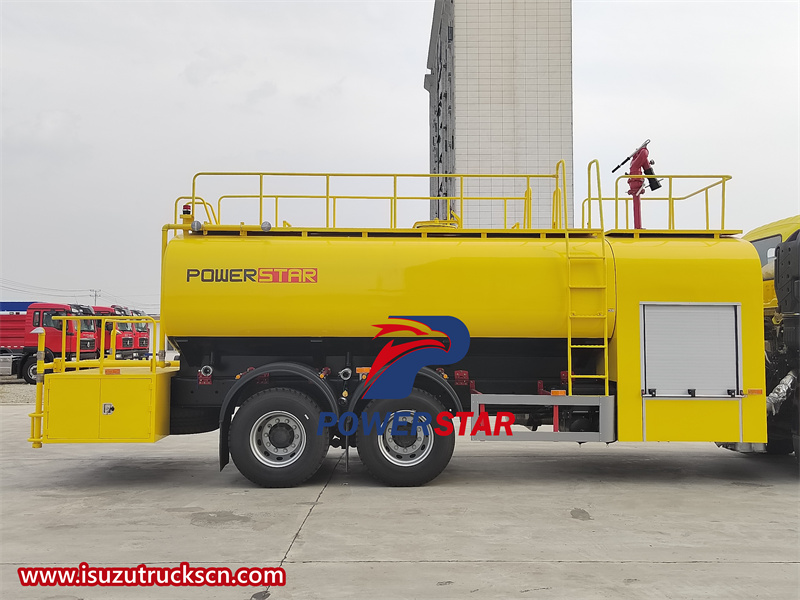

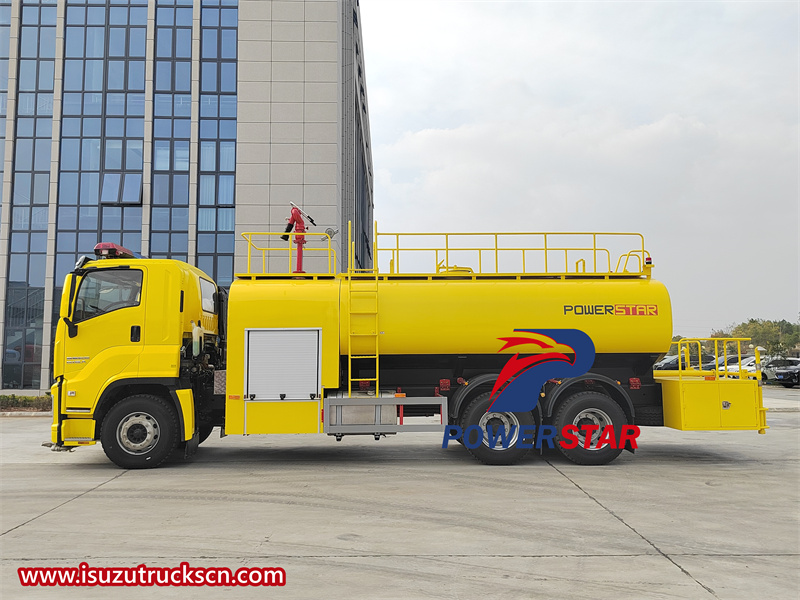

Isuzu GIGA water fire sprinkler truck
Water Tank and Sprinkler System
The heart of this fire truck lies in its 14,000-liter water tank, which is a source of hope in the sea of fire. Made of durable carbon steel materials, the water tank is designed to withstand the rigors of firefighting and water spraying operations.
The vehicle is equipped with a CB10/60 fire pump and a PS8/50W fire water monitor, which can accurately release large amounts of water to extinguish fires and protect lives and property.
It is also equipped with a forward-flush and rear-spraying water cannon that can rotate and adjust the amount of water, providing cylindrical, mist or drizzle spray patterns, allowing the truck to cover large areas with water.

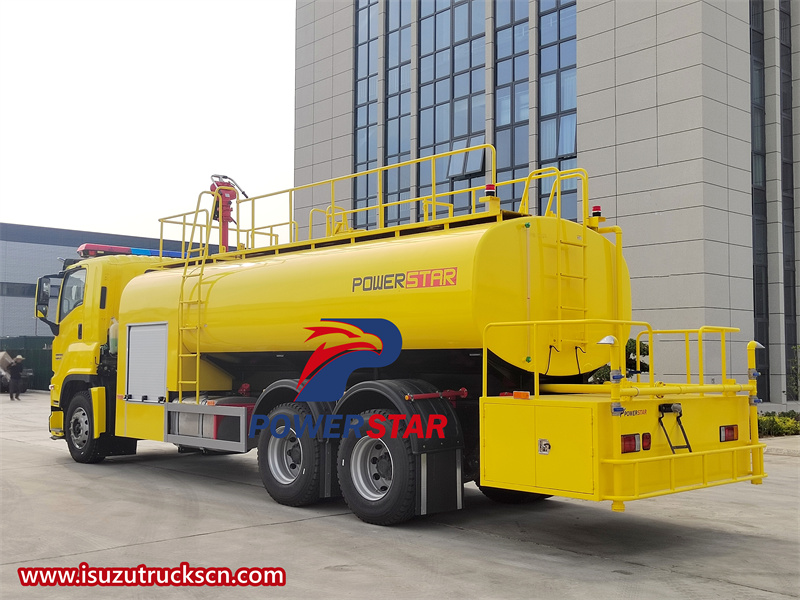

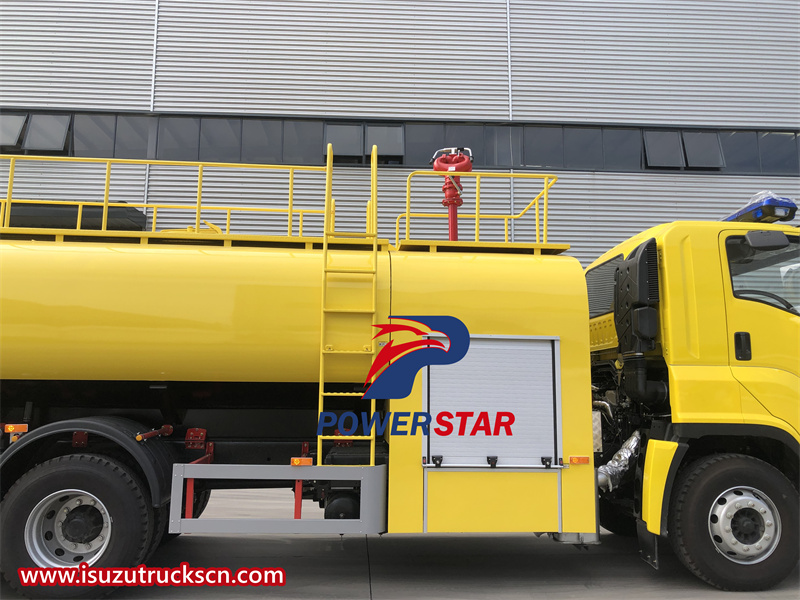

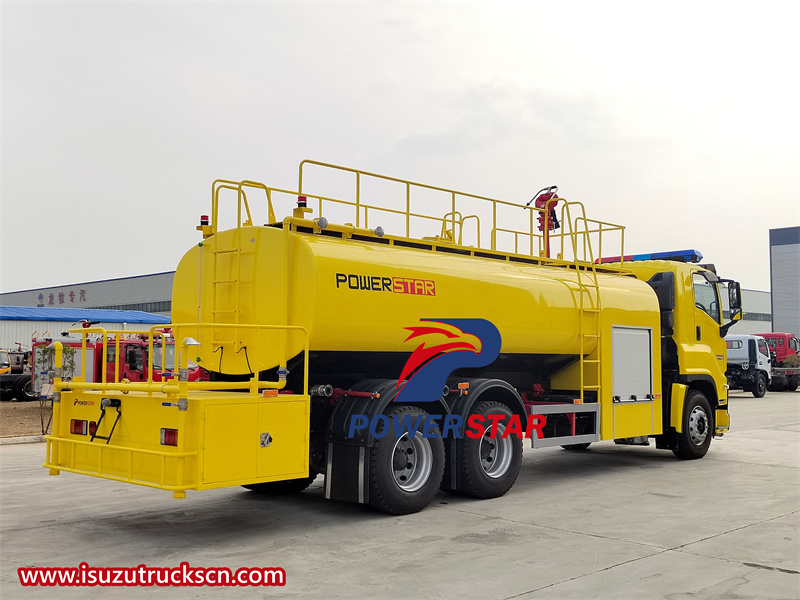

Water tank
Sprinkler cannon

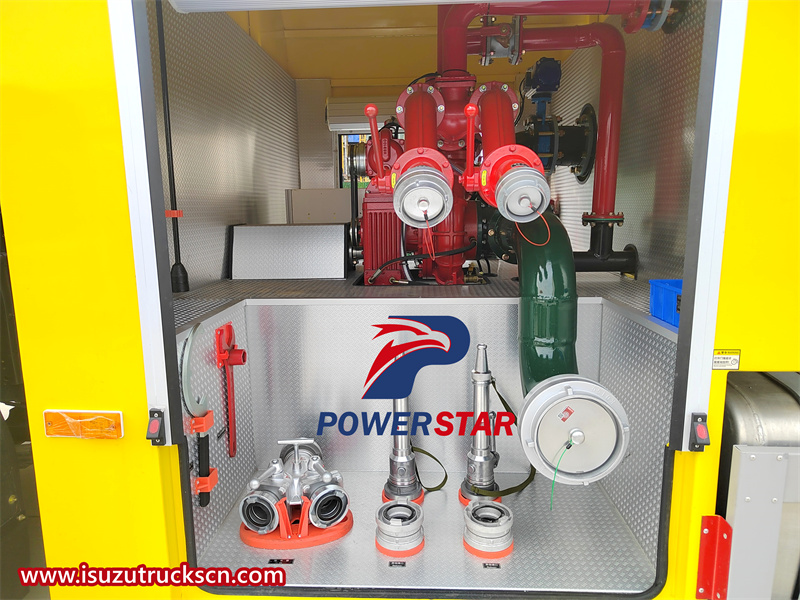

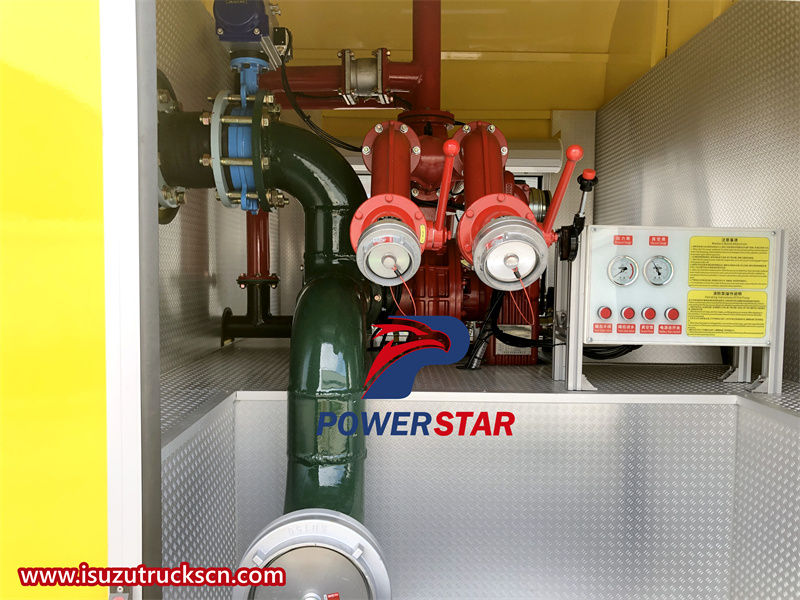

CB10/60 fire pump and PS8/50W fire monitor
● CB10/60 fire pump
The CB10/60 fire pump is the precision core of the Isuzu VC61 GIGA 6x4 14000L fire sprinkler truck, focusing on performance and reliability. This fire pump is designed to provide efficient firefighting capabilities and meet emergency firefighting needs.
The CB10/60 fire pump adopts a single-stage guide vane structure, which makes the water output more balanced and stable, ensuring the stable operation of the pump under high pressure and large flow conditions. At the same time, the pump is also equipped with an electric two-piston water priming device. This innovative design greatly shortens the priming time and makes operation easier.

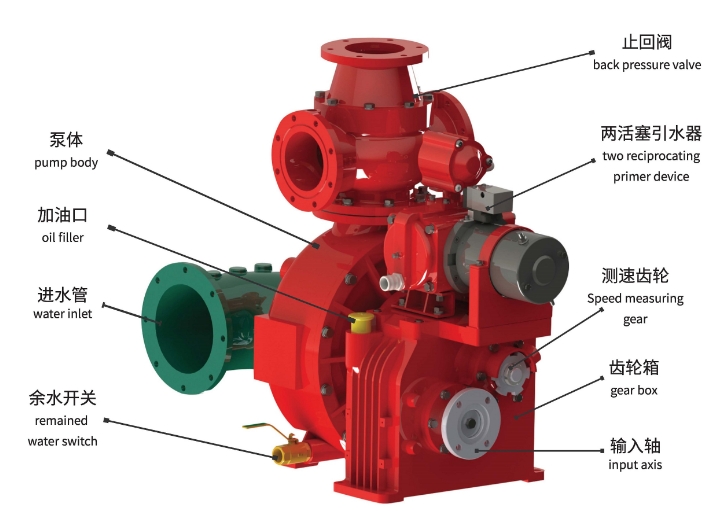

CB10/60 fire pump
The CB10/60 fire pump is carefully designed with a compact and sturdy structure, capable of stable operation under harsh conditions. Its efficient cooling system ensures that the pump maintains normal operating temperature during continuous use to avoid overheating. The pump's intelligent control system ensures easy operation and provides a variety of working mode options to meet different firefighting needs.
The CB10/60 fire pump uses advanced pumping technology to deliver large volumes of water at a stable and continuous pressure. Its 60 liters per second flow rate ensures rapid fire extinguishing at the scene of the fire. The 10 tons per hour displacement of this fire pump ensures the stability and controllability of the water flow, allowing firefighters to respond quickly to fire alarms and effectively deal with the spread of fire.
CB10/60 fire pump
|
Specifications |
Working Condition |
Flow |
Exit Pressure |
Rated Speed |
Shaft Power |
Suction Depth |
|
CB10/60 |
1 |
60 |
1.0 |
3200±50 |
99.71 |
3 |
|
2 |
42 |
1.3 |
3528±50 |
109.18 |
3 |
|
|
3 |
30 |
1.0 |
3326±50 |
75.20 |
7 |

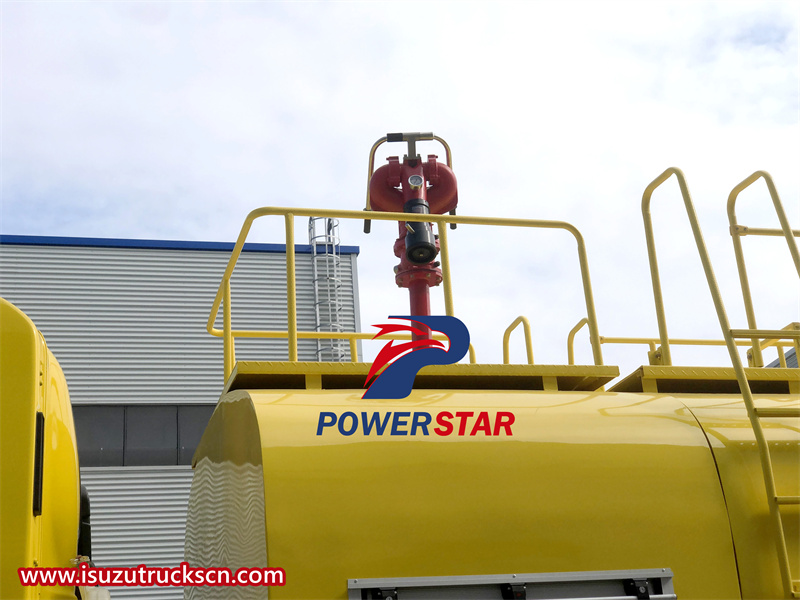

● PS8/50W firefighting water monitor
The PS8/50W firefighting water monitor adopts a streamlined design to reduce air resistance and improve spraying efficiency. Its main structure is sturdy and durable, and can withstand high-pressure water flow and harsh firefighting environments. The water cannon head can rotate 360 degrees, and the pitch angle can also be adjusted between -35° and +70°, thus achieving all-round and multi-angle firefighting coverage.
The PS8/50W firefighting water monitor has excellent range and flow, and can spray a large amount of water at a long distance to cover a wide area. Its design focuses on stability and precision to ensure that the water flow is stable and controllable during the spraying process. The 50 liters/second flow rate of this water cannon provides firefighters with a powerful tool to effectively control the fire and achieve the goal of extinguishing the fire.
CB10/60 fire pump
Performance characteristics:
High range and wide coverage: The PS8/50W firefighting water monitor has excellent range and coverage capabilities, and can effectively strike the fire source at a long distance, reducing the risk of firefighters approaching the fire scene.
Precise adjustment: The water monitor is equipped with a precise adjustment mechanism, allowing firefighters to accurately control the spray direction and angle to achieve precise firefighting.
Quick response: The water monitor is easy and quick to operate, and firefighters can complete the entire process from preparation to spraying in a short time, improving the efficiency of fire fighting.
Strong durability: Made of high-quality materials, it has good corrosion resistance and wear resistance, ensuring that the water monitor maintains excellent performance in long-term use.

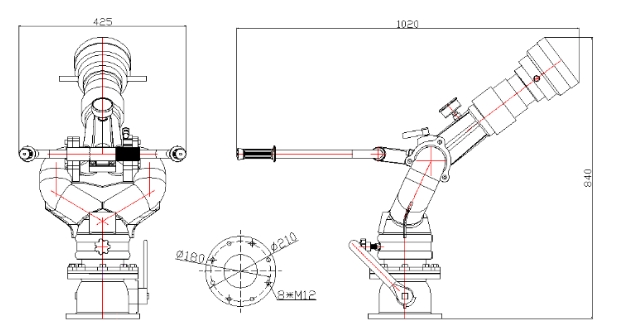

PS8/50W fire monitor
|
Specifications |
Working Condition |
Flow |
Exit Pressure |
Rated Speed |
Shaft Power |
Suction Depth |
|
CB10/60 |
1 |
60 |
1.0 |
3200±50 |
99.71 |
3 |
|
2 |
42 |
1.3 |
3528±50 |
109.18 |
3 |
|
|
3 |
30 |
1.0 |
3326±50 |
75.20 |
7 |

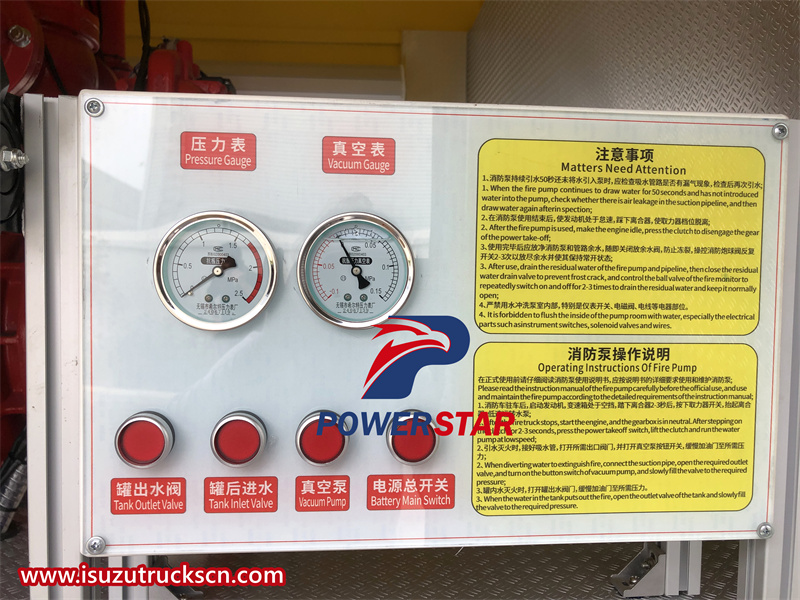

● Control panel
Connected to the fire pump is a control panel with pressure and vacuum gauges, buttons for the tank outlet valve, tank rear water inlet, vacuum pump, main power switch, and other buttons, as well as fire pump operating instructions and precautions. These integrate a range of functions and equipment to provide firefighters with a set of practical and intuitive tools to help them respond and take action quickly when responding to various fire emergencies.
Control panel
Fire sprinkler truck application
The Isuzu GIGA 6x4 14000L fire sprinkler truck is equipped with a CB10/60 fire pump and a PS8/50W fire water cannon, which has excellent firefighting capabilities and flexibility and is suitable for various fire emergency situations.
Urban fire fighting: Fire sprinkler trucks can quickly respond to fire alarms in the city, effectively control and extinguish fires through the high flow provided by the CB10/60 fire pump and the long range of the PS8/50W fire water cannon, and maximize the protection of surrounding buildings and residents.
Forest fire prevention and control: Fire sprinkler trucks play an important role in firefighting work in forest areas, using the powerful range of the PS8/50W fire water cannon and the high power flow of the CB10/60 fire pump to control the spread of fire and protect forest resources and wildlife.

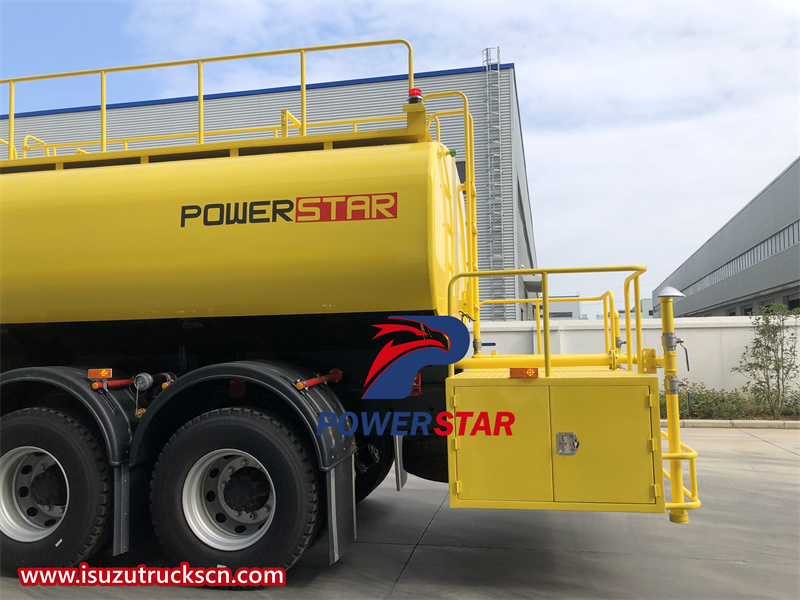

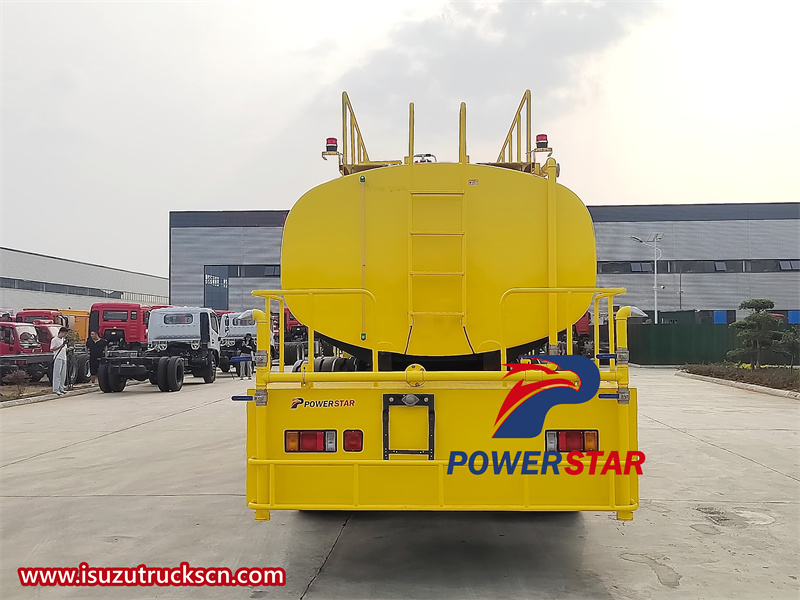

Rear sprinkler platform,ladder
Factory and warehouse fires: The reliability of the CB10/60 fire pump and the precise water spray of the PS8/50W fire monitor play a key role in factory and warehouse fires, quickly extinguishing fires and preventing the spread of fires, protecting corporate assets and employee safety.
Road traffic accident rescue: Fire sprinkler trucks can be used to respond to fires caused by road traffic accidents. Through the efficient water spray provided by the CB10/60 fire pump and PS8/50W fire monitor, fires can be quickly extinguished and the risk of casualties can be reduced.
Emergency rescue: Fire sprinkler trucks can also play a role in various disasters and accidents, using their equipment to quickly carry out rescue work and protect the safety of people's lives and property.
Water distributor,DC switch water gun

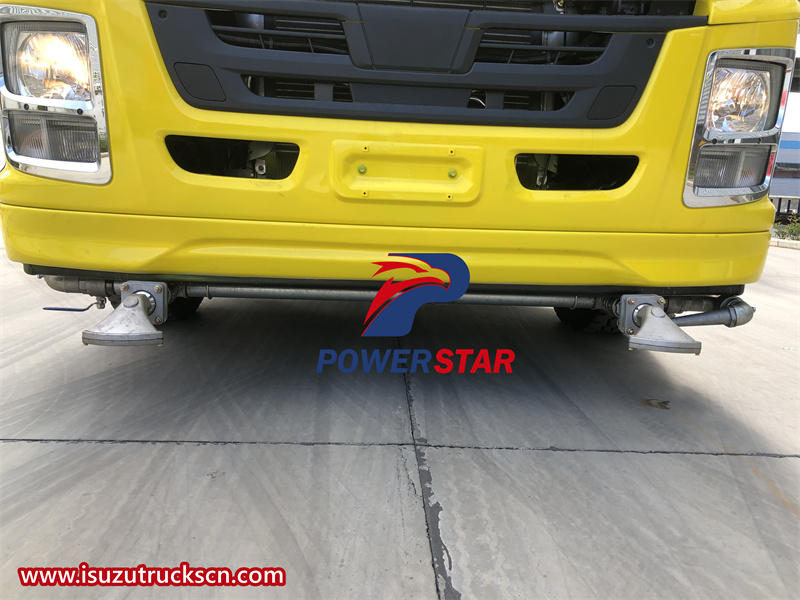

Front flush spout
