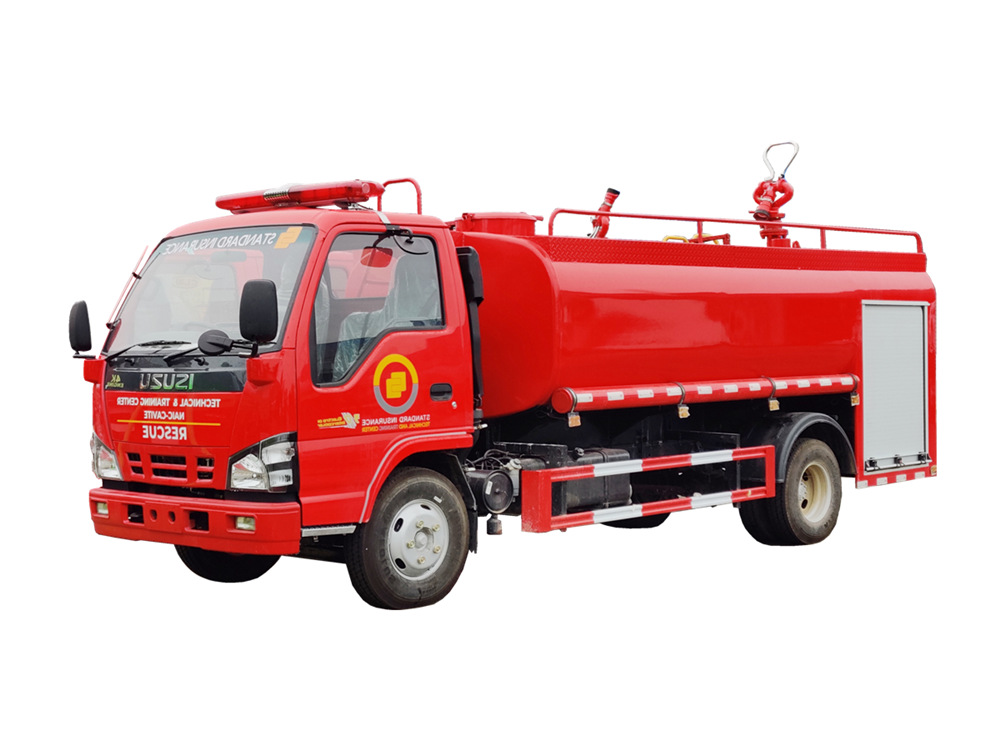

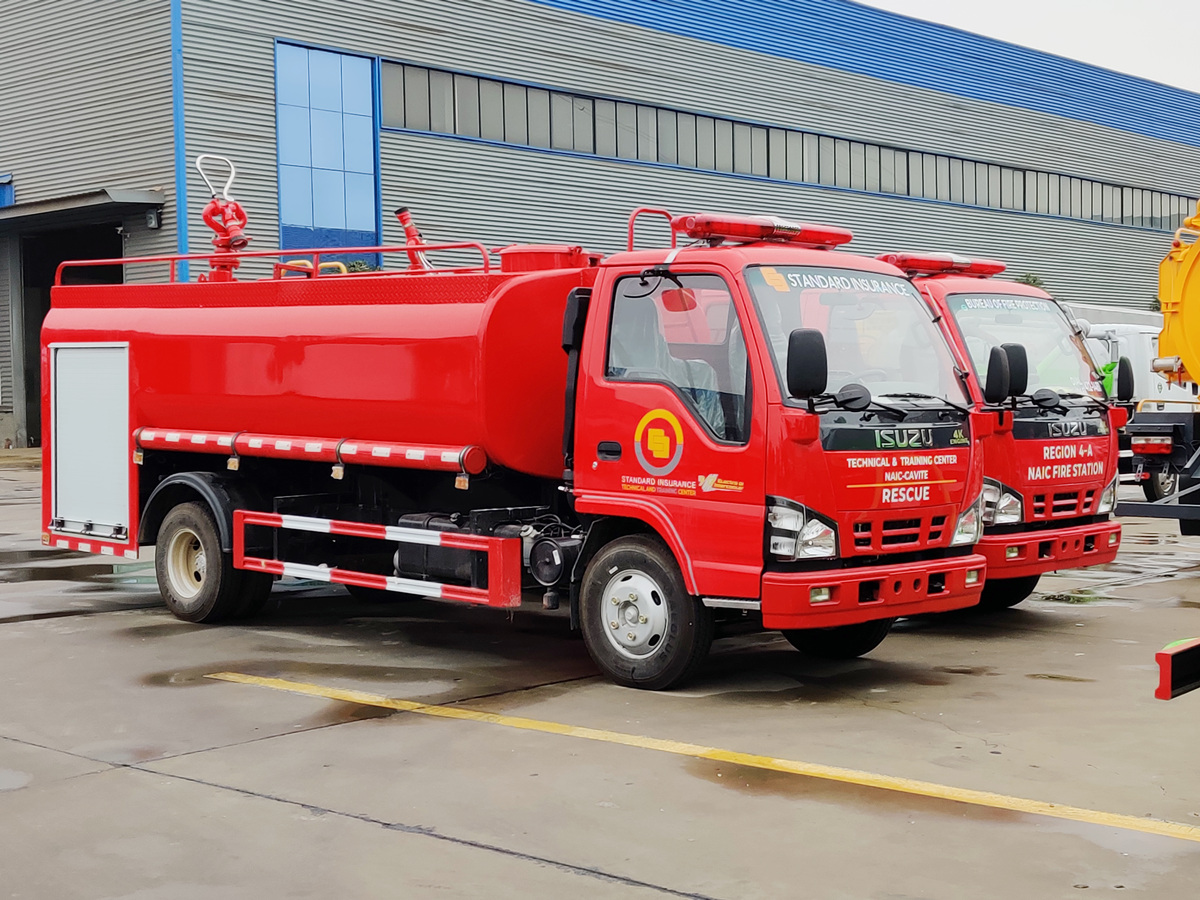

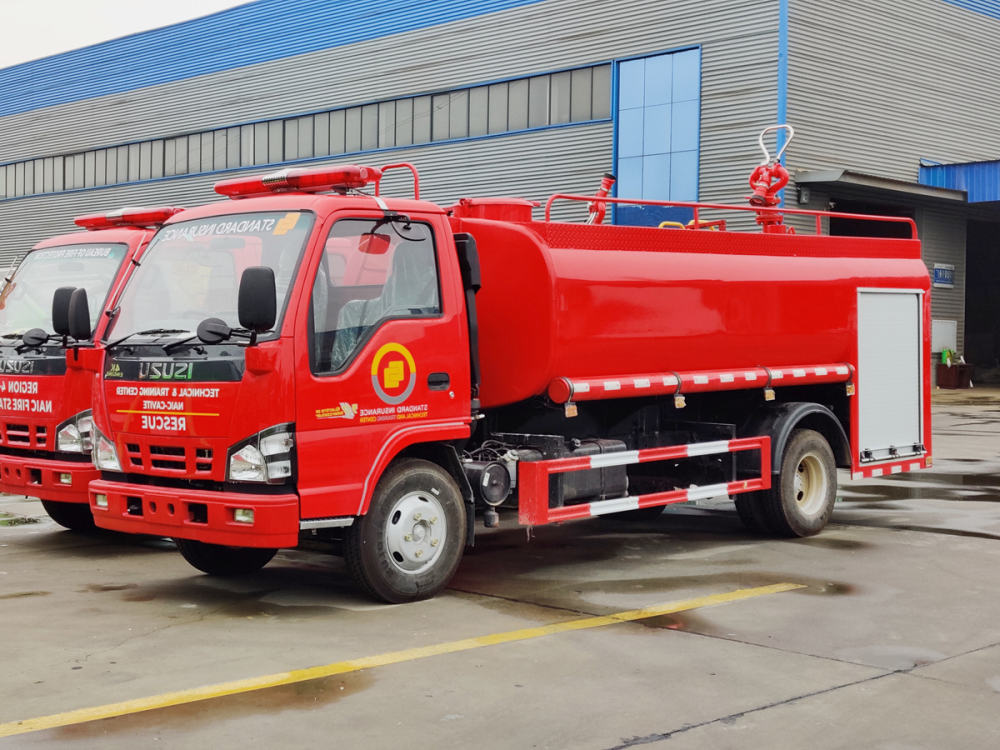

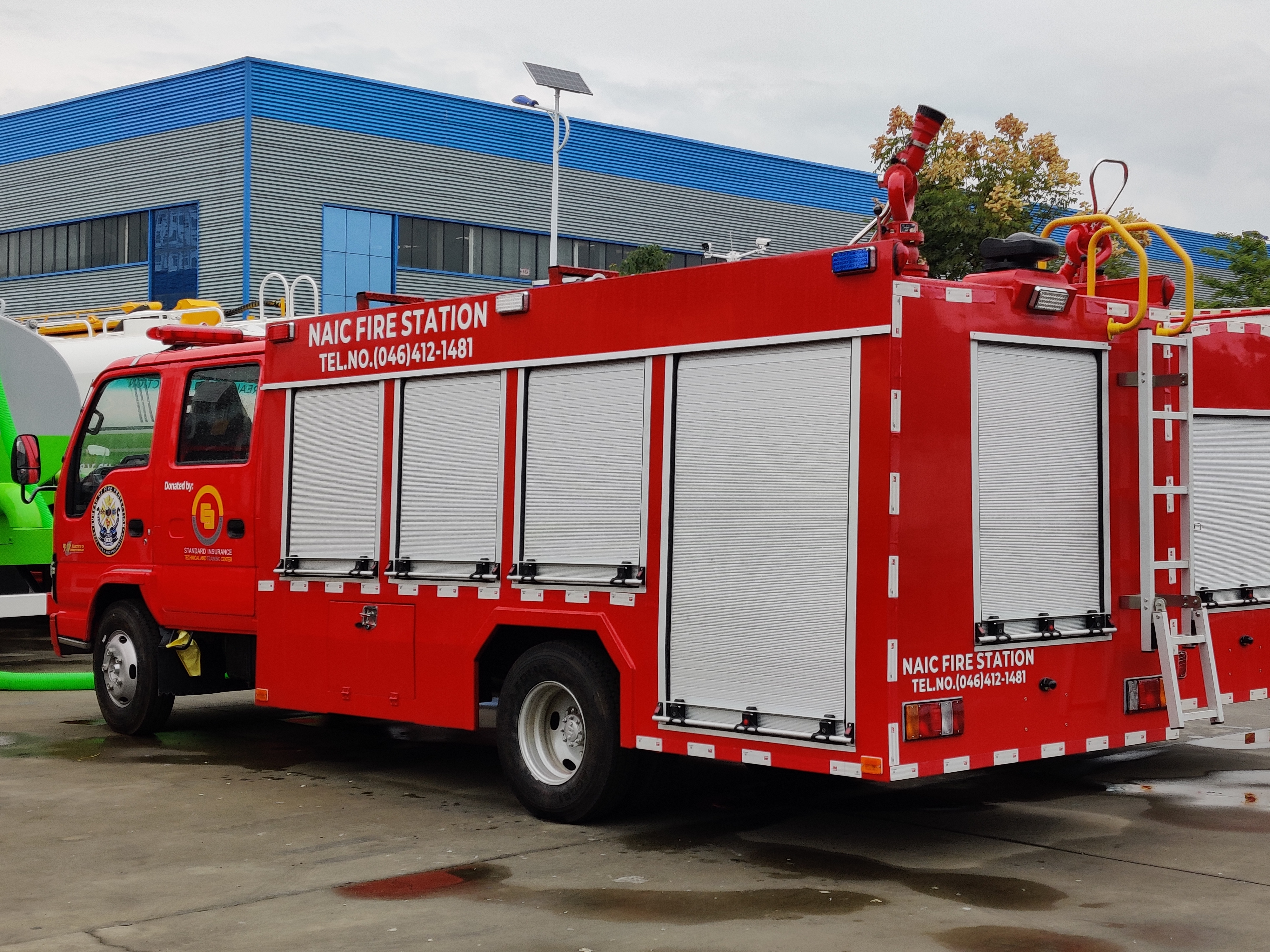

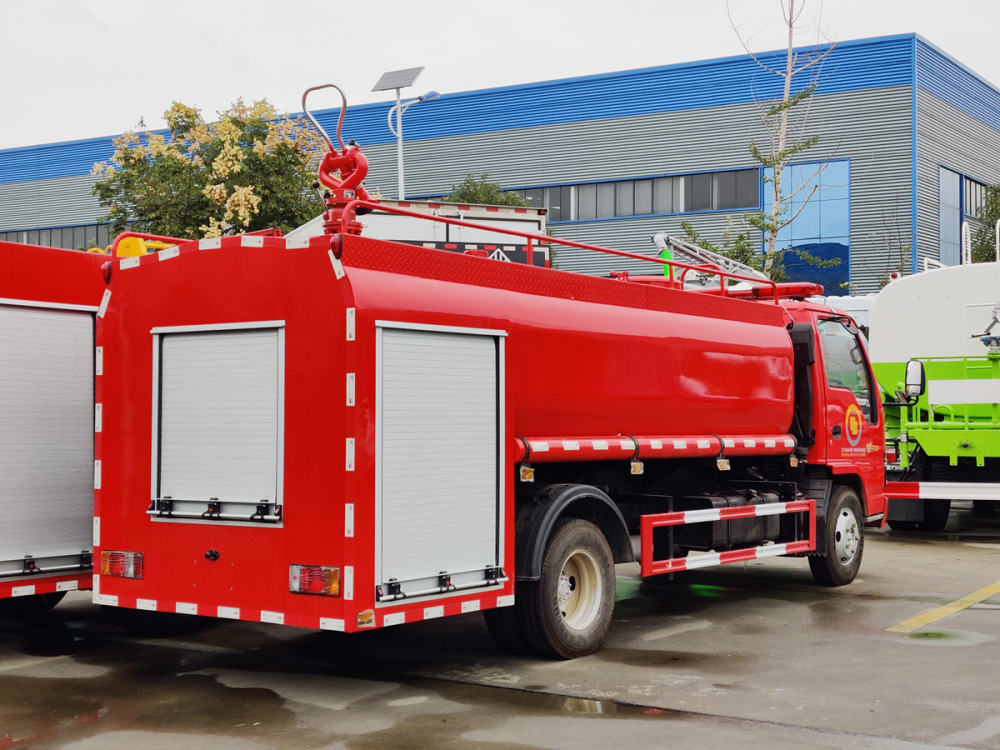

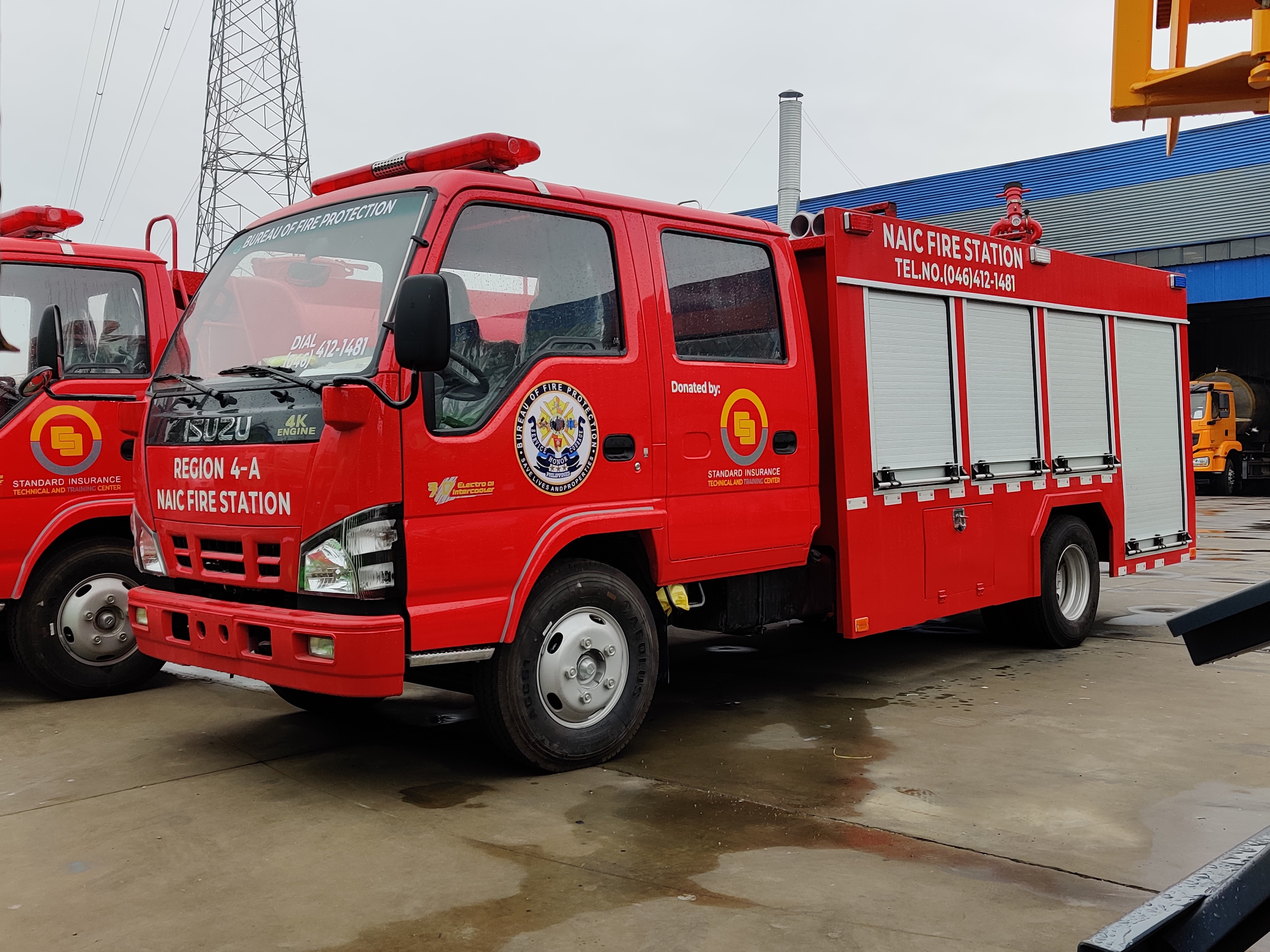

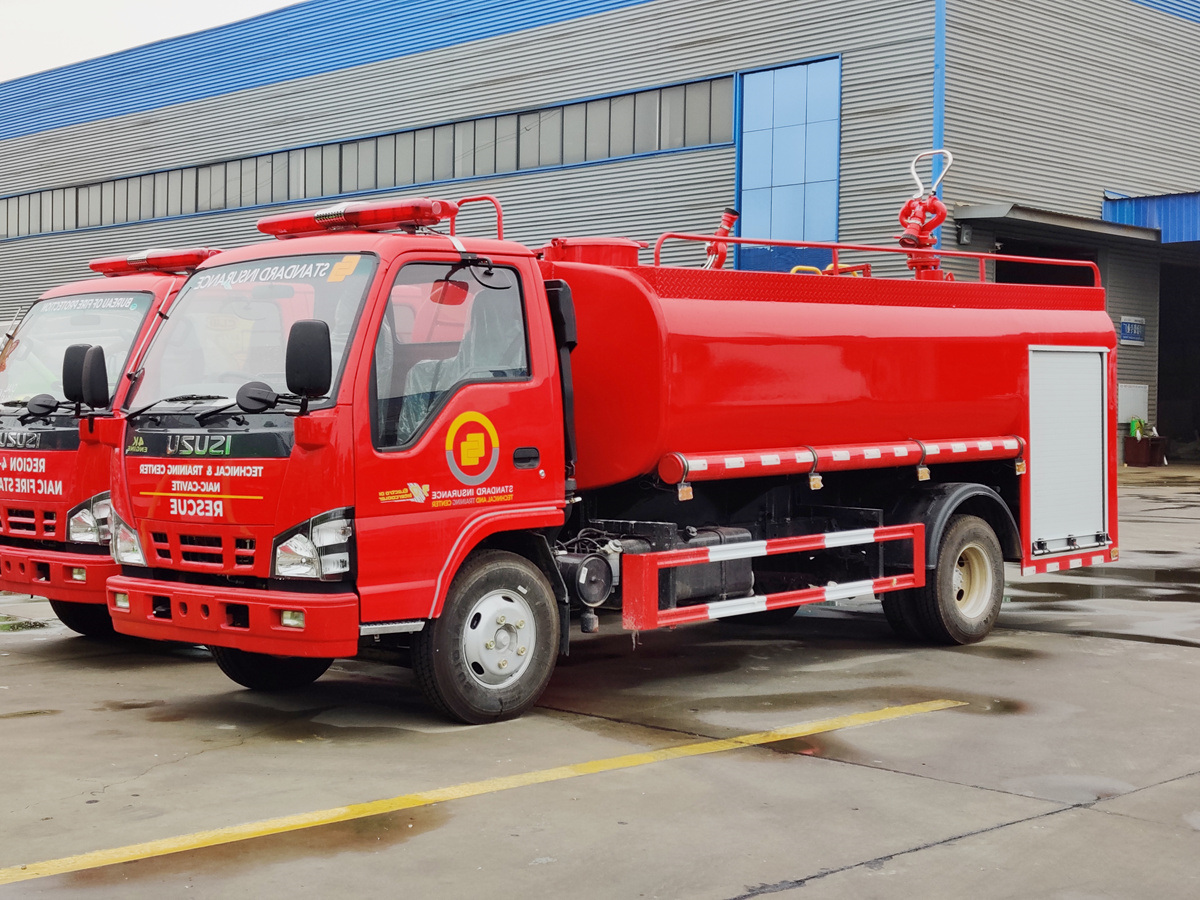

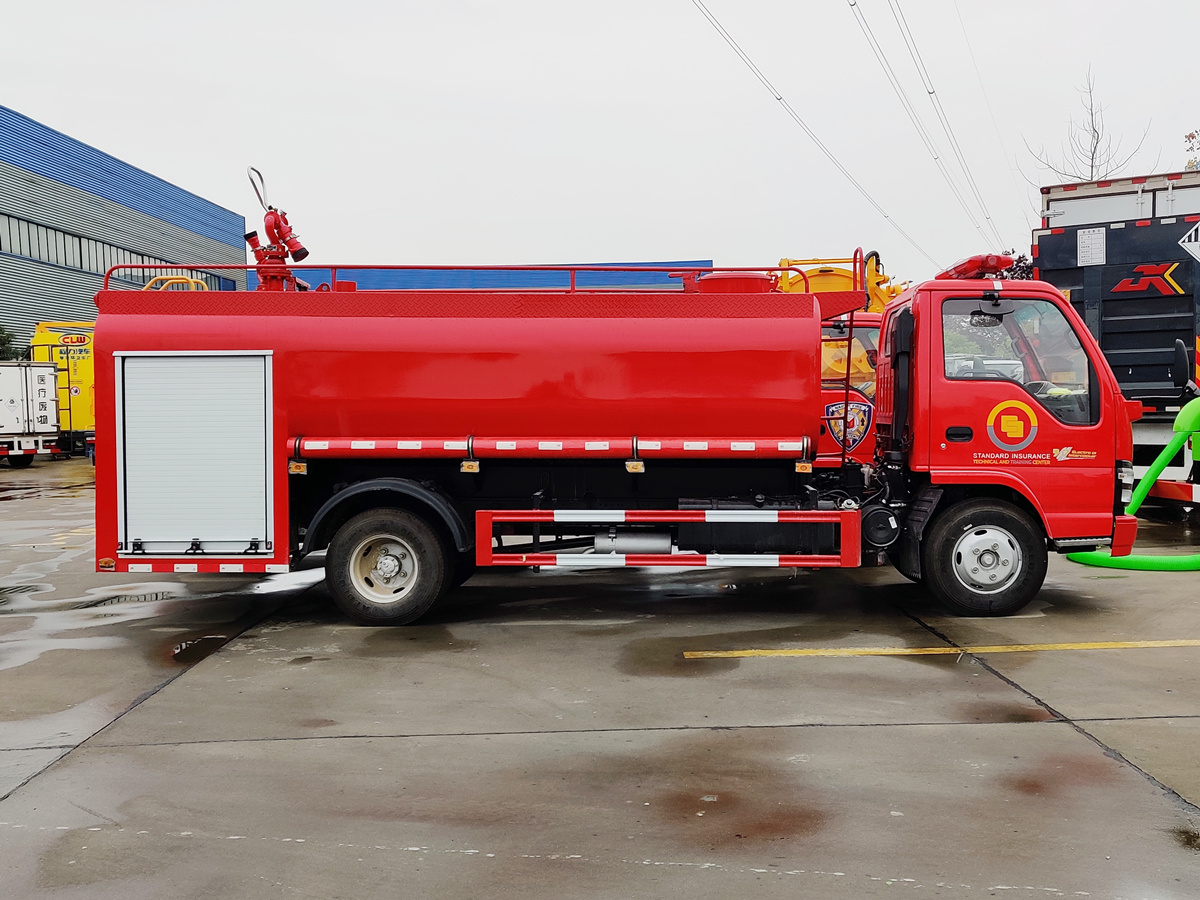

The Philippines NAIC FIRE STATION water tender Isuzu , this Isuzu water fire engine Donated by Standard Insurance is designed for various firefighting and disaster response applications. It is used in residential areas, commercial buildings, industrial sites, and natural disasters such as typhoons and earthquakes. It plays a critical role in ensuring public safety and protecting properties during emergency situations.
Work capacity:
4000LTruck model:
PT5085GXFEngine power:
130 HPEngine type:
Isuzu 4KH1Axle drive:
4x2Gear box:
Isuzu MSB5SRemarks:
Large capacity, Lower priceThe Philippines water tender Isuzu for NAIC FIRE STATION, this Isuzu water fire engine Donated by Standard Insurance company, aodpt Isuzu NKR 600P truck chassis cabin, special for fire fighting applicaiton, is a specialized vehicle designed for firefighting and disaster response operations. This Isuzu chassis water tender is equipped with a large water tank and advanced pumping systems, making it an essential tool for fire departments and emergency response teams. It is customized to meet the specific needs of firefighting operations in the Philippines, ensuring a quick and efficient response to fire emergencies and other disasters.
2. Features:
- Large Water Tank: The Isuzu water tender is equipped with a sizable water tank, allowing it to carry a significant amount of water for firefighting purposes.
- High-Power Pump System: It is equipped with a powerful pump system capable of delivering water at high pressure, ensuring effective fire suppression and water distribution.
- Multiple Discharge Ports: The water tender comes with multiple discharge ports and specialized nozzles, allowing for versatile water deployment in different firefighting scenarios.
- Foam Firefighting Capability: In addition to water, the water tender is equipped with foam firefighting capabilities, enabling it to combat flammable liquid and chemical fires effectively.
- Durability: The Isuzu water tender is built with robust materials and a sturdy chassis, ensuring its durability and ability to withstand demanding firefighting and disaster response operations.
- Enhanced Safety Features: The vehicle is equipped with safety features such as powerful lighting systems, sirens, and communication devices to ensure the safety of the crew during emergency operations.
3. Advantages:
- Rapid Response: The Isuzu water tender enables a swift response to fire emergencies and other disaster situations, ensuring timely action and minimizing potential damage.
- Efficient Fire Suppression: With its high-power pump system and multiple discharge ports, this water tender provides efficient fire suppression capabilities, covering a wide range of firefighting scenarios.
- Enhanced Versatility: The water tender's foam firefighting capability extends its versatility, allowing it to combat different types of fires, including flammable liquid and chemical fires.
- Excellent Maneuverability: This vehicle is designed for easy maneuvering, enabling it to navigate through narrow streets or challenging terrains in the Philippines, ensuring quick and effective firefighting responses.
4. Application:
The Philippines water tender Isuzu is designed for various firefighting and disaster response applications. It is used in residential areas, commercial buildings, industrial sites, and natural disasters such as typhoons and earthquakes. It plays a critical role in ensuring public safety and protecting properties during emergency situations.
parameters of the fire fighting truck Isuzu
| ISUZU NKR 4x2 130hp 4000 liters water tanker fire fighting truck parameters | ||||||
| Chassis | ||||||
| Cabin | Brand: ISUZU Powerstar Trucks | |||||
| NKR, 4x2 left hand drive, | ||||||
| with air conditioner, 2 seats, with USB,radio, loud speaker | ||||||
Vehicle Main Dimensions |
Overall dimensions (L x W x H) mm: 9200*2330*2780 mm | |||||
| Wheel base: 3815 (mm) | ||||||
| Overhang (front/rear): 1335/2665(mm) | ||||||
| Approach angle: 26° | ||||||
| Departure angle: 16° | ||||||
| Weight in KGS | Curb Weight:4805 kg | |||||
| Payload: 5tons | ||||||
| Max. driving speed(km/h) | 90 | |||||
Engine |
Brand | ISUZU | ||||
| Model | 4KH1-TCG40, EURO IV | |||||
| Emission | 3000 ml | |||||
| Horse power | 130HP | |||||
| PowerType | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||||
| Gearbox | ISUZU MSB5, 5 Forwards gear & 1 reverse gear | |||||
| Tire | 7.00R16, 6 pcs+1 spare tire | |||||
| Axle | Front axles 4T, rear axle 5t | |||||
| Brake | Air brake | |||||
| Upper parameters | ||||||
| Water tank volume | 4000 liters | |||||
| Manhole in the tank | DN450 | |||||
| Thickness | 5mm | |||||
| Material | Carbon steel and high tensile steel | |||||
| Standard configuration of the tank | Equipped with front, side and Sprinkler (Sprinkling width>14m) Equipped with fire fighting pump pump (Suction lift >6m) Equipped with fire valve, water valve, and filter gauze. Equipped with water cannon. rubber padding between tanker and chassis Equipped with water pump Equipped with fire brigade system, fire gun on top, (Sprinkling width>60m) |
|||||
| fire fighting pump | ||||||
| Type of pump | Centrifugal pump | |||||
| Minimum fire fighting pump flow | 40L/S | |||||
| Minimum pressure | 1.0Mpa | |||||
| Flow (L/S) | Outlet pressure(Mpa) | Rated speed(r/min) |
Crank power (kw) | Suction depth(m) | ||
| 40 | 1 | 3080±50 | 62.92 | 3 | ||
| 28 | 1.3 | 3360±50 | 63.92 | 3 | ||
| 20 | 1 | 2990±50 | 41.95 | 7 | ||
| Fir fighting fixed water cannon in the top of truck | ||||||
| Diameter (mm) | φ100 | |||||
| Flow (L/min) | 40L/min | |||||
| Max range (m) | ≥ 65m | |||||
| Working pressure(Mpa) | ≤0.7 MPa | |||||
| Vertical rotation angle( degree) | -30~70 | |||||
| Horizontal rotation angle (degree) | 360 | |||||
| Size(mm) | 1000*340*600 | |||||
| Weight (kg) | ≤ 50 | |||||
| Pipe system | ||||||
| Pipe Line inlet | 2 inlet, φ125 inlet in the pump(our standard is 1 inlet) | |||||
| Pipe Line outlet | 2 outlet, φ65, in the back of pump | |||||
| Spraying water pump | ||||||
| Function | Control the front ,side and rear sprinkler | |||||
| Flow | 60m3/h | |||||
| Pump head | 90m | |||||
| Self-suction height | 6.5m | |||||
| Suction time | 1.5 (min/4m) | |||||

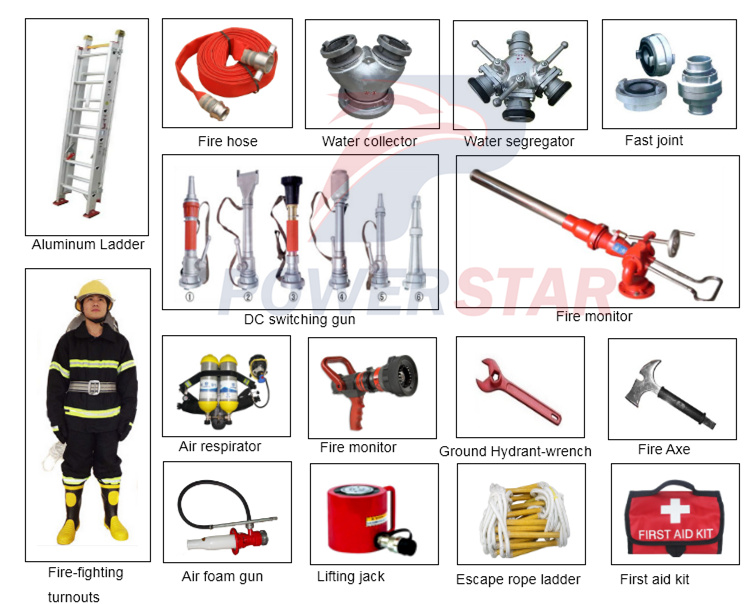

| Equipment | ||||||
| Fire electine siren | 1 Nos | |||||
| Emergency rotation lamp | 1-Nos | |||||
| Fire axe | 1-Nos | |||||
| Fire hook | 1-Nos(must be applied to climb) | |||||
| Fireman ladder(extension ladder ) | 1-Nos | |||||
| Jet&spray nozzle | 1-Nos | |||||
| Jet nozzle | 1-Nos | |||||
| Fire hoses(b/s system)(65mm, 20m) | 4-Nos | |||||
| Suction pipe (length 4m ) | 2-Nos | |||||
| Water filter(φ100,metal) and guide rope | 2-Nos | |||||
| Suction pipe wrench (100mm) | 2-Nos | |||||
| Fire hydrant wrench | 2-Nos | |||||
| Fire extinguisher(3kg) | 2-Nos | |||||
5. After-sales Service:
We provide comprehensive after-sales service and support for the Philippines water tender Isuzu. Our dedicated team of technicians is available for maintenance, repairs, and technical assistance whenever required. We prioritize customer satisfaction and strive to ensure that the water tender operates at peak performance to meet the demands of firefighting and disaster response operations.
6. FAQ:
- Can the water tender be customized with additional specialized equipment or tools?
Yes, the water tender can be customized according to specific requirements. Additional equipment such as breathing apparatus, rescue tools, or specialized compartments can be added based on the customer's needs.
- What is the water tender's capacity?
The water tender is available in various capacities, ranging from X gallons to Y gallons. Please contact our sales team to discuss the capacity options suitable for your requirements.
- Does the Isuzu water tender comply with safety standards and regulations?
Yes, the Isuzu water tender complies with national and international safety standards and regulations for firefighting and emergency response vehicles.
- How long is the warranty period for the water tender?
The warranty period for the water tender is subject to the manufacturer's terms and conditions. Please contact our sales team for specific warranty details.
 |
 |
 |
 |
7. Upper Body Customization:
We offer flexibility in upper body customization, allowing customers to design and configure the water tender according to their specific needs. This includes the layout of compartments, storage areas, specialized equipment placement, and additional safety features.
8. Truck Chassis Choice:
The Isuzu water tender can be mounted onto various Isuzu truck chassis options based on the desired load capacity, maneuverability, and off-road capabilities. Our range of chassis choices ensures that customers can select the most suitable base for their firefighting and disaster response operations.
