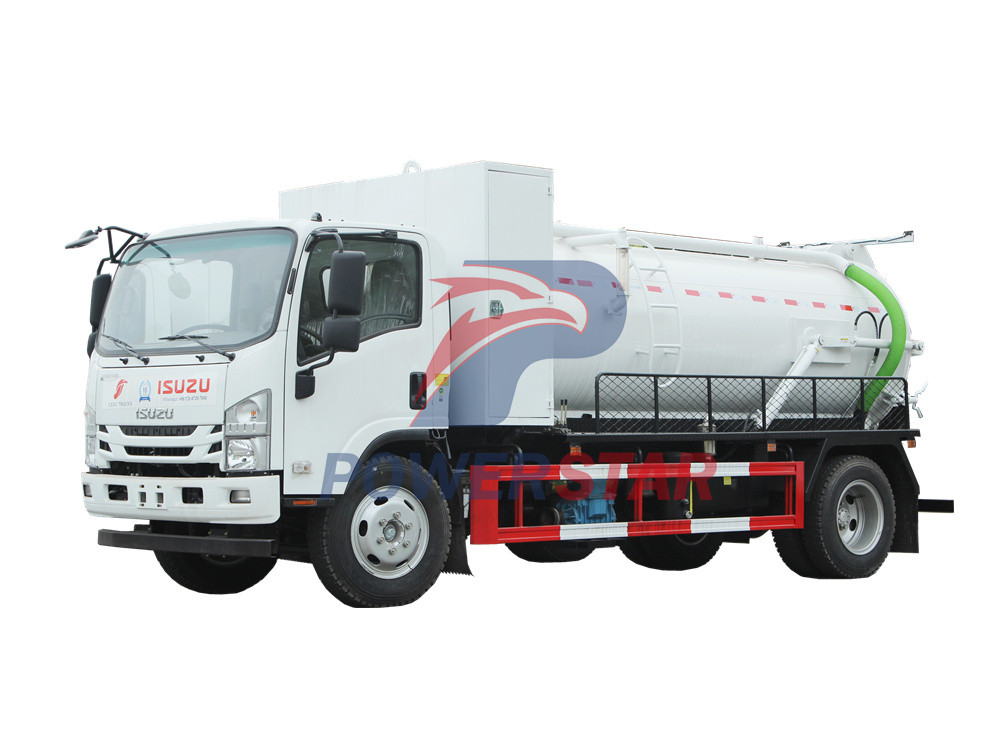

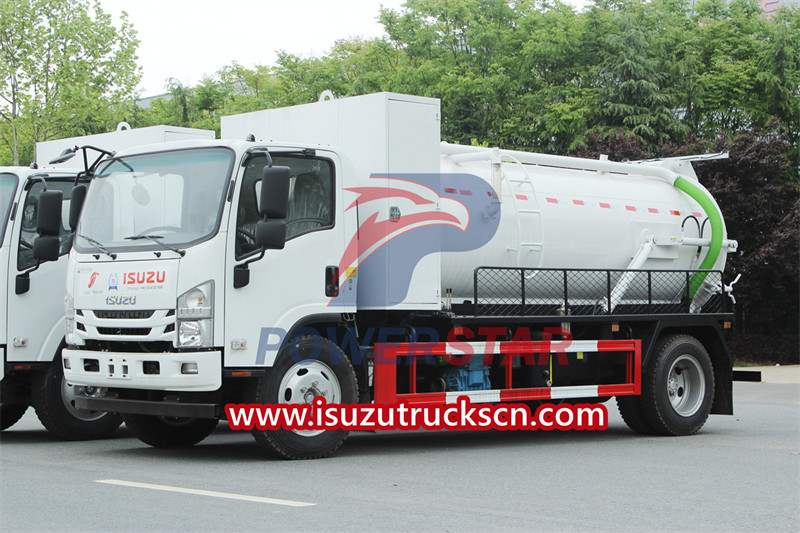

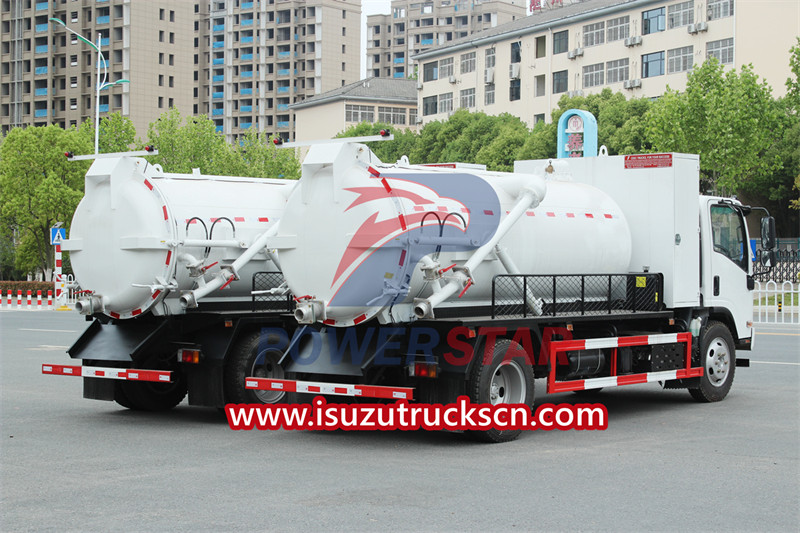

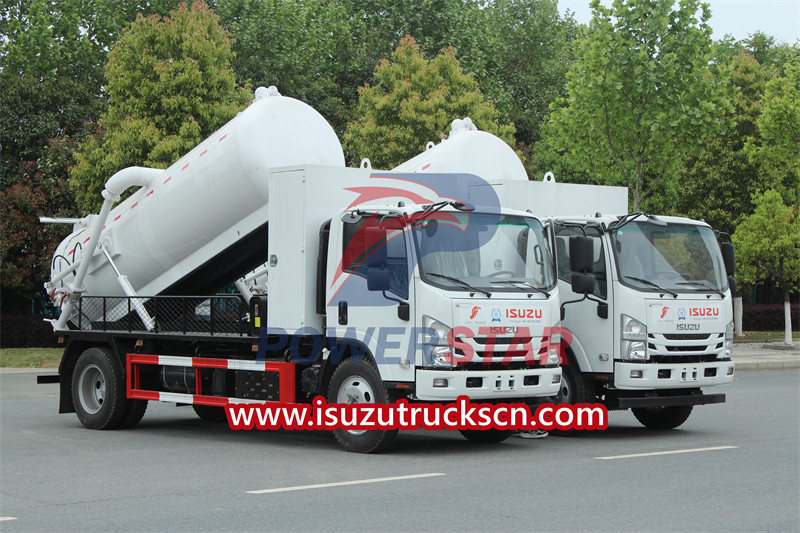

Isuzu sewage trucks are widely used in various places where sludge, sewage and liquid waste mixed with suspended debris need to be cleaned and transferred. The trucks can be seen in the fields of sanitation, municipal administration, chemical industry, factories and mines, real estate communities and other fields in large, medium and small towns. The vehicle can not only efficiently handle various types of waste, but can also be equipped with different performance sewage suction and purification equipment according to actual needs, greatly improving the treatment efficiency.
Work capacity:
6000 LTruck model:
PT5060GXWEngine power:
190 HPEngine type:
4HK1-TC51Axle drive:
4×2Gear box:
MLD 6-speed manualRemarks:

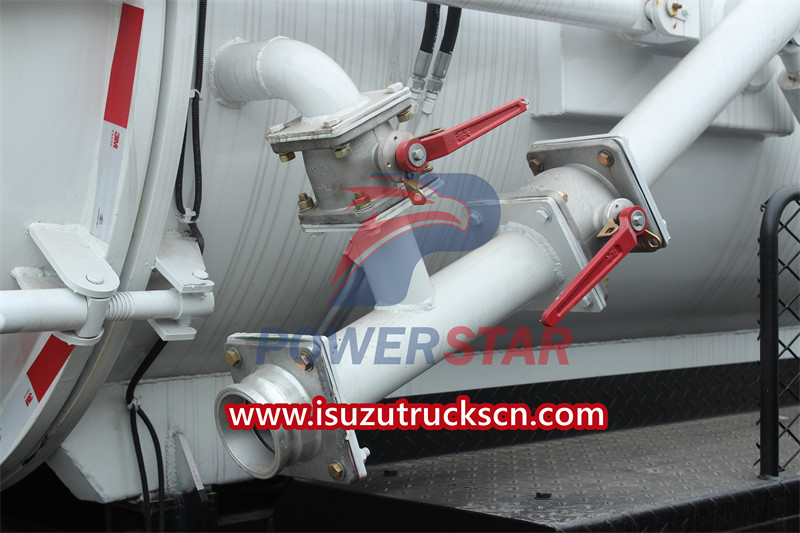

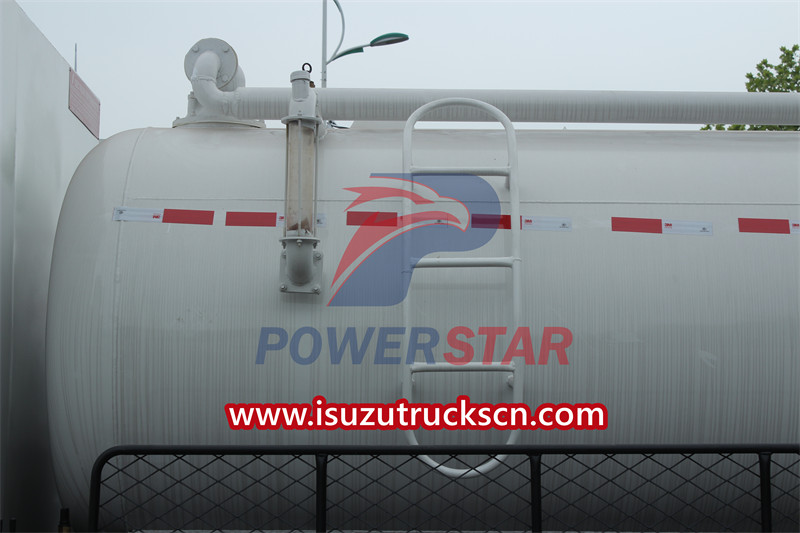

Italy MORO PM70A vacuum pump, customized designThe media that ISUZU vacuum tank trucks can suck mainly include sewage, sludge, waste water mixed with suspended debris, small bricks, gravel, etc. These substances are usually produced in municipalities, chemical industries, factories and mines, property communities and other places, and need to be collected and transported by professional sanitation vehicles to avoid secondary pollution and environmental sanitation problems. ISUZU sewage tank trucks are equipped with special power take-offs, transmission shafts, vacuum pumps, water and gas separators, multi-way valves, view windows, vacuum pressure gauges, pipe network systems and other components to achieve efficient suction. With the characteristics of suction, self-priming and self-discharge, it can effectively collect and transport these substances to maintain environmental sanitation and public health safety.

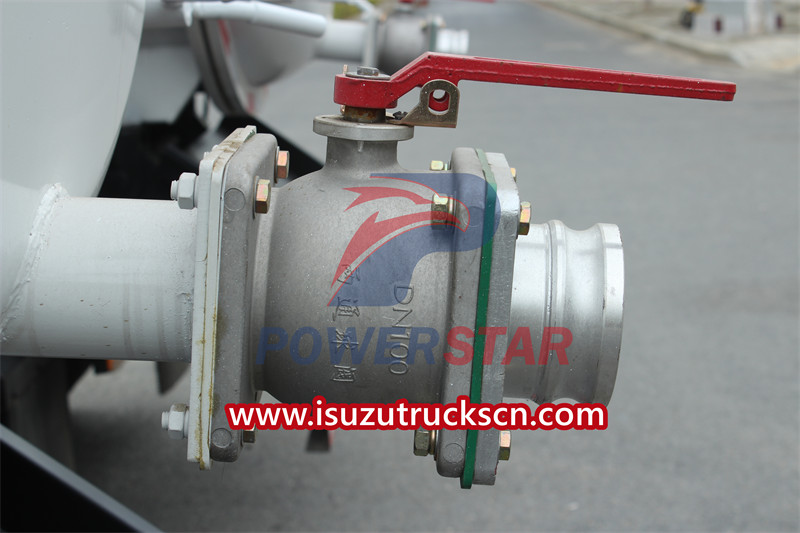

Isuzu sewage suction trucks realize self-priming and self-discharging through the principle of vacuum. Specifically, when the sewage suction pipe is immersed in the liquid level, the air in the tank of the sewage suction truck is sucked, causing the pressure inside the tank to be lower than atmospheric pressure. Under the action of atmospheric pressure, liquid dirt enters the tank. In addition, Isuzu sewage suction trucks are also equipped with high-quality sewage suction pipes and ball valves to ensure sealing during the sewage suction and discharge processes. These features enable ISUZU septic suction trucks to quickly and efficiently clean and transport various wastes, improve work efficiency and reduce labor intensity.
Product Specifications
|
Product name |
Sewage suction truck |
|

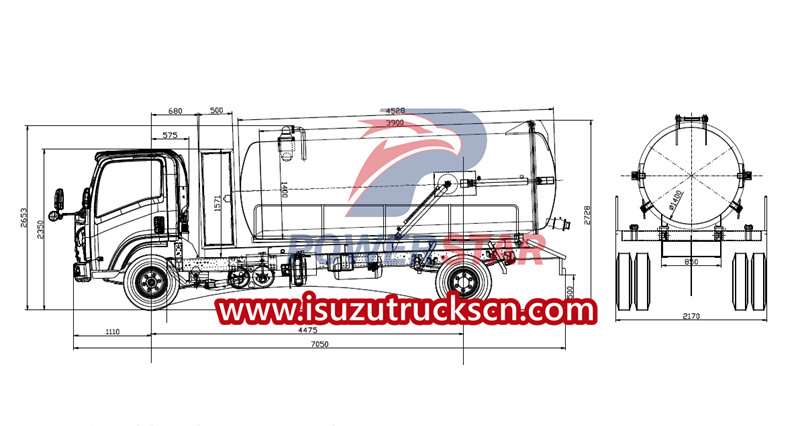

Dimension |
6800×2200×2500 mm |
|
Total weight |
11000 kg |
|
Curb weight |
5800 kg |
|
Loading capacity |
6000 kg |
|
Wheelbase |
4175 mm |
|
Chassis brand |
ISUZU |
|
Cabin |
Single cab, 3 seats, with A/C |
|
Tire |
235/75R17.5 |
|
Number of tires |
6+1 pcs |
|
Engine model |
4HK1-TC51 |
|
Fuel type |
Diesel |
|
Displacement |
5193 cc |
|
Engine power |
140 kw/ 190 hp |
|
Engine rated speed |
2600 rpm |
|
Max. torque |
510 N.m |
|
Vacuum tank capacity |
6000 L |
|
Tank material |
Carbon steel, 6mm thick |
|
Suction depth |
7 m |
|

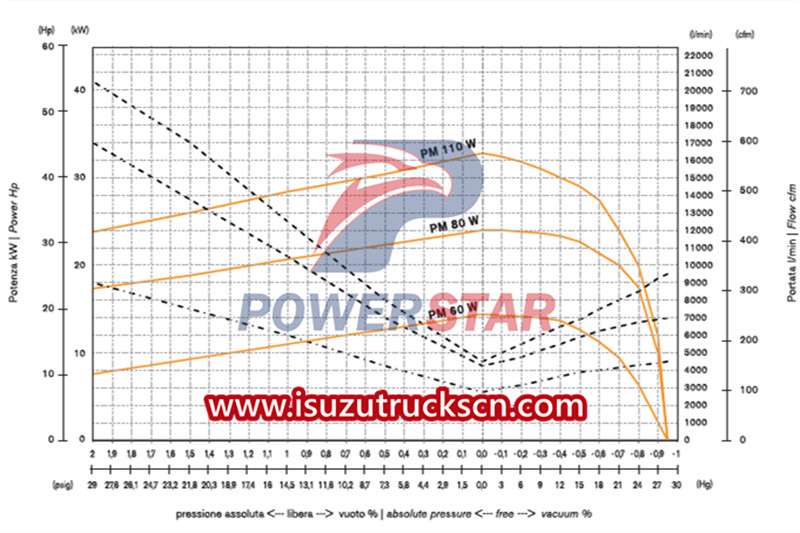

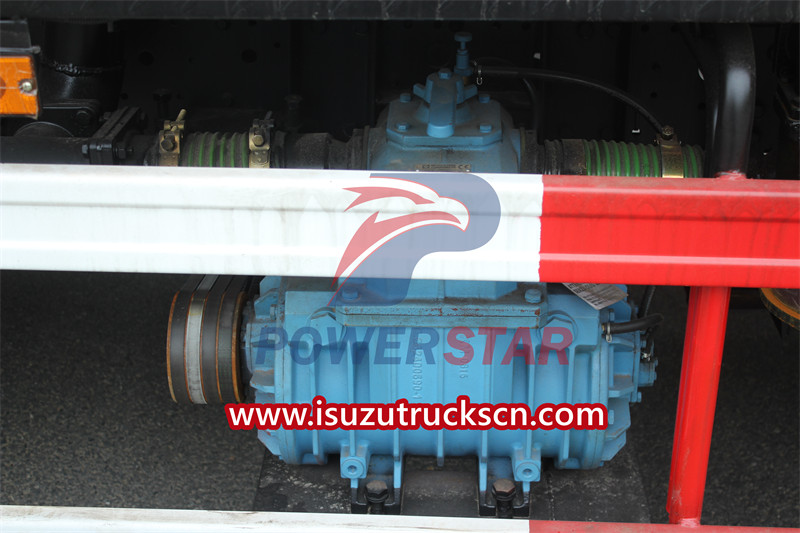

Vacuum pump |
MORO PM70A |
|
Free air flow |
564 m3/h |
|
Max. vacuum |
95% |
|
Max. speed |
1400 rpm |
|
Standard configurations |

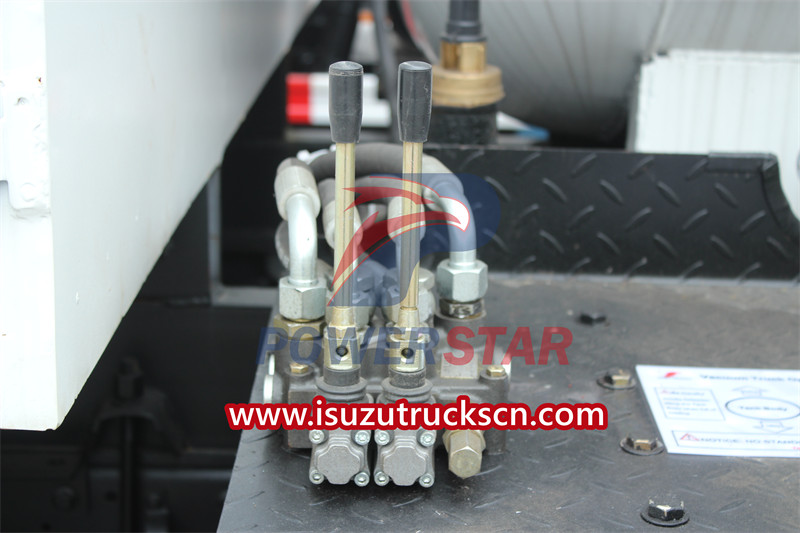

Including power take-off, transmission shaft, vacuum pump, vacuum tank, multiple directional valve, suspender, discharge valves, pipe network system, vacuum pressure gauge, view window, and hand washing device. |
Product advantages:
1. Customized design: ISUZU sewage suction truck can be customized according to the needs of different users. Users can choose different configurations and functions according to their actual application scenarios, such as different sewage suction capacities, tank volumes, vacuum pump brands, etc., to meet specific needs.
2. Efficient and stable: Equipped with MORO vacuum pump, which has efficient and stable performance and can meet the needs of various users. Whether it is sewer cleaning in urban areas or sewage treatment in rural areas, MORO vacuum pumps can provide reliable sewage suction capabilities to ensure the smooth progress of the operation.
3. Convenient maintenance: MORO vacuum pump is easy to maintain and maintain, reducing users’ operating costs. Users can easily perform daily inspections, cleaning and replacement of wearing parts to ensure long-term stable operation of the equipment.
4. Energy conservation and environmental protection: ISUZU septic pump trucks have low energy consumption and emissions during sewage suction operations, meeting the requirements of energy conservation and environmental protection. Users can reduce operating costs while contributing to environmental protection.
5. Safe and reliable: ISUZU vacuum pumper trucks are equipped with multiple safety protection devices to ensure safe and reliable operation. Users can use it with confidence and reduce security risks.
6. Humanized design: The truck adopts humanized design, making the operation easy and intuitive. Users can operate it skillfully after simple training, which improves work efficiency and user experience.
