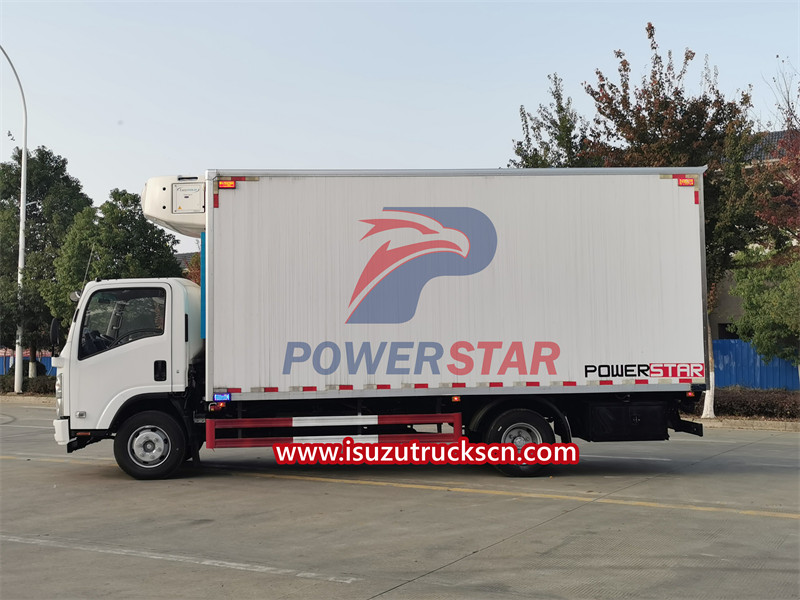

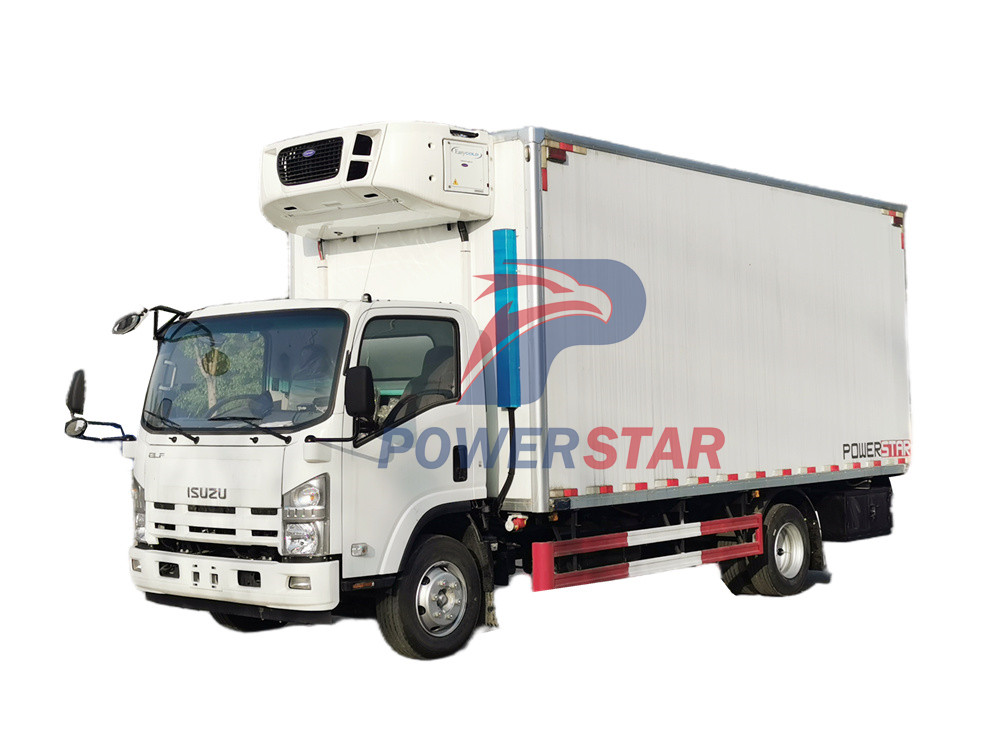

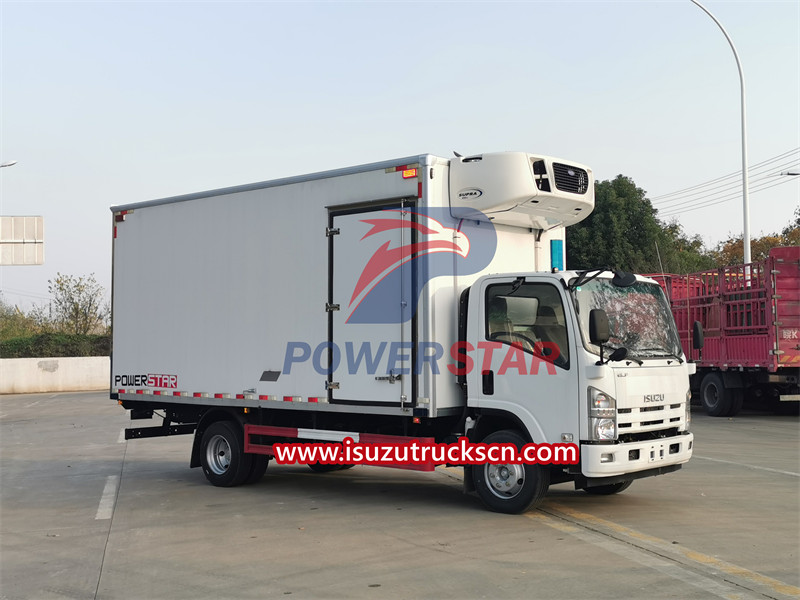

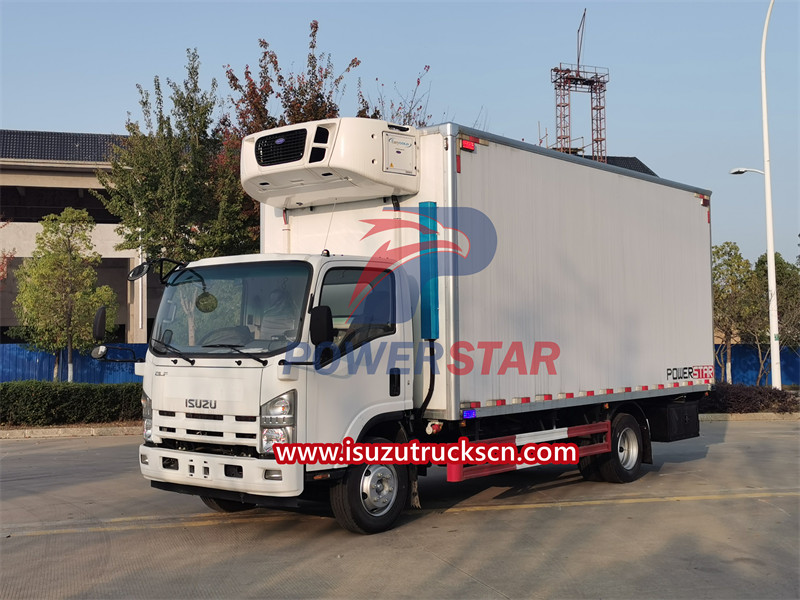

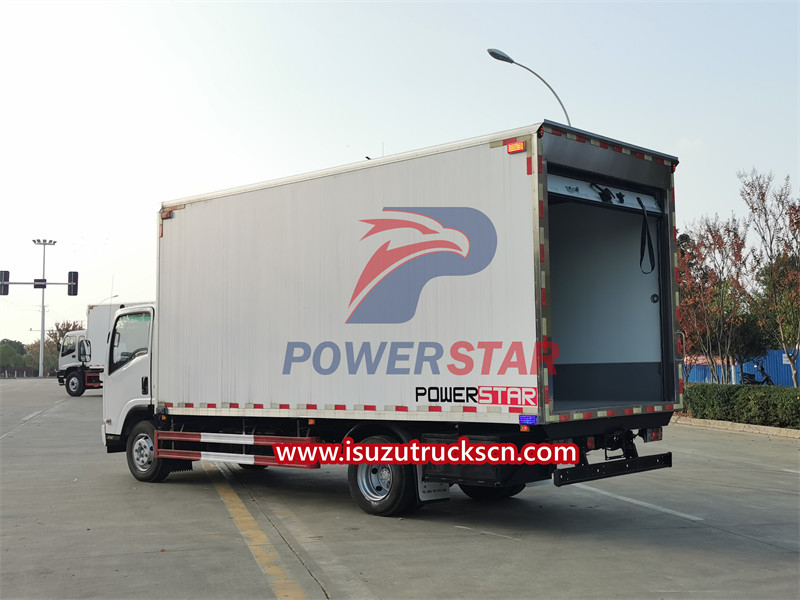

ISUZU refrigerated box truck is mainly composed of the Isuzu NPR chassis, thermal insulation van, Carrier Supra 850+ cooling device, temperature recorder, etc. According to different needs, customers can choose meat hooks, aluminum alloy rails, ventilation channels and other devices.
Work capacity:
8 tonsTruck model:
PT5110GLC8Engine power:
190 HPEngine type:
4HK1-TC51Axle drive:
4×2Gear box:
MLD 6-speed manualRemarks:

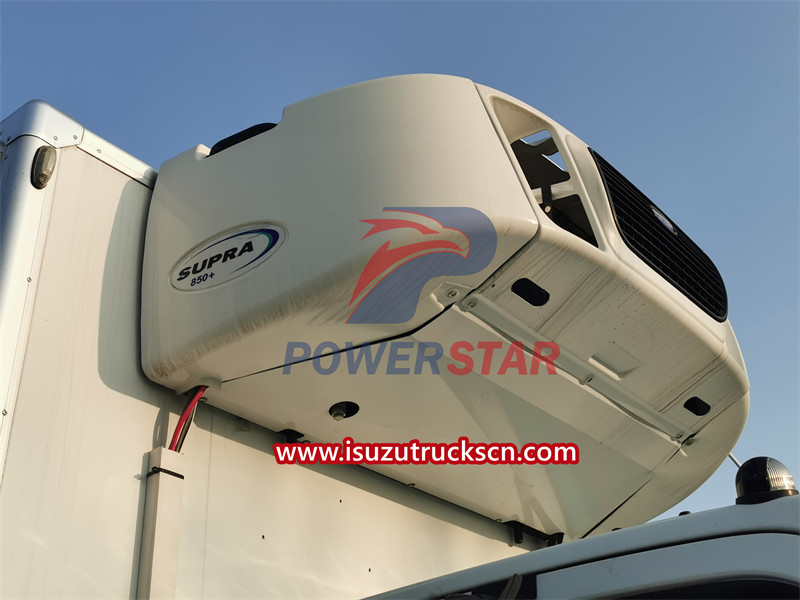

Carrier Supra 850 refrigeration unit, independent compartment
As an important part of the cold chain logistics, Isuzu refrigerated box truck is a key factor in ensuring food safety, drug safety, and product quality. As consumers' attention to food and drug safety continues to increase, the importance of cold chain logistics is increasingly prominent. The Isuzu refrigerator truck plays a vital role in this process. They can provide a constant low temperature environment and ensure that the product is not damaged during transportation.

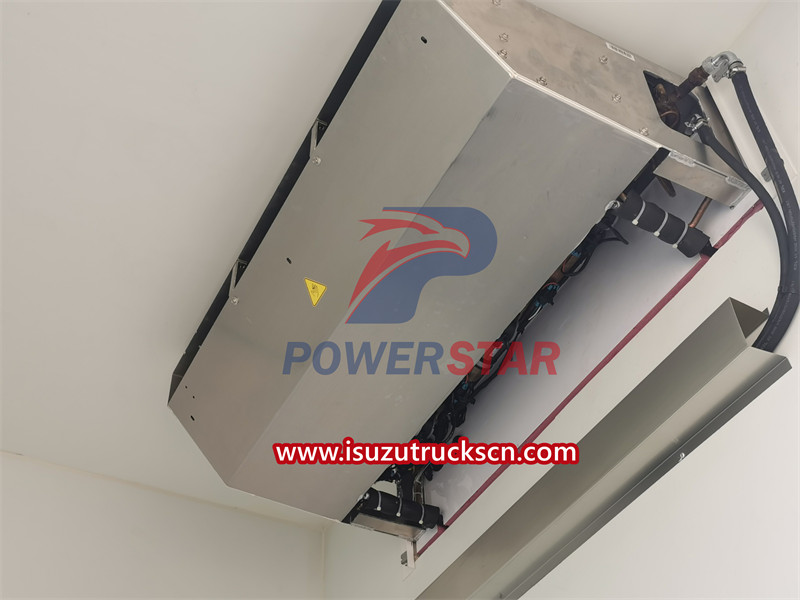

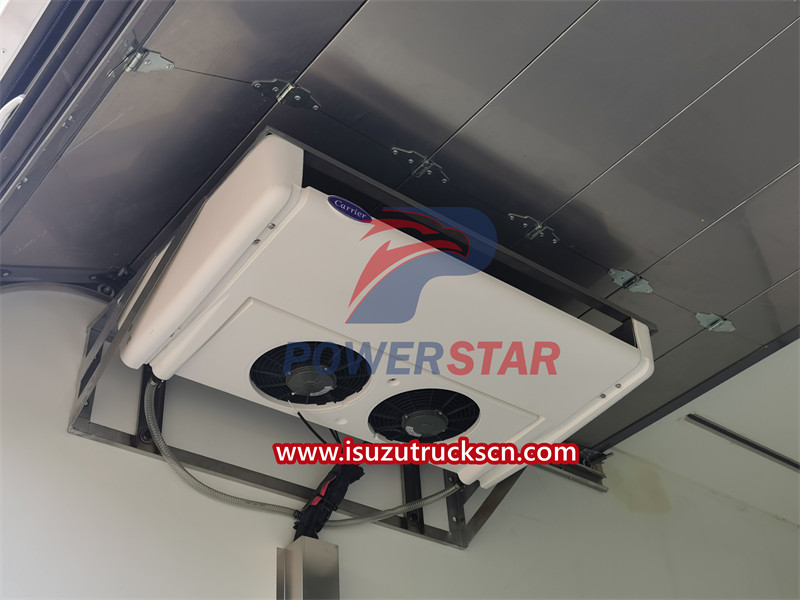

The core of the Isuzu freezer truck is the refrigeration system, which can maintain the temperature inside the car within the range. This system usually includes refrigeration units, temperature control systems and ventilation equipment. In order to ensure the quality and safety of the product, the temperature of the refrigerator needs to be monitored in real time, and it can quickly respond to environmental changes. In addition, the Isuzu freezer truck has a good sealing and solid structure to prevent the external environment from affecting the temperature in the freezer van.
In the food and pharmaceutical industry, the ISUZU reefer truck is widely used in the transportation of agricultural and sideline products, dairy products, meat, fruits and vegetables. These products need to be stored and transported within a certain temperature range to maintain their freshness and quality. In addition, some vaccines and biological products also need specific temperature conditions to save and transport. Therefore, choosing a high -quality ISUZU refrigerated truck is essential for these industries.
Product Parameters
|
Chassis Description |
|
|
Cab |
Single cab with power steering, ABS, A/C |
|
Color |
Optional |
|
Allowable person in cab |
3 |
|
Wheel base (mm) |
4475 |
|
Number of axles |
2 |
|
Front axle |
4000 |
|
Rear axle |
7000 |
|
Traction system |
4×2 |
|
Tire specification |
235/75R17.5 |
|
Tire quantity |
6+1 |
|
Engine Description |
|
|
Fuel Type |
Diesel |
|
Engine model |
4HK1-TC51 |
|
Emission standard |
Euro 5 |
|
Displacement |
5193ml |
|
Horse power |
190hp |
|
Upper Body Description |
|
|
Van box dimension(mm) |
5600×2200×2200 |
|
Material of van box |
Glass fiber reinforced plastics |
|
Insulation thickness(mm) |
80 |
|
Refrigeration unit |
CARRIER Supra 850+ |
|
Type |
Independent unit |
|
Temperature setting range |
-25ºC-+30ºC |
|
Refrigerant Type |
R404A |
|
Refrigerant Filling quantity (kg) |
6.8 |
|
Compressor Model |
05K4 |
|
Air volume (m3/h) |
2500 |
Product Advantages
Light weight: The glass fiber reinforcement and polyurethane insulation layers covered by the inside and outside of the Isuzu refrigerated truck are all lightweight materials;
High intensity: ISUZU refrigerated van is made of full-plastic, full-closed compound plate; each plate connection uses high-strength special glue and bolts, and the overall body has extremely high strength.
Good insulation: Use hard polyurethane foam as the insulation material. The stability of the insulation material is high, the secondary maturity is not produced inside the trunk, and the van body will not deform.
Well sealing: Use ternary ethanol rubber multi -sealing claw sealing to ensure the vitality and waterproofness of the body.

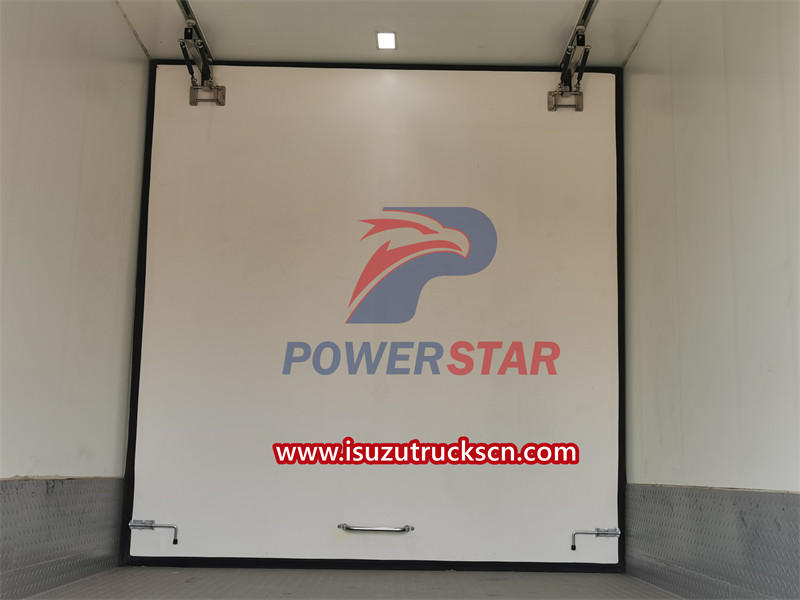

Multifunction: We can configure special attachments related to user needs, such as configuration temperature monitoring devices and GPS satellite positioning management systems, cargo fixing devices, cargo suspension devices, inside of the cabin, insulation curtain, multi -cabin separation door and other accessories.
What is the role of Isuzu freezer in cold chain logistics?
Isuzu freezer truck plays a vital role in the cold chain logistics.
1.Isuzu refrigerated vehicle can provide a constant low temperature environment, which is essential for storage and transportation that requires low -temperature preservation. In terms of food, such as fresh vegetables, fruits, meat, dairy products, etc., they need to be stored and transported at low temperature to maintain their freshness and quality. In terms of drugs, some vaccines, biological products, etc. need to be stored and transported under specific temperature conditions to ensure their efficacy and safety.
2.Isuzu refrigerated truck can reduce the loss and extend the shelf life. In the transportation process of food and medicines, due to temperature fluctuations and exposure to high temperature environments, it is easy to lead to deterioration and loss of items. The use of refrigerated trucks can ensure that the items are always in a stable low temperature environment, thereby extending the shelf life and reducing losses.
3.Isuzu freezer truck also has the effect of ensuring food safety. During the transportation of food, if the temperature is not controlled properly, it will cause bacteria to breed and threaten food safety. The use of Isuzu refrigerated trucks can ensure that food is always in a low temperature during transportation, inhibit the growth of bacteria, and ensure food safety.
